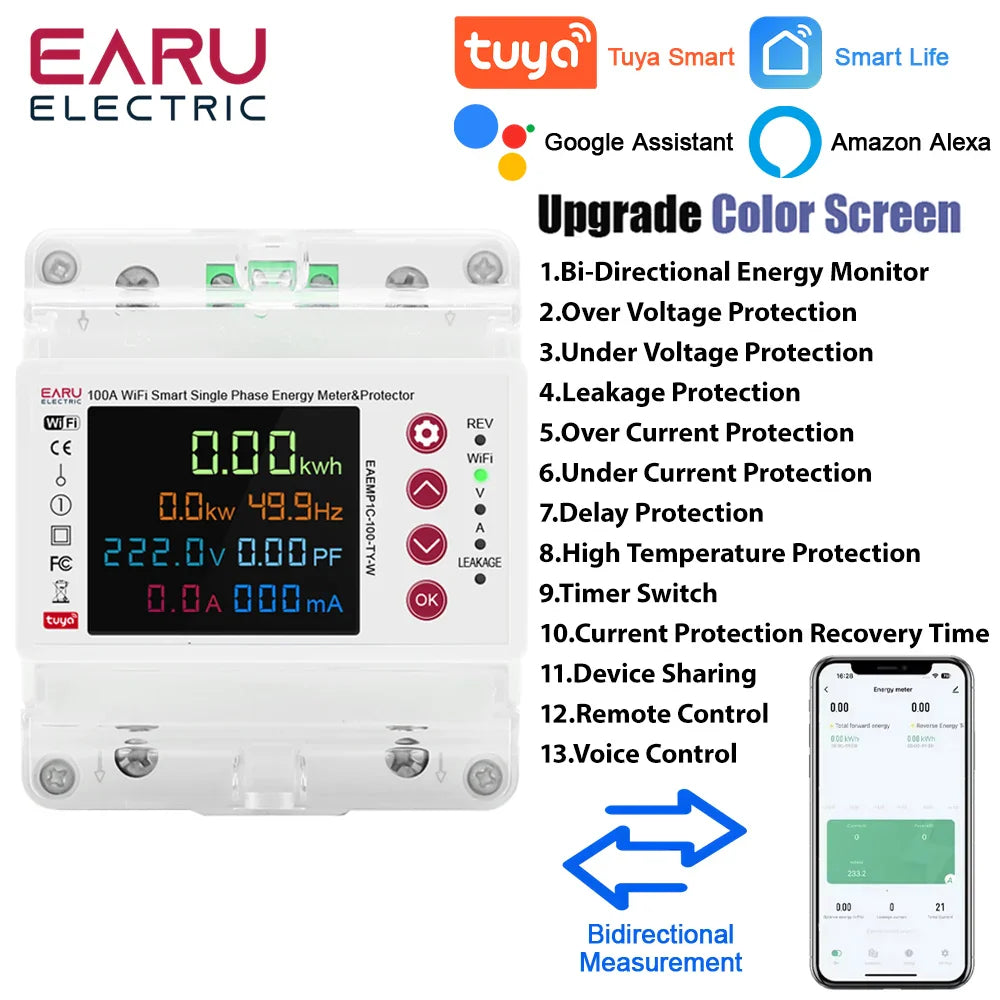

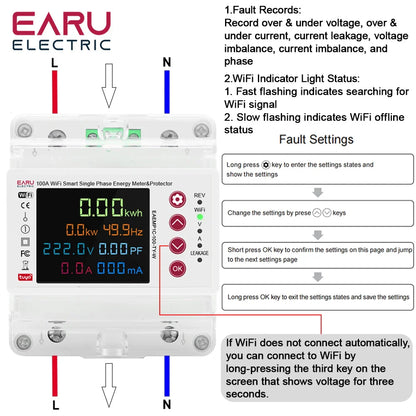

⚡ Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Current

Discover the Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Current — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: 1%

Battery Included: No

Certification: CE,FCC,RoHS,KC

Choice: yes

DIY Supplies: Electrical

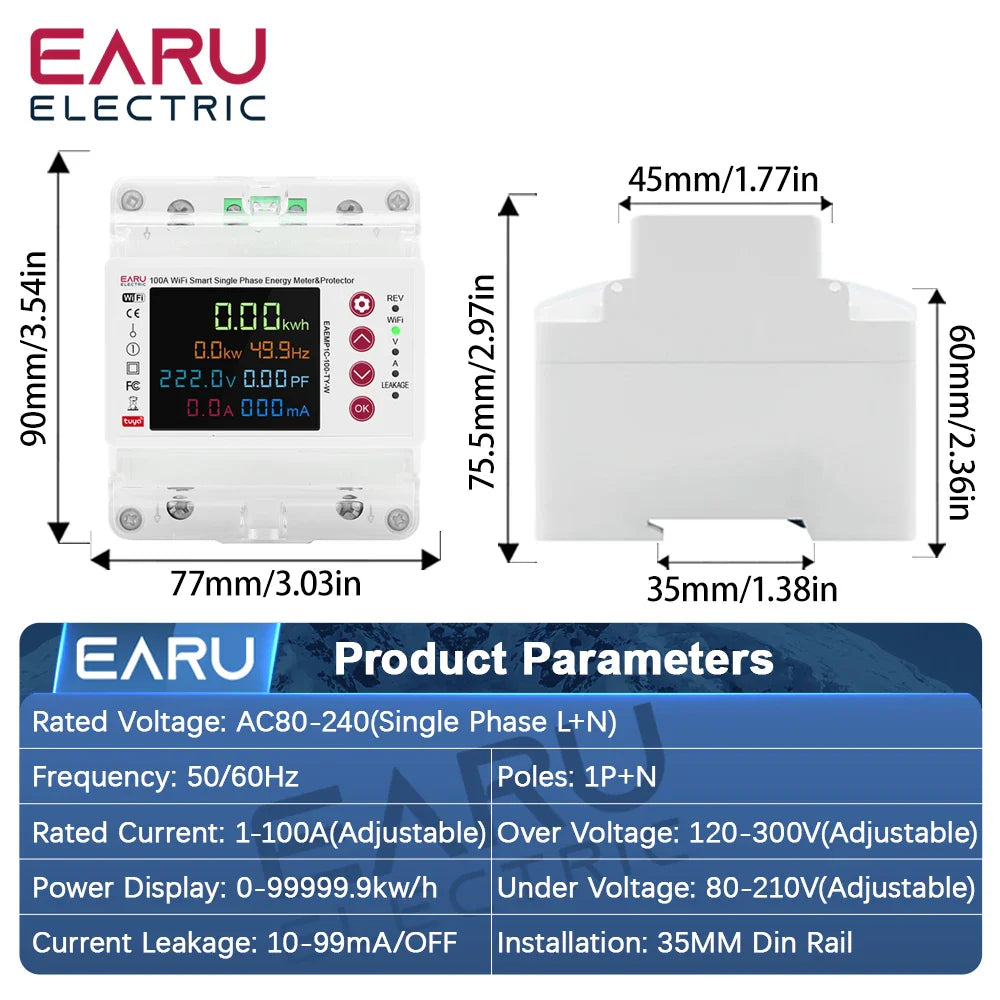

Dimensions: 90*77*75.5mm

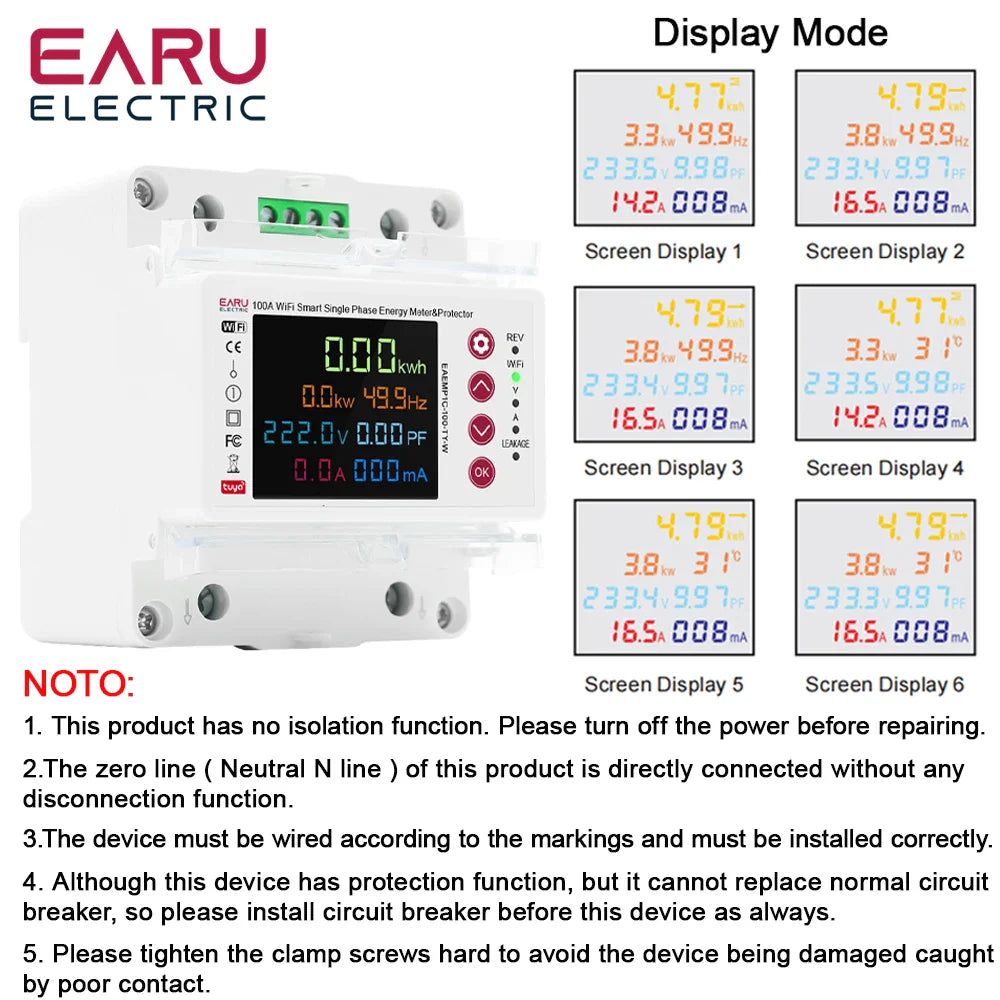

Display Type: LCD

High Temperature Alarm: 10℃-85℃ (Adjustable) (Default:85℃)

High-concerned chemical: None

Leakage Current Limit: 10-99A (Adjustable)(Default:30mA)

Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default:20s)

Max Operating Current: 80A - 99A

Measuring Energy Range: 0-9999999.99kWh

Model Number: EAEMP1C-100-TY-W

Operating Temperature: -30℃~70℃

Operation Voltage: AC80V-300V(Single Phase)

Origin: Mainland China

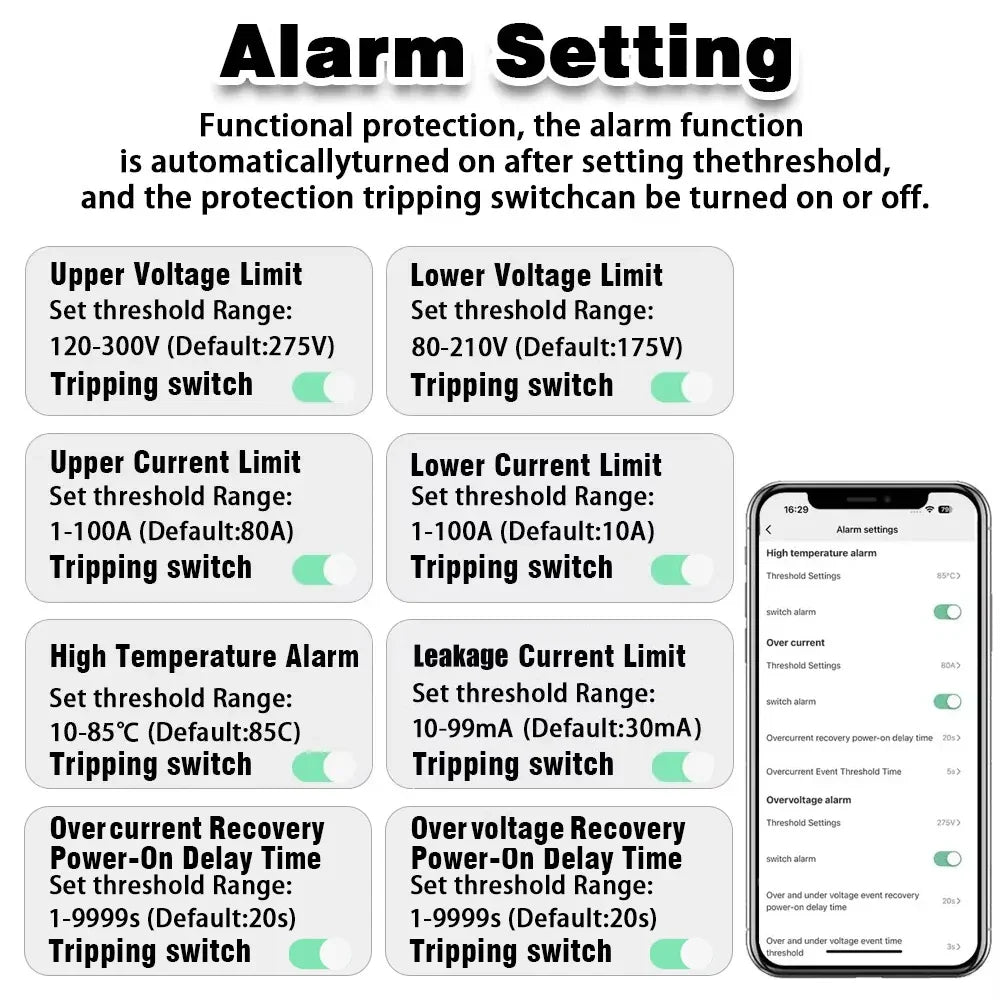

Over & Under Current Protection Delay: 0000-9999s (Adjustable) (Default:5s)

Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default:20s)

Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable) (Default:20s)

Over Current Limit: 1-100A (Adjustable)(Default:80A)

Over Voltage Limit: 120-300V (Adjustable) (Default:275V)

Phase: single phase

Power Supply: AC

Rated Voltage: 220V

Time Threshold of Lost Flow Event: 1-999s (Adjustable) (Default:10s)

Under & Over Voltage Protection Delay: 1-9999s (Adjustable) (Default:3s)

Under Current Limit: 1-100A (Adjustable) (Default:10A)

Under Voltage Limit: 80-210V (Adjustable) (Default:175V)

semi_Choice: yes
