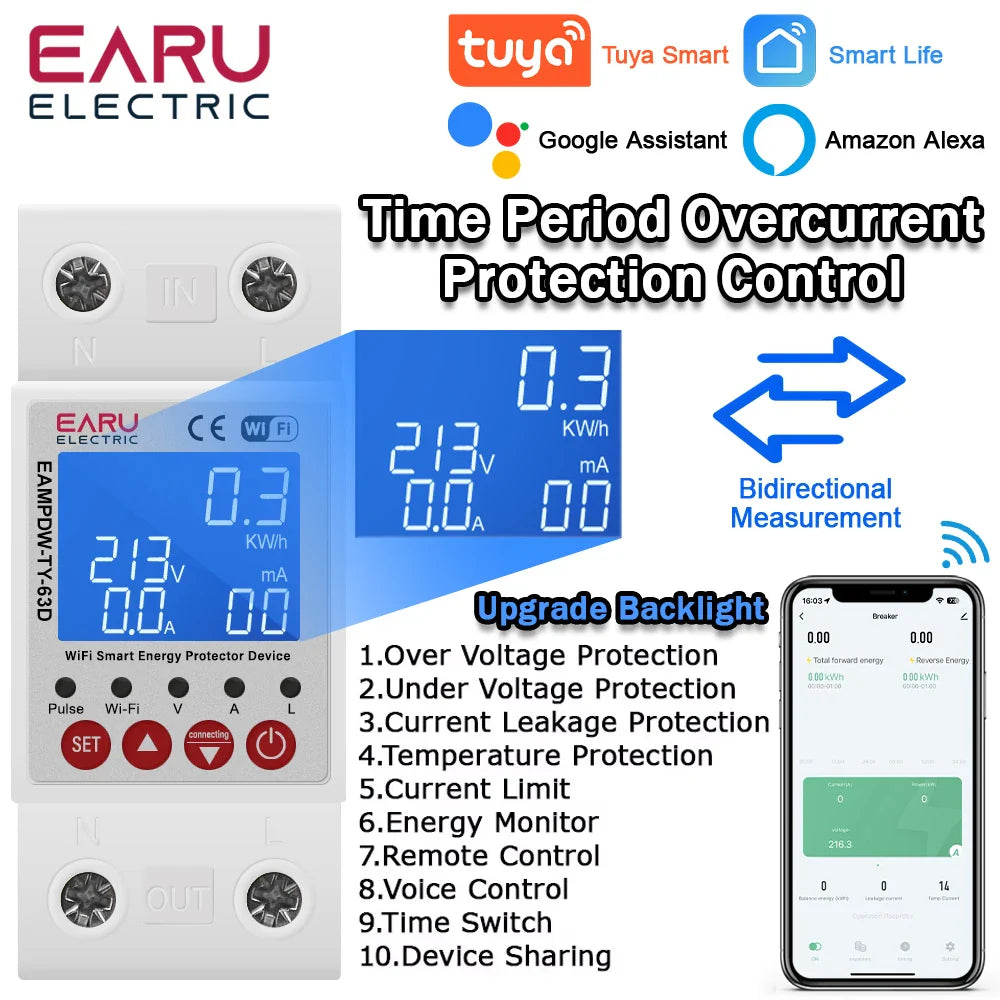

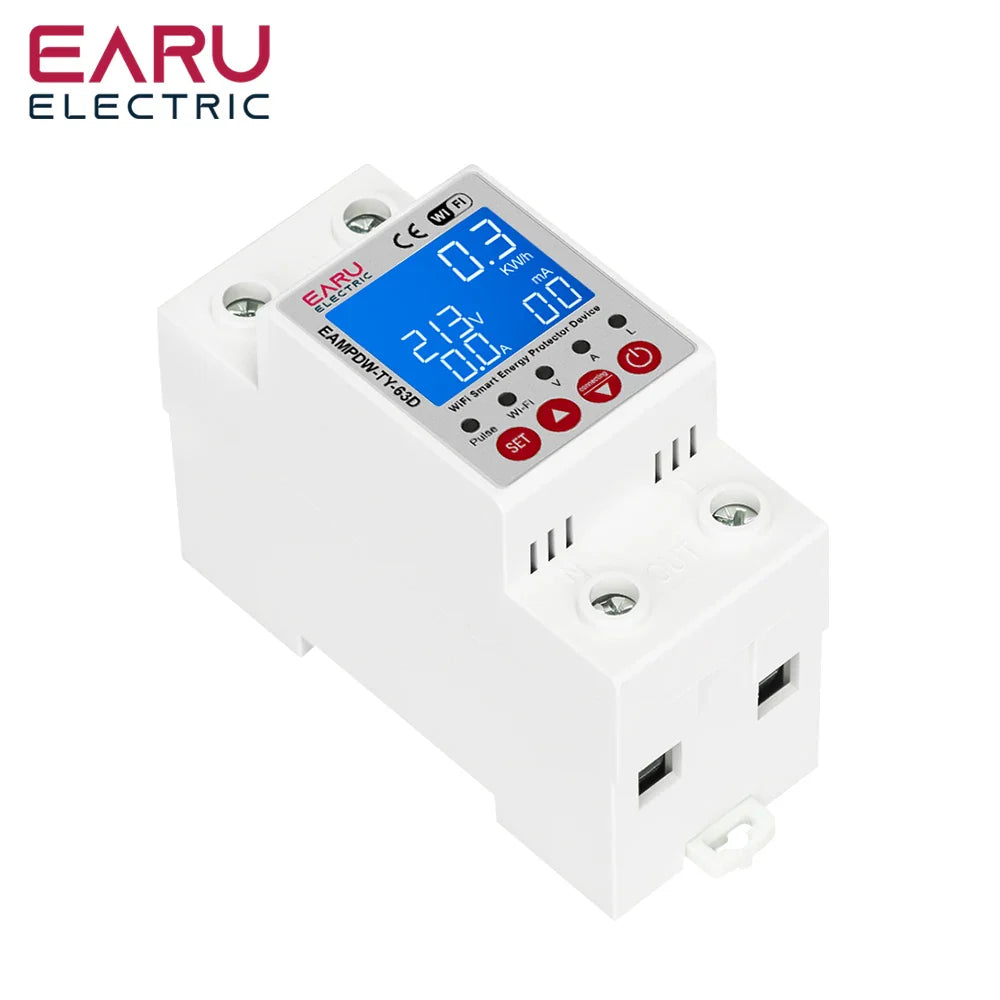

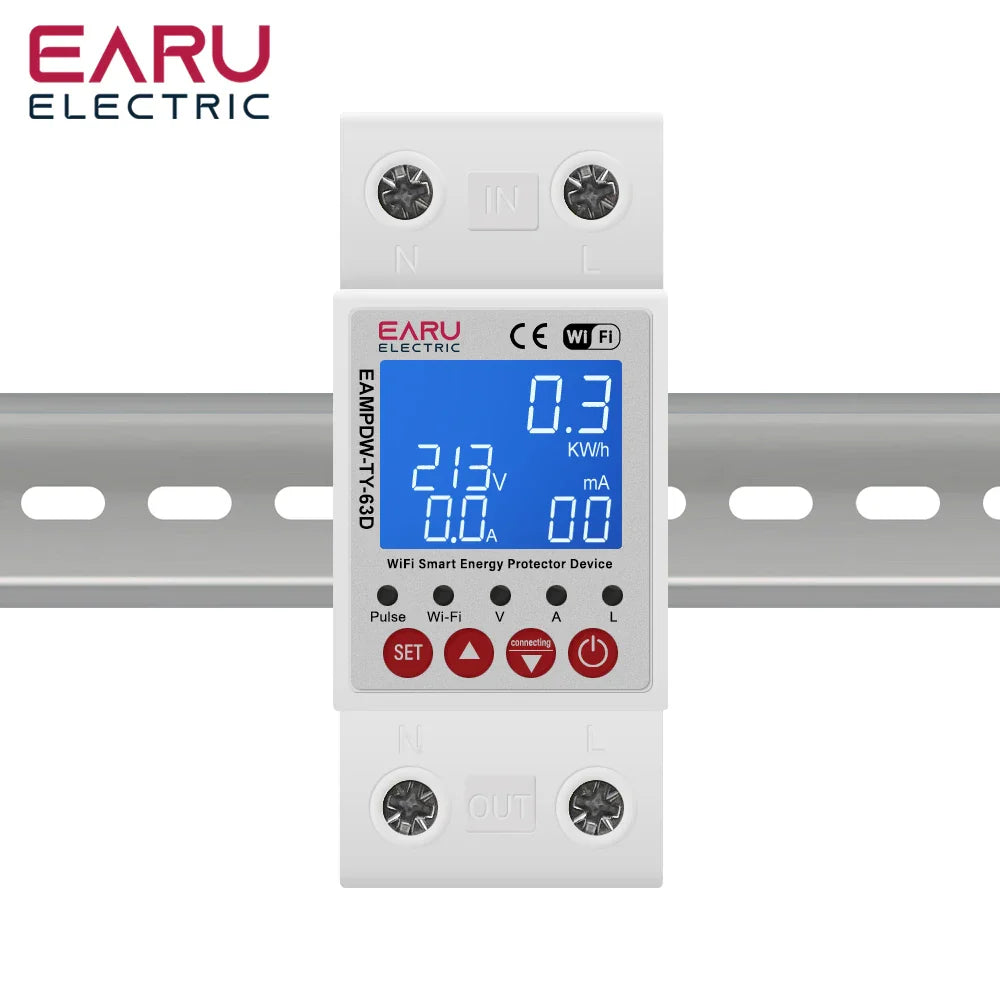

Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Breaker

£55.00 GBP

~~£0.00 GBP~~ £55.00 GBP

Sale Sold out

Taxes included.

Rated Current 1-63A (Adjustable)

⚡ Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Breaker

Discover the Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Breaker — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

📄 Technical Specifications

Certification: CE

Choice: yes

Function1: Undercurrent protection

Function10: Time period overcurrent protection control

Function2: Over Voltage Protection

Function3: Under Voltage Protection

Function4: Leakage Protection

Function5: Electricity Metering

Function6: Temperature Protection

Function7: Voltage meter

Function8: Ammeter

Function9: Bl-Direction Measuring

High-concerned chemical: None

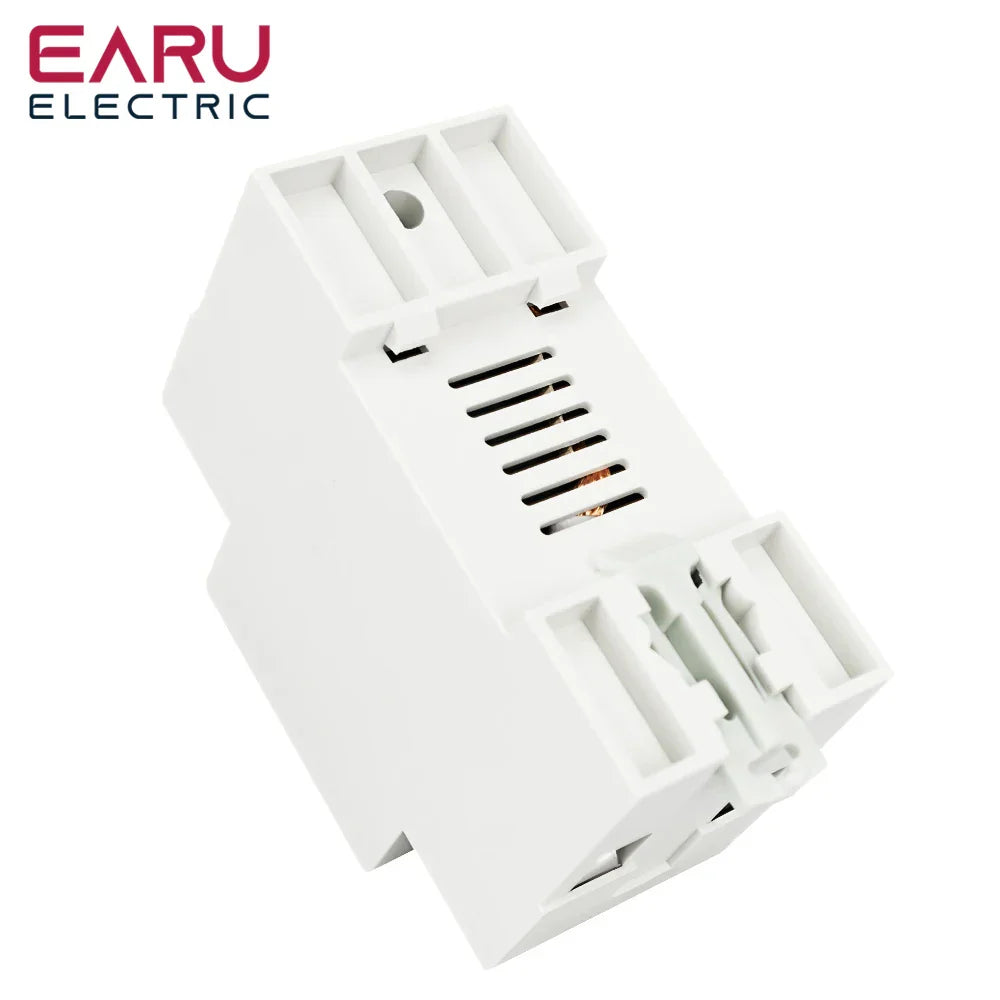

Installation: 35MM Din Rail

Is Smart Device: Yes

Leakage protector setting range: 10-99mA (adjustable)

Model Number: EAMPDW-TY-63D

Operating Temperature: -30℃ to 70°C

Operation Voltage Range: AC80V-400V(Single Phase)

Origin: Mainland China

Output Contact: 1NO

Over Voltage(>U): 120V-300V (adjustable)

Power Display Range: 0-99999.9kw/h

Protection Degree: IP20

Rated Current: 1-63A(adjustable)

Rated Frequency: 50/60Hz

Rated Supply Voltage: AC110V/AC220V

Reset/start delay: 10s-99s

Temperature measurement: 10-85°C(adjustable)

Type: Mini,Circuit breaker

Under Voltage(: 80V-210V (adjustable)

is_customized: Yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

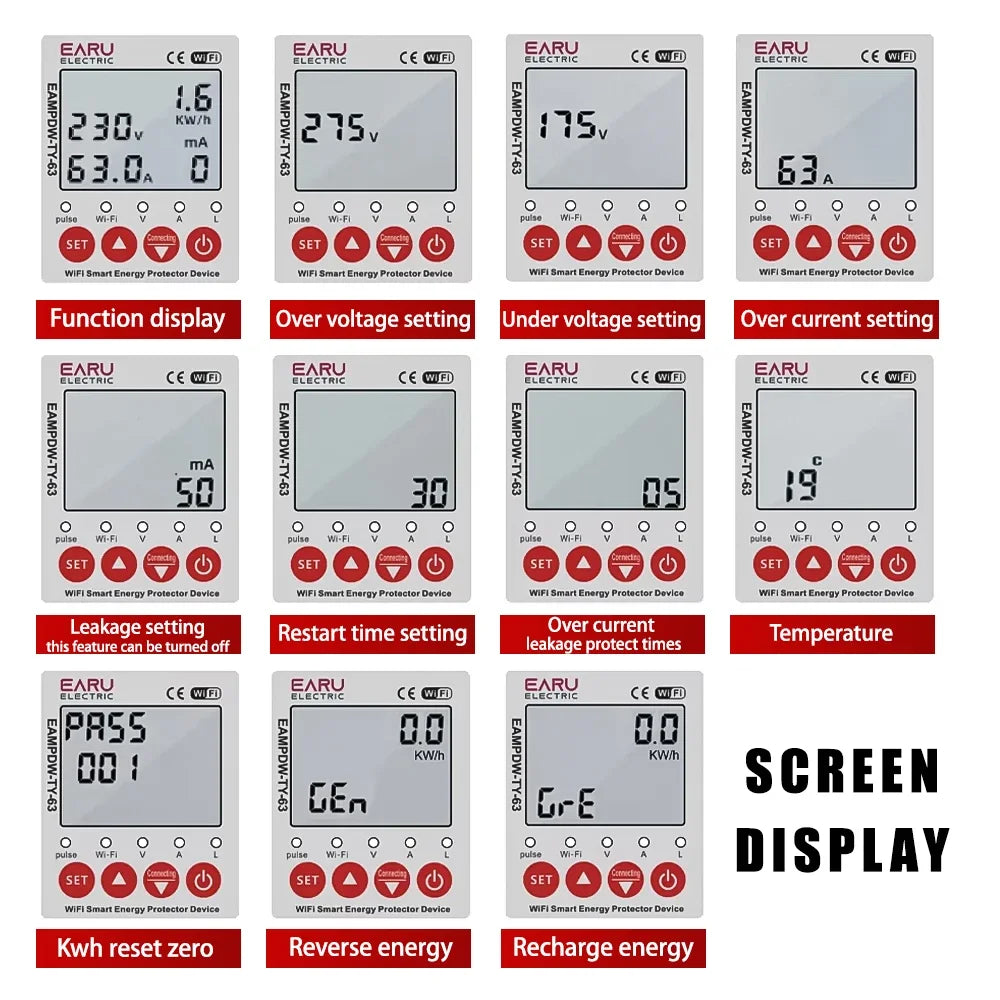

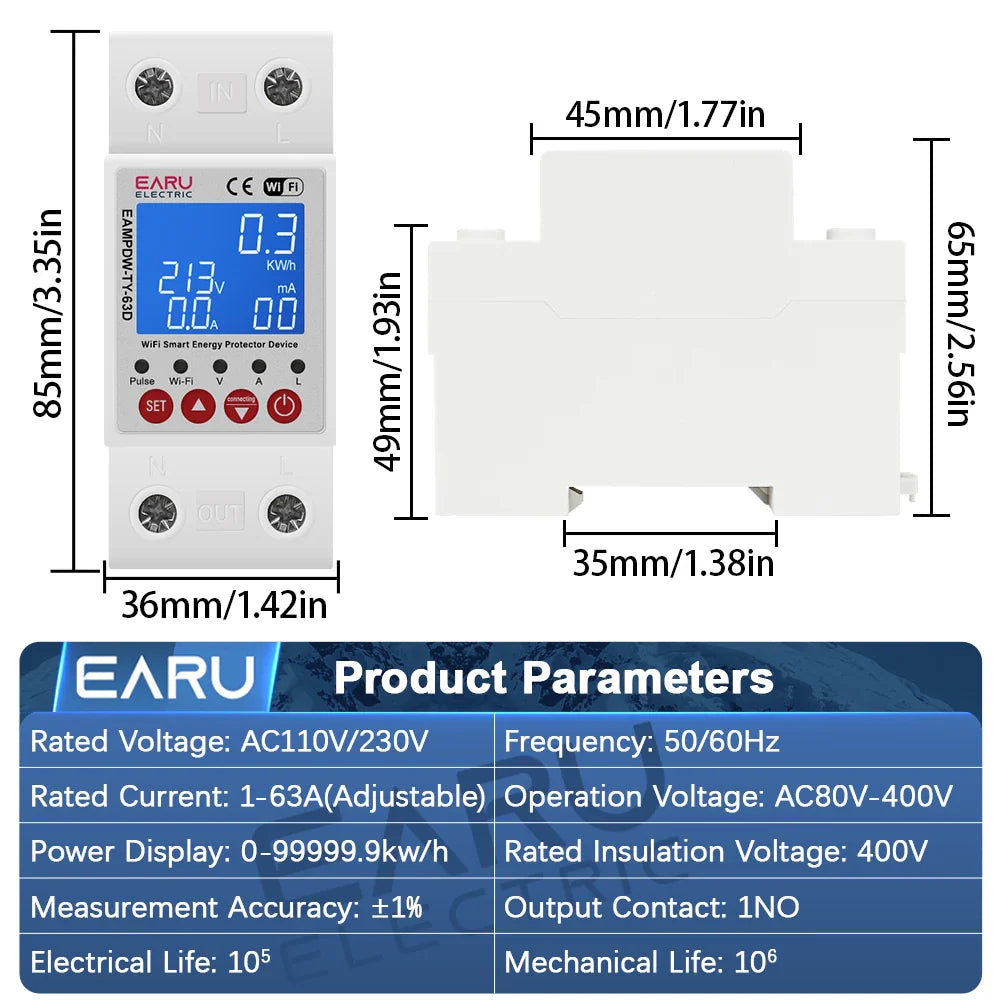

Product Specification

Rated Voltage: AC110V/230V; Frequency: 50Hz/60Hz

Function:

1. Voltage Meter

2. Ammeter

3. Energy Meter

4. Timer Switch

5. Remote Control ON/OFF

6. Power Failure Memory

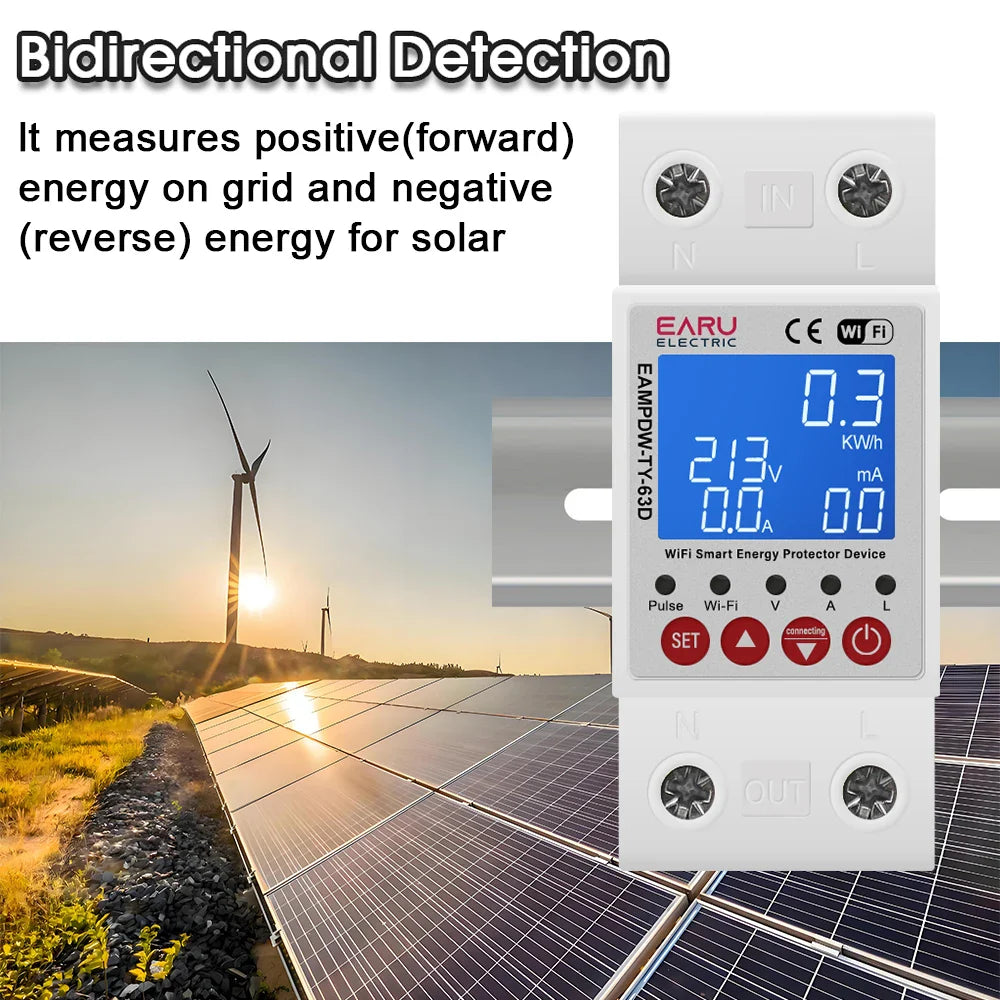

7. Bidirectional Detection

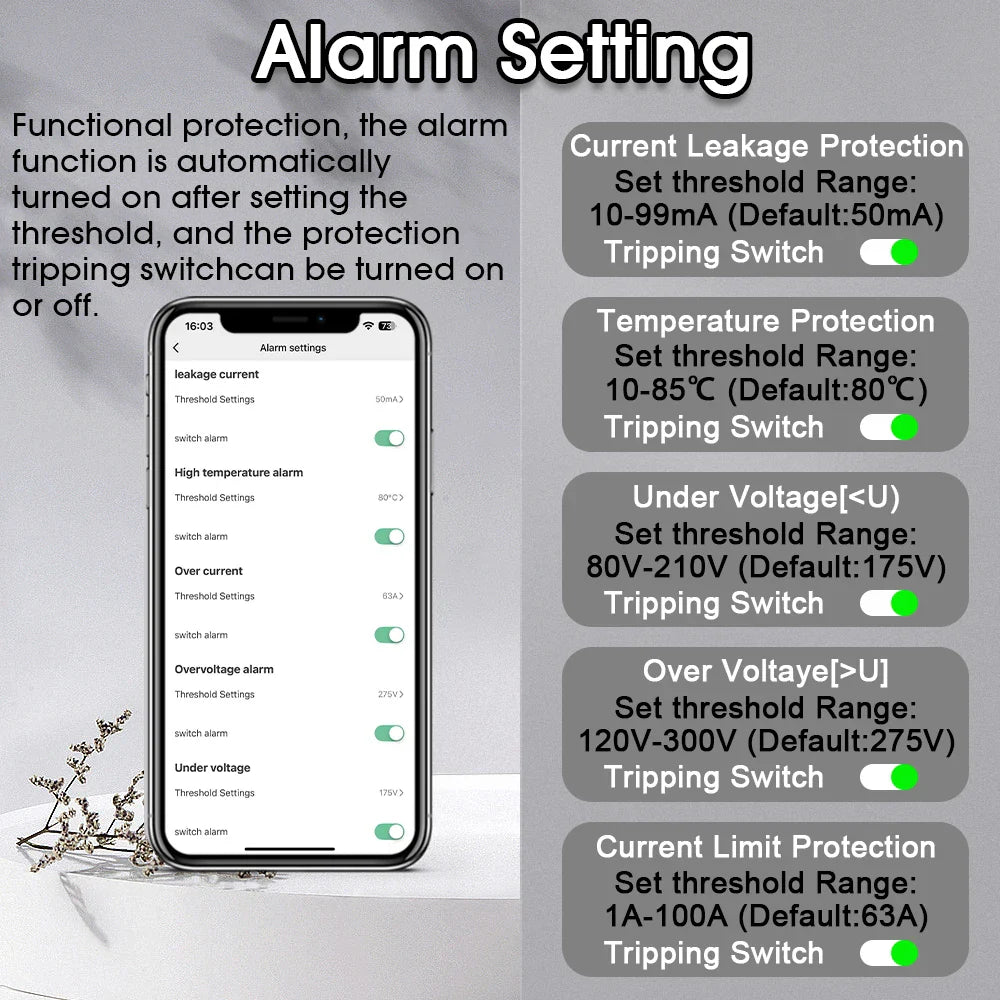

8. Over Current Protection (1A-63A Adjustable)

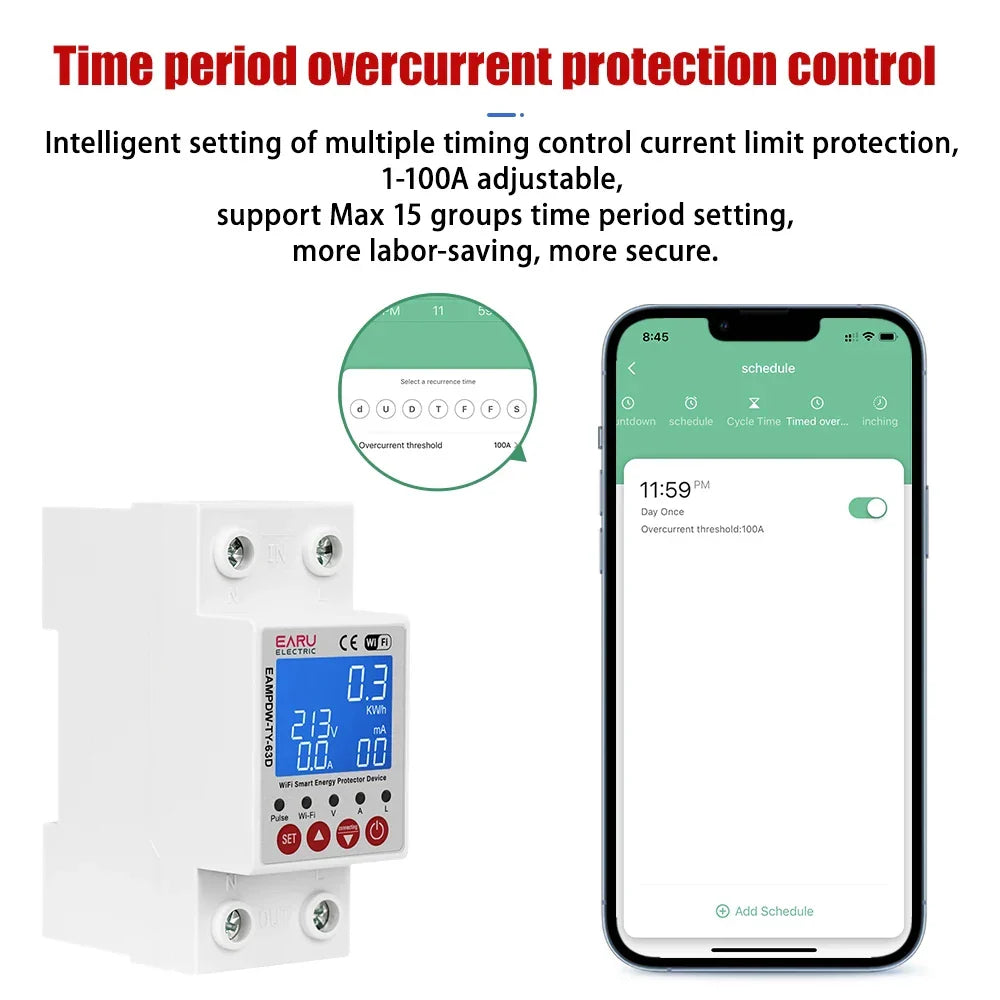

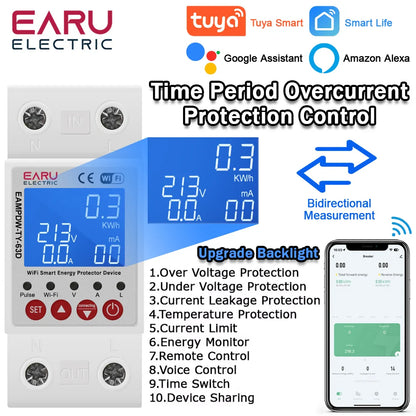

9. Time Period Overcurrent Protection Control (1A-100A Aadjustable)

10. Under-Voltage Protection (76V-240V Adjustable)

11. Over-Voltage Proteciton (120V-300V Adjustable)

12. Current Leakage Protection (10mA-99mA Adjustable)

13. Temperature Protection (10°C-85°C Adjustable)

14. Over Current and Leakage Reconnect Times (1-30 Adjustable)

15. Reconnect Time (Delay on time) (10s-90s Adjustable)
