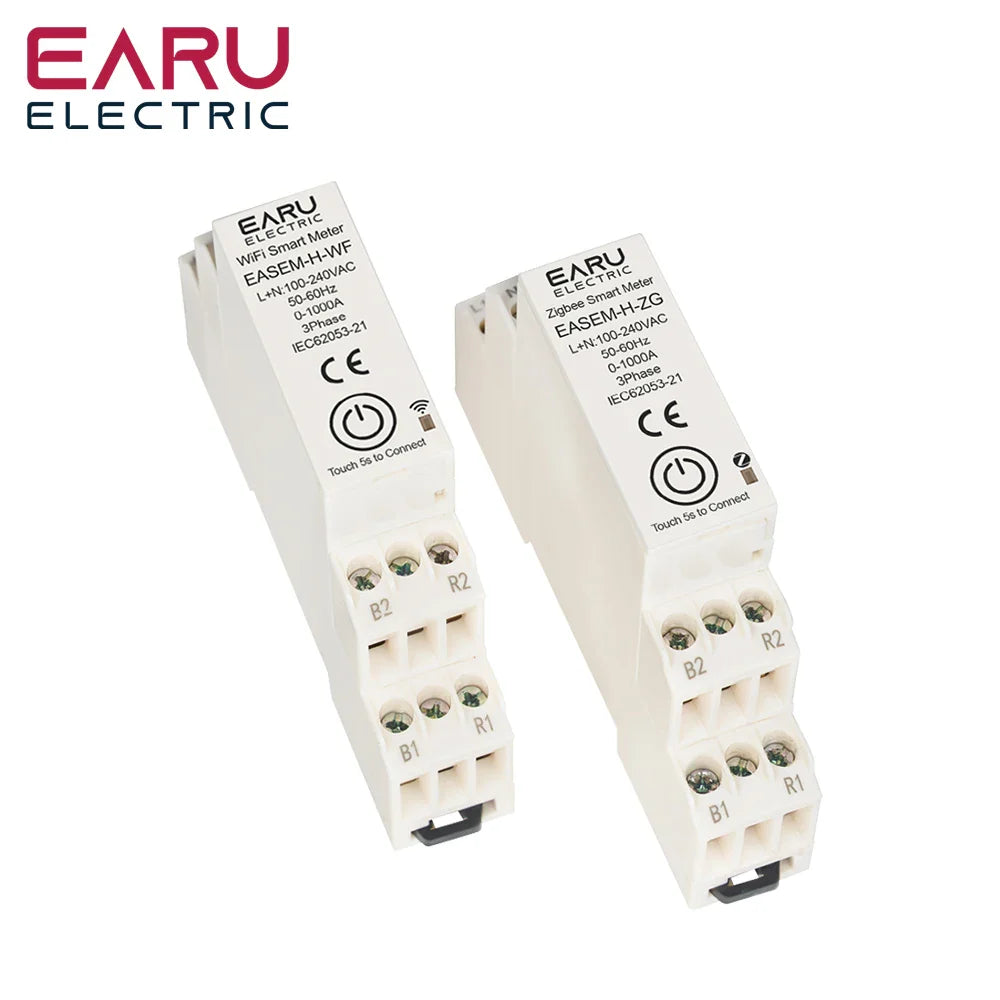

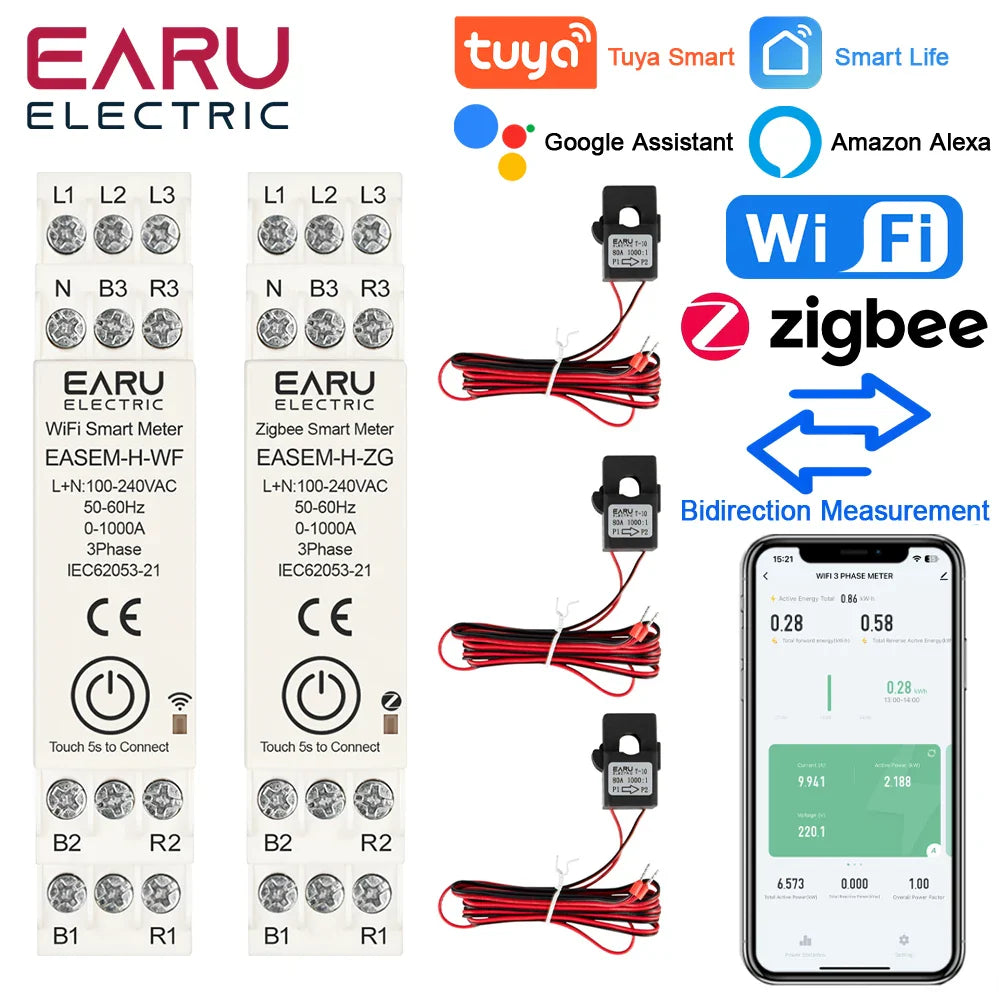

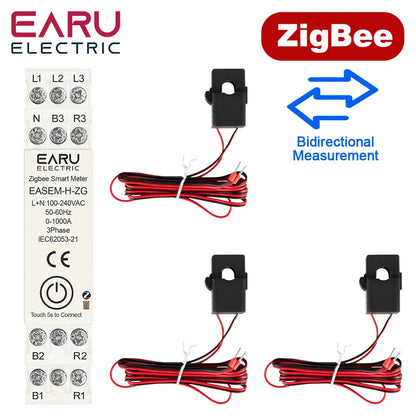

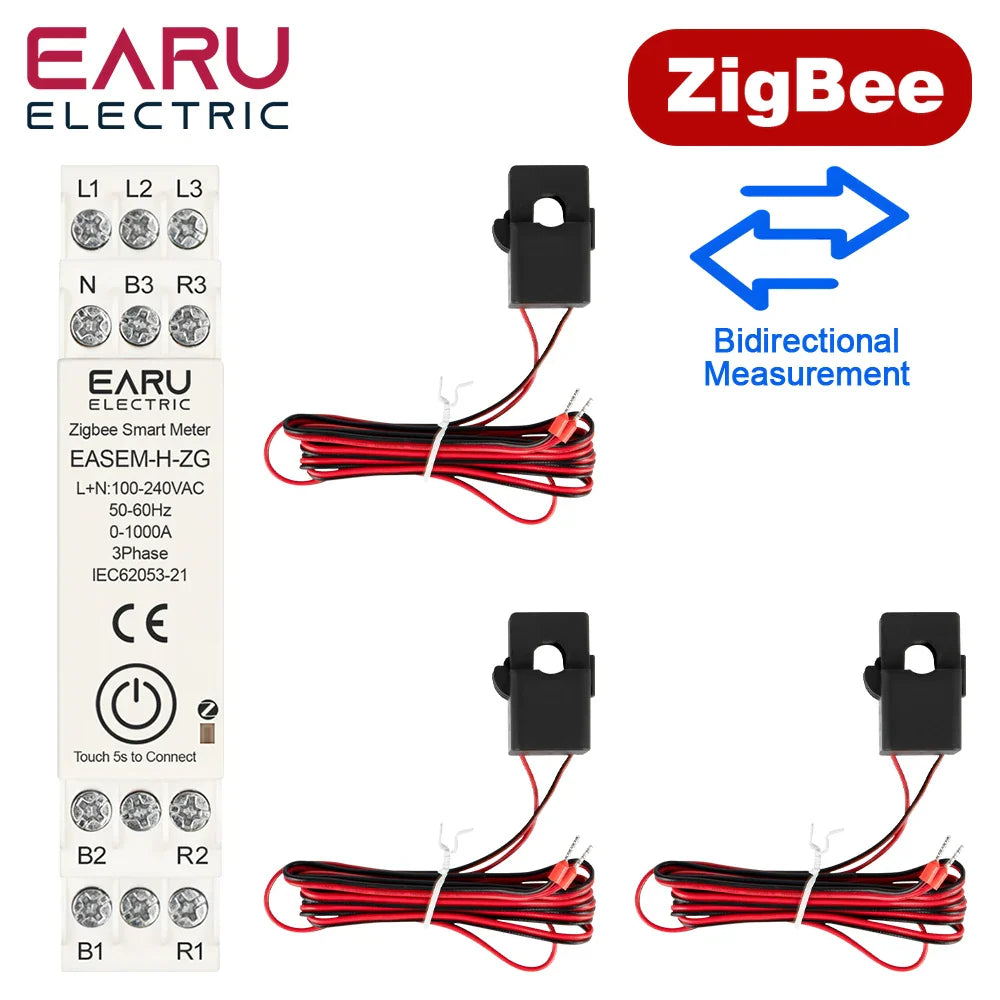

⚡ Tuya Smart WiFi ZigBee Energy Meter with 3 CT Clamps for Solar PV System Power Production Consumption Bidirectional Monitoring

Discover the Tuya Smart WiFi ZigBee Energy Meter with 3 CT Clamps for Solar PV System Power Production Consumption Bidirectional Monitoring — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: ±1%

App: Tuya&Smart Life

Battery Included: No

Certification: CE

Choice: yes

DIY Supplies: Electrical

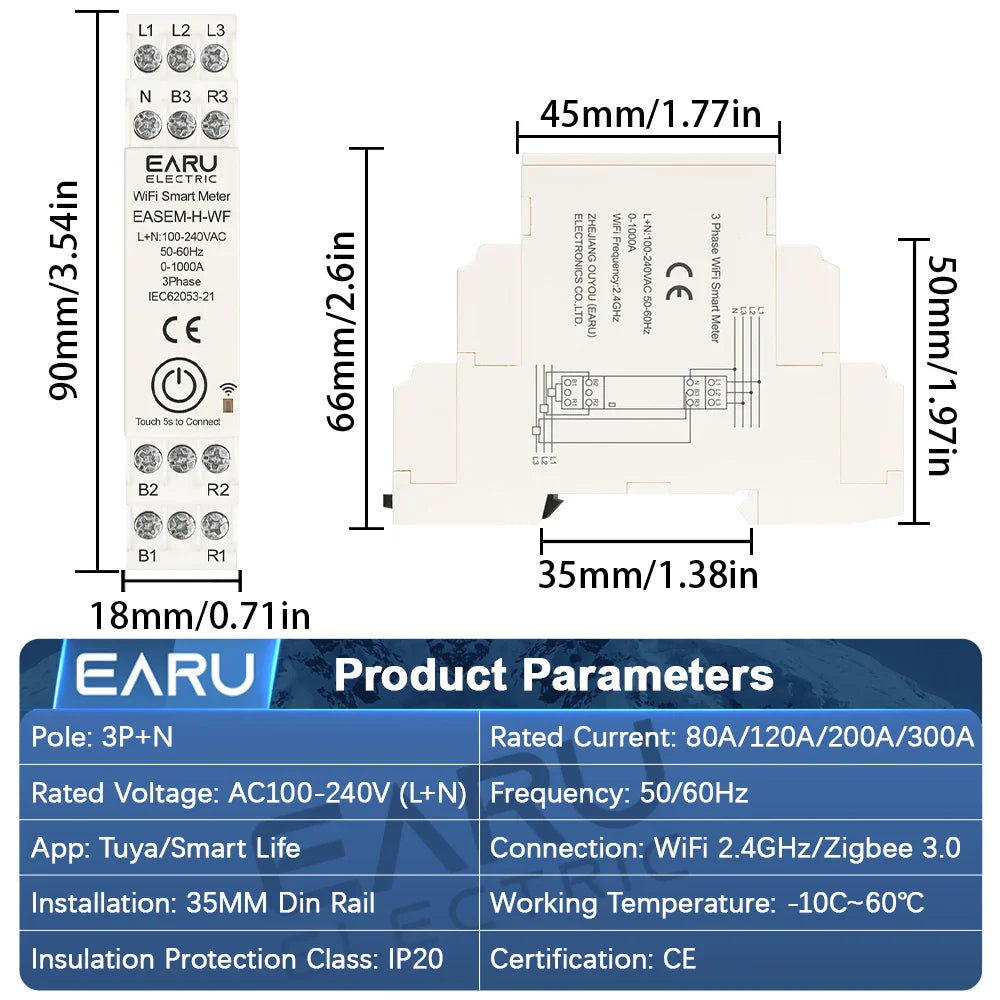

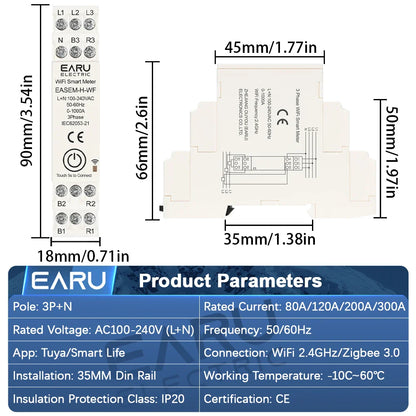

Dimensions: 90*18*66MM

Display Type: Digital Only

Frequency: 50/60Hz

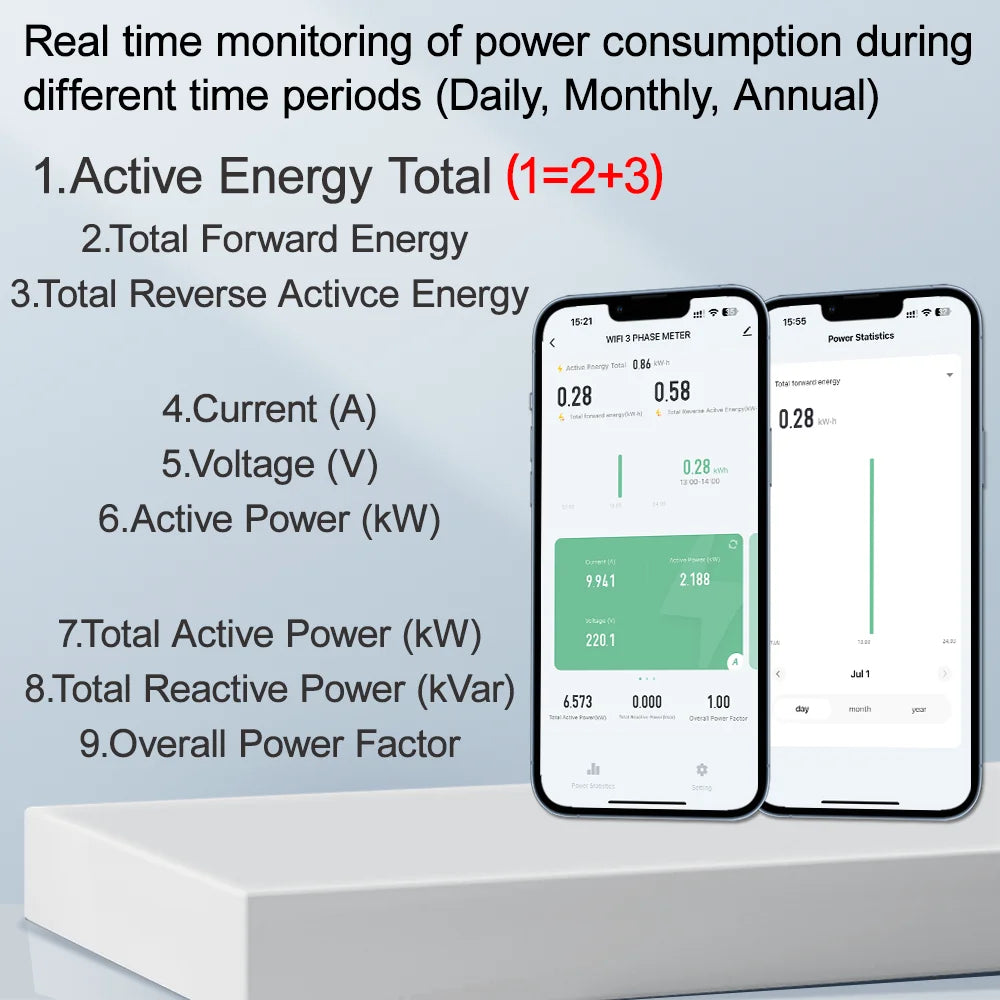

Function 1: Active Energy Total

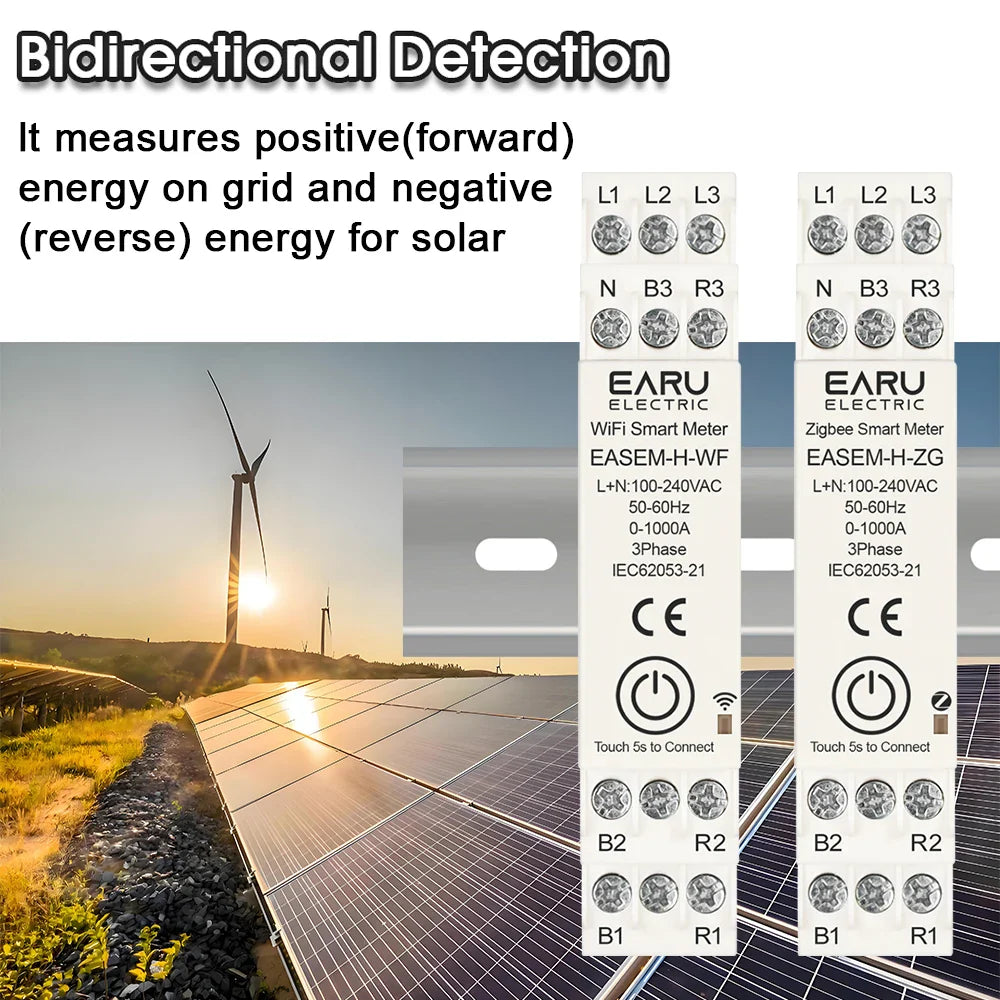

Function 10: Bidirectional Measurement

Function 2: Total Forward Energy

Function 3: Total Reverse Activce Energy

Function 4: Current (A)

Function 5: Voltage (V)

Function 6: Active Power (kW)

Function 7: Total Active Power (kW)

Function 8: Total Reactive Power (kVar)

Function 9: Overall Power Factor

High-concerned chemical: None

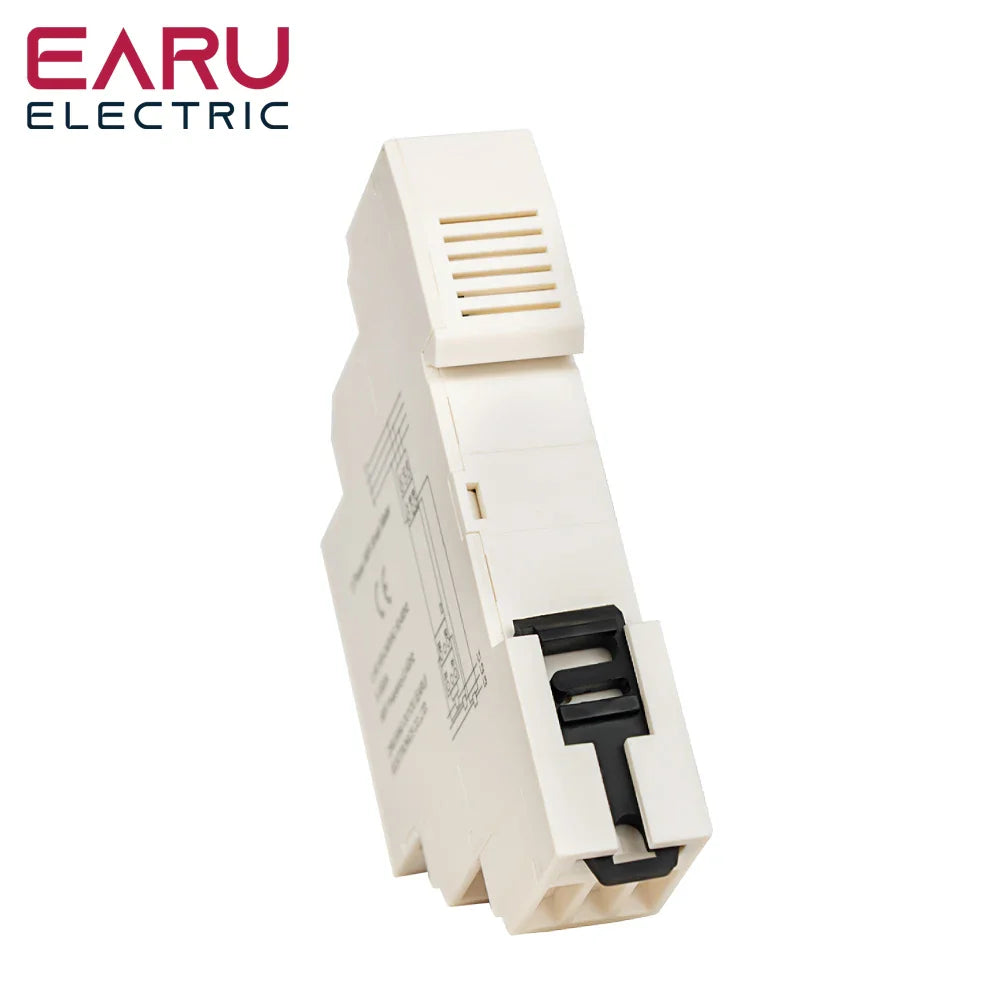

Installation: 35MM Din Rail

Max Operating Current: 150A & Above

Measuring Energy Range: 999999.99kWh

Model Number: EASEM-H-WF/ZG

Operating Temperature: -10℃~60 ℃

Origin: Mainland China

Output Voltage: AC100-240V

Phase: Three Phase

Pole: Three Phase

Power Source: AC

Power Supply: AC

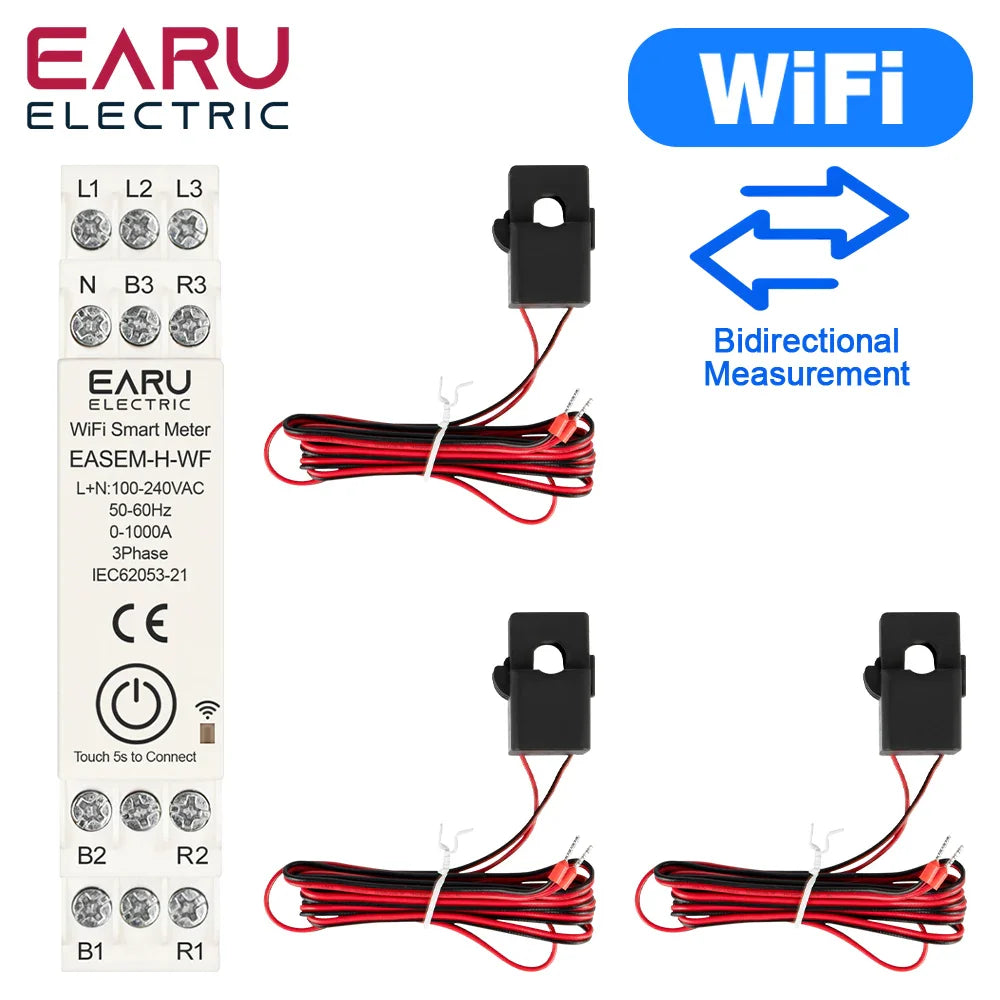

Protocol: WiFi 2.4GHz Only/ZigBee 3.0

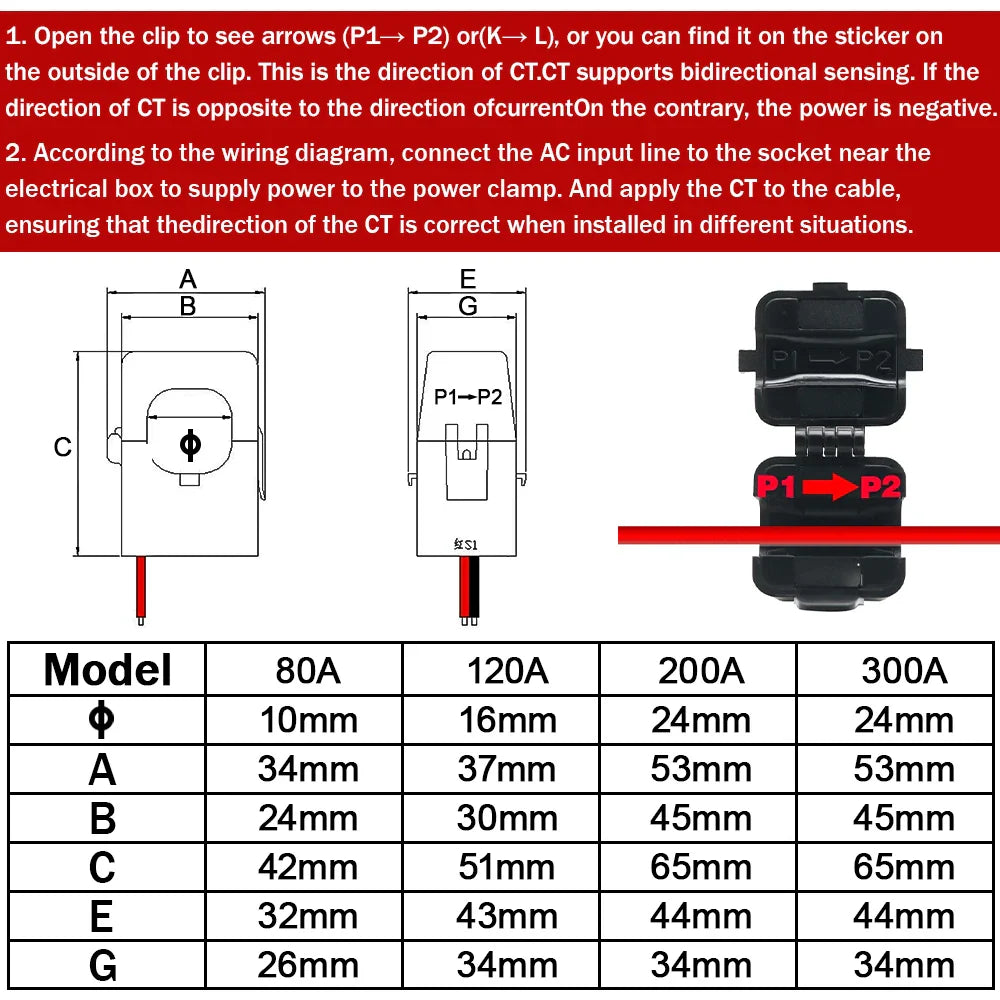

Rated Current: 80A/120A/200A/300A

Rated Voltage: 240V

Working Voltage: AC100-240V

semi_Choice: yes

Rated Current: 80A/120A/200A/300A

Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support/ZigBee 3.0

Support System: Android/IOS

Installation: 35MM Din Rail

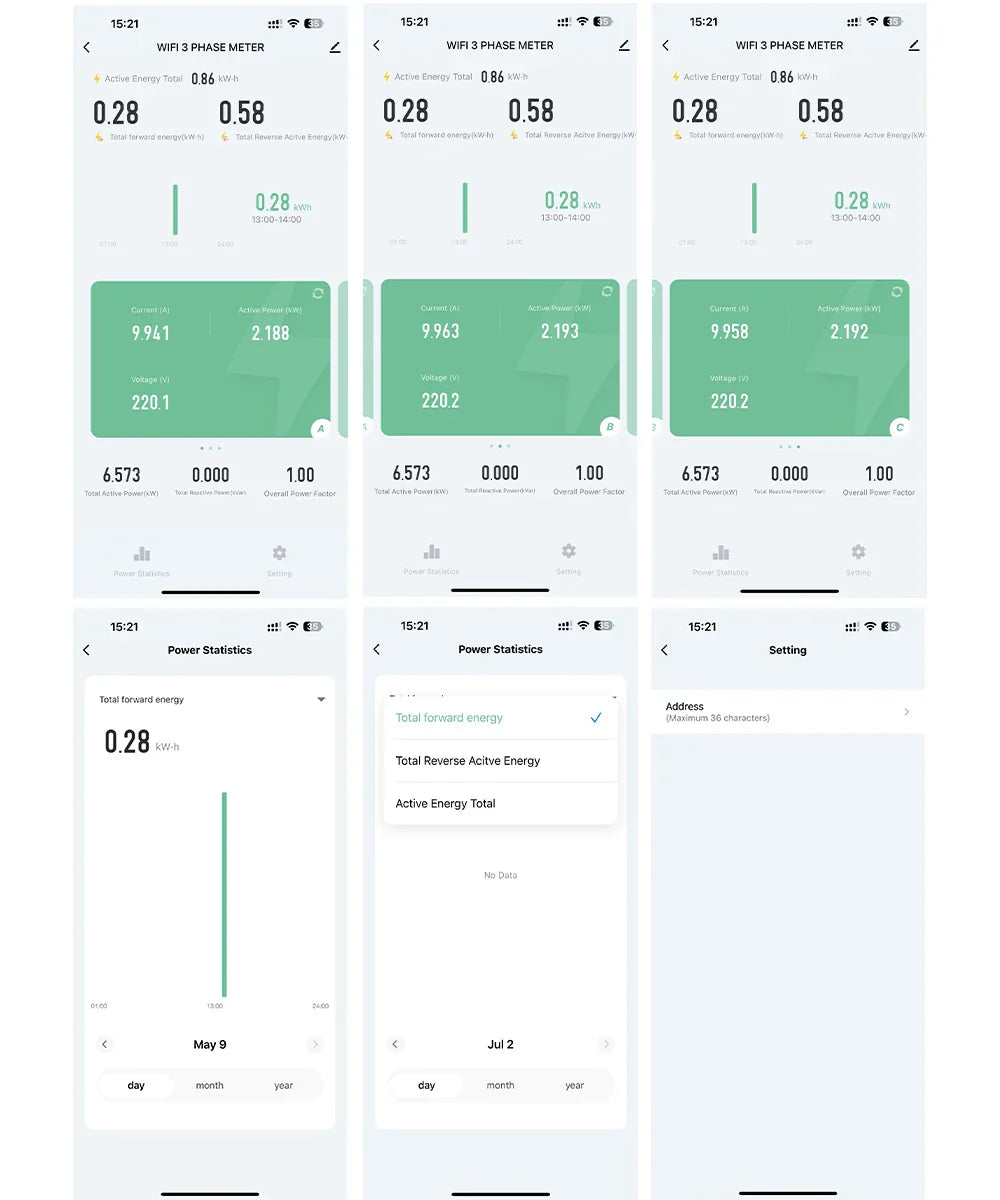

Remote control at anytime from anywhere your mobile phone can get Internet signal by Tuya App/Smart Life App, no distance limit
