Tuya Smart WiFi Multi-Circuit 19 Channels Bi-Directional Power Energy kWh Meter Monitor AC90-480V 200A 300A with 19PCS CT Clamps

£299.00 GBP

~~£0.00 GBP~~ £299.00 GBP

Sale Sold out

Taxes included.

Size 200A 300A

⚡ Tuya Smart WiFi Multi-Circuit 19 Channels Bi-Directional Power Energy kWh Meter Monitor AC90-480V 200A 300A with 19PCS CT Clamps

Discover the Tuya Smart WiFi Multi-Circuit 19 Channels Bi-Directional Power Energy kWh Meter Monitor AC90-480V 200A 300A with 19PCS CT Clamps — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: ±2%

Battery Included: No

Certification: CE,FCC

Choice: yes

DIY Supplies: Electrical

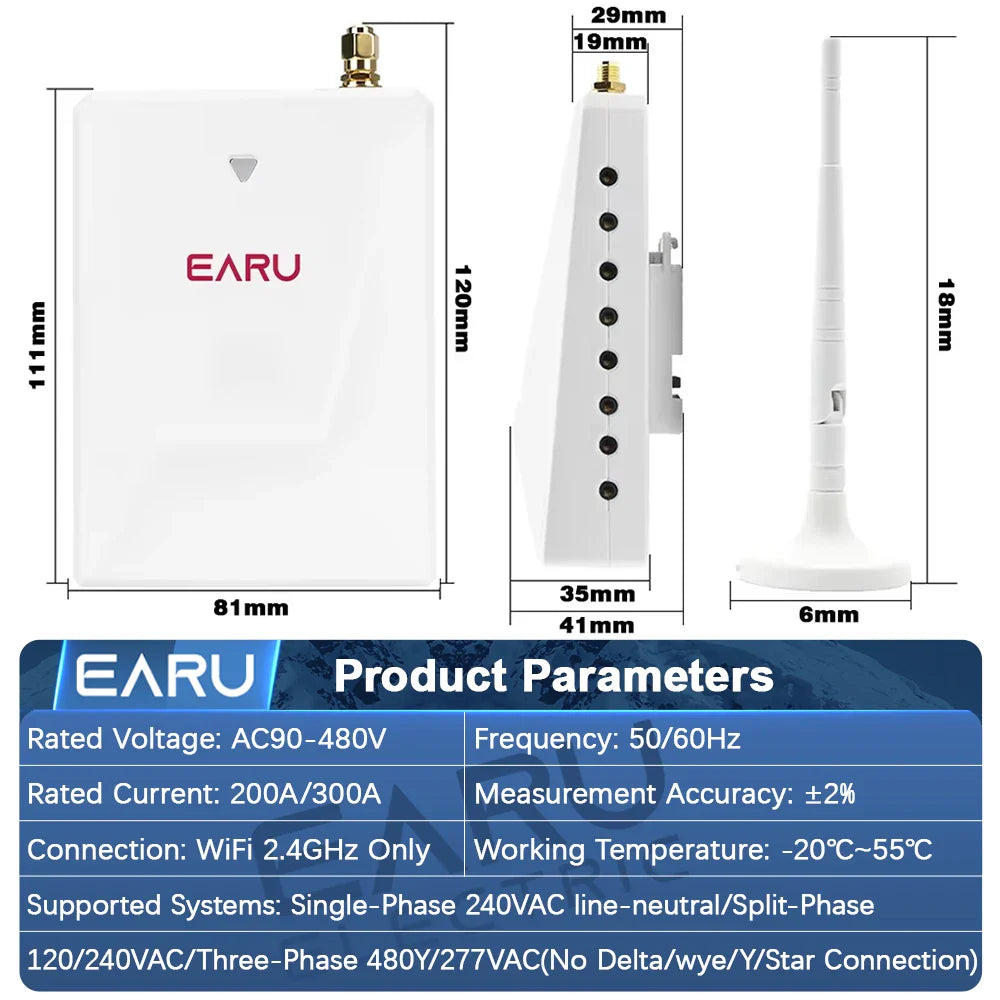

Dimension: 111.3(L) x 81.2(W) x 41.4(H) mm

Dimensions: 6.5*28*20.5cm

High-concerned chemical: None

Humidity: ≤ 90% non-condensing

Max Operating Current: 150A & Above

Model Number: EASEM-D-TY

Operating Temperature: -20℃~+55℃

Operating Voltage: 90~480 Vac 50/60 Hz

Operating frequency: 2.4GHz

Origin: Mainland China

Phase: Three Phase

Power Supply: AC

RF Characteristics: External magnetic antenna

Reporting Cycle: Every 15 seconds

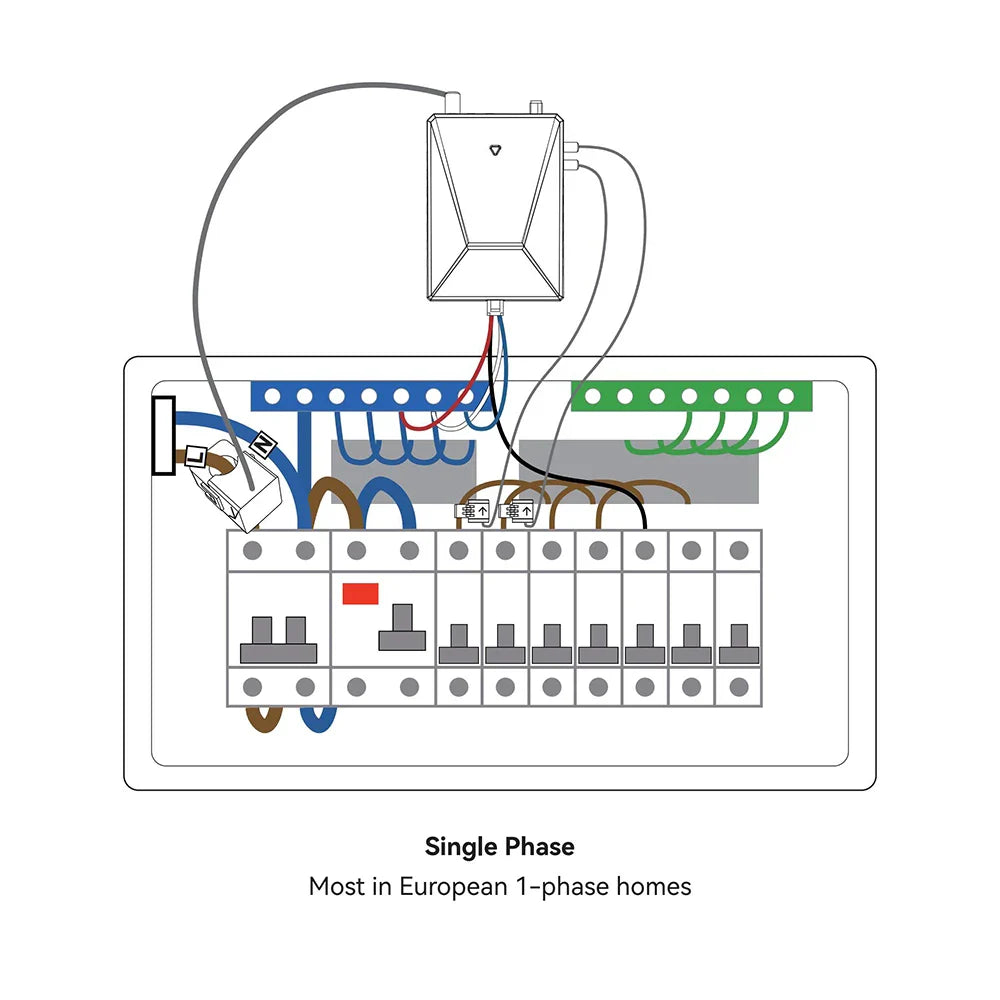

Supported Systems 1: Single-Phase up to 277VAC line- neutral

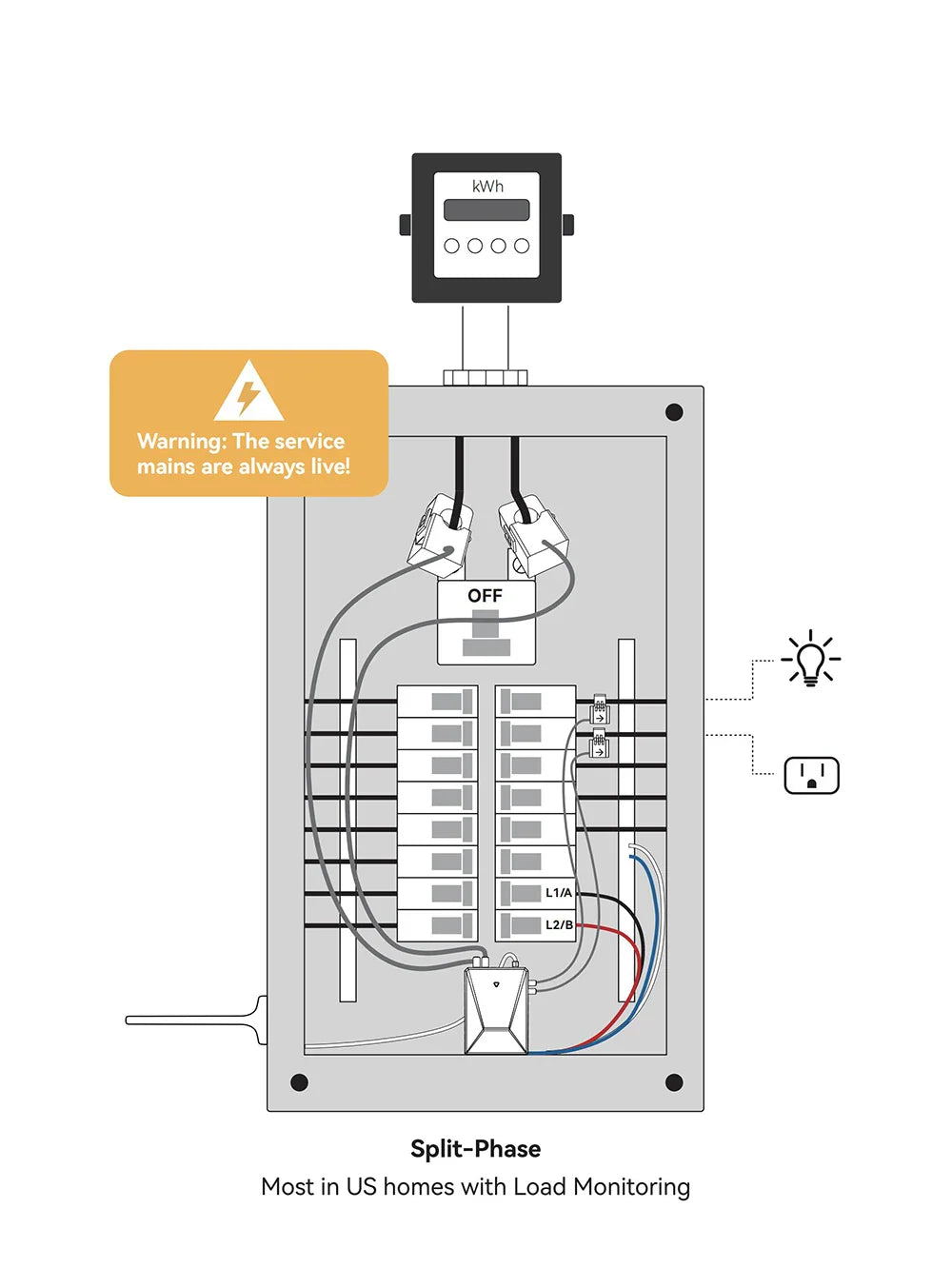

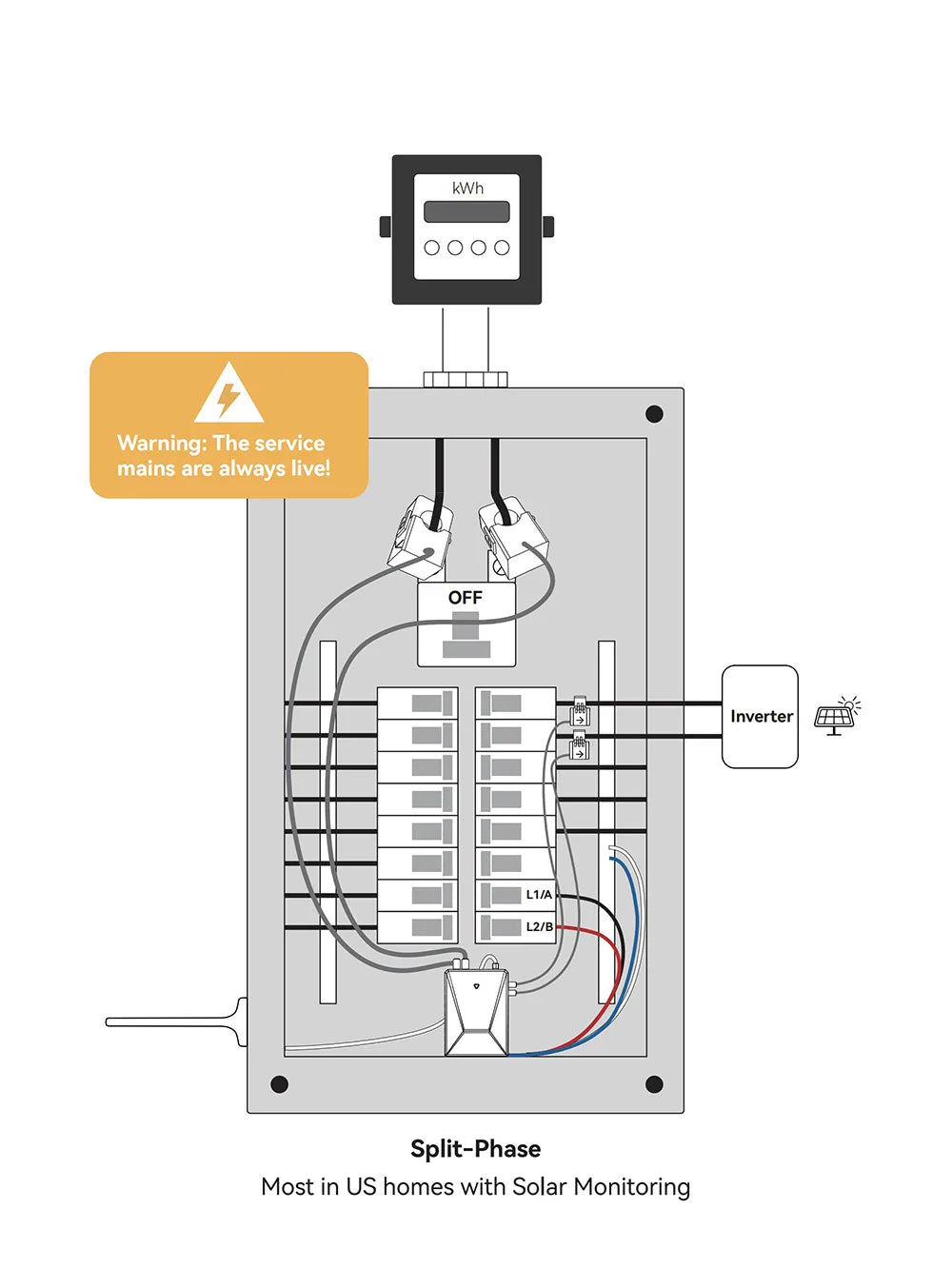

Supported Systems 2: Split-Phase 120/240VAC

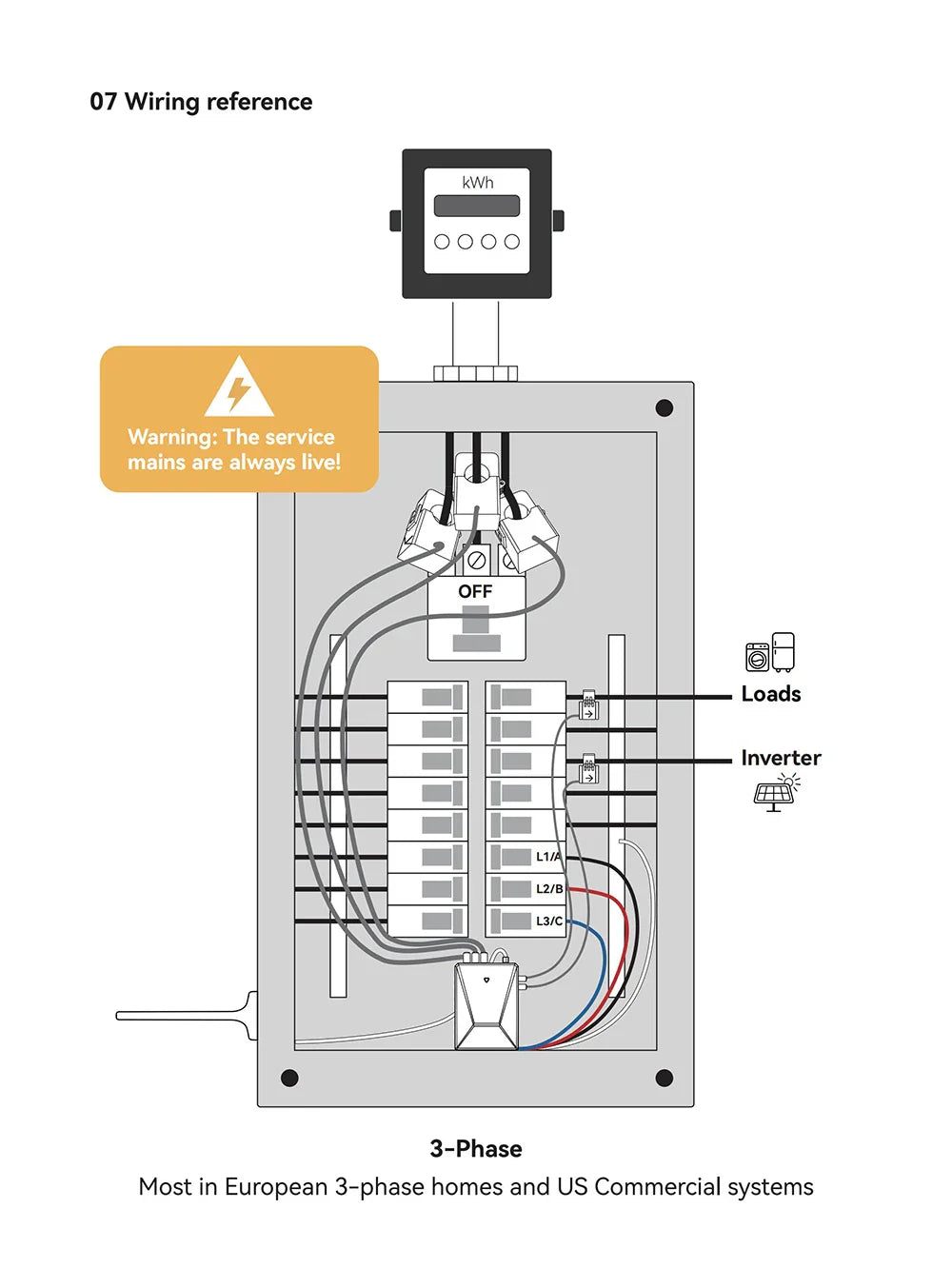

Supported Systems 3: Three-Phase up to 480Y/277VAC (No Delta/wye/Y/Star Connection)

Wi-Fi: 802.11 b/g/n @2.4GHz

semi_Choice: yes

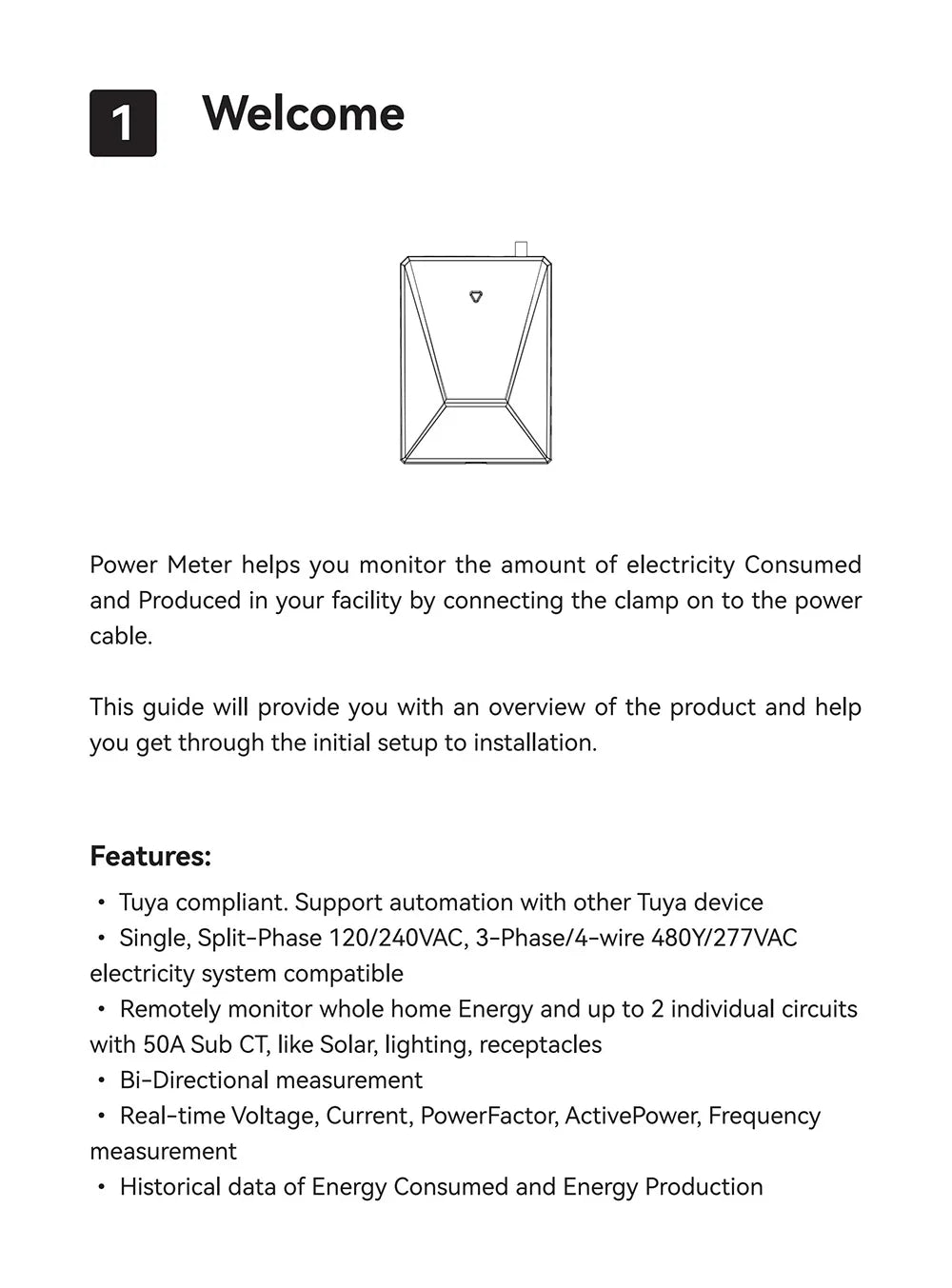

Features:

·Tuya compliant. Support automation with other Tuya device

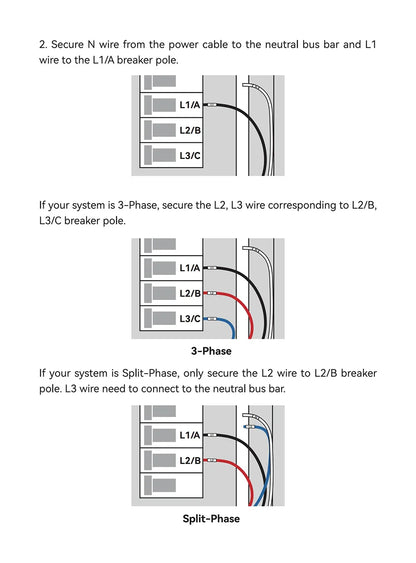

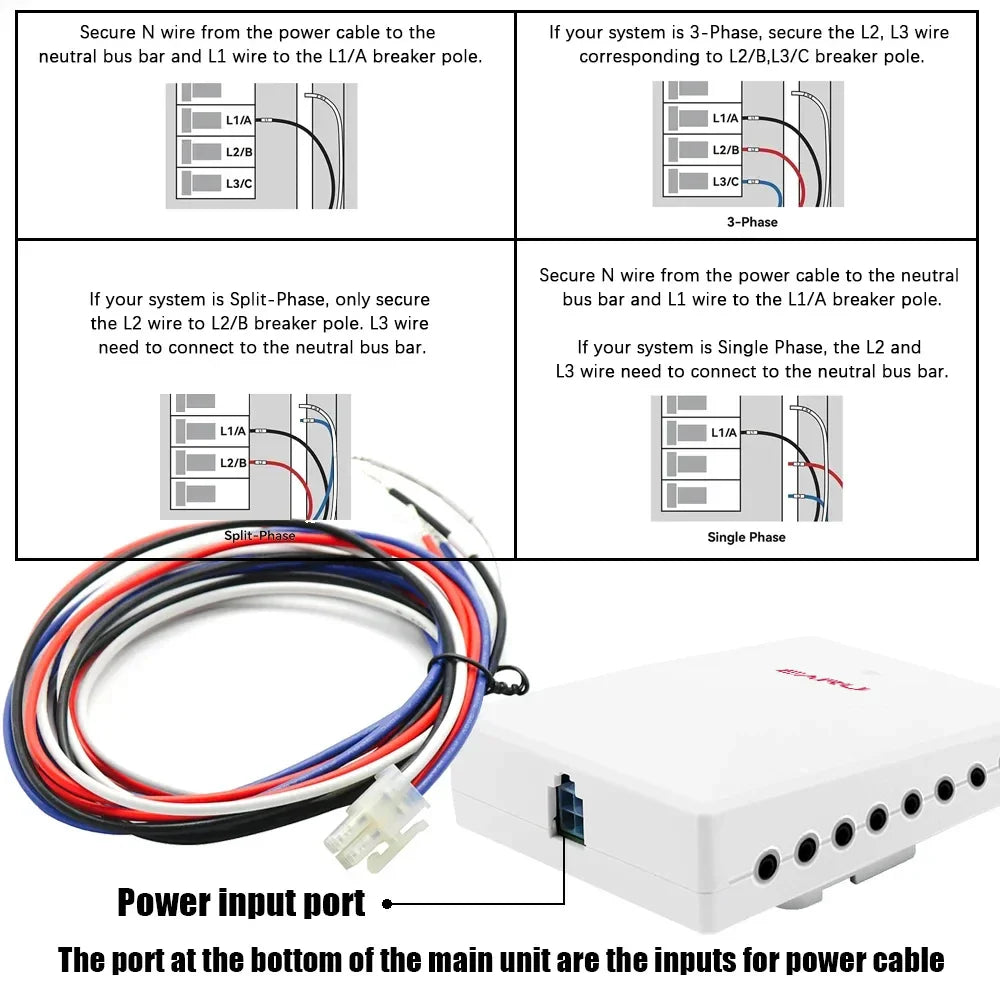

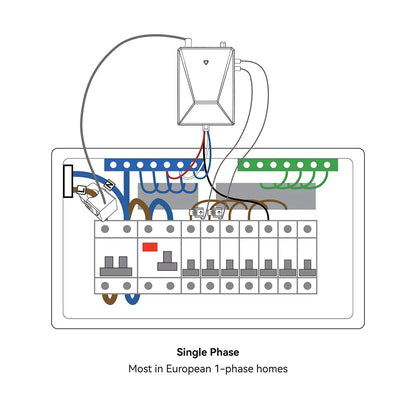

·Single, Split-Phase120/240VAC,3-Phase/4-wire 480Y/277VAC

electricity system compatible

·Remotely monitor whole home Energy and up to 16 individual circuits

with 50A Sub CT, like Solar, lighting, receptacles

· Bi-Directional measurement

·Real-time Voltage, Current, PowerFactor, ActivePower, Frequency

measurement

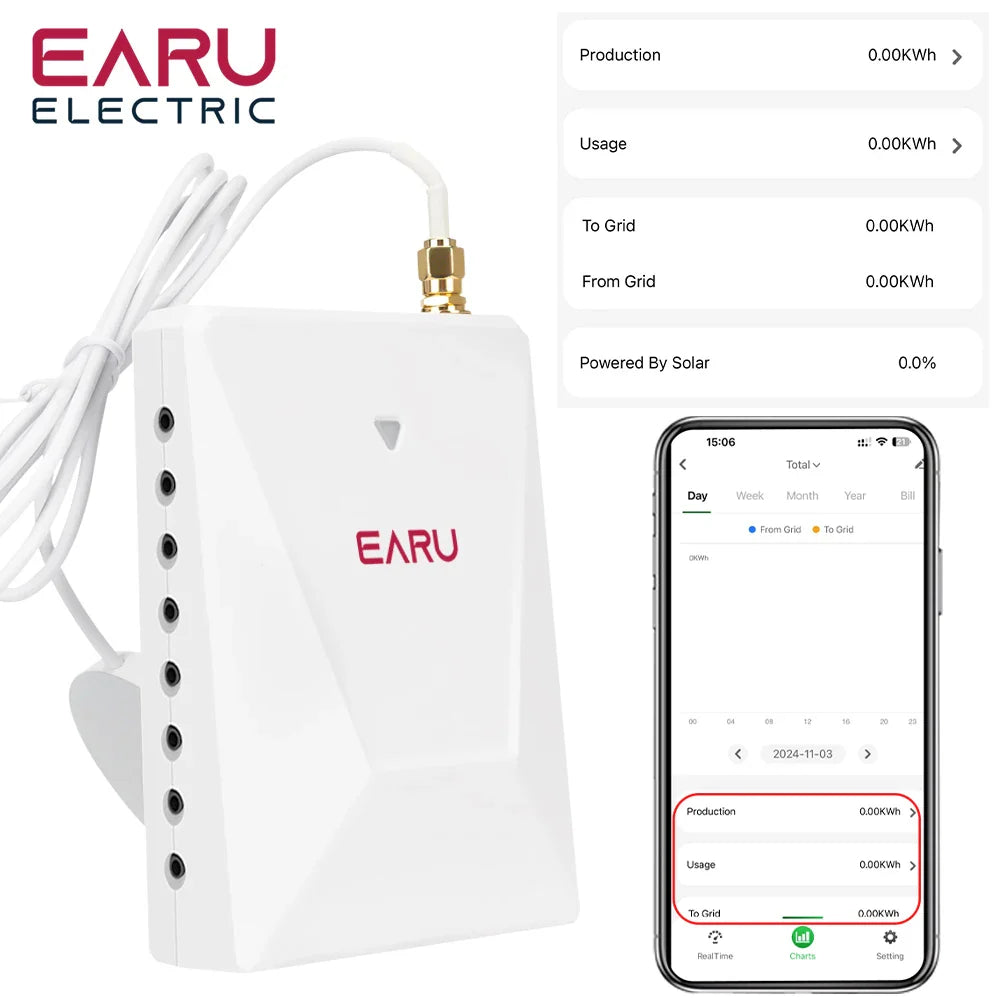

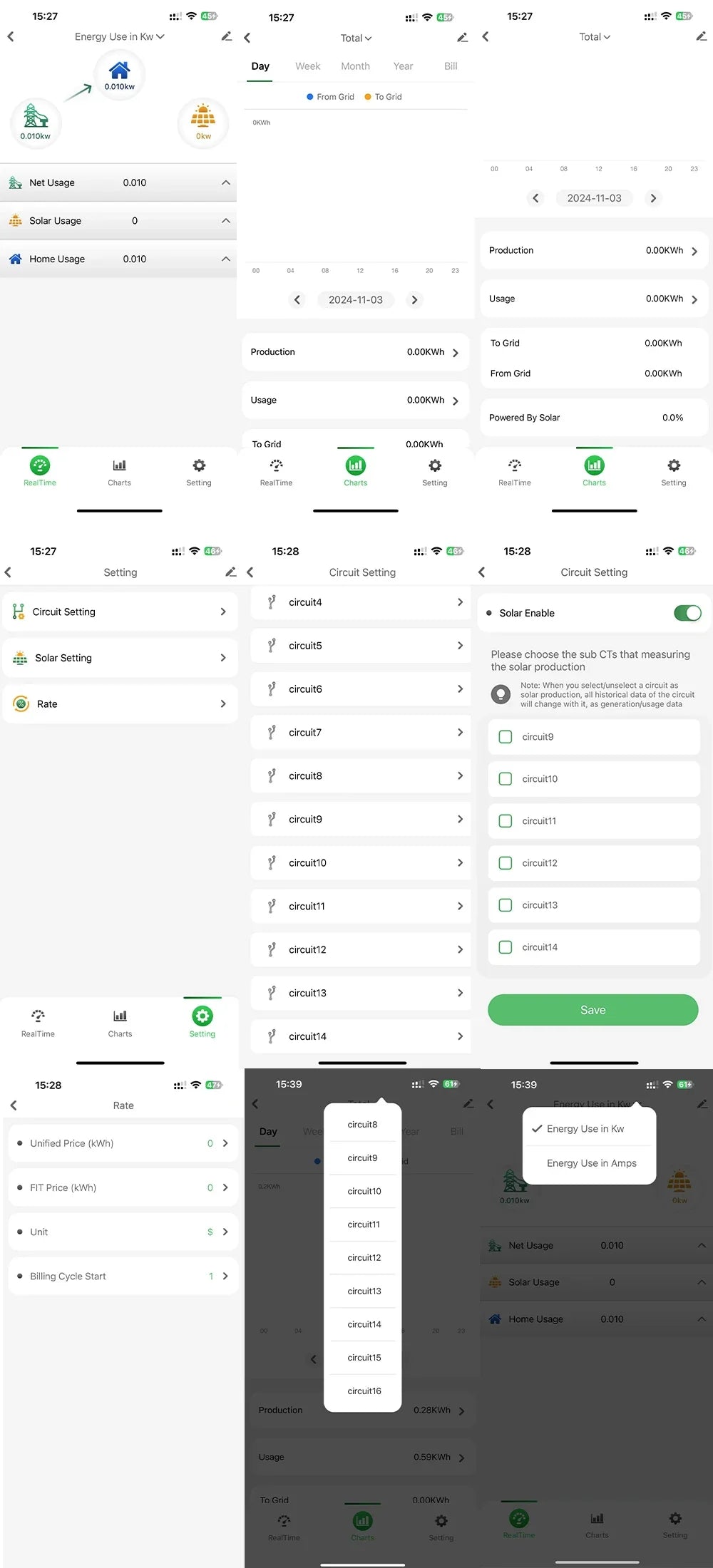

·Historical data of Energy Consumed and Energy Production
