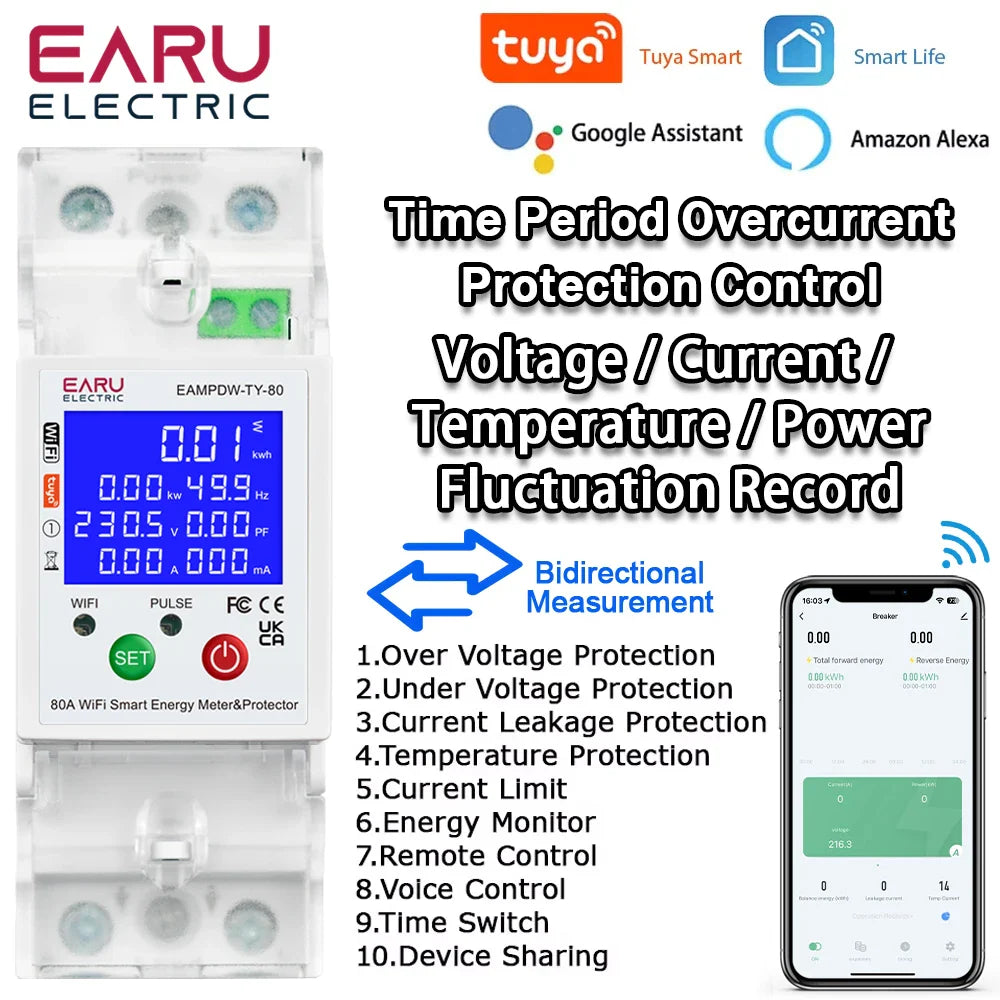

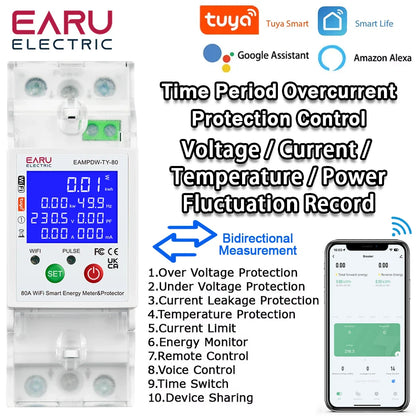

Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector

Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector

£61.00 GBP
£0.00 GBP £61.00 GBP
Sale Sold out
Taxes included.
Default Title

⚡ Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector

Discover the Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

  • ✅ Professional-grade design for long-term reliability
  • ✅ Optimized for renewable energy system integration
  • ✅ Durable construction for various applications
  • ✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: ±1%

Battery Included: No

Certification: CE

Choice: yes

DIY Supplies: Electrical

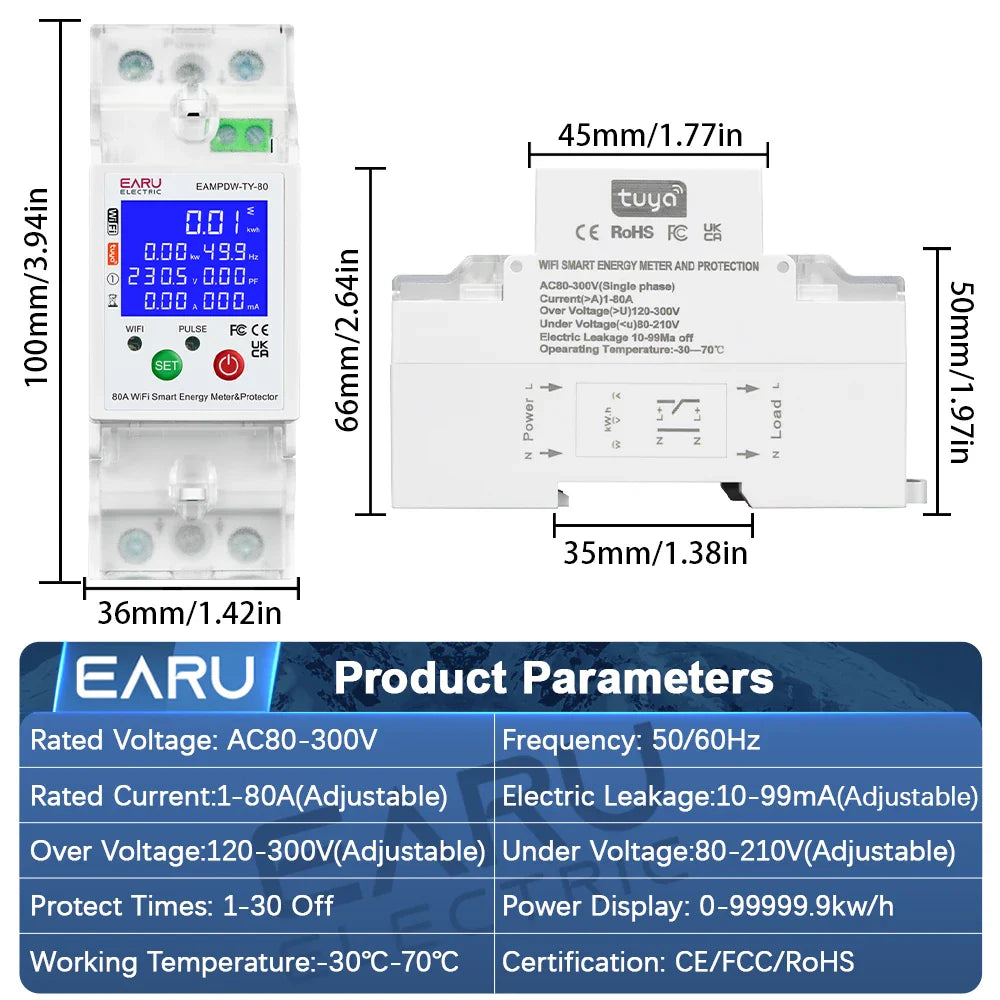

Dimensions: 100*36*66mm

Display Type: LCD

Function 1: Under Current Protection

Function 10: Time period overcurrent protec

Function 11: Circuit Breaker

Function 2: Over Voltage Protection

Function 3: Under Voltage Protection

Function 4: Leakage Protection

Function 5: Electricity Metering

Function 6: Temperature Protection

Function 7: Voltage Meter

Function 8: Ammeter

Function 9: BI-Direction Measuring

High-concerned chemical: None

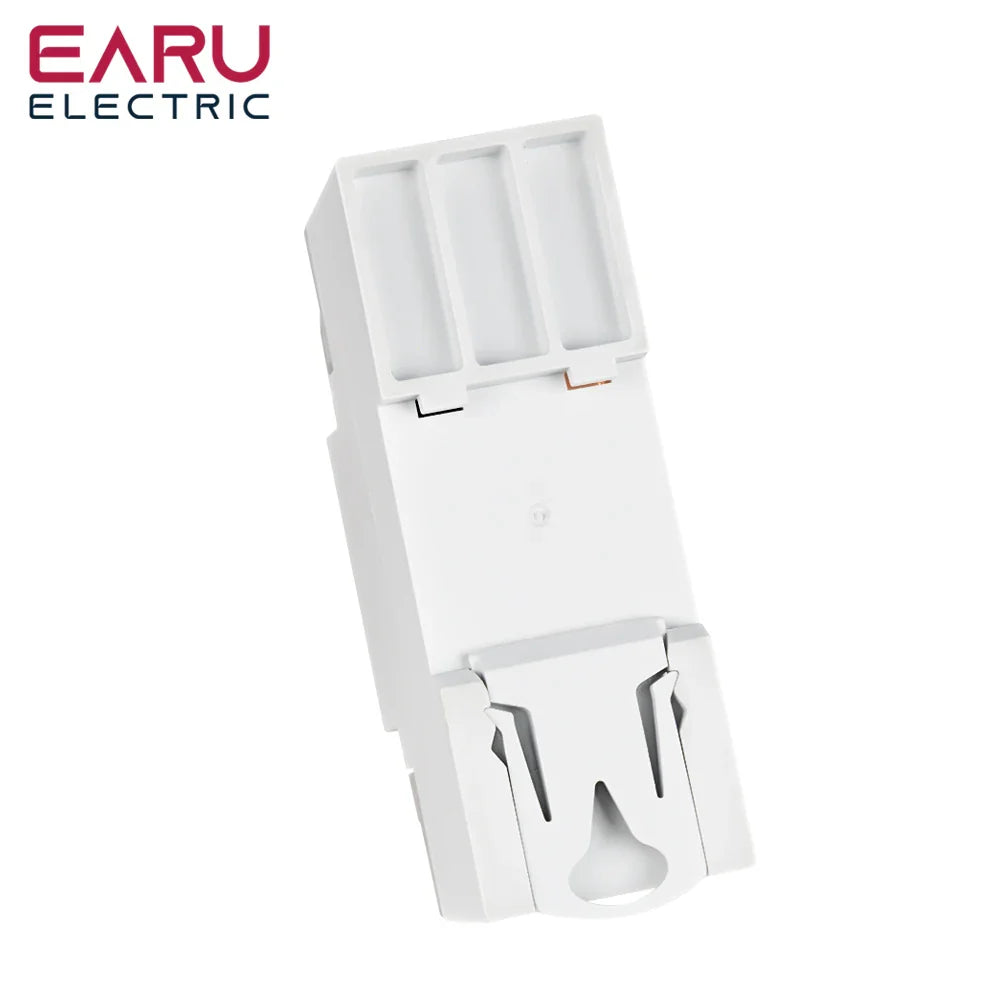

Installation: 35MM Din Rail

Leakage Protector Setting Range: 10-99mA (Adjustable)

Max Operating Current: 80A - 99A

Measuring Energy Range: 0-99999.9kw/h

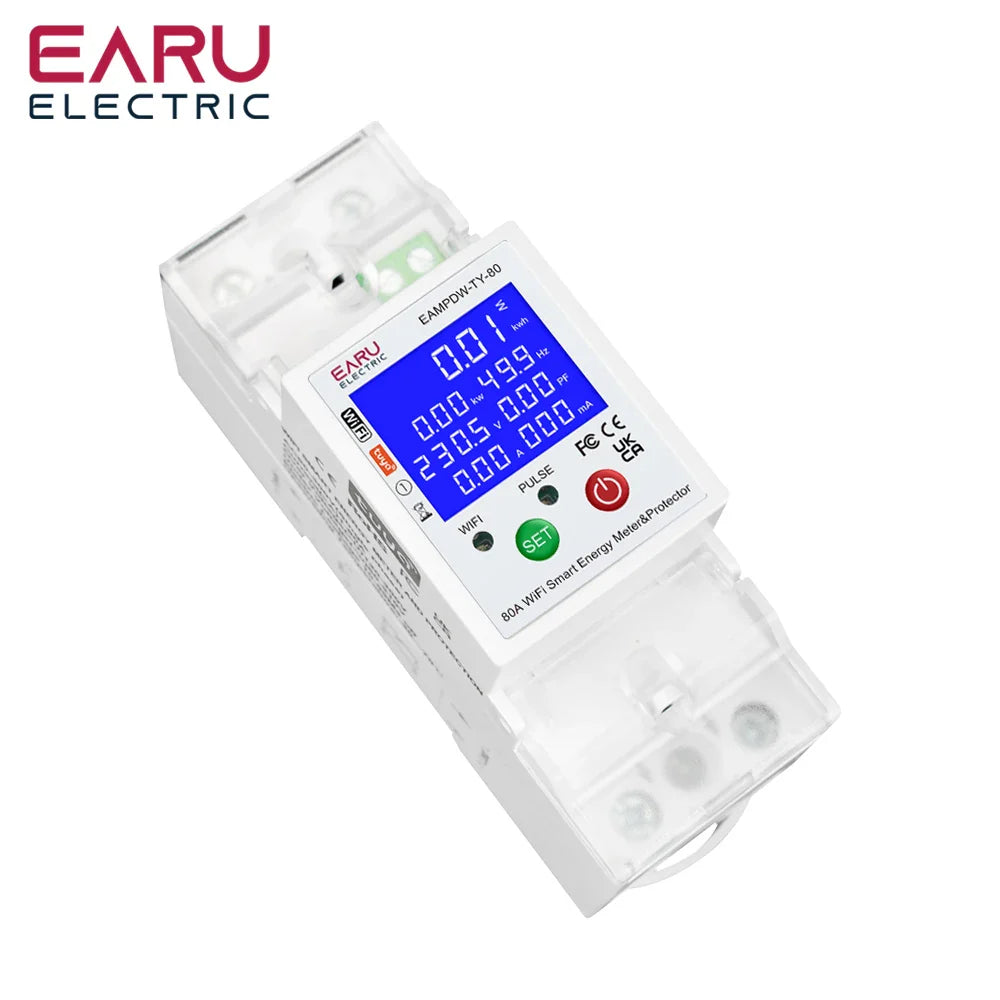

Model Number: EAMPDW-TY-80

Operating Temperature: -30~70°C

Operation Voltage Range: AC80V-300V(Single Phase)

Origin: Mainland China

Output Contact: 1NO

Over Voltage(>U): 120V-300V (Adjustable)

Phase: single phase

Power Display Range: 0-99999.9kw/h

Power Source: DC

Power Supply: AC

Protection Degree: IP20

Rated Current: 1-80A(adjustable)

Rated Frequency: 50/60Hz

Rated Supply Voltage: AC110V/230V

Rated Voltage: 220V

Reset/start Delay: 10s-99s(Adjustable)

Temperature Measurement: 10-85°C(Adjustable)

Under Voltage(: 80V-210V (Adjustable)

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

Product Specification

Rated Voltage: AC80-300V(Single Phase) ; Frequency: 50Hz/60Hz


Function:

1. Voltage Meter

2. Ammeter

3. Energy Meter

4. Timer Switch

5. Remote Control ON/OFF

6. Power Failure Memory

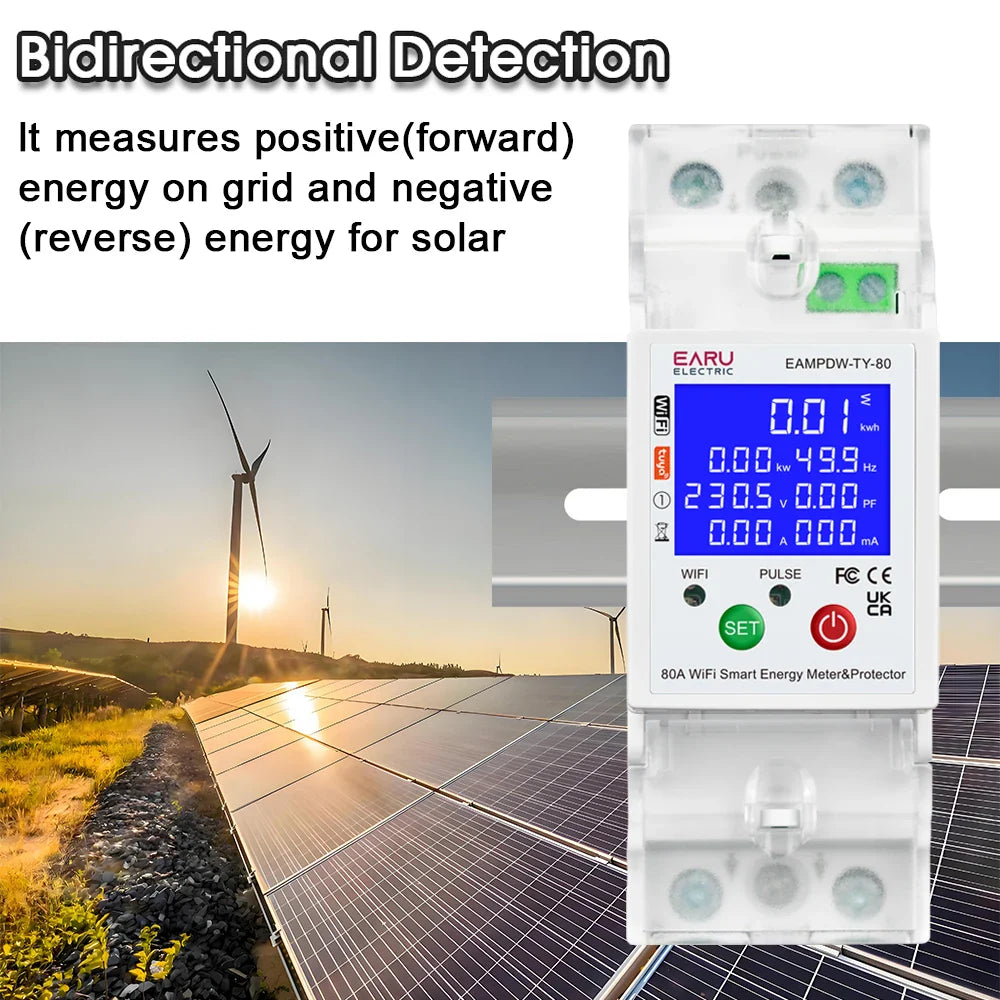

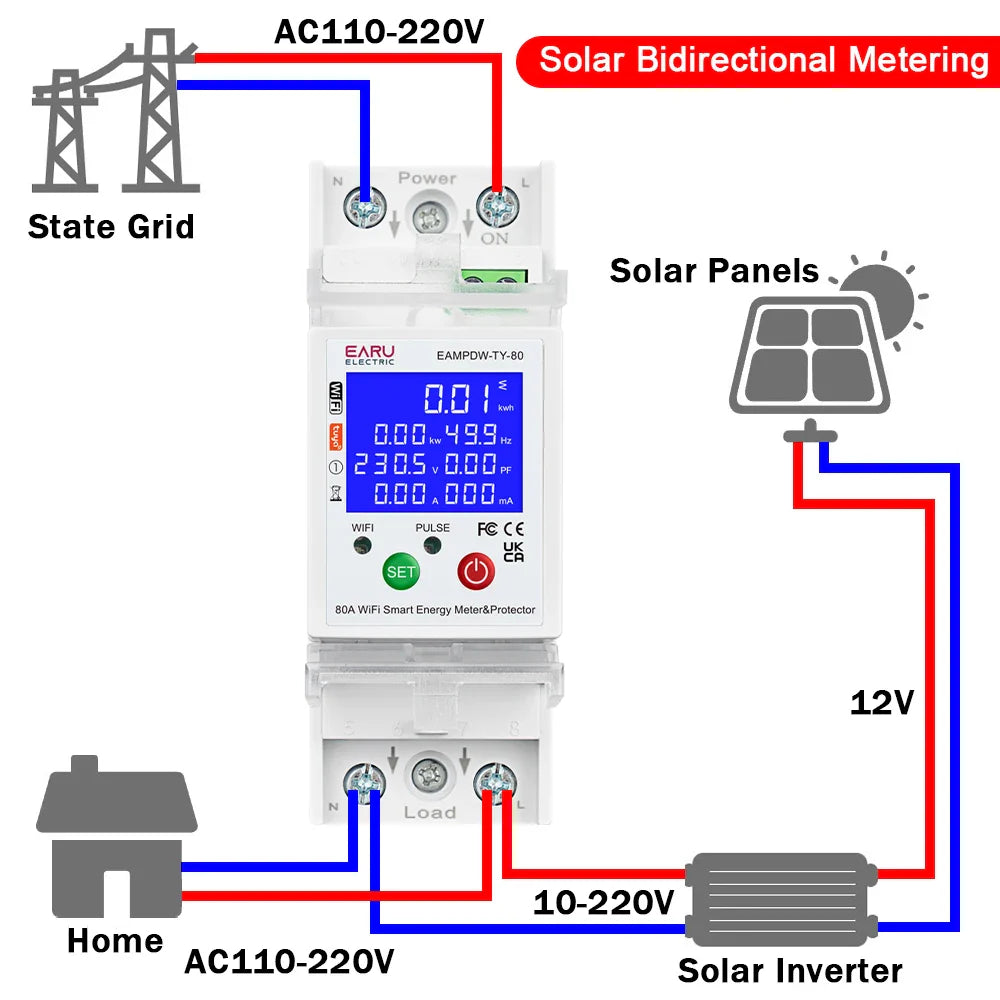

7. Bidirectional Detection

8. Over Current Protection (1A-80A Adjustable)

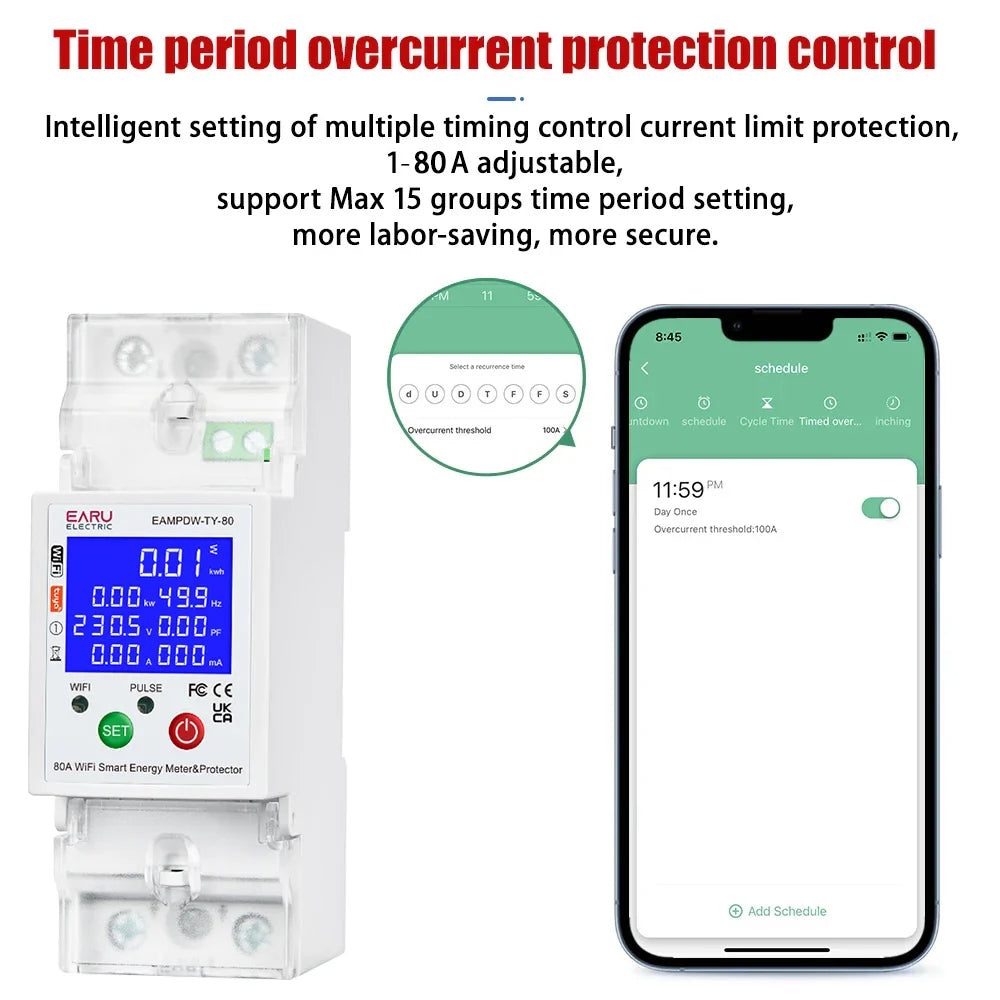

9. Time Period Overcurrent Protection Control (1A-100A Aadjustable)

10. Under-Voltage Protection (76V-240V Adjustable)

11. Over-Voltage Proteciton (120V-300V Adjustable)

12. Current Leakage Protection (10mA-99mA Adjustable)

13. Temperature Protection (10°C-85°C Adjustable)

14. Over Current and Leakage Reconnect Times (1-30 Adjustable)

15. Reconnect Time (Delay on time) (10s-90s Adjustable)

16. Reset/restore power consumption data to factory

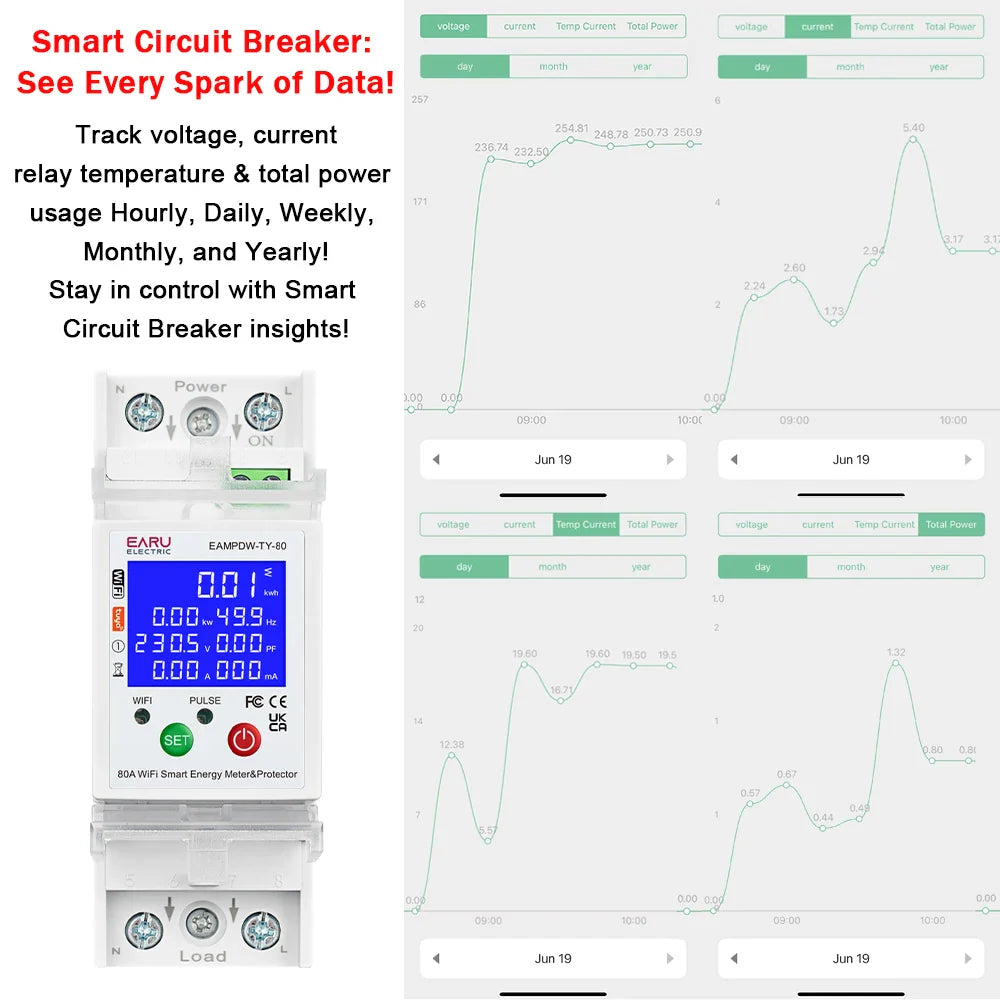

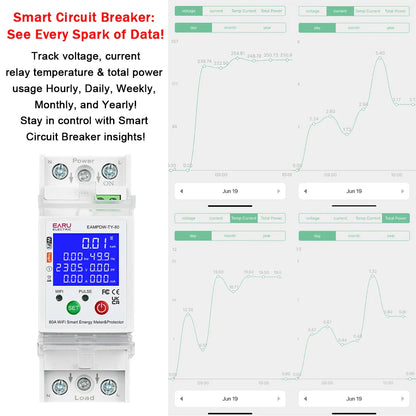

17.Voltage/Current/Temperature/Power fluctuation curve recording
