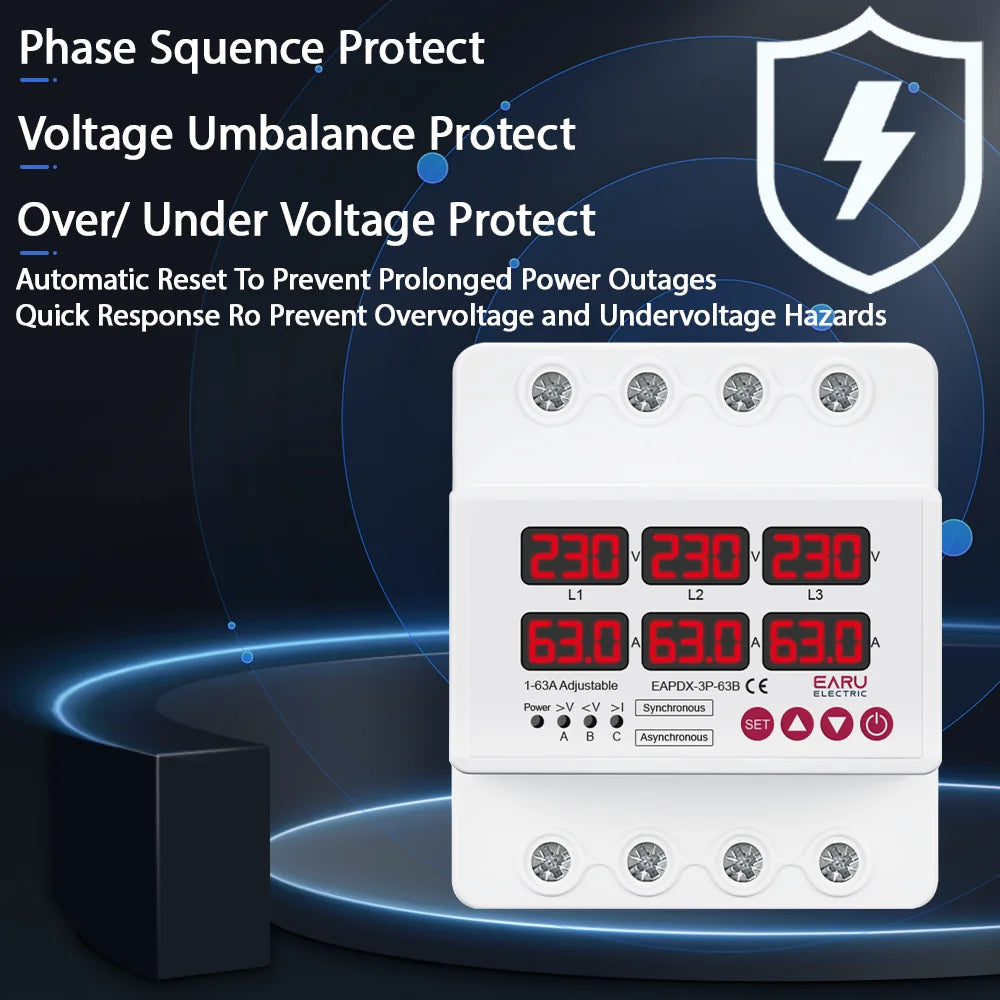

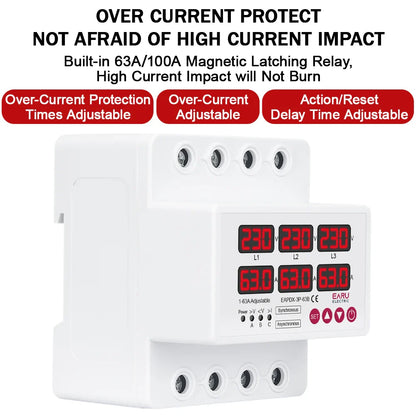

Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset

£64.00 GBP

~~£0.00 GBP~~ £64.00 GBP

Sale Sold out

Taxes included.

Rated Current 100A 63A

⚡ Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset

Discover the Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

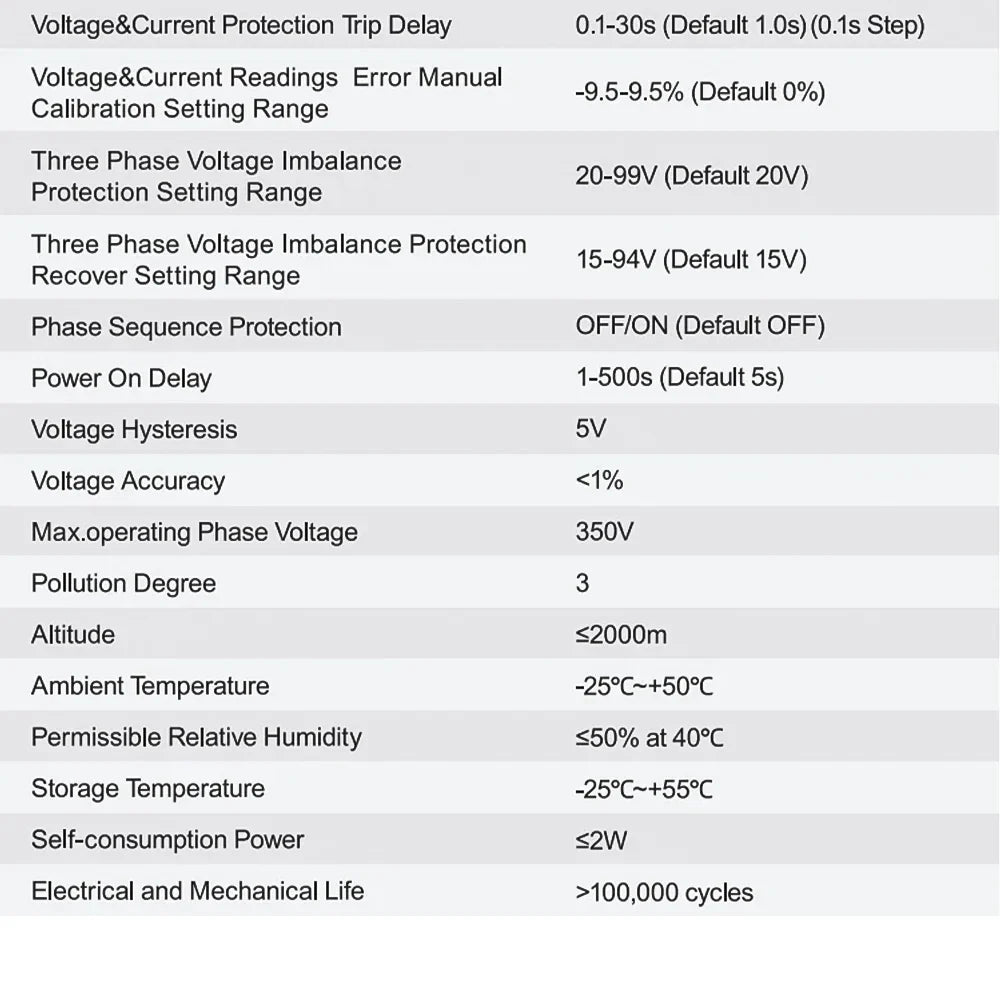

📄 Technical Specifications

Certification: CE

Choice: yes

Continuous Over Current Protection Times: 0-20 Times(Default OFF)

High-concerned chemical: None

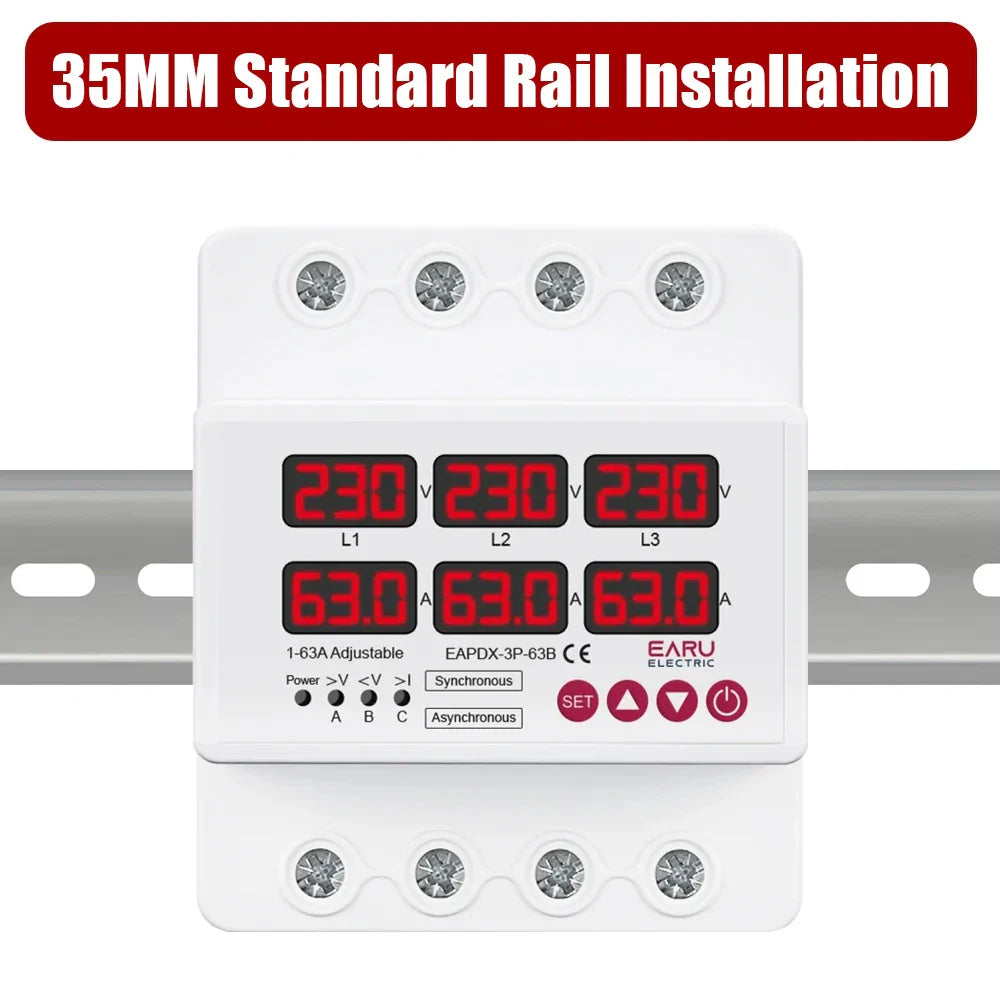

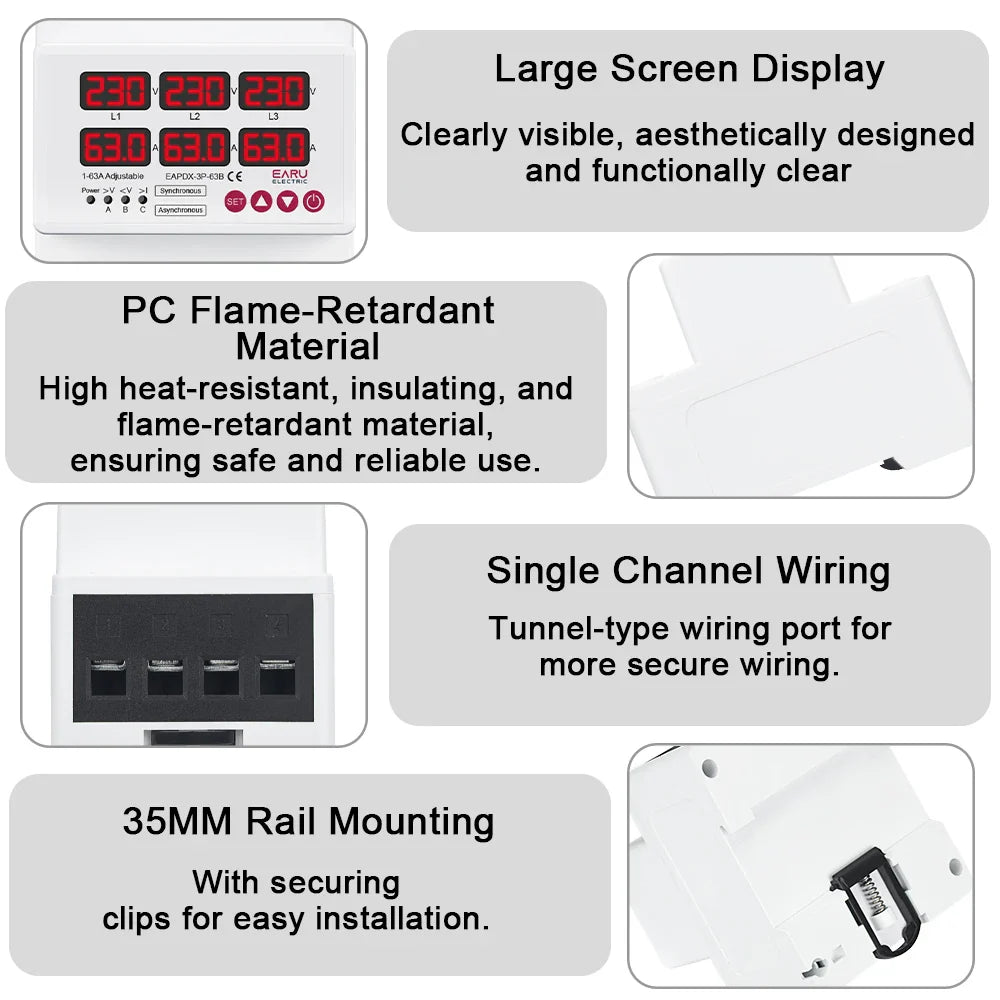

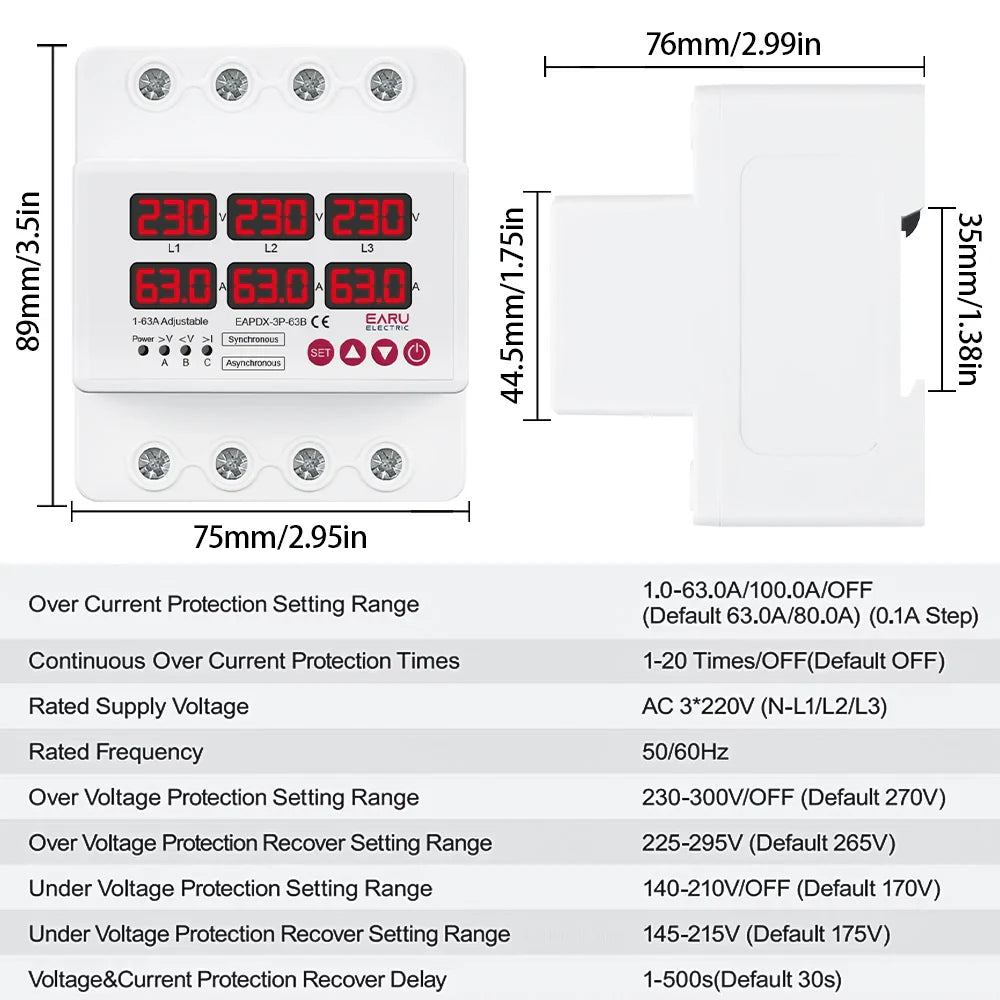

Installation: 35MM Din Rail

Is Smart Device: No

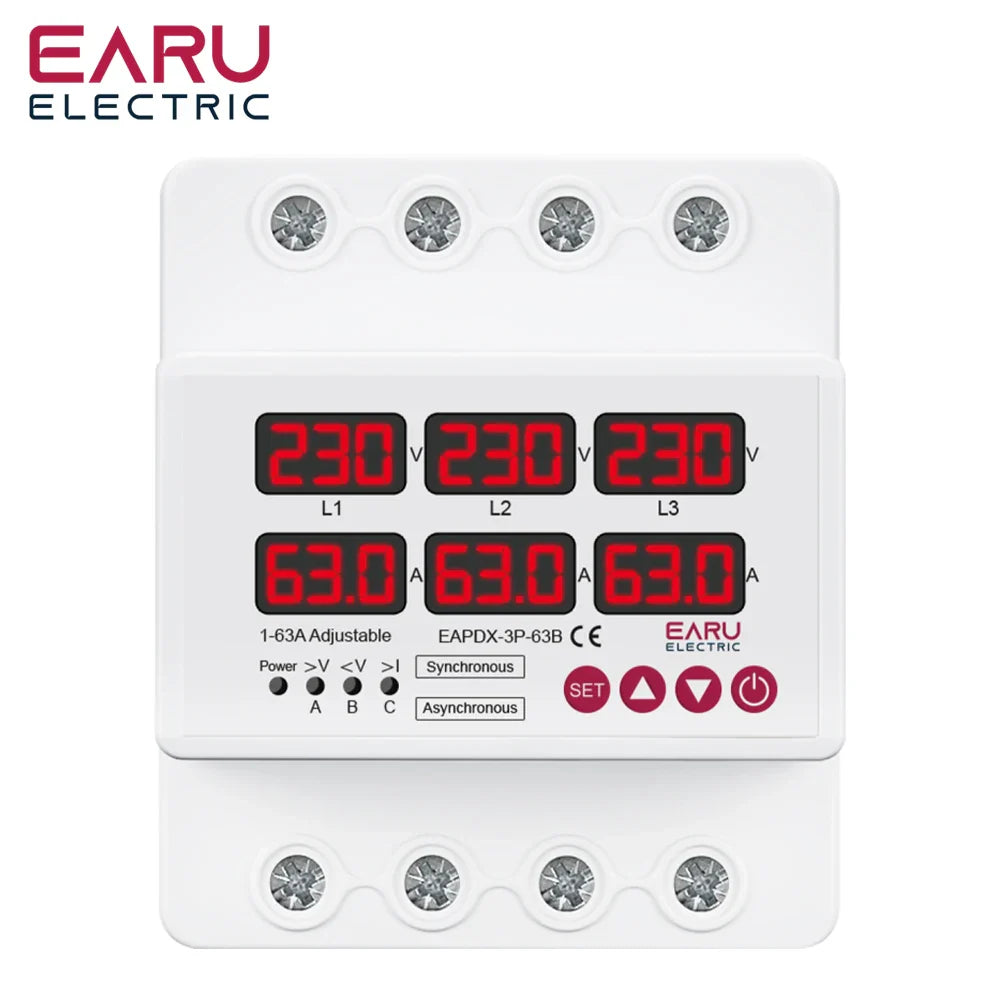

Model Number: EAPDX-3P

Origin: Mainland China

Over Voltage Protection Recover Setting Range: 225-295V (Default 265V)

Over Voltage Protection Setting Range: 230-300V (Default 270V)

Rated Current 1: 1-63A (Adjustable)

Rated Current 2: 1-100A (Adjustable)

Rated Frequency: 50/60Hz

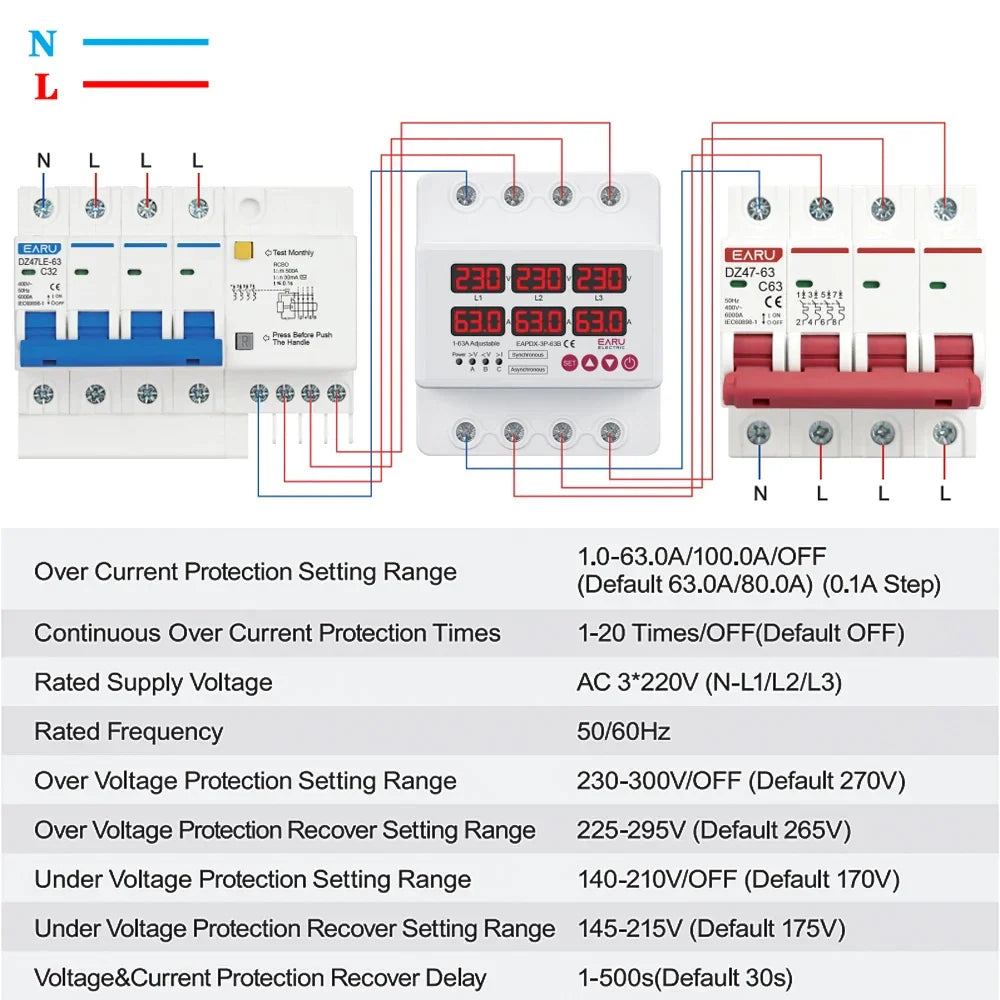

Rated Supply Voltage: AC 3* 220V(N-L1/L2/L3)

Rated Voltage: 220V

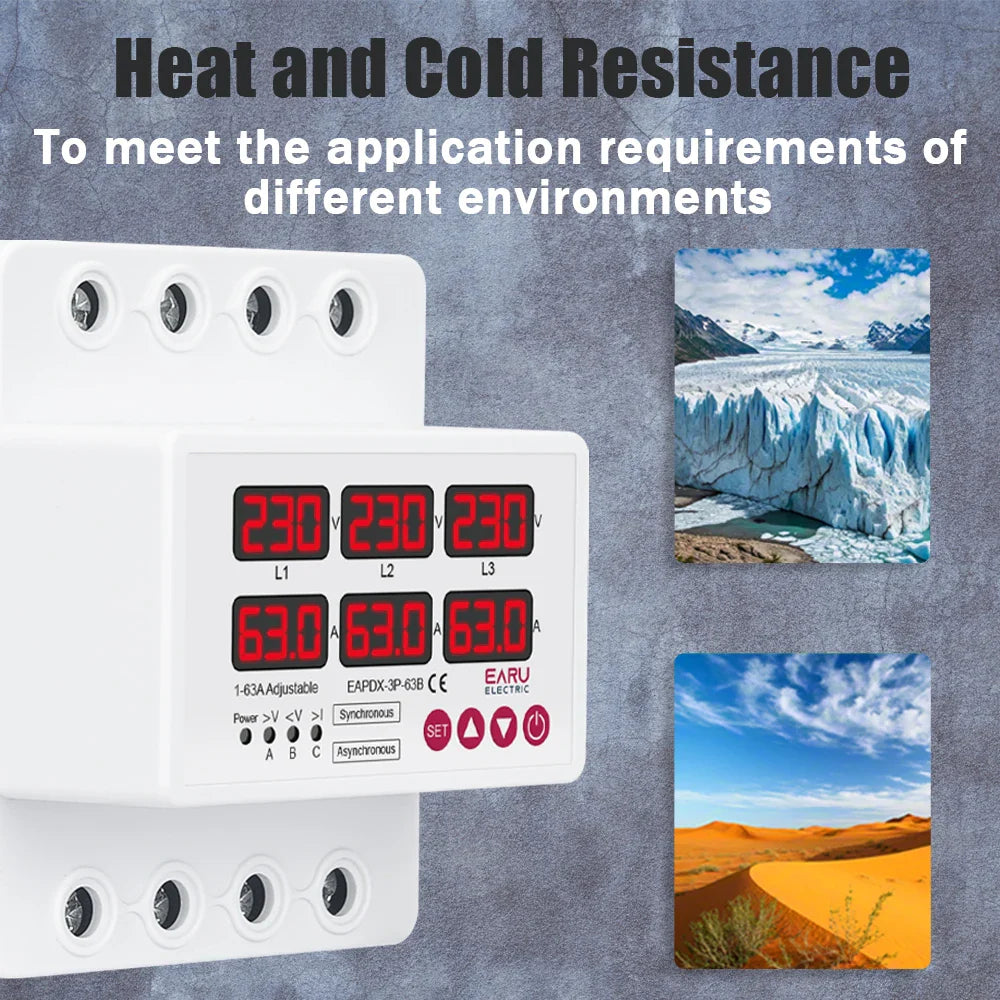

Storage Temperature: -25℃~+50℃

Supply Terminals: N,L1,L2,L3

Type: Mini,Voltage relay

Under Voltage Protection Recover Setting Range: 145-215V (Default 175V)

Under Voltage Protection Setting Range: 140-210V (Default 170V)

Voltage&Current Protection Recover Delay: 1-500s(Default 30s)

is_customized: Yes

semi_Choice: yes

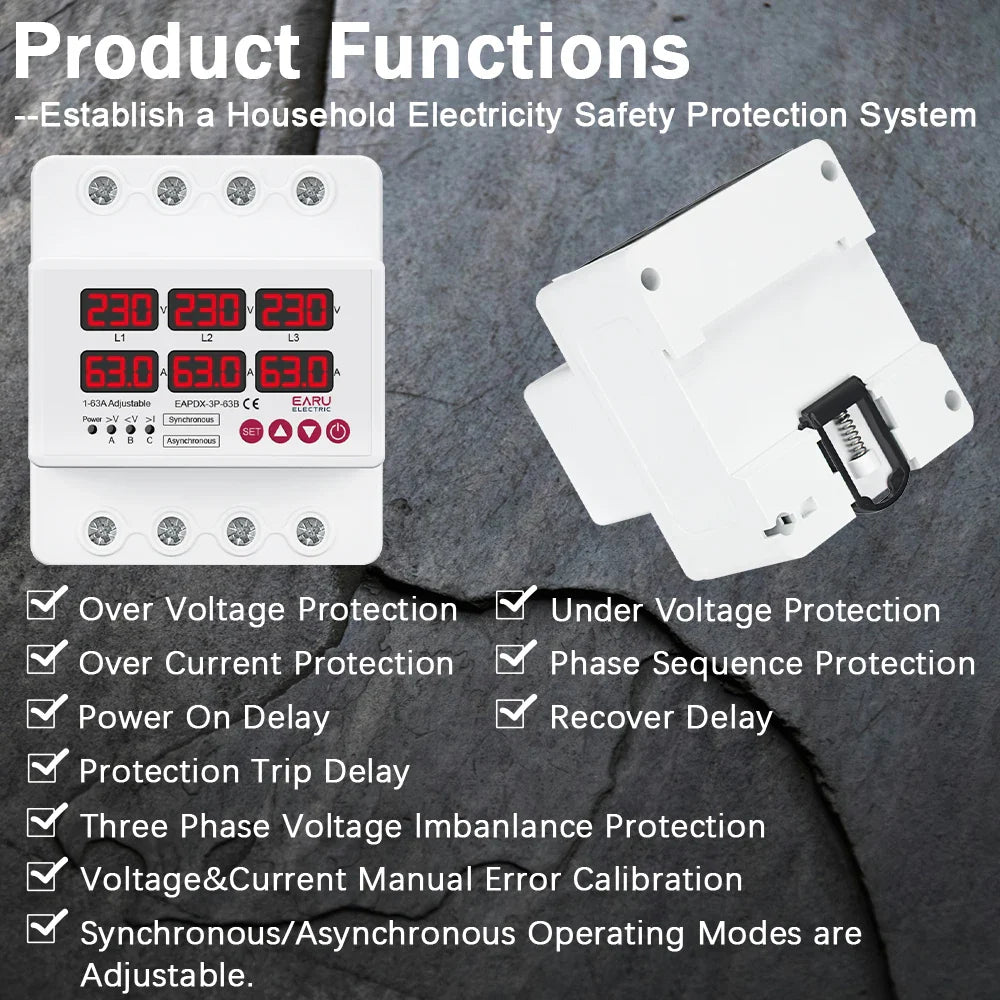

Product Description:

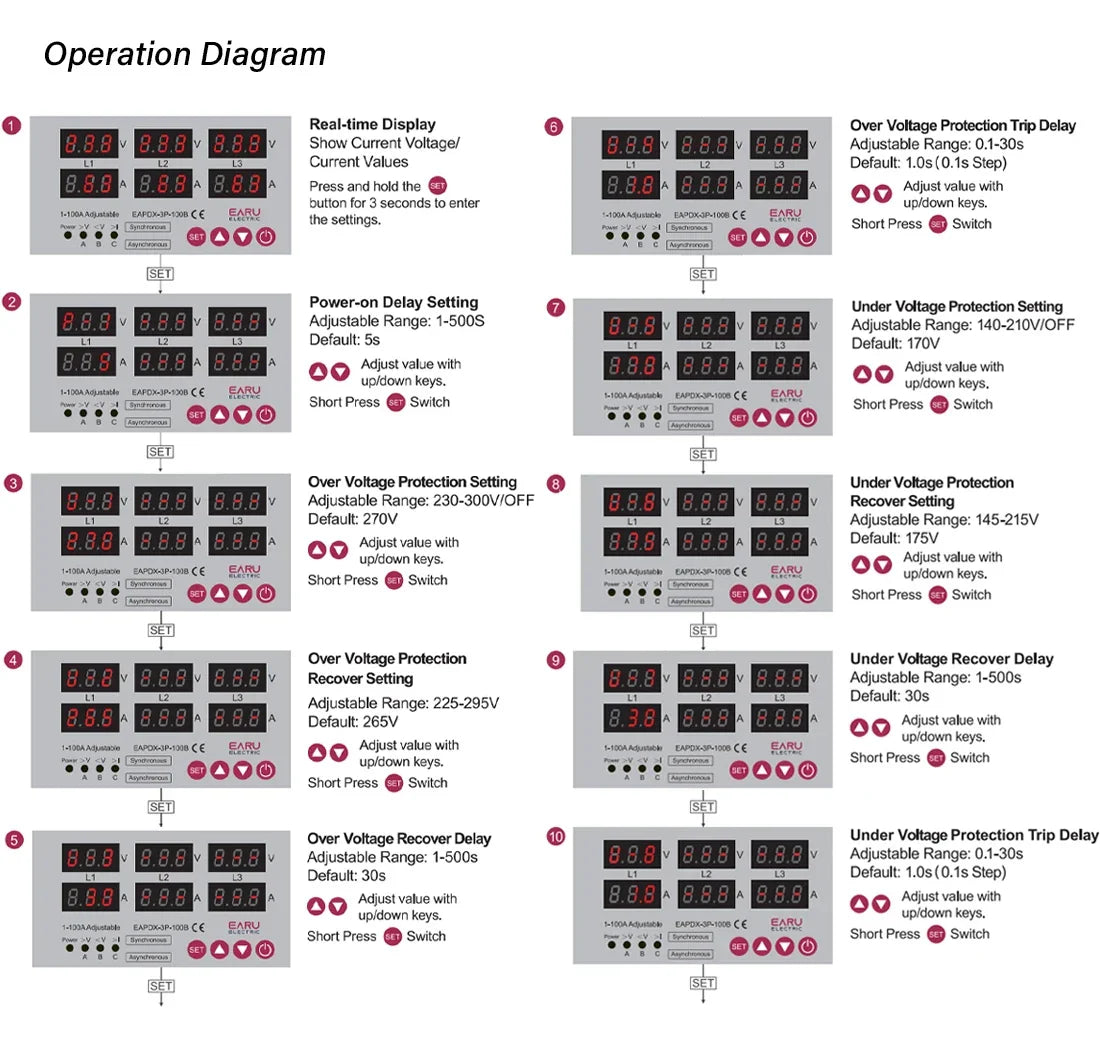

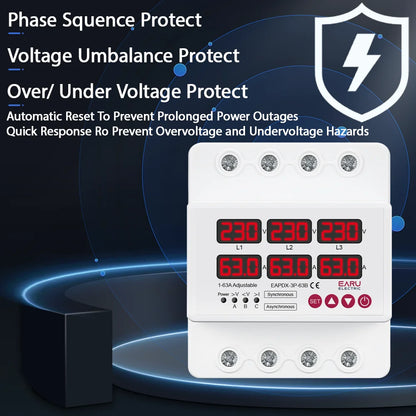

1. Over Voltage Protection

2. Under Voltage Protection

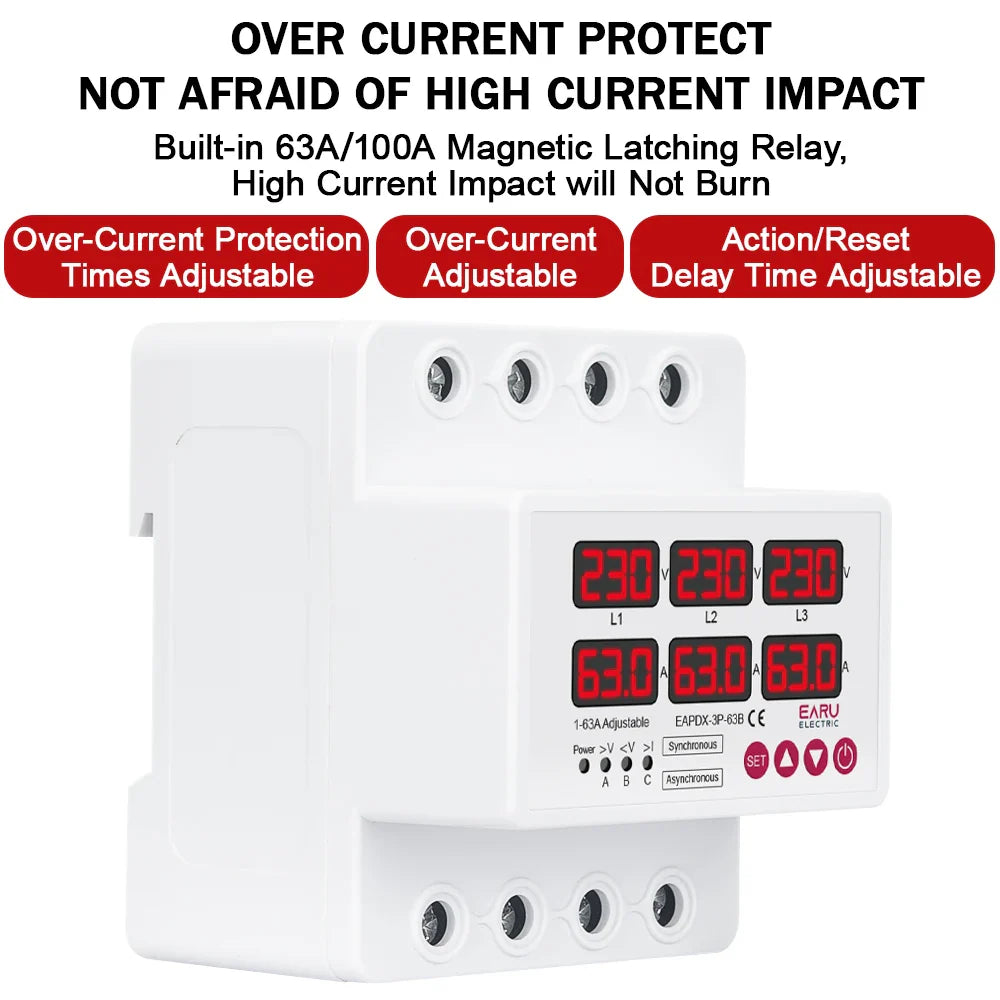

3. Over Current Protection

4. Three Phase Voltage lmbanlance Protection

5. Phase Sequence Protection

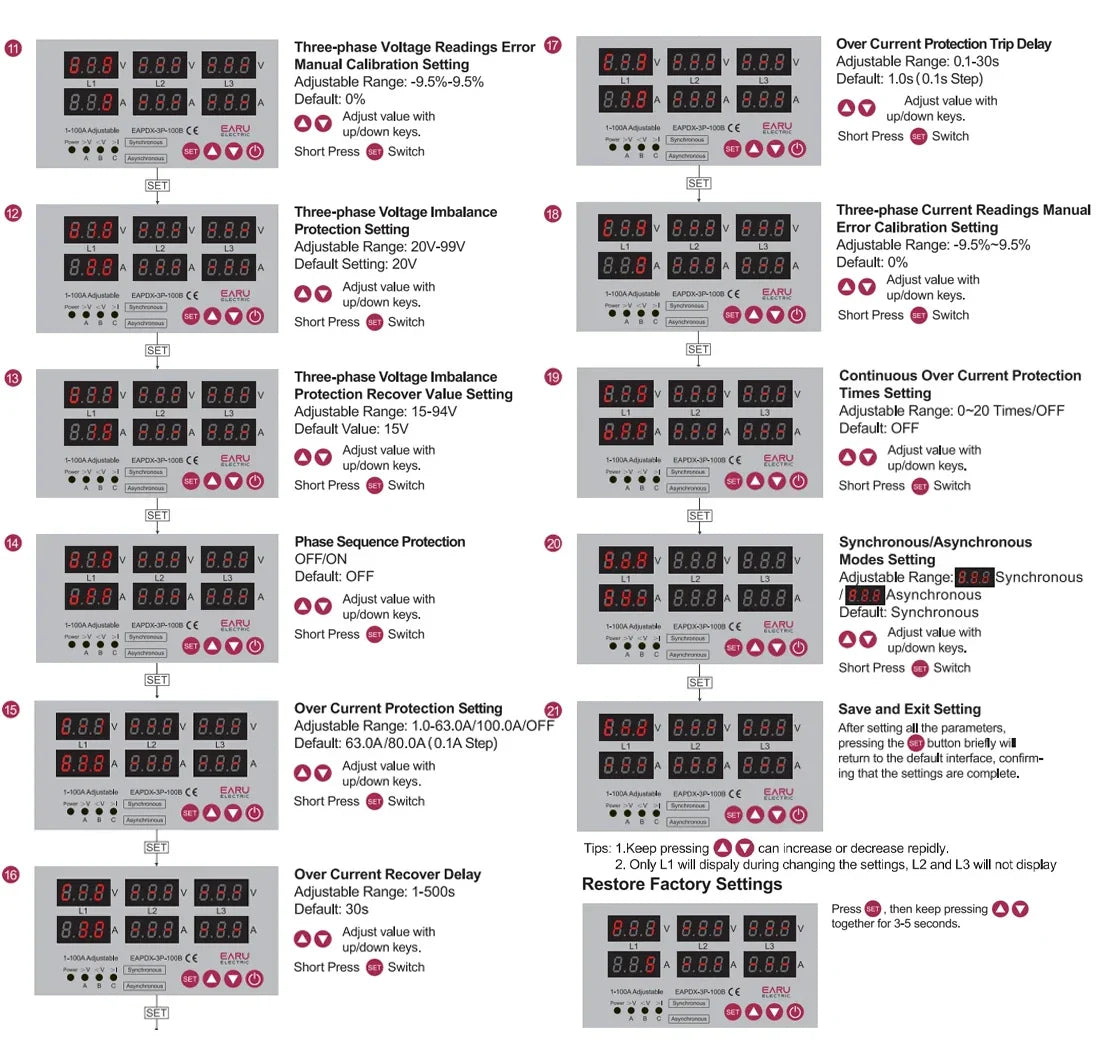

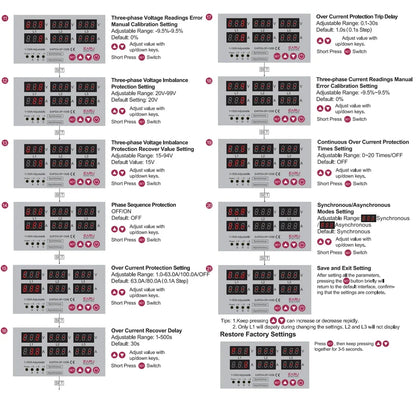

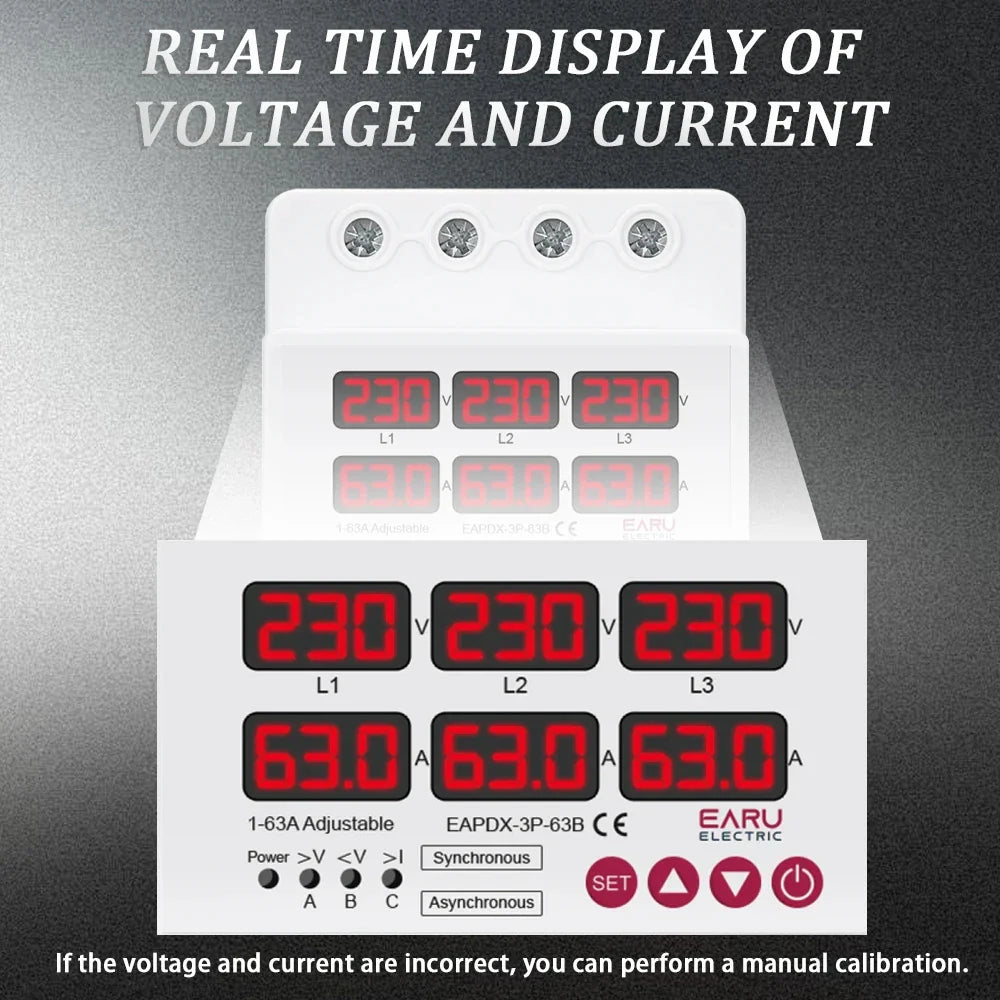

6. Voltage & Current Manual Error Calibration

7. Power On Delay

8. Protection Trip Delay

9. Recover Delay

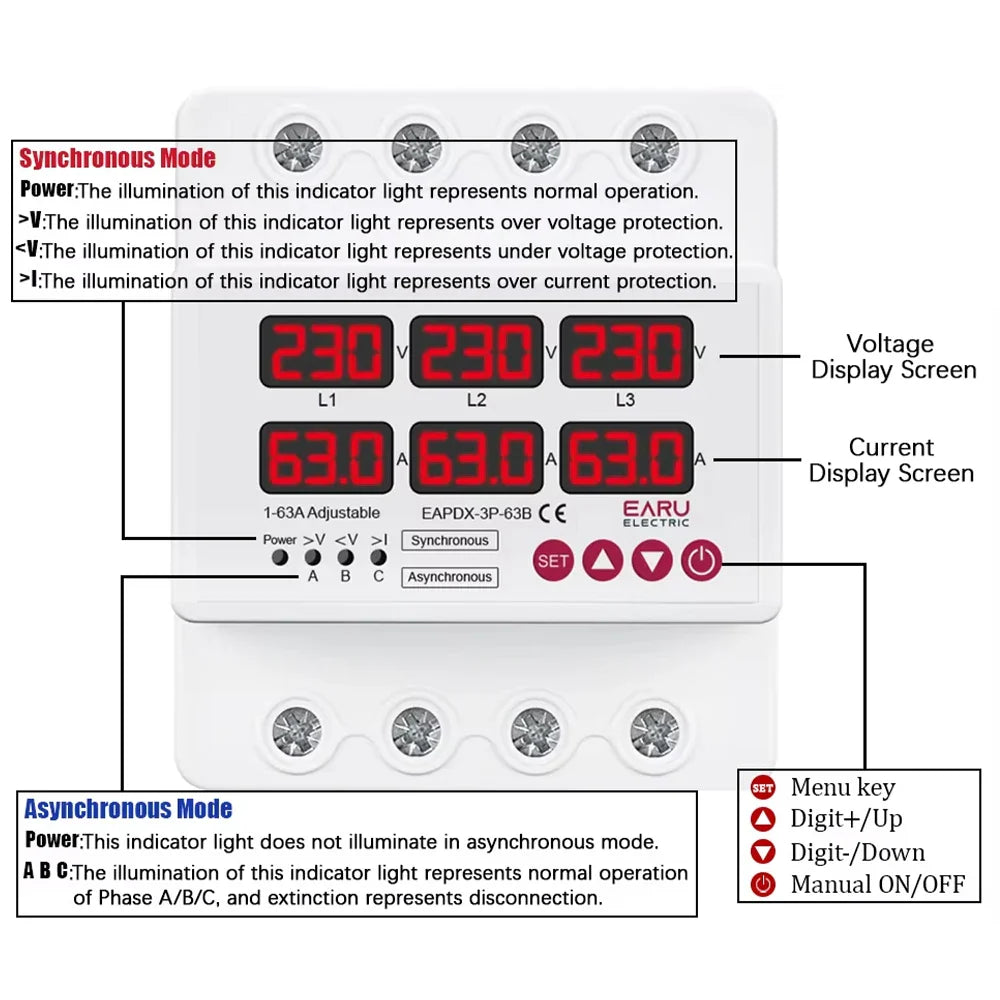

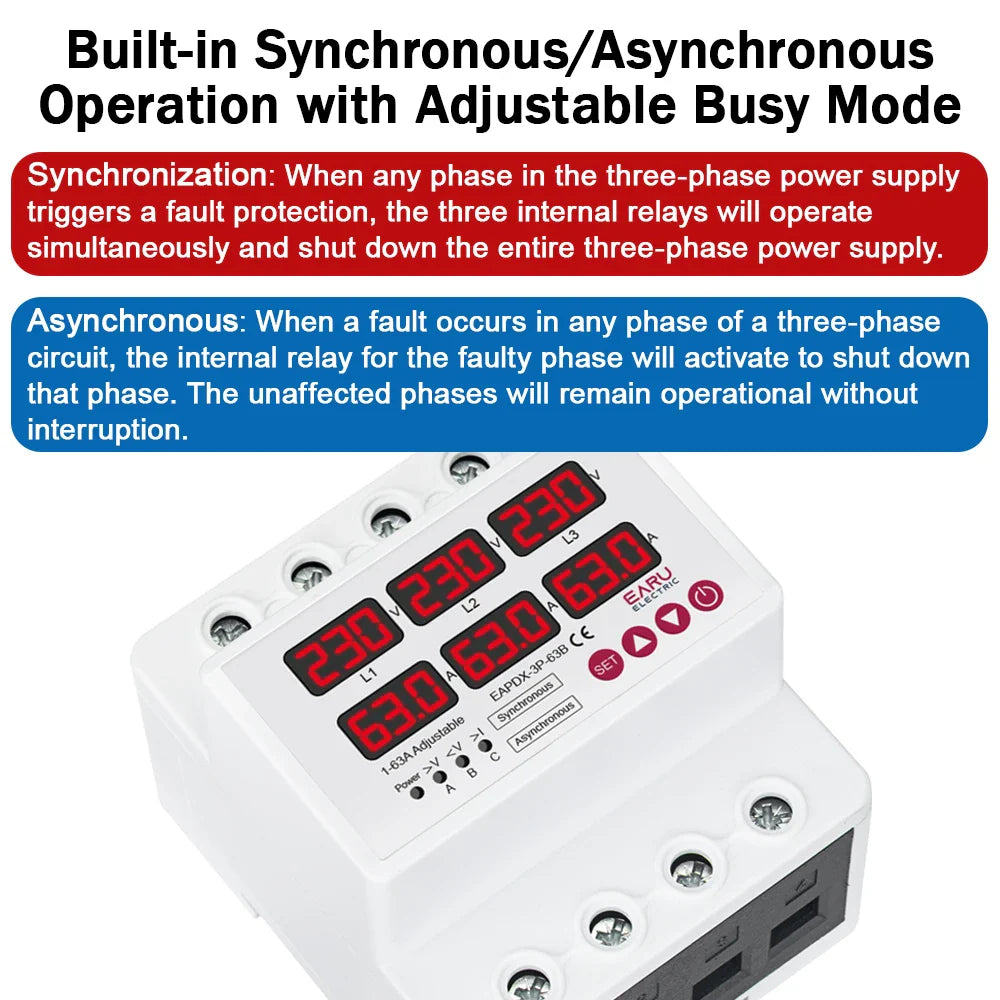

10.Synchronous/Asynchronous Operation
