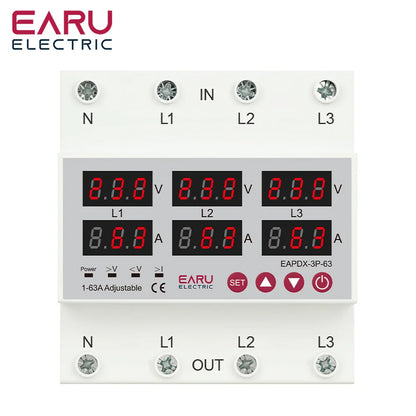

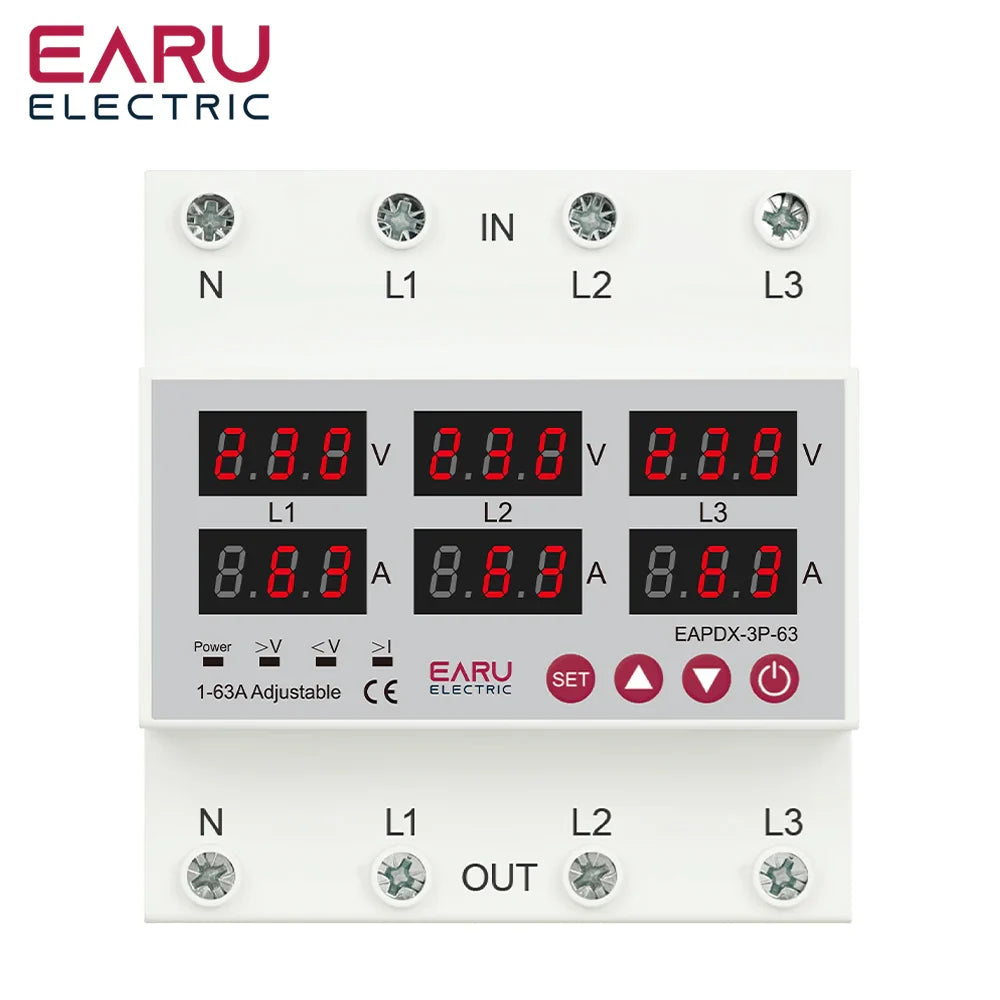

Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 3*220V 380V 63A 100A Din Rail

£45.00 GBP

~~£0.00 GBP~~ £45.00 GBP

Sale Sold out

Taxes included.

Rated Current 63A 100A

⚡ Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 3*220V 380V 63A 100A Din Rail

Discover the Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 3*220V 380V 63A 100A Din Rail — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

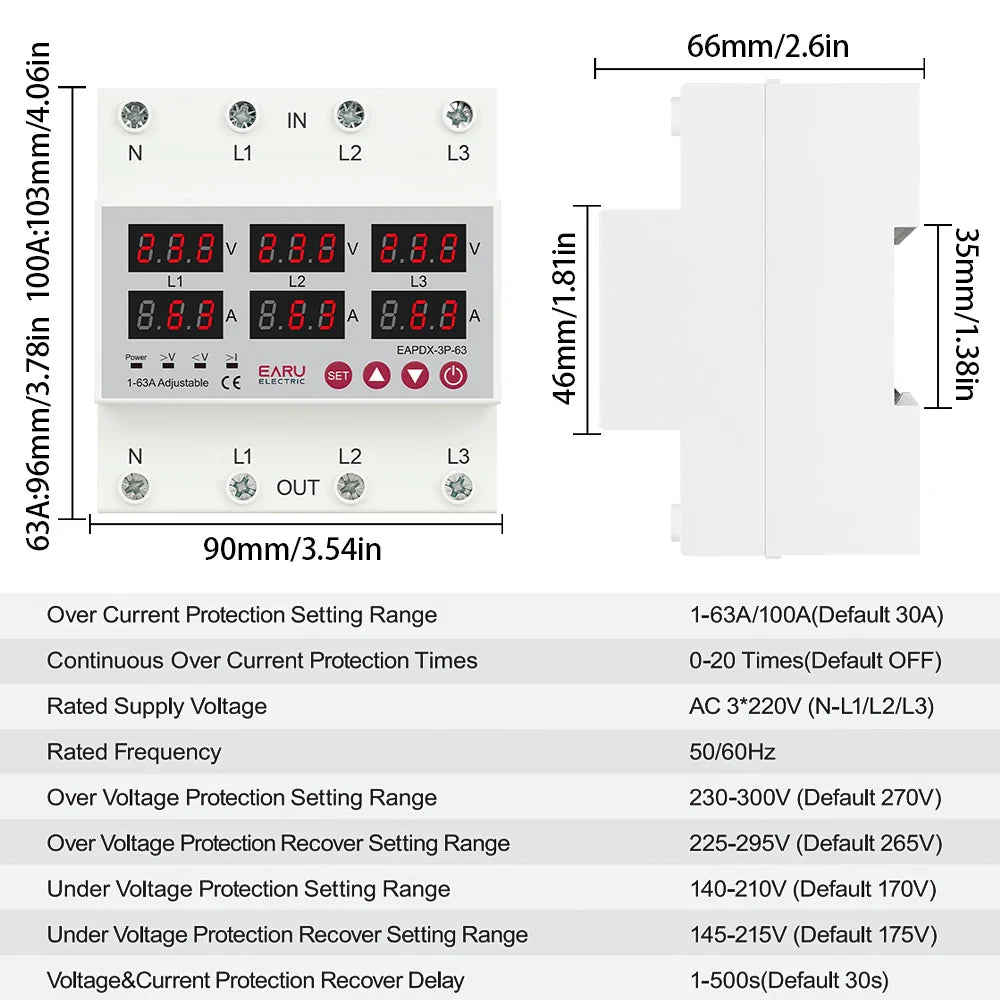

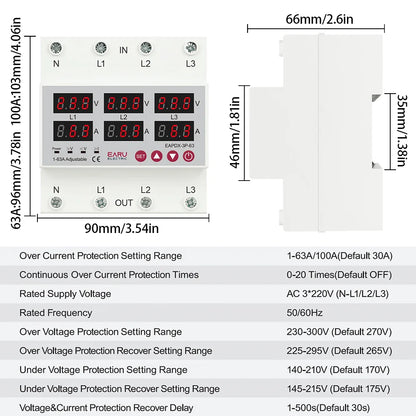

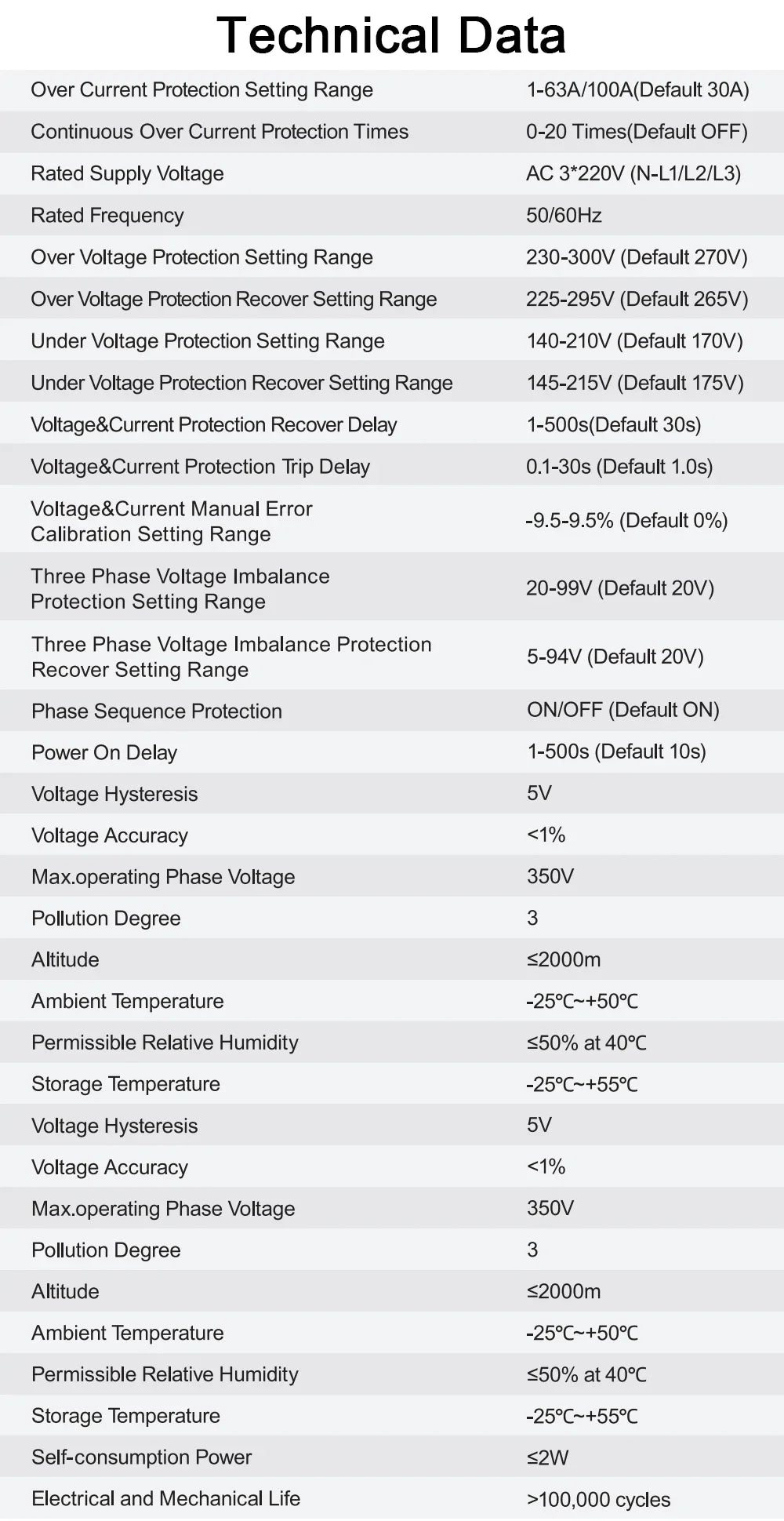

📄 Technical Specifications

Certification: CE

Choice: yes

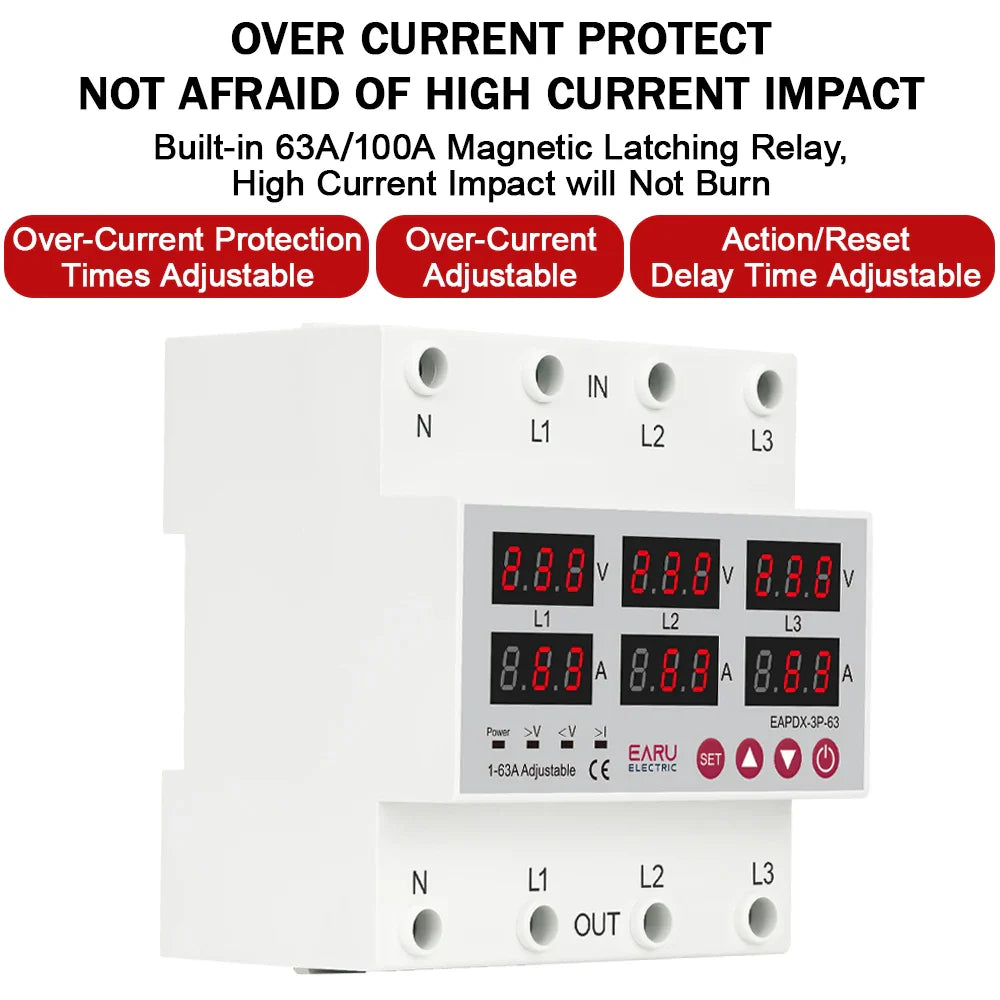

Continuous Over Current Protection Times: 0-20 Times(Default OFF)

High-concerned chemical: None

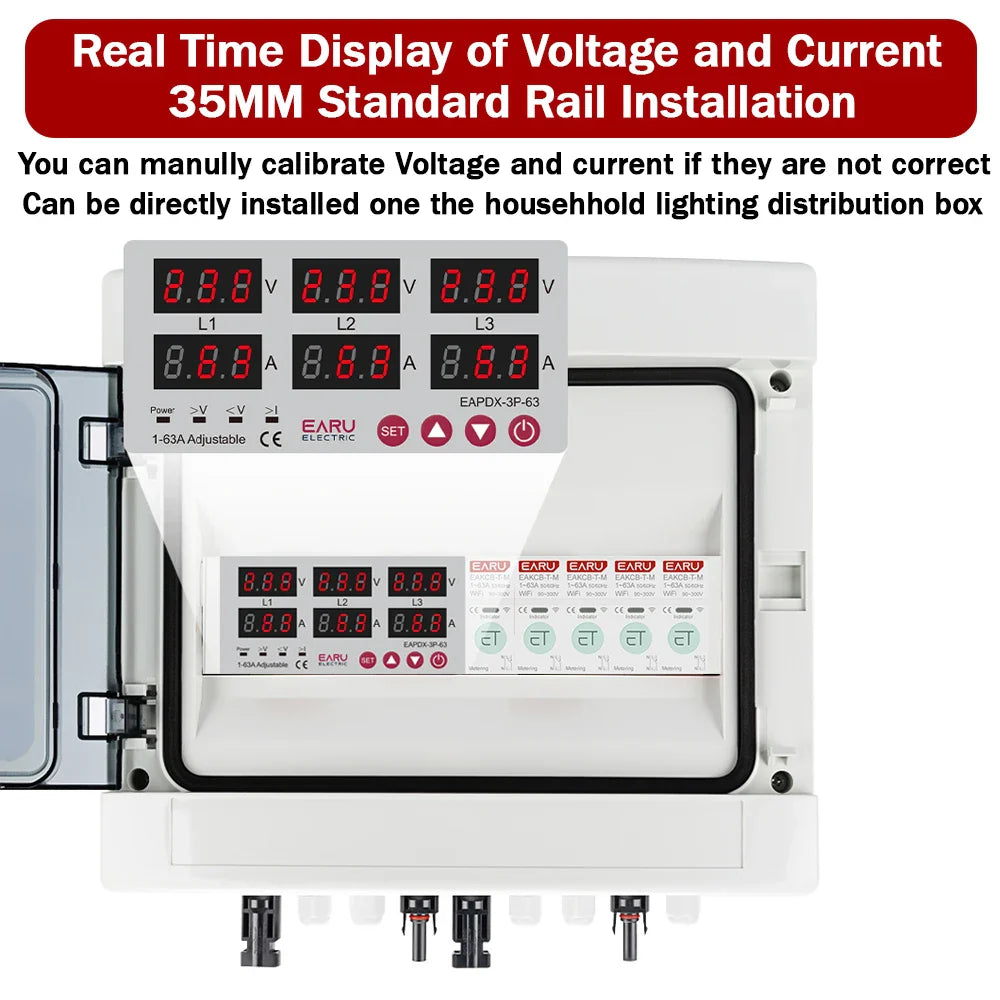

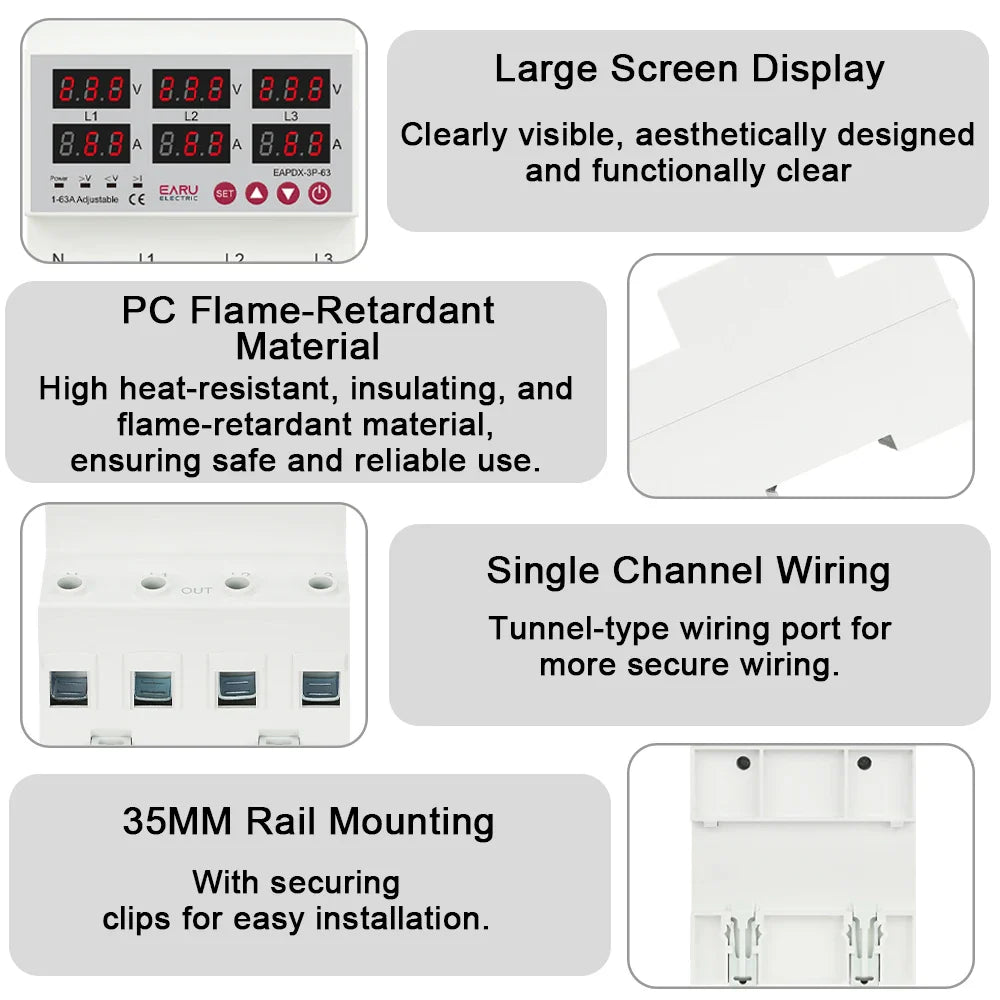

Installation: 35MM Din Rail

Is Smart Device: No

Model Number: EAPDX-3P

Origin: Mainland China

Over Voltage Protection Recover Setting Range: 225-295V (Default 265V)

Over Voltage Protection Setting Range: 230-300V (Default 270V)

Rated Current 1: 1-63A (Adjustable)

Rated Current 2: 1-100A (Adjustable)

Rated Frequency: 50/60Hz

Rated Supply Voltage: AC 3* 220V(N-L1/L2/L3)

Rated Voltage: 220V

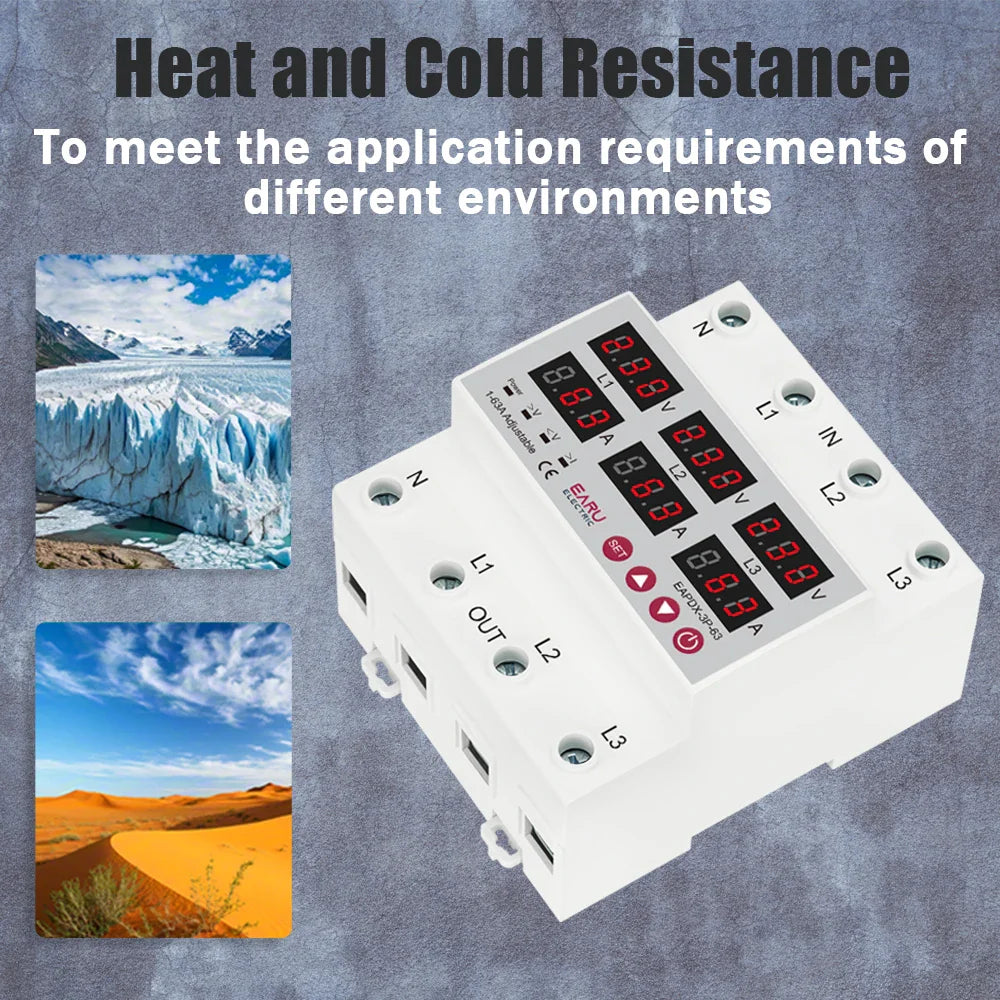

Storage Temperature: -25℃~+55℃

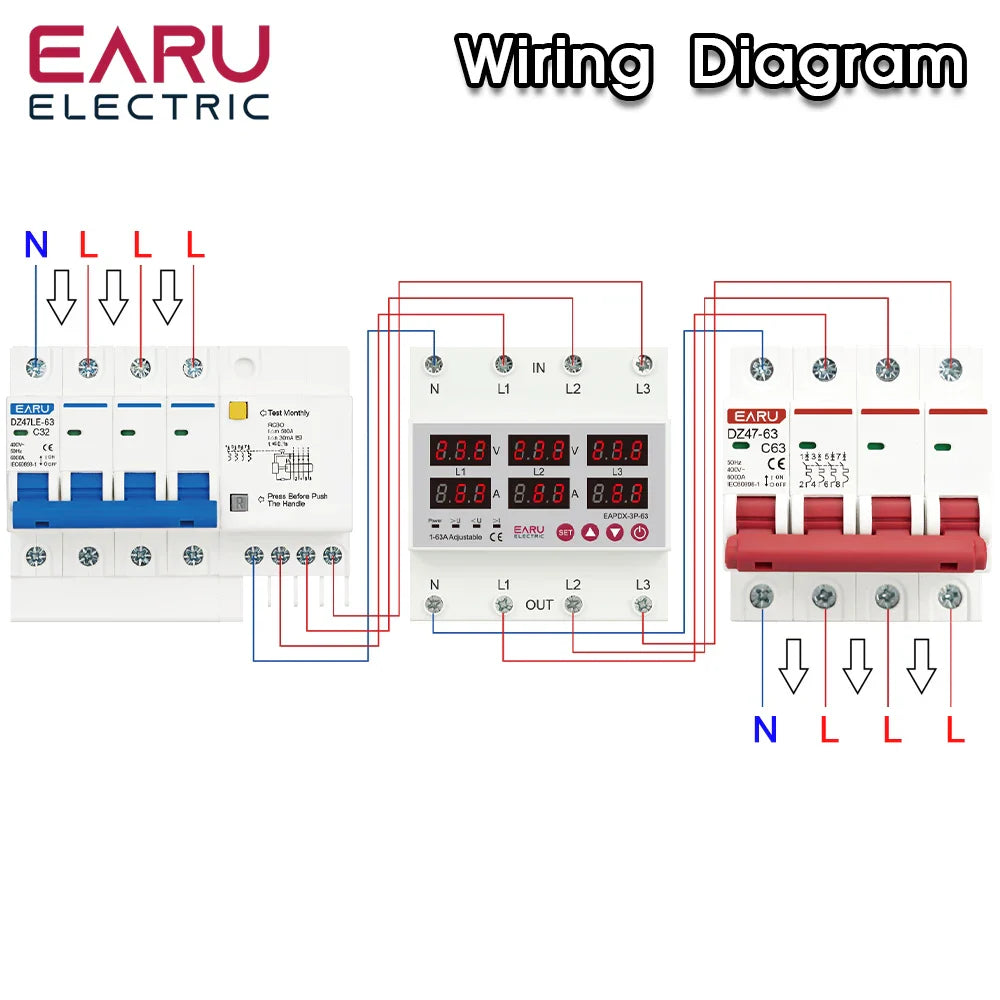

Supply Terminals: N,L1,L2,L3

Type: Mini,Voltage relay

Under Voltage Protection Recover Setting Range: 145-215V (Default 175V)

Under Voltage Protection Setting Range: 140-210V (Default 170V)

Voltage&Current Protection Recover Delay: 1-500s(Default 30s)

is_customized: Yes

semi_Choice: yes

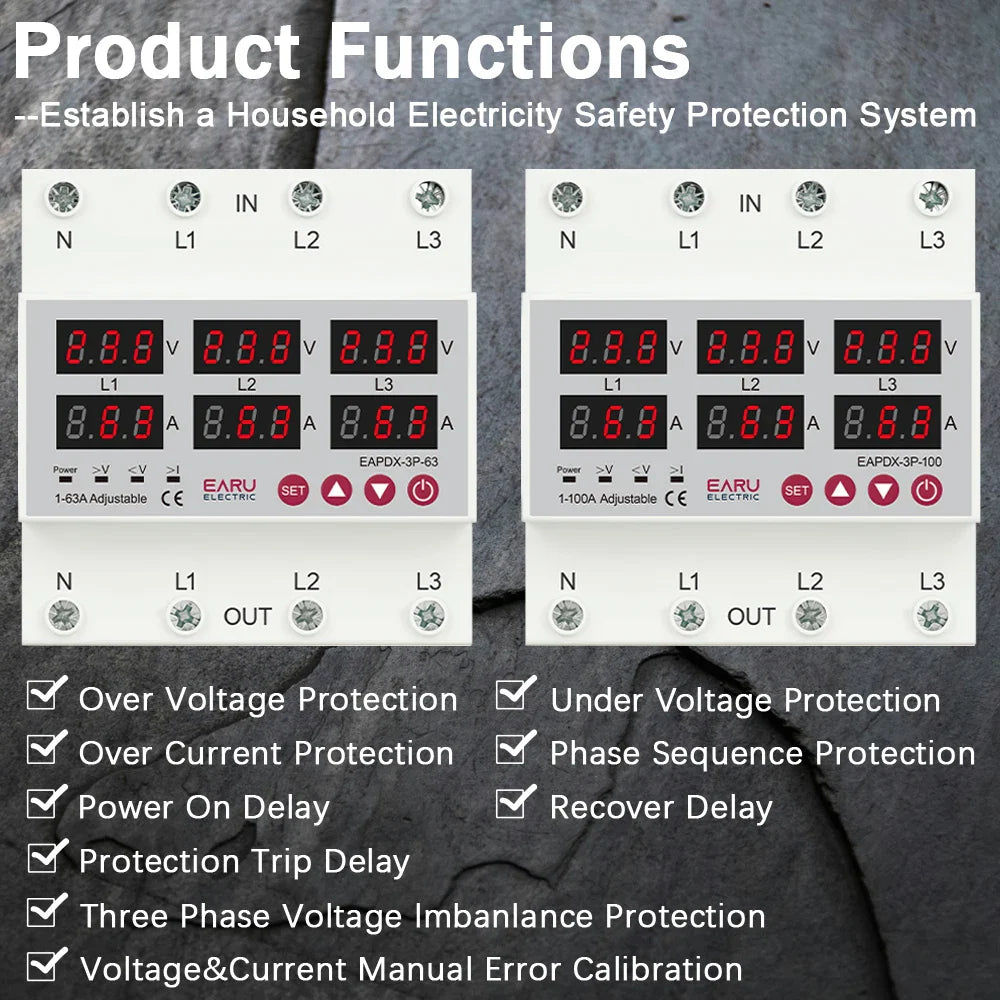

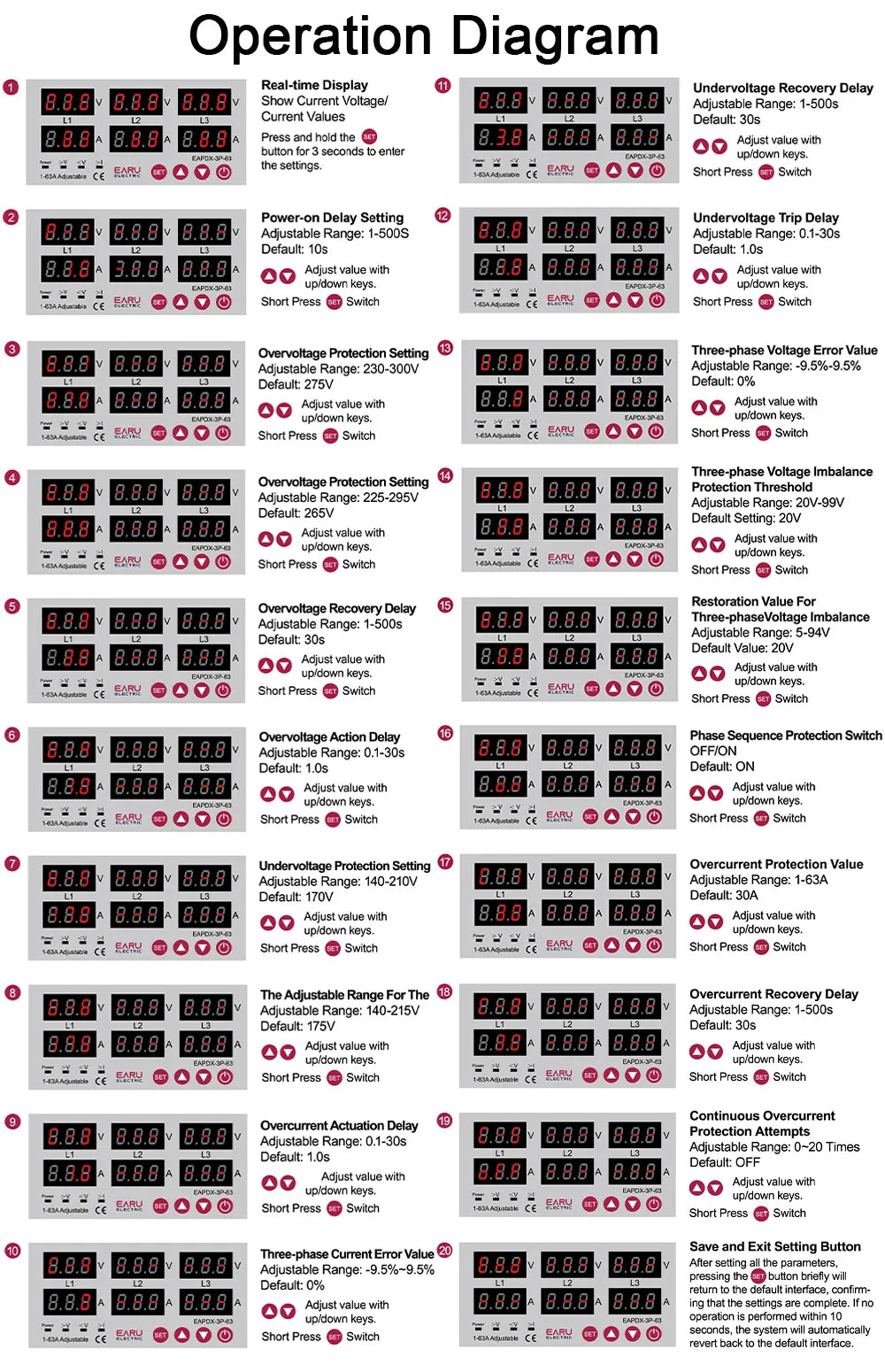

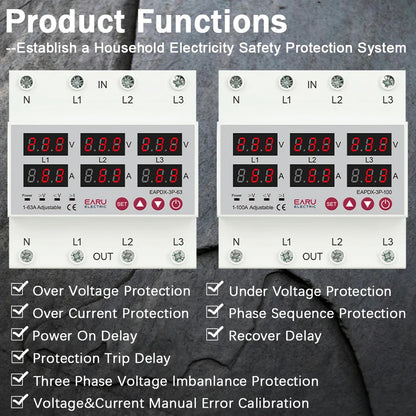

Product Description:

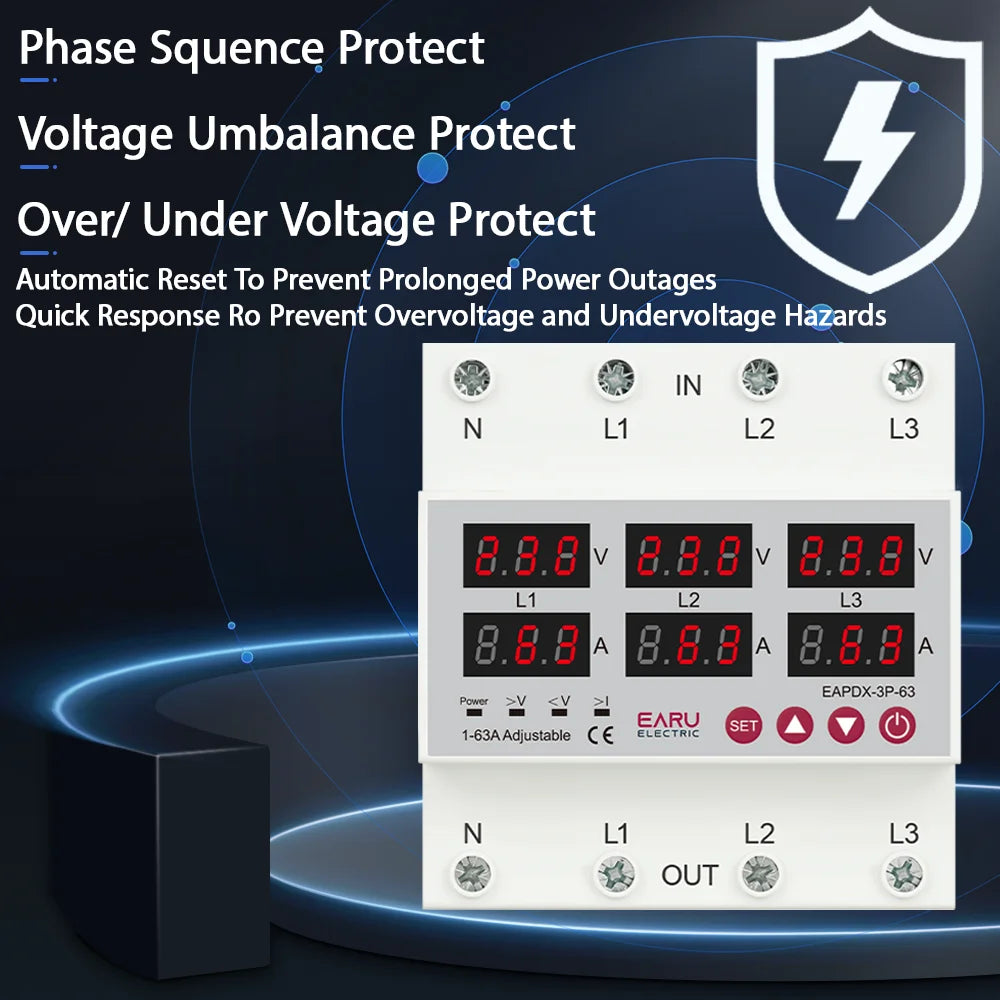

1. Over Voltage Protection

2. Under Voltage Protection

3. Over Current Protection

4. Three Phase Voltage lmbanlance Protection

5. Phase Sequence Protection

6. Voltage & Current Manual Error Calibration

7. Power On Delay

8. Protection Trip Delay

9. Recover Delay
