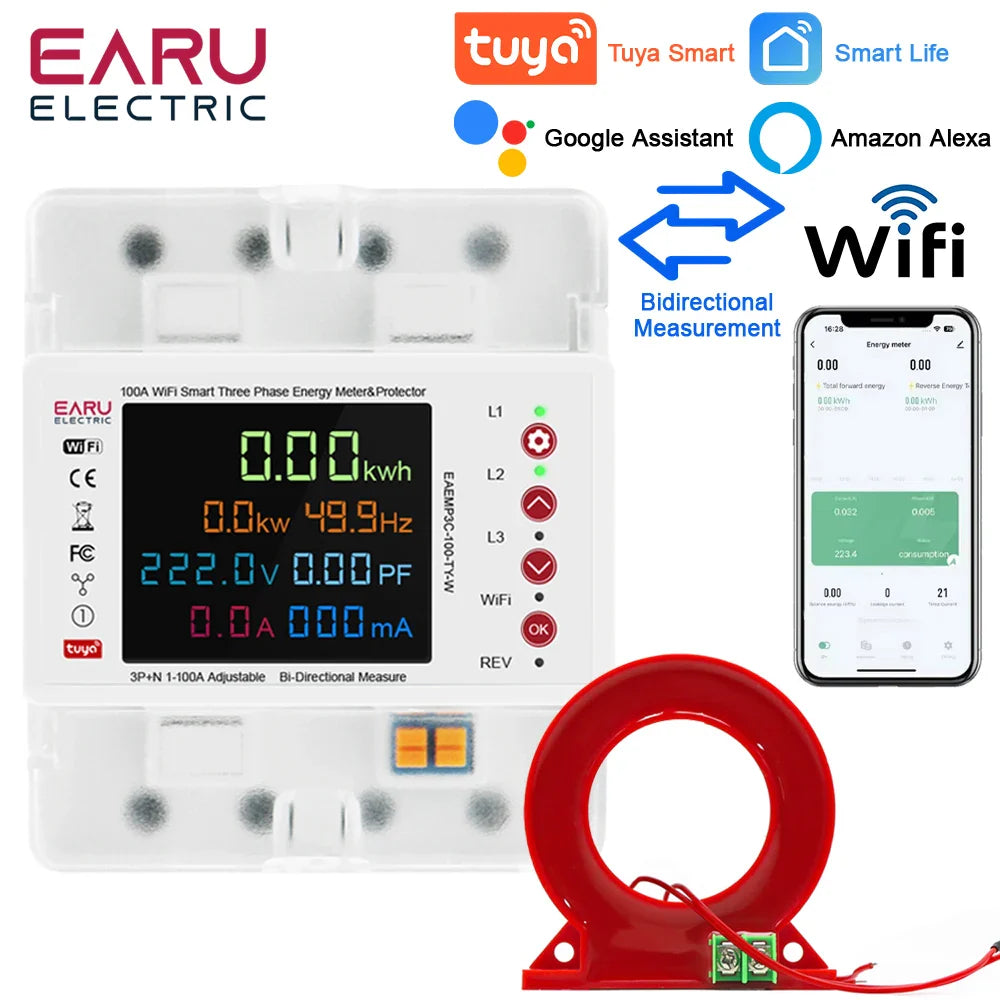

⚡ Three Phase Tuya WiFi Smart Bidirectional Energy Power kWh Meter Leakage Over Under Voltage Protector Relay Switch Current Limit
Discover the Three Phase Tuya WiFi Smart Bidirectional Energy Power kWh Meter Leakage Over Under Voltage Protector Relay Switch Current Limit — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.
📌 Key Features
- ✅ Professional-grade design for long-term reliability
- ✅ Optimized for renewable energy system integration
- ✅ Durable construction for various applications
- ✅ Comprehensive technical specifications
📄 Technical Specifications
Accuracy Class: 1%
Battery Included: No
Certification: CE,FCC,RoHS,KC
Choice: yes
DIY Supplies: Electrical

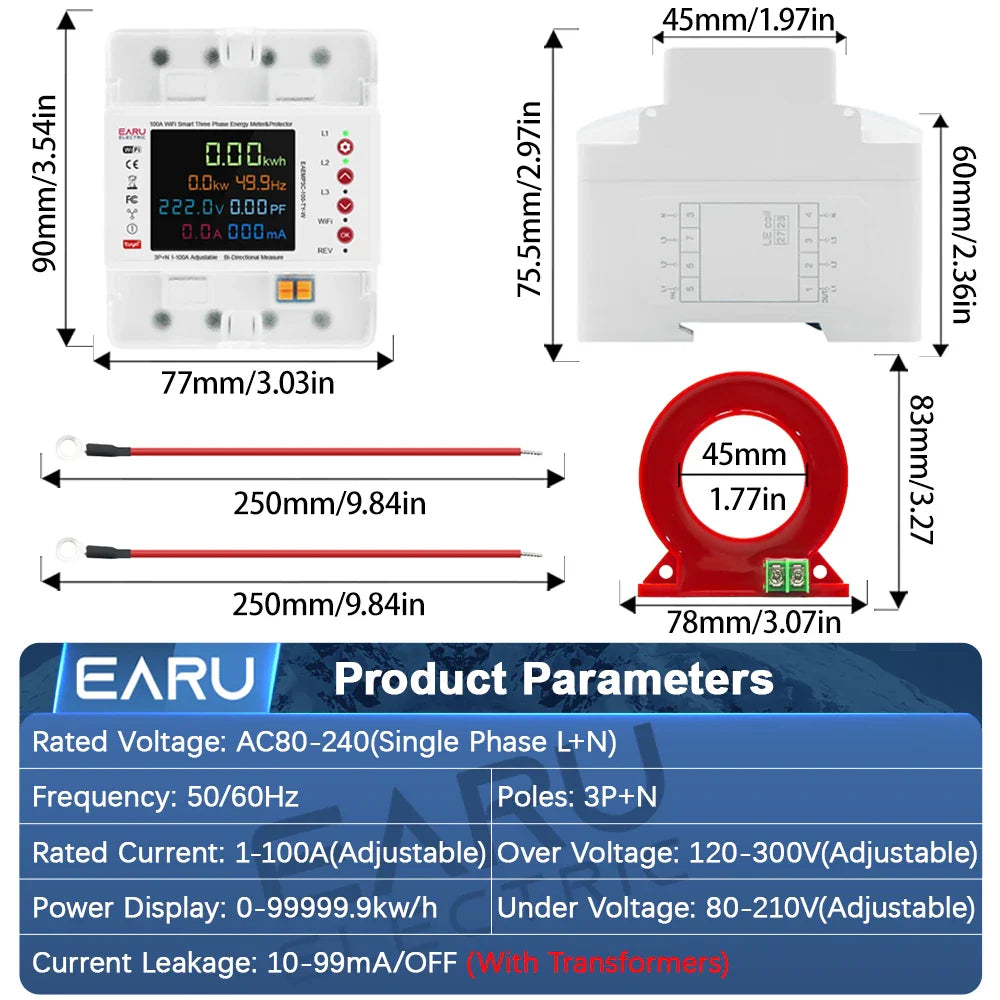

Dimensions: 90*77*75.5mm

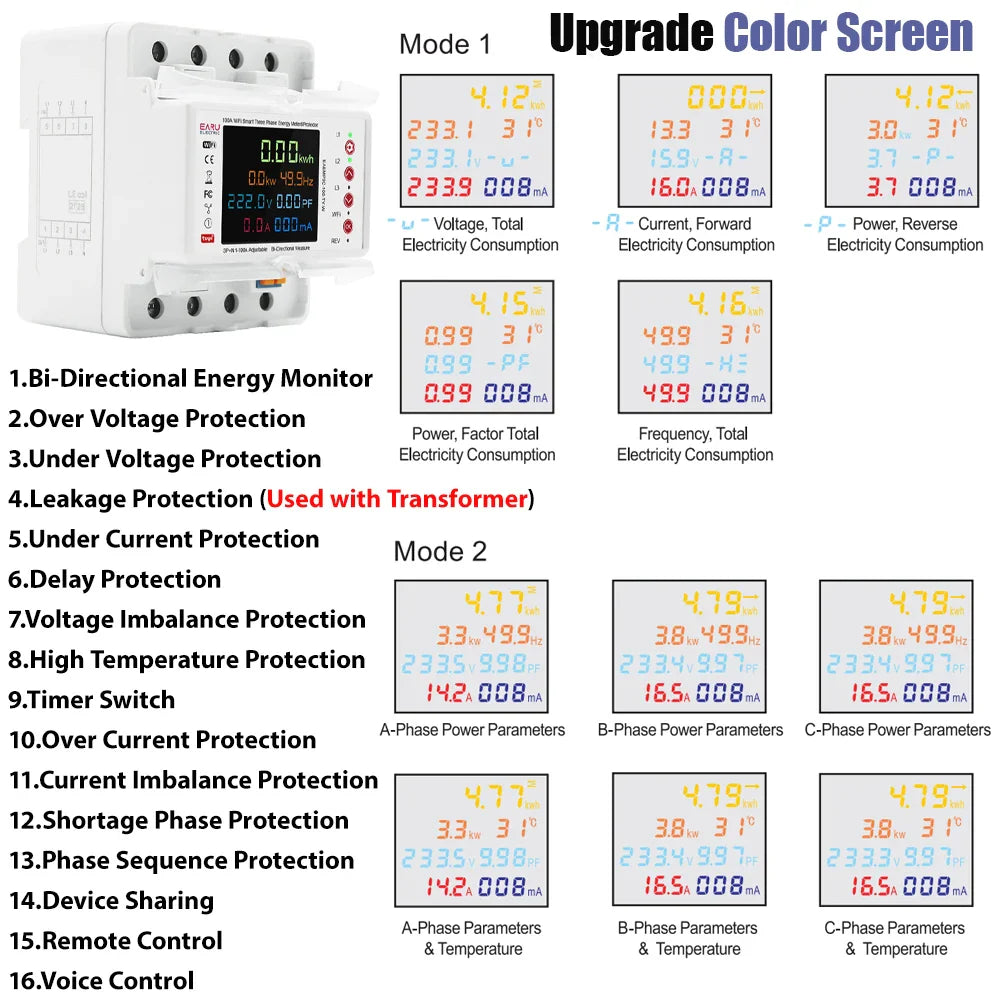

Display Mode: Display Mode 1and2 (Default:Display Mode 1)
Display Type: LCD

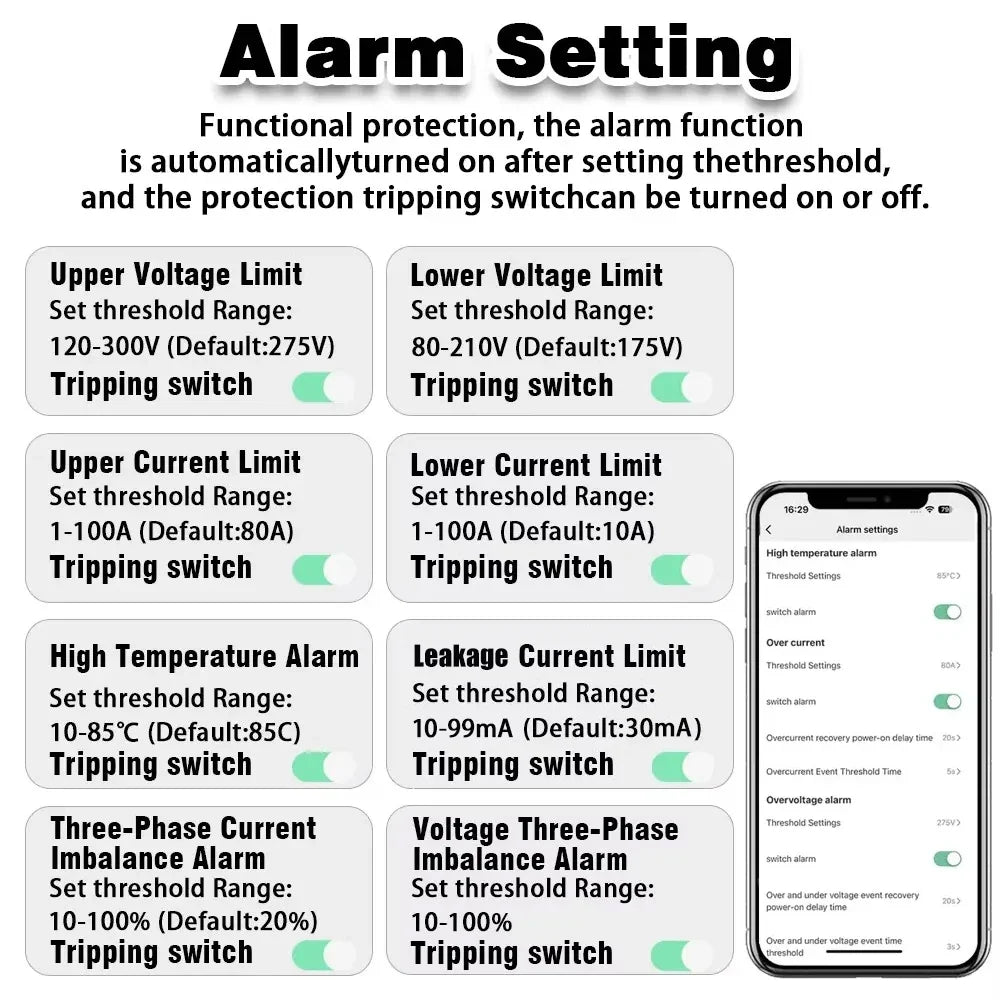

High Temperature Alarm: 10℃-85℃ (Adjustable) (Default:85℃)
High-concerned chemical: None

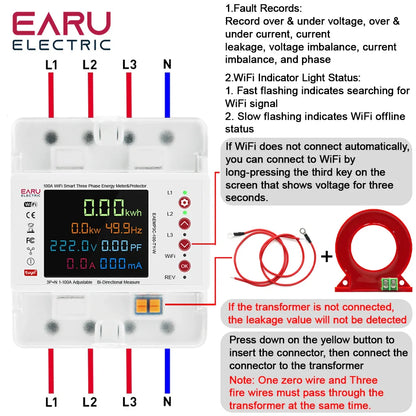

Leakage Current Limit: 10-99A (Adjustable)(Default:30mA)
Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default:20s)
Max Operating Current: 80A - 99A
Measuring Energy Range: 0-9999999.99kWh

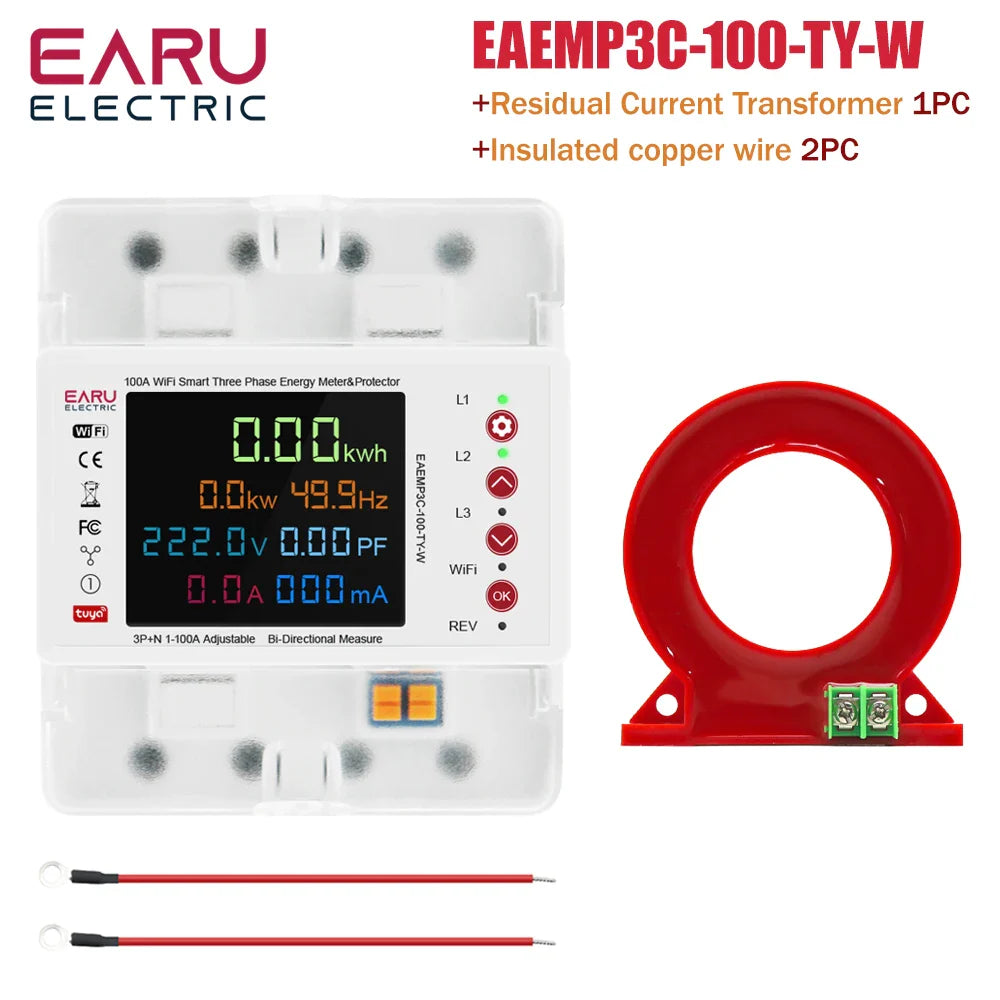

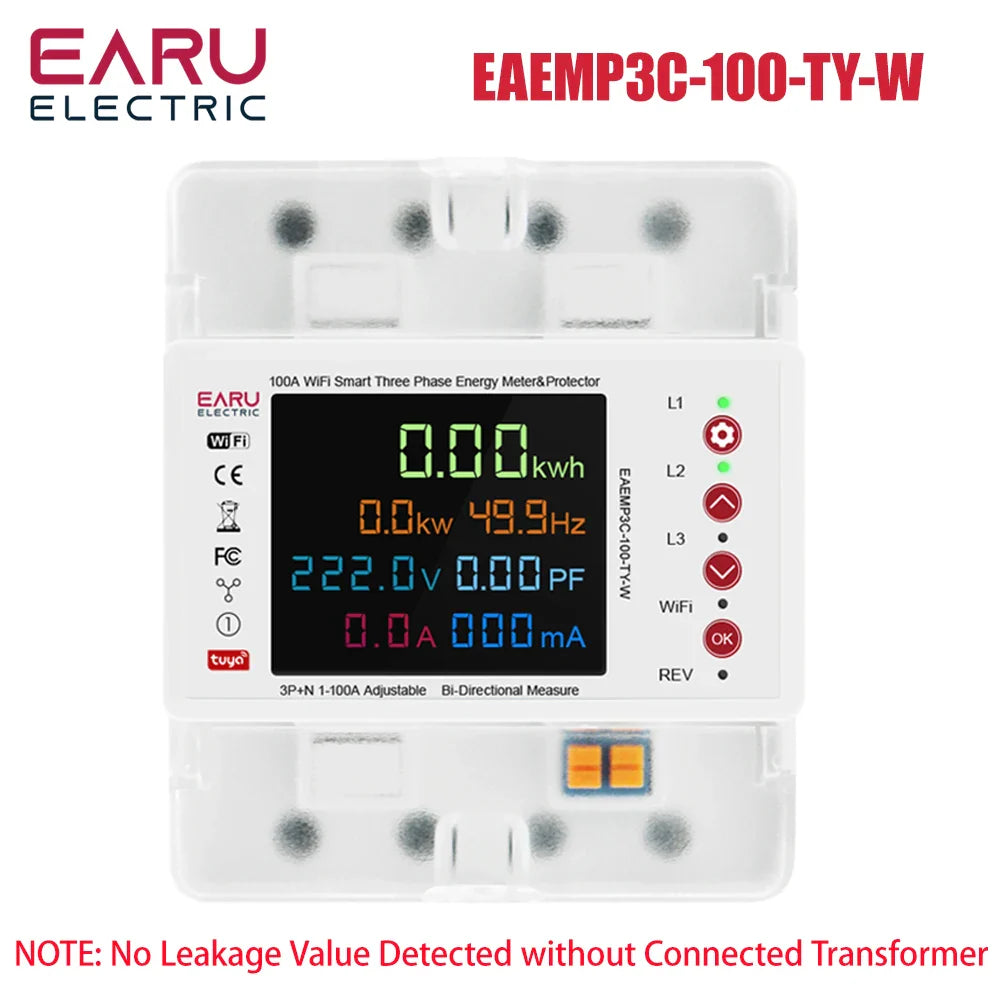

Model Number: EAEMP3C-100-TY-W
Operating Temperature: -30℃~70℃
Operation Voltage: AC80V-400V(Single Phase)
Origin: Mainland China
Over & Under Current Protection Delay: 0000-9999s (Adjustable) (Default:5s)
Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default:20s)
Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable) (Default:20s)
Over Current Limit: 1-100A (Adjustable)(Default:80A)
Over Voltage Limit: 120-300V (Adjustable) (Default:275V)
Phase: Three Phase
Power Supply: AC
Rated Voltage: 380V
Three-Phase Current Imbalance Alarm: 10-100% (Adjustable) (Default:20%)
Time Threshold of Lost Flow Event: 1-999s (Adjustable) (Default:10s)
Under & Over Voltage Protection Delay: 1-9999s (Adjustable) (Default:3s)
Under Current Limit: 1-100A (Adjustable) (Default:10A)
Under Voltage Limit: 80-210V (Adjustable) (Default:175V)
Voltage Three-Phase Imbalance Alarm: 0-100% (Adjustable)(Default:20%)
semi_Choice: yes
