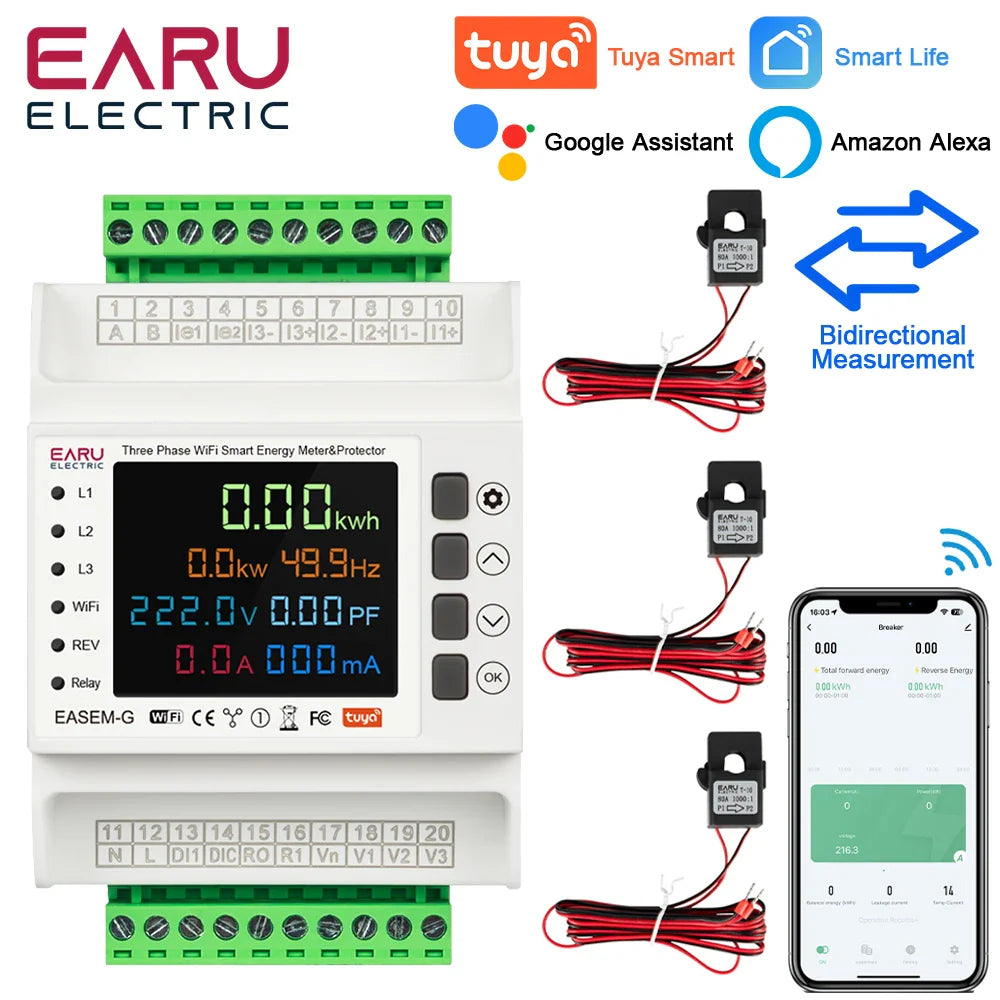

⚡ Three Phase Tuya WiFi Smart Bi-Directional Energy Meter with 3 CT Clamps Leakage Over Under Voltage Protector Relay Switch Limit
Discover the Three Phase Tuya WiFi Smart Bi-Directional Energy Meter with 3 CT Clamps Leakage Over Under Voltage Protector Relay Switch Limit — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.
📌 Key Features
- ✅ Professional-grade design for long-term reliability
- ✅ Optimized for renewable energy system integration
- ✅ Durable construction for various applications
- ✅ Comprehensive technical specifications

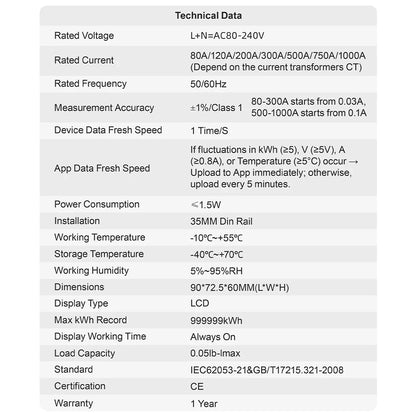

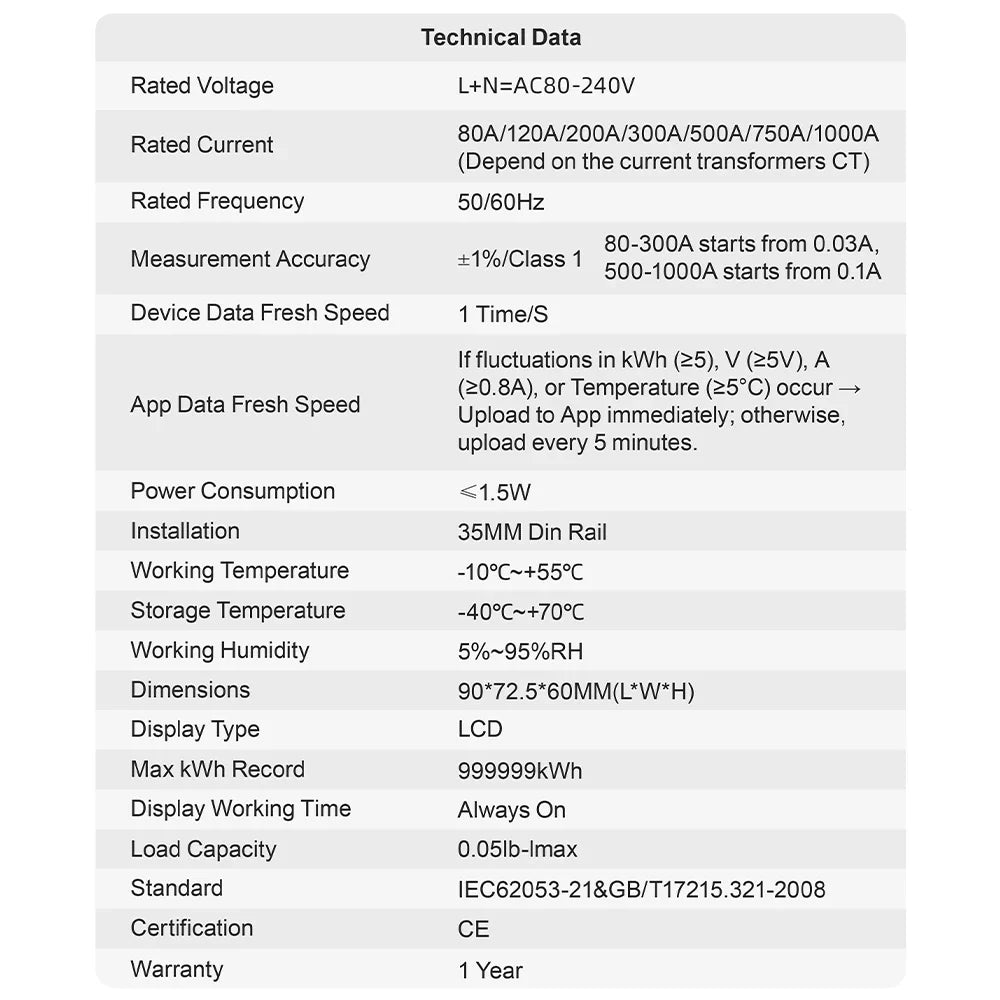

📄 Technical Specifications
Accuracy Class: ±1%
Battery Included: No
Certification: CE,FCC
Choice: yes
DIY Supplies: Electrical

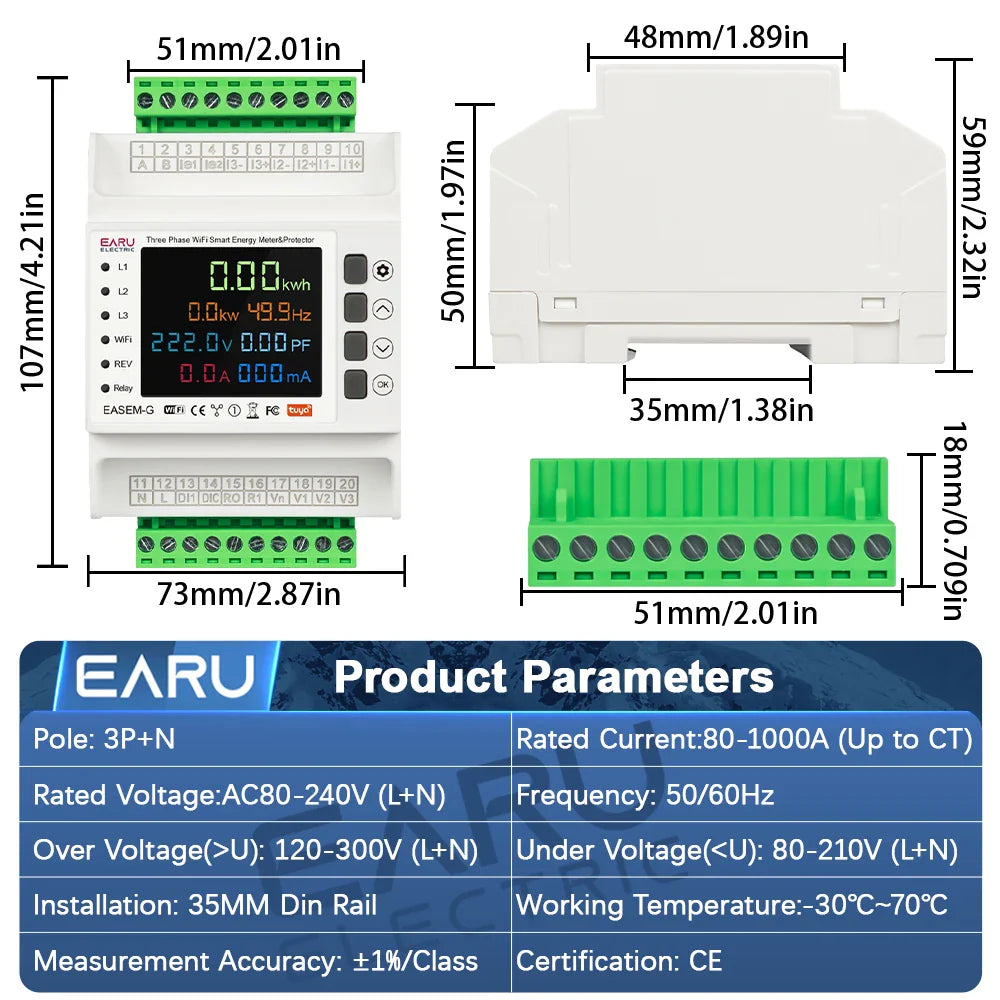

Dimensions: 73*51*59mm

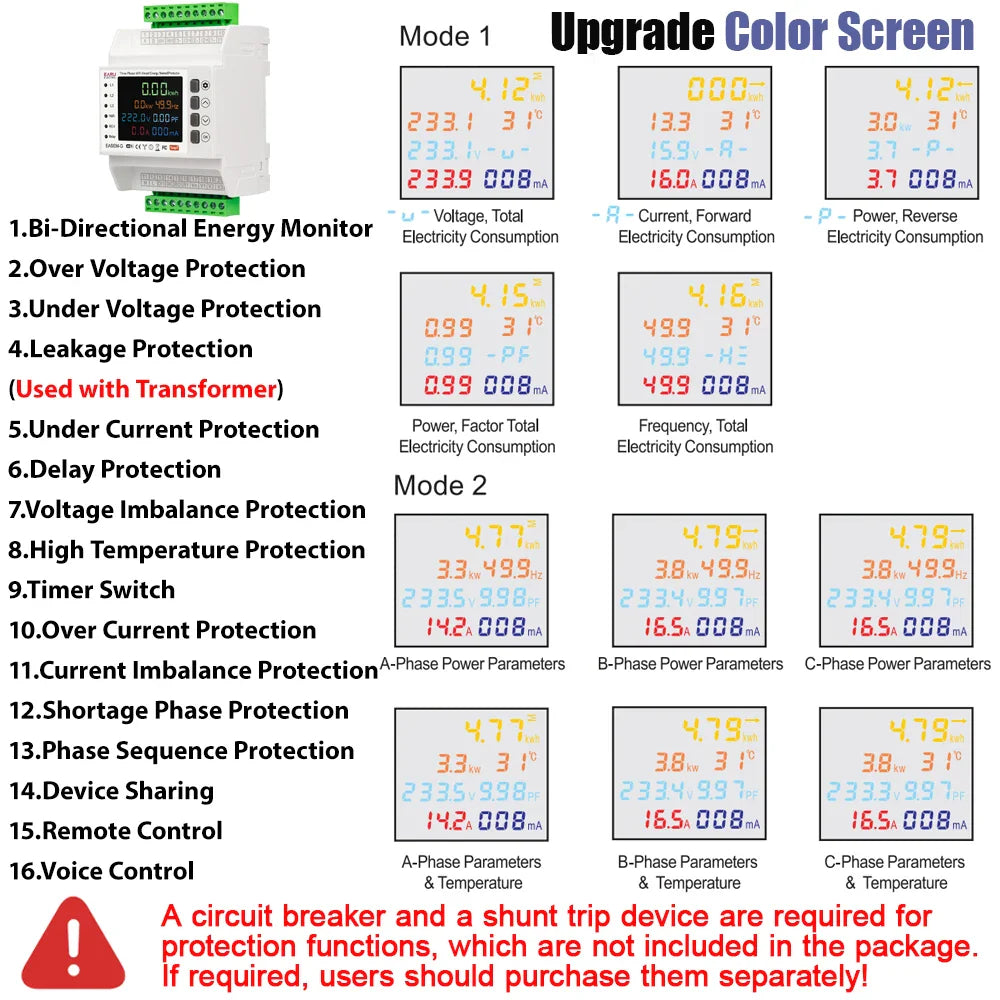

Display Mode: Display Mode 1and2 (Default:Display Mode 1)
Display Type: LCD

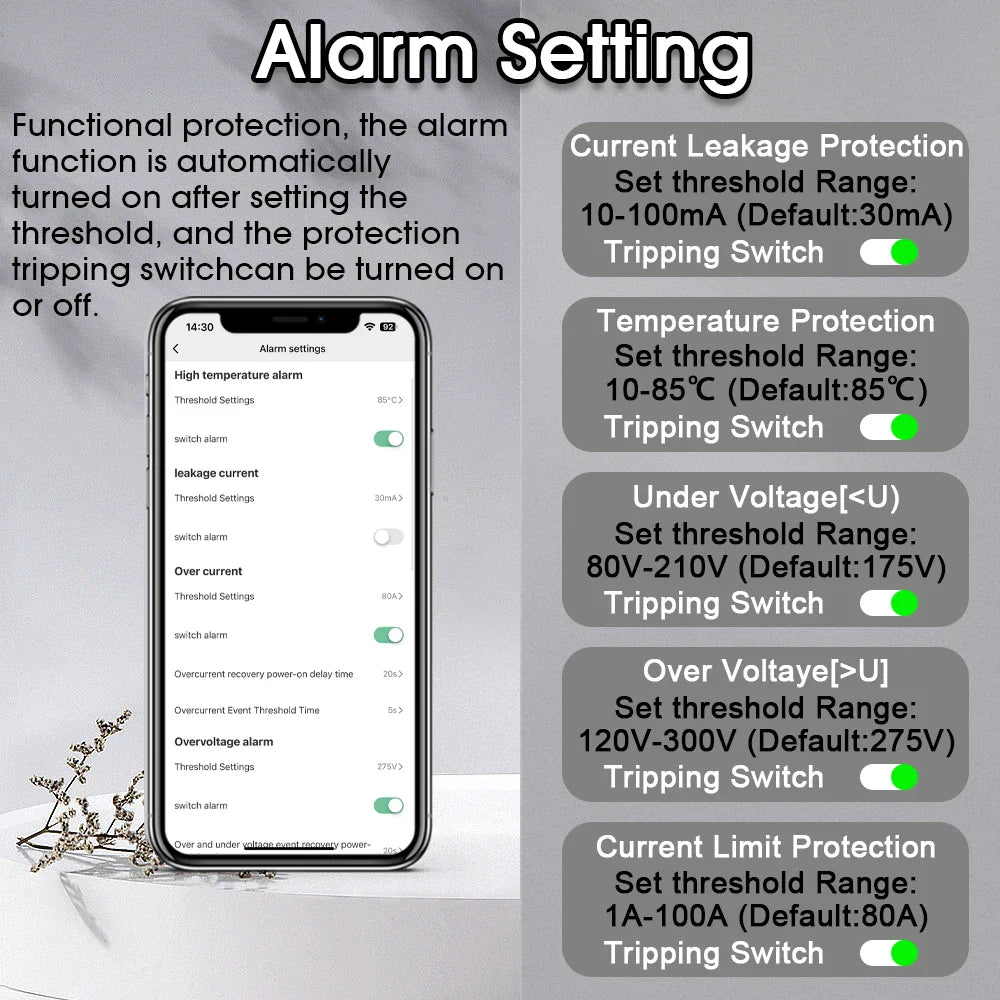

High Temperature Alarm: 10℃-85℃ (Adjustable) (Default:85℃)
High-concerned chemical: None
Leakage Current Limit: 10-99A (Adjustable)(Default:29mA)
Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default:20s)
Max Operating Current: 80A - 99A
Measuring Energy Range: 0-99999.99kWh
Model Number: EASEM-G-TY-W
Operating Temperature: -30℃~70℃
Operation Voltage: AC80V-400V(Single Phase)
Origin: Mainland China
Over & Under Current Protection Delay: 0000-9999s (Adjustable) (Default:5s)
Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default:20s)
Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable) (Default:20s)
Over Current Limit: 1-100A (Adjustable)(Default:80A)
Over Voltage Limit: 120-300V (Adjustable) (Default:275V)
Phase: Three Phase
Power Source: AC
Power Supply: AC
Rated Voltage: 380V
Three-Phase Current Imbalance Alarm: 10-100% (Adjustable) (Default:20%)
Time Threshold of Lost Flow Event: 1-999s (Adjustable) (Default:10s)
Under & Over Voltage Protection Delay: 1-9999s (Adjustable) (Default:3s)
Under Current Limit: 1-100A (Adjustable) (Default:10A)
Under Voltage Limit: 80-210V (Adjustable) (Default:175V)
Voltage Three-Phase Imbalance Alarm: 0-100% (Adjustable)(Default:20%)
semi_Choice: yes
