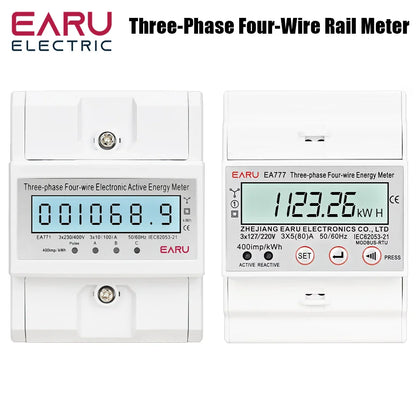

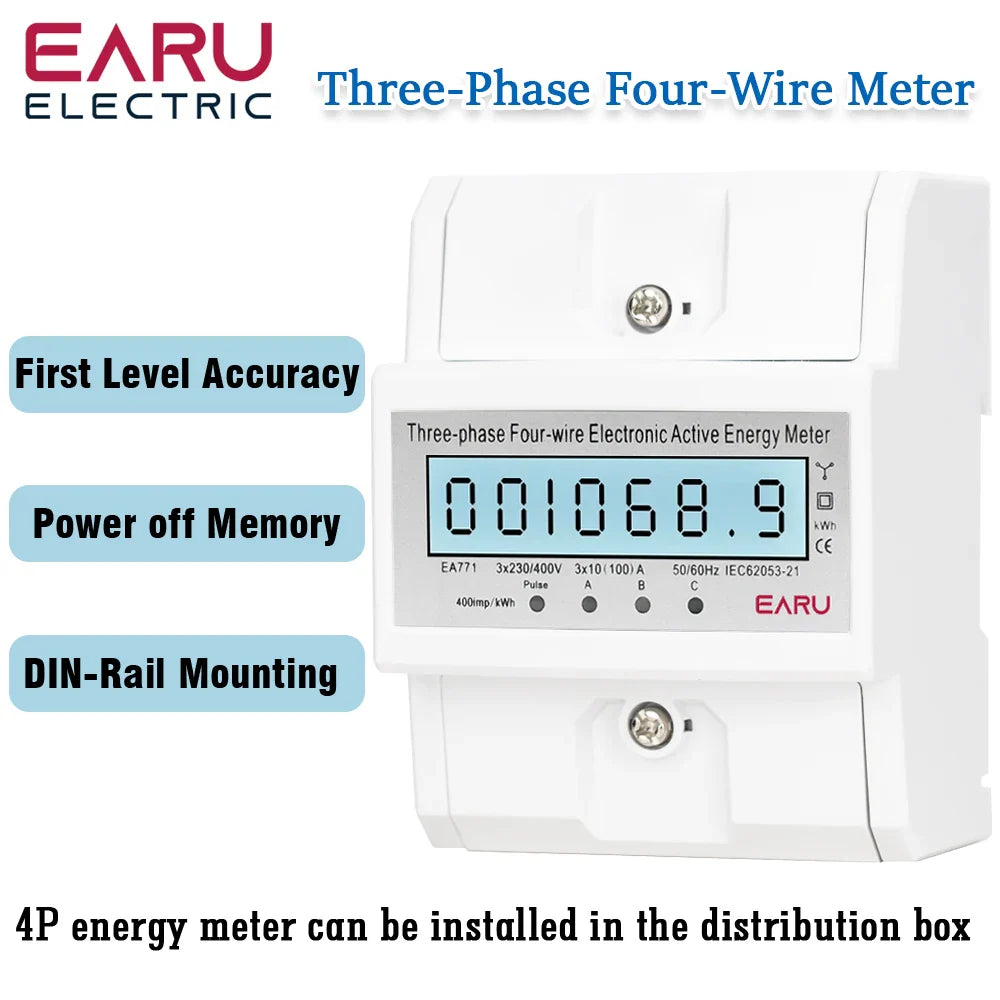

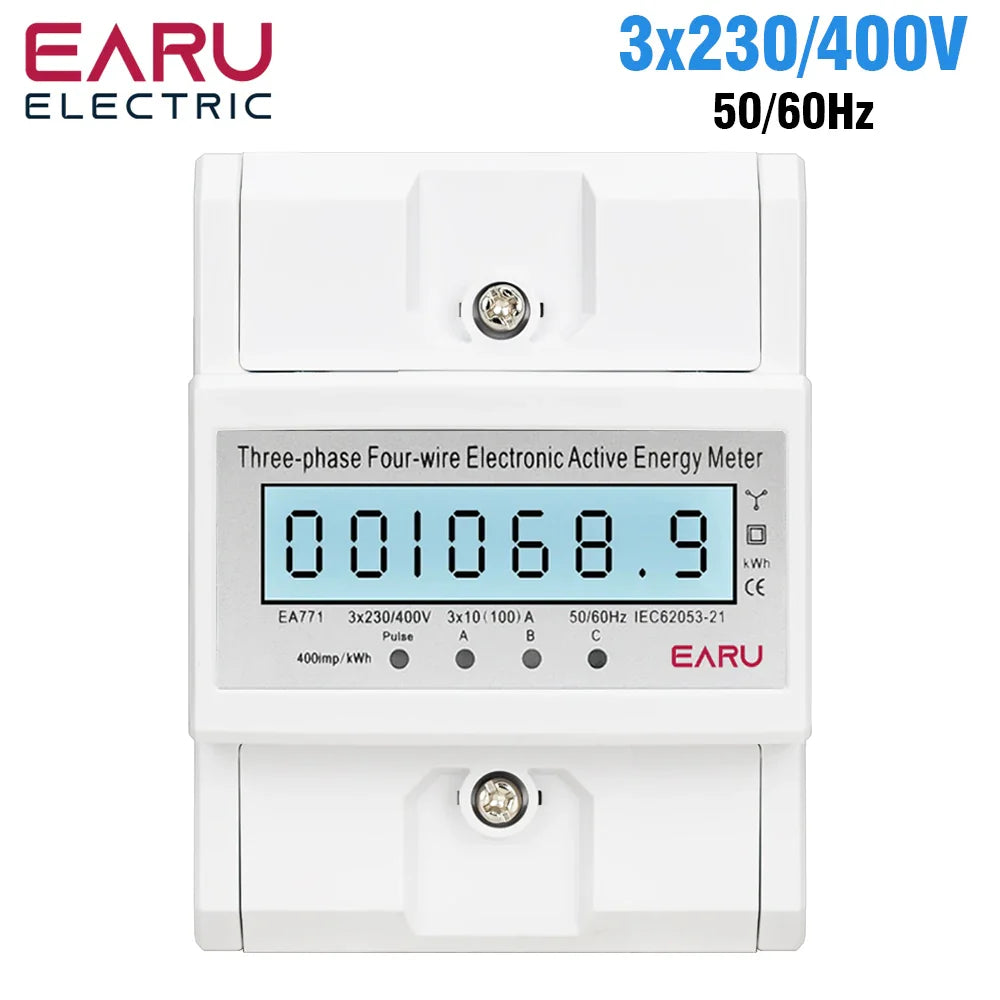

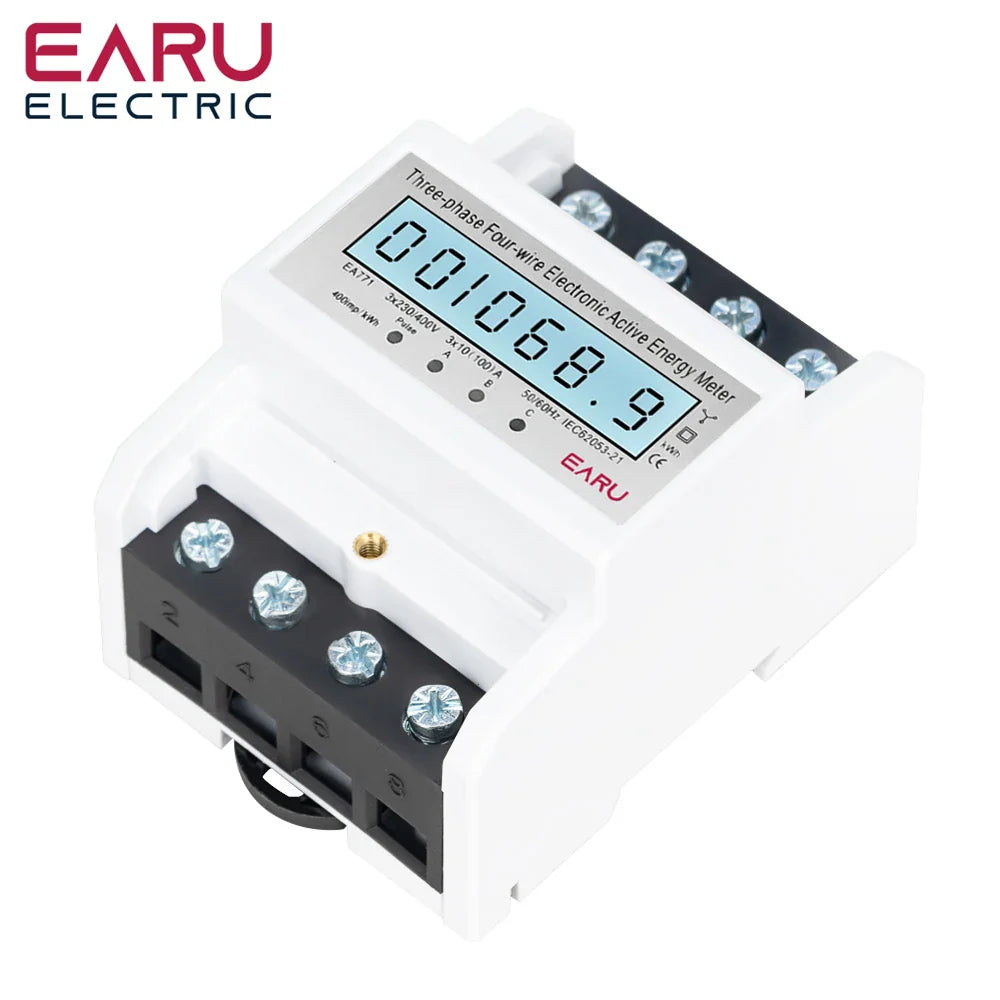

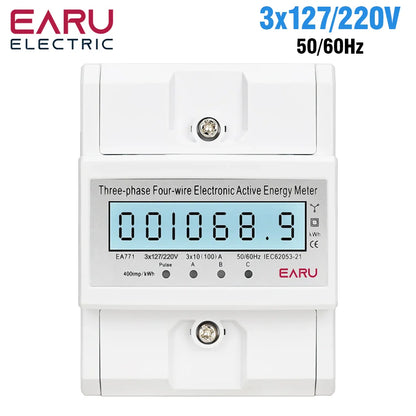

EA771

Model Number:EA771

Materiel: Metal + ABS

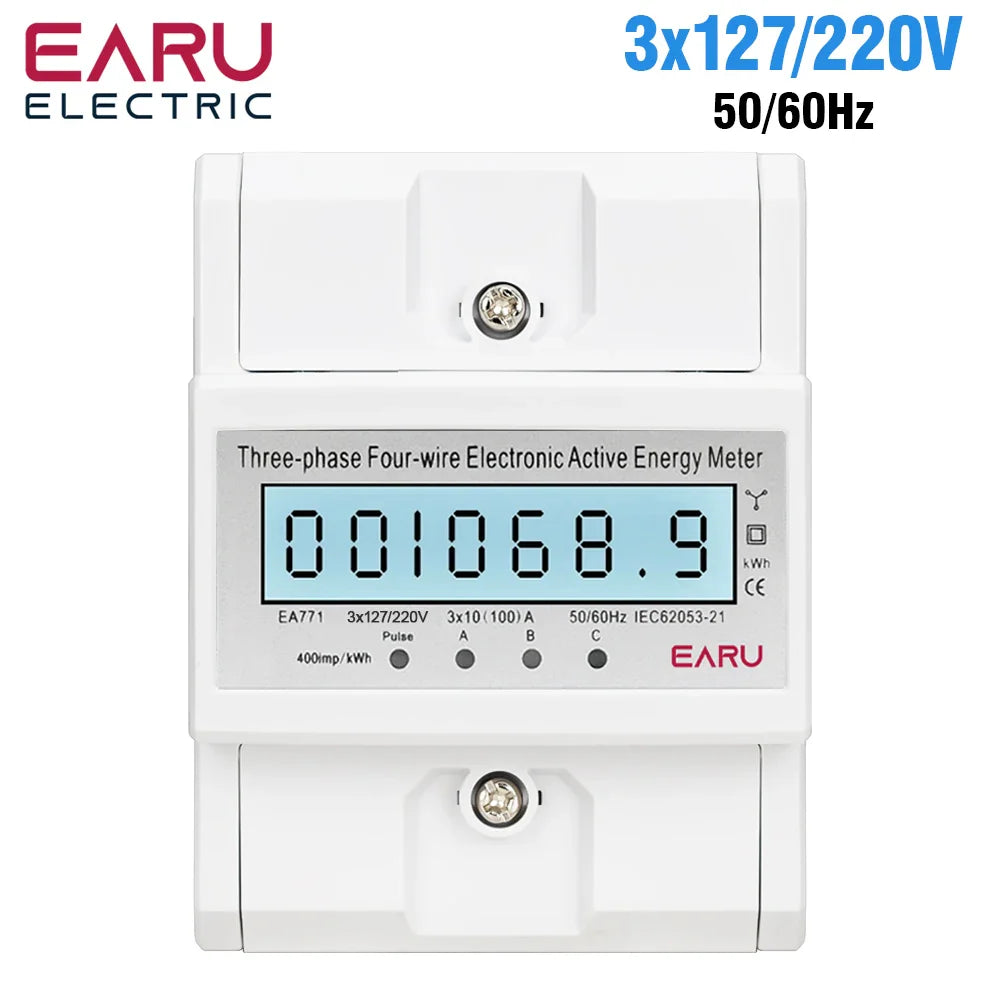

Reference Voltage: 3 X 127/220(V),3 X 220/380(V), 3 X 230/400(V)

Reference Current: 3 X 10(100A)

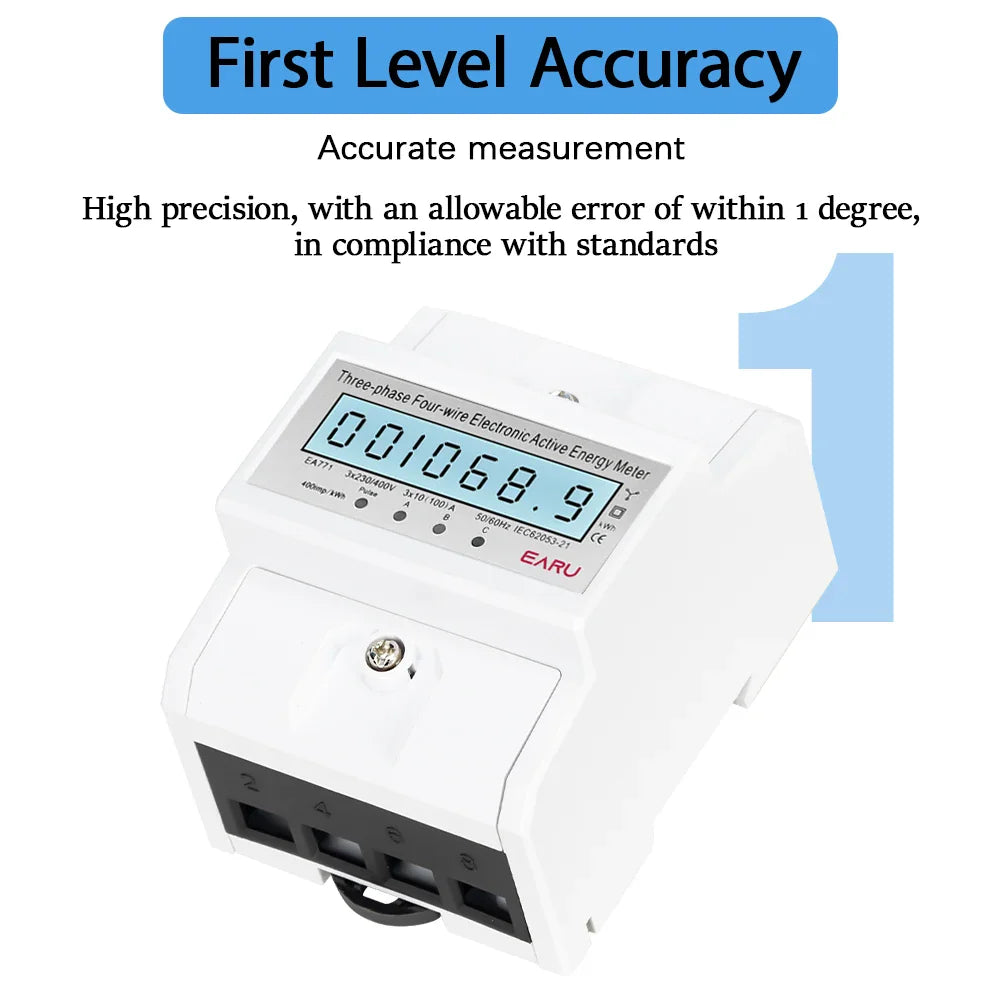

Accuracy Level: 1.0

Rated Frequency: 50/60 Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 +1(999999,9kWh)

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.7-1.2 Rated Voltage

Average Humidity Value of Year: ≤75%

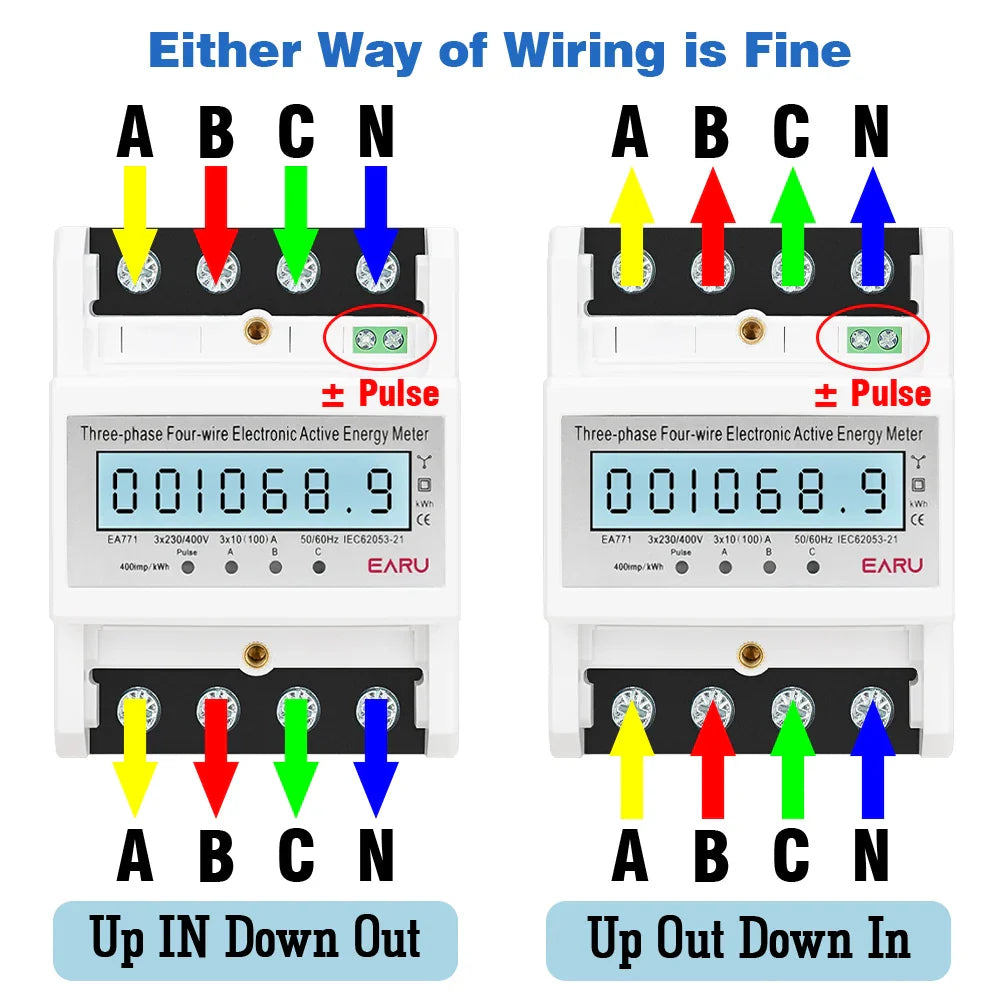

Type: Three Phase Four Wire Electronic Type

Degree of Protection:IP20

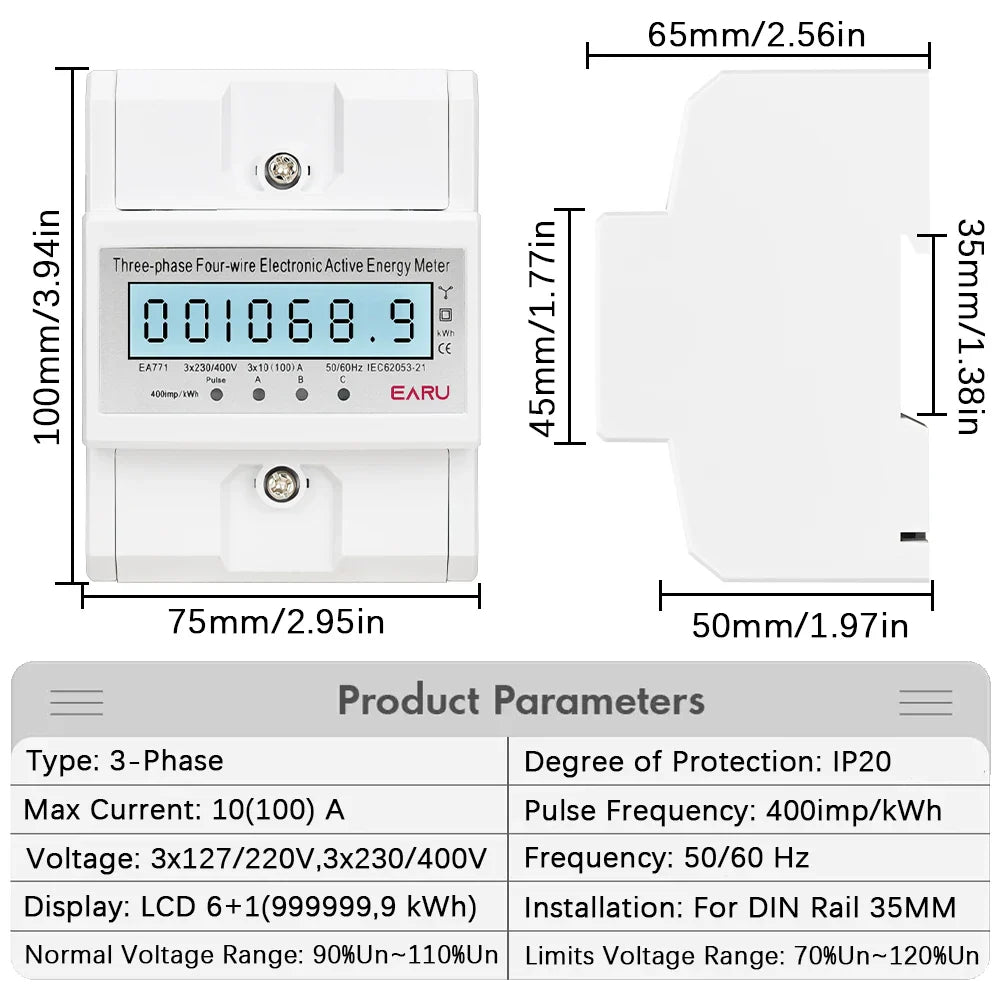

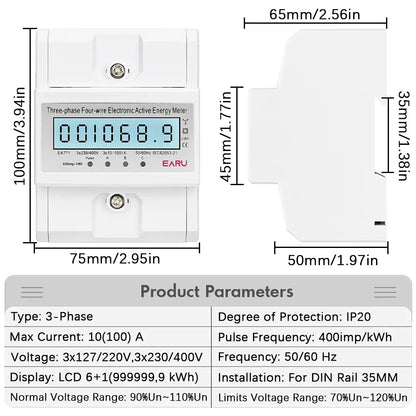

Dimensions:100mm*76*65mm

🛡️ Why Trust Us

Every product listing is technically reviewed for accuracy by our specialized renewable energy team. We offer a curated catalog of high-quality products across solar, wind, battery storage, and EV charging categories. All purchases are processed securely, backed by our 30-day return policy.

• ✅ Verified technical specifications on every product
• ✅ Secure checkout with encrypted payment processing
• ✅ 30-day return policy for peace of mind
• ✅ Worldwide shipping with order tracking

❓ Frequently Asked Questions

❓ 1 - Do you provide installation services?
No. We do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions. We recommend consulting a certified local professional.

🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers in North America, Europe, and Asia, with delivery times between 7 to 21 business days.

⏳ 3 - What is the estimated delivery time?
Standard delivery takes 7 to 21 business days. Tracking is provided once your order ships.

💳 4 - What payment methods do you accept?
We accept all major credit and debit cards processed securely. Apple Pay and Google Pay are also available at checkout.

📄 5 - Where can I find detailed technical specifications?
All technical specs, dimensions, and compatibility info are on this product page above.

❓ 6 - Can I request a quote or estimate?
No quote is necessary. All products are available for direct purchase with transparent, upfront pricing.

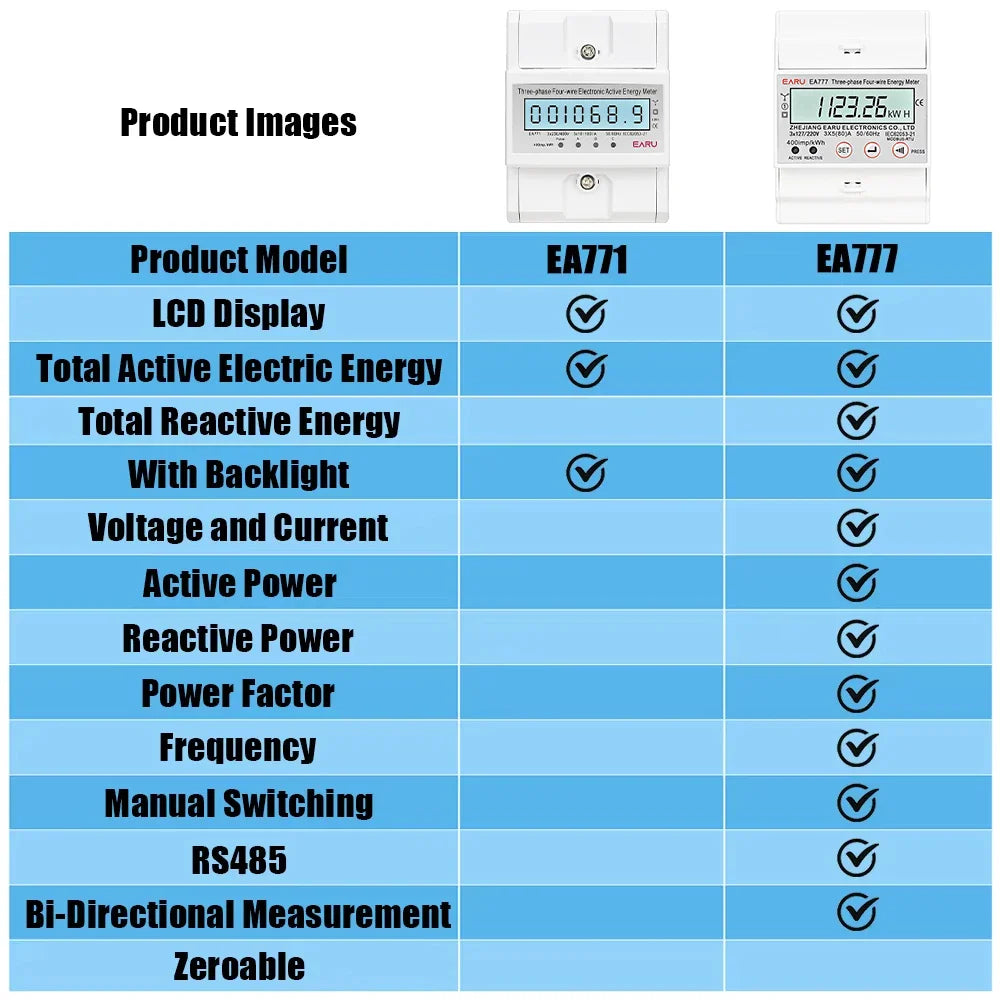

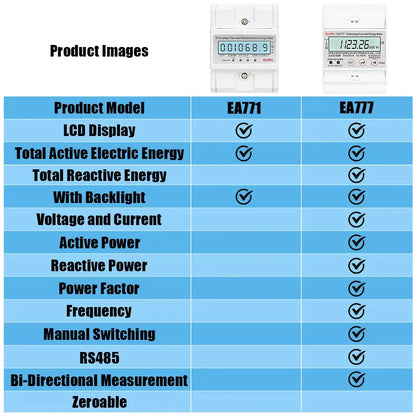

🖼️ Product Images

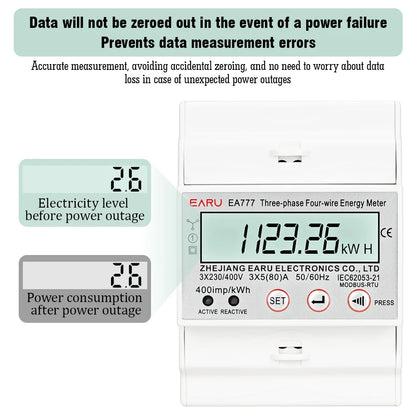

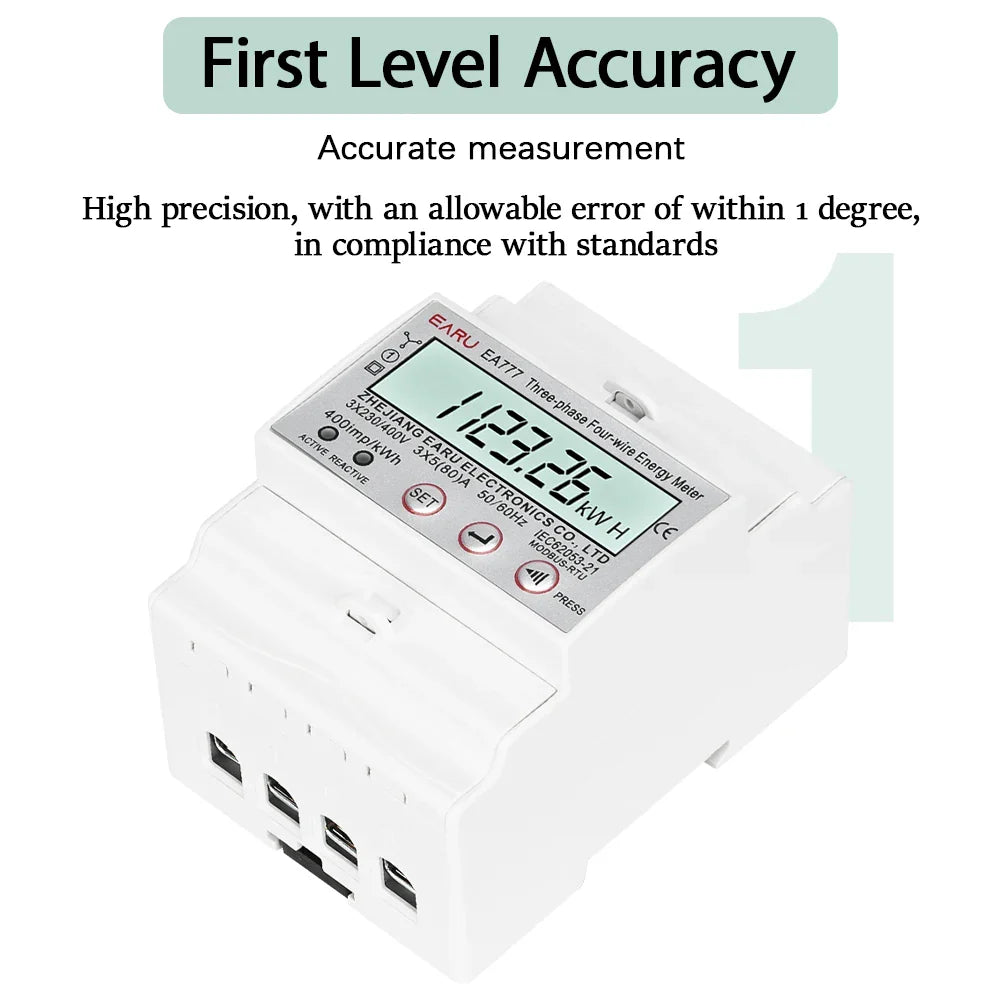

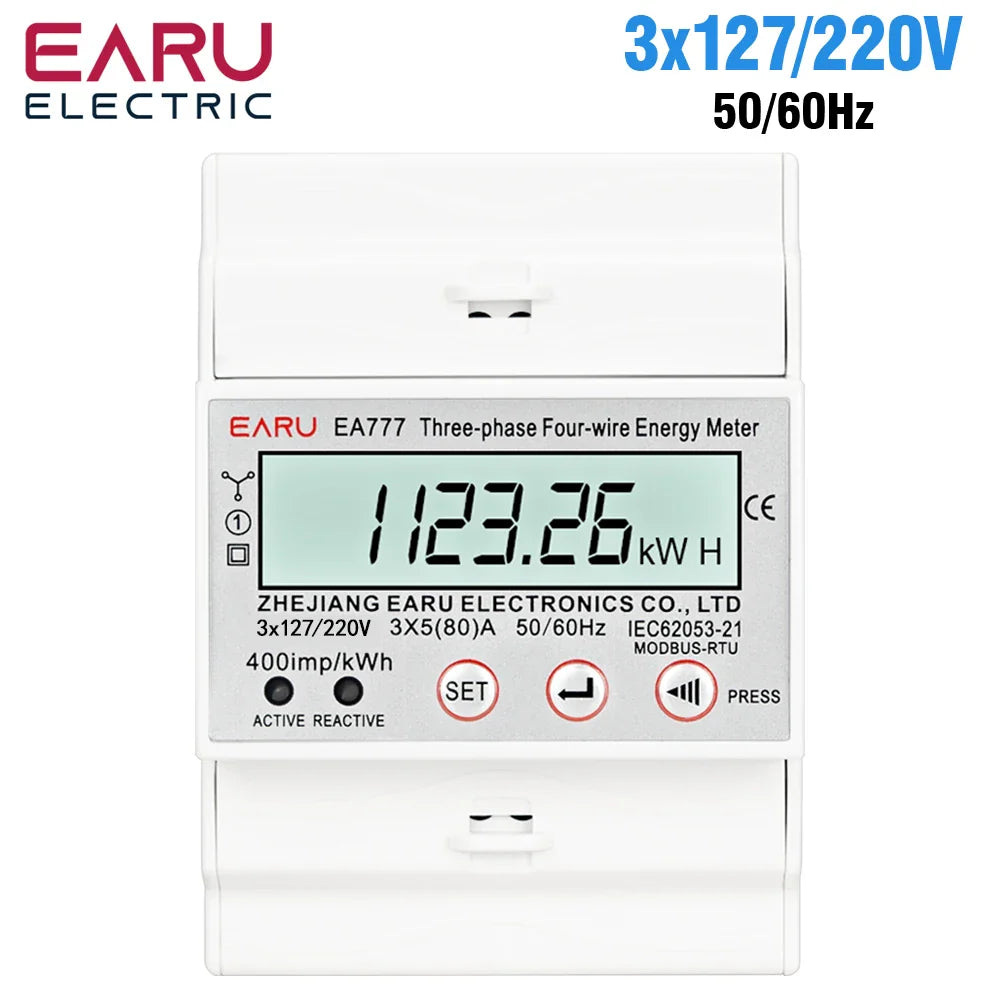

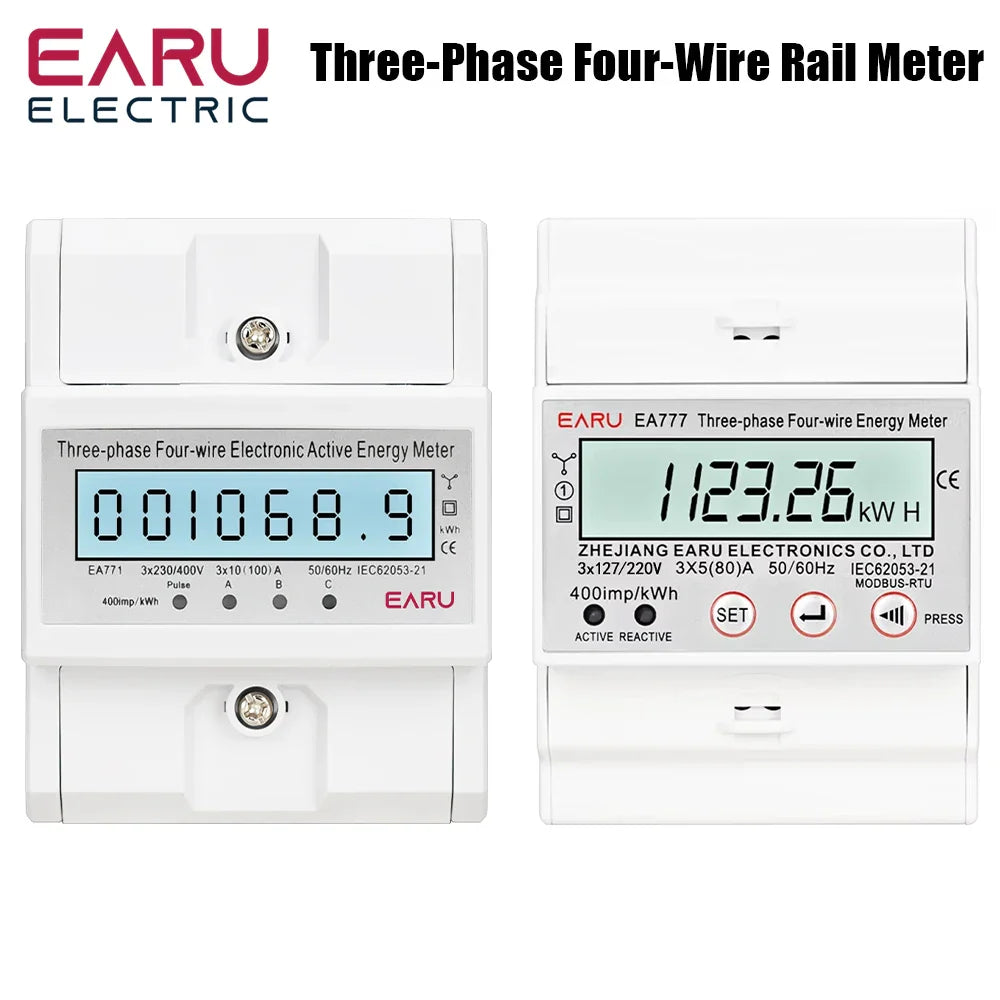

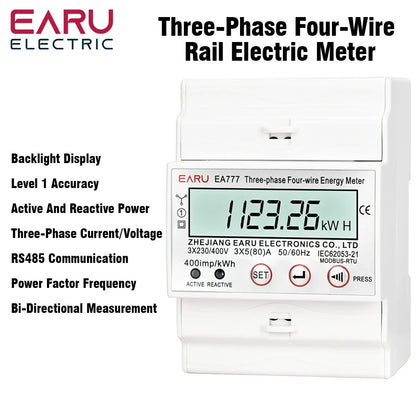

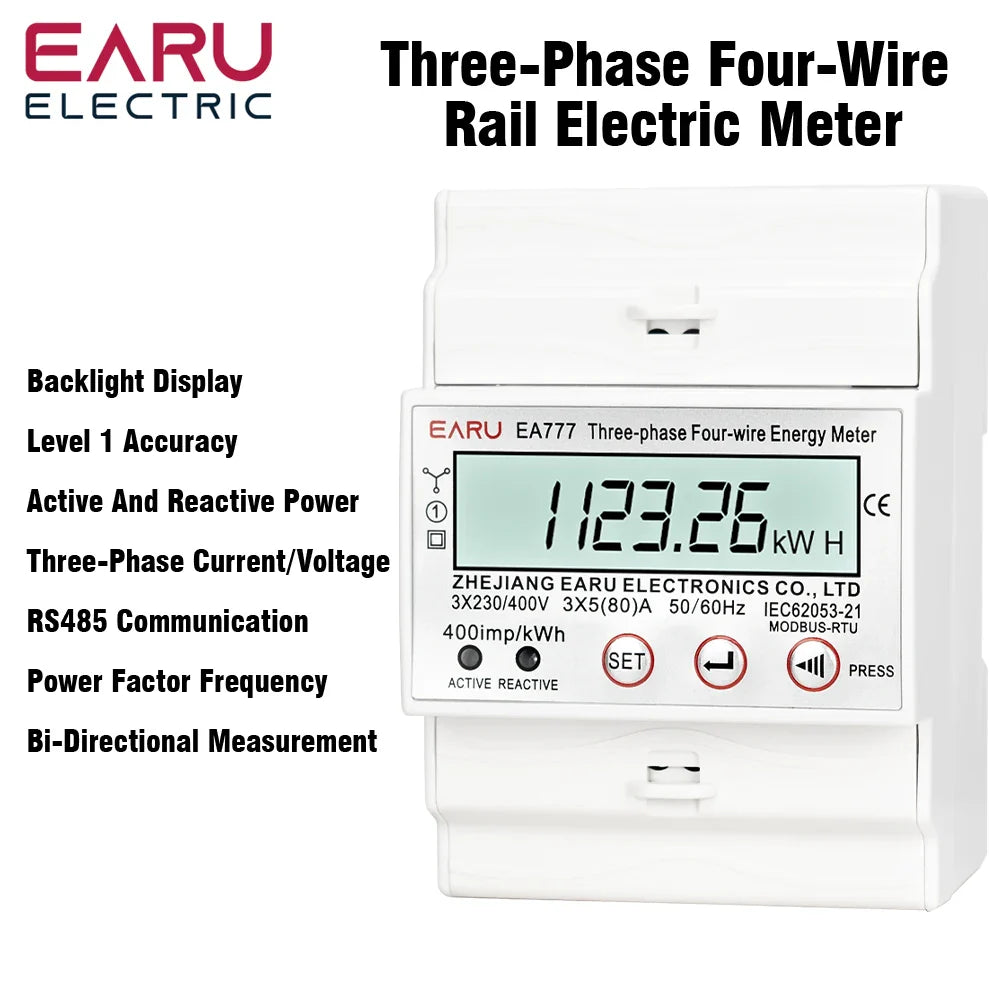

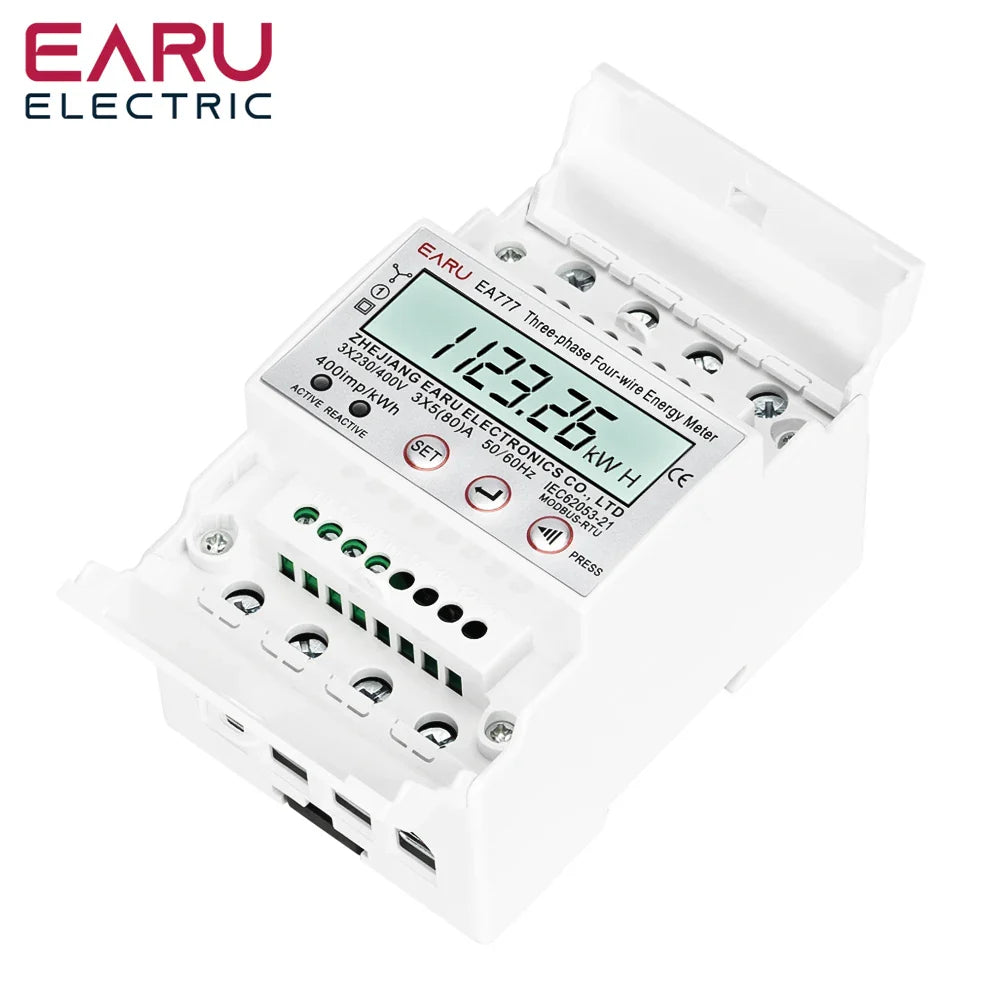

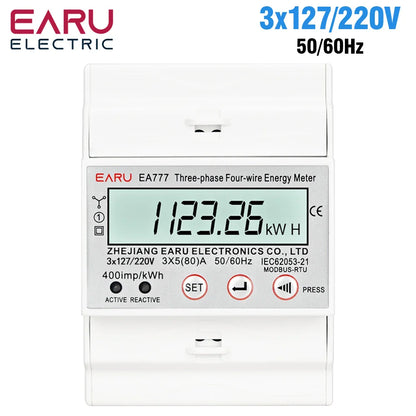

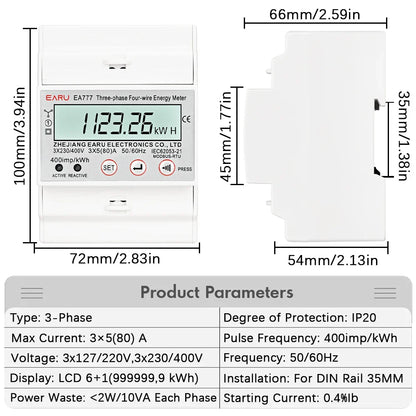

EA777

Product introduction

The three-phase multifunctional electric energy meter is a new three-phase electronic electric energy meter newly developed by our company

Energy meter, which adopts microelectronic technology and imported special large-scale integrated circuit, and applies digital acquisition

With advanced technologies such as sample processing technology and SMT process, the performance of the meter fully meets the national standards

GB/T117215.321-2008 (IEC 62053-21:2003,IDT) and GB/T

Class 1 or 0.55 in 17215.322-2008 (IEC 62053-22:2003,IDT)

According to the relevant technical requirements of electric energy meter, it can directly and accurately measure the AC voltage with rated frequency of 50/ 60Hz

Current active electric energy, total active / reactive electric energy and input / output active / reactive electric energy are displayed by LCD

Energy, three-phase voltage, current, total / phase active power, total / phase power factor, frequency, etc

The utility model has the advantages of good reliability, small volume, light weight, beautiful appearance, flexible and convenient installation, etc

Point.

Functions and features

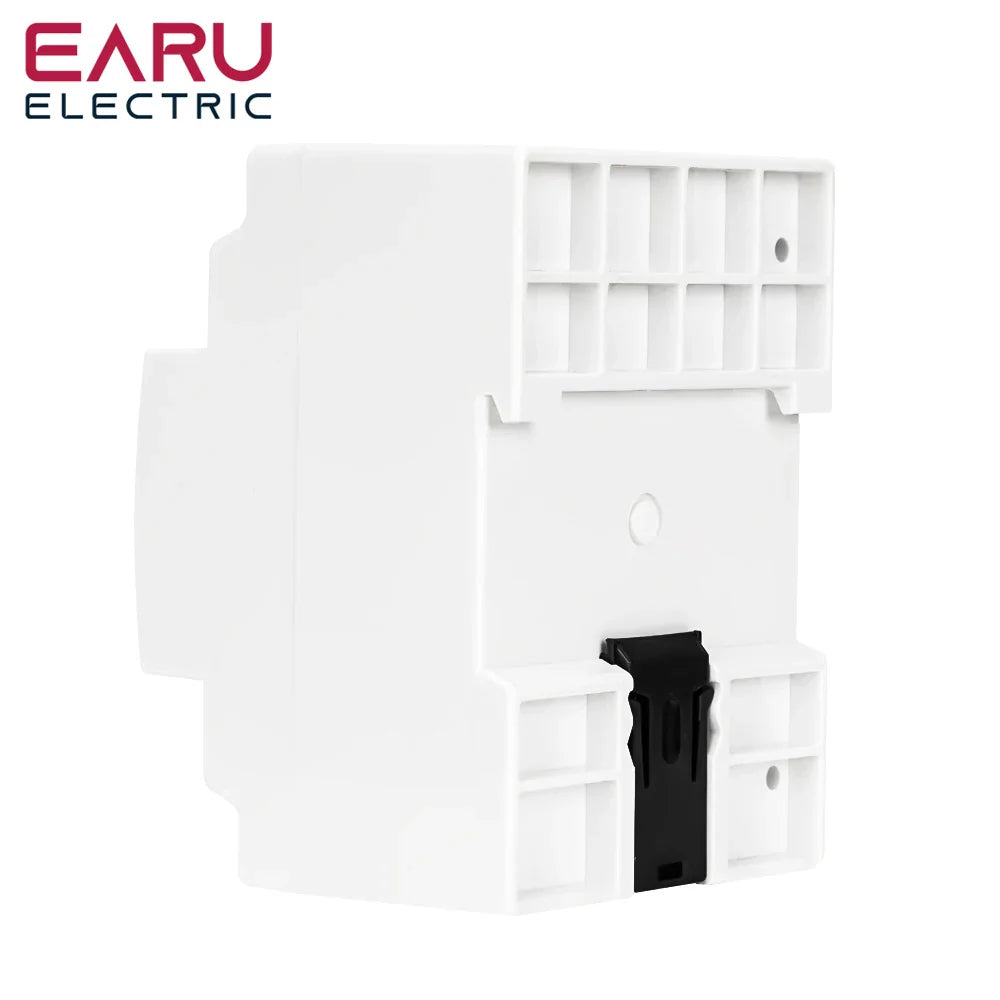

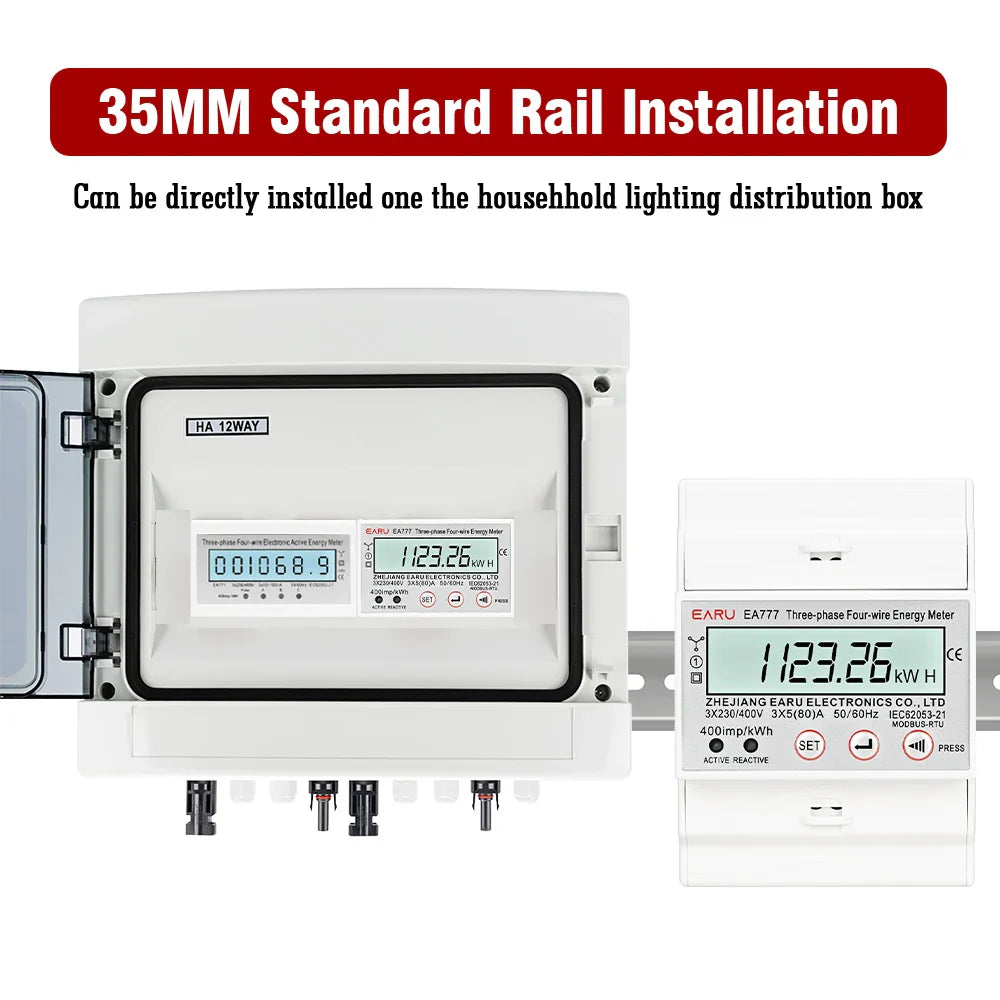

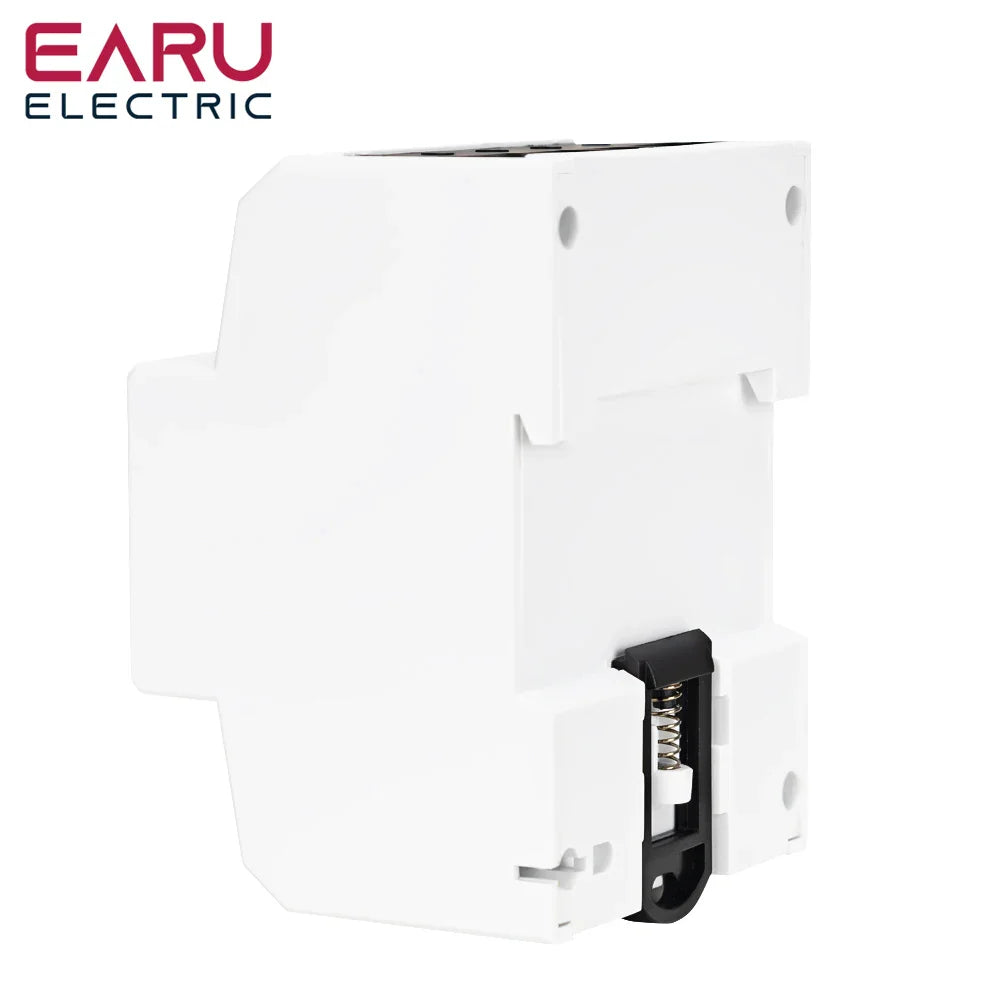

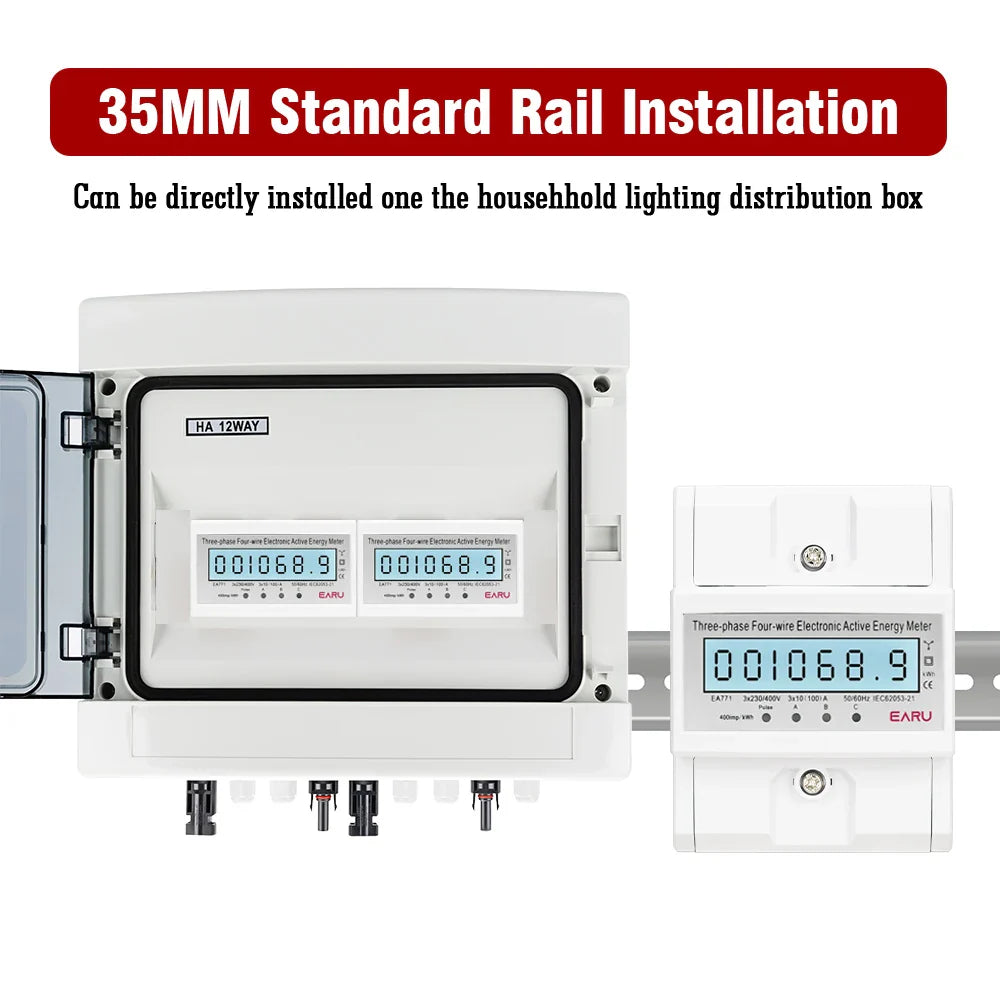

35 mm DIN standard rail mounting in accordance with DIN en-50022

High accuracy measurement of active electric energy, active electric energy level 1 and reactive electric energy level 2

Or active electric energy level 0.5 and reactive electric energy level 2

LCD 6 +1-bit display (999999.9kwh)

Passive pulse output, conforming to din43864 standard

LED indication pulse output

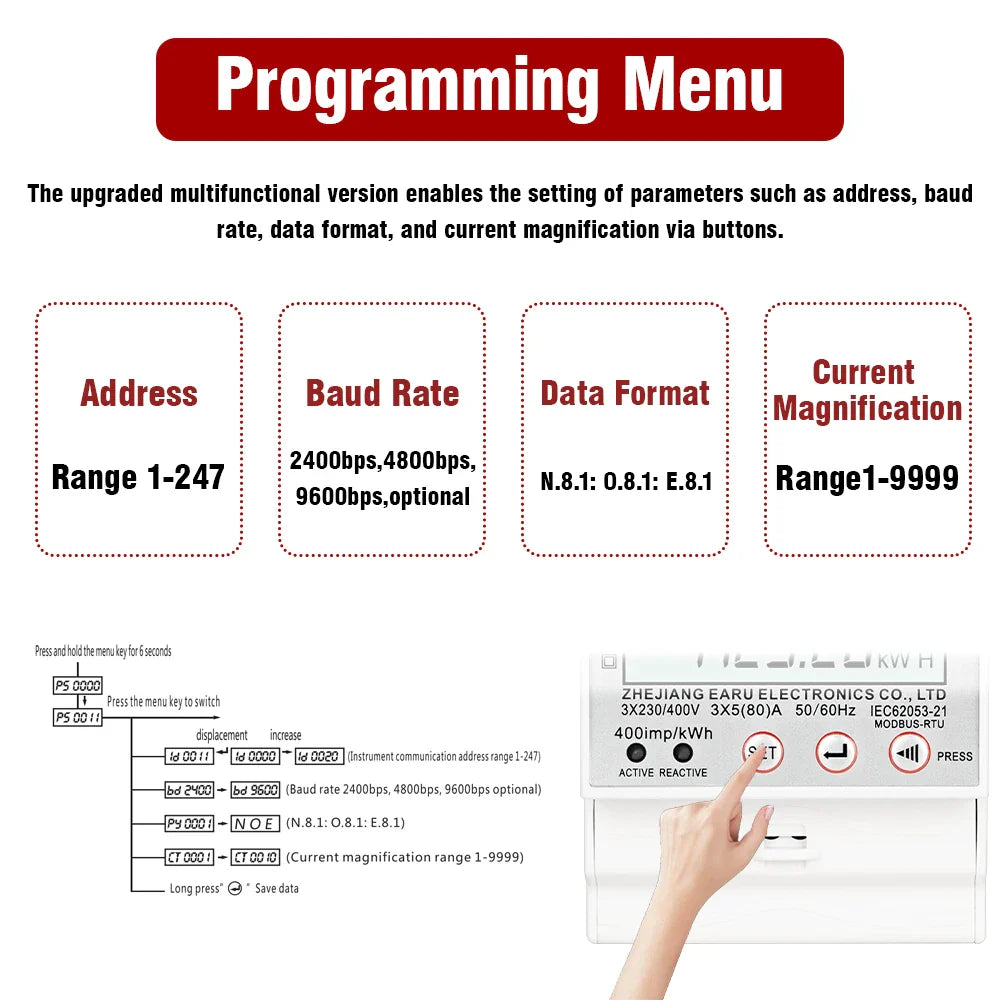

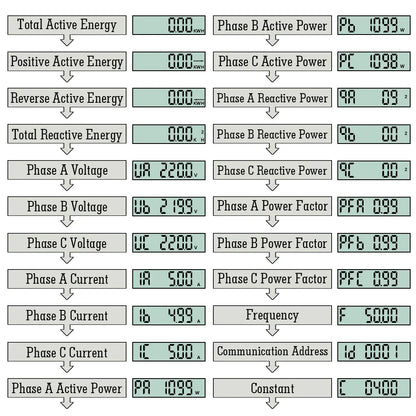

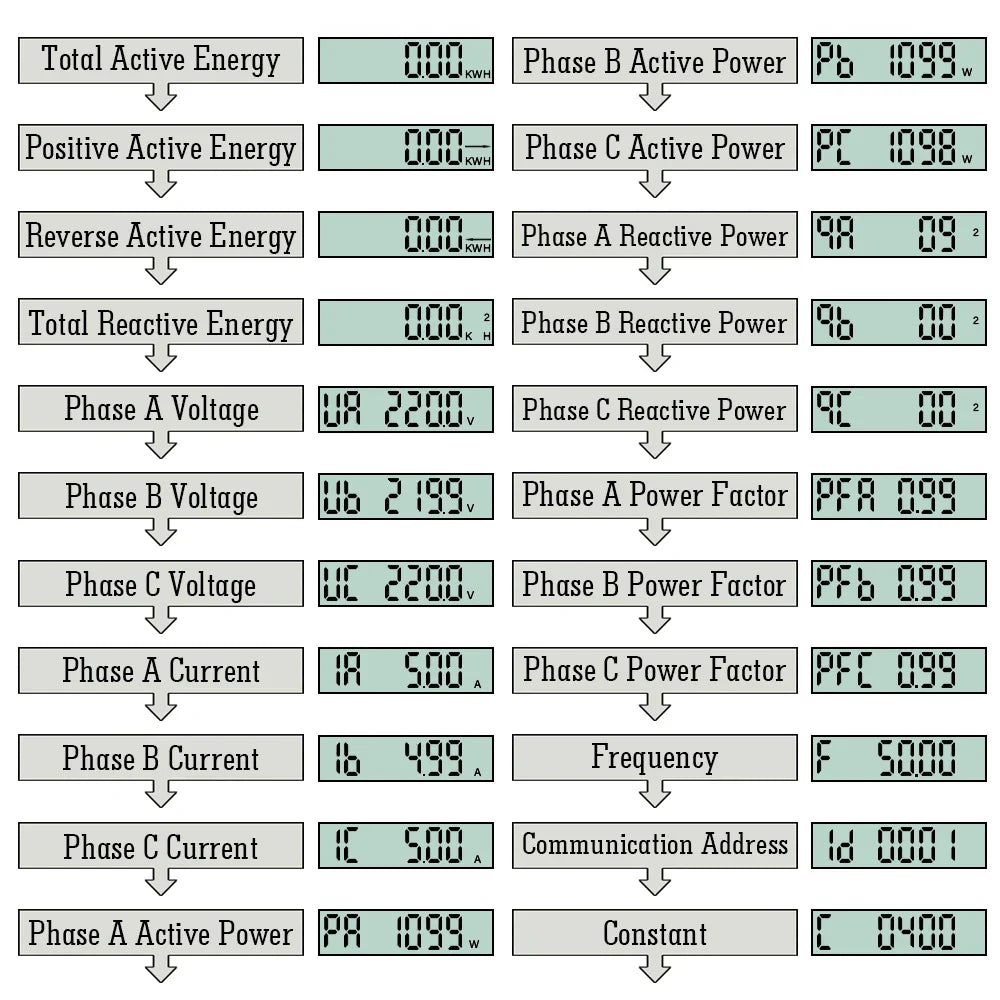

Quick query of various parameters

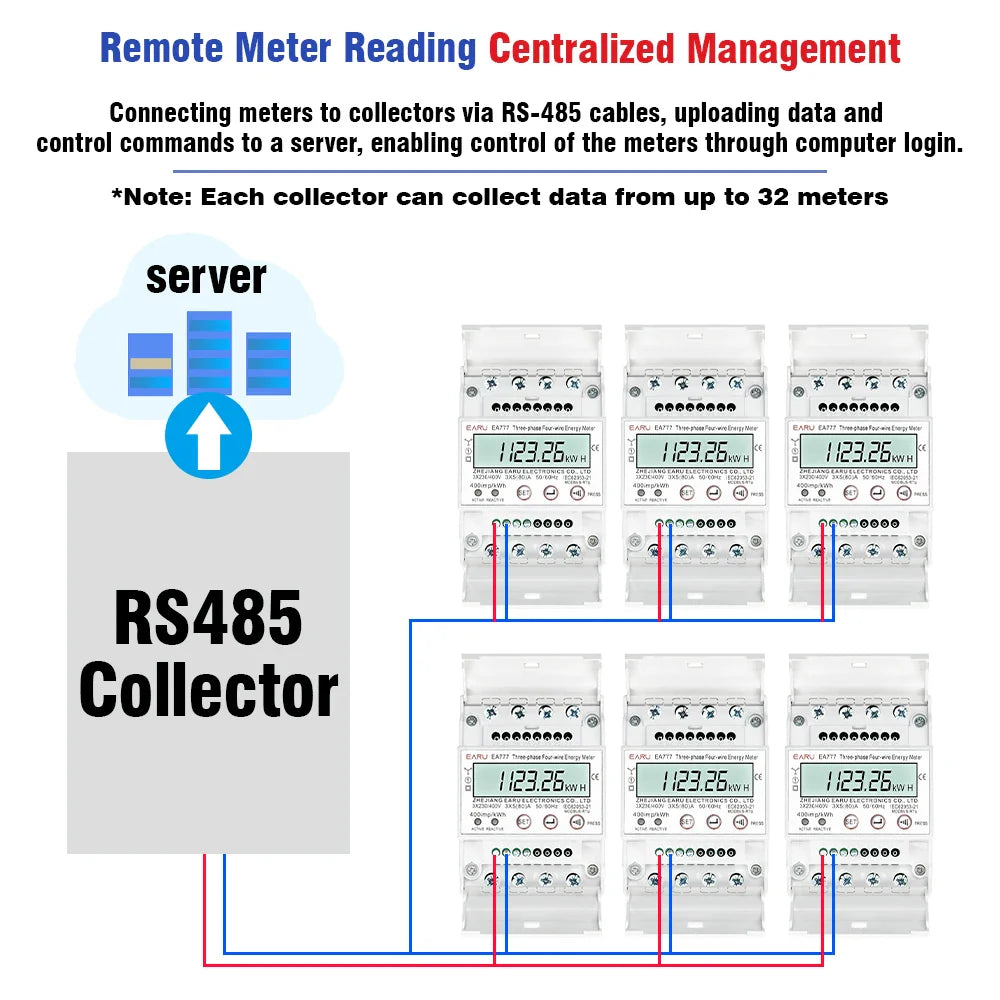

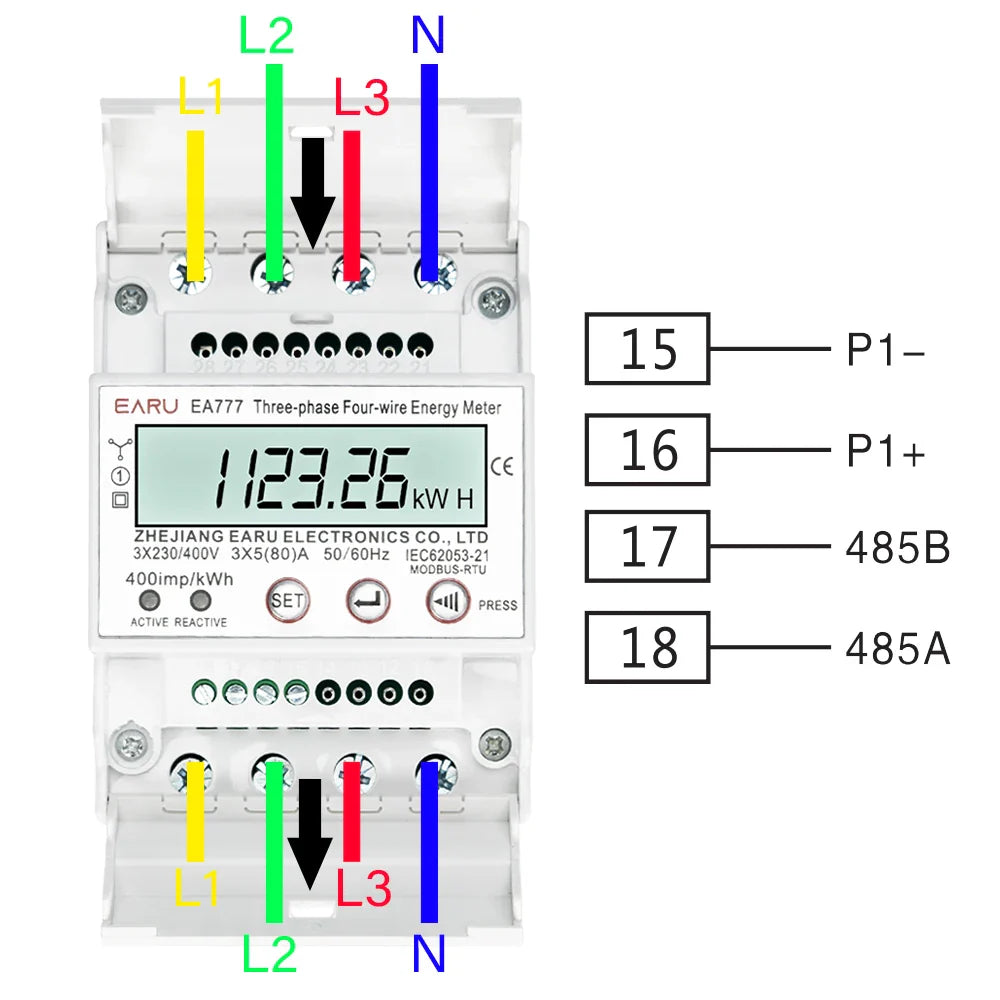

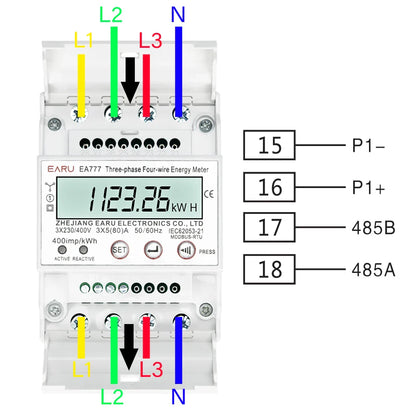

One RS485communication interface, supporting Modbus communication protocol or DL/ 645-2007

Communication protocol (optional)

It has the functions of reactive energy measurement and displaying current, voltage and power factors
