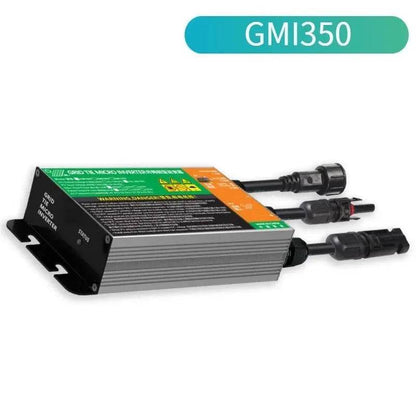

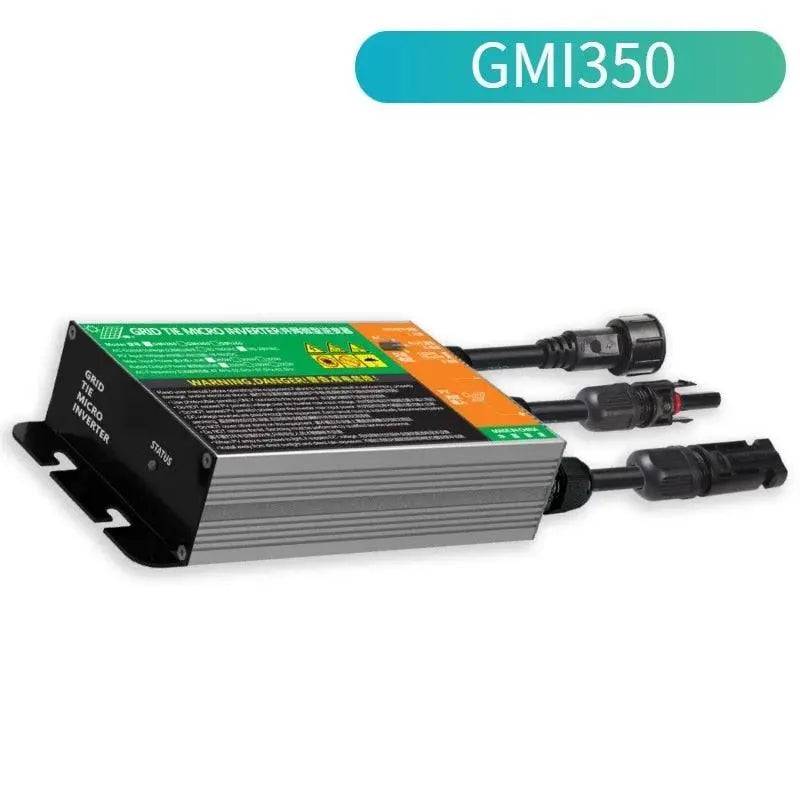

⚡ Micro Solar Inverter 300/350/500/700 W Grid Tie MPPT PV GMI Series Input 18V-50V DC Output 110V-240V AC

Upgrade your system with our high-performance Micro Solar Inverter 300/350/500/700 W Grid Tie MPPT PV GMI Series Input 18V-50V DC Output 110V-240V AC. Built for reliability, efficiency and seamless integration with modern setups.

📌 Key Benefits

• ✅ High-efficiency design for superior performance
• ✅ Optimized heat dissipation and durability
• ✅ Plug-and-play compatibility for easy integration
• ✅ Ideal for industrial and residential use

📄 Technical Specifications

SPECIFICATIONS

is_customized: Yes

Weight: 0.9

Type: DC/AC Inverters

Size: 282mmx106mmx41mm

Output Type: Single

Output Power: 500 - 1000W

Output Frequency: 50/60Hz

Origin: CN(Origin)

Model Number: GMI500/600/700/350/300

Certification: CE

350W 300W 500W 600W 700W Grid Tie Micro Inverter MPPT Solar PV GMI Series Input 18V-50V DC Output 110V-240V AC

LED DISPLAY:

1.Green light steady=Microinverter in generating.

2.Red flash=Microinverter in waiting.

3.Red light steady

a.Island protection.

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

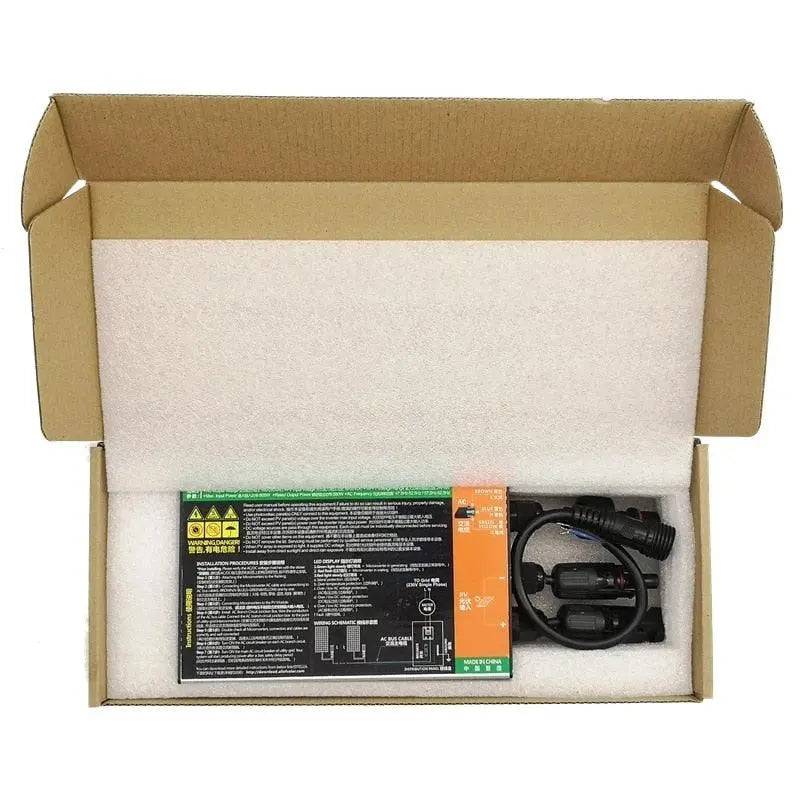

Packing List:

Grid Tie Inverter -----1pcs

AC Cable 30CM-----1Pcs

About 18- 50V DC Input

This grid tie micro inverter will start up at 24V, after starting, the Solar Microinverters can work in 18V-39V (Vmp).Solar Panel Voc cannot be higher than 50V.

Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.

So 50V is max Voc of Panels connected with the Micro Grid Tie Inverter

Why can't use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.

If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make the Solar micro-inverters work unstable, and the inverter will start repeatedly. In this case,micro Grid tie Inverter would be damaged easily!

Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V( Battery is not recommended)

If you have any questions about the Micro Grid Tie Inverter,please feel free to contact us.

🛡️ Why Trust Us

Every product listing is technically reviewed for accuracy by our specialized renewable energy team. We offer a curated catalog of high-quality products across solar, wind, battery storage, and EV charging categories. All purchases are processed securely, backed by our 30-day return policy.

• ✅ Verified technical specifications on every product
• ✅ Secure checkout with encrypted payment processing
• ✅ 30-day return policy for peace of mind
• ✅ Worldwide shipping with order tracking

❓ Frequently Asked Questions

❓ 1 - Do you provide installation services?
❌ No, we do not. Please note that we do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions.

🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers located in North America, Europe, and Asia, with delivery times between 5 to 15 business days.

⏳ 3 - What is the delivery time?
Delivery time is 5 to 15 business days.

💳 4 - How can I pay?
Payments accepted via Stripe: credit card, debit card, and Apple Pay — all directly on our website.

📄 5 - Where can I find technical information?
All technical information is available on the product sales page.

❓ 6 - Can I request a quote or estimate?
🚫 No quote is necessary. You can purchase all products directly through our website with transparent pricing.

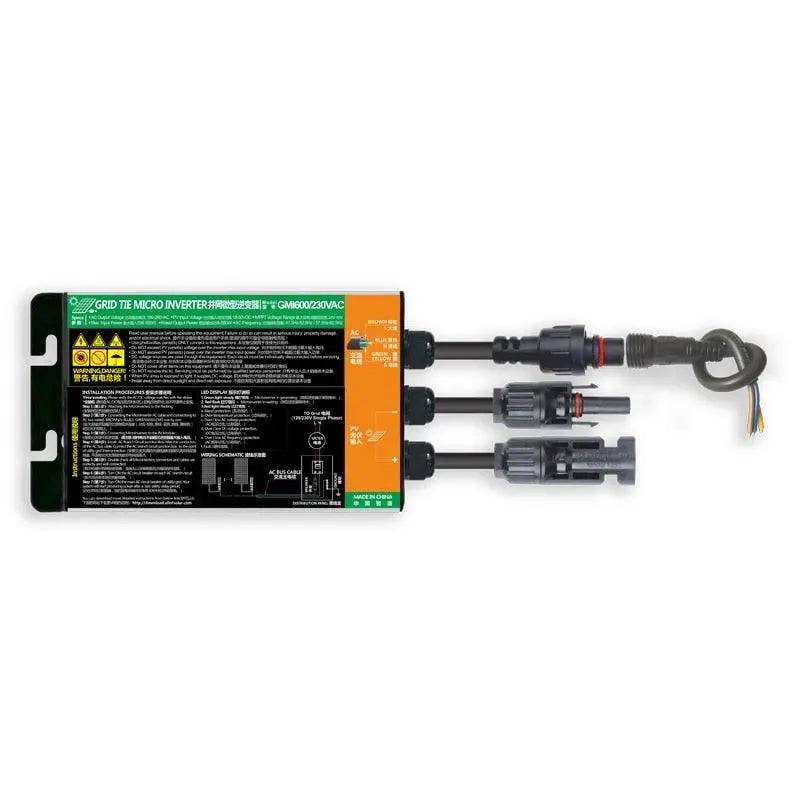

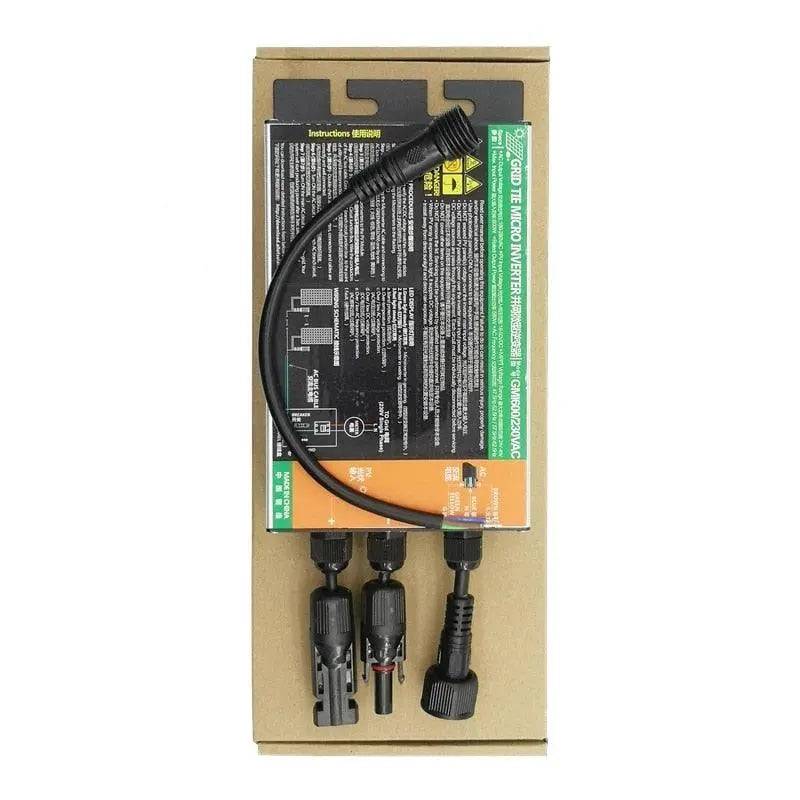

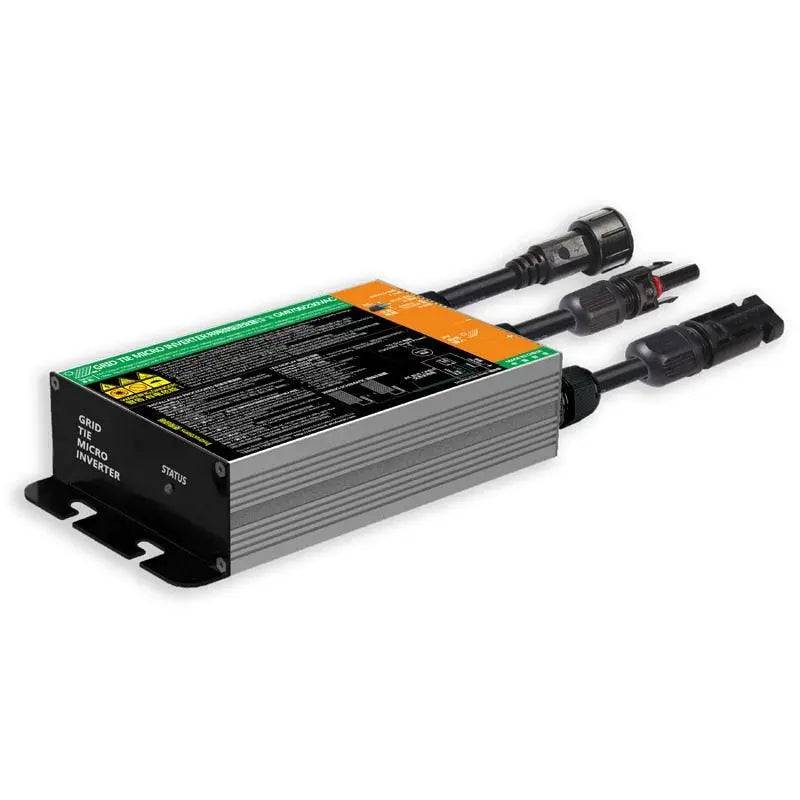

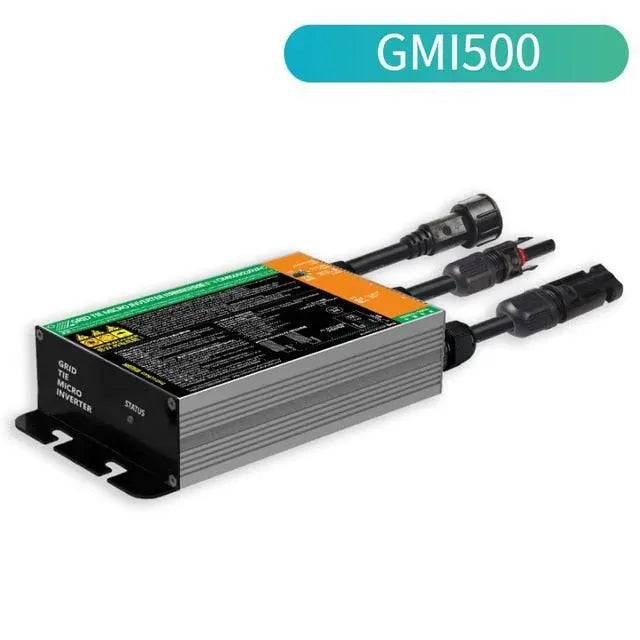

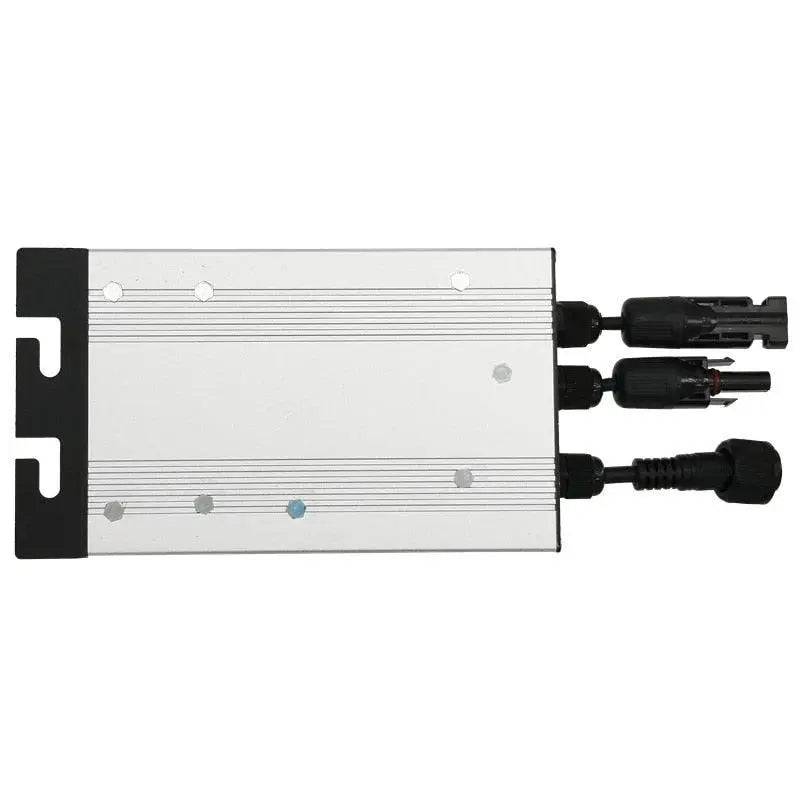

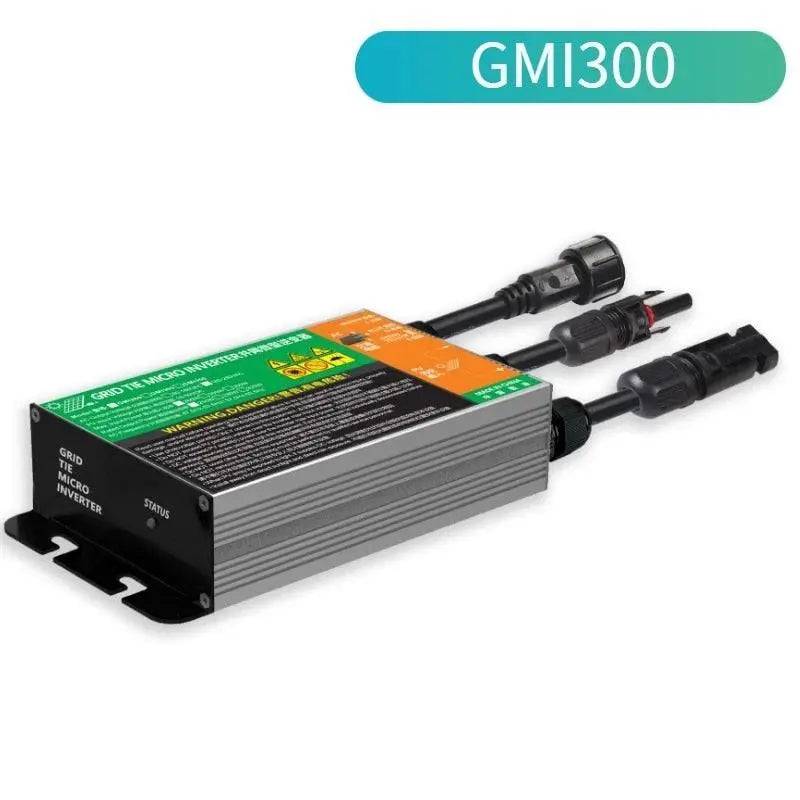

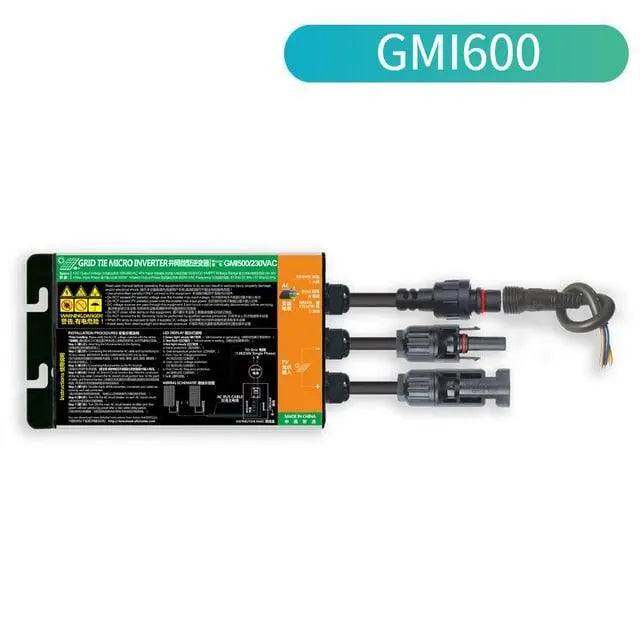

🖼 Product Images
