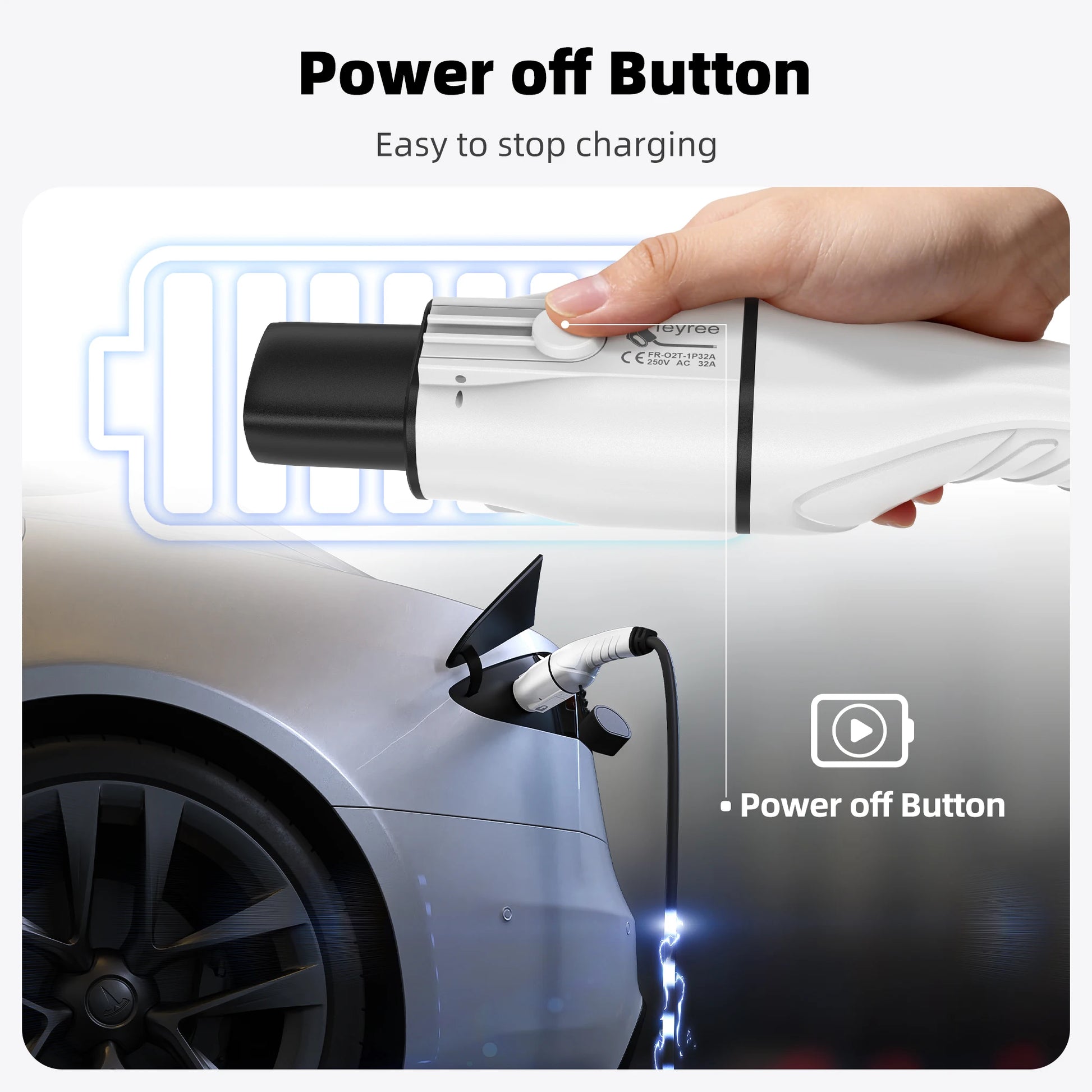

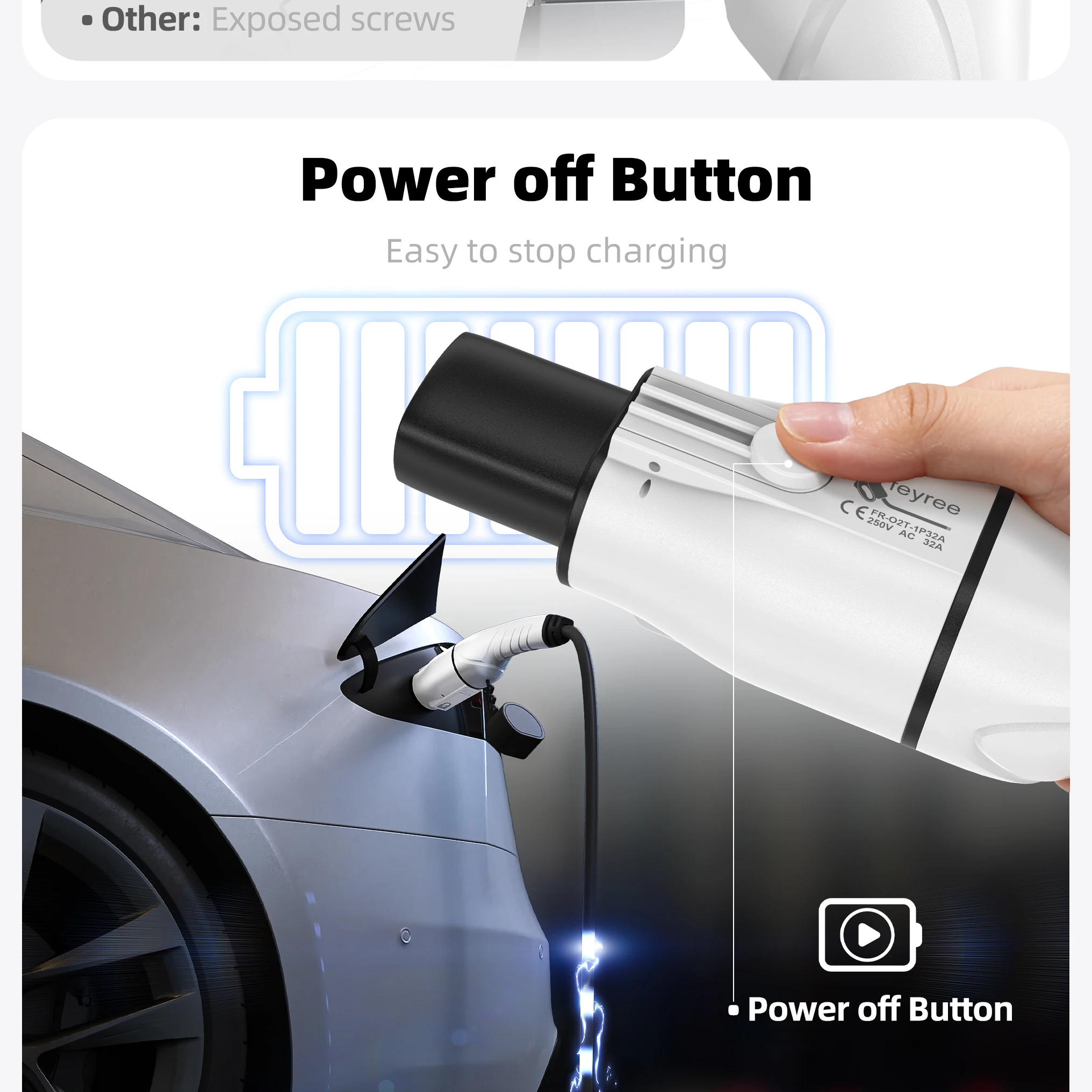

1. Emergency Stop Button: Easily accessible button allows you to manually cut off the charging signal instantly. Ideal for emergency situations or when you need to stop charging remotely from the car.

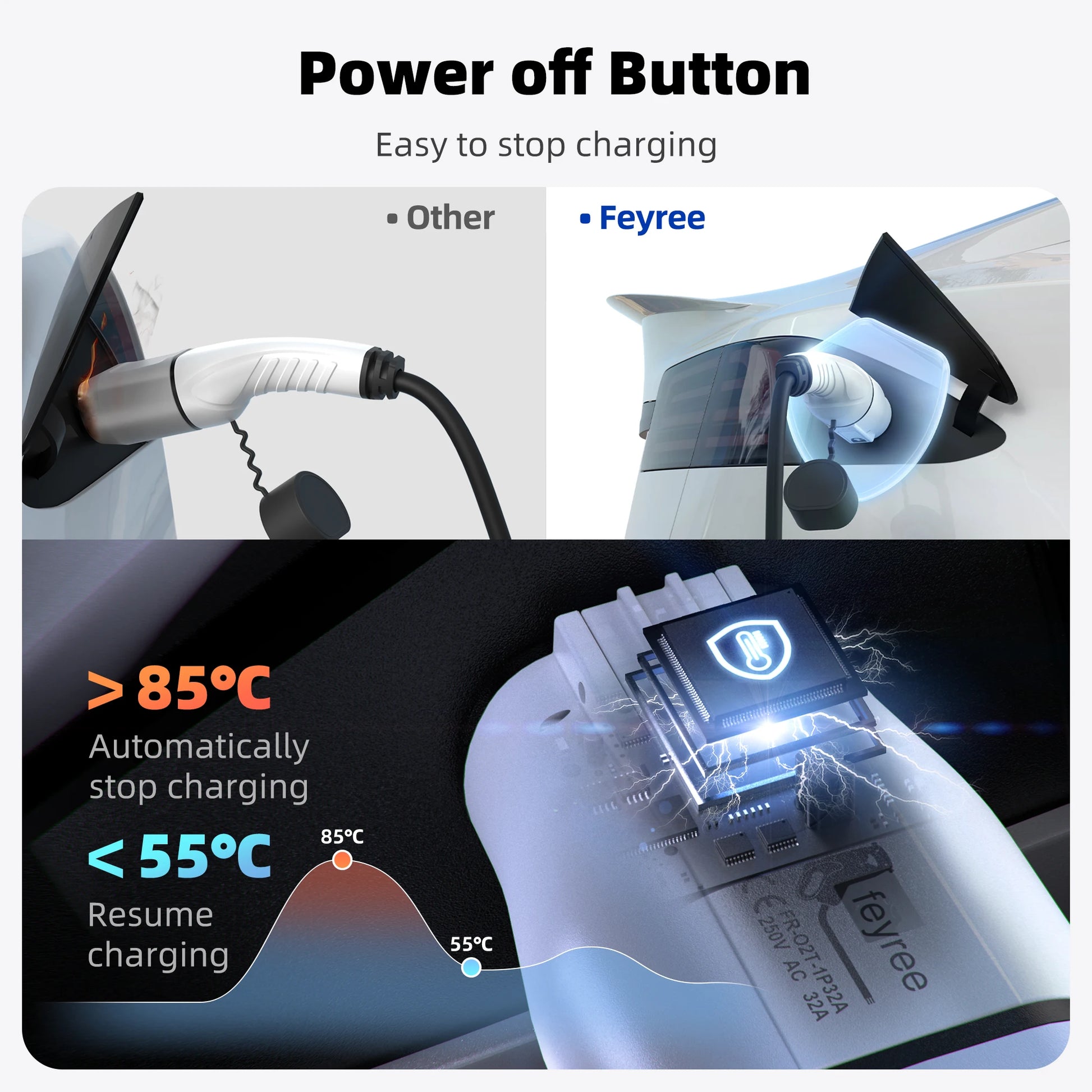

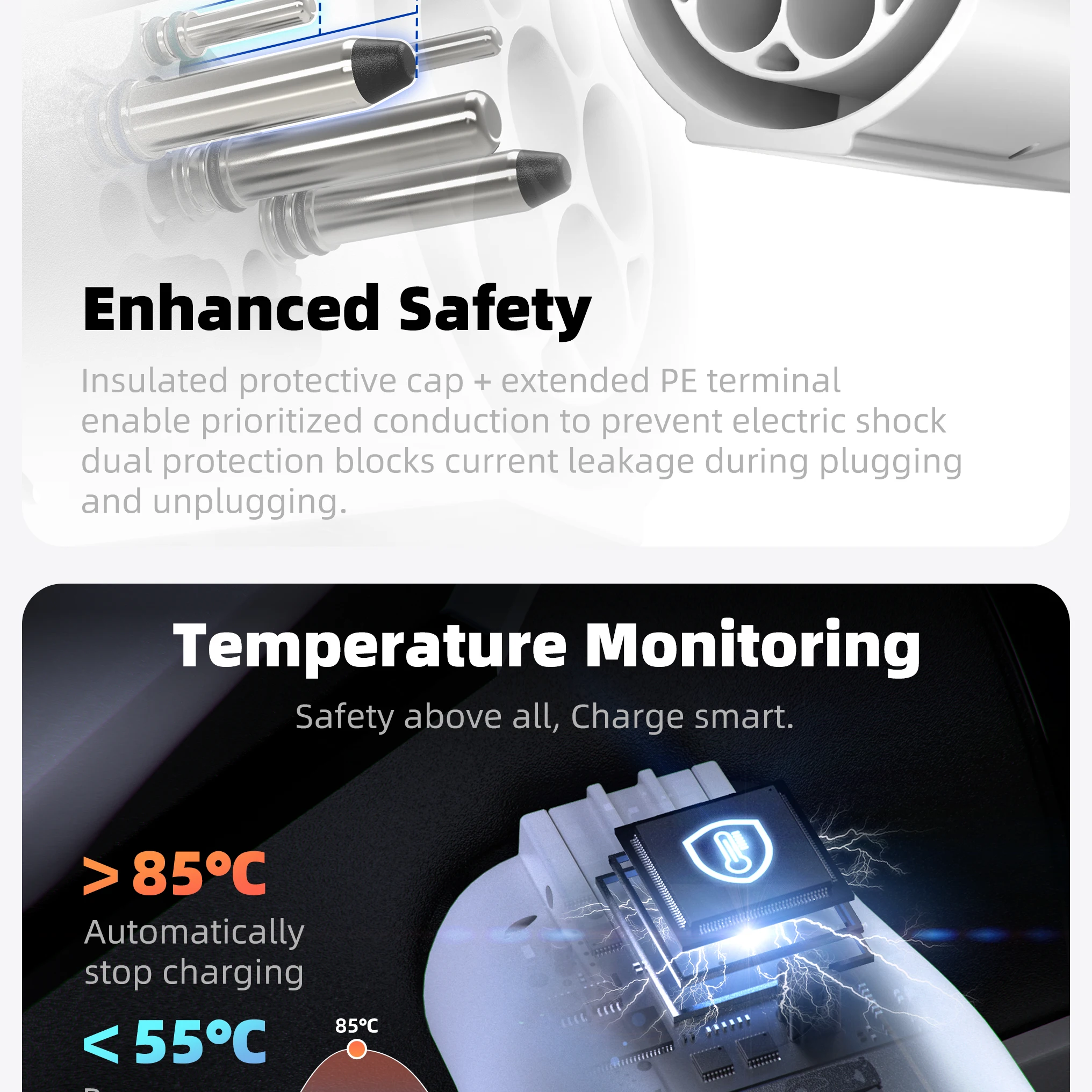

2. Intelligent temperature protection: An internal temperature sensor continuously monitors the adapter's heat. If the temperature rises above 85°C, the system automatically halts charging to prevent melting or fire risks.

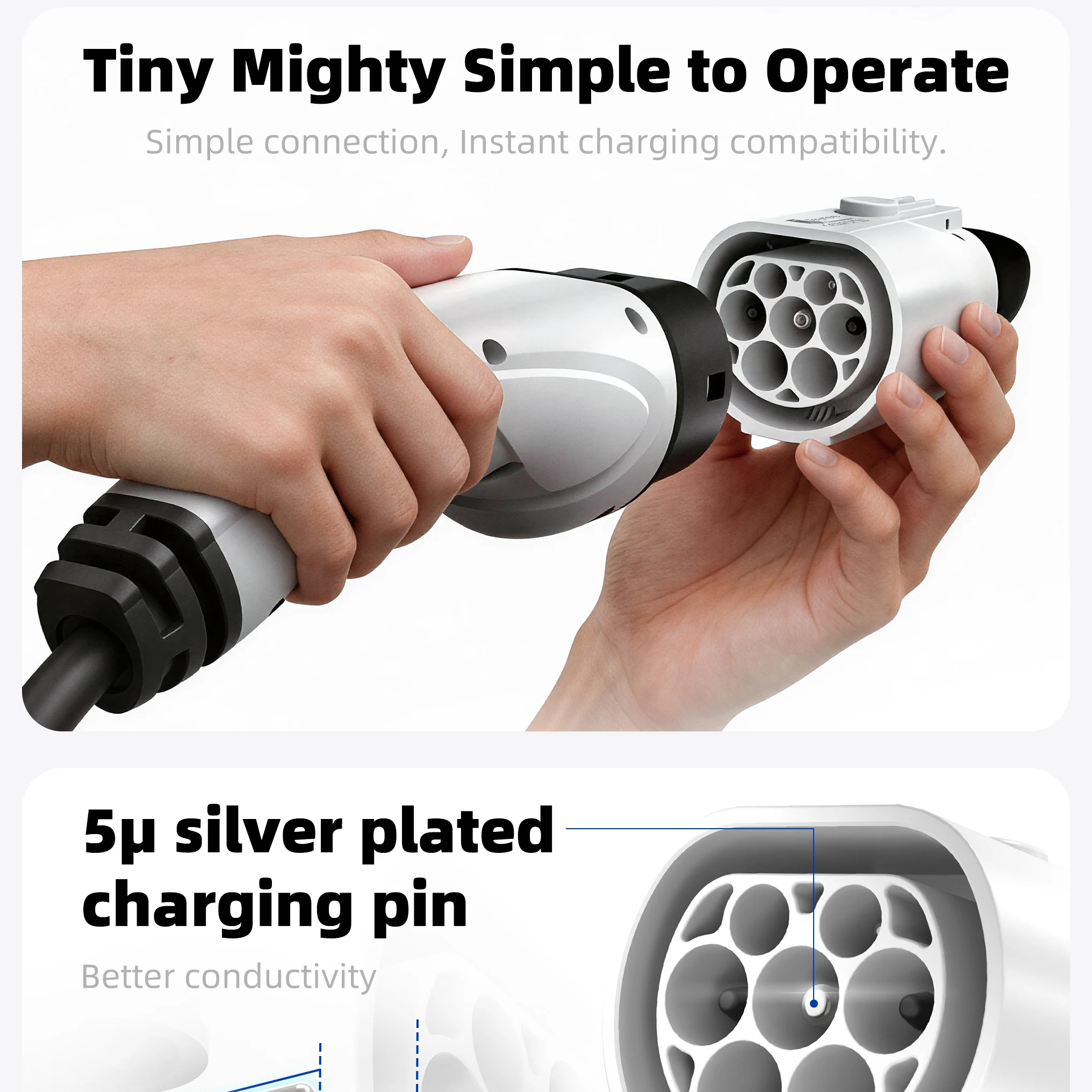

3. 5μm Silver Plating: We use 5-micron thick silver plating on all conductive terminals. Silver offers the highest electrical conductivity of all metals, ensuring minimal voltage drop and heat generation even at the maximum 32A / 7kW output.

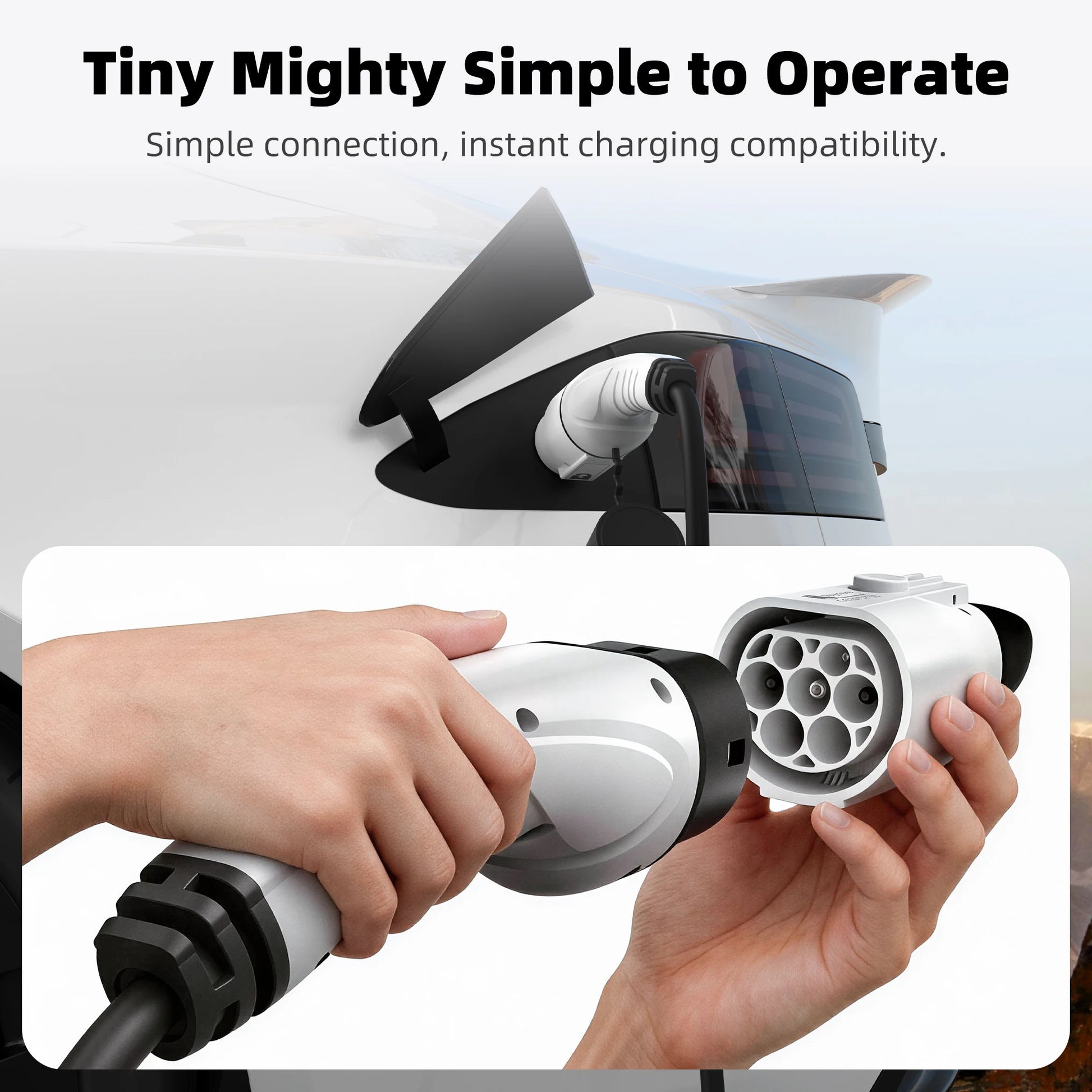

4. Stable Signal Communication: Ensures accurate CP/PP signal transmission between the Type 2 charging pile and the NACS vehicle, preventing charging interruptions.

5. Insulated Pin Terminals: The internal connector pins are covered with protective insulation caps. This design prevents fingers or tools from accidentally touching live metal contacts during connection, significantly reducing shock risks.

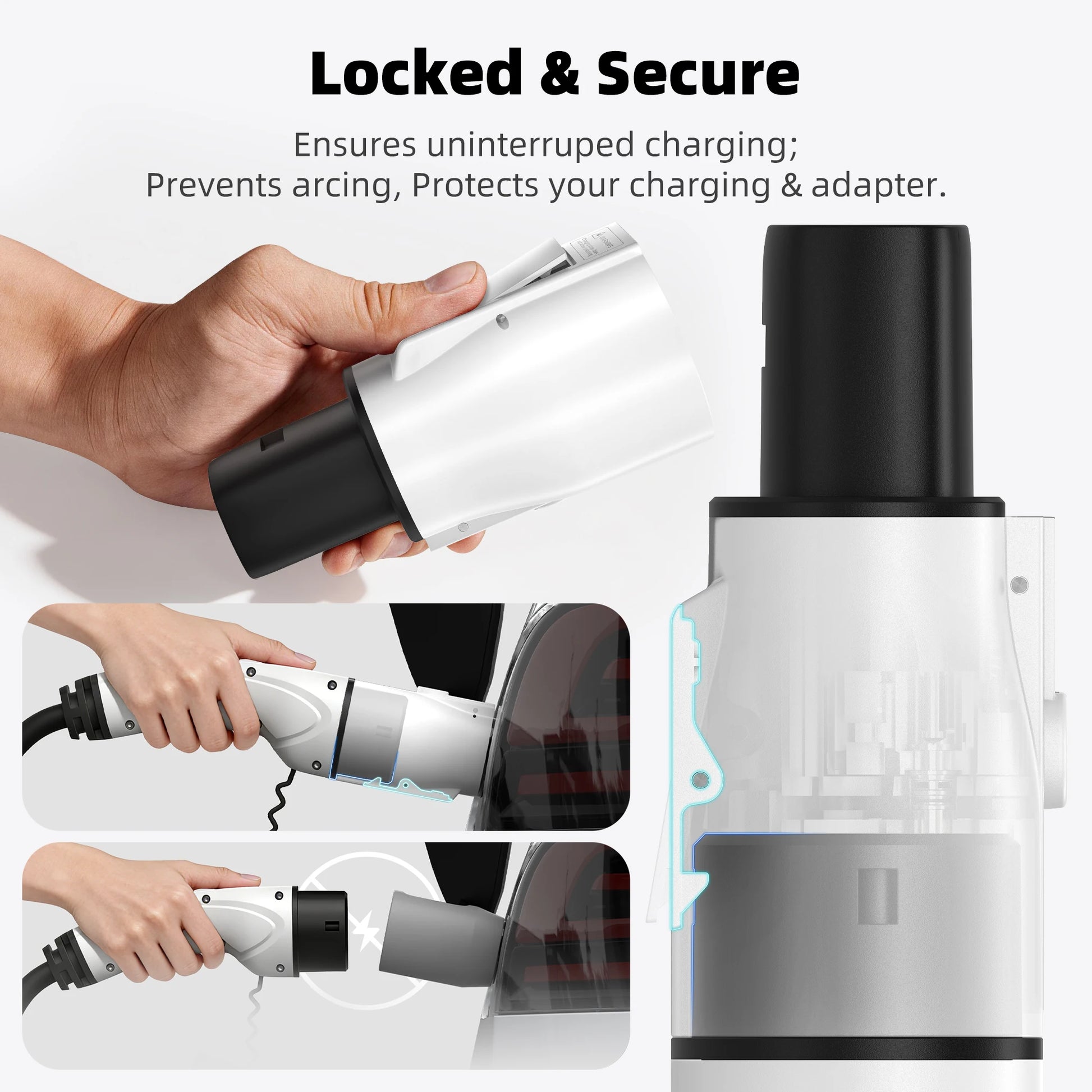

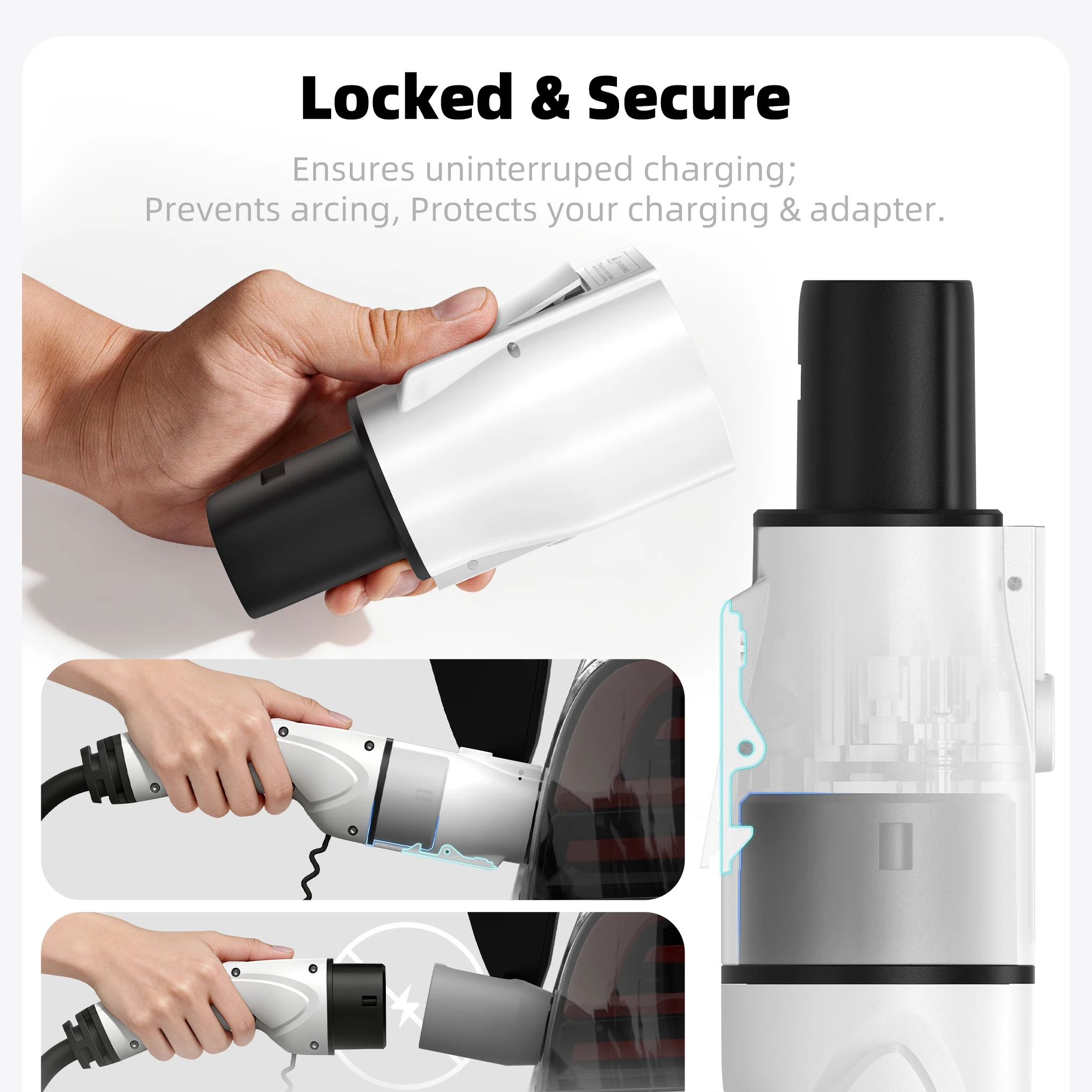

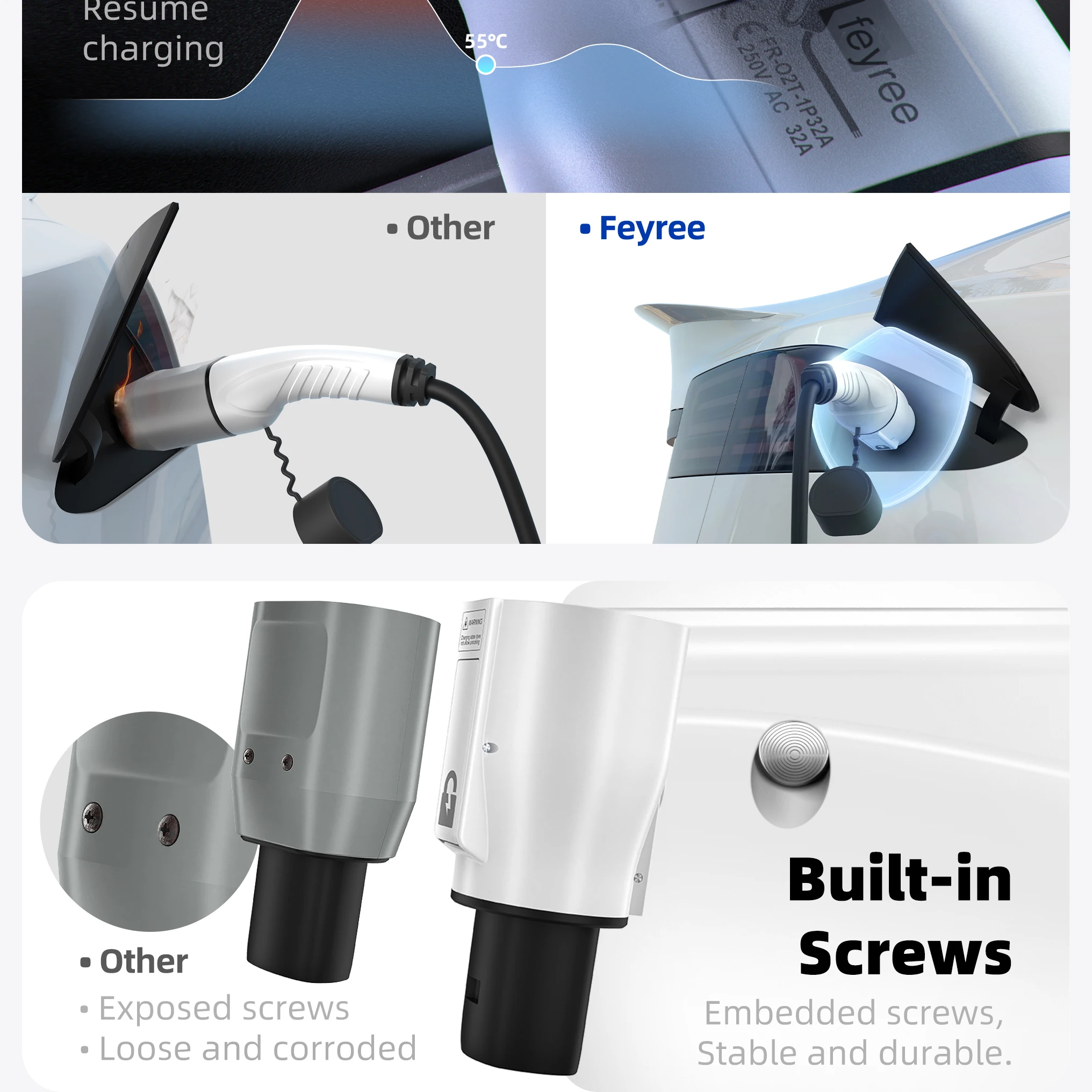

6. Secure Locking Buckle (Anti-Loosening):Prevents the connector from loosening due to cable weight, wind, or vibration during charging. Ensures continuous power flow and prevents arcing caused by poor contact.

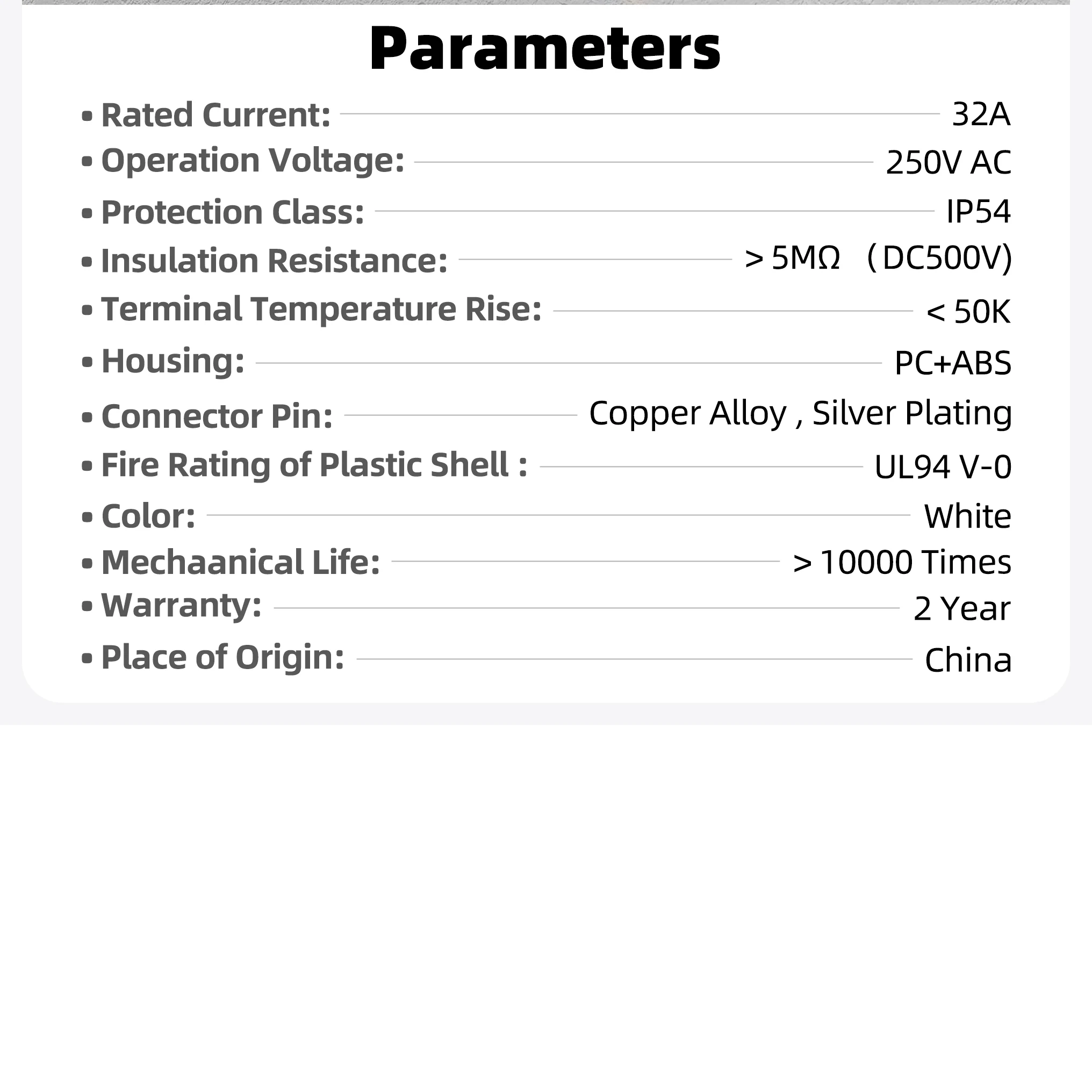

• Specifications:

  • Rated current:32A,Single Phase

  • Rated Voltage: 250V AC

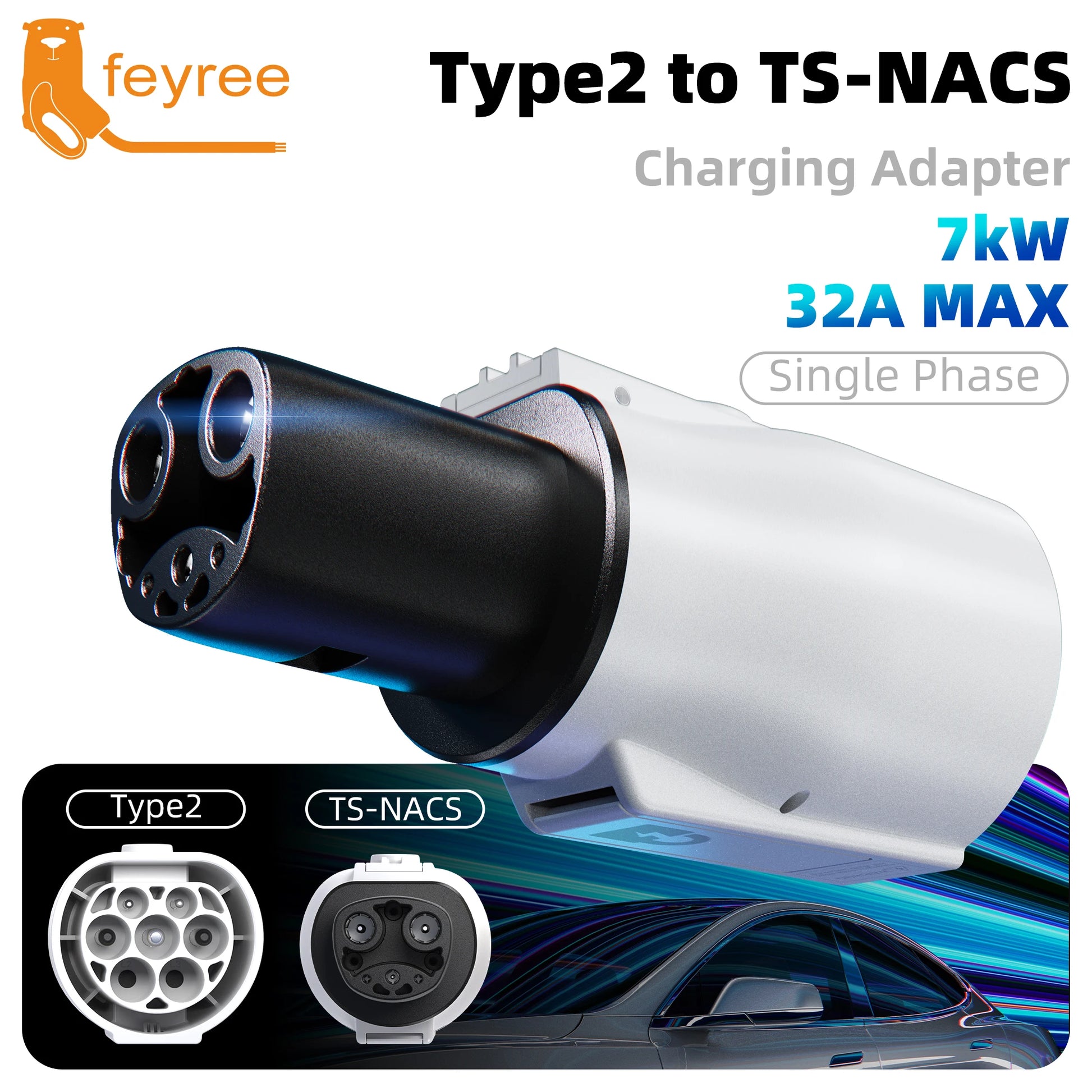

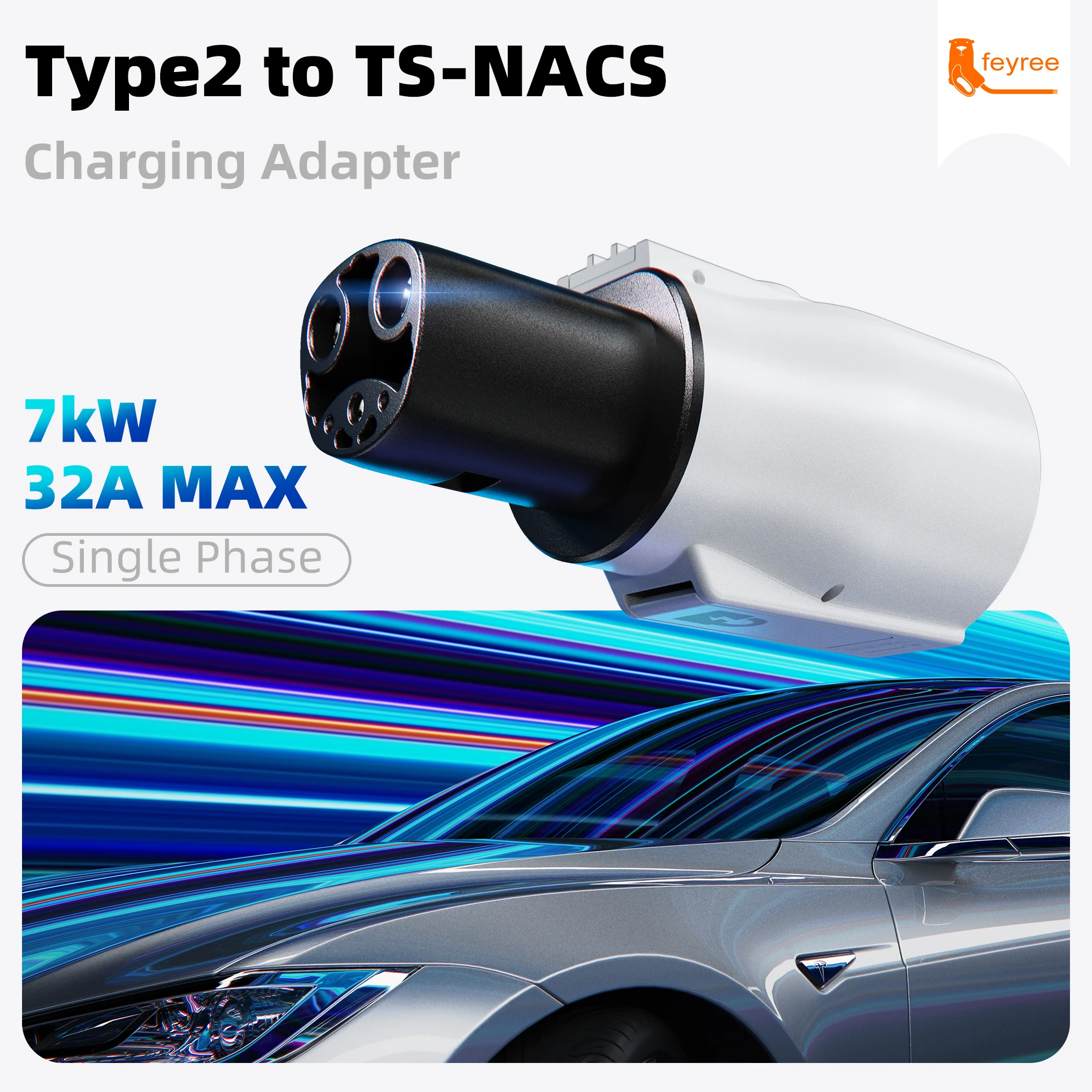

  • Standard:Type2 to Tesla Adapter ;IEC62196-2 TO NACS Adapter

  • Insulation resistance:>5MΩ

  • IP Rating:IP 54

  • Insertion/withdrawal force:45N

  • Operating Temperature:-30℃ - +50℃

  • Mechanical Life(Normal use):>10000 Times

  • Material: Thermoplastic, Flame Retardant Frade UL94 V-0

  • Pin Material: Copper Alloy, Silver plating + Thermoplastic On The Top




Package Contents:

• 1*Charger Adapter

• 1*User Manual
