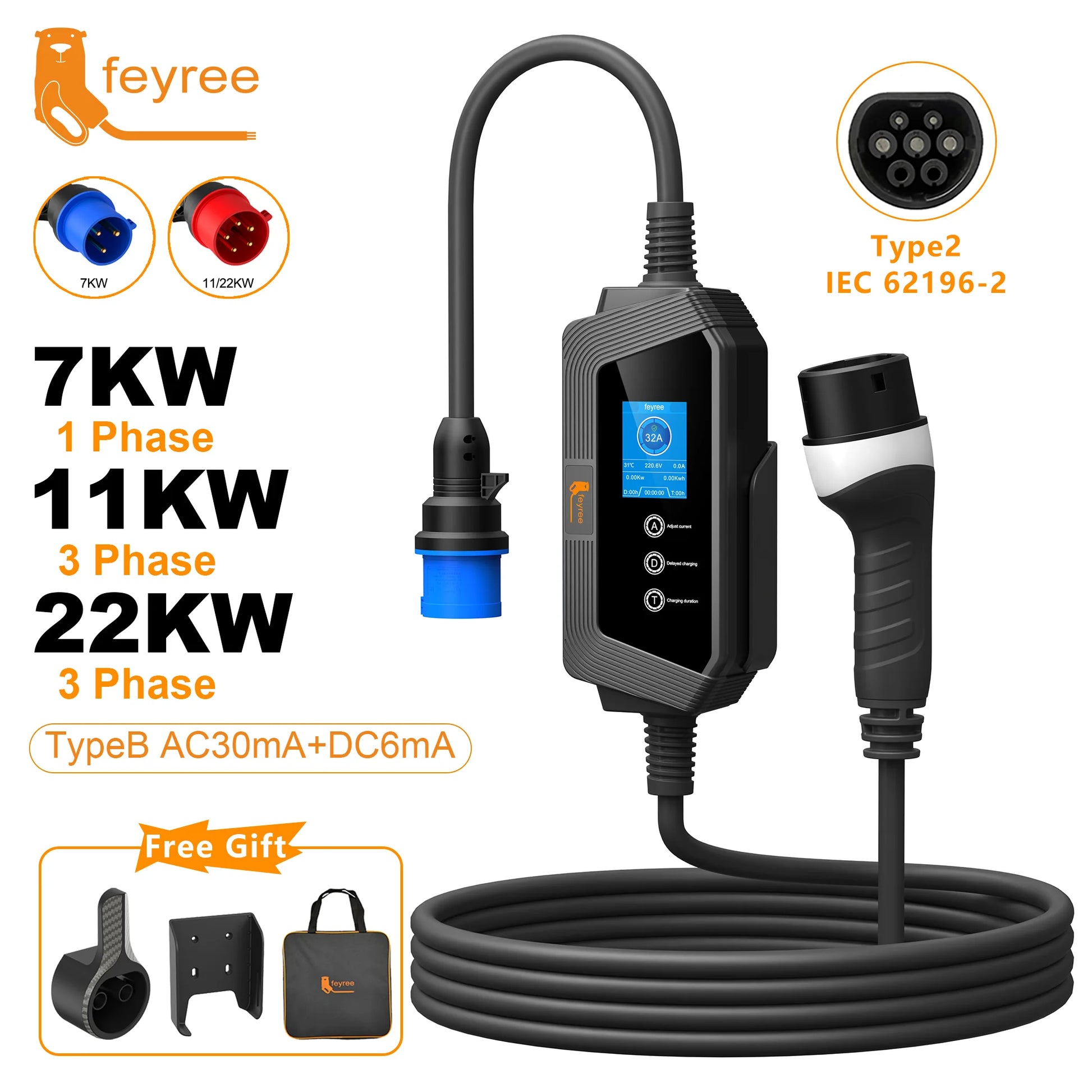

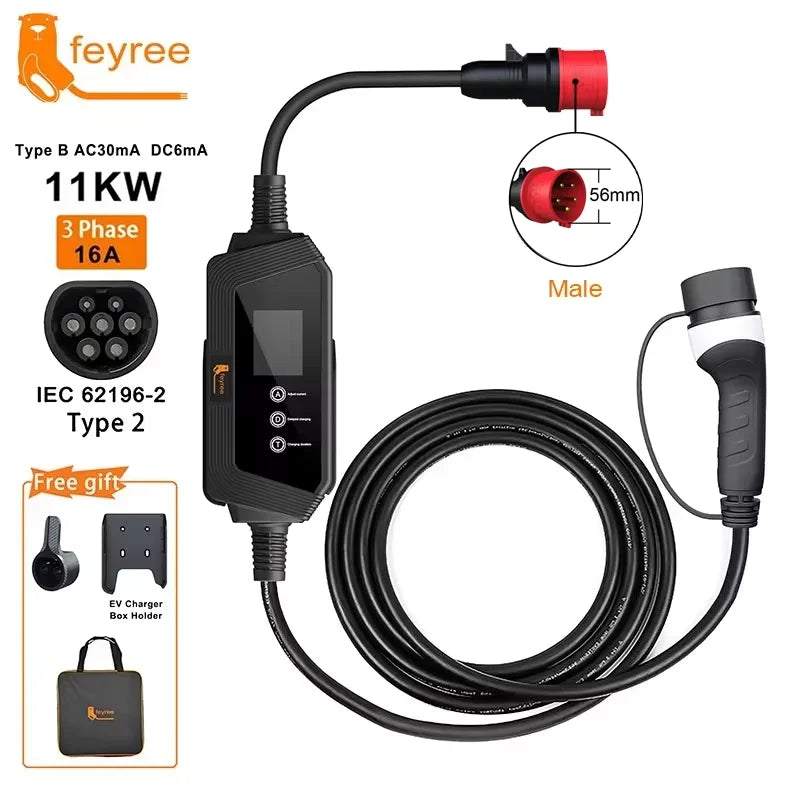

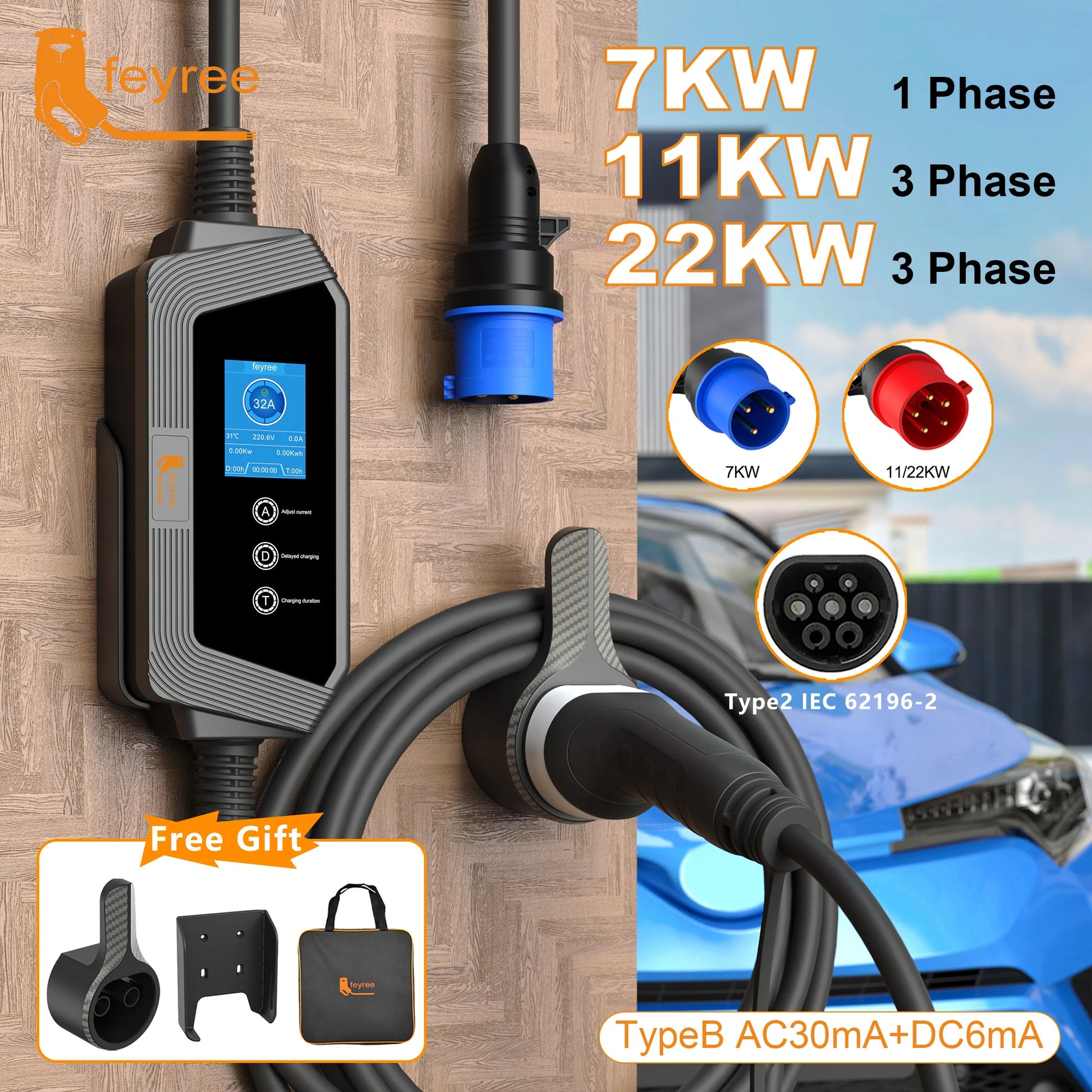

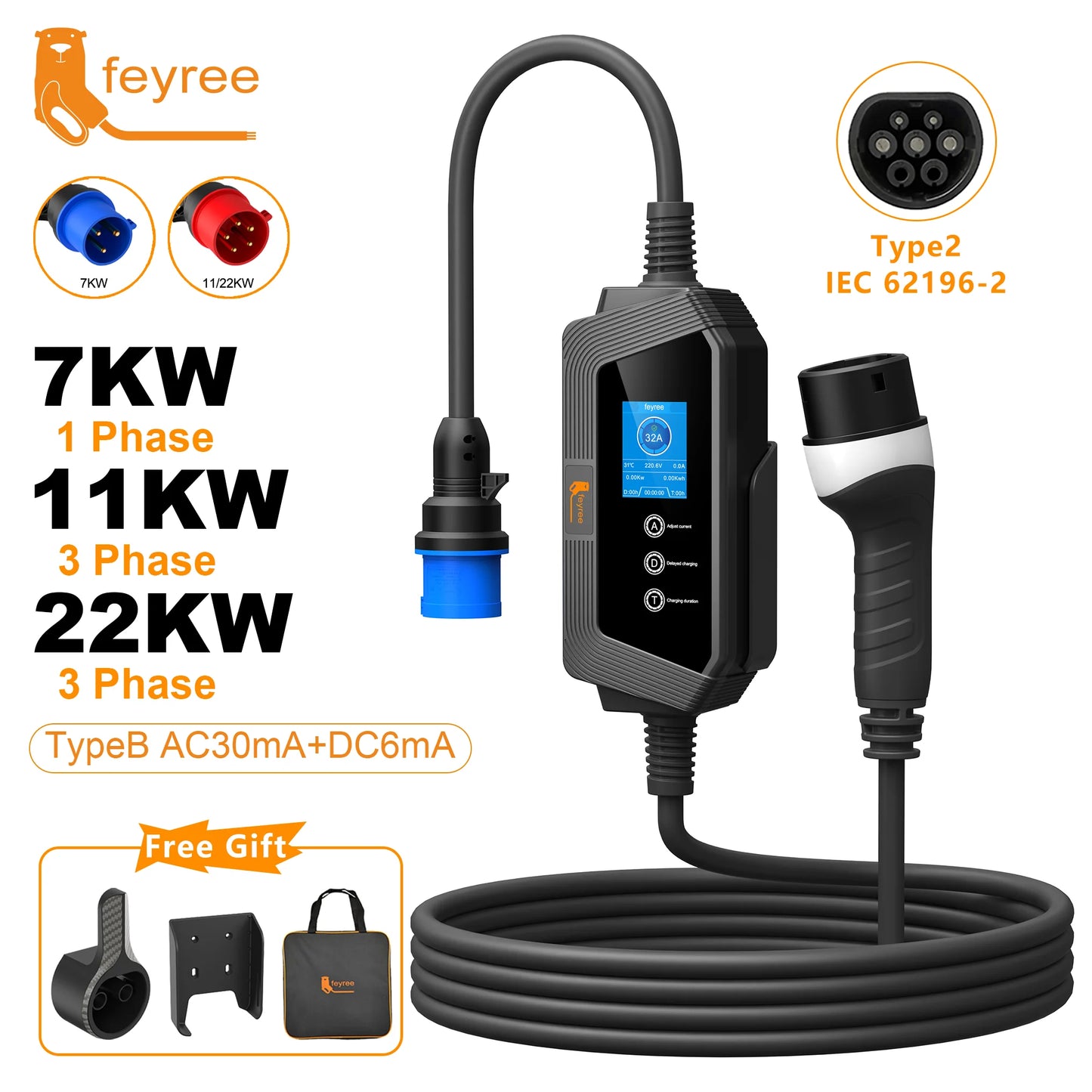

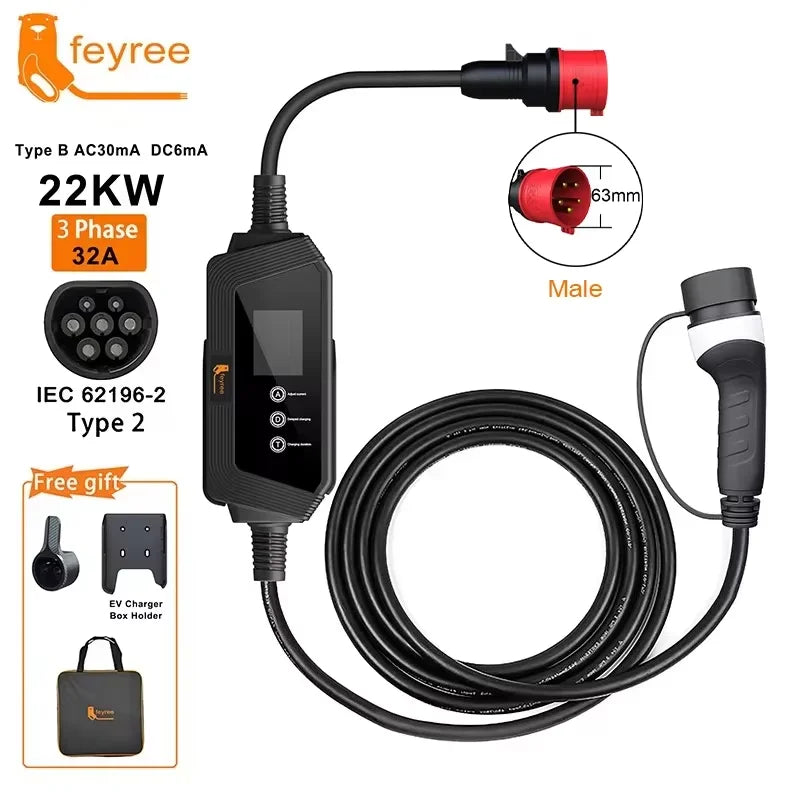

feyree Portable EV Charger Type2 22KW 11KW 3P Fast Charging 7KW 32A 1P for Electric Car Adjusting Current Setting Charging Time

feyree Portable EV Charger Type2 22KW 11KW 3P Fast Charging 7KW 32A 1P for Electric Car Adjusting Current Setting Charging Time

Regular price £219.00 GBP
Regular price £0.00 GBP Sale price £219.00 GBP
Sale Sold out
Taxes included.
Color
Ships From
Quantity

SPECIFICATIONS

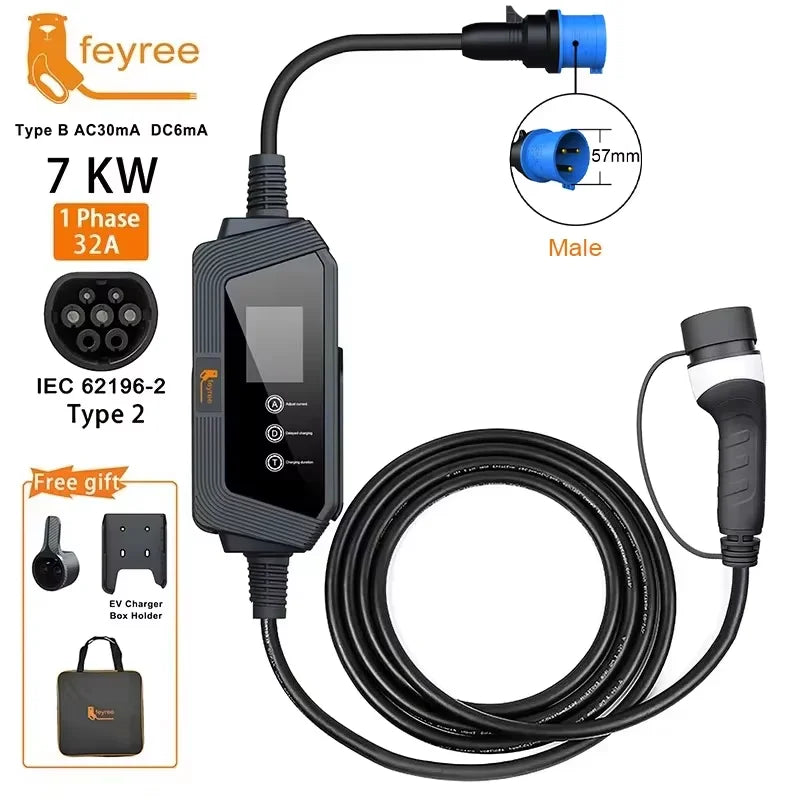

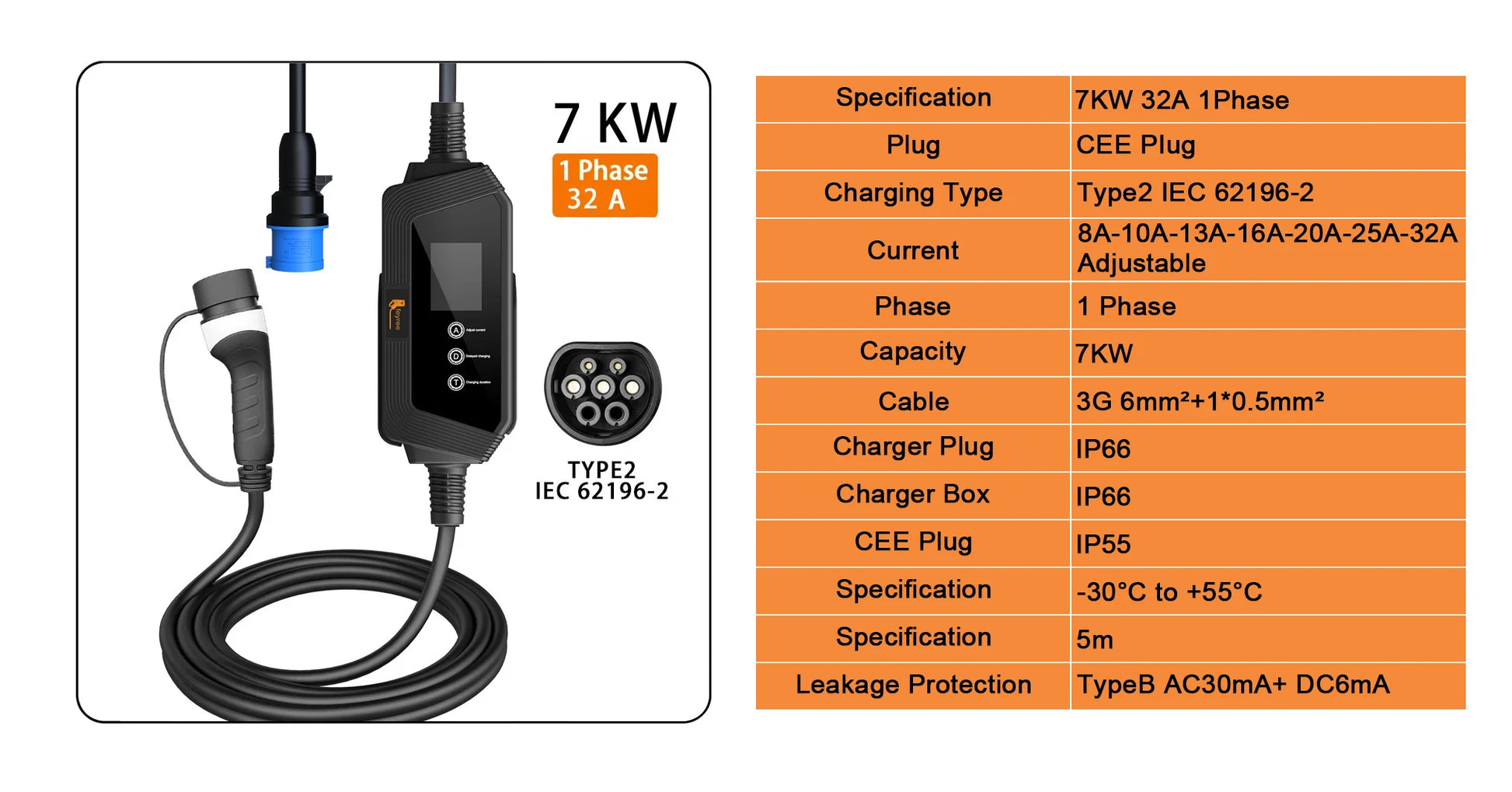

1 Phase 7KW Current: 8A-10A-13A-16A-20A-25A-32A Adjustable

1 Phase Voltage: 85V-264V

3 Phase 11KW Current: 8A-10A-13A-16A

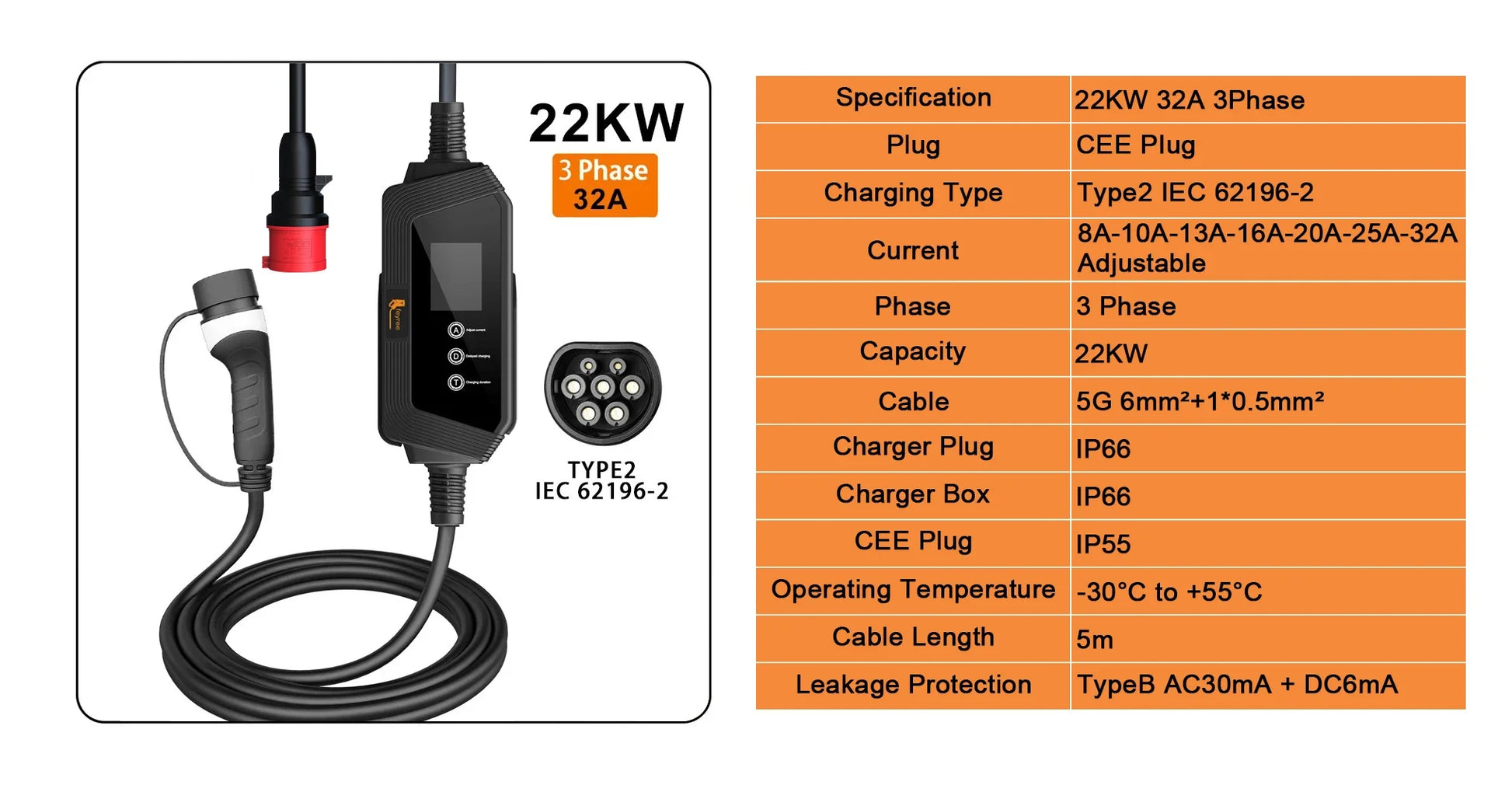

3 Phase 22KW Current: 8A-10A-13A-16A-20A-25A-32A Adjustable

3 Phase Voltage: 380V

APP Version: NO

Adjust Current: YES

Brand Name: feyree

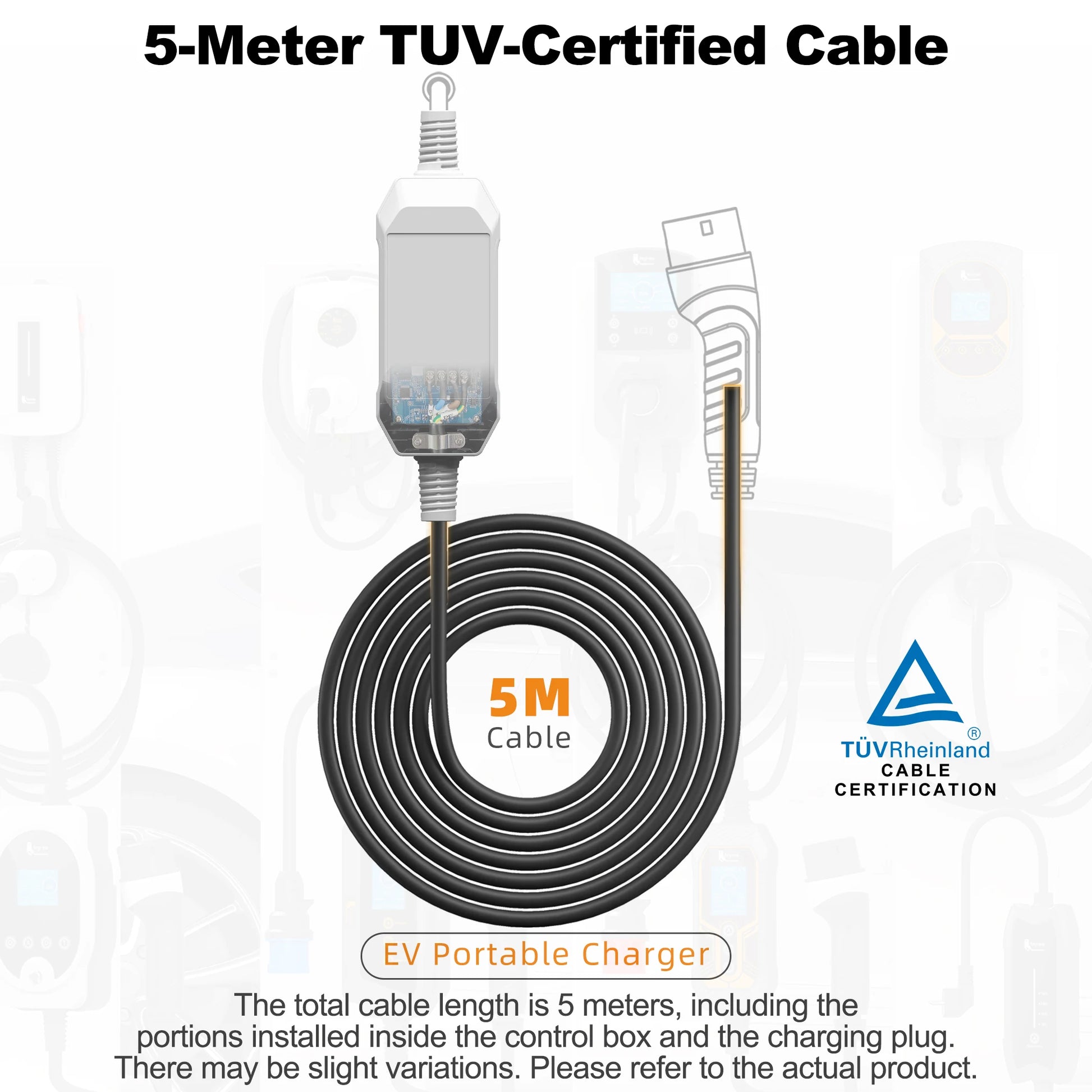

Cable Length: 5m

Charger Type: Portable EV Charger

Current: 32A Max

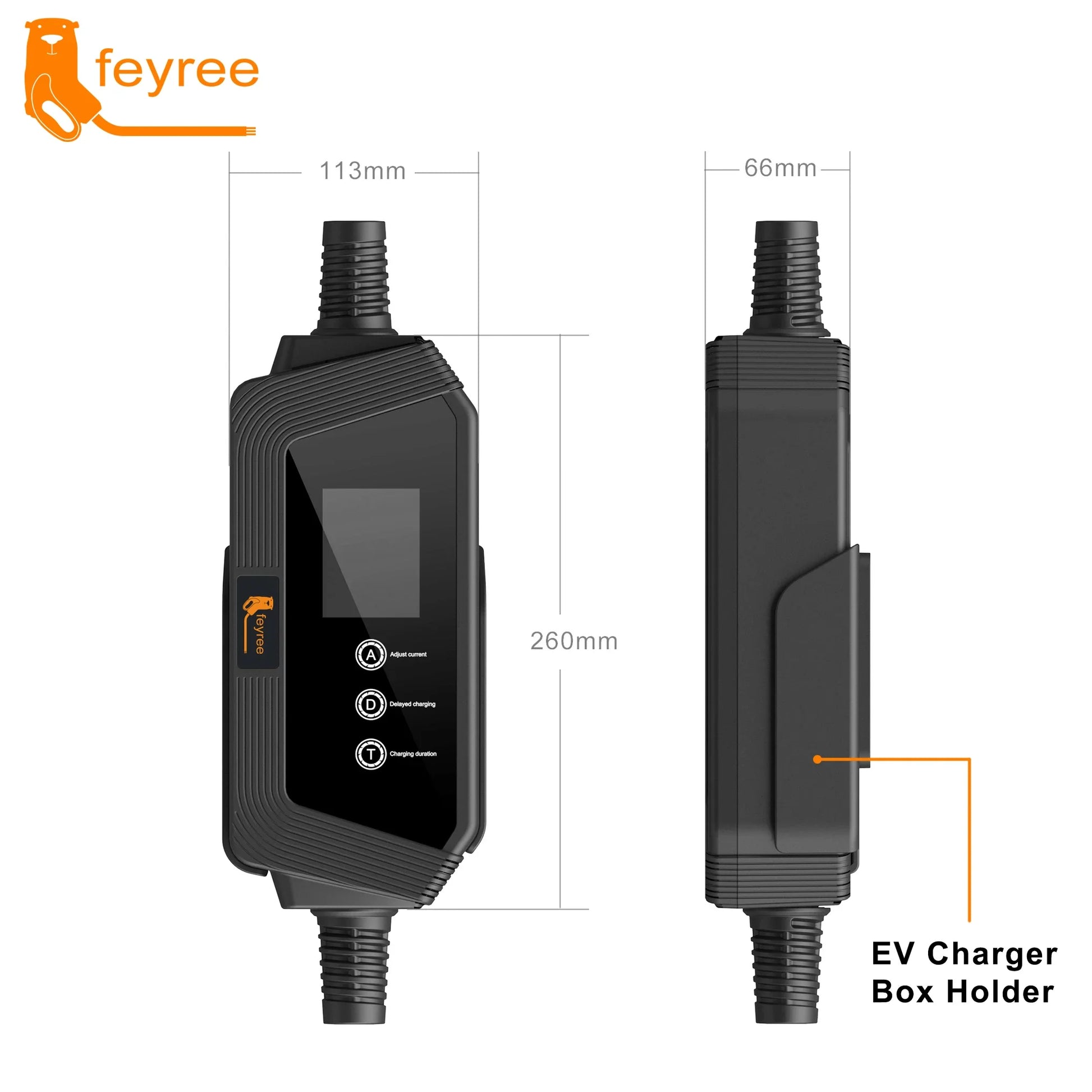

Height: 11cm

High-concerned chemical: None

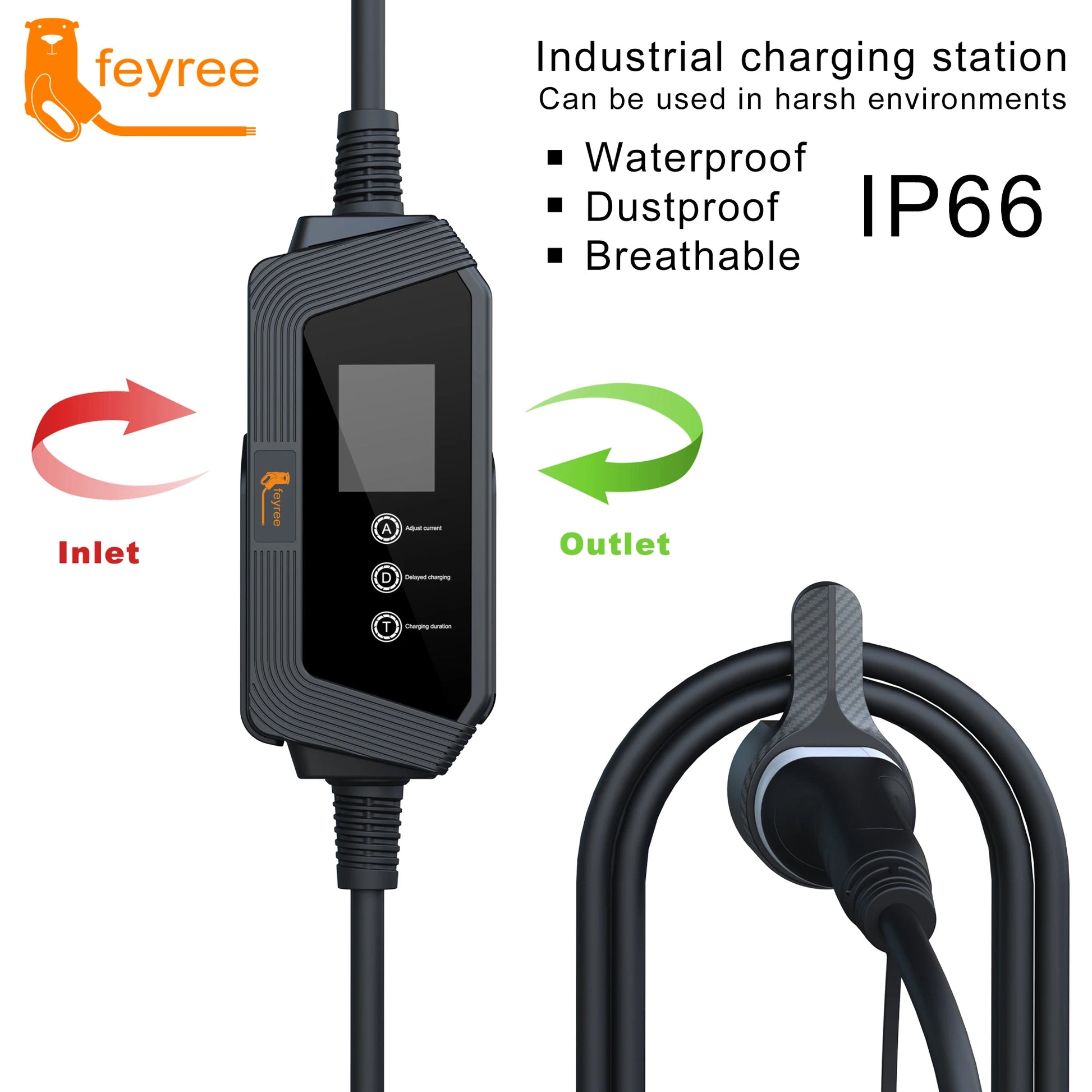

IP Rating: IP66

Length: 38cm

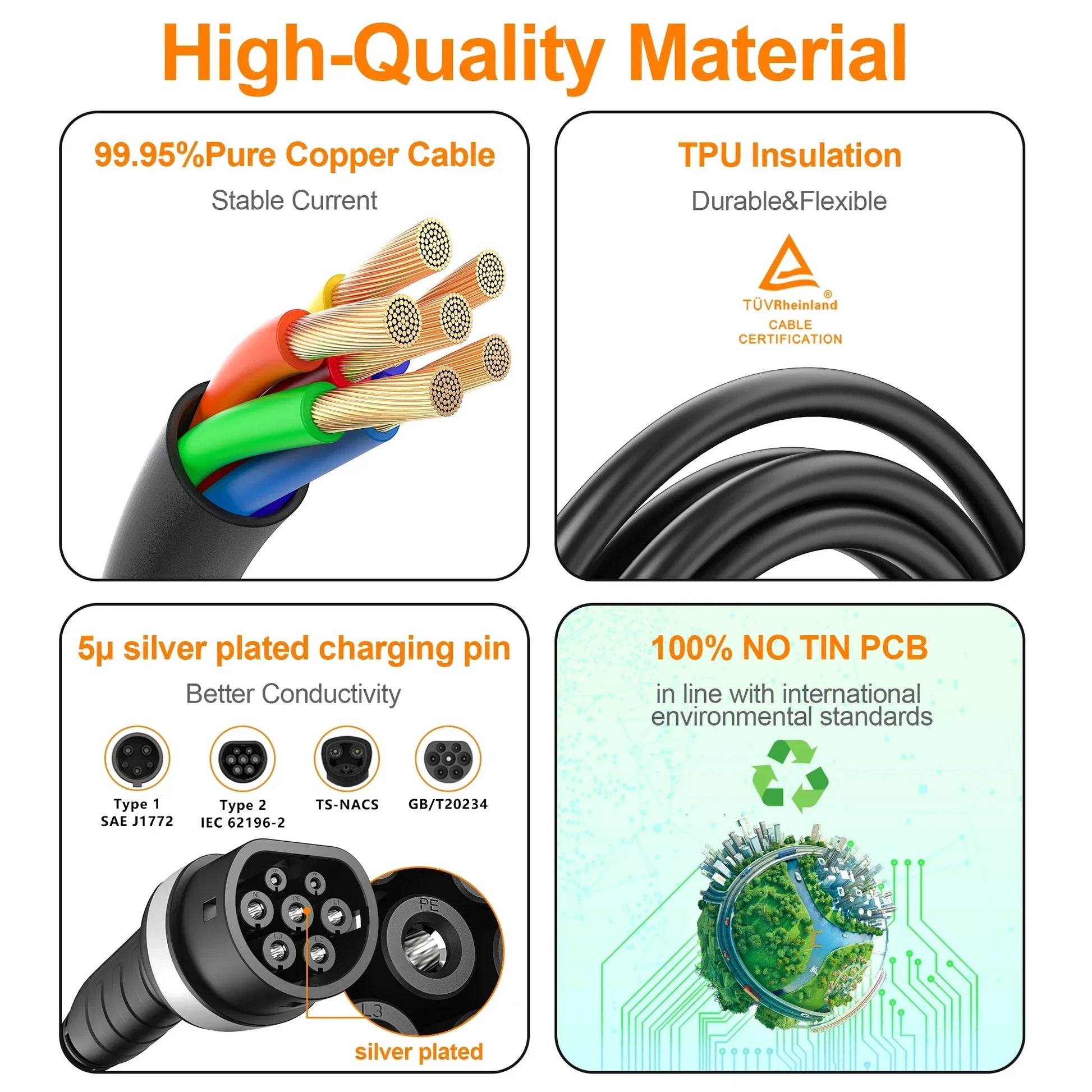

Material: Copper Alloy, Ailver Plating

Operating Temperature: -30 ~ +55

Origin: Mainland China

Phase: 1 / 3 Phase

Power (W): 7KW/11KW/22kw

RCD: TypeB AC30mA+DC6mA

Set Charging Time: YES

Set Delay Time: YES

Voltage: 85V-264V/380V

Weight: 3.89KG/3.6KG/5.1KG

Width: 38cm

【 High-strength Materials】Compitable with PC+ASA High quality material in 3.5mm thickness ,more stable and flexable to protect station safety.

【 Faster Charging】Charging power max to 7KW 11KW 22KW charging , providing you with fast charging experience , charging 1 hour support to max 35km driving.

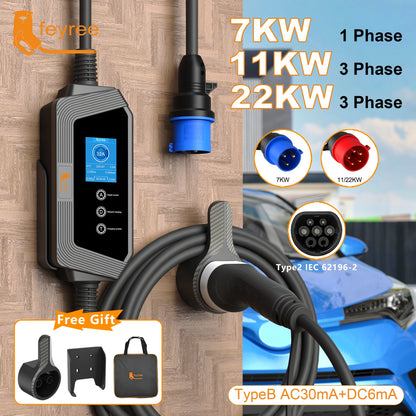

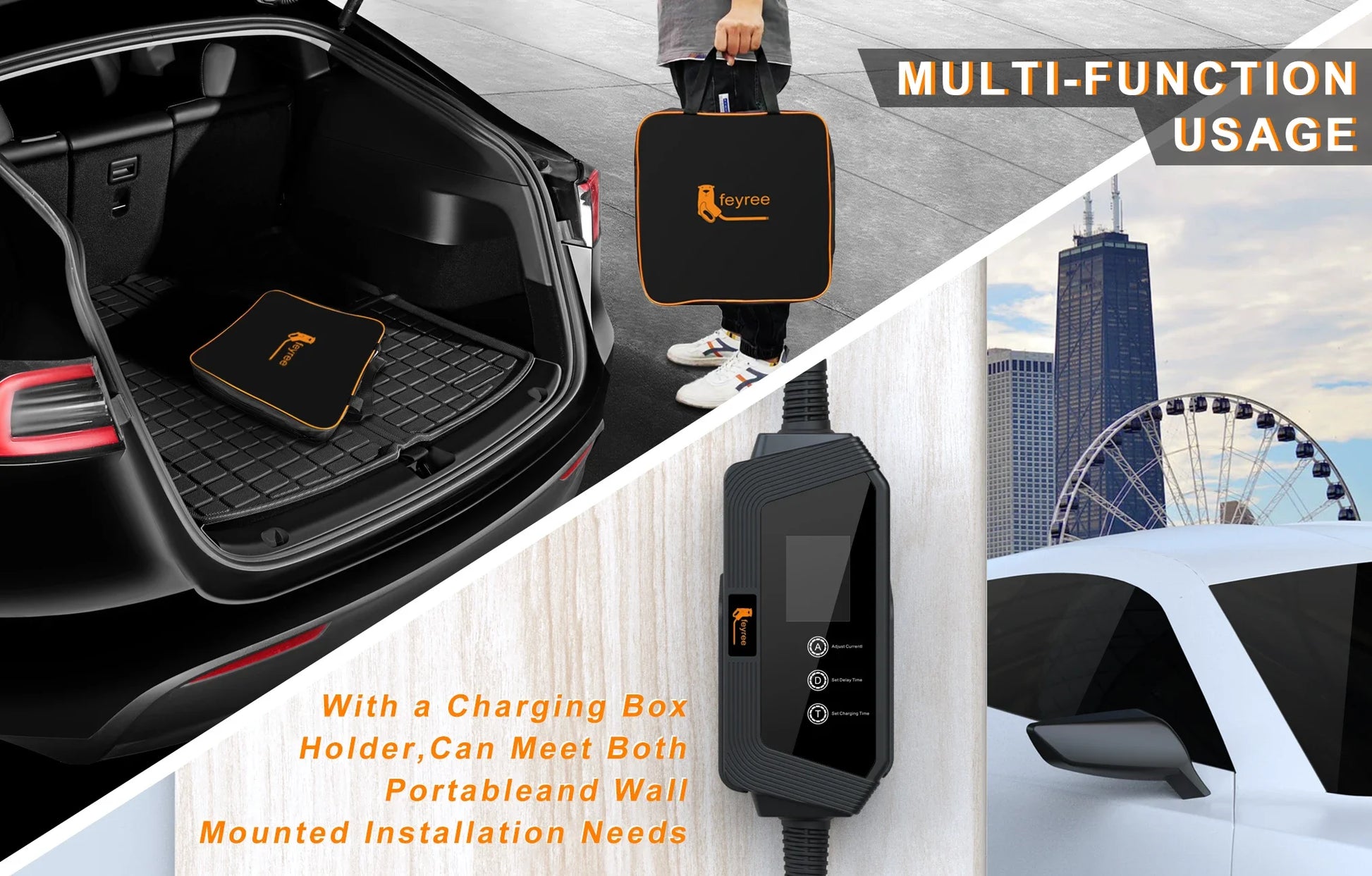

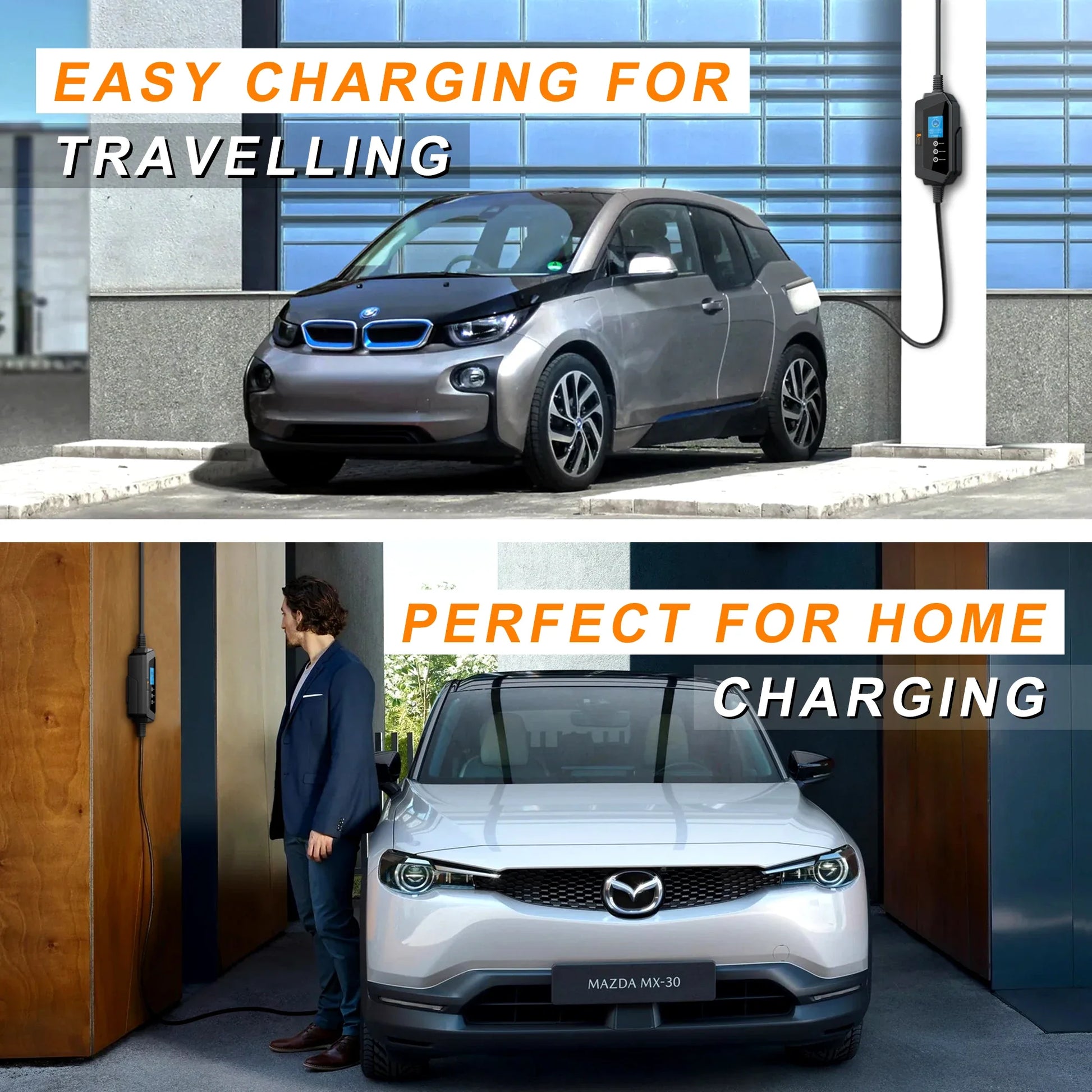

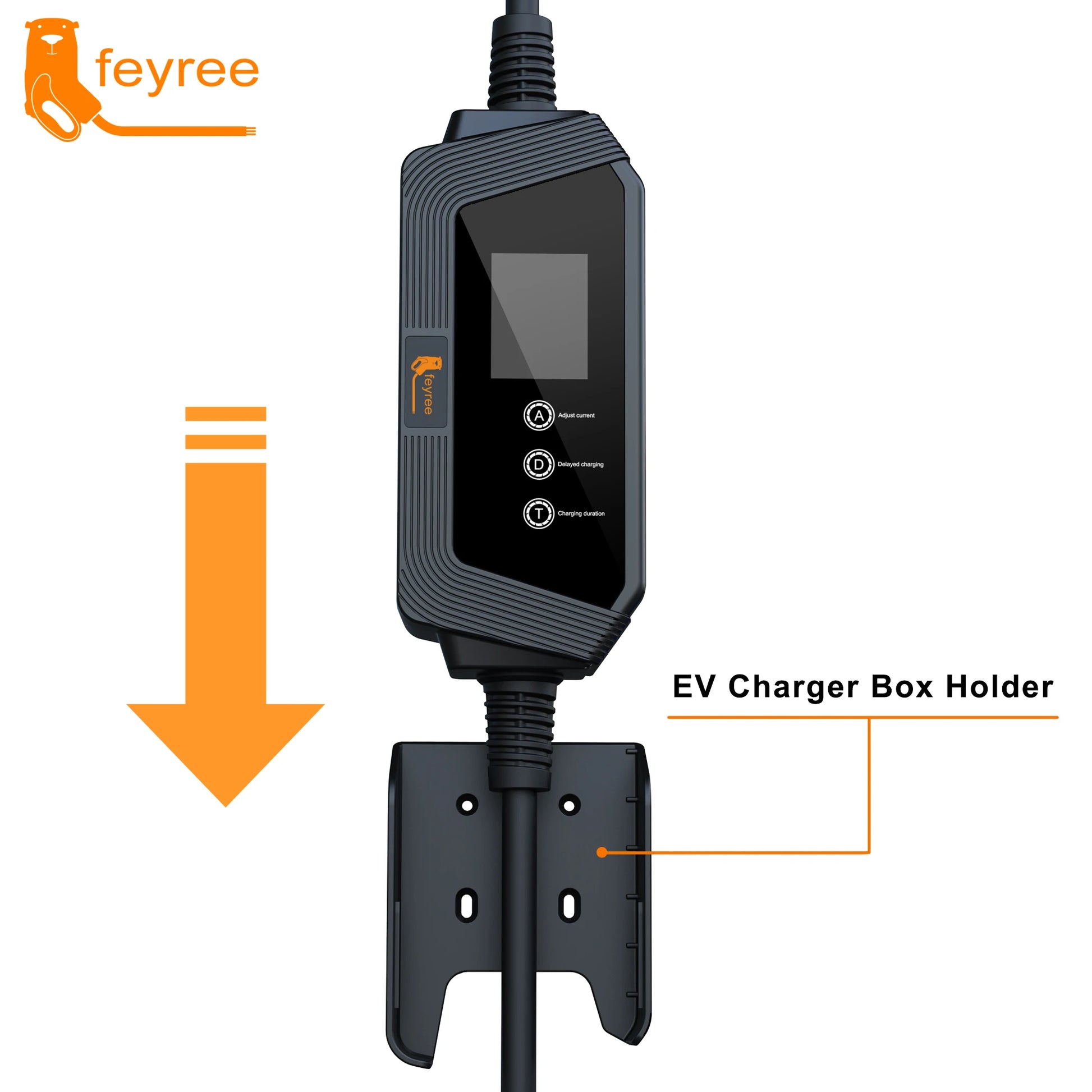

【 High Serviceability】The charger comes with a charging box bracket and Charging Plug holder ,so you can attach the charger to the wall, giving you a wallbox-like charging experience. When you travel, you can also take it out with you.

【 New Design Style】Newest Design Style, built-in capacitive touch buttons, more fashion sense of science and technology.

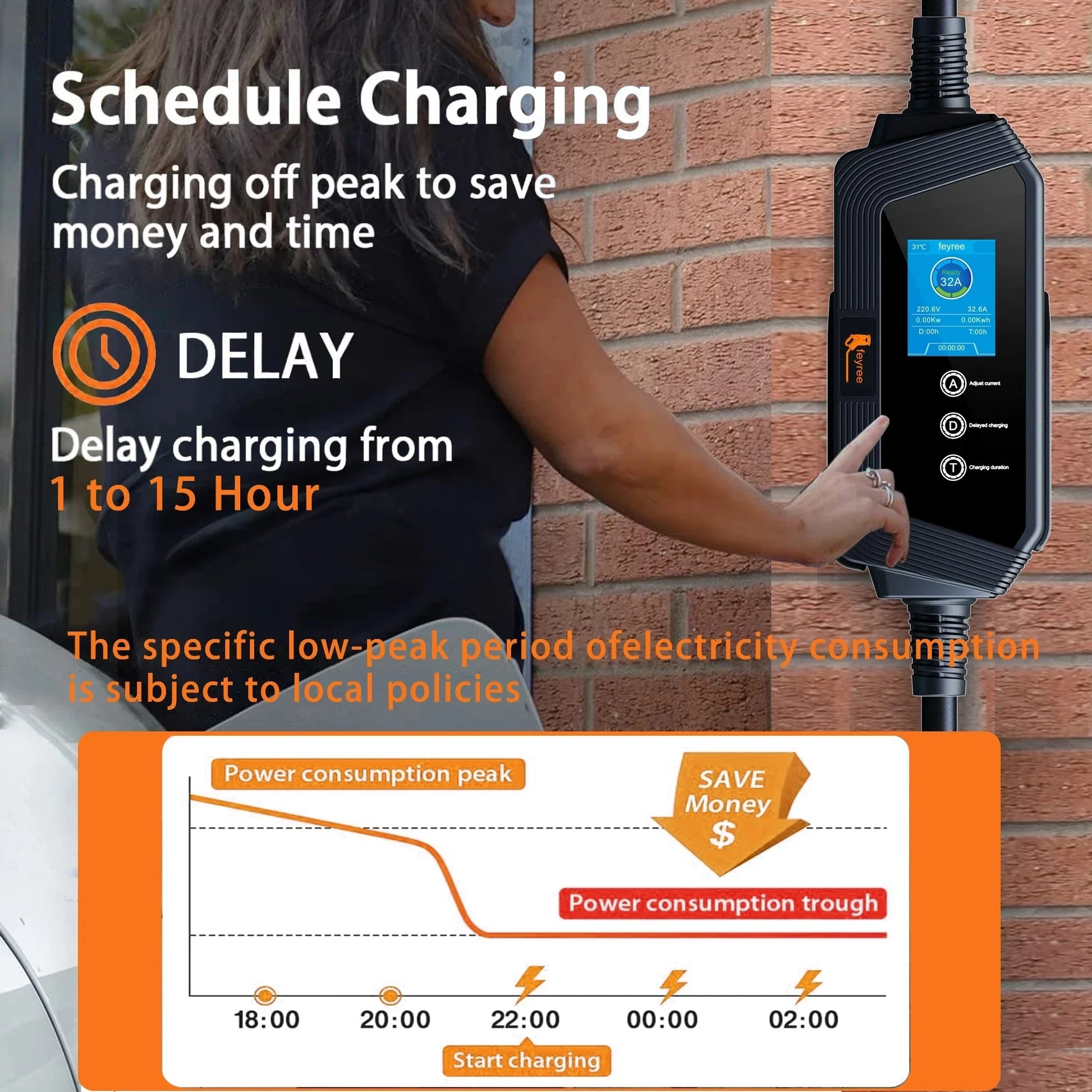

【3 Button Functions Available】Setting Charging Time ("T" Button), Setting Delay Time ("D" Button) and Adjust Current before charging and Memory Charging ("A" Button).

【 Long Service Life】Using ePTFE Waterproof Breathable Membrane, The charger has better heat dissipation performance and extended service life of the charger.

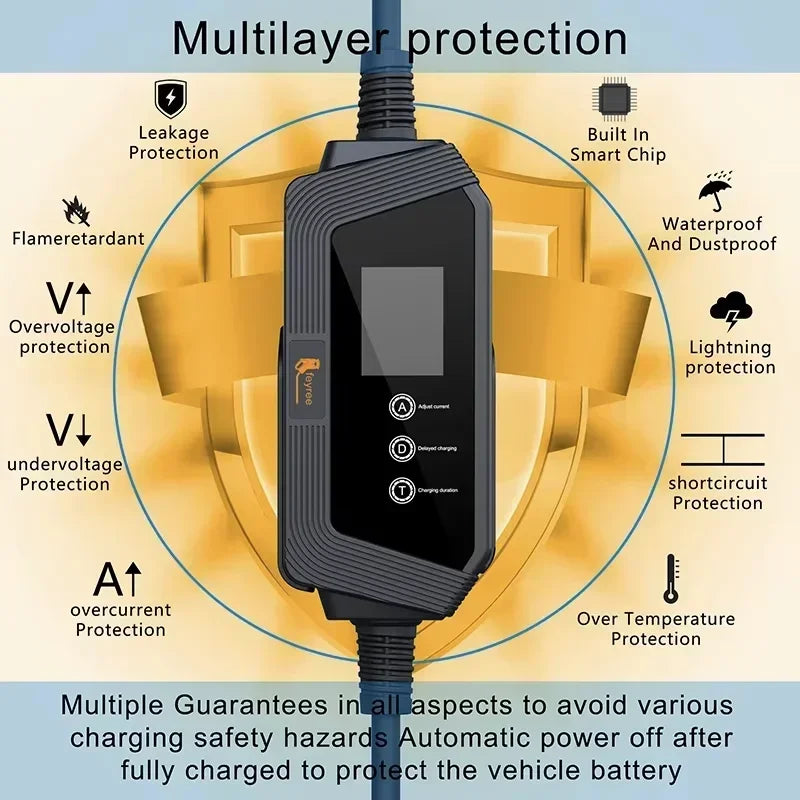

【Multi-protections】 Support Leakage protection ( TypeB AC30mA + DC6mA ) ; Over-voltage and under-voltage protection ; Lightning Protection ; Over-current Protection ; Overheat Protection ; Ground Protection ; Overload protection.

【Real-Time Data Display】 Track the various stages of charging status with a large LCD screen display. such as voltage, current, temperatures etc. Help to show the various stages of charging and to warn of possible errors so you can solve the problem immediately.


Control box function:

  • Leakage protection (TypeB AC30mA+DC6mA)

  • Overvoltage or low pressure protection

  • Overload protection

  • Lightning protection

  • Overheat protection
    Charging Current adjustable.
    Schedule charging time

  • Quality Guarantee: 2 Year Warranty
