[ High-strength Materials] :Compitable with PC+ASA High quality material in 3.5mm thickness ,more stable and flexable to protect station safety.

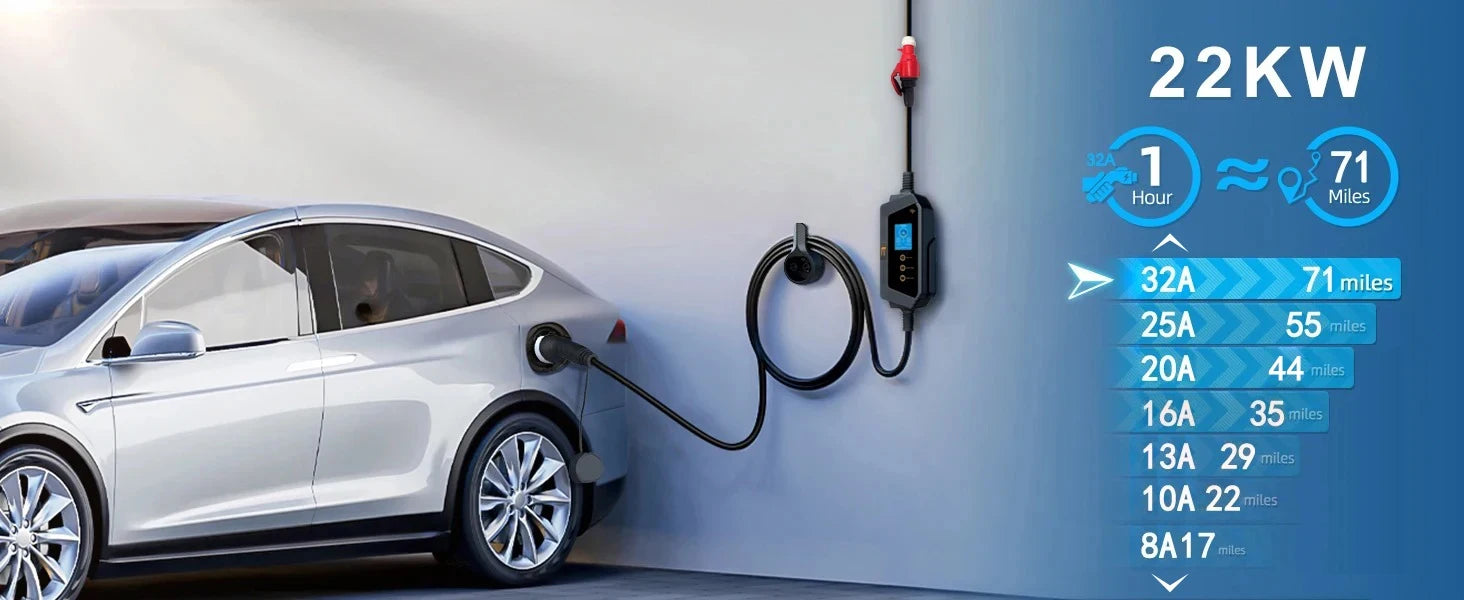

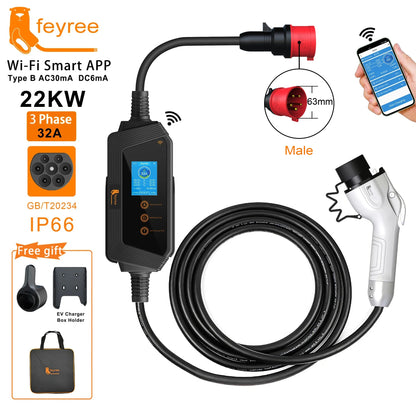

[ Faster Charging] :Current max support to 22KW charging , providing you with fast charging experience , charging 1 hour support to max 110 km driving.

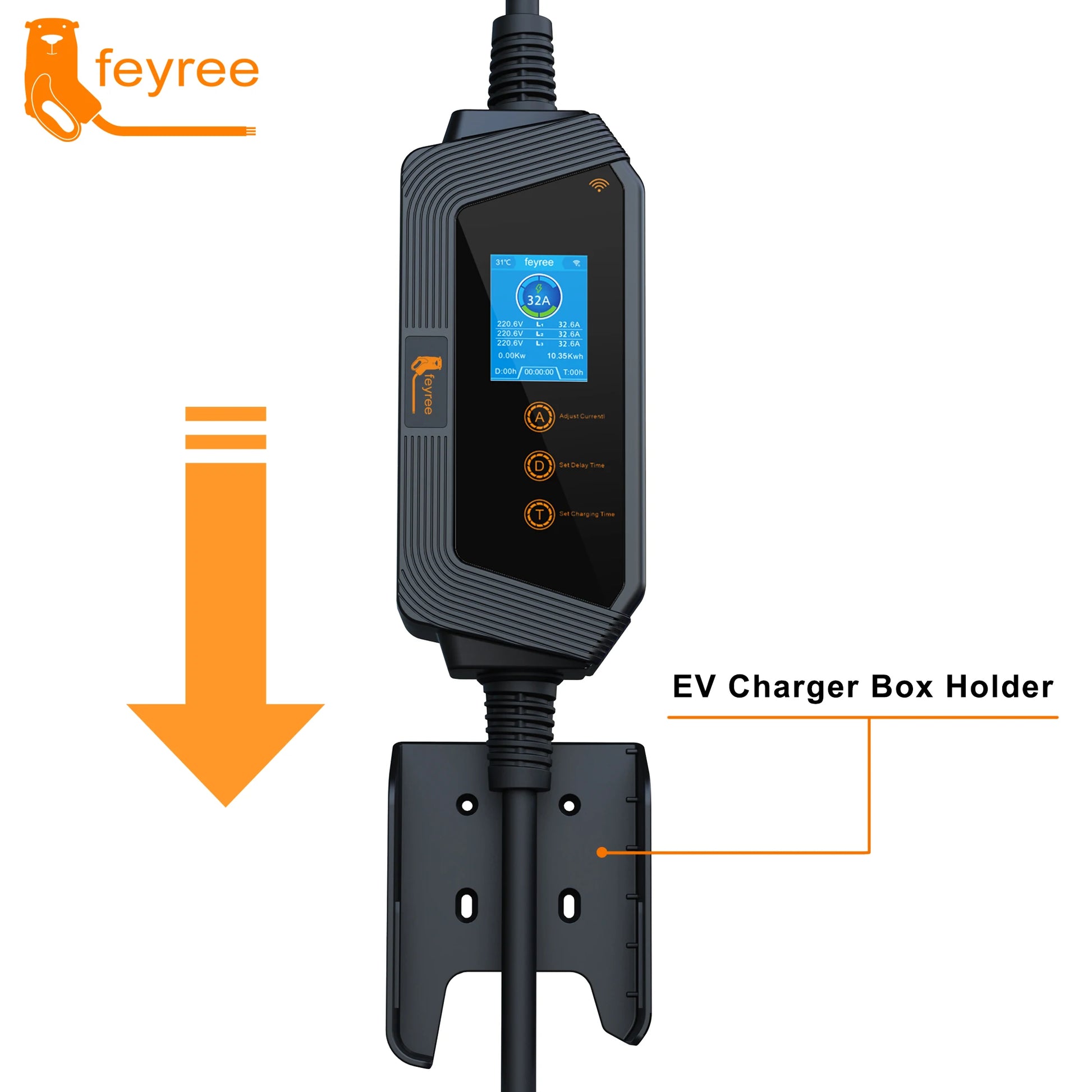

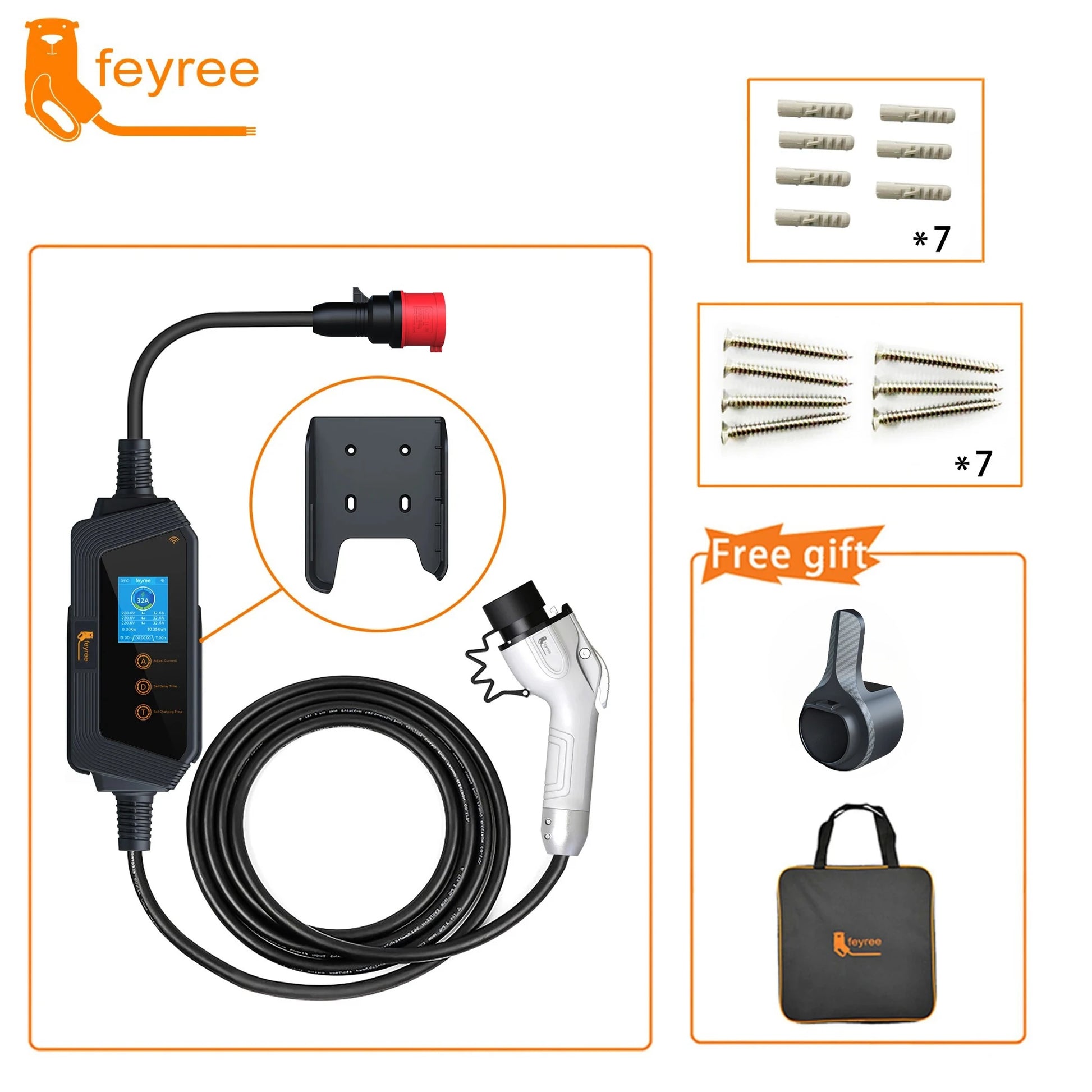

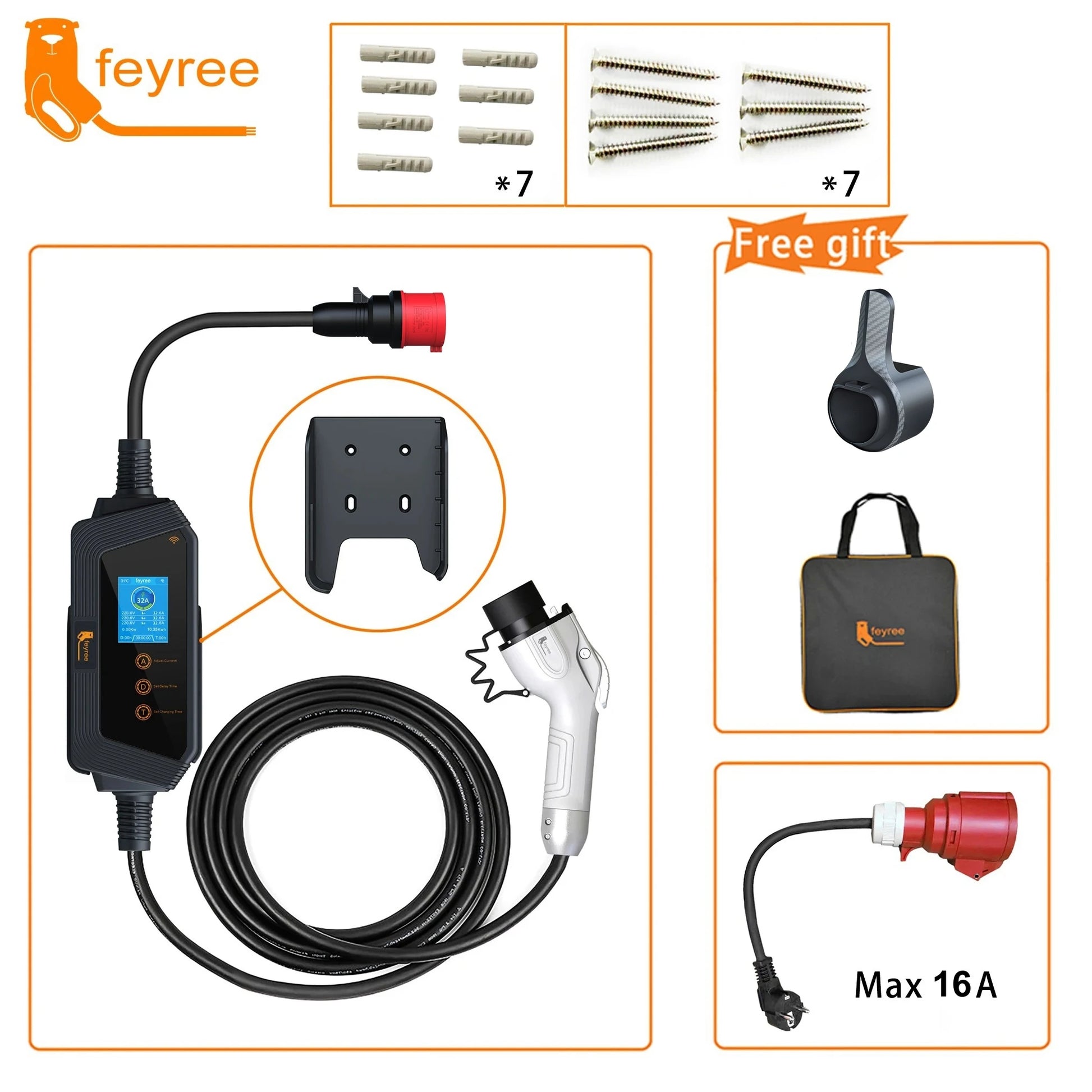

[ High Serviceability] :The charger comes with a charging box bracket and Charging Plug holder ,so you can attach the charger to the wall, giving you a wallbox-like charging experience. When you travel, you can also take it out with you.

[ New Design Style ] : Newest Design Style, built-in capacitive touch buttons, more fashion sense of science and technology.

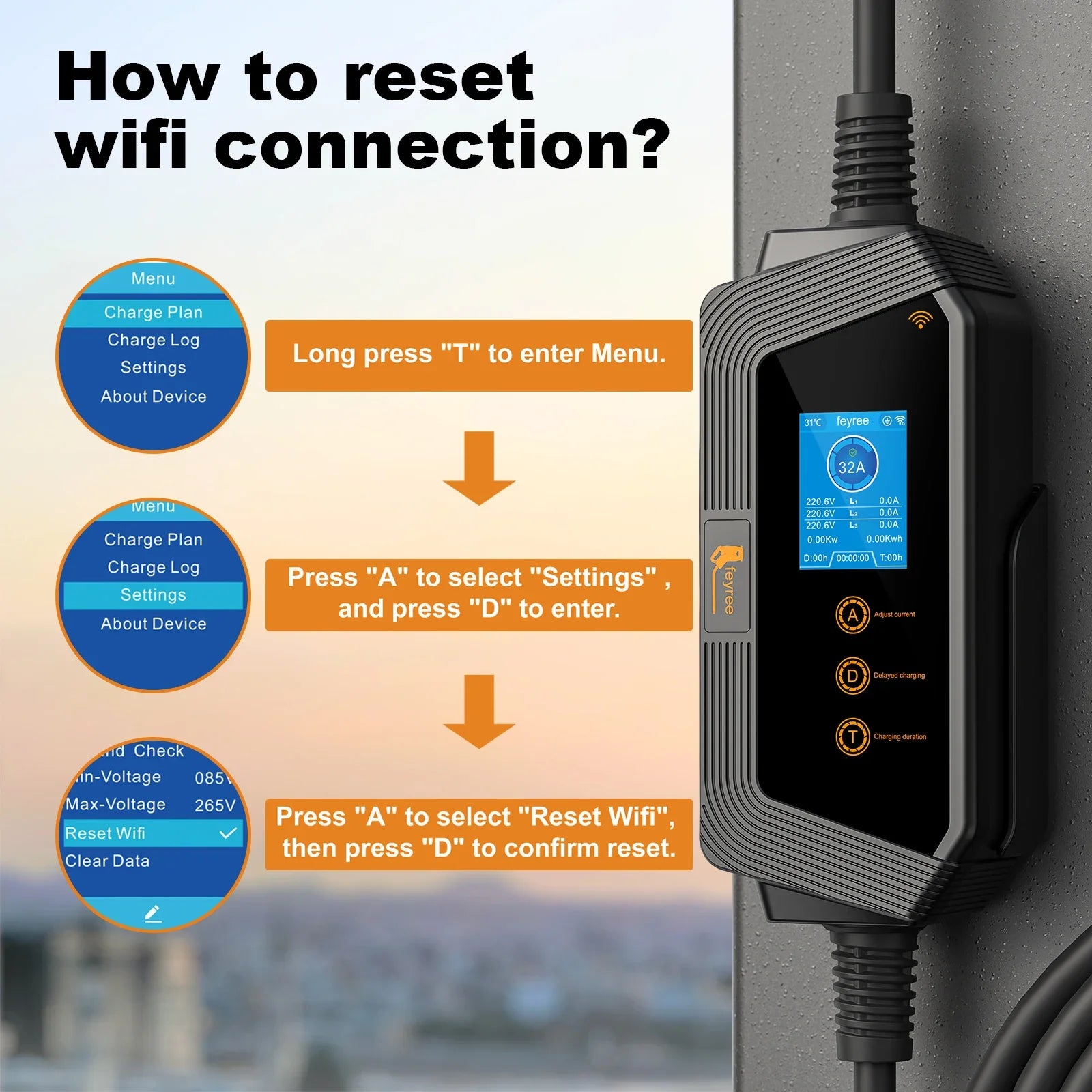

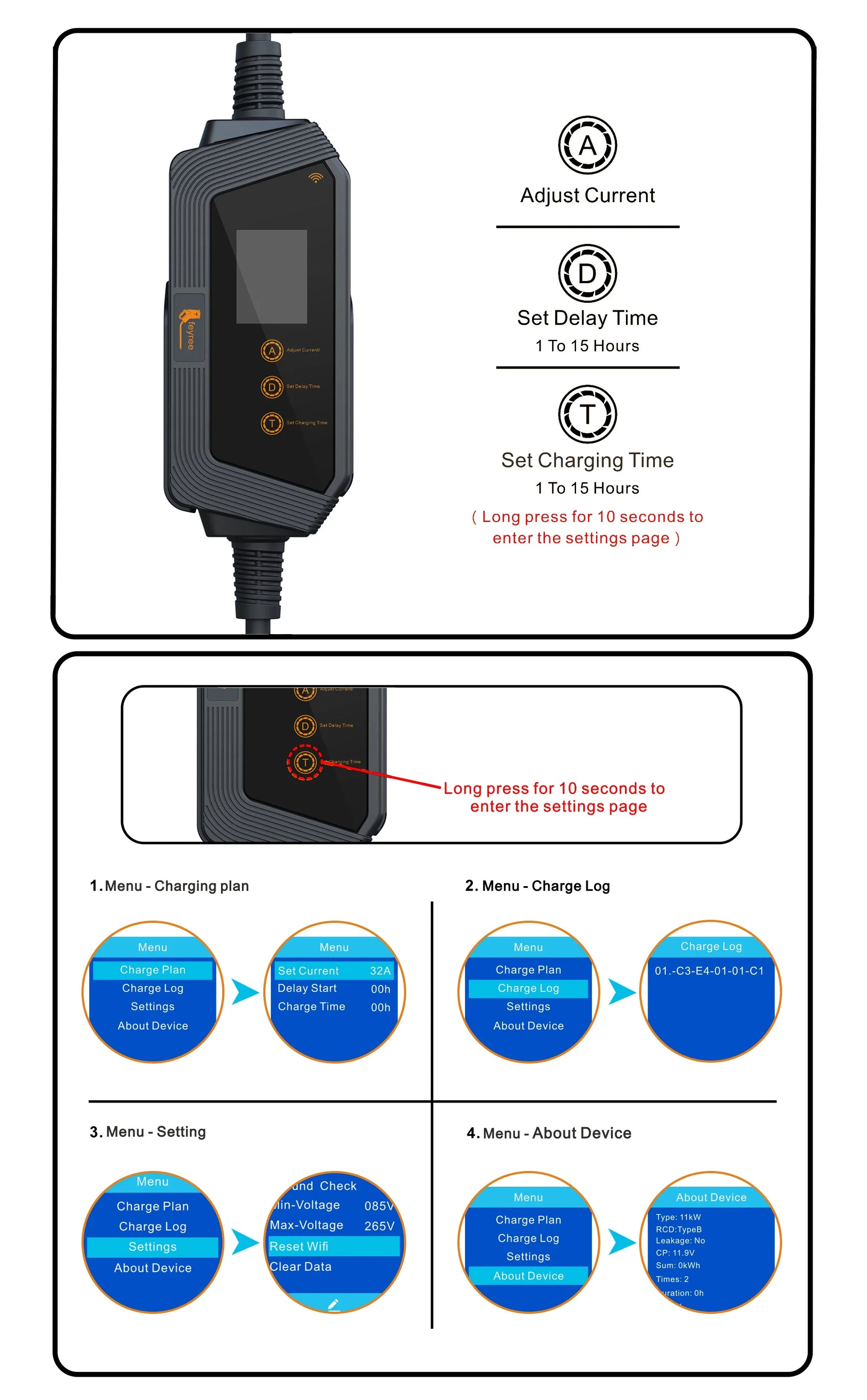

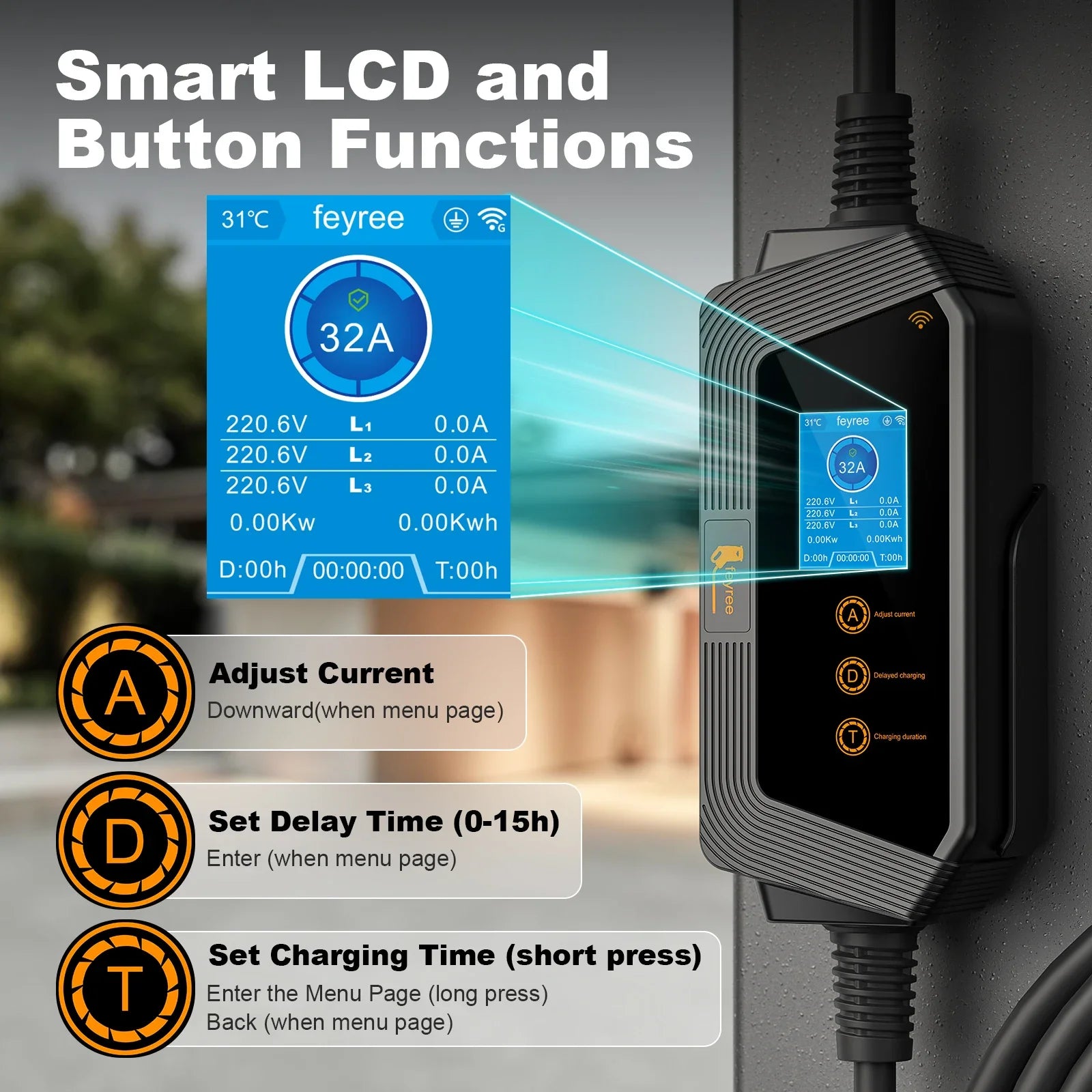

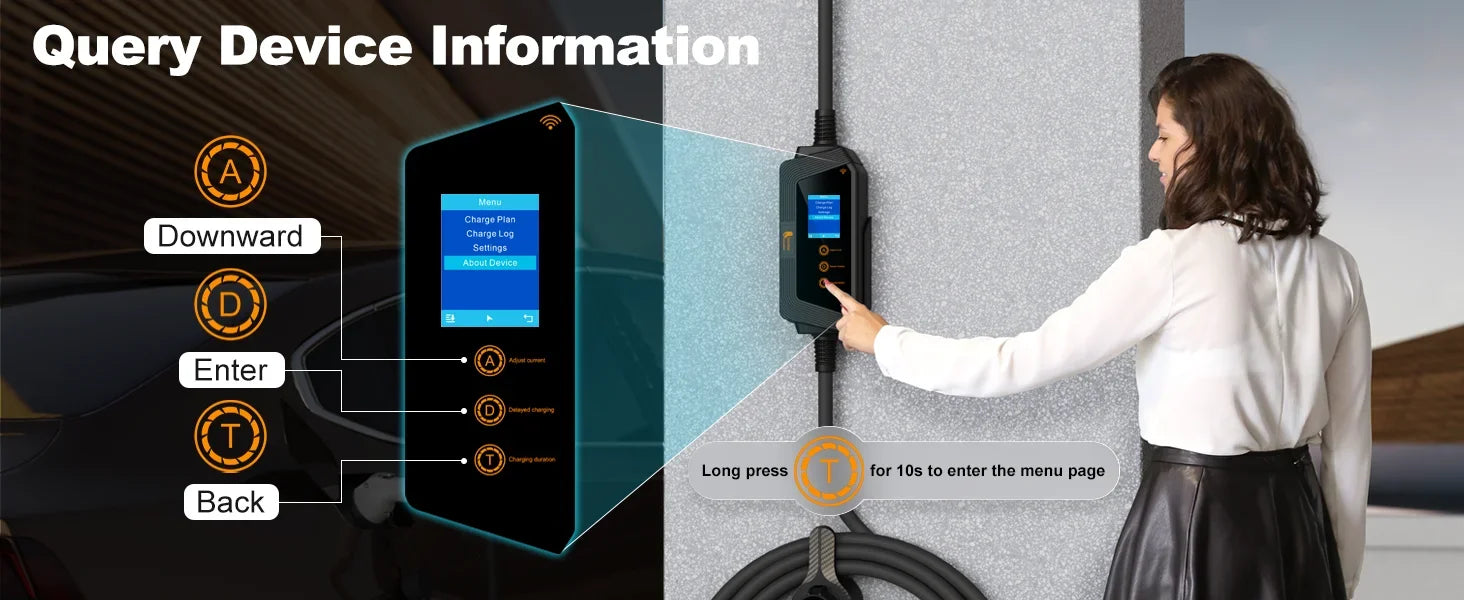

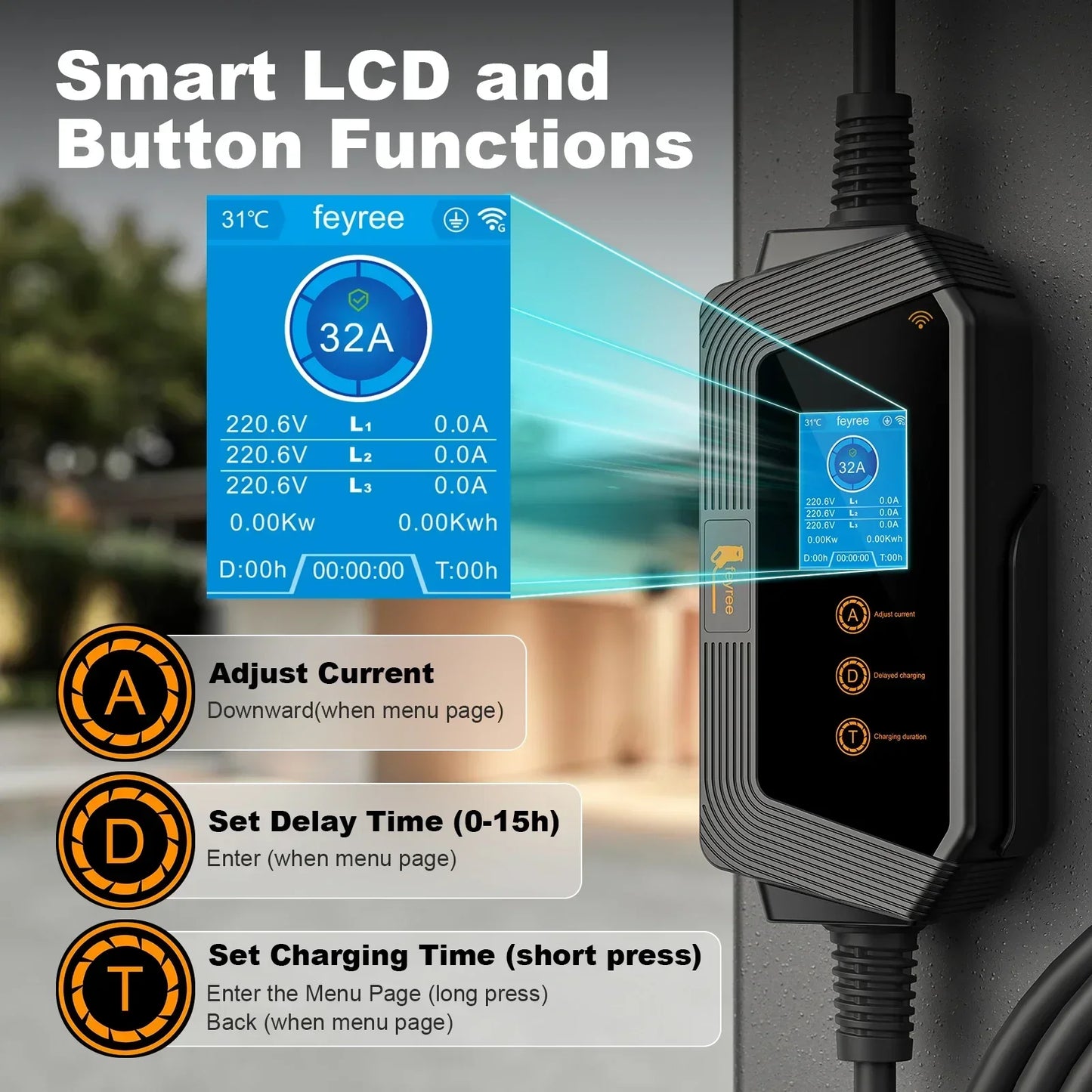

[ 3 Button Functions Available ] : Setting Charging Time ("T" Button), Setting Delay Time ("D" Button) and Adjust Current before charging and Memory Charging ("A" Button).

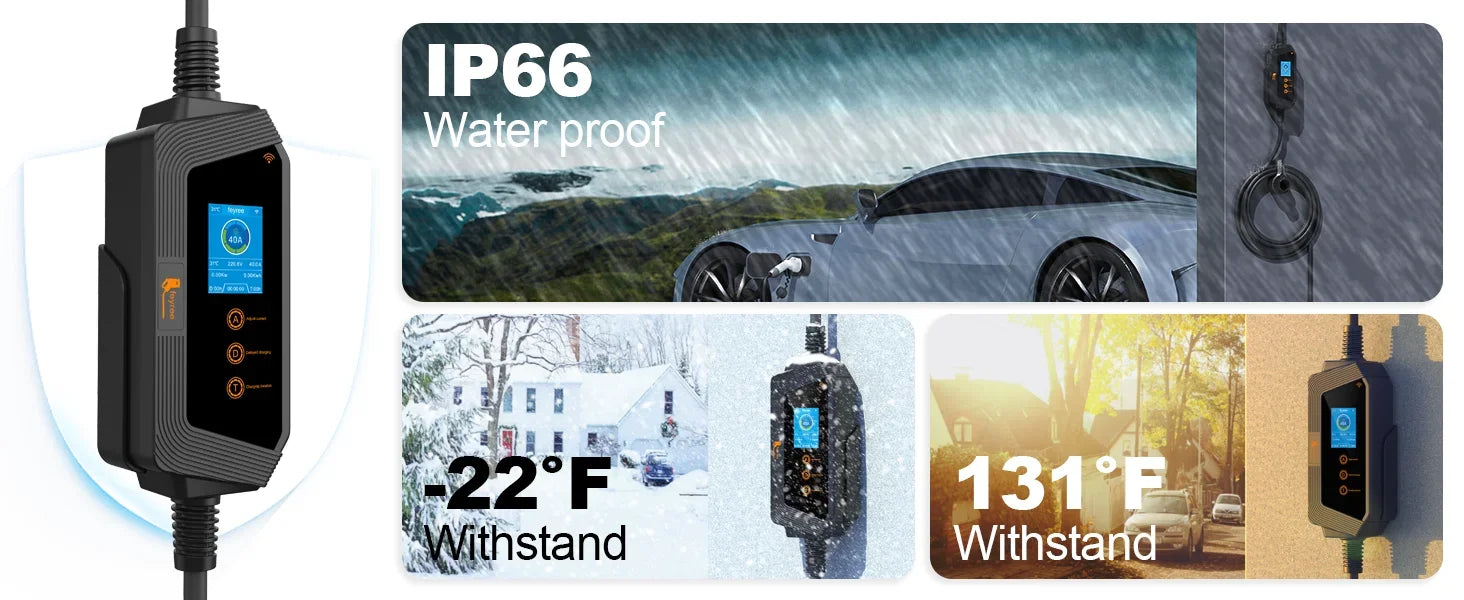

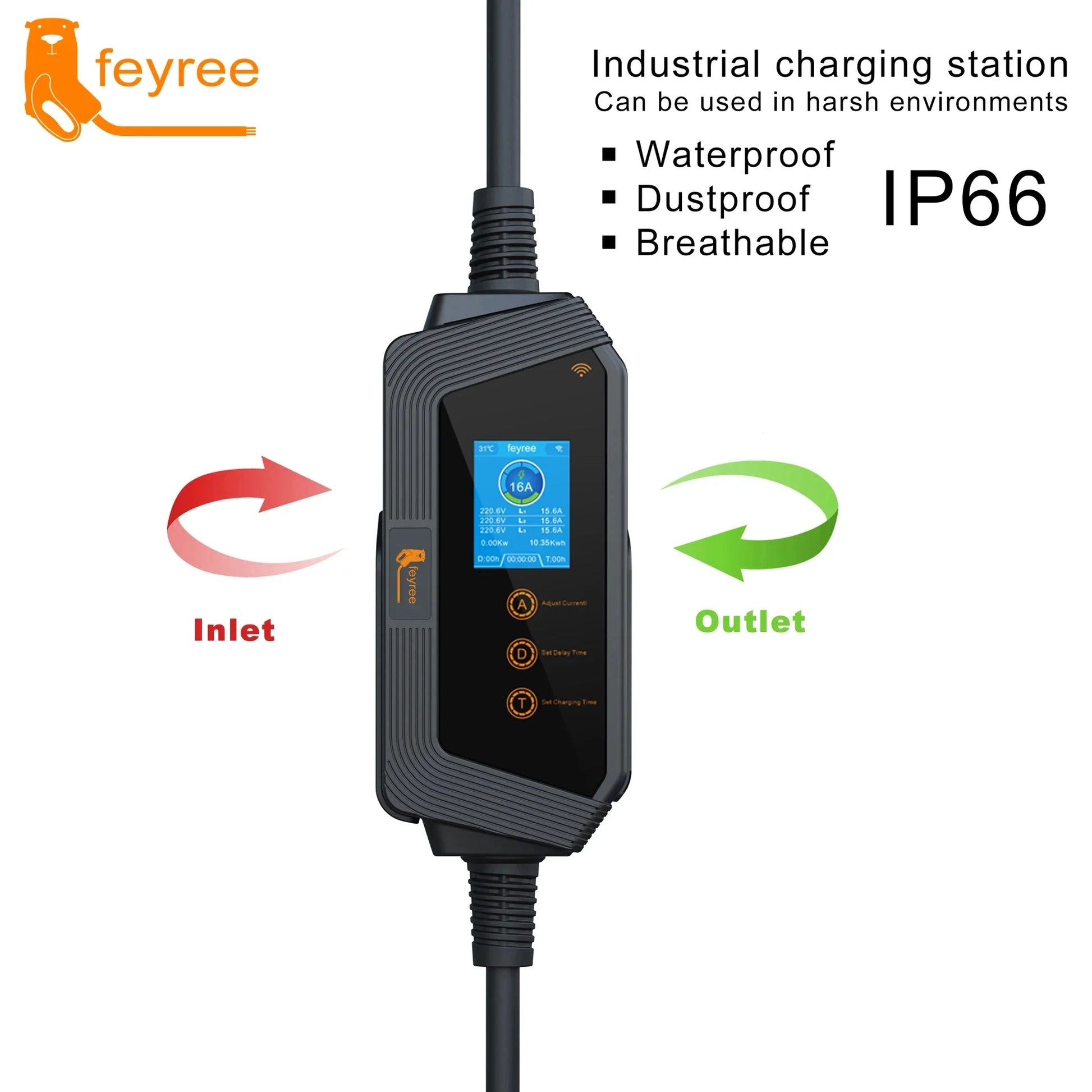

[ Long Service Life ] :Using ePTFE Waterproof Breathable Membrane, The charger has better heat dissipation performance and extended service life of the charger.

[Multi-protections  ] :Support Leakage protection ( TypeB AC30mA + DC6mA ) ; Over-voltage and under-voltage protection ; Lightning Protection ; Over-current Protection ; Overheat Protection ; Ground Protection ; Overload protection.

[ Real-Time Data Display ]:Track the various stages of charging status with a large LCD screen display. such as voltage, current, temperatures etc. Help to show the various stages of charging and to warn of possible errors so you can solve the problem immediately.

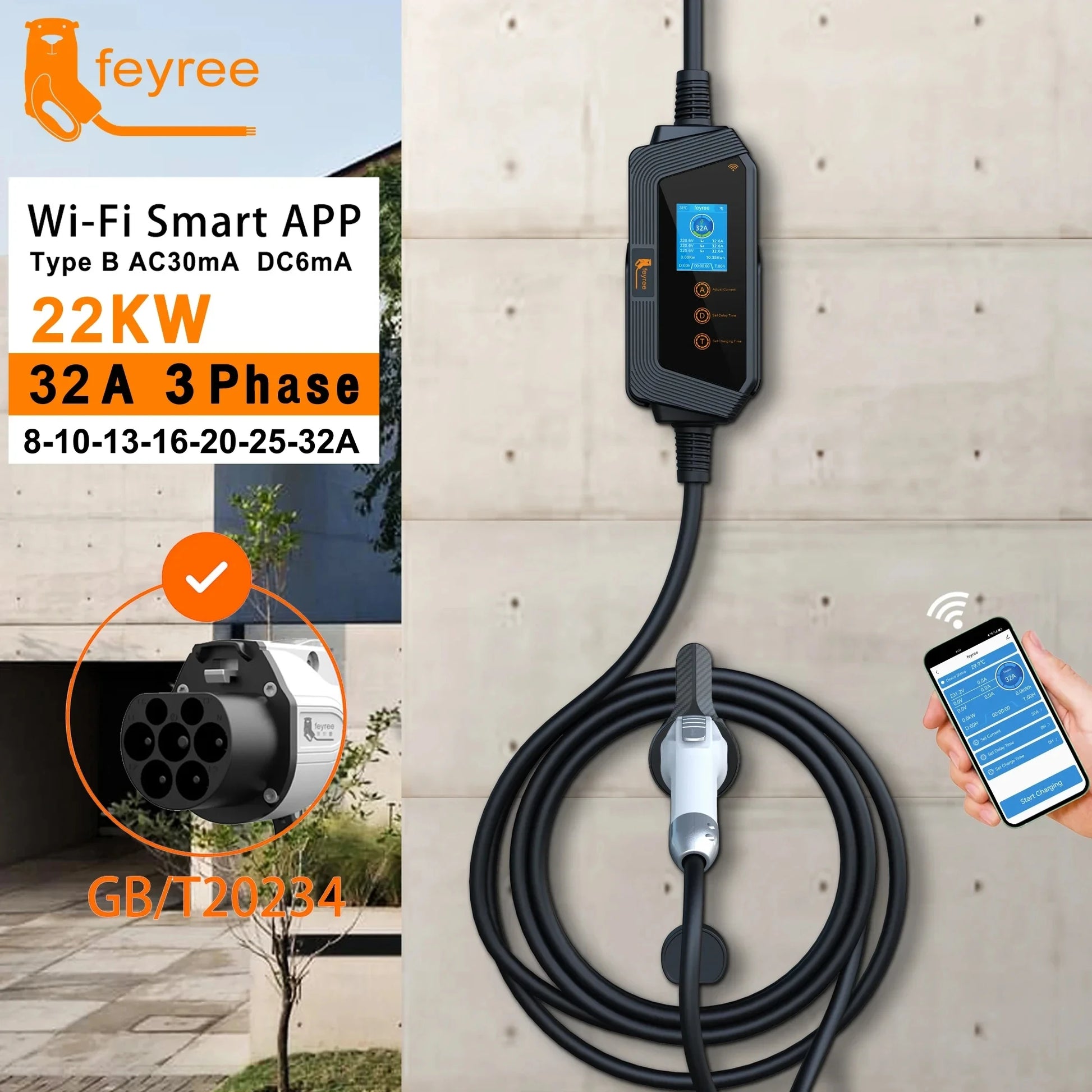

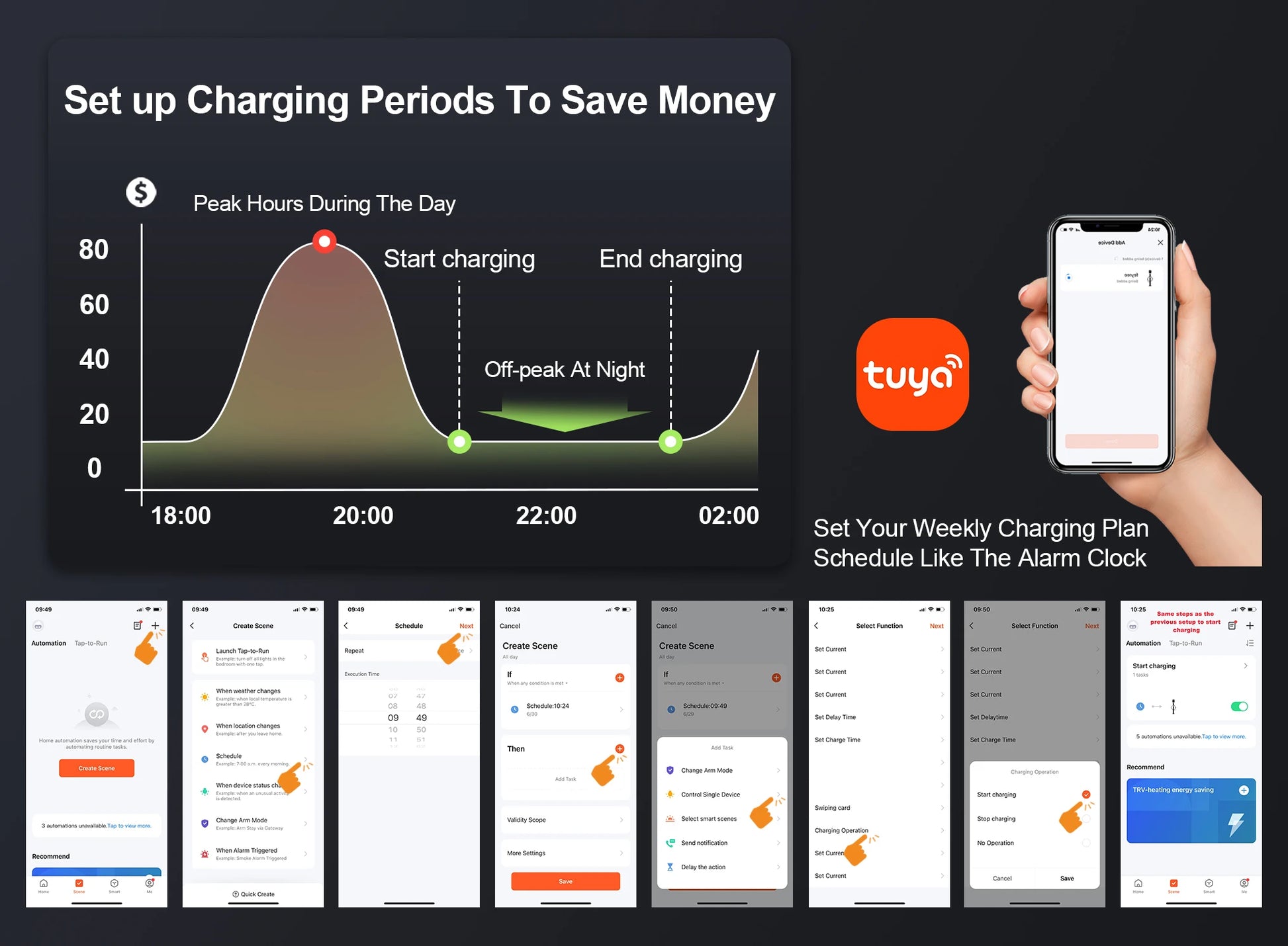

[ Wi-Fi Smart APP, Real-time Monitor and Appoint the Charging Time ] : Built-in smart APP(turn on the wifi and bluetooth when add your device), you need to connect under WIFI environment, which allows your vehicles to be charged during off-peak period by setting the charging time, save money on the electricity bills. And it allows to adjust charging current range, fully-charged notification or track the charging status.

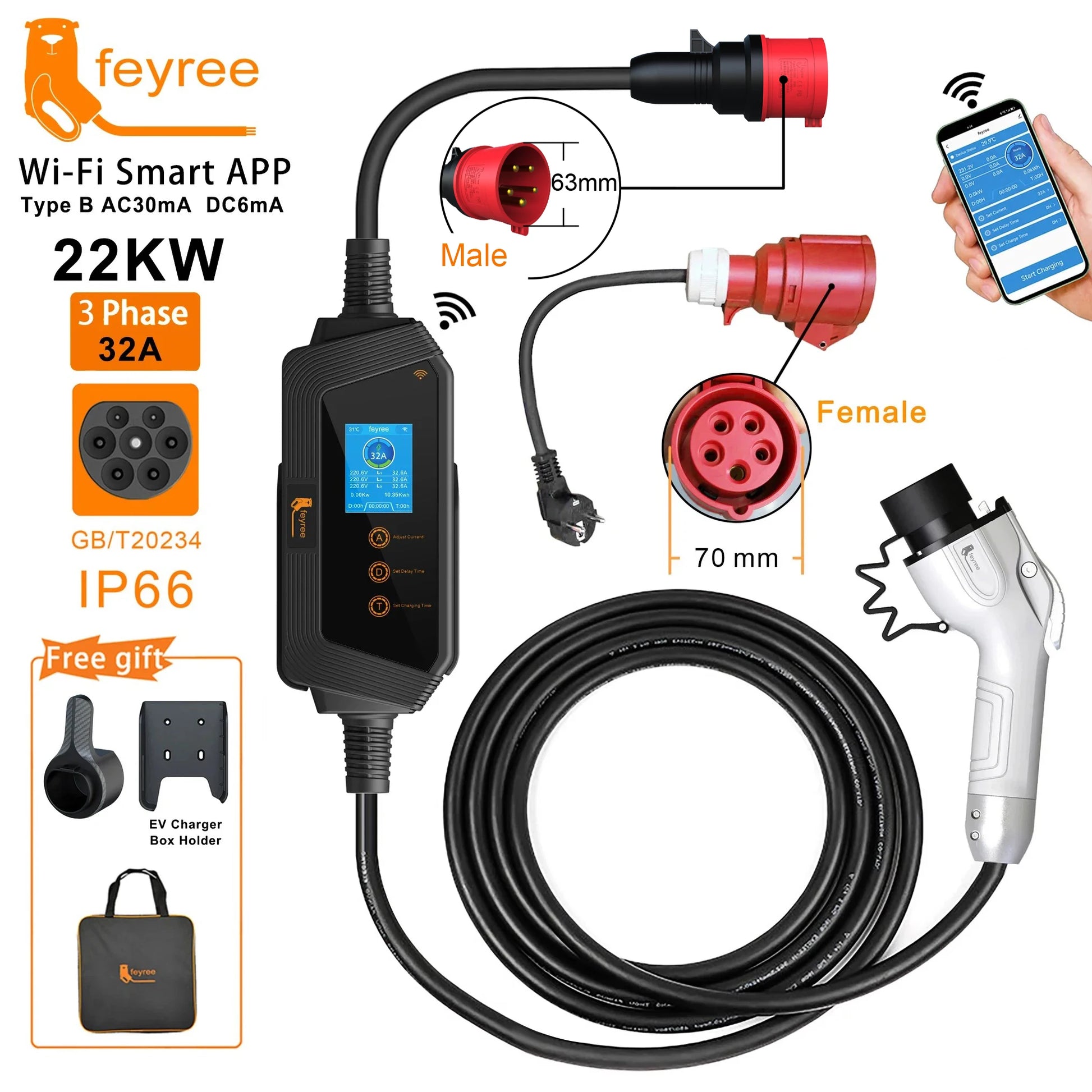

1.Vehicle Compatibility
Compatible with 7-pin GB/T 20234 charging ports. Please check your car's charging port before placing an order.

2.GBT charger compatible with all chinese standard EVs.

3.Smart control remembers your preferred settings
Once you select your car's recommended current from 8A, 10A, 13A,16A, 20A, 25A or 32A, the unit will automatically set the same level for your next charge.

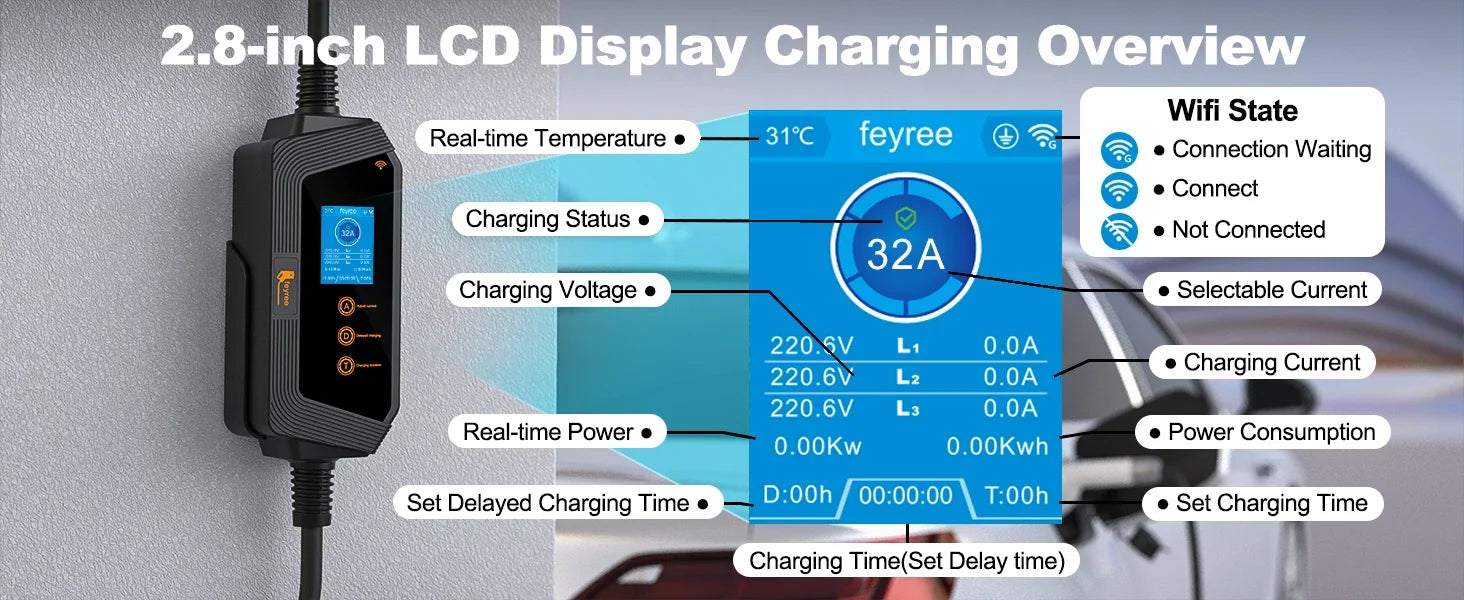

4.Detailed 2.8 inch LED display provides at-a-glance information
Easily read the charging temperature, current, time and power status in kWh on the convenient screen.

5. Safety features protect your vehicle
The surge box safeguards against leaks, high or low voltage, overloading, lightning and overheating.

Notice : Adjust the current setting by pushing the button. While you adjust the current, the power plug should be connected , and the car side GB/T plug should be disconnected.  After selecting the proper current, plug the charger into your car's port and start charging. And please power off the station before your pull out the charging plug.

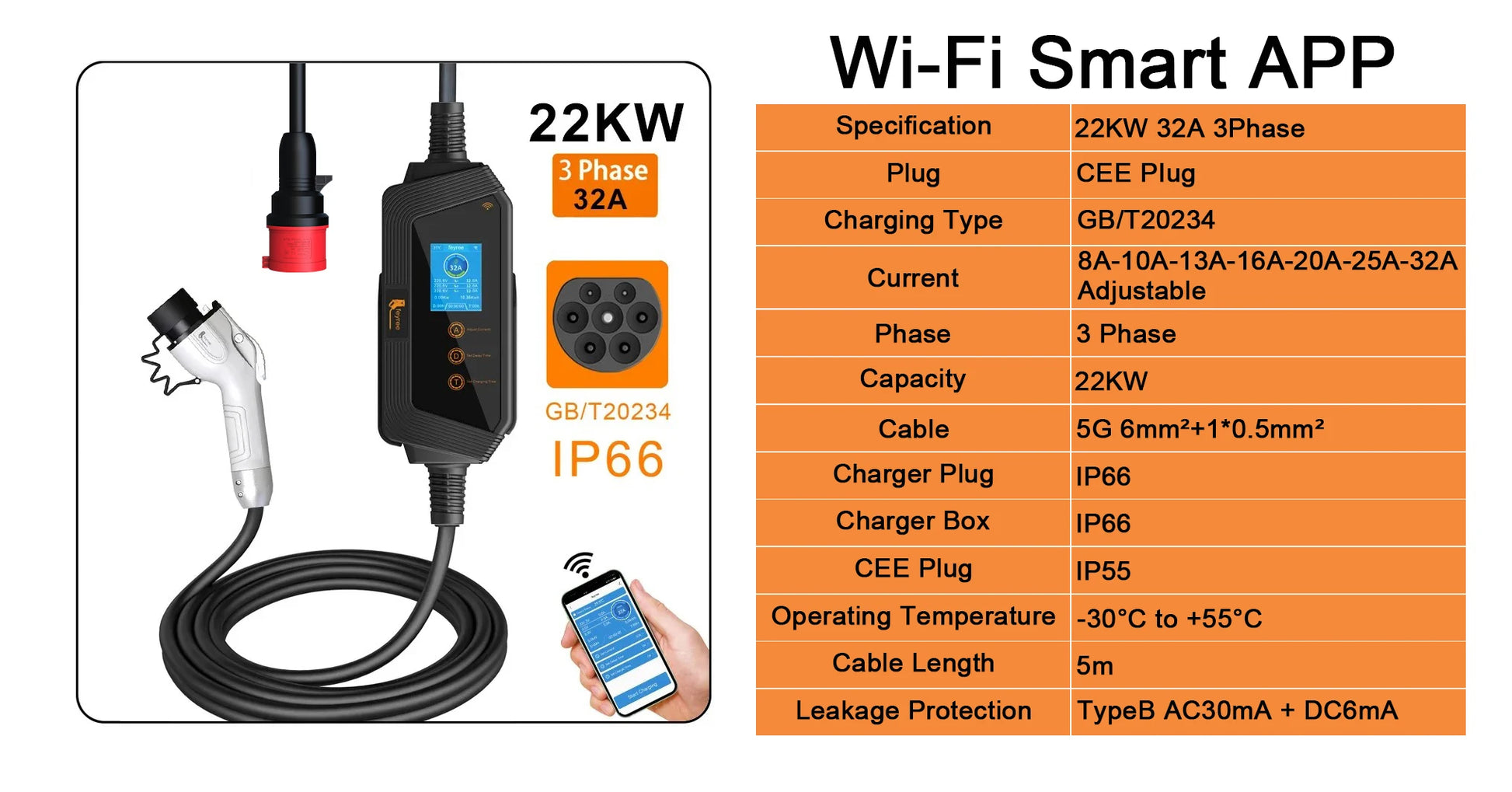

Specifications

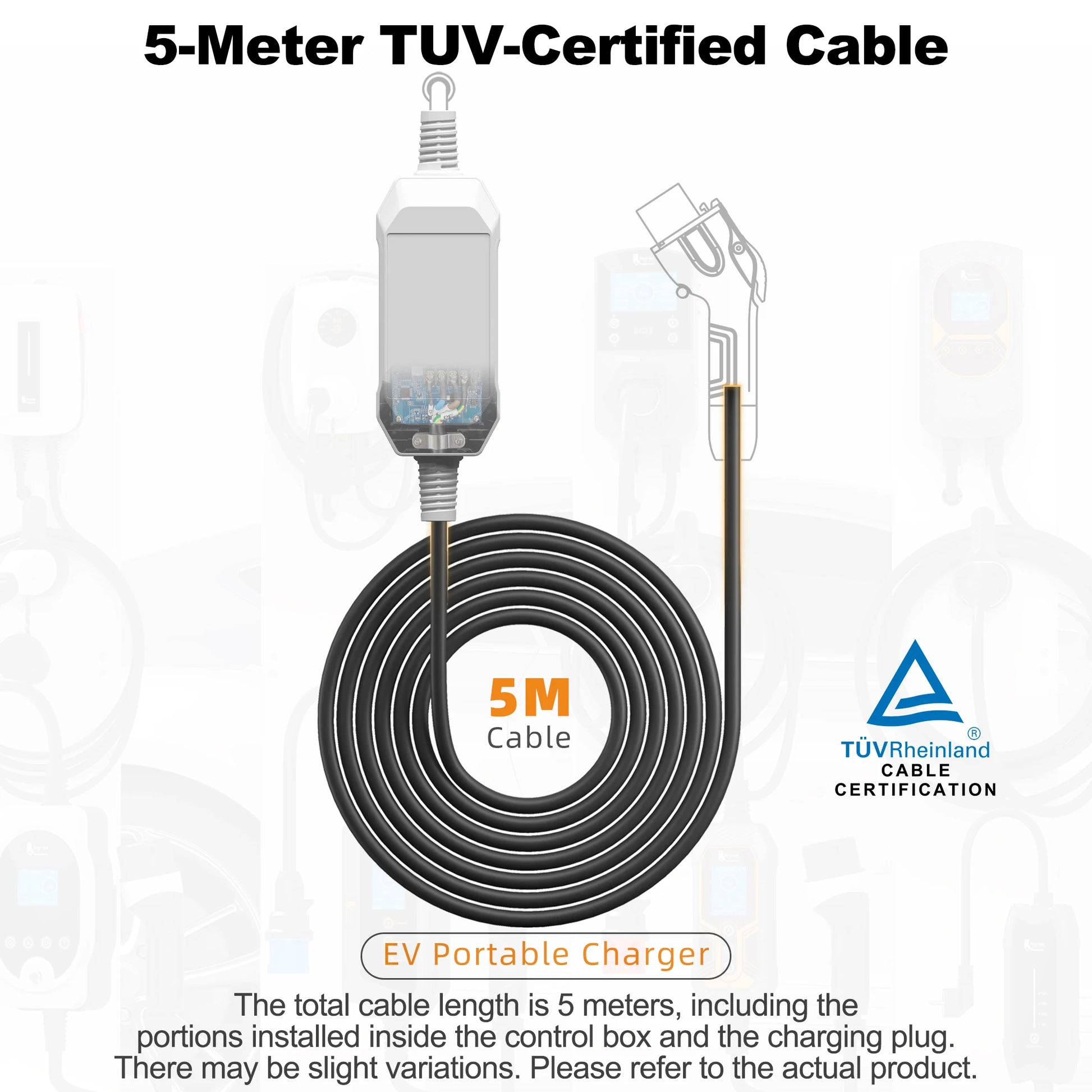

Total Length: 5 Meters
Interchange part number: GB/T20234

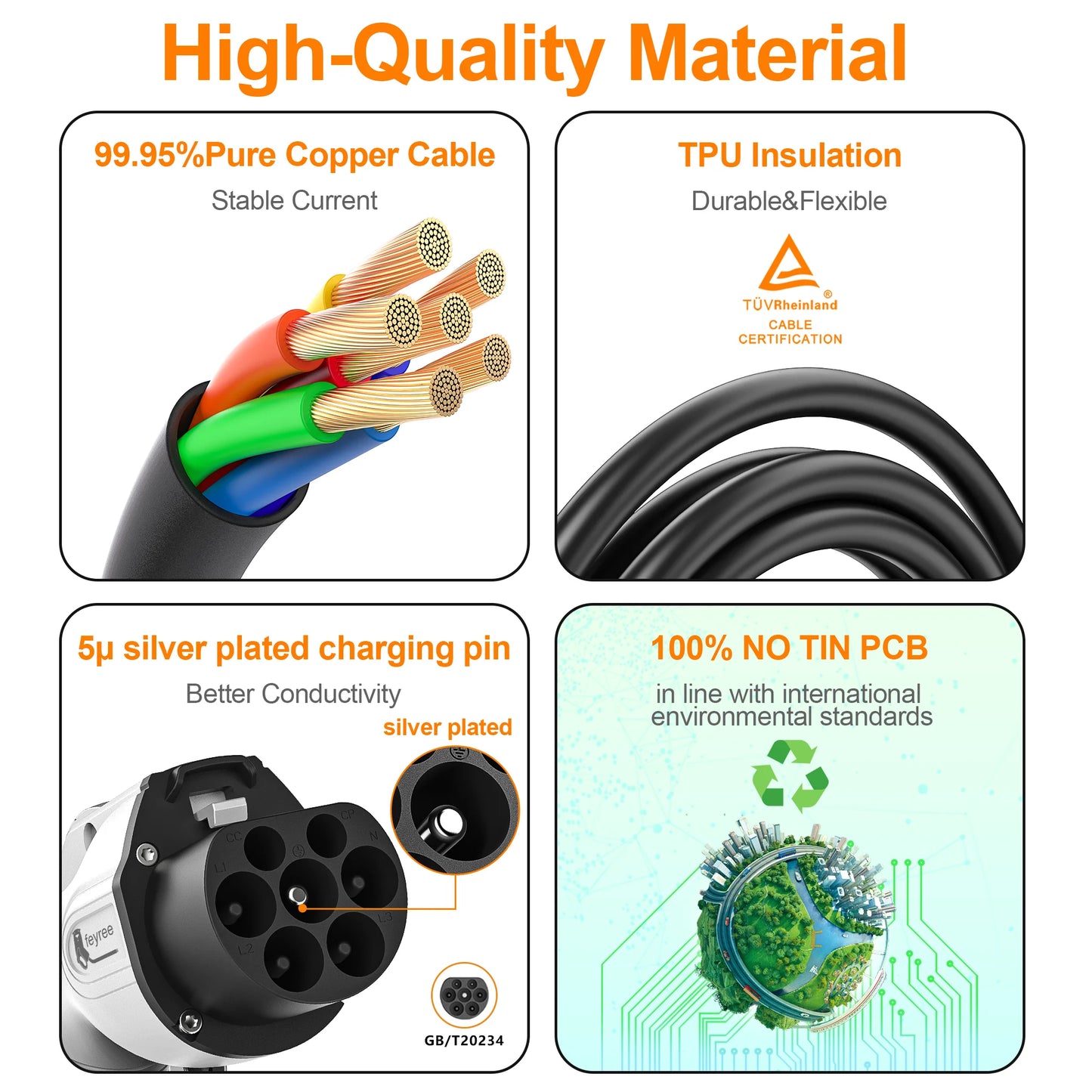

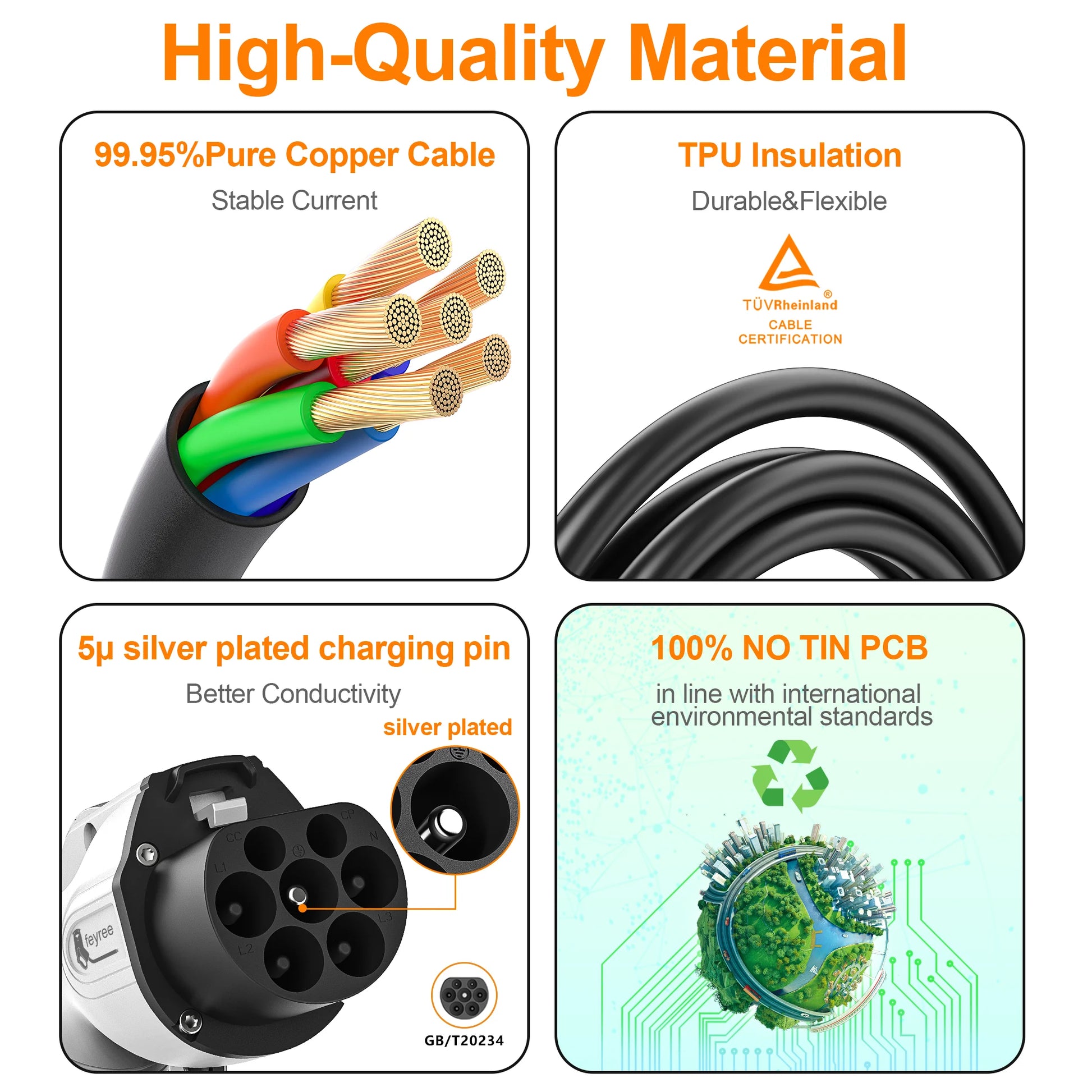

Material: thermoplastic and copper
Insulation resistance: > 1000MD (DC500V)
Terminal temperature rise:< 50K
Housing Fire Rating:UL94V-0
