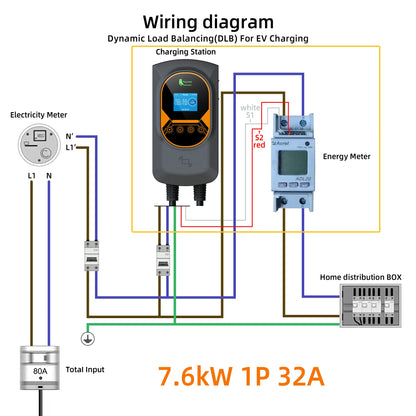

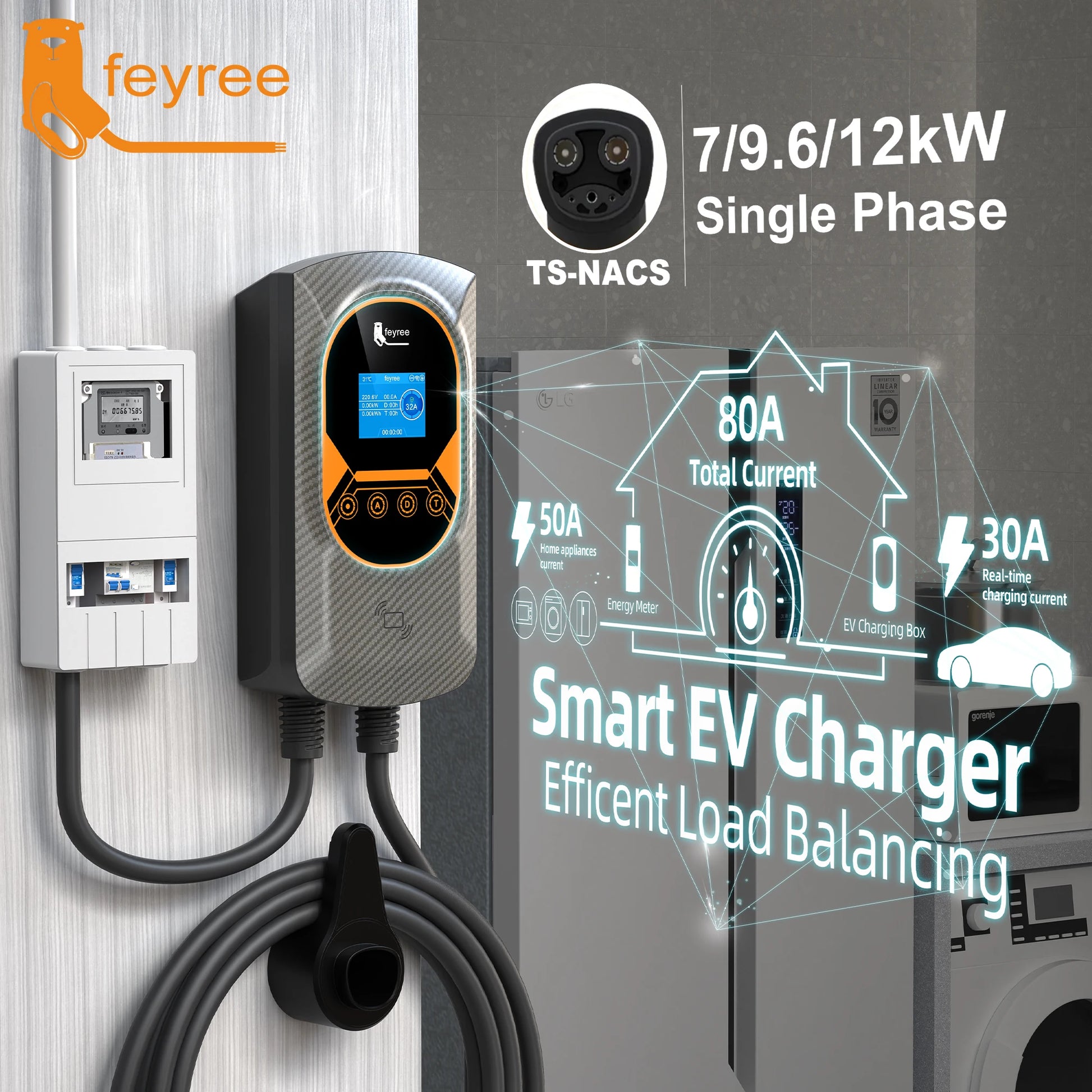

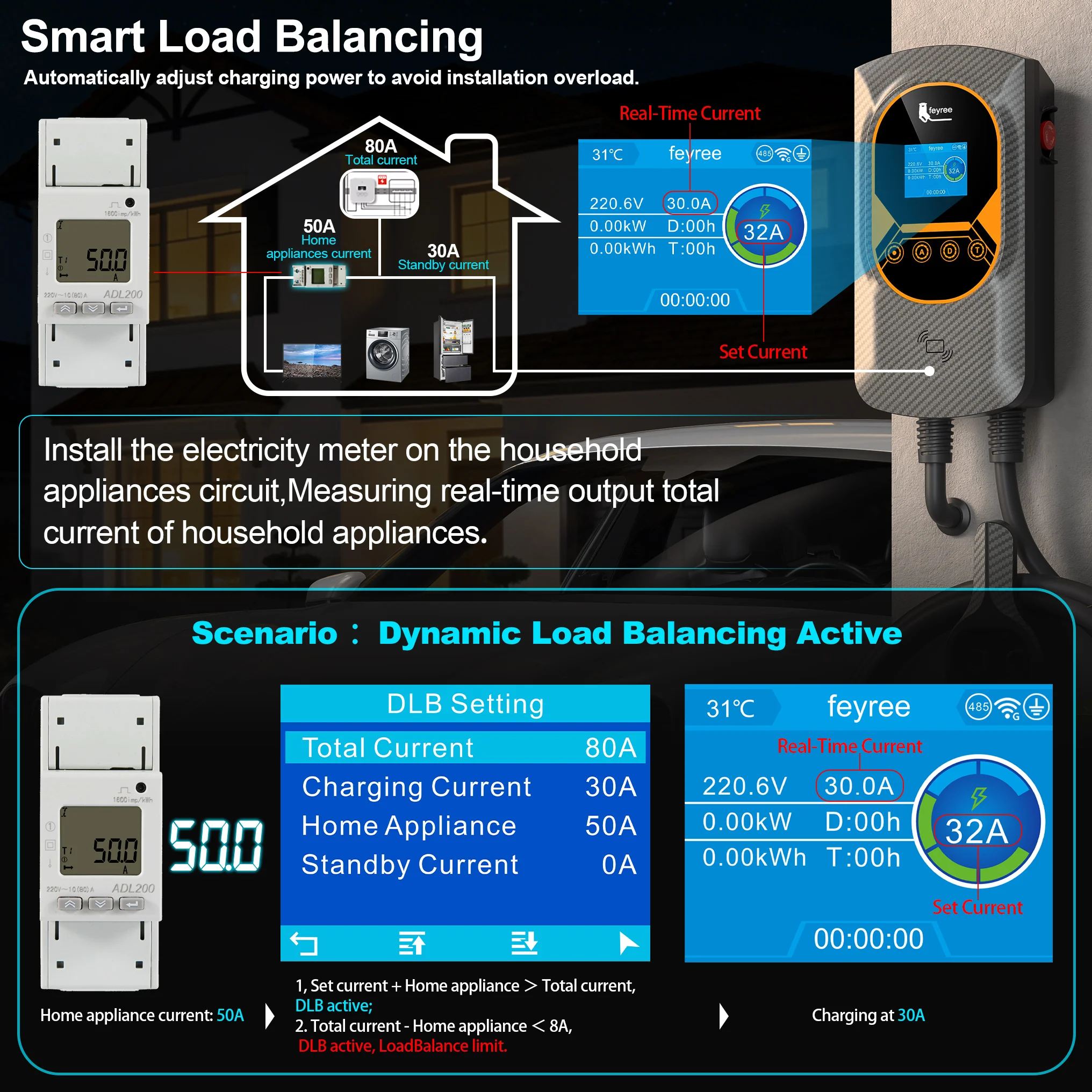

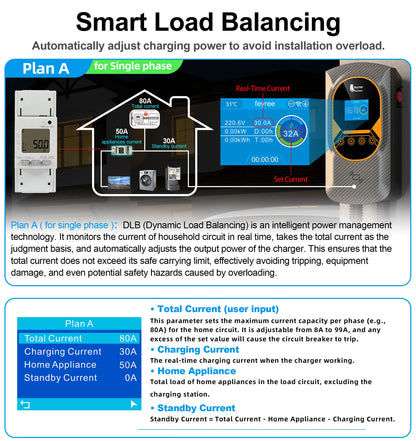

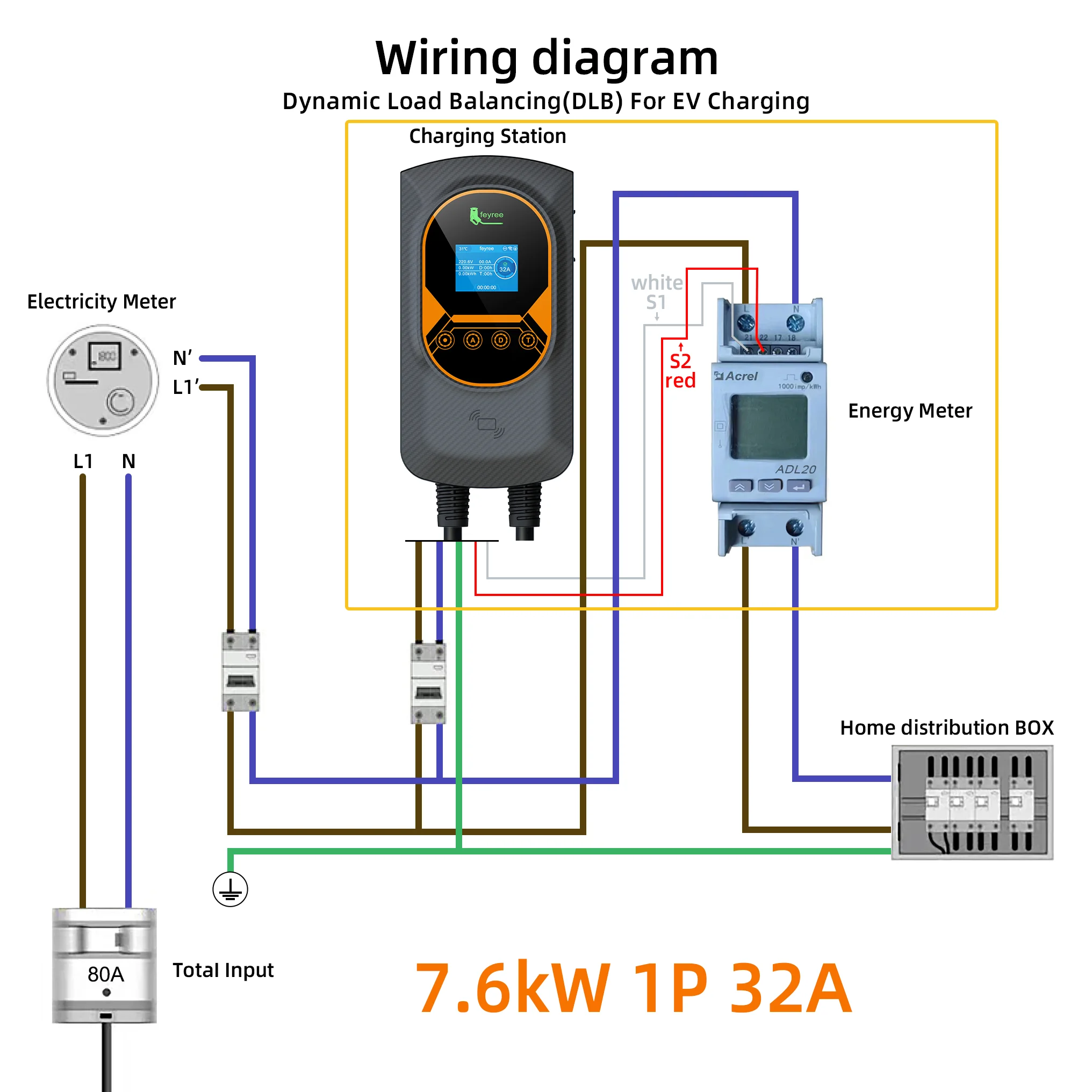

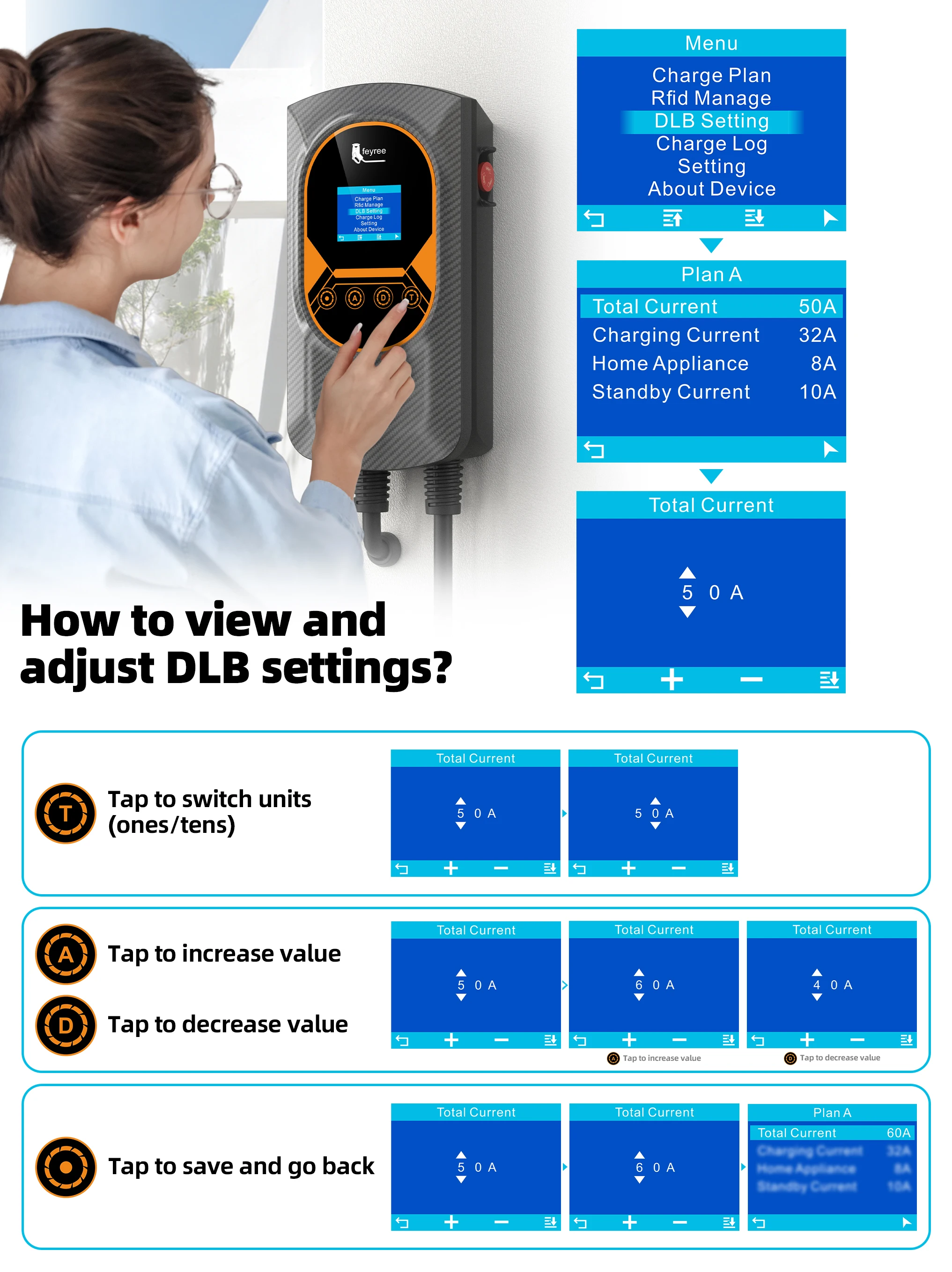

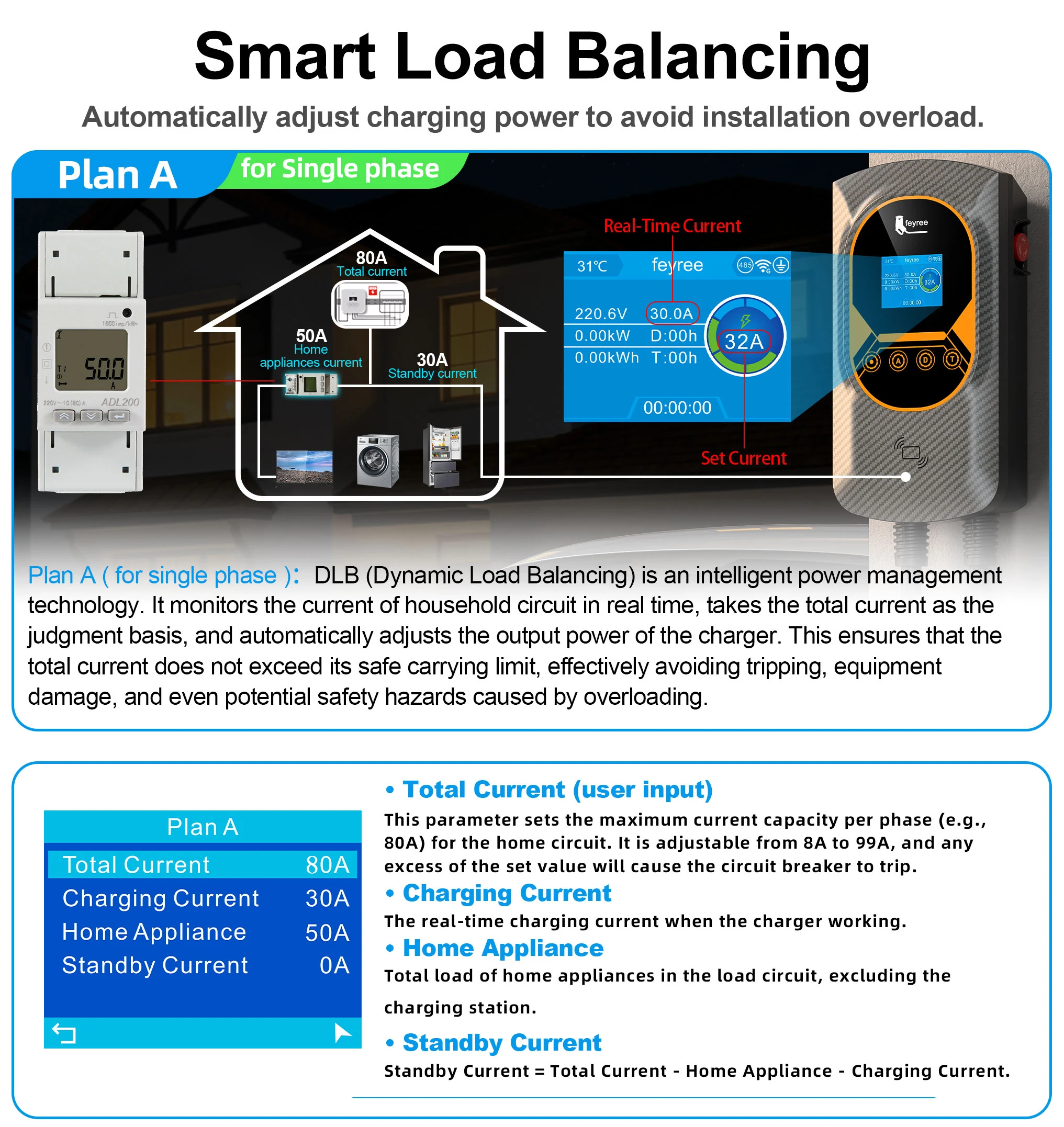

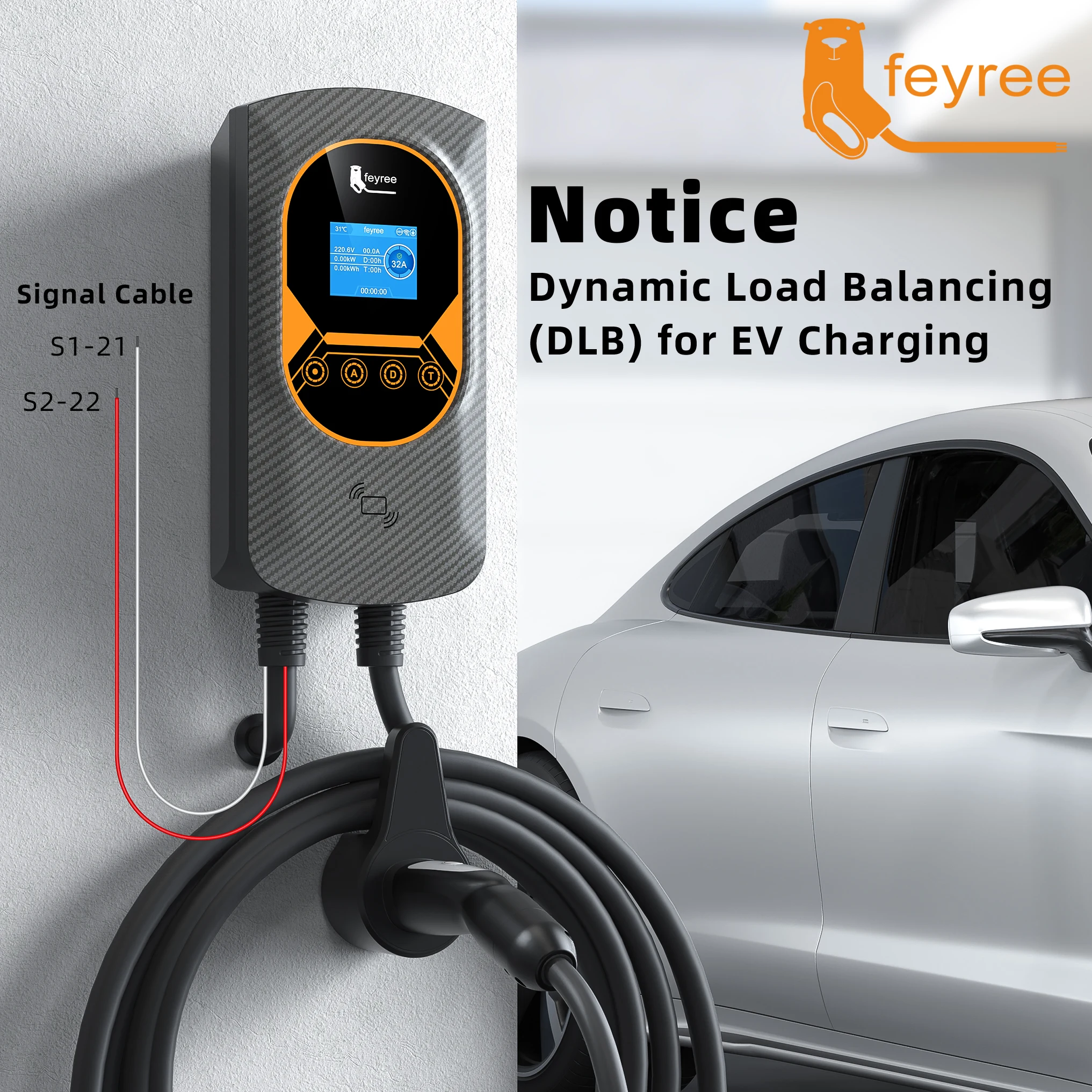

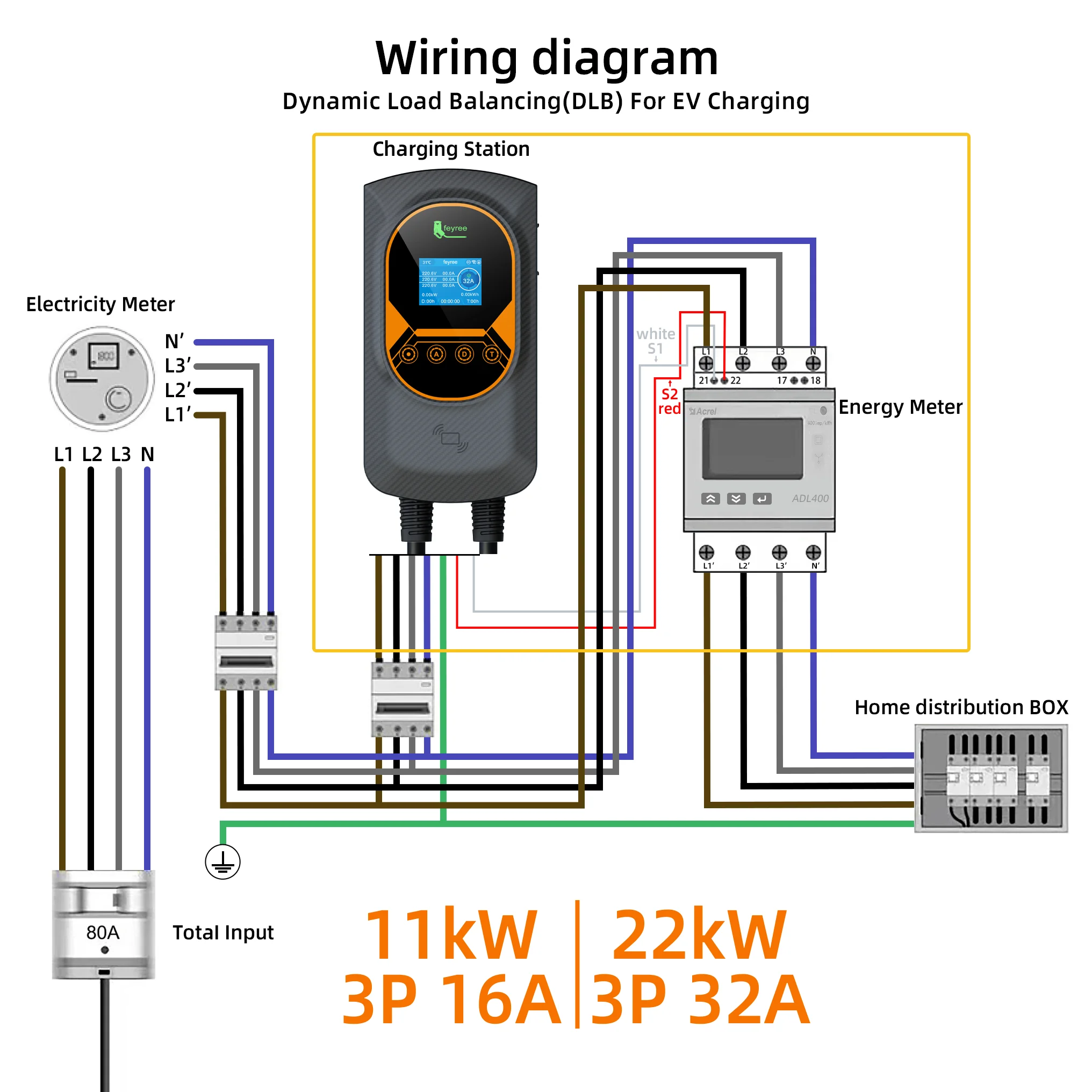

Plan A(for single phase)：DLB (Dynamic Load Balancing) is an intelligent power management technology. It monitors the current of household circuit in real time, takes the total current as the judgment basis, and automatically adjusts the output power of the charger. This ensures that the total current does not exceed its safe carrying limit, effectively avoiding tripping, equipment damage, and even potential safety hazards caused by overloading.

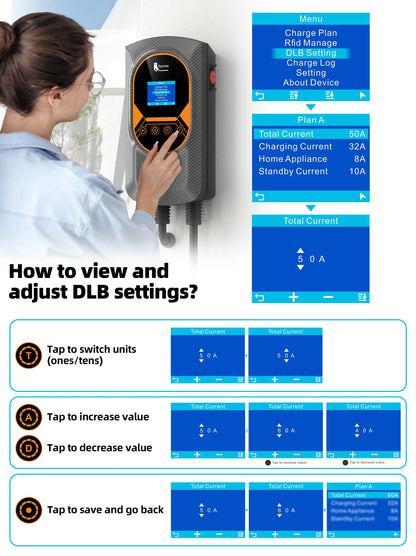

Total Current (user input): This parameter sets the maximum current capacity per phase (e.g., 80A) for the home circuit. It is adjustable from 8A to 99A, and any excess of the set value will cause the circuit breaker to trip.
Charging Current: The real-time charging current when the charger working.
Home Appliance:Total load of home appliances in the load circuit, excluding the charging station
Standby Current: Standby Current = “Total Current” - “Home Appliance”-“Charging Current”

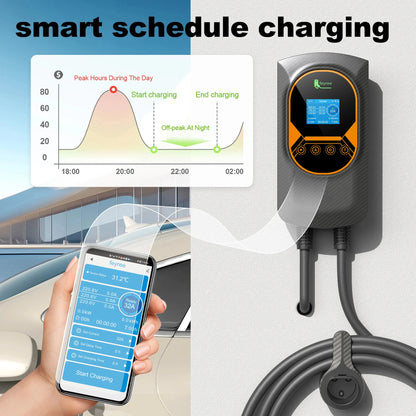

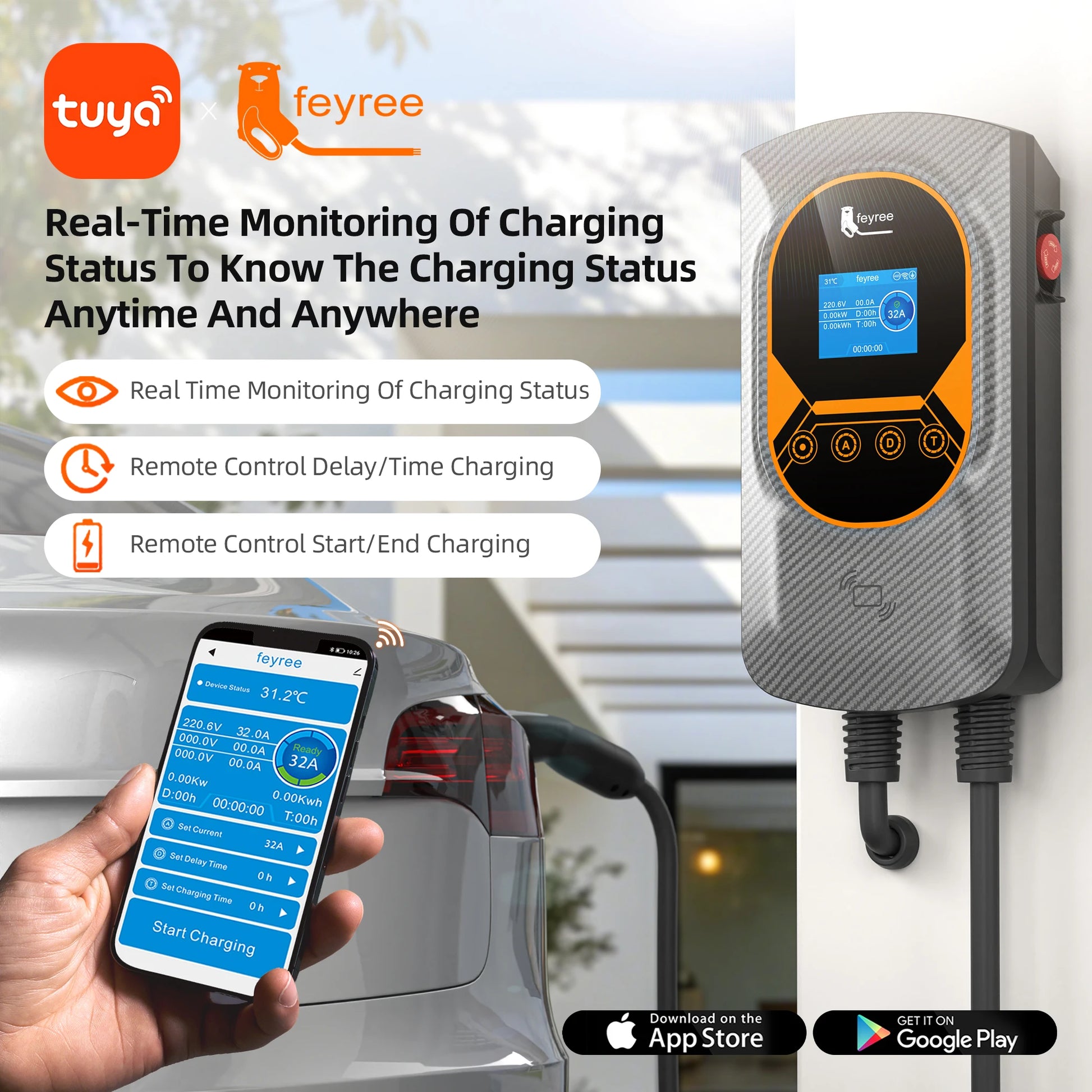

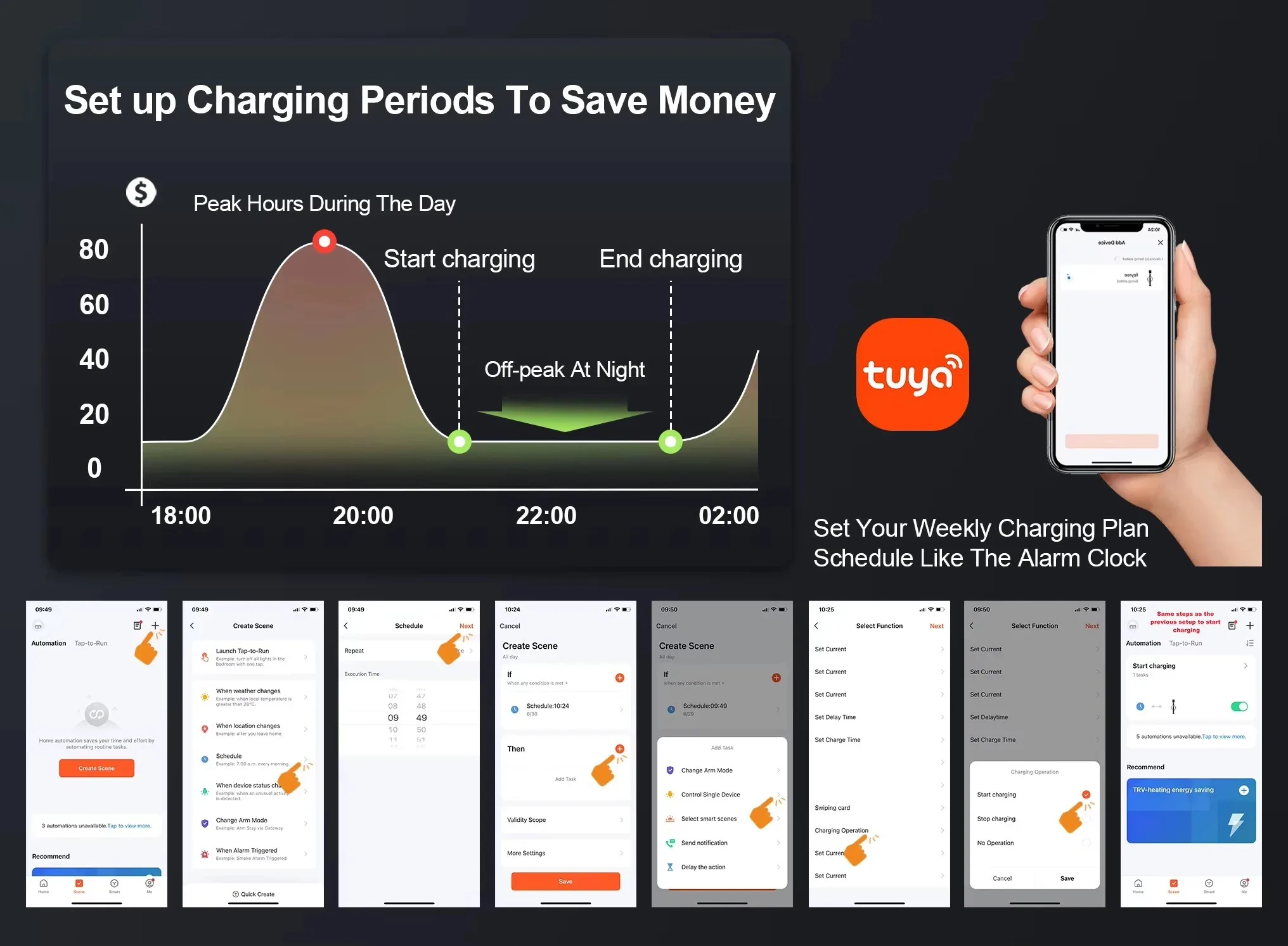

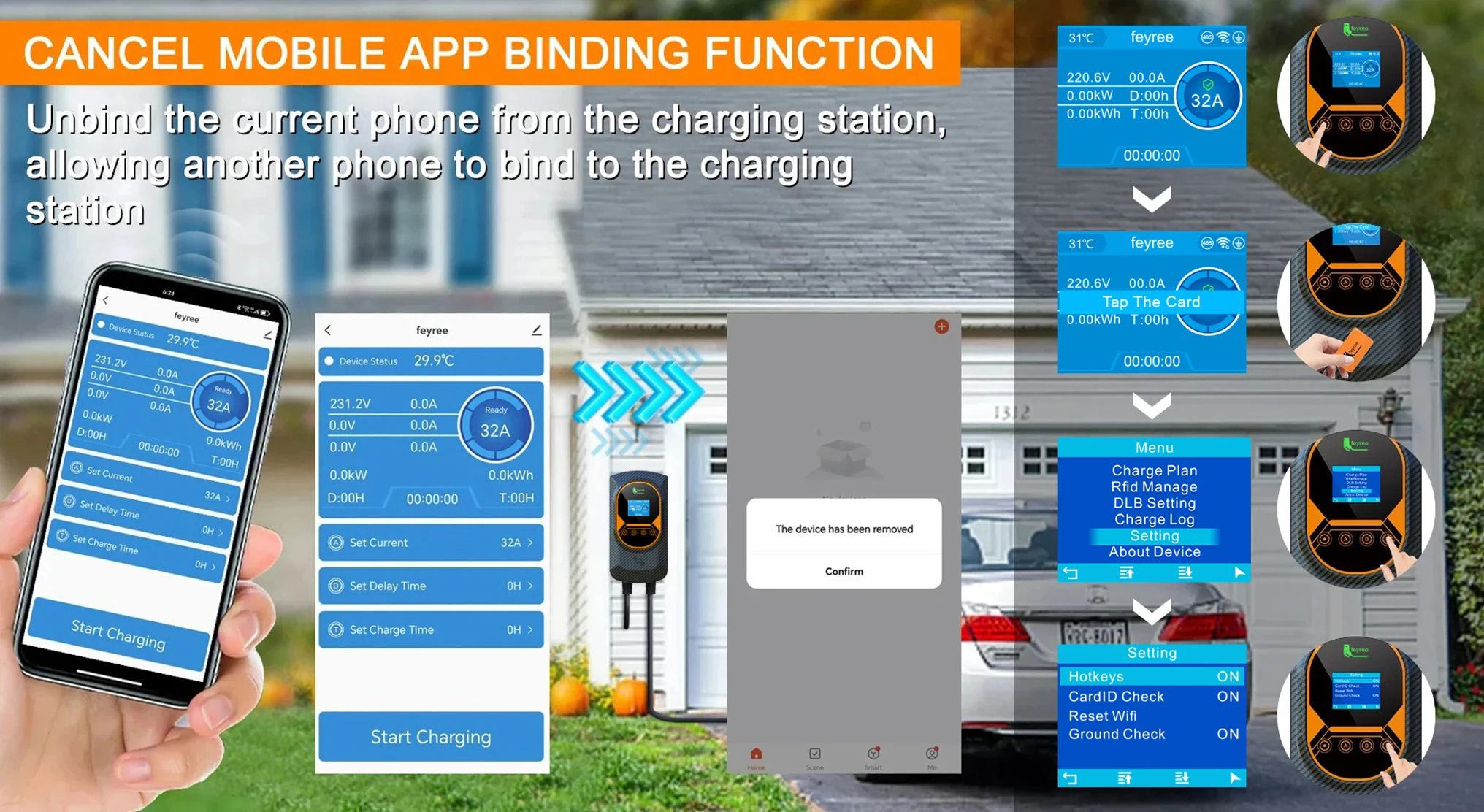

Remote control: via the app, you can control the wallbox/charging station in the easiest and most effective way, e.g. monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.

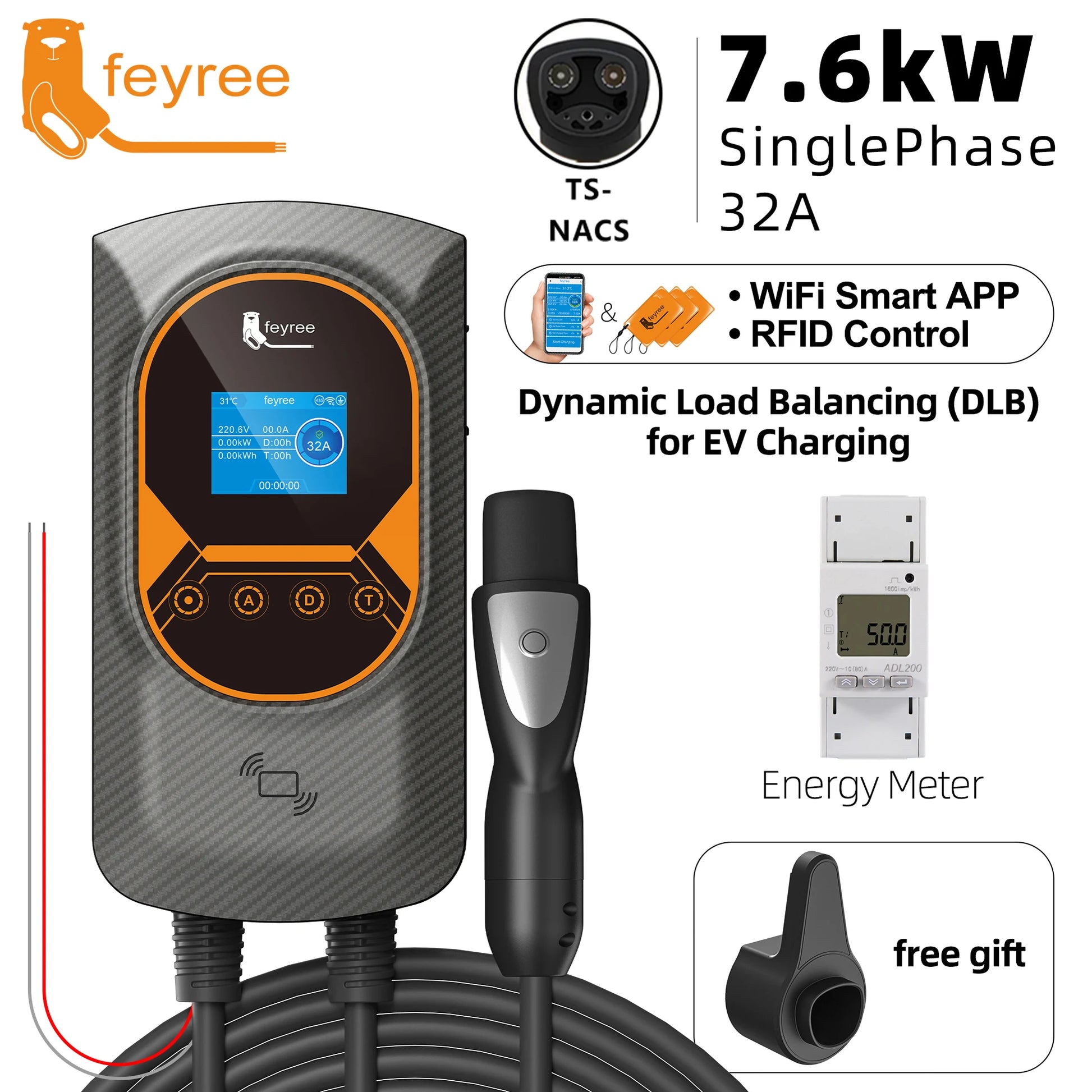

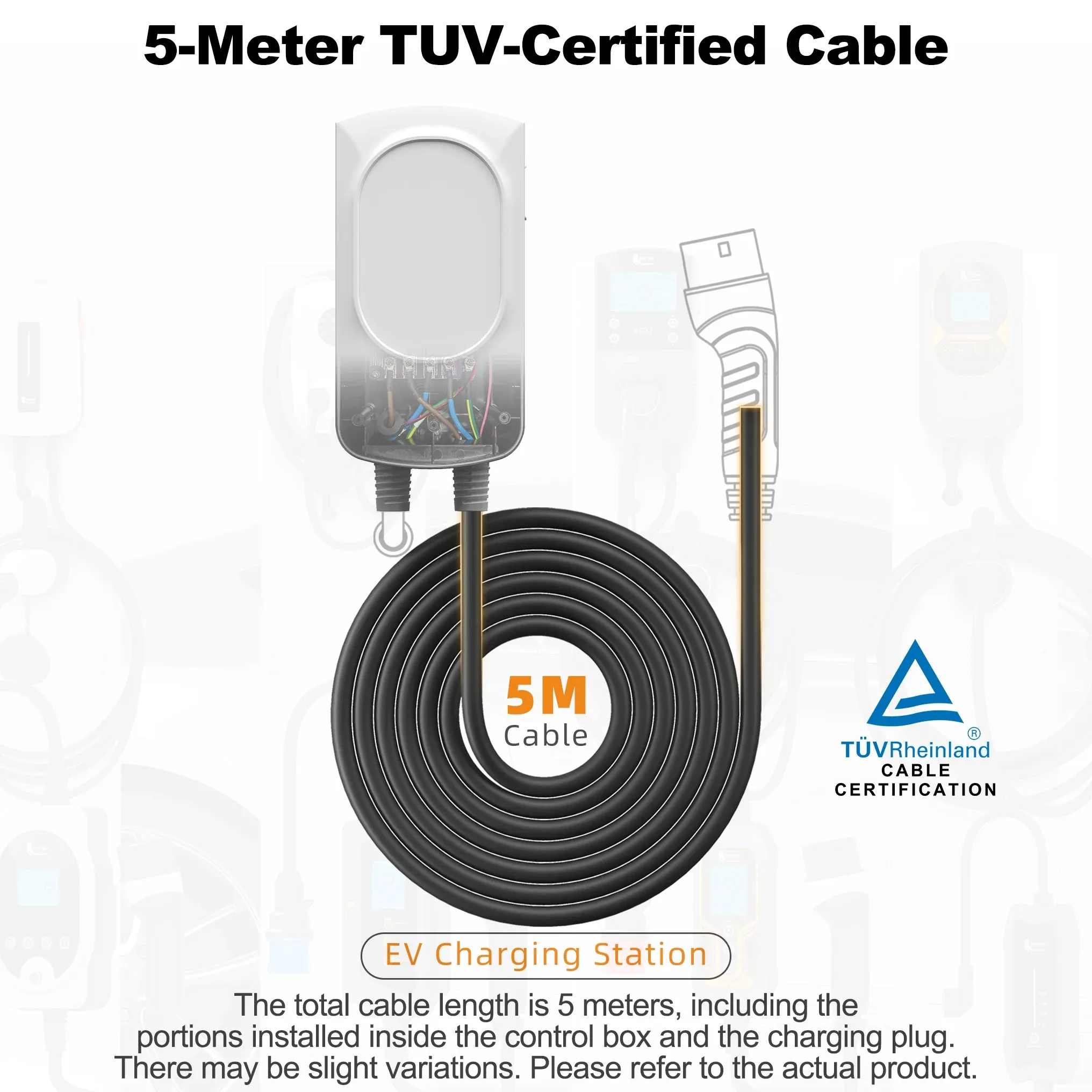

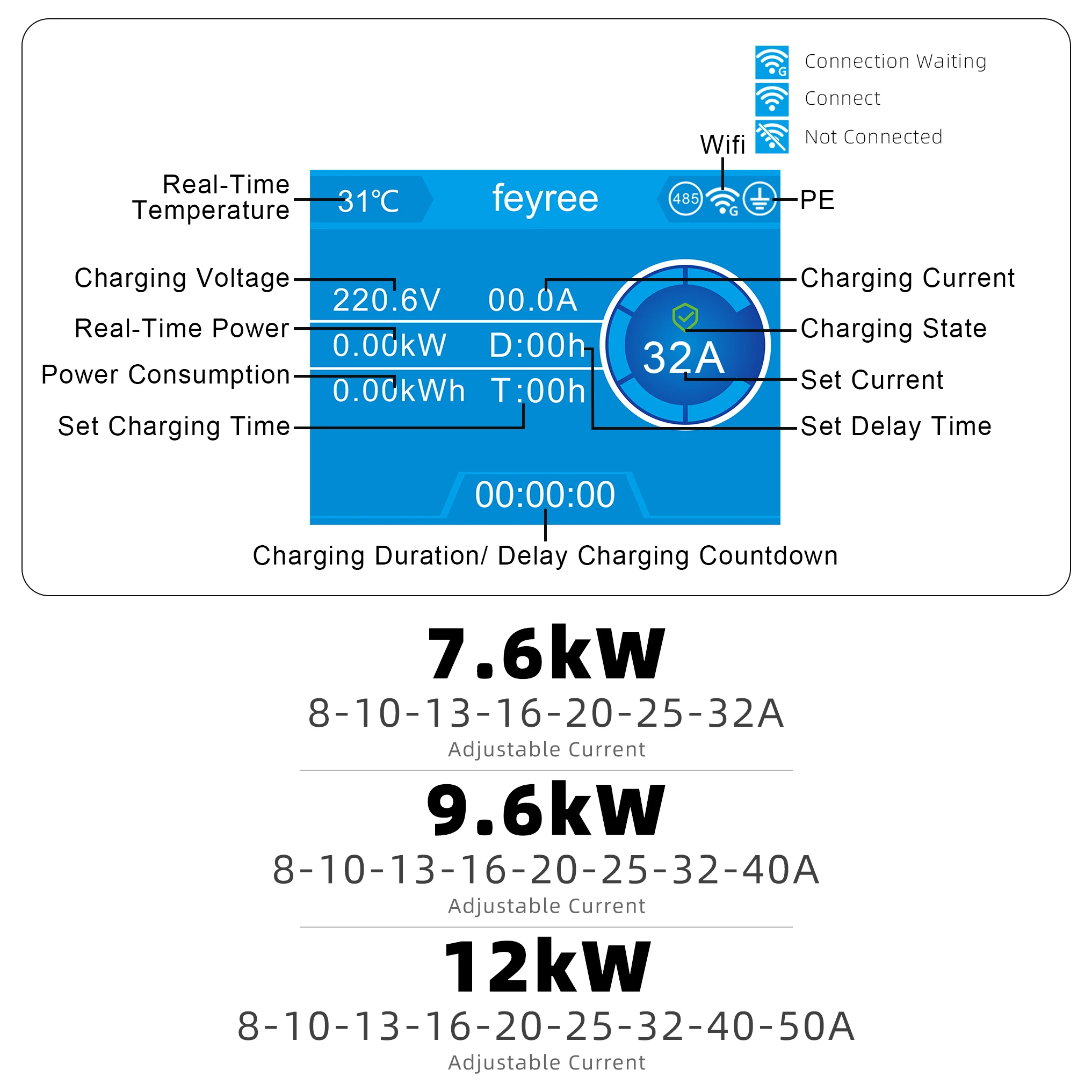

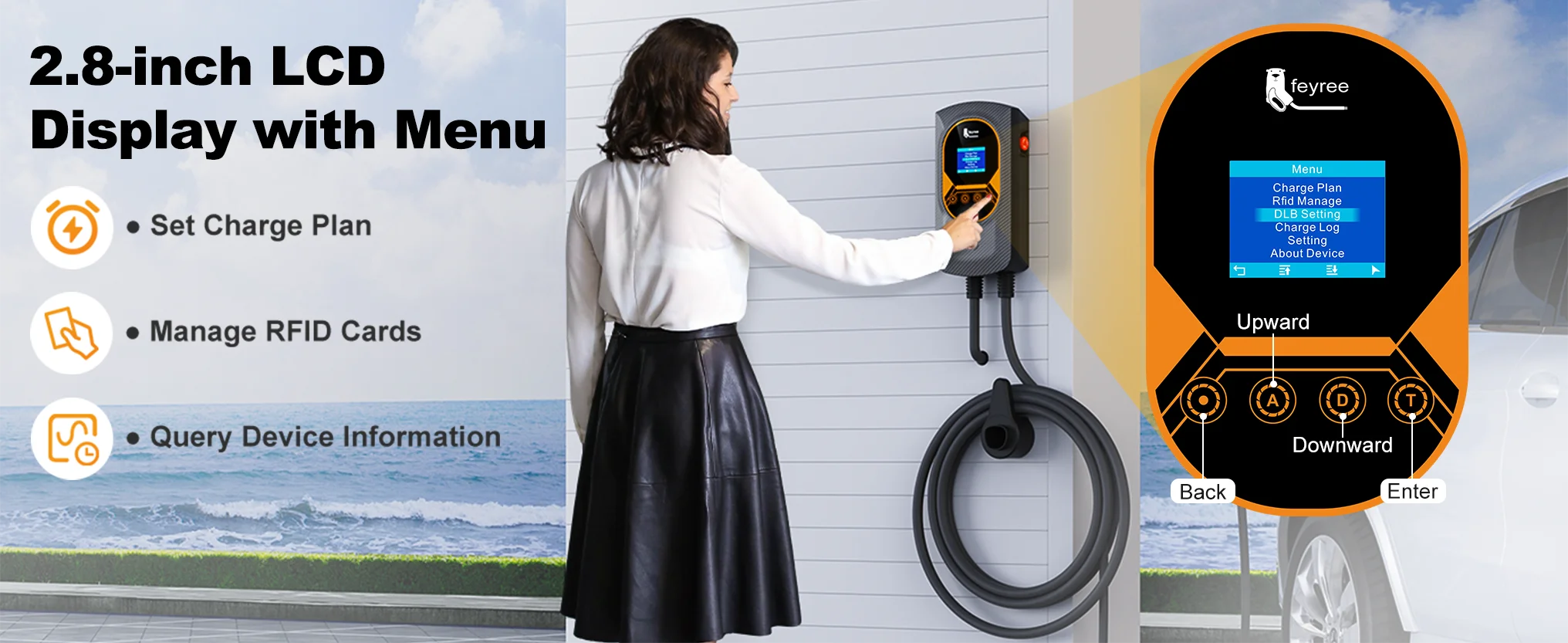

Large screen and high compatibility: LCD screen showing charging current, charging voltage and temperature. The charging station also has a 5m charging cable and is equipped with a NACS plug. The screws are inserted into the box, so you don't have to worry about the screen falling off. The 5 metre long cable leaves enough space between your car and the charging station.

Easy installation: Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use thanks to IP66 certification (garage, carport). It is compatible with all household installations and with electric vehicles available on the market and plug-in hybrids with NACS plug the maximum power for your car and achieve more efficient consumption.

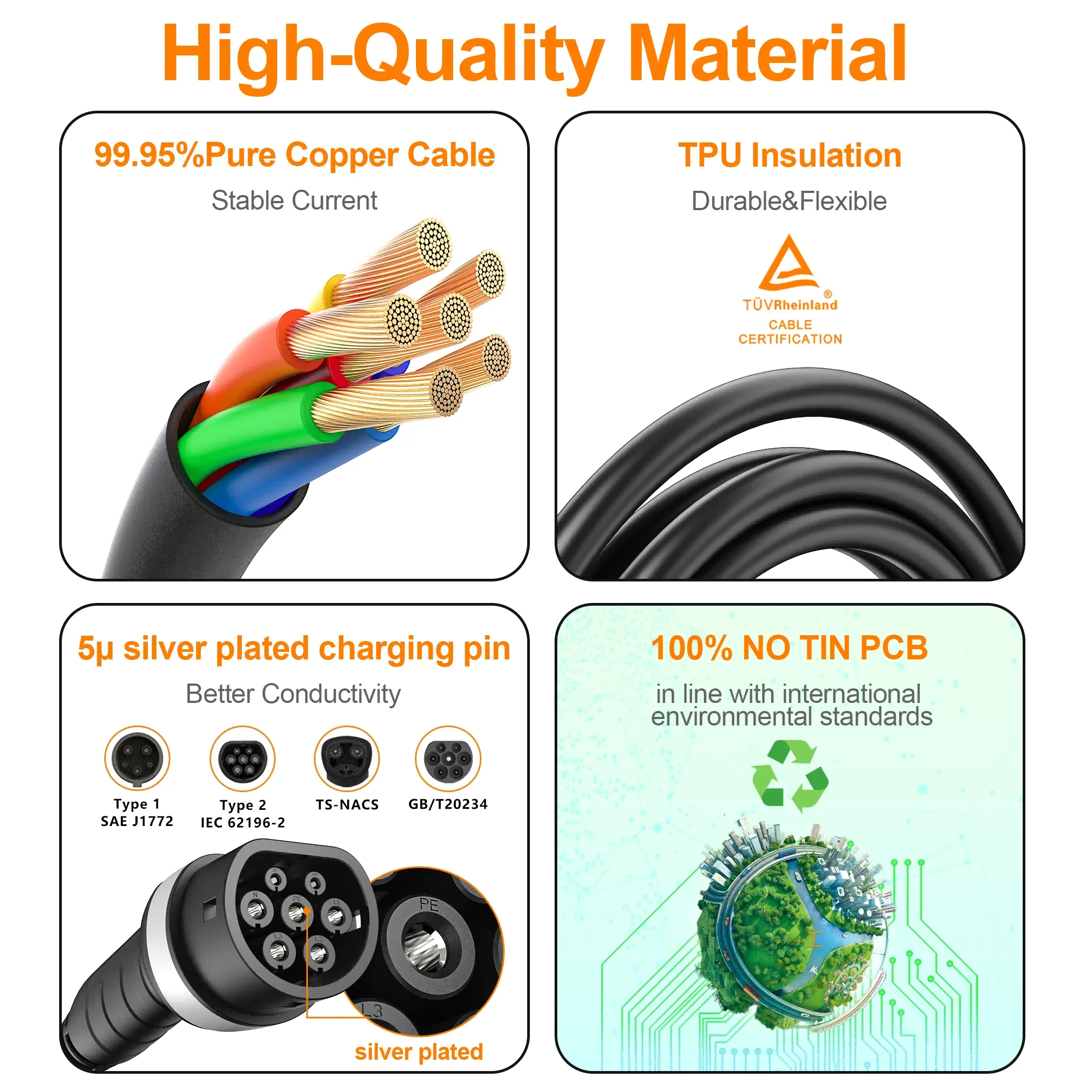

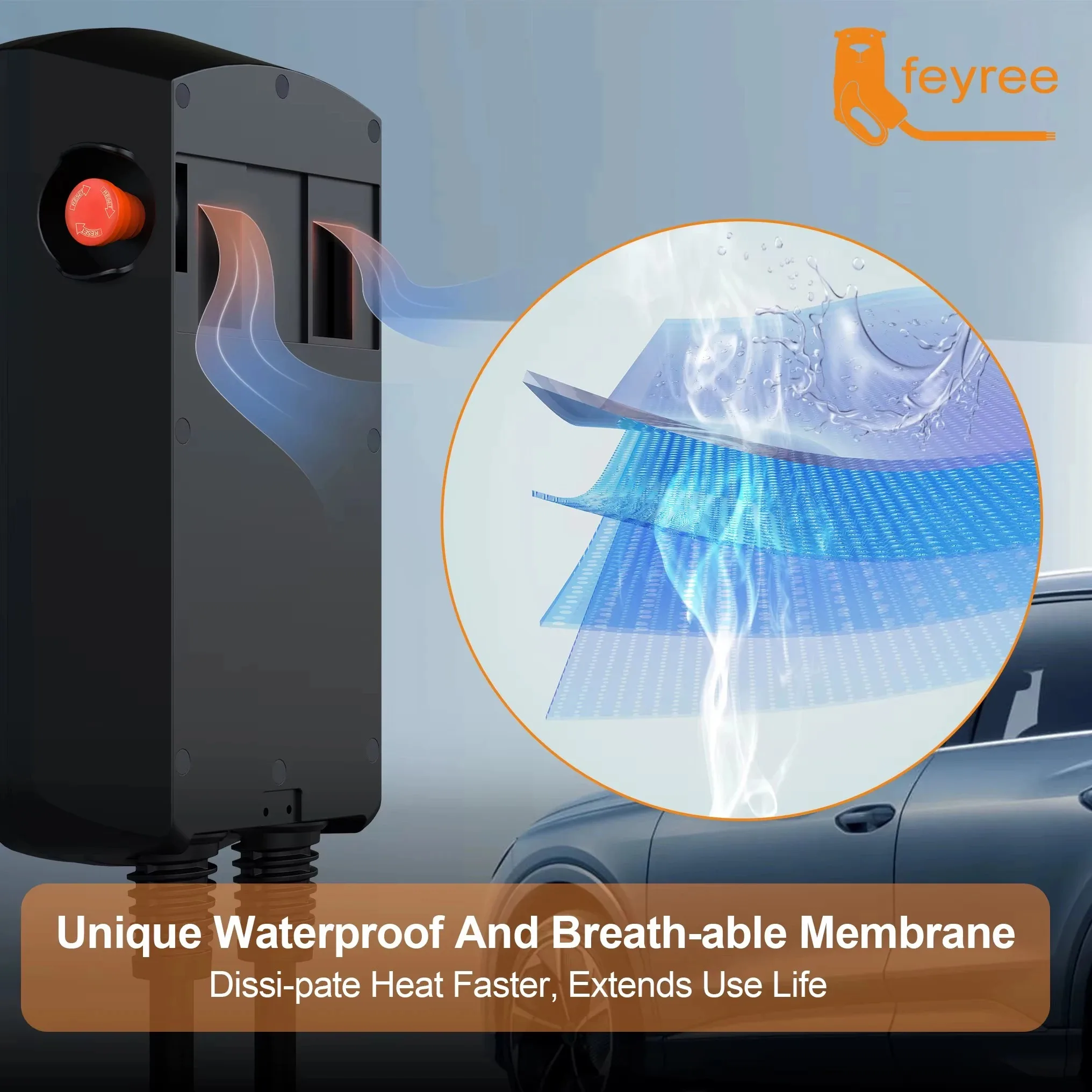

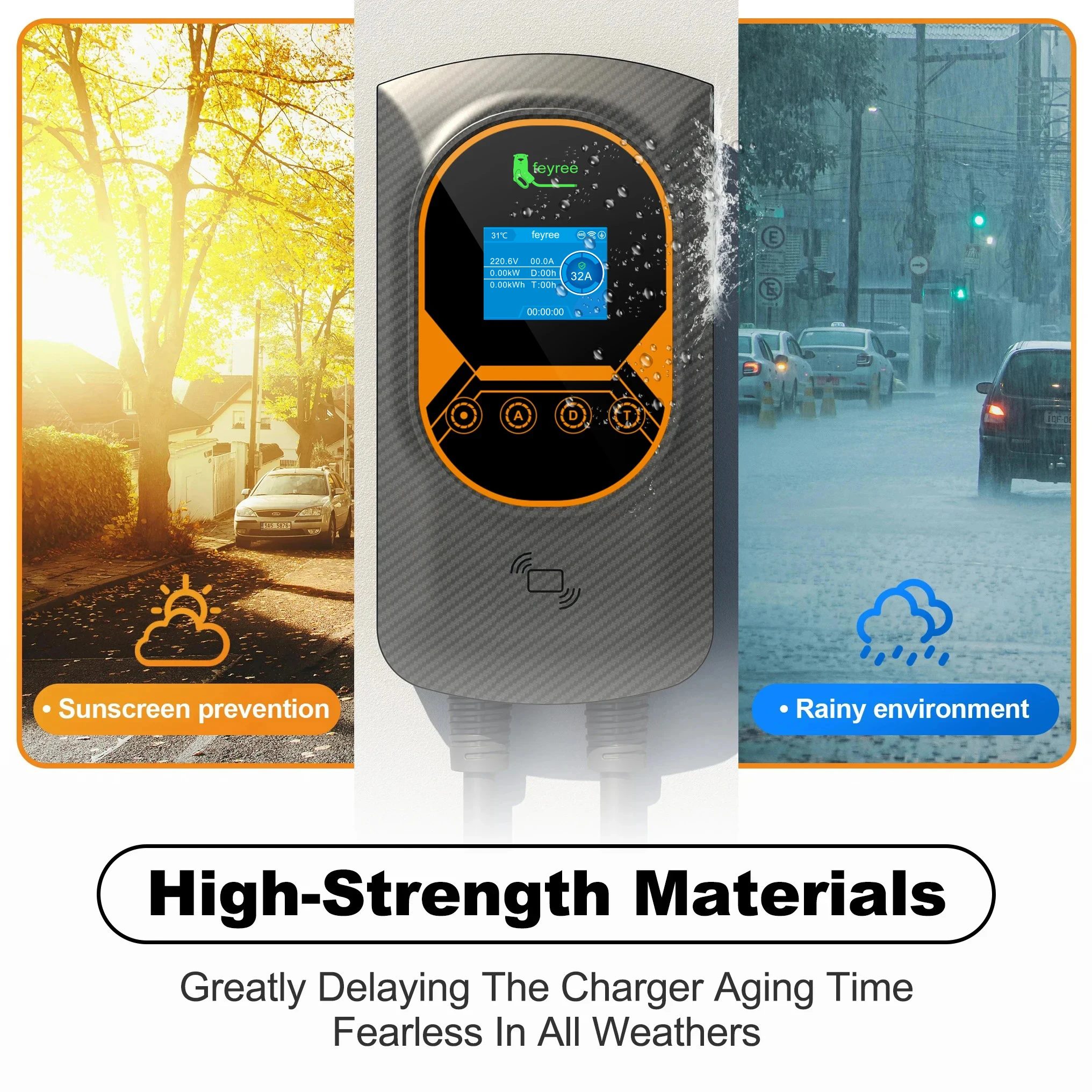

Weather and heat resistant: The connectors on both ends of the cable has achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed, avoiding safety risk. The protection class IP66 protects against dust, rain and wind, thus guarantees safe long-term outdoor charging.

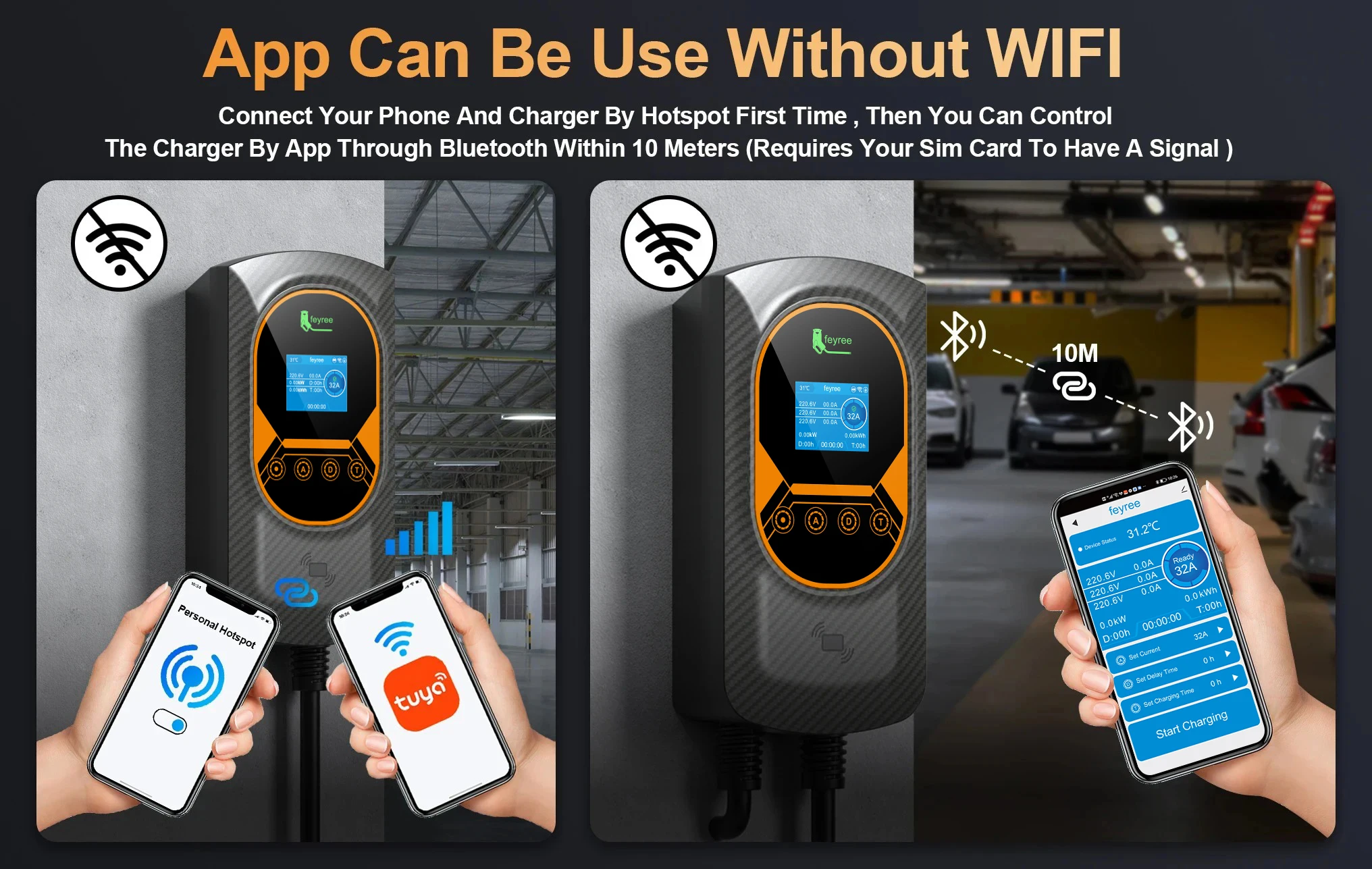

Support Tuya APP wireless connection, mobile phone remote control

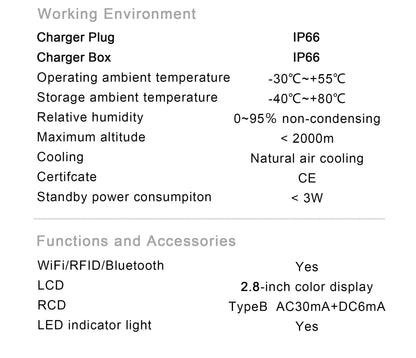

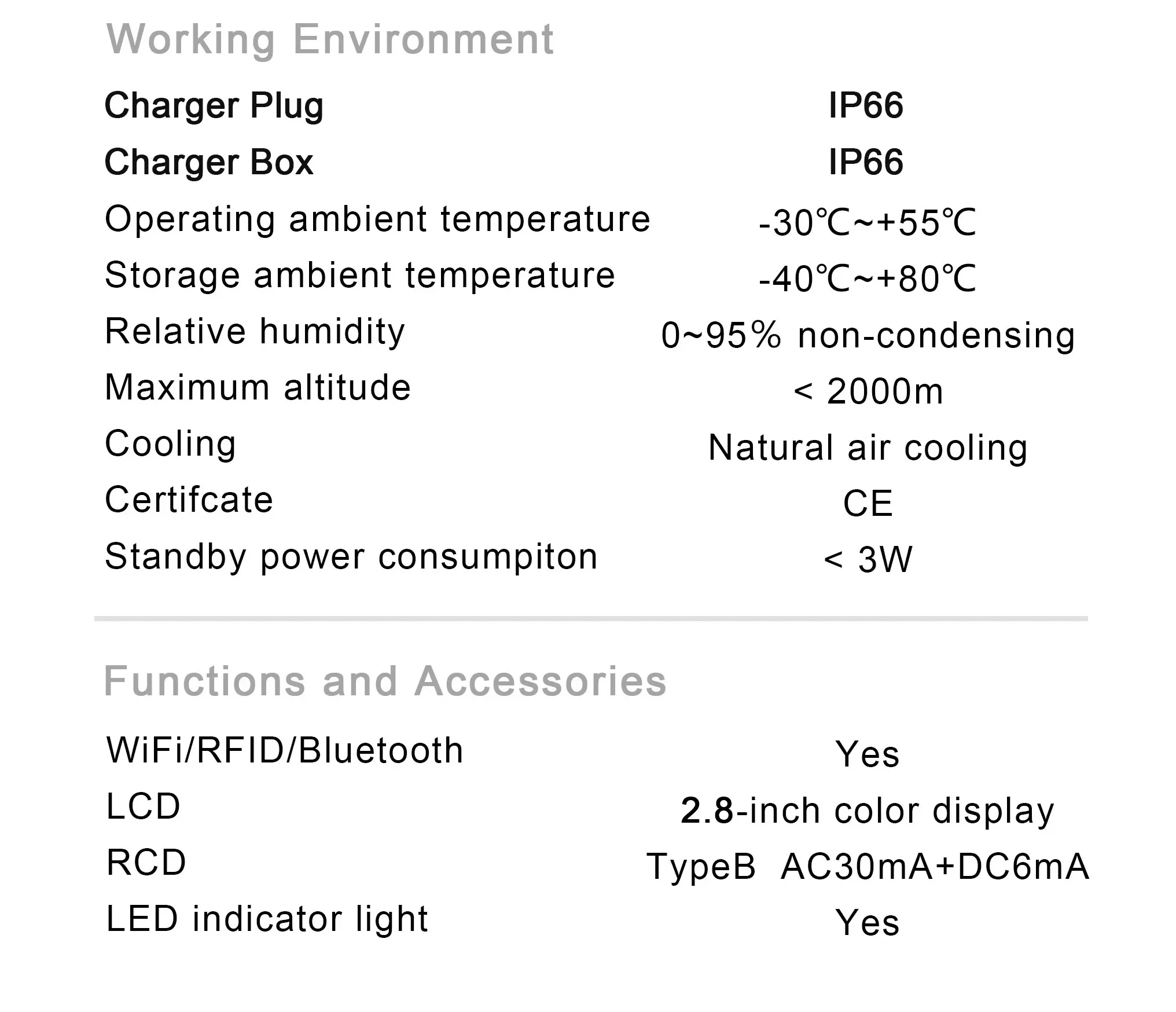

Features:

• Charging plug meet NACS standard.

• Control box meet SAE J3400 control principle.

• Excellent protection performance,protection grade IP66-Working condition.

• Operating temperature:-30℃ to 55℃.

• Protection level: IP66 (working state)

• Number of phases: 1-phase

• Contact bush: copper alloy, silver plating

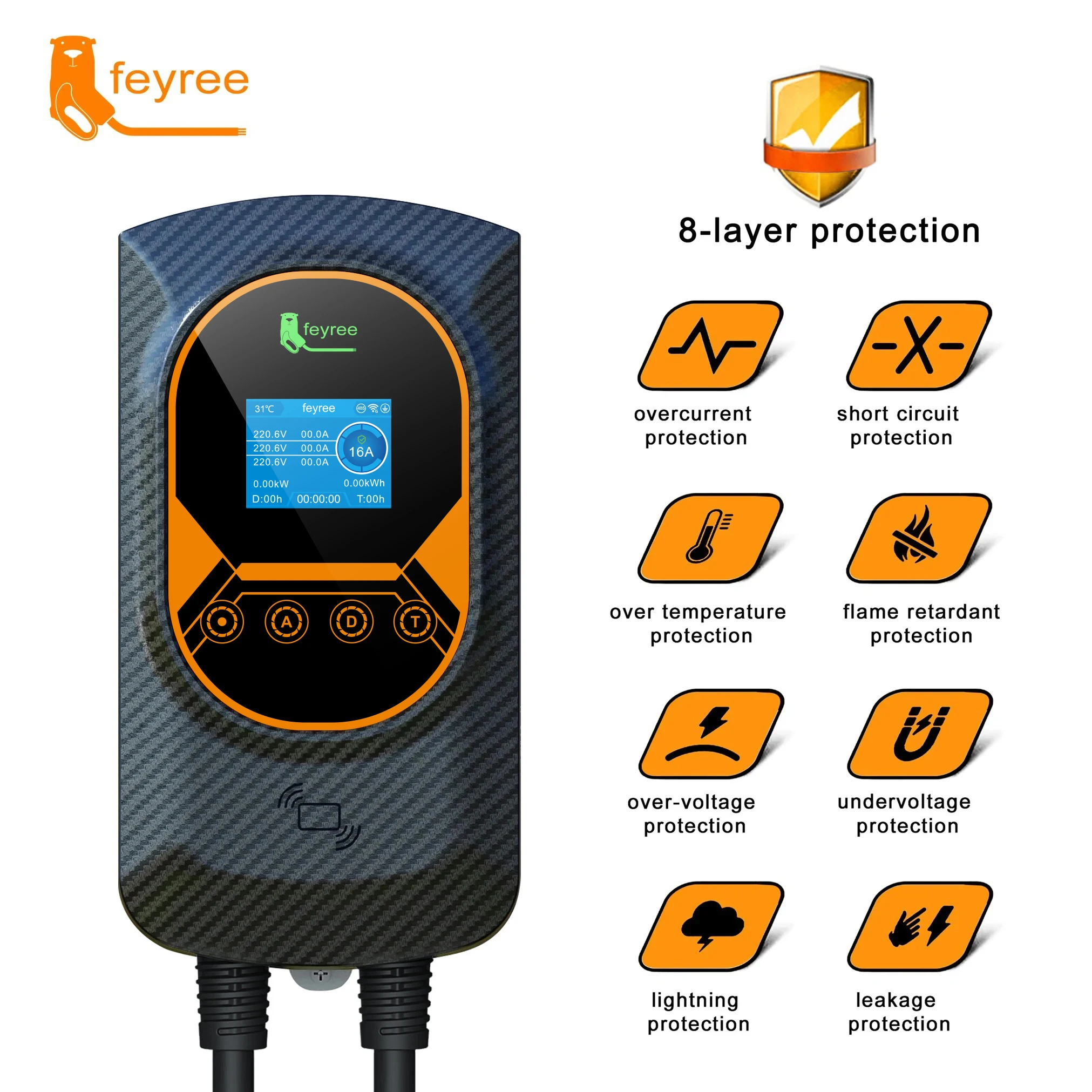

Control Box Function:

• Leakage protection (restart recover).

• Over voltage under-voltage protection (self-checking recover).

• Lightning protection.

• Over current protection.

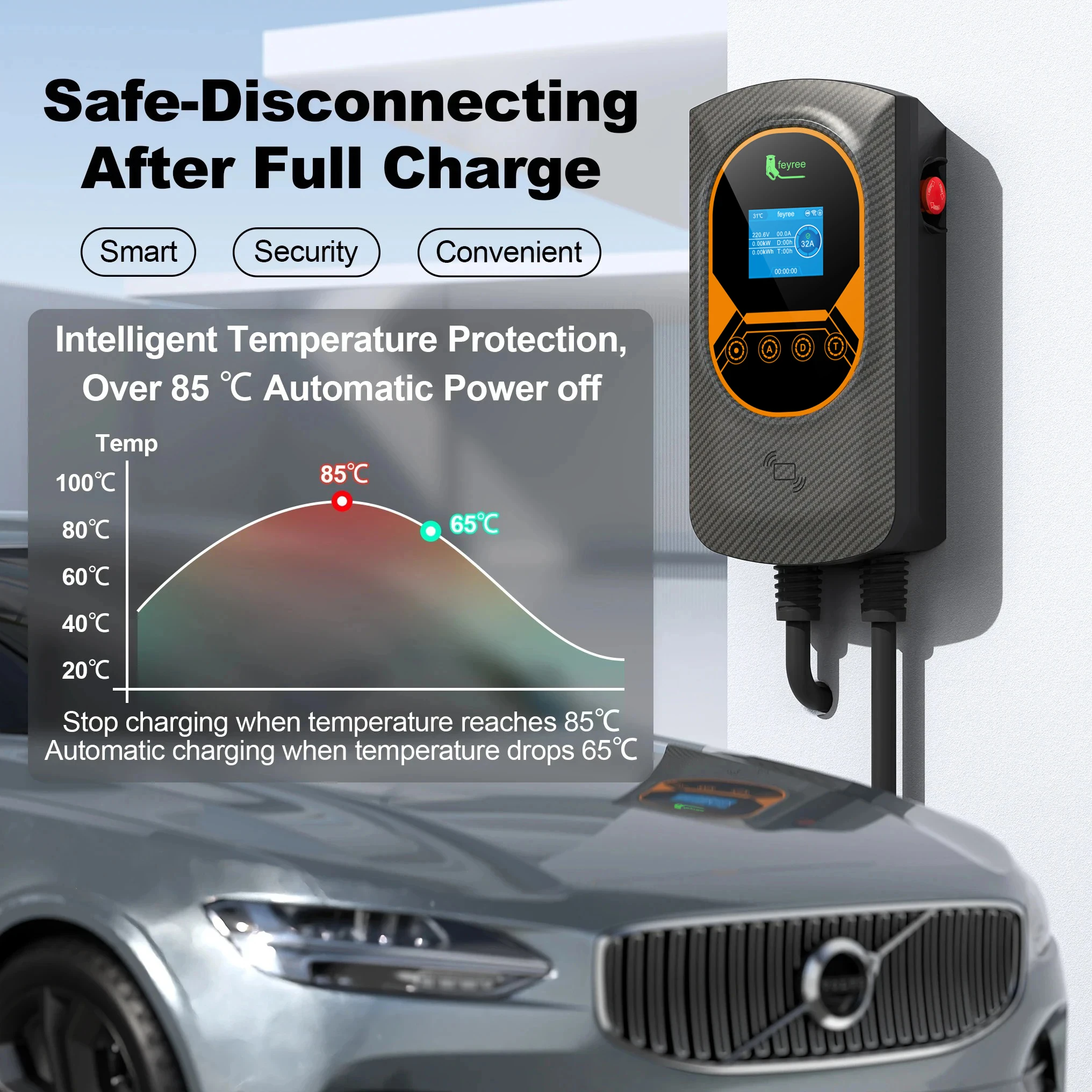

• Overheat protection.

• Ground protection.

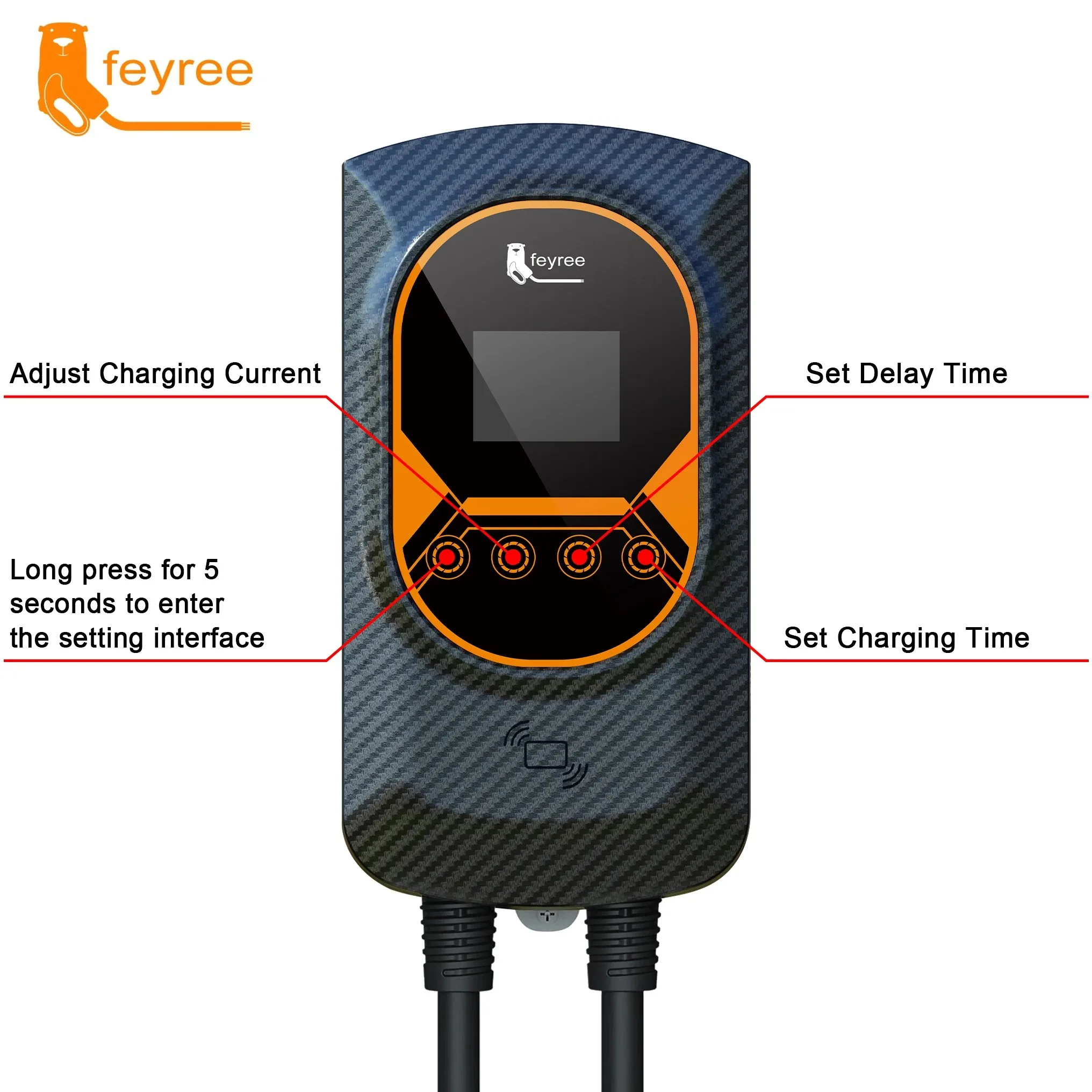

• Change the current: 8A/10A/13A/16A/20A/25A/32A/40A/50A adjustable

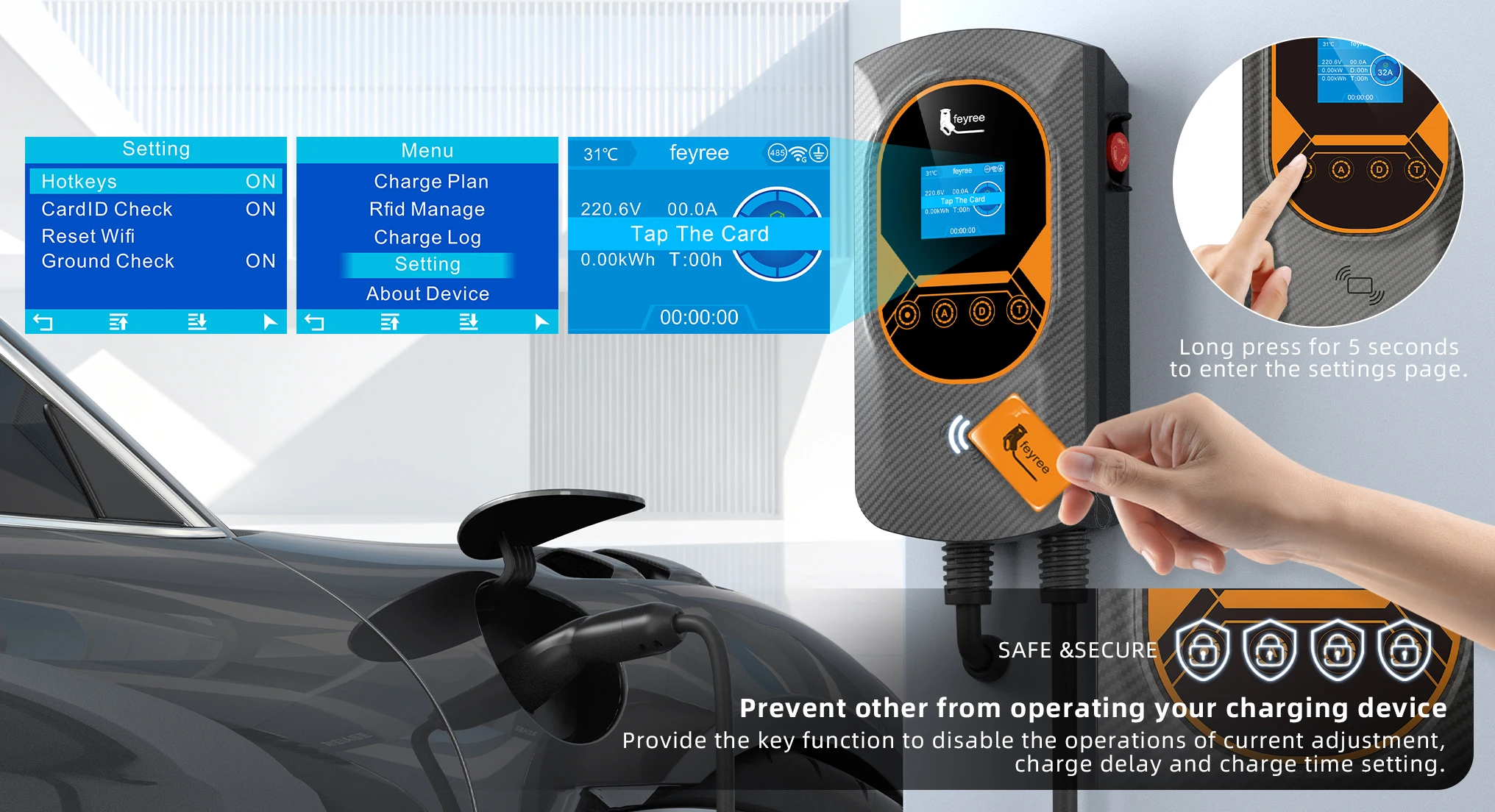

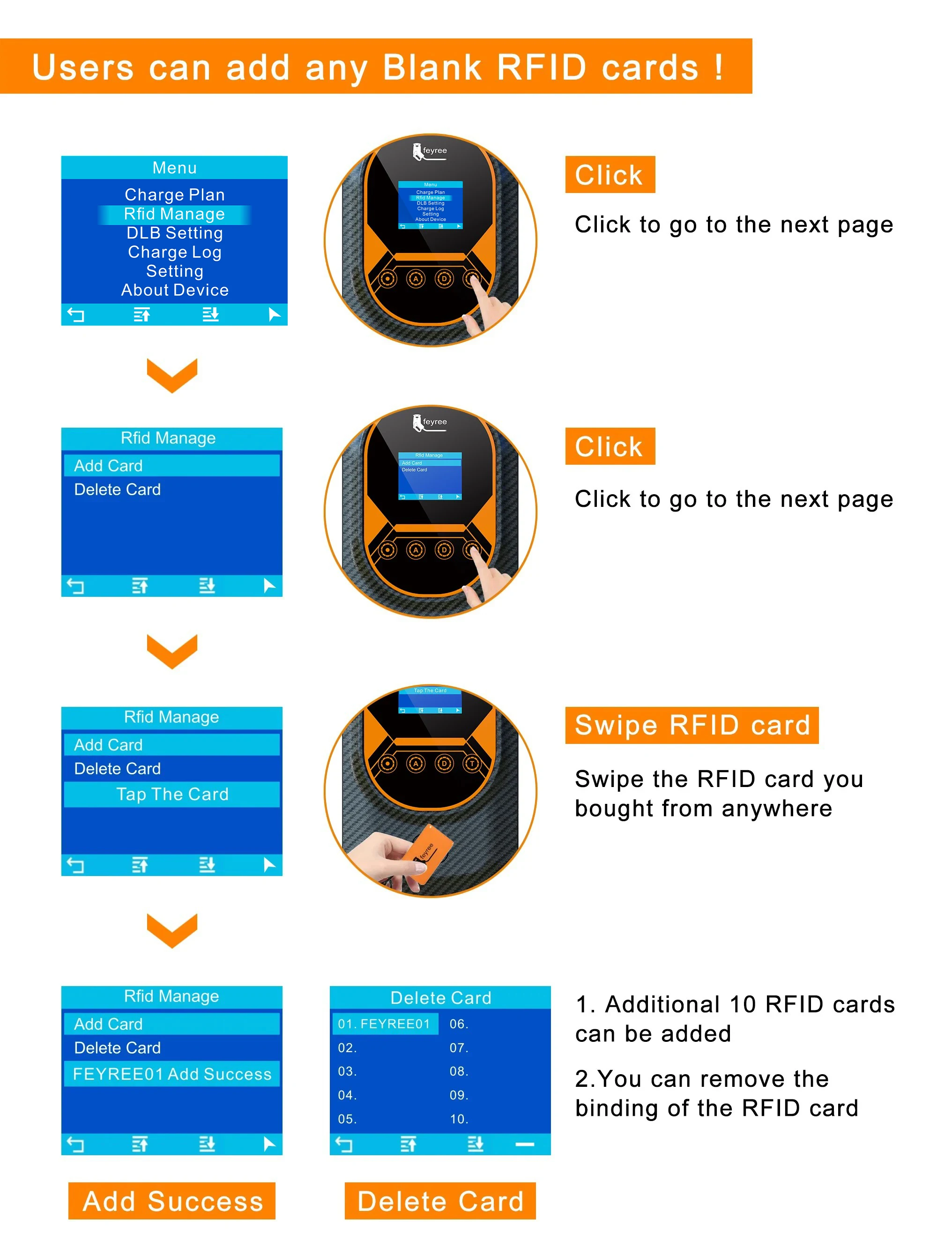

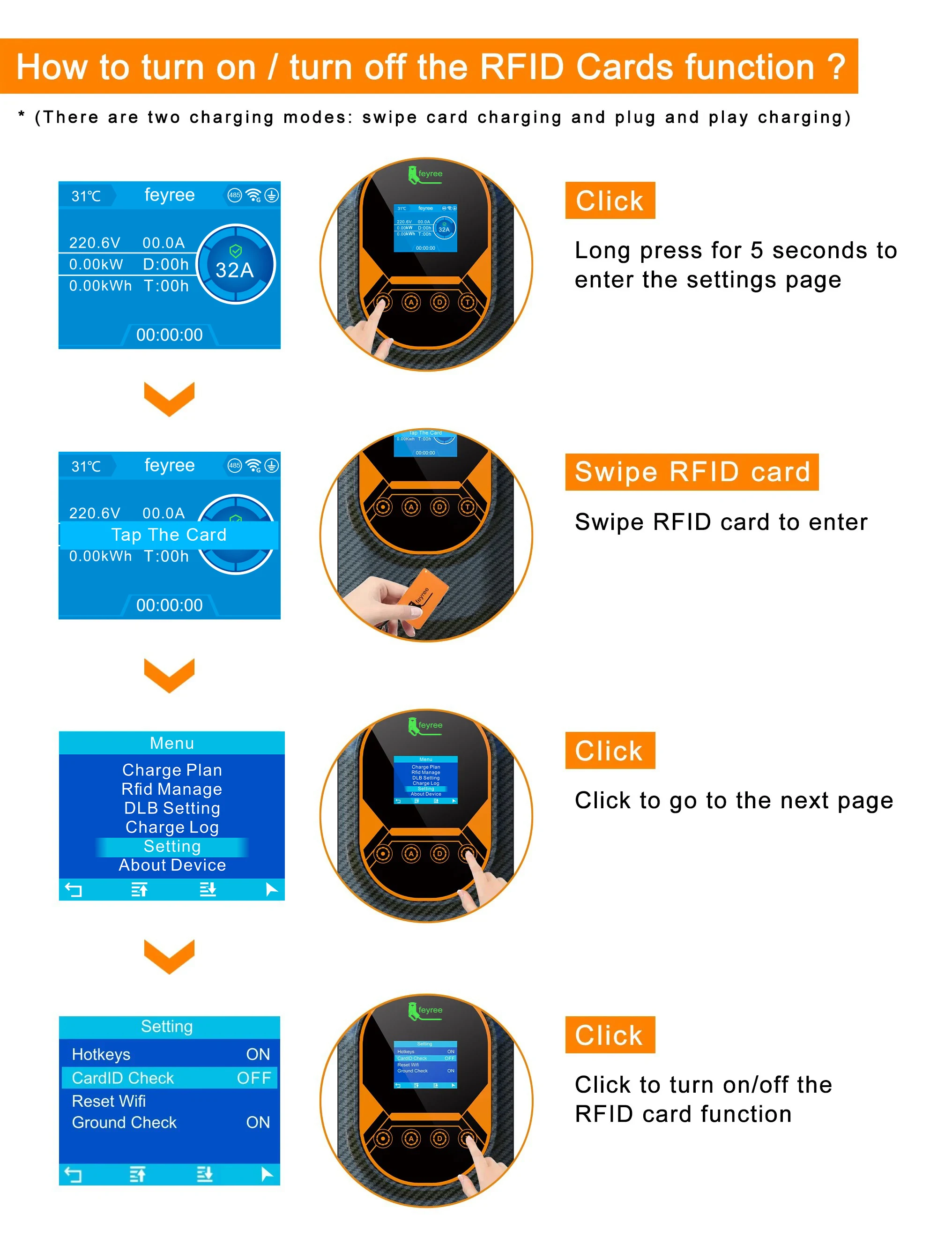

• RFID card function

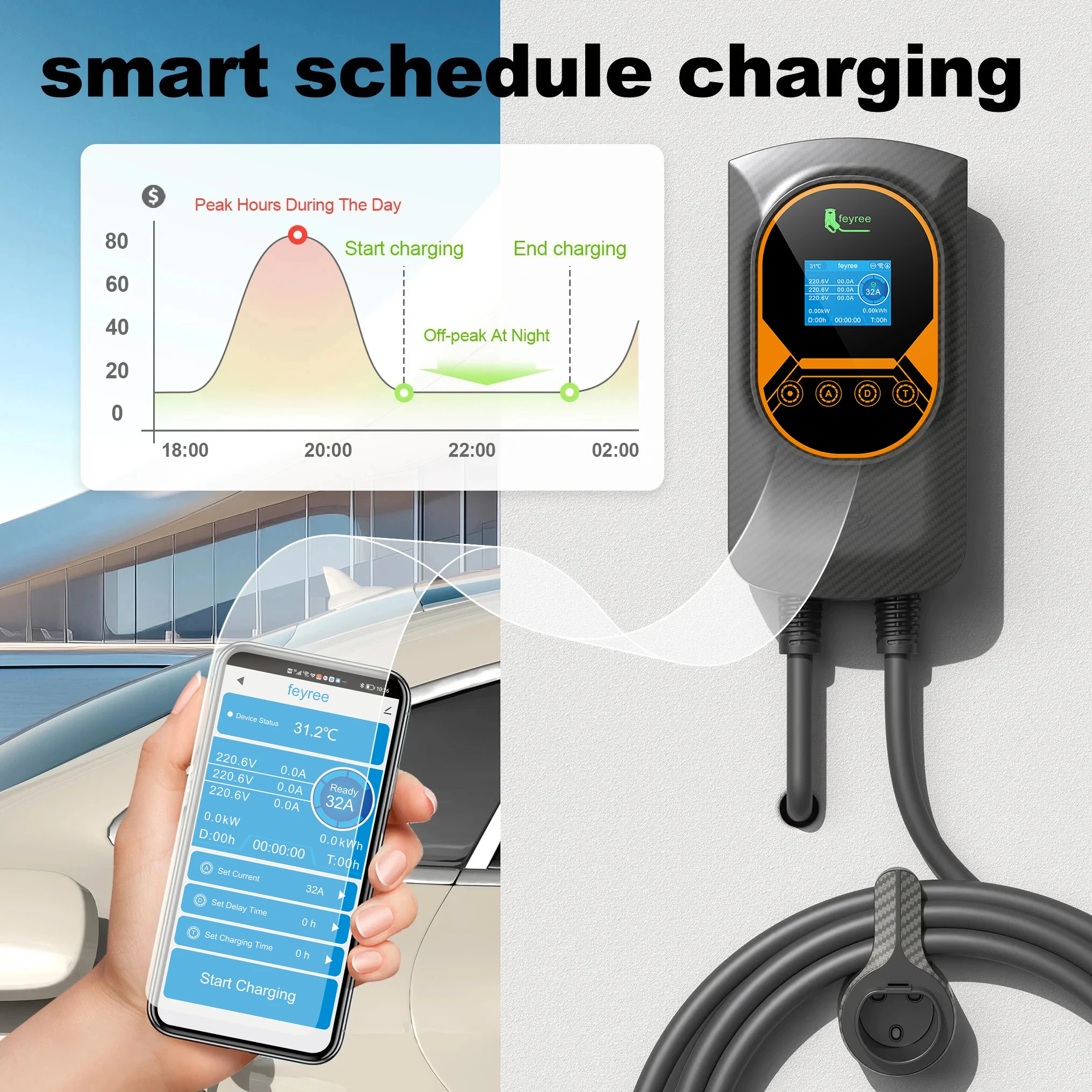

• Charging time to make an appointment

• APP WIFI version
