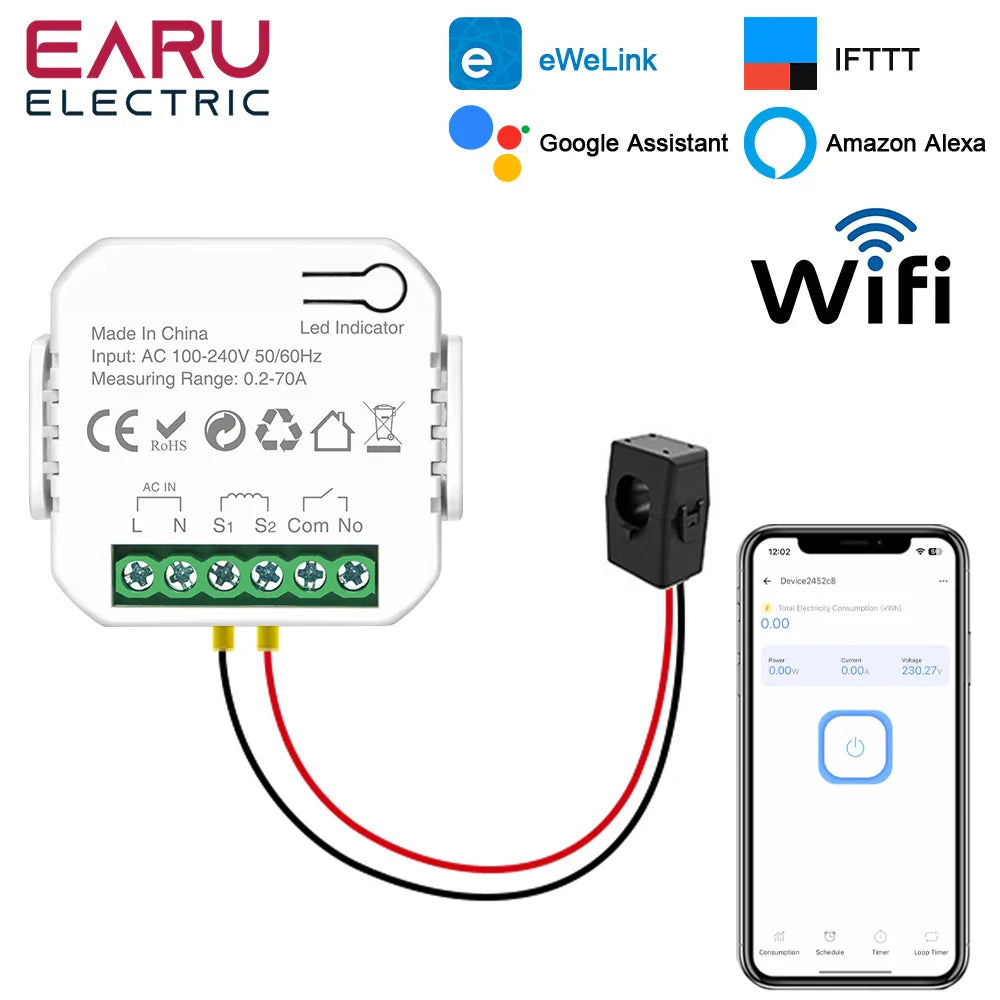

⚡ eWeLink Smart WiFi Power Energy Meter with CT Clamp AC 110V 220V Timer Relay Switch kWh Voltage Current Protector Remote Control

Discover the eWeLink Smart WiFi Power Energy Meter with CT Clamp AC 110V 220V Timer Relay Switch kWh Voltage Current Protector Remote Control — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: ±2%

App: eWeLink

Battery Included: No

Certification: CE

Choice: yes

DIY Supplies: Electrical

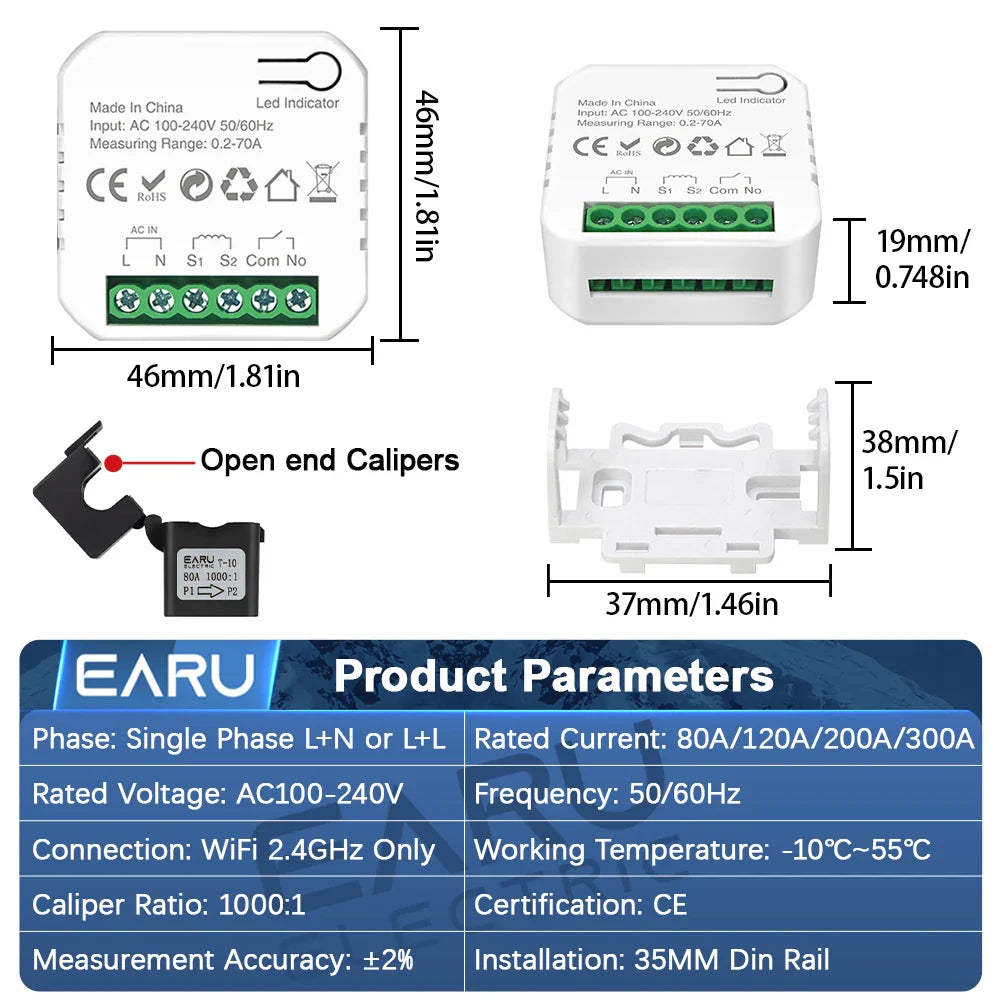

Dimensions: 46*46*19MM

Display Type: Digital Only

Frequency: 50/60Hz

Fuction 1: On/Off Switch

Fuction 2: Timer Relay Switch

Fuction 3: Voltmeter

Fuction 4: Ammeter

Fuction 5: Power Meter

Fuction 6: Current Limit

Fuction 7: Share

Fuction 8: Voice Control

Fuction 9: Power Failure Memory

High-concerned chemical: None

Installation: 35MM Din Rail

Max Operating Current: 150A & Above

Max.Current: 0.1A-70A

Max.Power: 1W-15000W

Max.Voltage: 1V-240V

Measuring Energy Range: 999999.99kWh

Min.Power: 0.1W-15000W

Min.Voltage: 0.1V-240V

Model Number: EASEM-F-EWE

Operating Temperature: -10~55℃

Origin: Mainland China

Output Voltage: AC100-240V

Phase: single phase

Power Supply: AC

Protocol: WiFi 2.4GHz Only

Rated Current: 80A/120A/200A/300A

Rated Voltage: 240V

Working Voltage: AC100-240V

semi_Choice: yes

1.Current Litmit(0.1A-70A Adjustable)

2.Min.Power(0.1W-15000W Adjustable)

3.Max.Power(1W-15000W Adjustable)

4.Min.Voltage(0.1V-240V Adjustable)

5.Max.Voltage(1V-240V Adjustable)

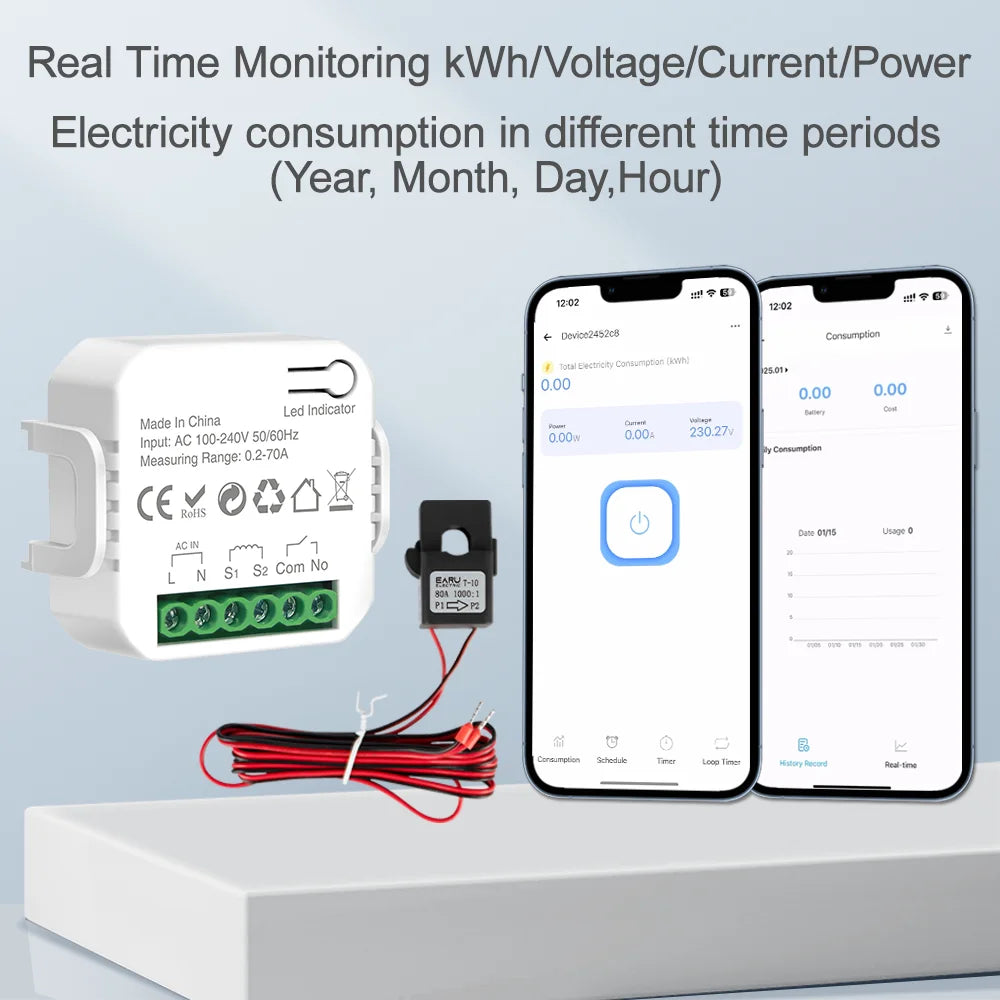

6.Energy Monitor

7.Timer Switch

8.Remote Control ON/OFF

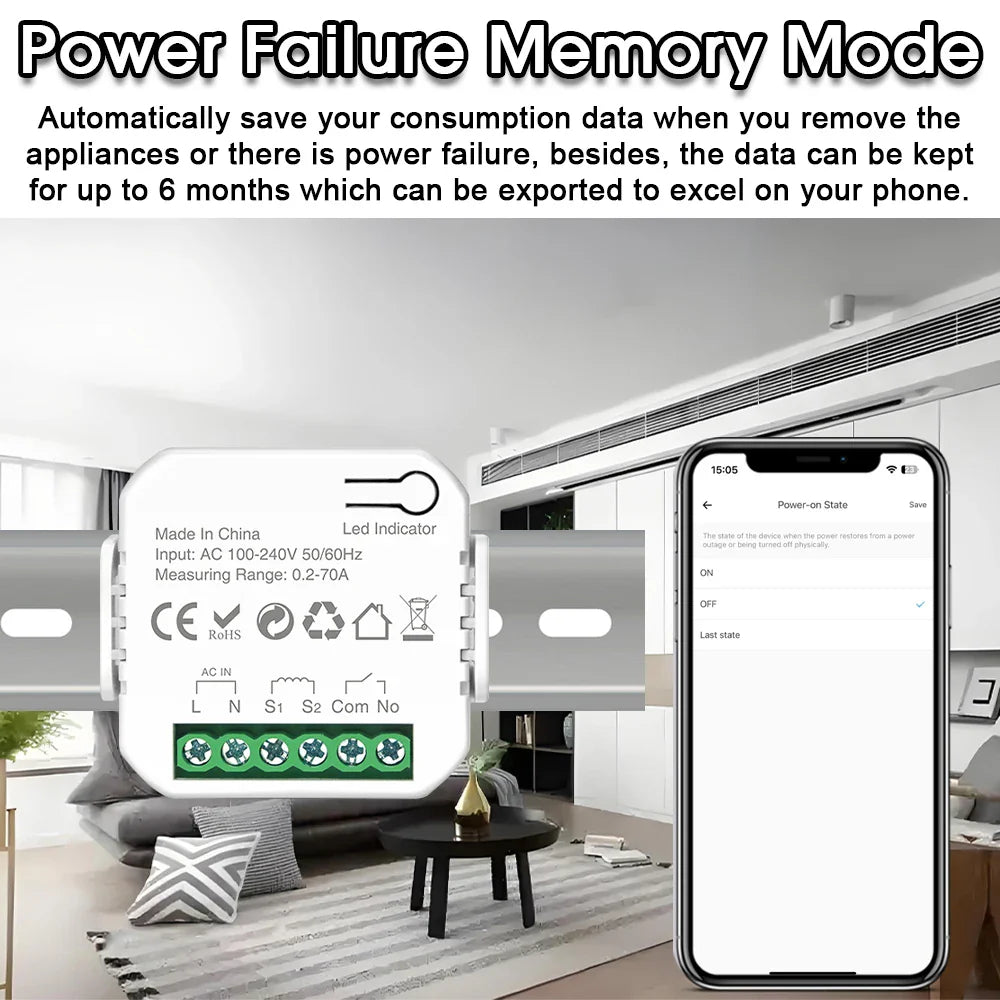

9.Power Failure Memory

10.On-Off Function

Note:

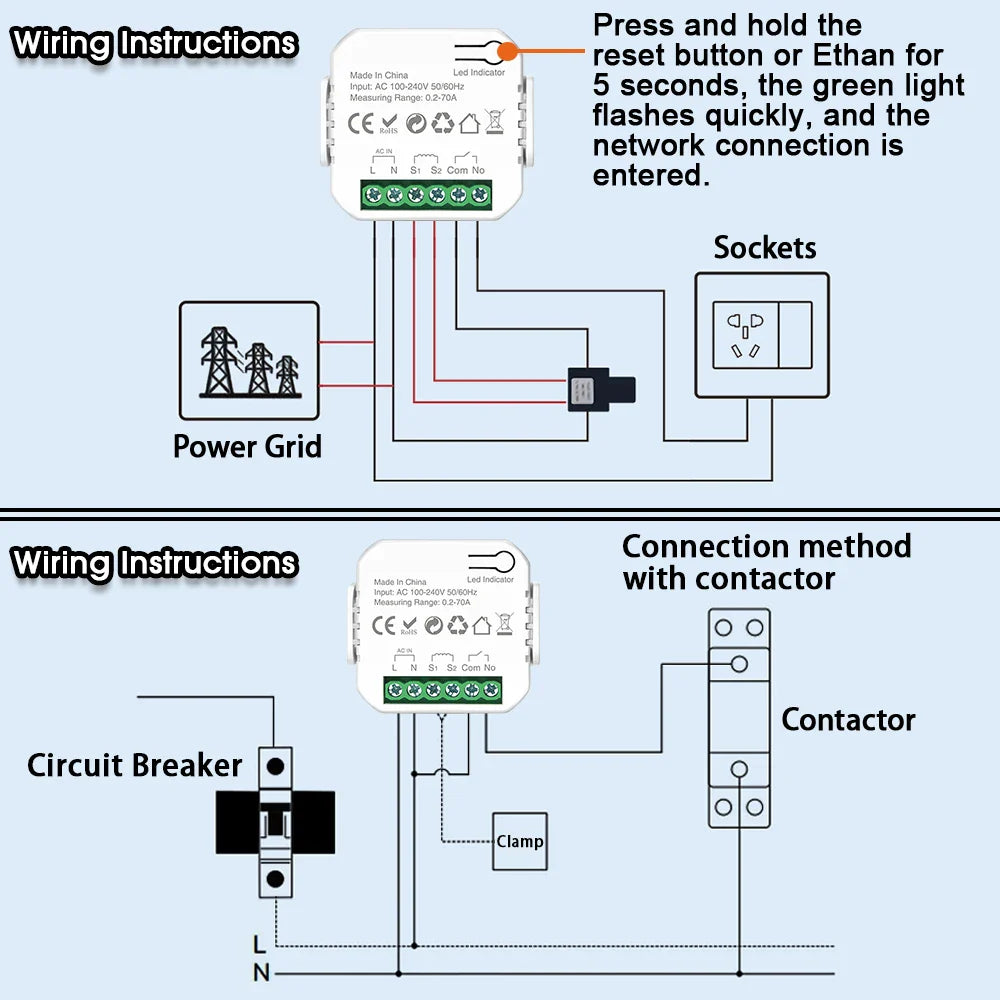

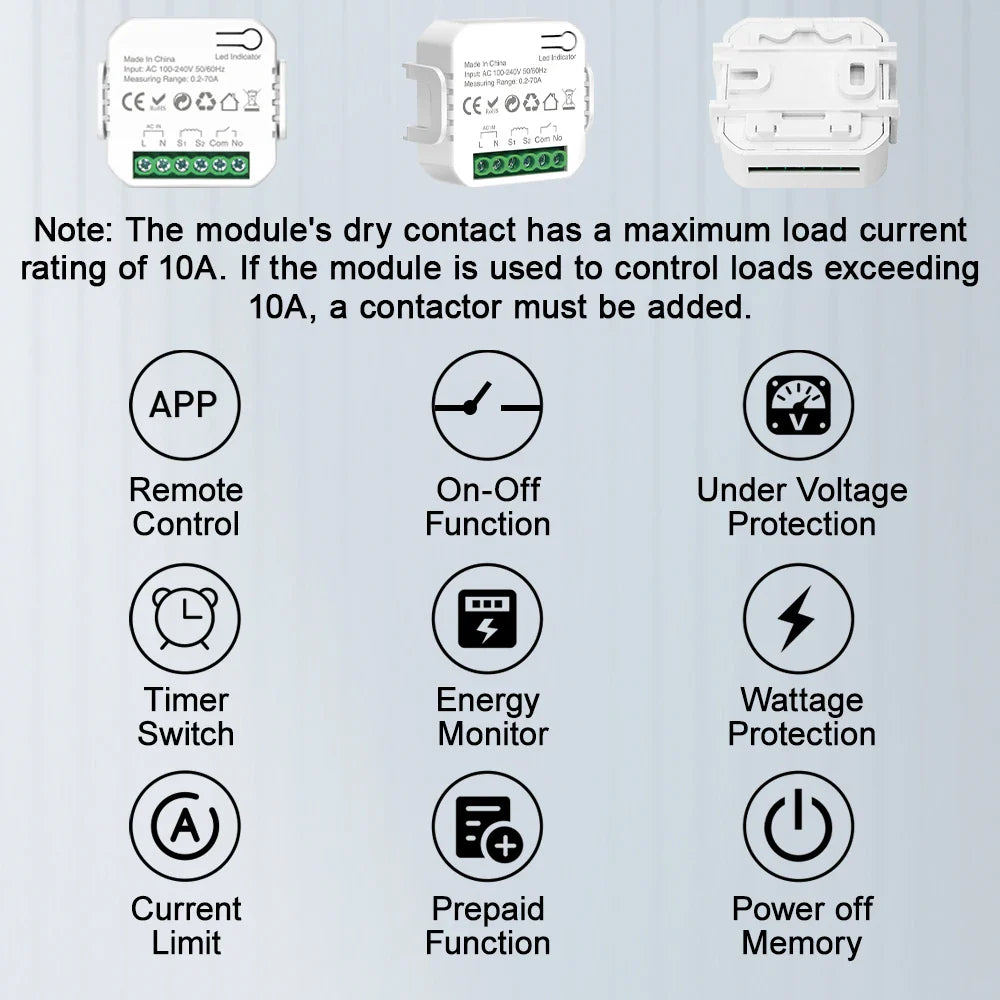

1.The module's dry contact has a maximum load current rating of 10A. If the module is used to control loads exceeding 10A, a contactor must be added.

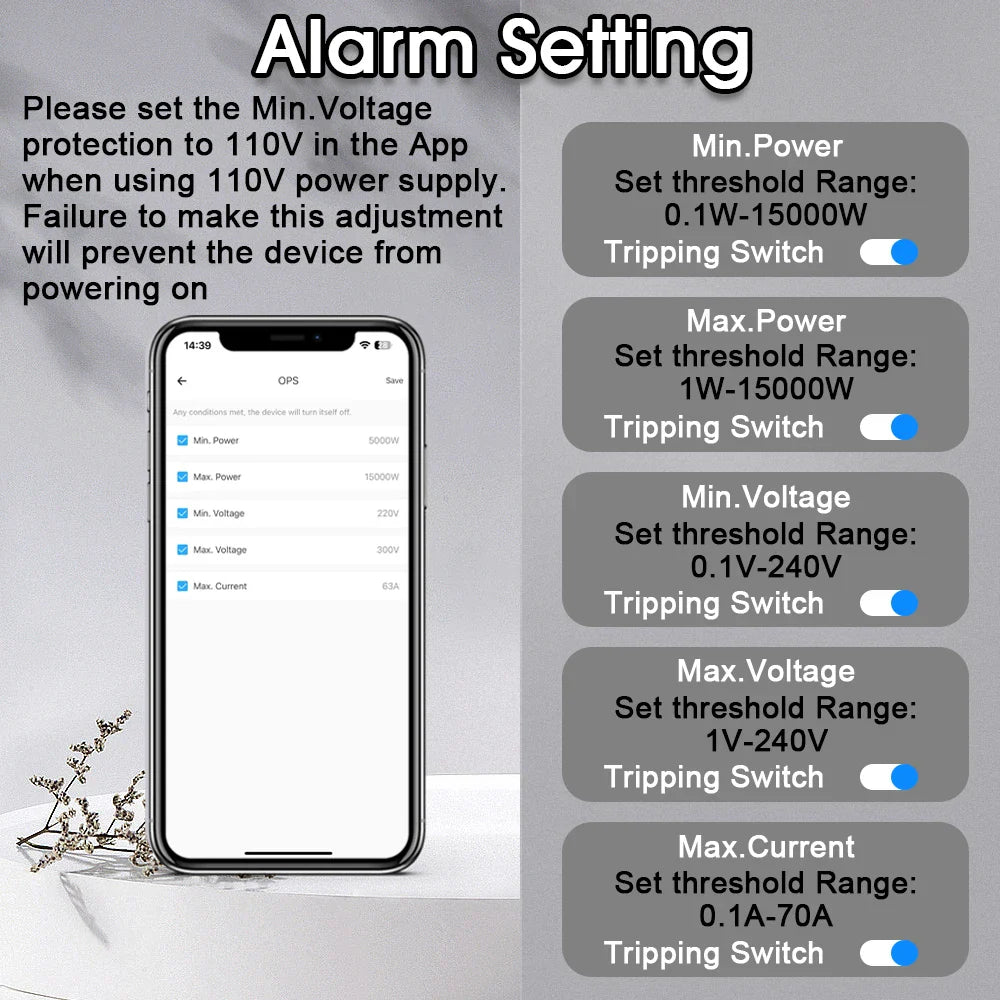

2.Please set the Under-Voltage protection to 110V in the App when using 110V power supply. Failure to make this adjustment will prevent the device from powering on

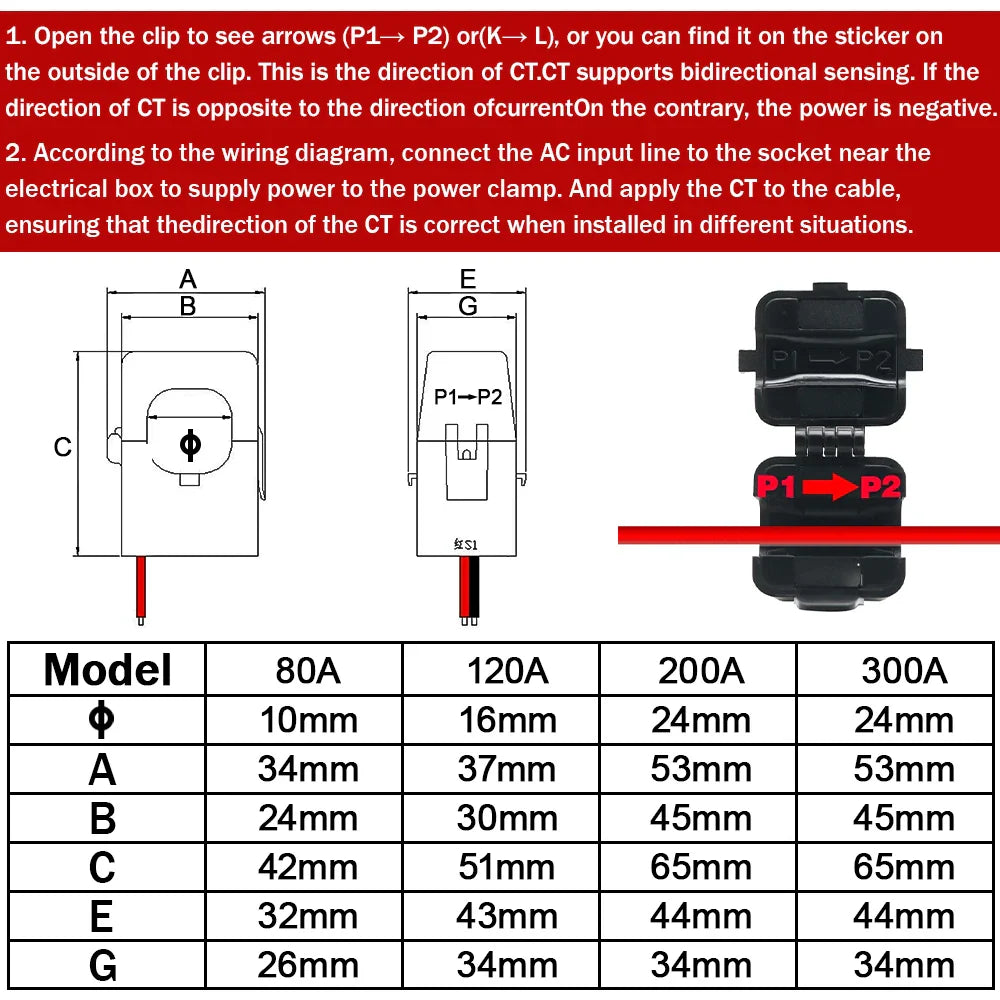

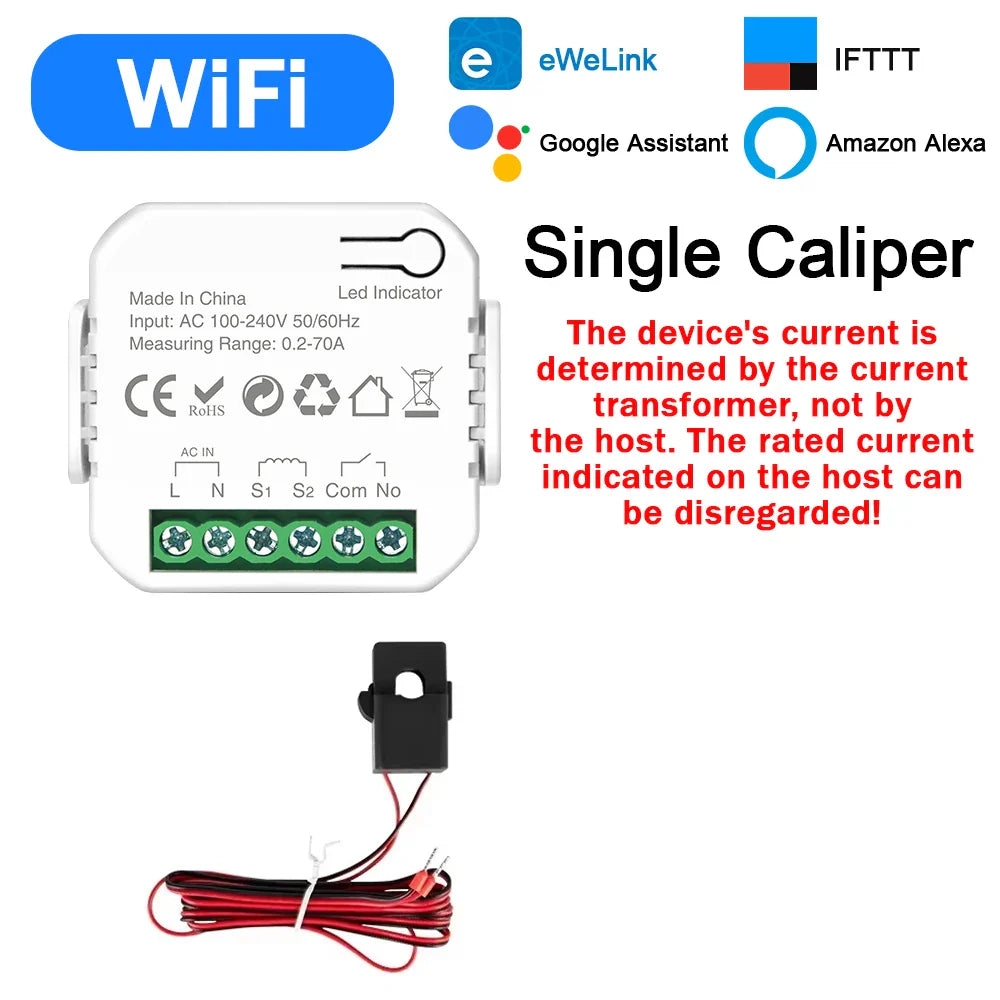

3.The device's current is determined by the current transformer, not by the host. The rated current indicated on the host can be disregarded for reference!

Rated Current: 80A/120A/200A/300A

Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support

Support System: Android/IOS

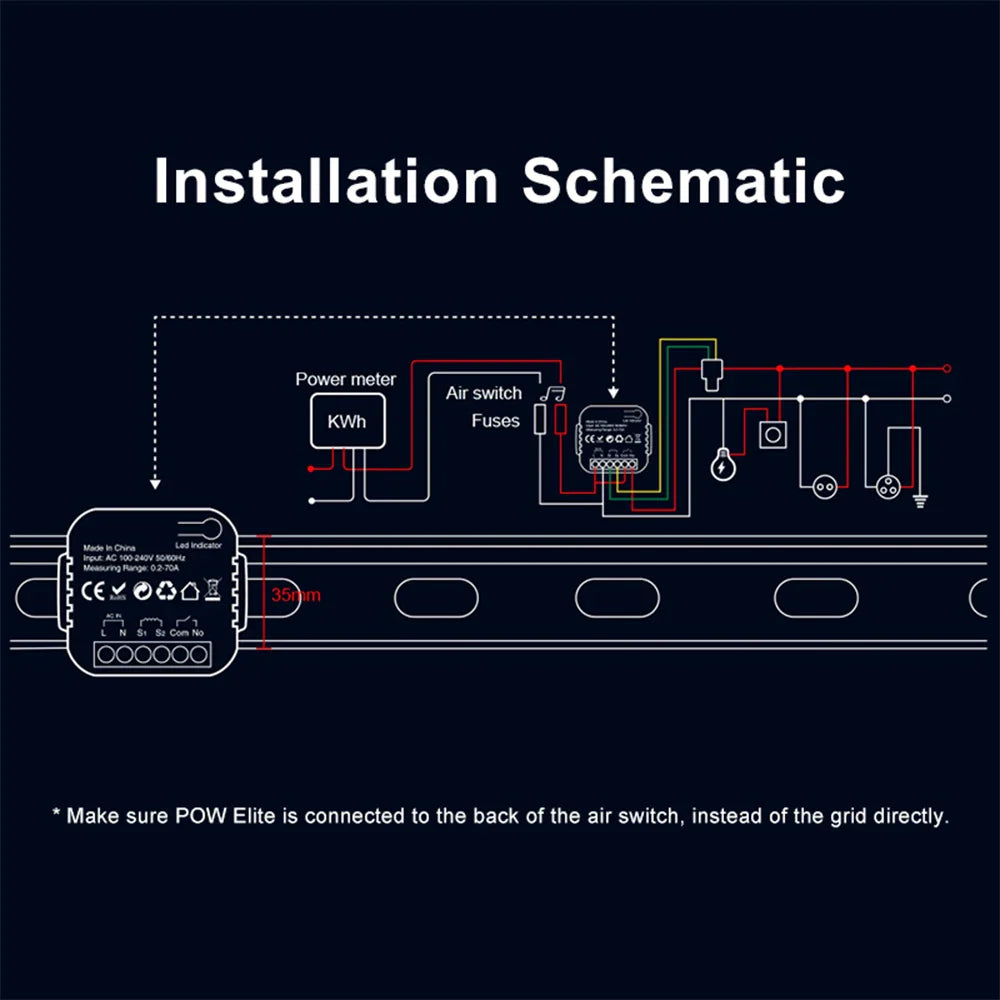

Installation: 35MM Din Rail

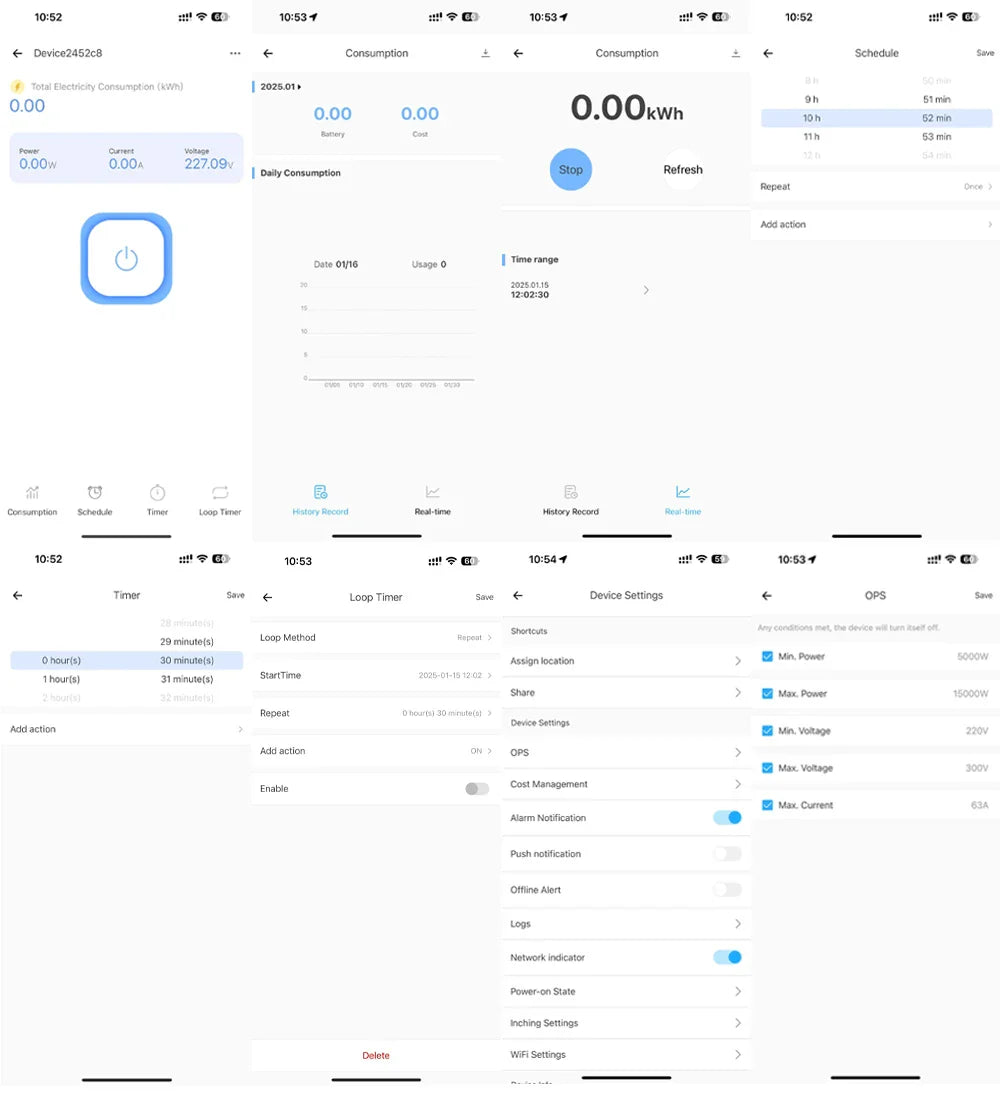

Remote control at anytime from anywhere your mobile phone can get Internet signal by eWeLink App, no distance limit

Voice Control by Amazon Alexa Echo/Google Assistant
