⚡ Din Rail AC Monitor 110V 220V Voltage Current Power Factor Active kWh Reset Zero Electric Energy Frequency Meter Voltmeter AMP
Discover the Din Rail AC Monitor 110V 220V Voltage Current Power Factor Active kWh Reset Zero Electric Energy Frequency Meter Voltmeter AMP — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.
📌 Key Features
- ✅ Professional-grade design for long-term reliability
- ✅ Optimized for renewable energy system integration
- ✅ Durable construction for various applications
- ✅ Comprehensive technical specifications
📄 Technical Specifications
Accuracy Class: ±1%
Battery Included: No
Certification: CE
Choice: yes
DIY Supplies: Electrical

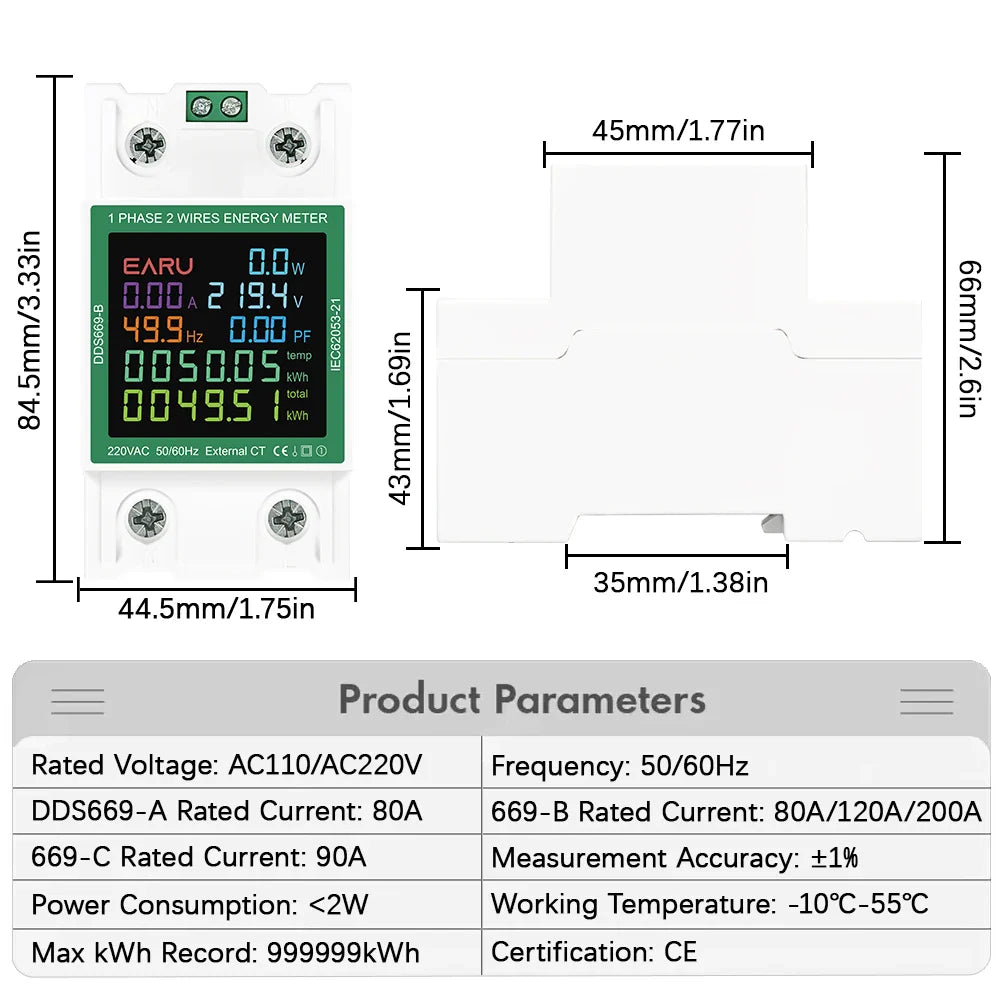

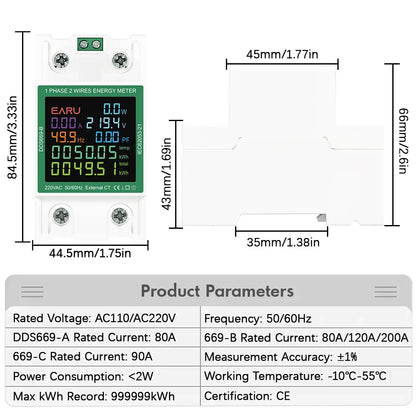

Dimensions: 84.5*44.5*66mm

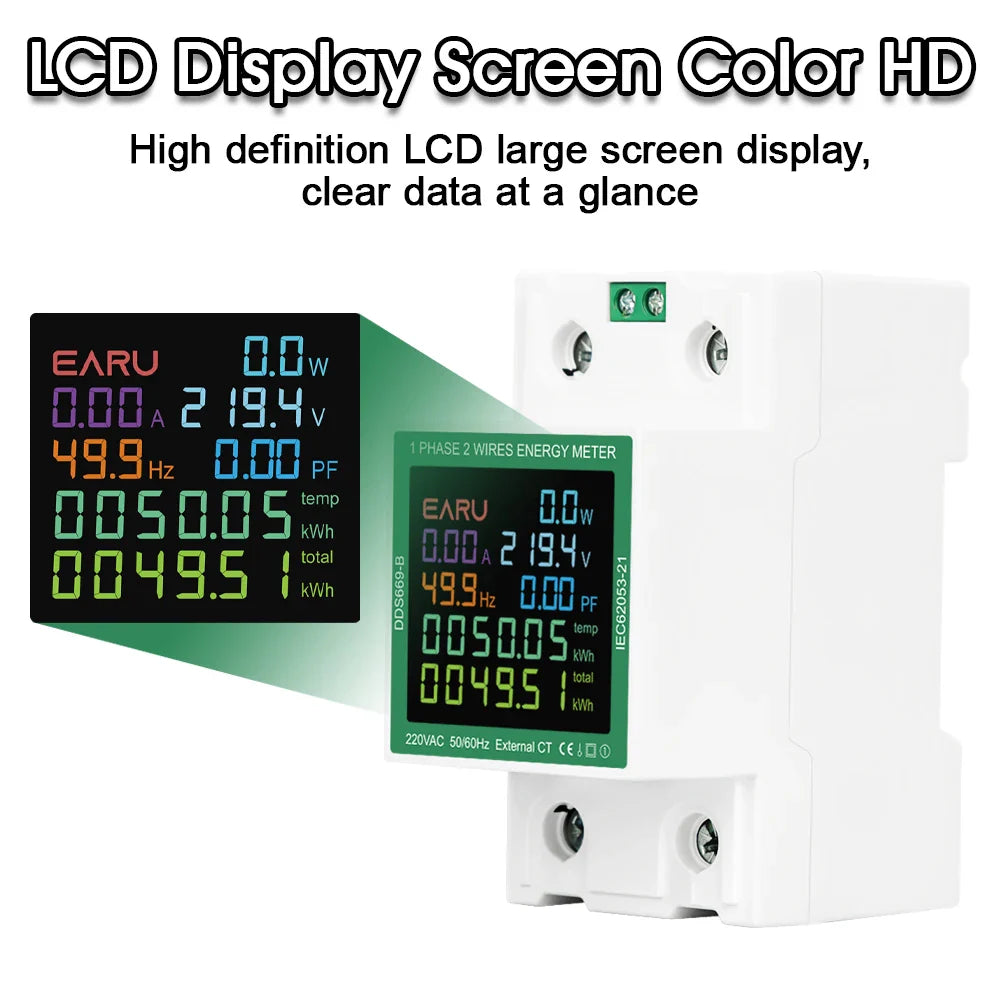

Display Type: LCD
Frequency: 50Hz/60Hz
Fuction 1: Voltage
Fuction 10: Temporary kWh Data Zero Clearing
Fuction 2: Current
Fuction 3: Power
Fuction 4: Frequency
Fuction 5: Power Factor
Fuction 6: History Total kWh
Fuction 7: Temporare kWh
Fuction 8: Forwarder kWh
Fuction 9: Reverse kWh
High-concerned chemical: None
Installation: 35MM Din Rail
Max Operating Current: 150A & Above
Measuring Energy Range: 99999.9
Model Number: DDS669
Operating Temperature: -10 to 55°C
Operating Voltage 1: AC220V/230V
Operating Voltage 2: AC110V
Origin: Mainland China
Output Voltage: AC110V/220V
Phase: single phase
Power Consumption: <2W
Power Supply: AC
Rated Voltage: 220V
Working Humidity: 5%~95%RH
Working Temperature: -10℃~+55℃
semi_Choice: yes

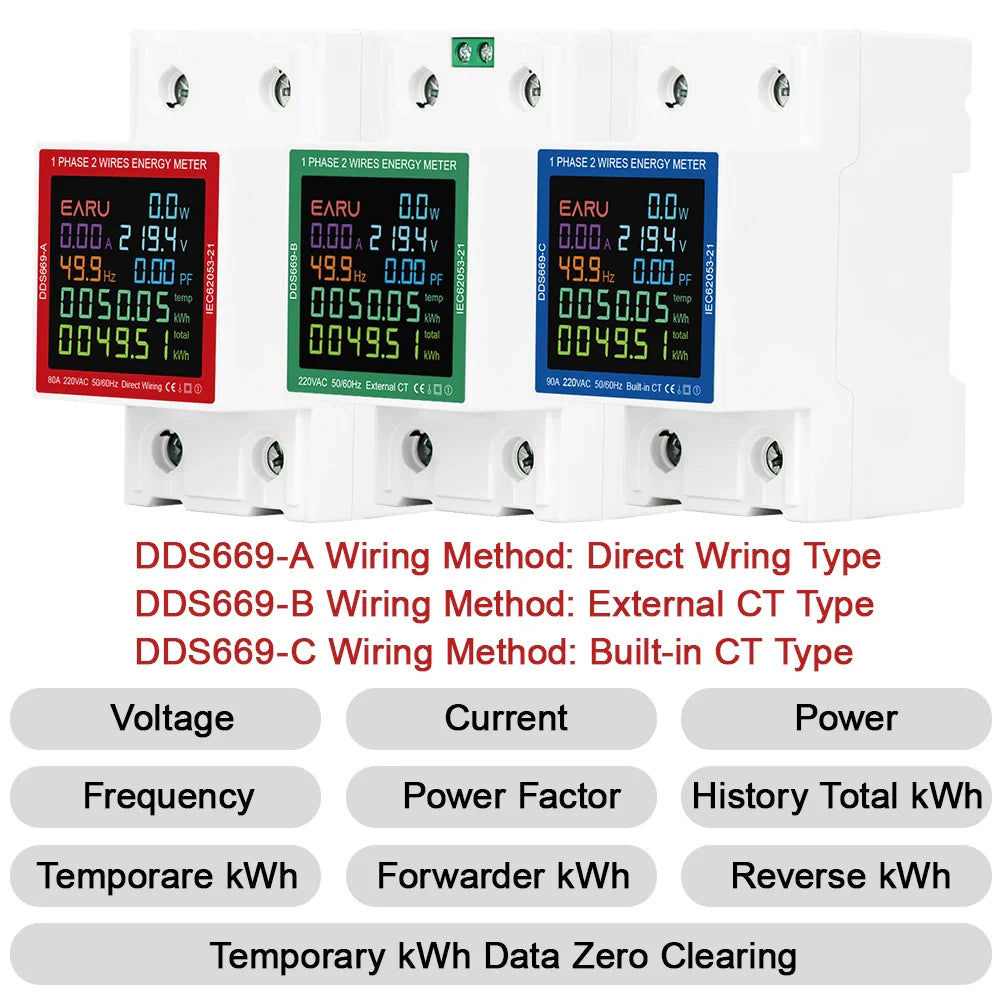

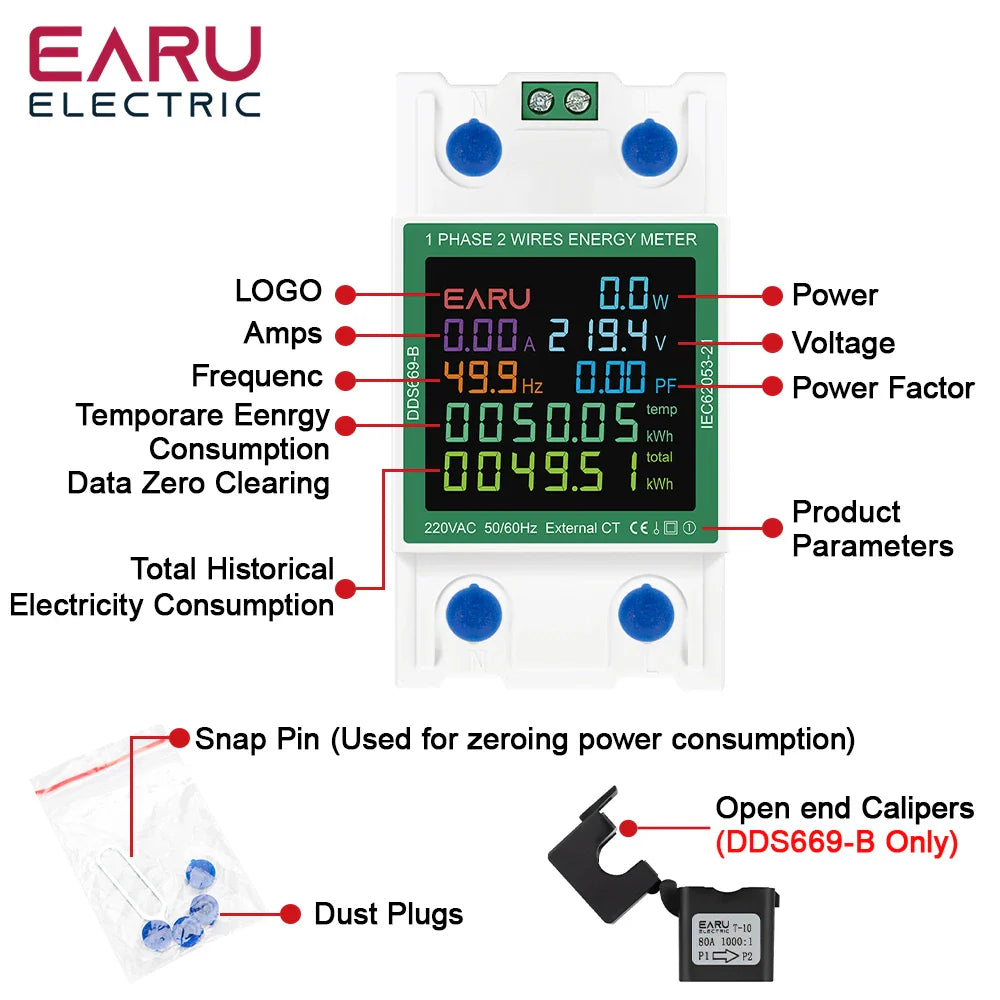

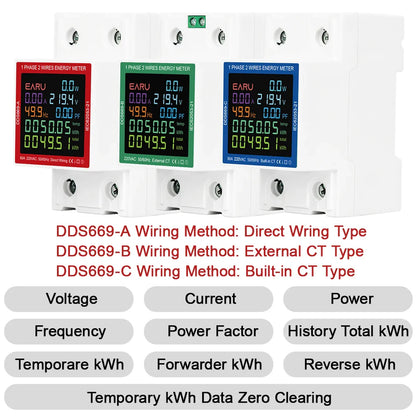

Functions:
1. Voltage
2. Current
3. Power
4. Frequency
5. Power Factor
6. History Total kWh
7. Temporare kWh
8. Forwarder kWh
9. Reverse kWh

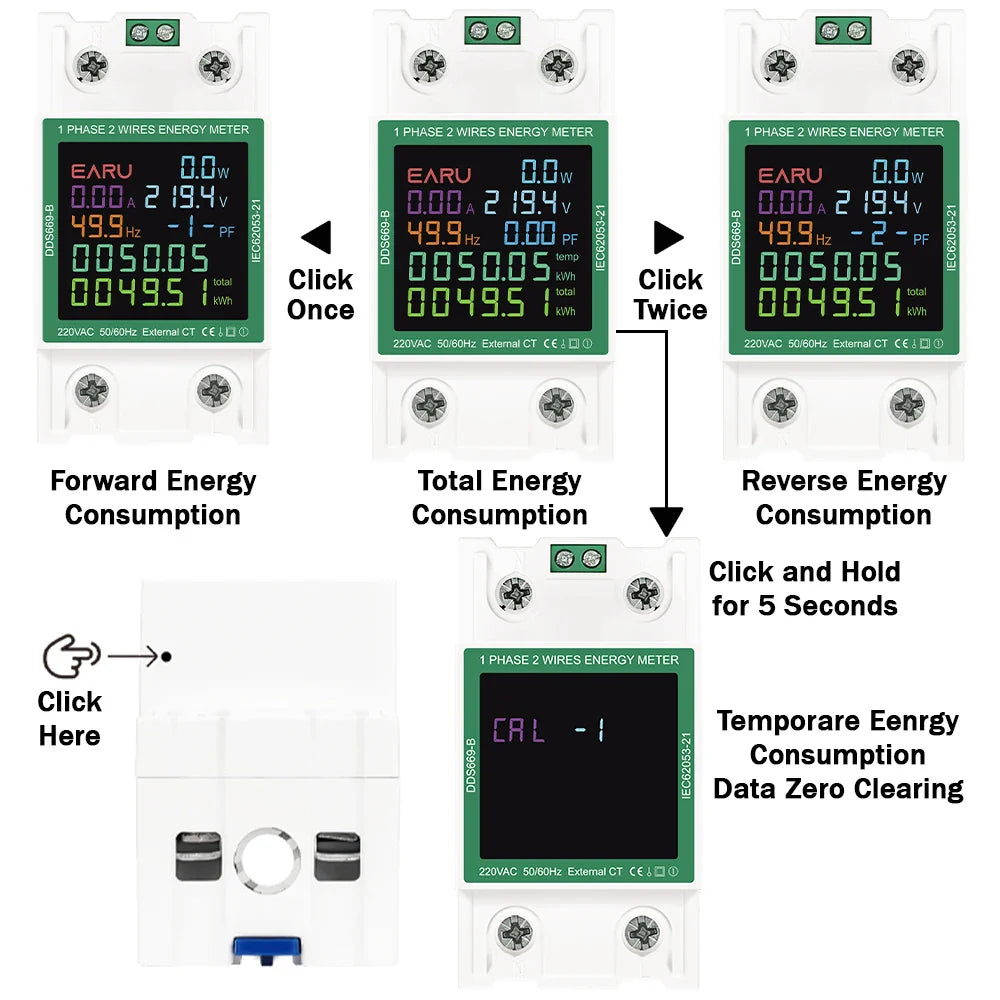

10. Temporary kWh Data Zero Clearing
Technical Data:
Rated Voltage: AC110V/220V
Frequency: 50/60Hz
Measurement Accuracy: ±1%/Class 1
Data Fresh Speed: 1 Time/S
Power Consumption: <2W

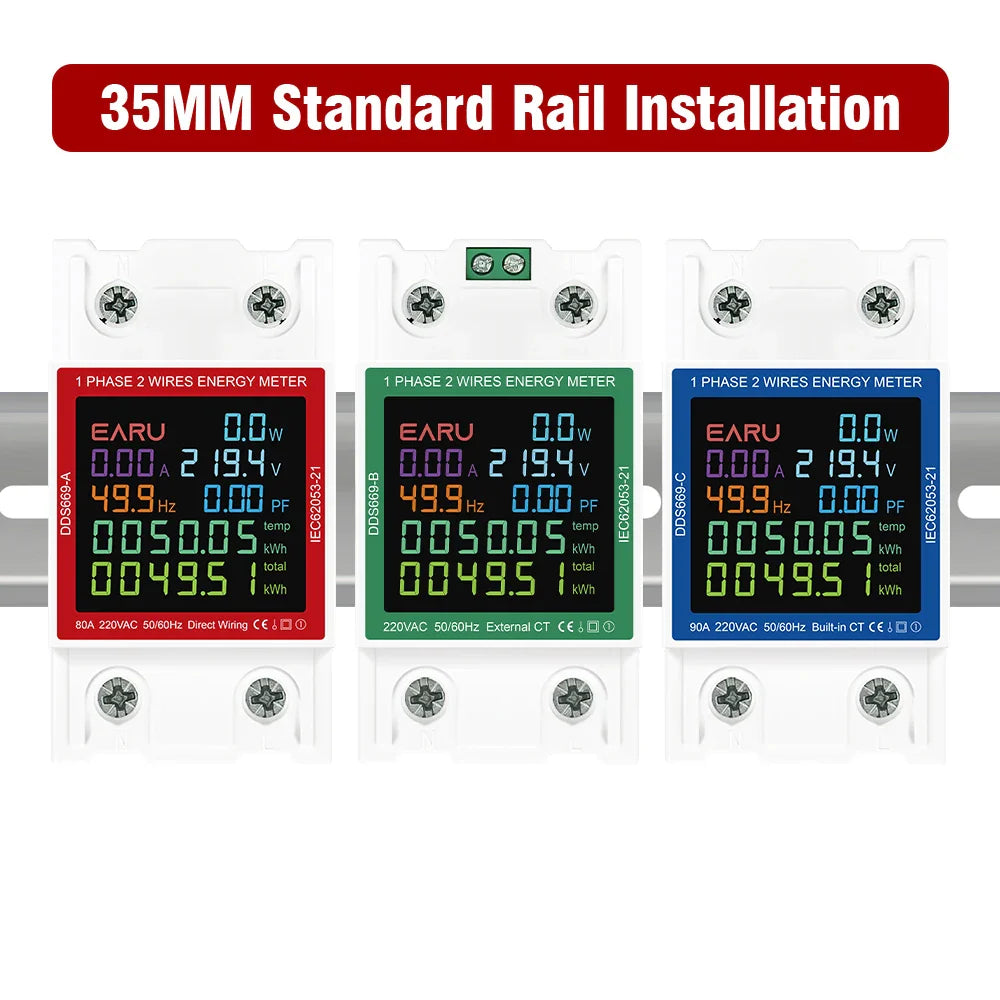

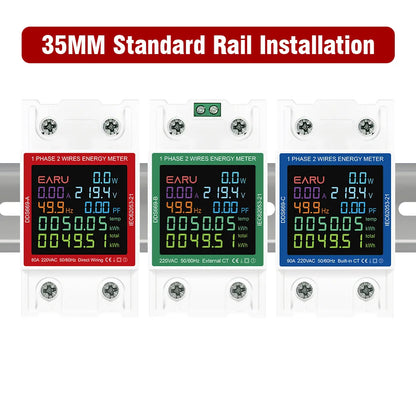

Installation: 35MM Din Rail
Working Temperature: -10℃~+55℃
Storage Temperature: -40℃~+70℃
Working Humidity: 5%~95%RH
Display Type: LCD
Max kWh Record: 999999kWh
Display Working Time: Always On
Load Capacity: 0.051b-lmax
Standard: IEC62053-21&GB/T17215.321-2008
Certificate: CE
