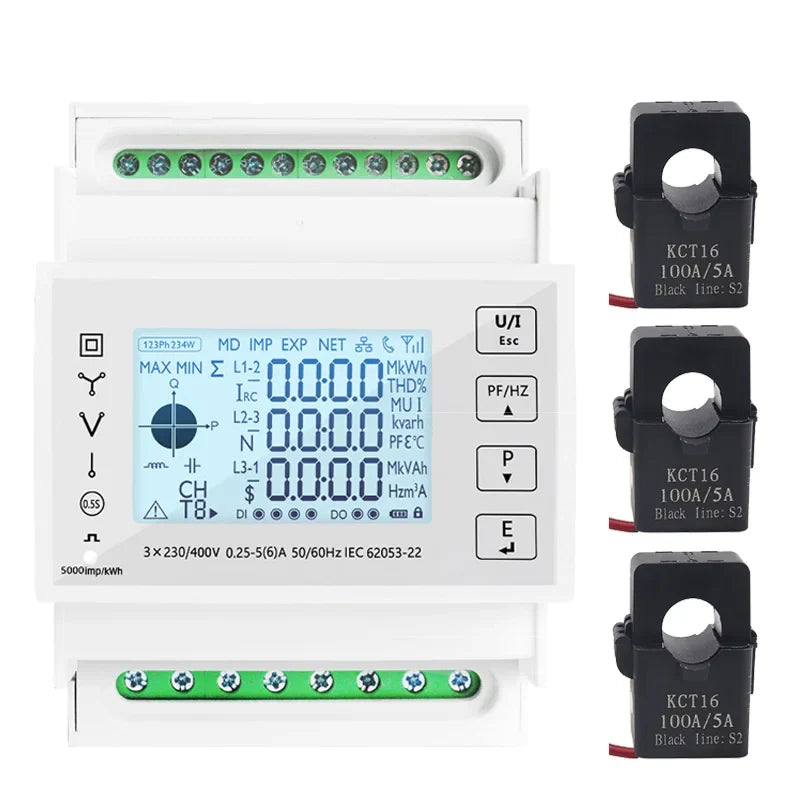

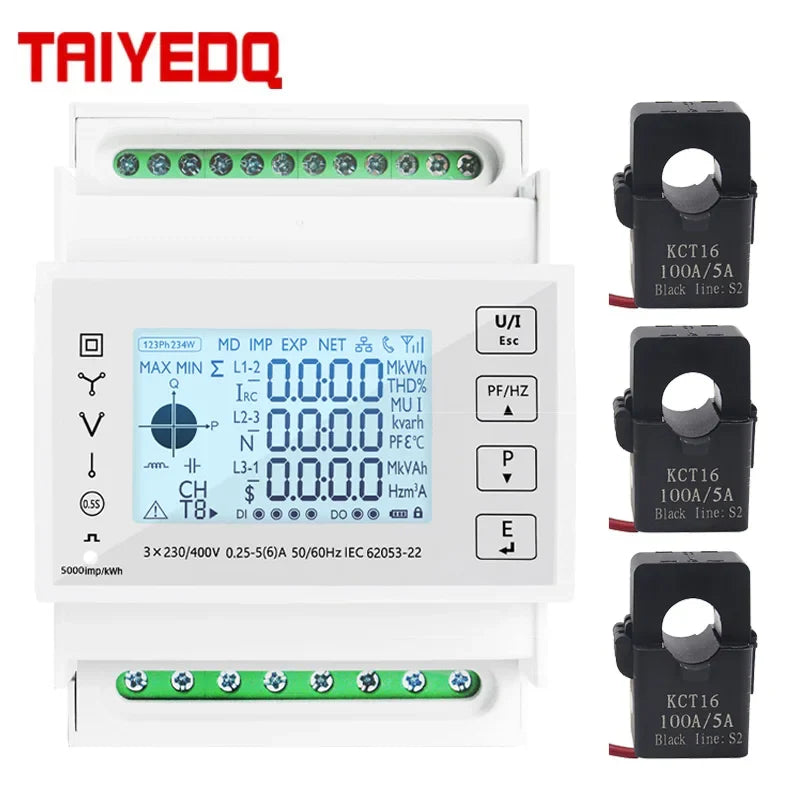

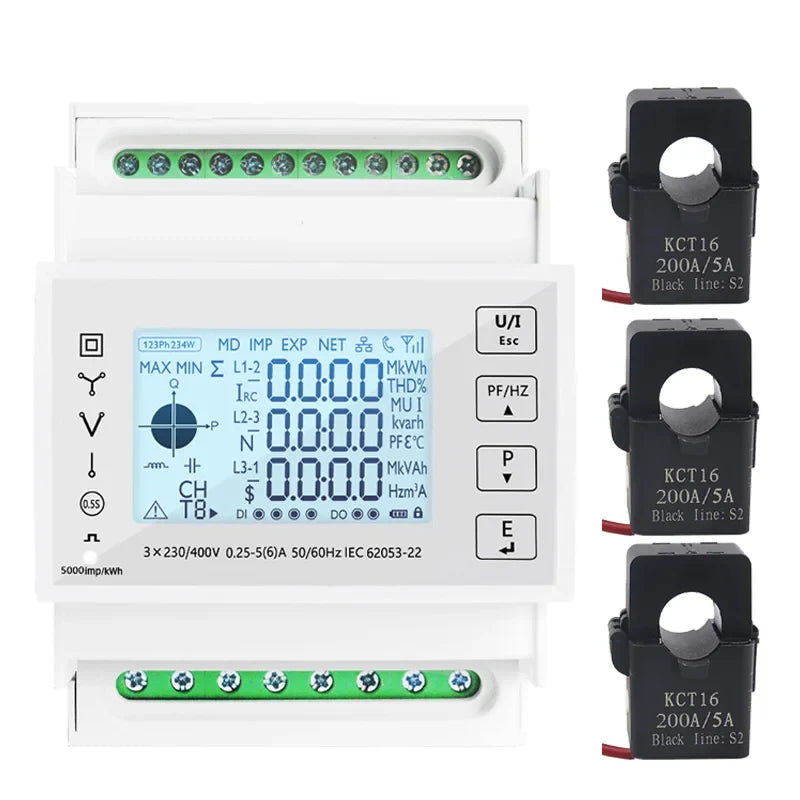

⚡ Din Rail 3 Phase Energy Monitor Consumption Power Meter kwh Ammeter With 3PCS RS485 Modbus 50/100/15/200CT 230VAC

Discover the Din Rail 3 Phase Energy Monitor Consumption Power Meter kwh Ammeter With 3PCS RS485 Modbus 50/100/15/200CT 230VAC — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: 1

Battery Included: No

Certification: None

Choice: yes

DIY Supplies: Electrical

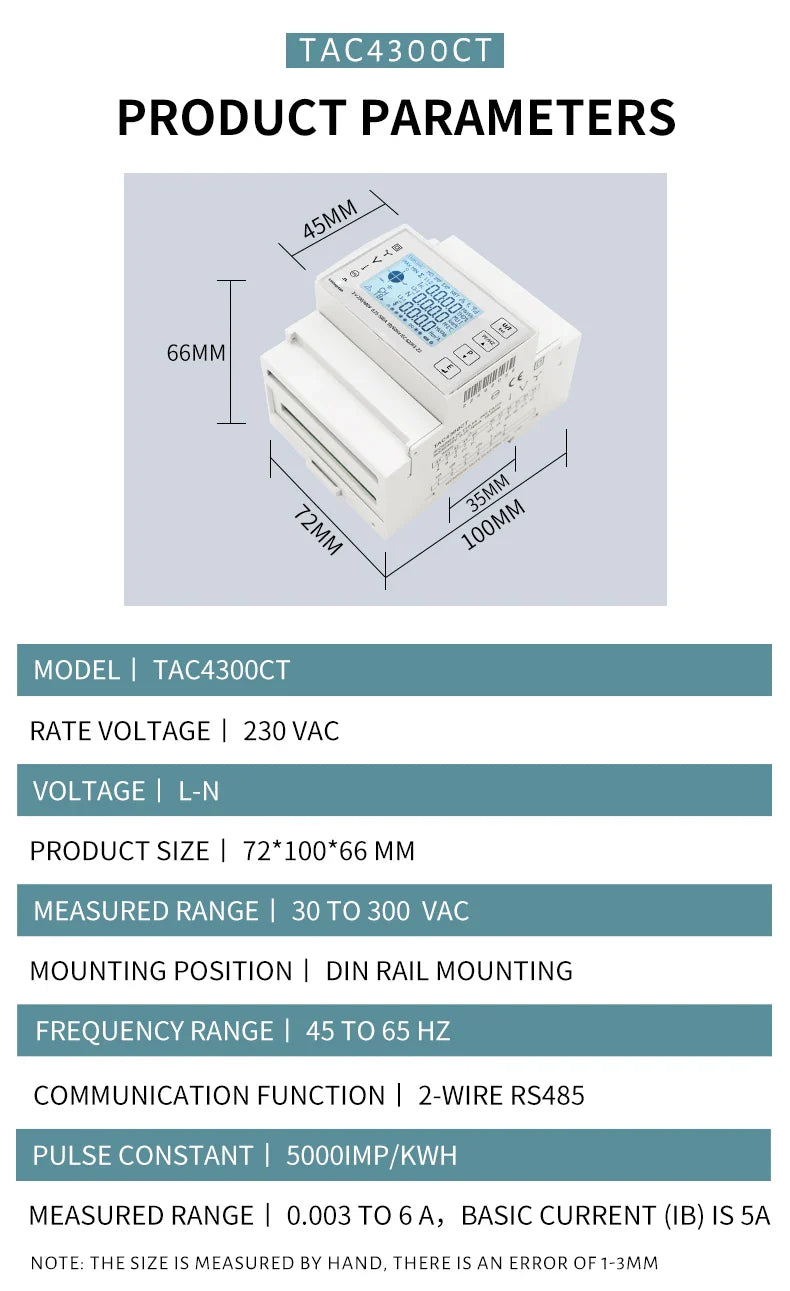

Dimensions: 72 x 100 x 66 mm

Display Type: LCD

Hign-concerned Chemical: None

Max Operating Current: 19A & Under

Measuring Energy Range: 99999999.999 kWh

Model Number: TAC4300CT

Operating Temperature: -25 to +55℃

Origin: Mainland China

Phase: Three Phase

Power Source: AC

Power Supply: AC

Rated Voltage: 230V

TAIYEDQ Model: TAC4300CT

semi_Choice: yes

Please note that the maximum current of TAC4300CT is 5A. If you want to measure the current>5A, please use the transformer!!!

🛡️ Why Trust Us

Every product listing is technically reviewed for accuracy by our specialized renewable energy team. We offer a curated catalog of high-quality products across solar, wind, battery storage, and EV charging categories. All purchases are processed securely, backed by our 30-day return policy.

• ✅ Verified technical specifications on every product
• ✅ Secure checkout with encrypted payment processing
• ✅ 30-day return policy for peace of mind
• ✅ Worldwide shipping with order tracking

❓ Frequently Asked Questions

❓ 1 - Do you provide installation services?
No. We do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions. We recommend consulting a certified local professional.

🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers in North America, Europe, and Asia, with delivery times between 7 to 21 business days.

⏳ 3 - What is the estimated delivery time?
Standard delivery takes 7 to 21 business days. Tracking is provided once your order ships.

💳 4 - What payment methods do you accept?
We accept all major credit and debit cards processed securely. Apple Pay and Google Pay are also available at checkout.

📄 5 - Where can I find detailed technical specifications?
All technical specs, dimensions, and compatibility info are on this product page above.

❓ 6 - Can I request a quote or estimate?
No quote is necessary. All products are available for direct purchase with transparent, upfront pricing.

🖼️ Product Images

Description

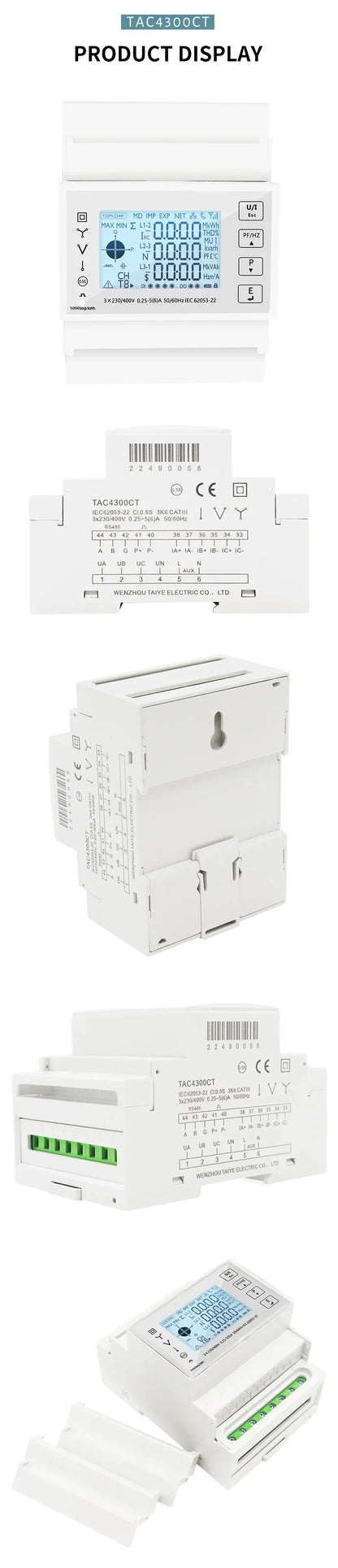

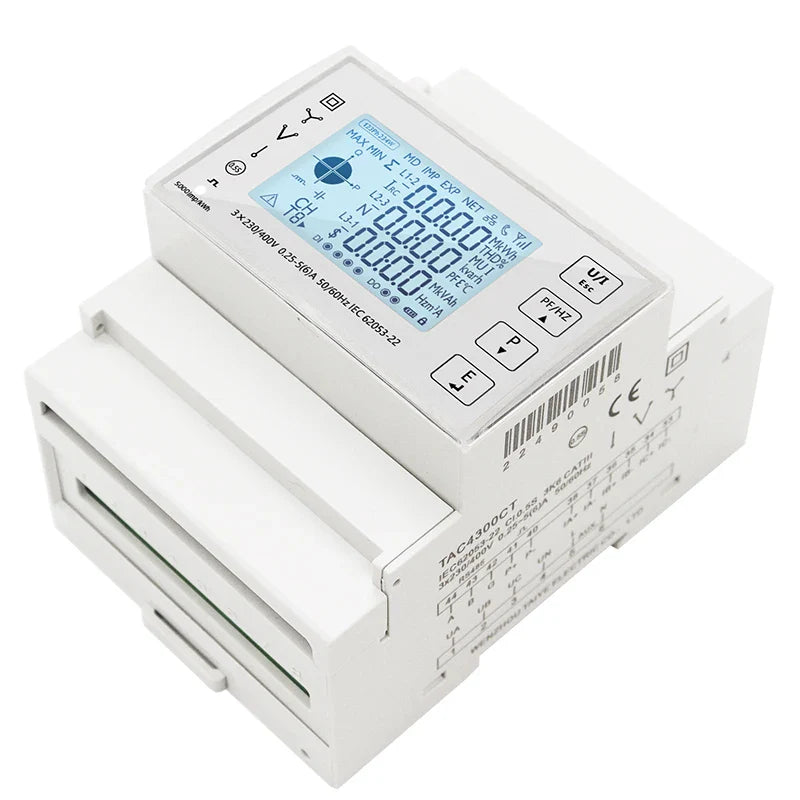

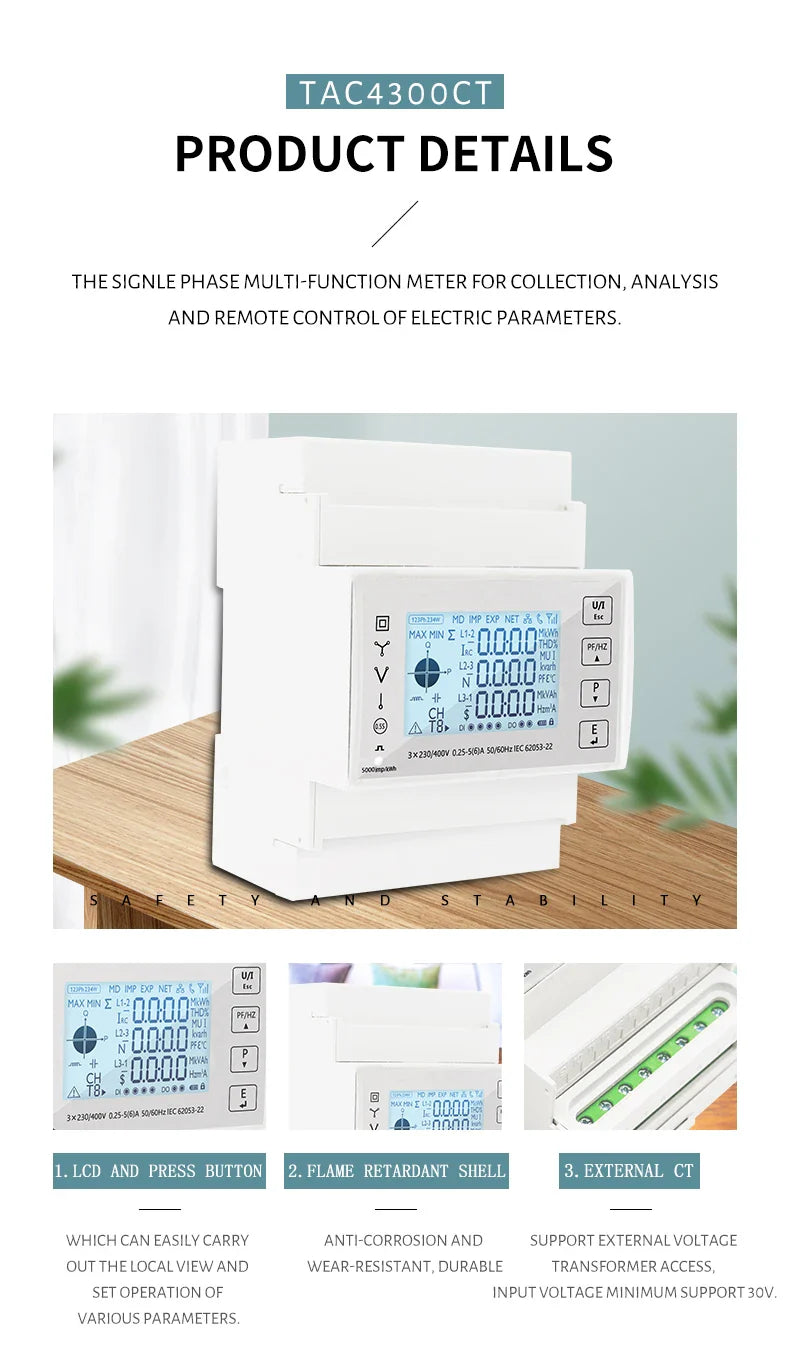

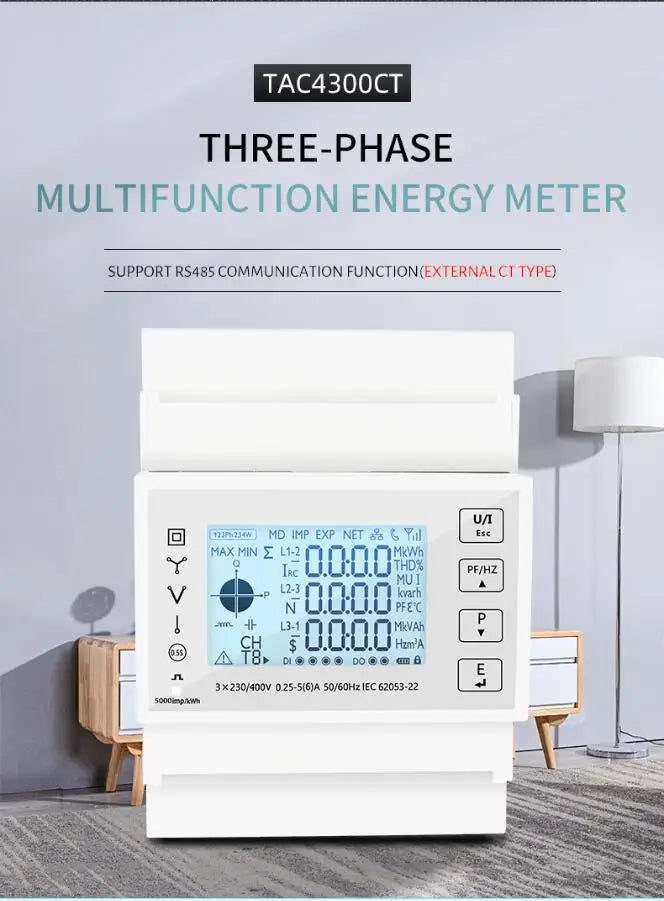

TAC4300CT series products are three phase DIN rail installation mutil-function energy meter.This series of products can support measurement and analysis of variety of power parameters,such as voltage, current, the four quadrant power parameters, power factor, harmonic content etc. ; Meanwhile they also can provide the measurement of multiple electric energy parameters , such as two way active energy, reactive energy, monthly and daily electricity consumption statistics.This series of products also can support the analysis of electric power parameter measurement in 1P2W,3P4W,3P3W grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis,real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.This series of products with RS485 or MBUS communication interface, baud rate maximum support 38400bps, supporting Modbus, MBUS communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of varity parameters. The product has the function of password protection, which ensures the data security of the product.

TAC4300CT series products are multi-functional electric energy meters designed for electric energy monitoring of photovoltaic inverter, statistical analysis of new energy electricity consumption, power monitoring needs of power system utilities and intelligent buildings. Its complete communication function is very suitable for various control systems, SCADA systems and energy management systems.

Characteristics

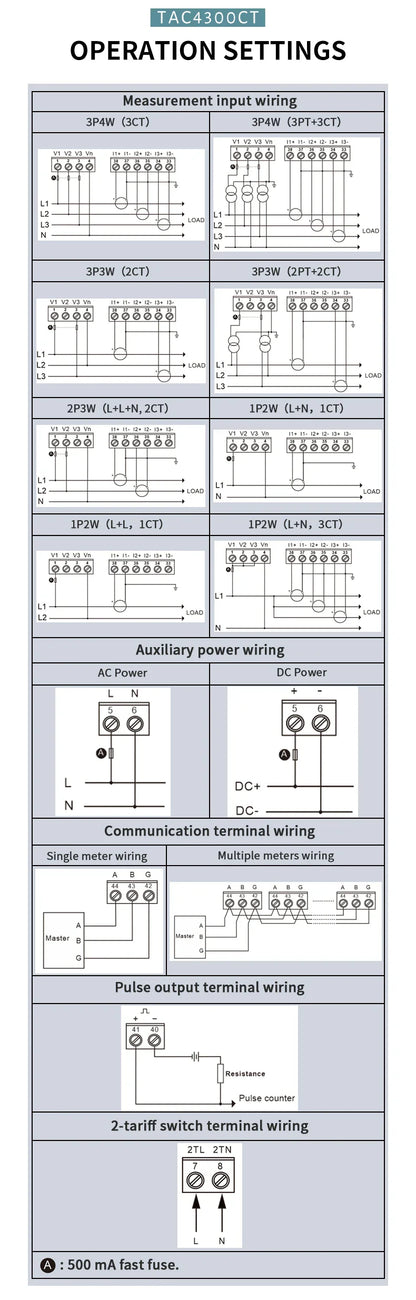

1、External current transformers of output types such as 5A/100mV/100mA are supported, and direct access of Rogowski coil is also supported. With the current transformer reverse connection correction function.

2、Support external voltage transformer access, input voltage minimum support 30V.

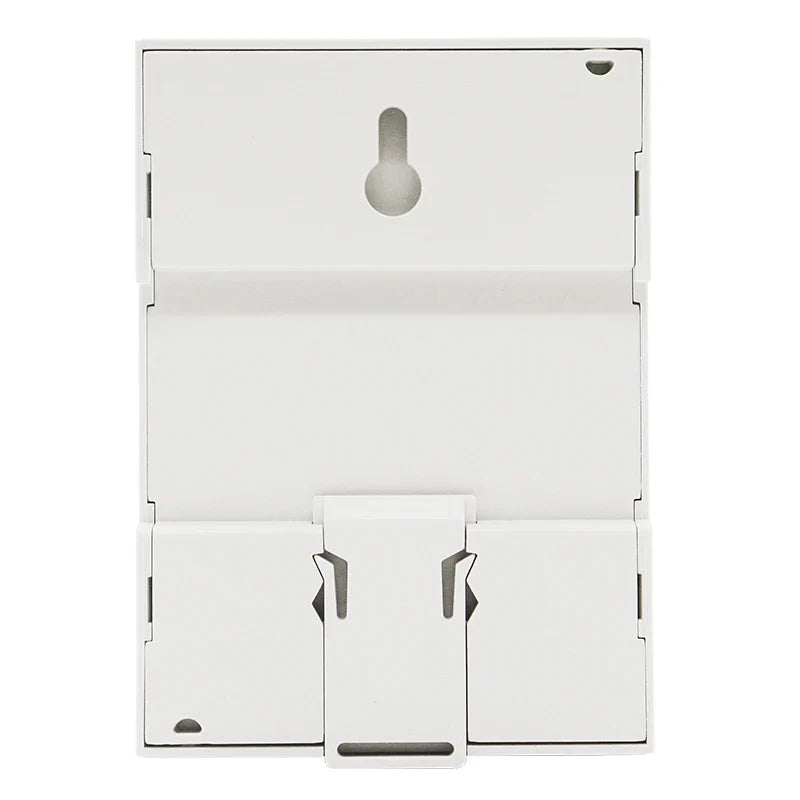

3、DIN Rail mounting, standard 4 modulus width.

4、Touch button design improves button operability and reduces button failure rate

5、Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc.

6、To provide the analytical data of the total harmonic contents of voltages and currents

7、Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data. Provide monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days

8、supports the dual-timing function of the meter startup running time and load running time.

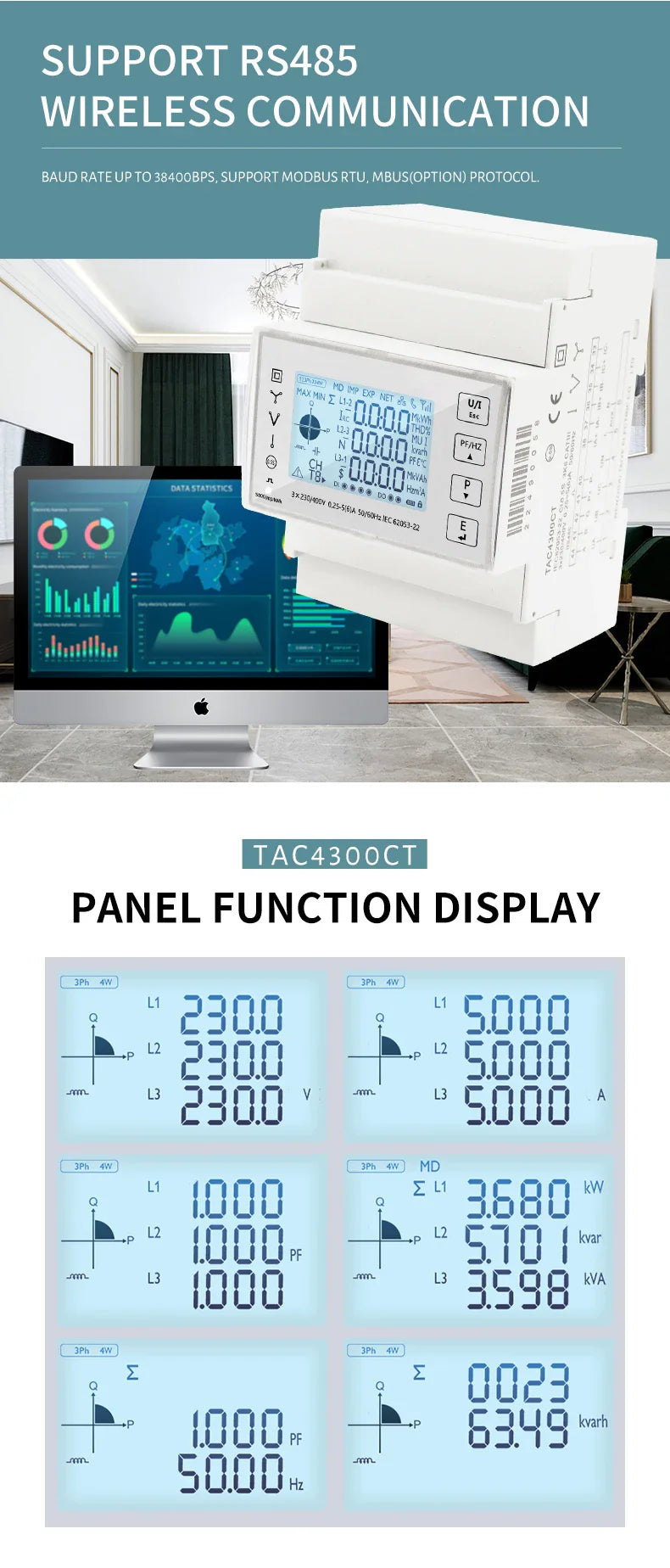

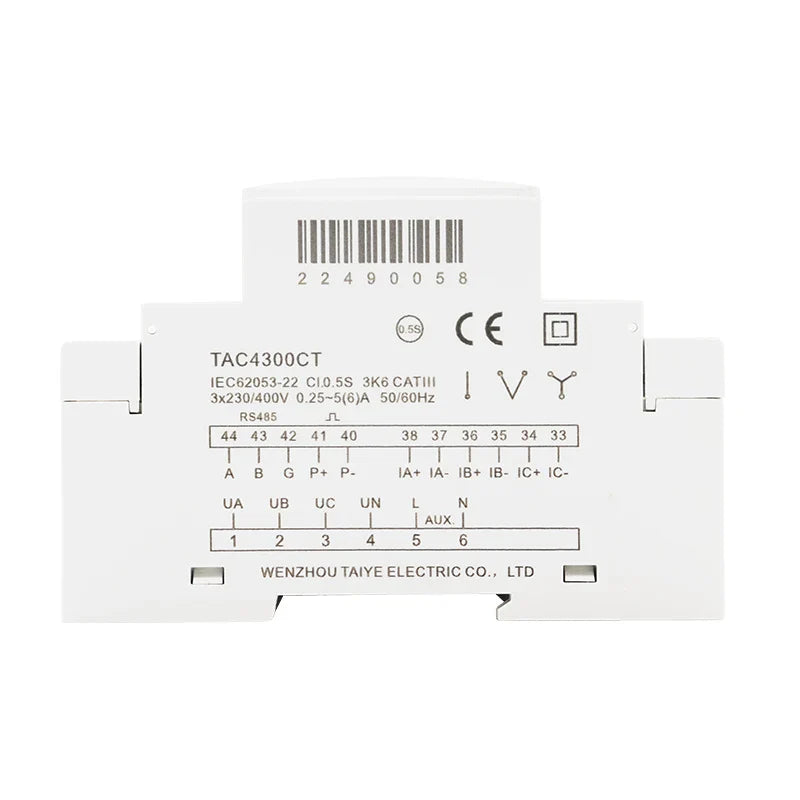

9、Support RS485 communication function, baud rate up to 38400bps, support Modbus RTU, Mbus(Option) protocol.

10、Supports one optocoupler pulse output interface, and output parameters can be set.

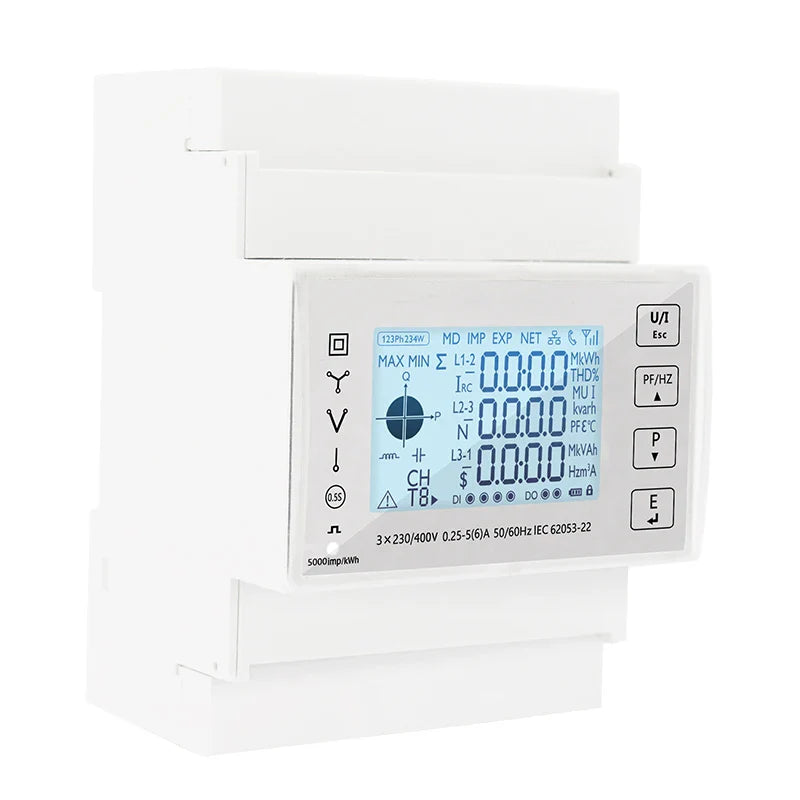

11、LCD refresh time is 1 second, support manual or automatic scroll display (configurable)

Package Included

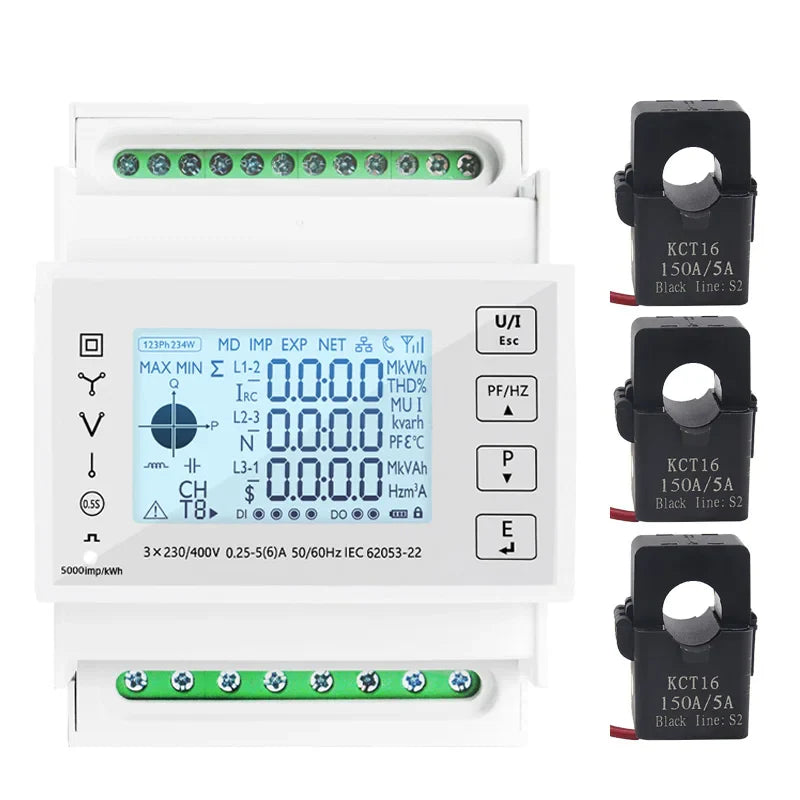

1 × Meter with 3pcs CT
