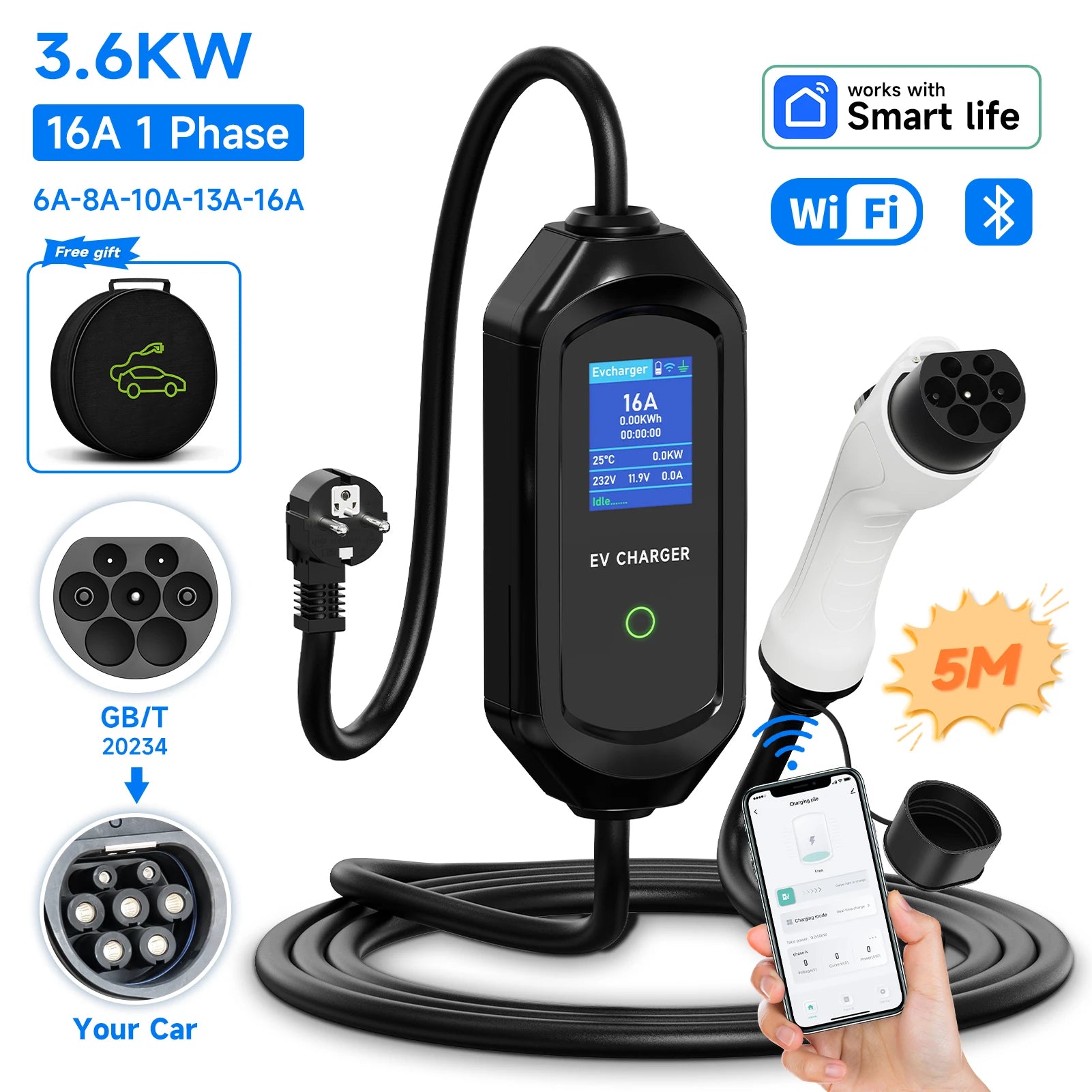

GB/T Portable EV Charger 3.6KW 7.2KW 11KW 22KW WiFi Bluetooth APP Control Adjustable Current IP65 Waterproof with 5m Cable and 2.8" LCD Display

📋 Product Description

The GB/T Portable EV Charger with WiFi and Bluetooth APP Control is a versatile Level 2 electric vehicle charging solution available in four power configurations: 3.6KW and 7.2KW (single-phase) or 11KW and 22KW (three-phase). Featuring a built-in 2.8-inch LCD display for real-time charging monitoring, adjustable current output, and Smart Life / Tuya app integration for scheduled charging and remote control, this portable EVSE unit is designed for home, garage, and outdoor use. The IP65-rated waterproof and dustproof enclosure, combined with 10 built-in safety protections including Type B leakage detection (AC 30mA + DC 6mA), makes it one of the most comprehensively protected portable EV chargers in its class. CE, UKCA, and RoHS certified, with a 5-meter cable length and durable TPU construction.

⚡ Key Features & Benefits

✅ Smart App Control via WiFi & Bluetooth: Connect to the built-in Smart Life / Tuya app to schedule charging during off-peak electricity hours, reducing your energy costs significantly. The app allows you to adjust charging current remotely, track real-time charging status, monitor energy consumption, and set charging timers — all from your smartphone. Simply enable WiFi and Bluetooth during initial device setup to pair your charger.

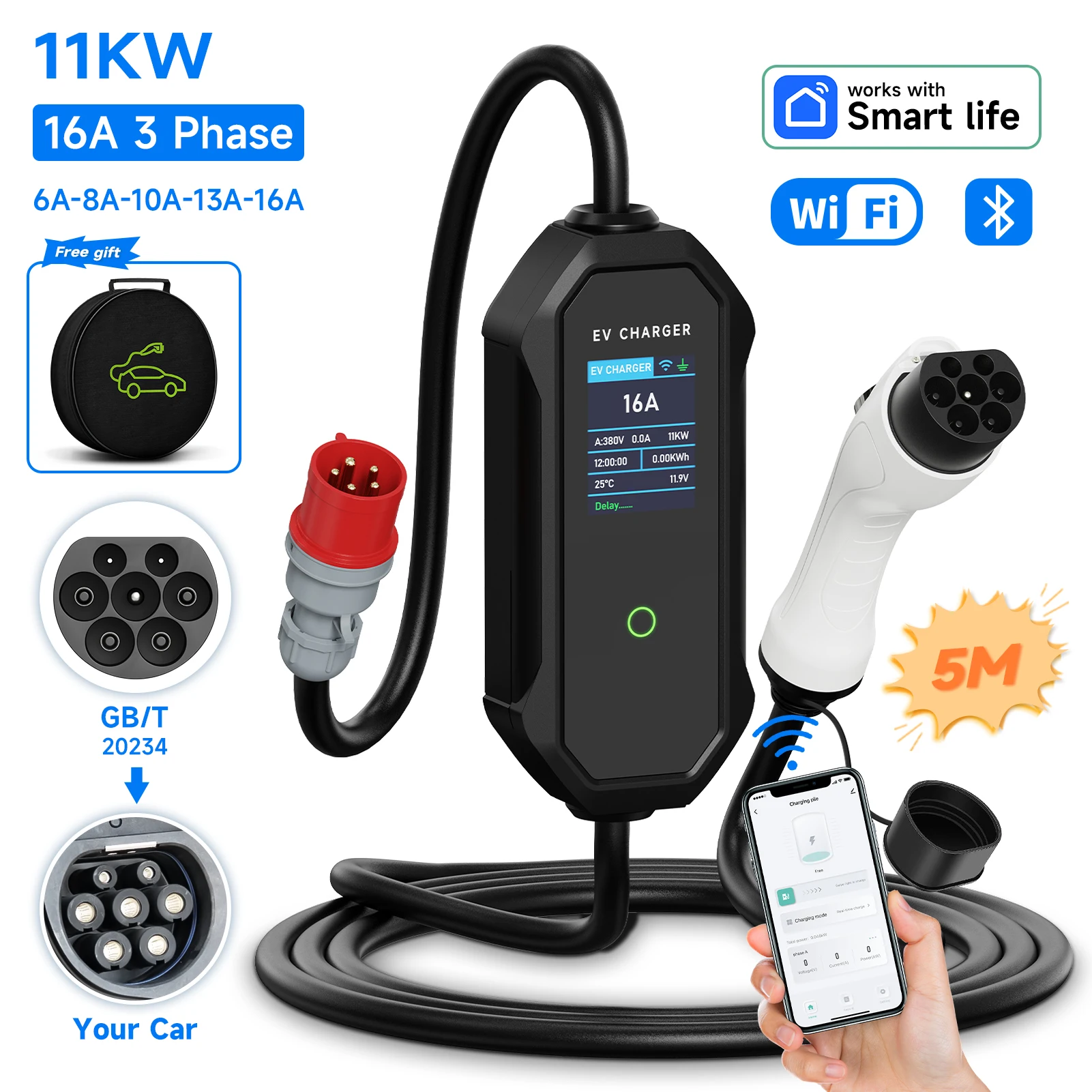

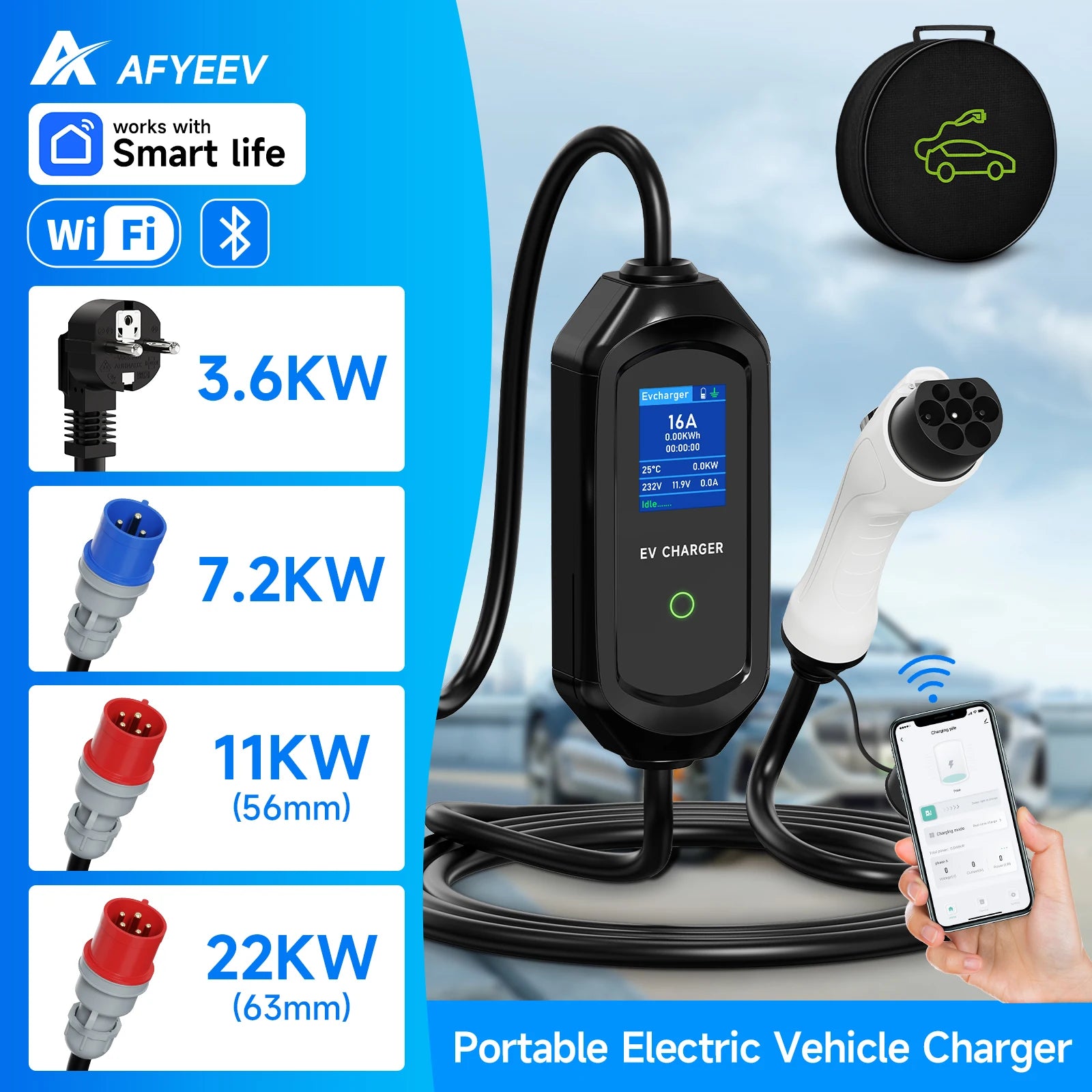

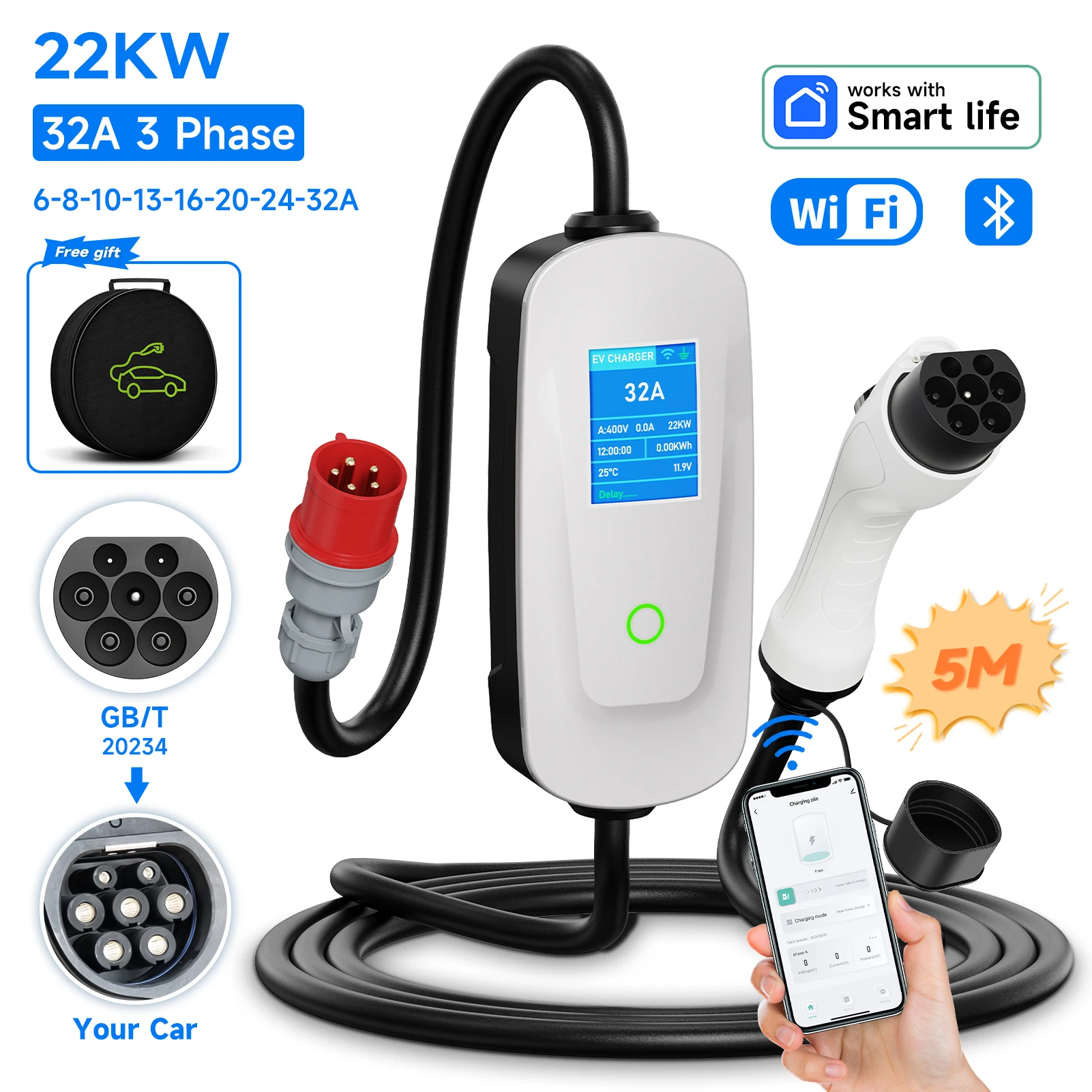

✅ Four Power Options for Maximum Flexibility: Choose from 3.6KW, 7.2KW (single-phase), 11KW, or 22KW (three-phase) configurations to match your electrical infrastructure and desired charging speed. The adjustable current feature allows fine-tuning within each power level. Note: Actual charging time depends on both the power source capacity and your vehicle's onboard charger rating.

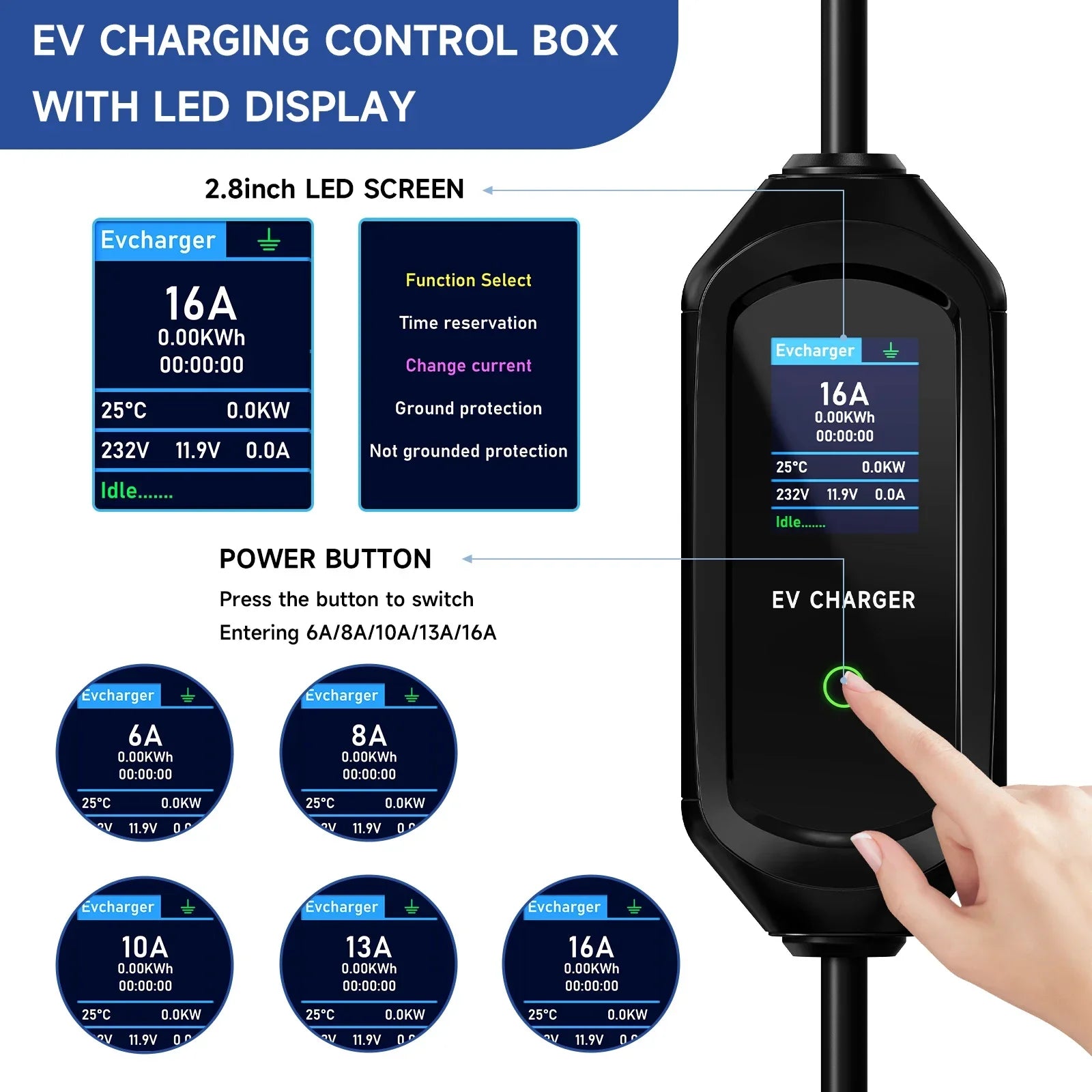

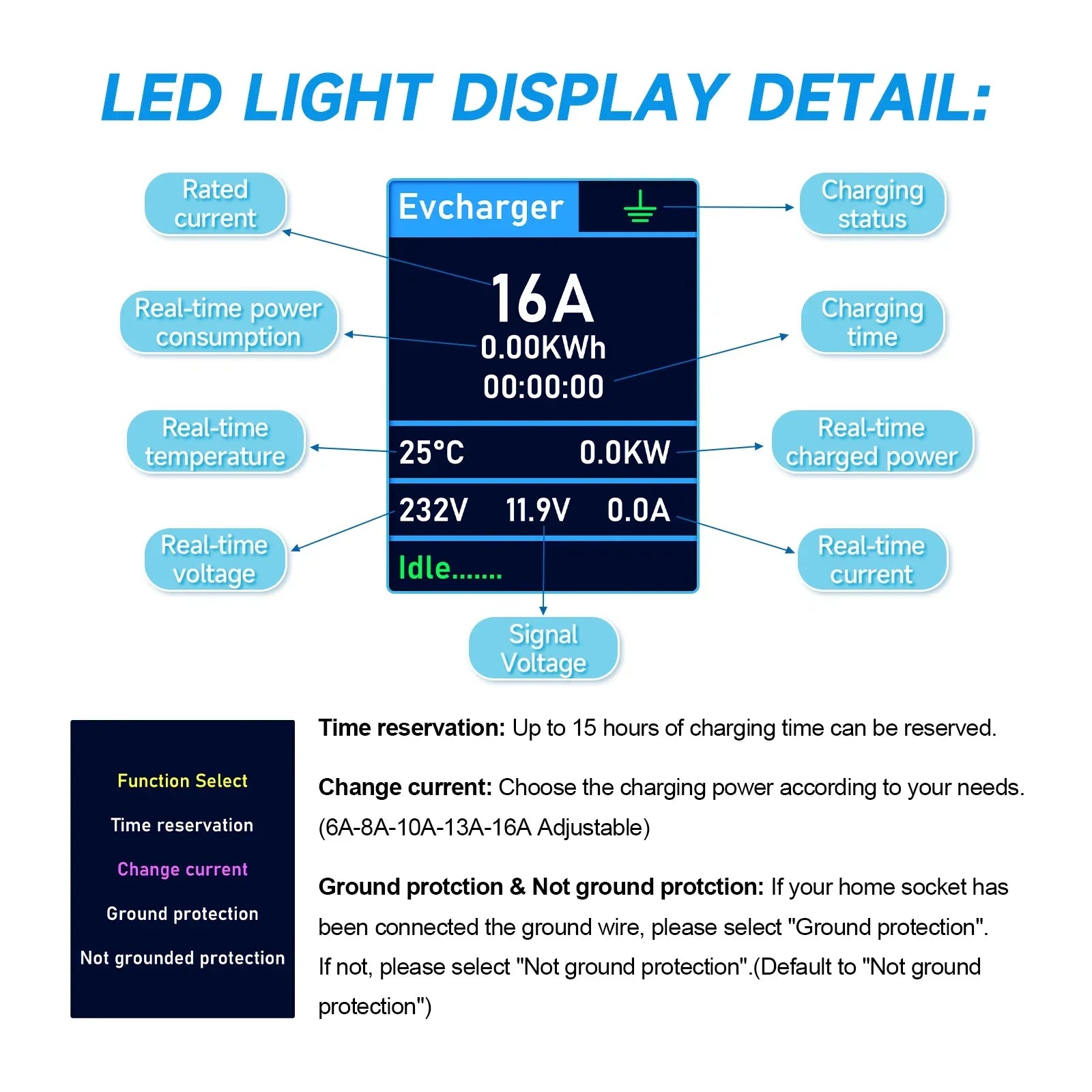

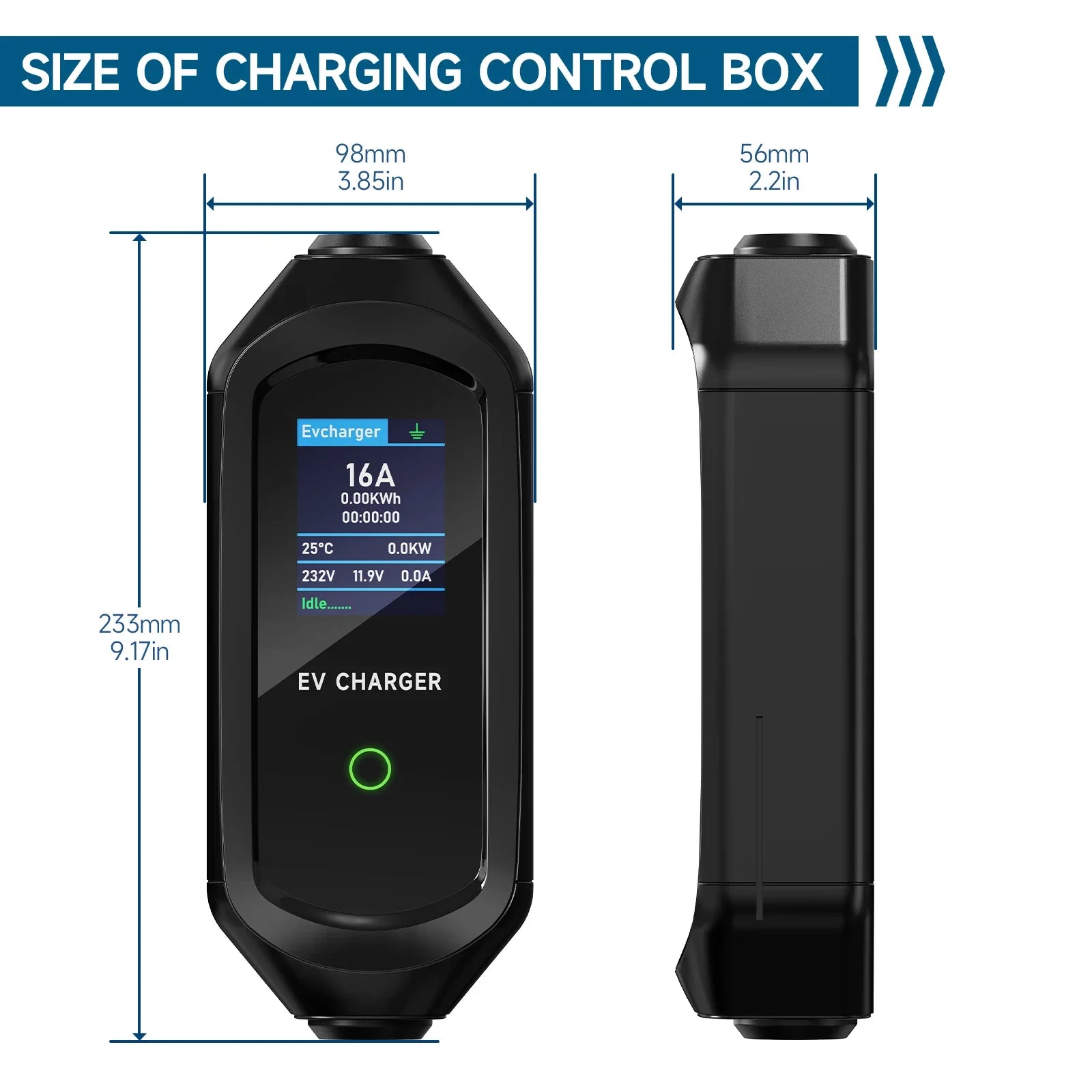

✅ 2.8-Inch LCD Display for Real-Time Monitoring: The integrated 2.8-inch LCD screen on the control box provides clear, real-time information including charging power, current draw, energy consumed, charging duration, and connection status. LED indicator lights on the control unit provide quick visual confirmation of the charger's operating state and any fault conditions.

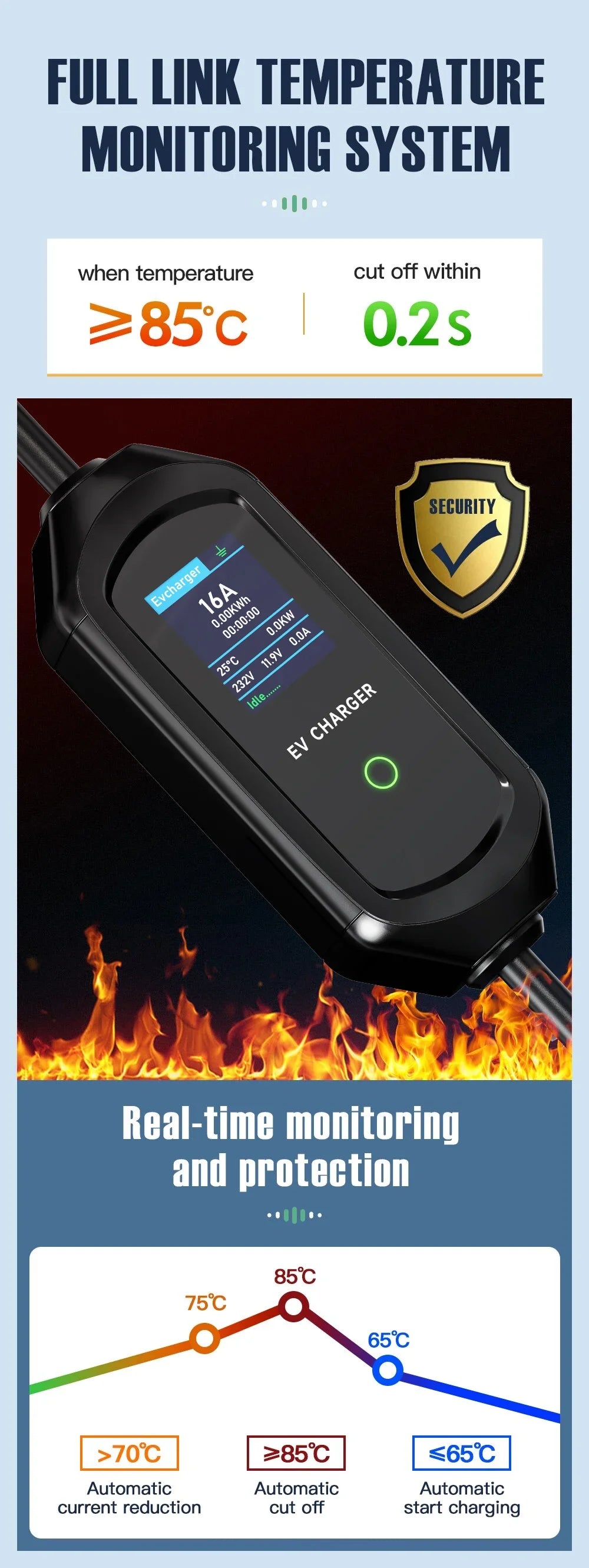

✅ 10 Built-In Safety Protections: Designed with a comprehensive multi-layer protection system to ensure safe operation in all conditions. The charger includes: lightning protection, Type B residual current leakage protection (AC 30mA + DC 6mA), overvoltage protection, undervoltage protection, overcurrent protection, over-temperature protection, short-circuit protection, ground wire protection, ungrounded wire detection, and flame-retardant materials. This level of protection meets or exceeds industry standards for residential EV charging equipment.

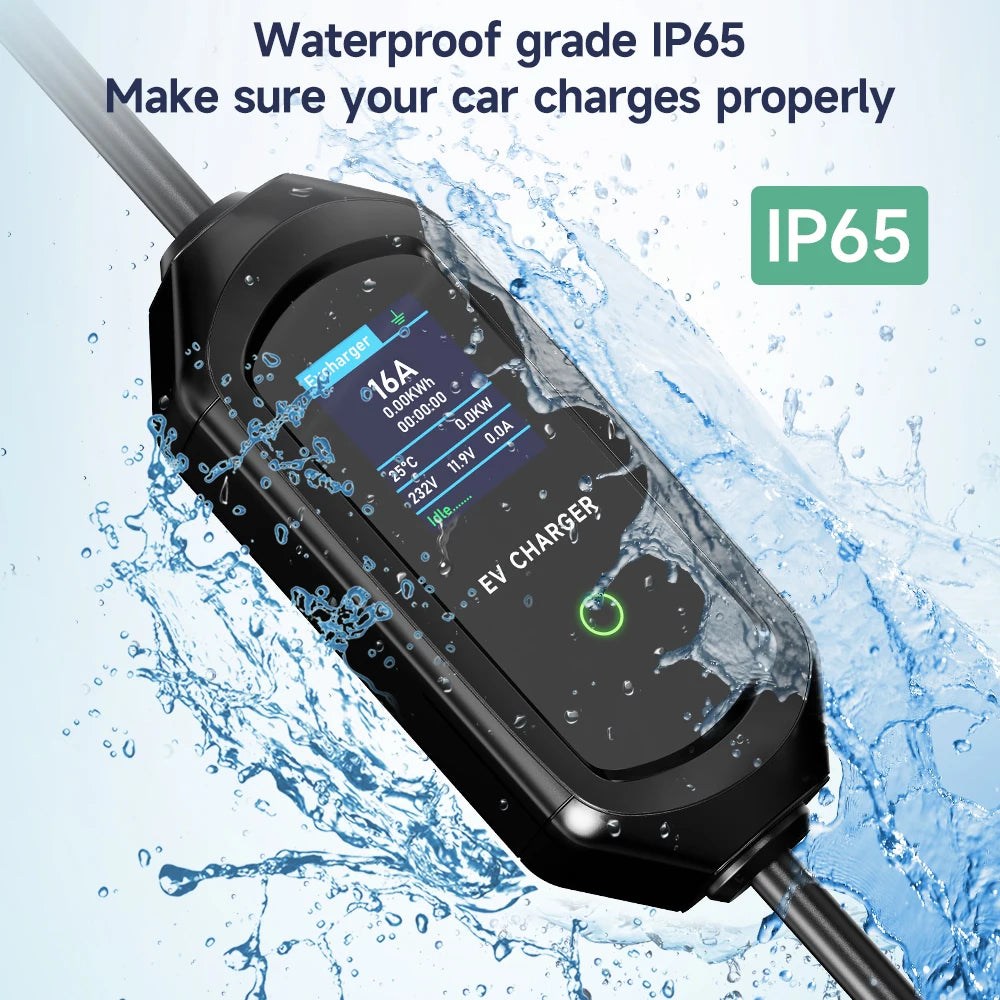

✅ IP65 Waterproof & Dustproof — Built for Outdoor Use: The charger enclosure carries an IP65 rating, meaning it is fully protected against dust ingress and low-pressure water jets from any direction. The connector features enhanced IP66-rated waterproof and dustproof protection. This makes the unit suitable for permanent outdoor installation or portable use in all weather conditions, including rain, snow, and dust.

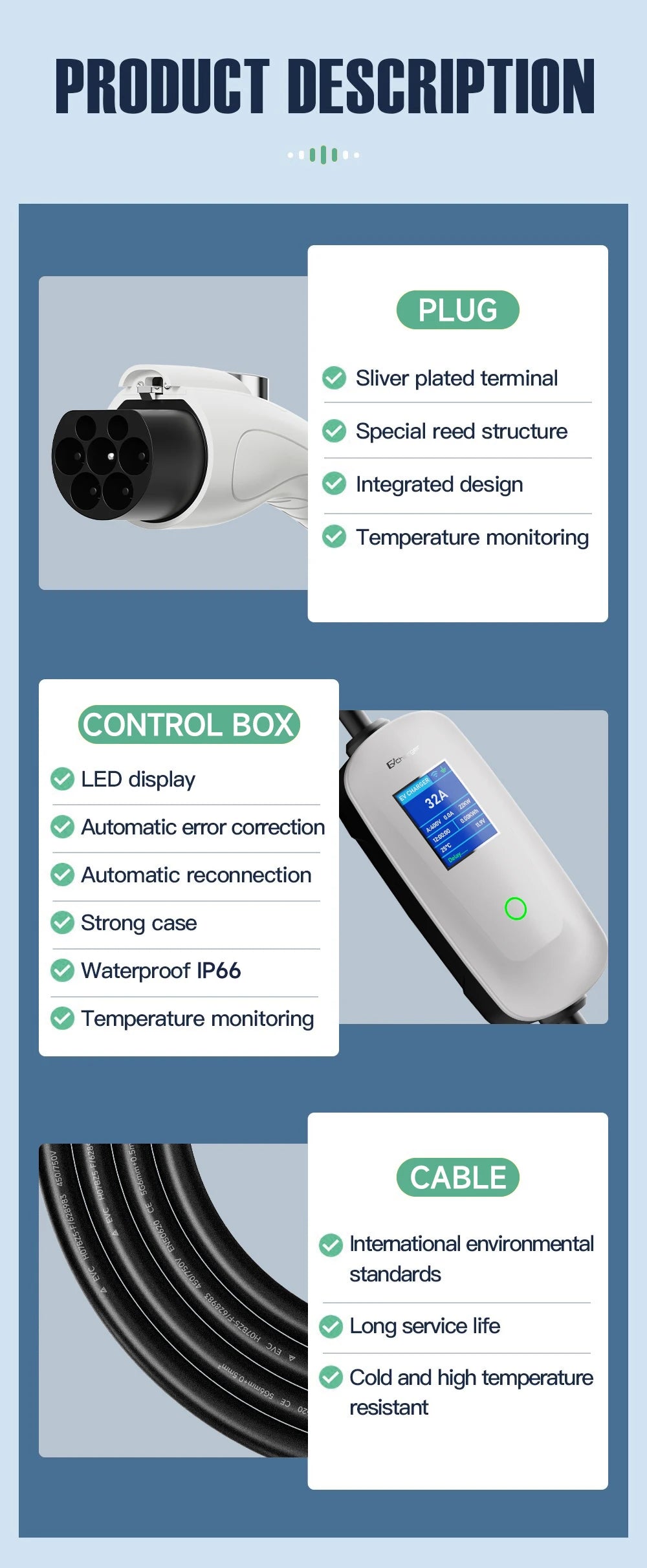

✅ Premium Build Quality — Copper Alloy Silver-Plated Contacts: Internal contacts are manufactured from copper alloy with silver plating for superior conductivity, reduced resistance, and extended service life. The 5-meter (16.4 ft) charging cable is constructed from high-grade, rugged TPU (Thermoplastic Polyurethane) material for maximum flexibility, abrasion resistance, and durability in temperatures ranging from -30°C to +65°C (-22°F to +149°F).

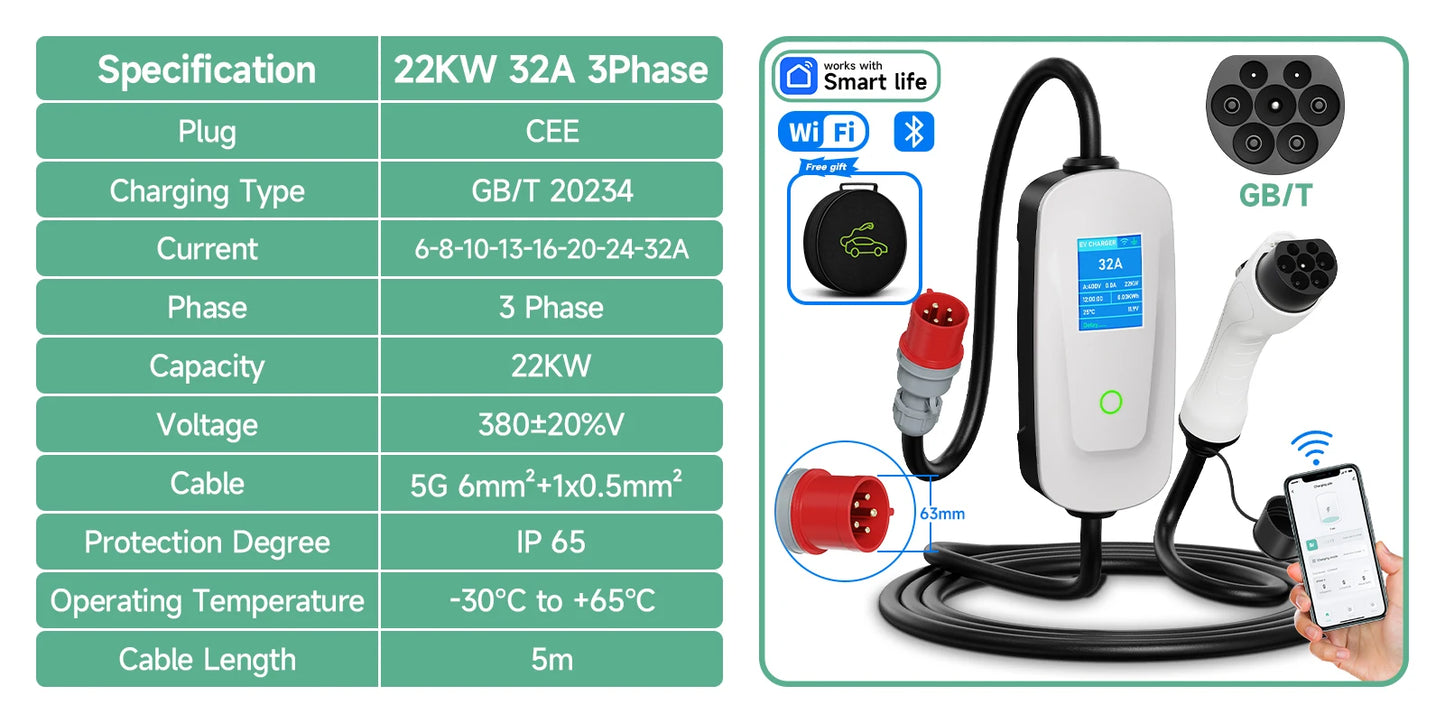

⚙️ Technical Specifications

Specification	Value
Electrical Specifications

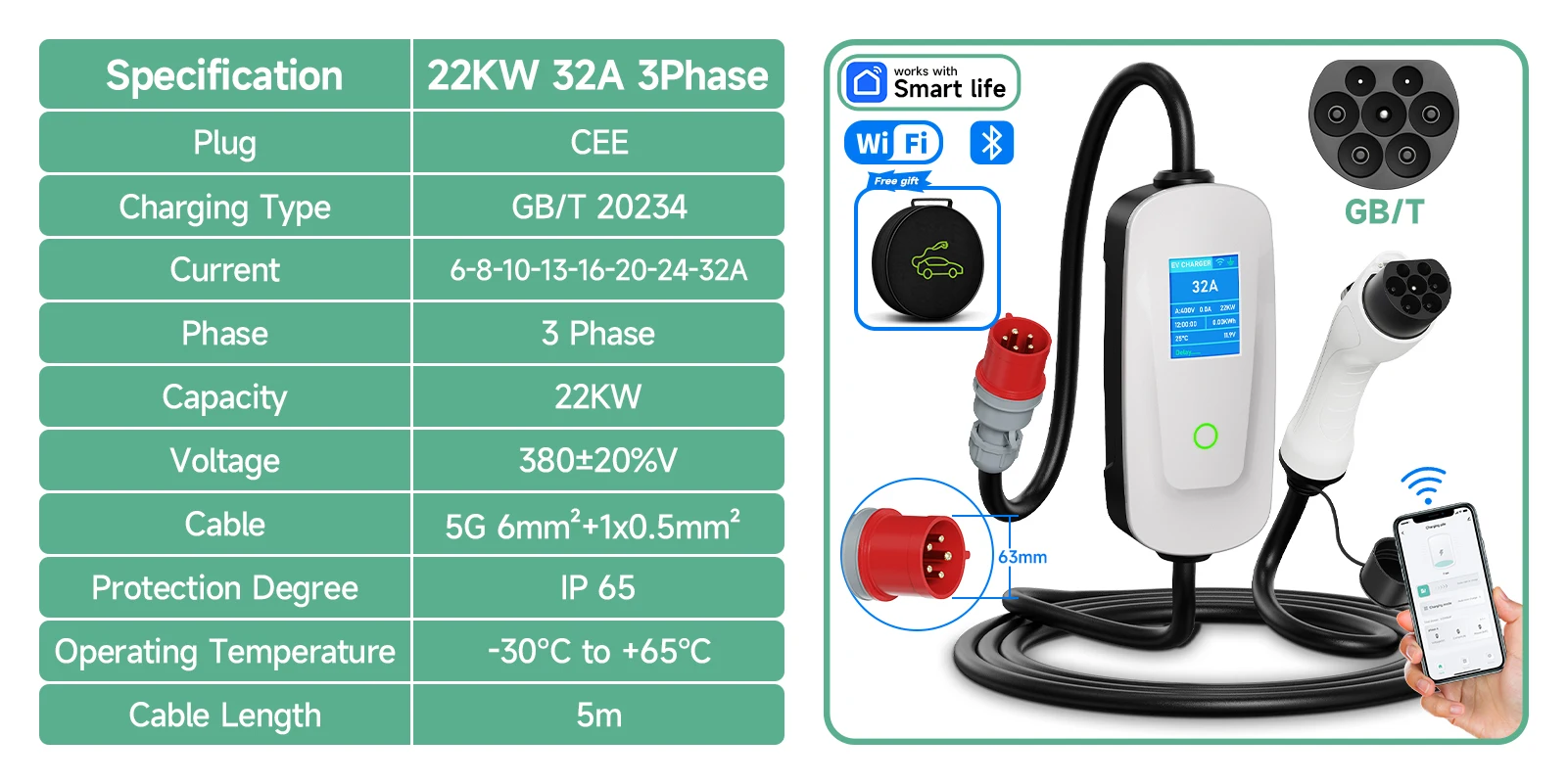

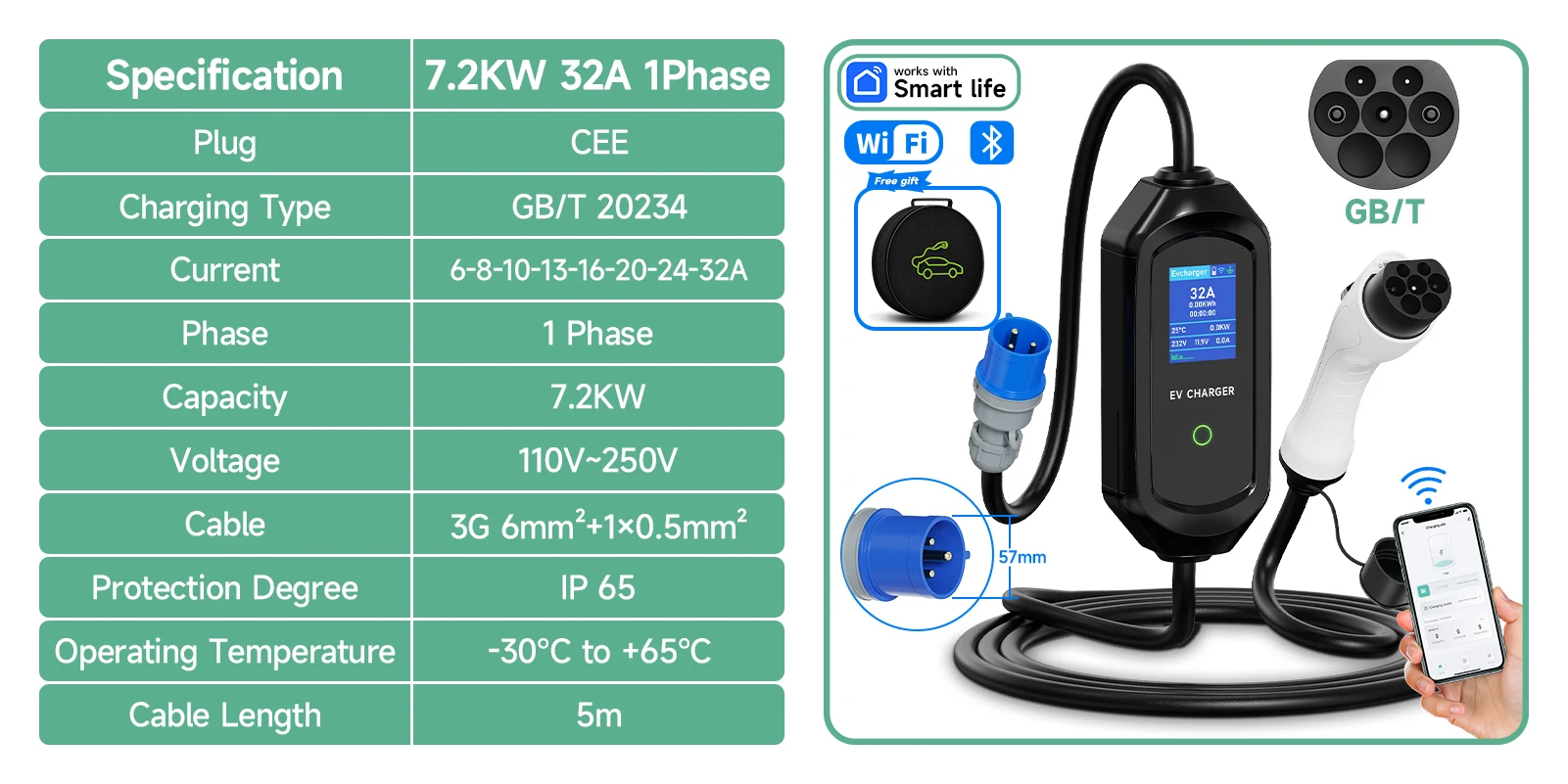

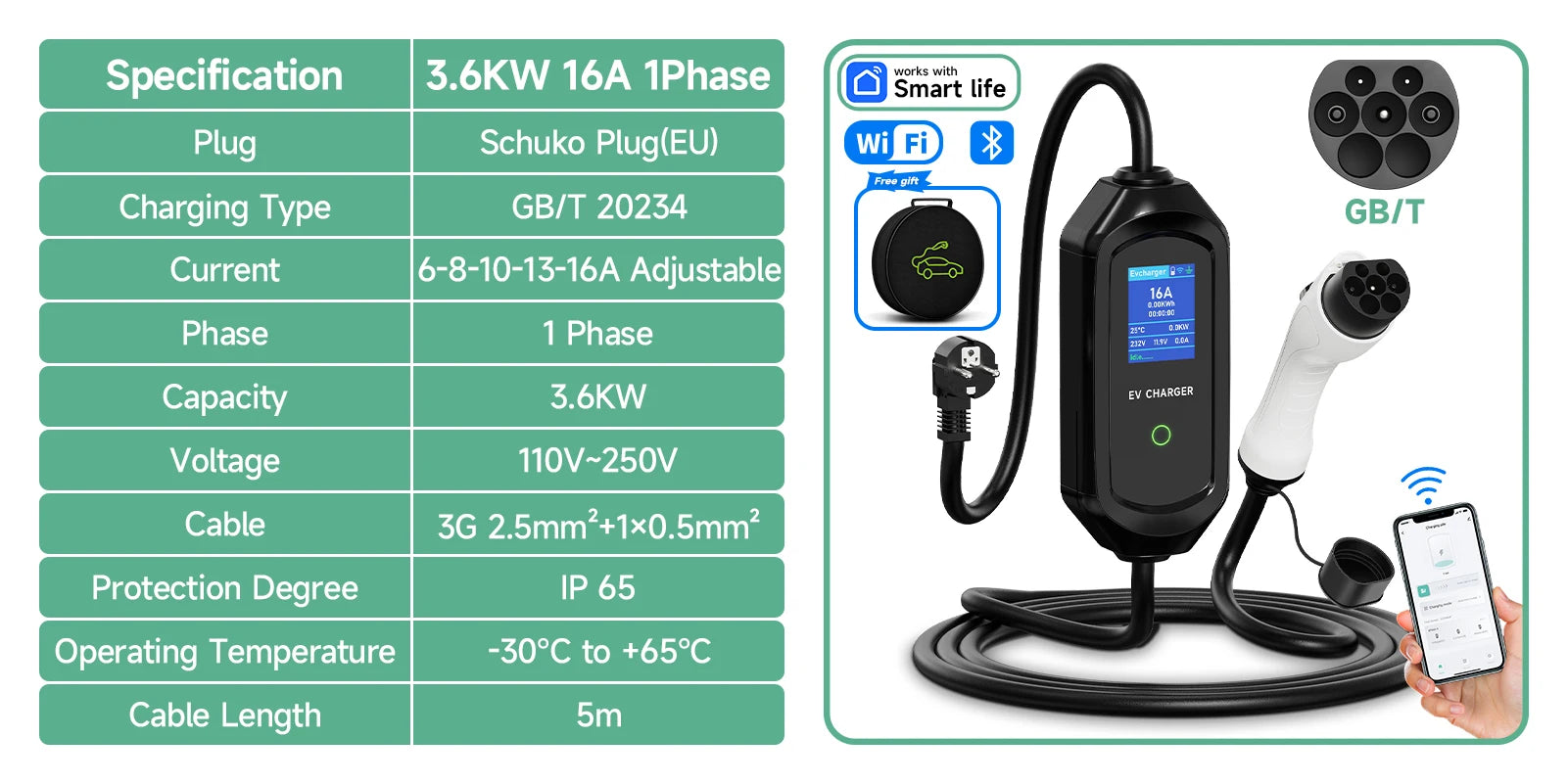

Available Power Ratings	3.6KW / 7.2KW (Single-Phase) · 11KW / 22KW (Three-Phase)
Current	Adjustable (via control unit and app)
Connector Type	GB/T
Charger Type	Portable EVSE (Level 2)
Physical Specifications
Cable Length	5 meters (16.4 ft)
Cable Material	High-grade TPU (Thermoplastic Polyurethane)
Contact Material	Copper alloy with silver plating
Display	2.8-inch LCD screen
Plug Type	EU Plug
Smart Features
Connectivity	WiFi + Bluetooth
Compatible App	Smart Life / Tuya
App Features	Scheduled charging, current adjustment, real-time monitoring, energy tracking
Environmental Specifications
Waterproof Rating	IP65 (enclosure) / IP66 (connector)
Operating Temperature	-30°C to +65°C (-22°F to +149°F)
Safety & Protections
Leakage Protection	Type B RCD (AC 30mA + DC 6mA)
Additional Protections	Lightning, overvoltage, undervoltage, overcurrent, over-temperature, short-circuit, ground wire, ungrounded wire, flame-retardant
Certifications & Standards
Certifications	CE · UKCA · RoHS
Warranty	1-year manufacturer warranty + lifetime technical support

📦 What's Included

✅ 1× GB/T Portable EV Charger (with 5m cable and control unit)
✅ 1× Portable carrying handbag for storage and transport
✅ 1× User manual with installation and app setup instructions

🔌 Compatibility & Applications

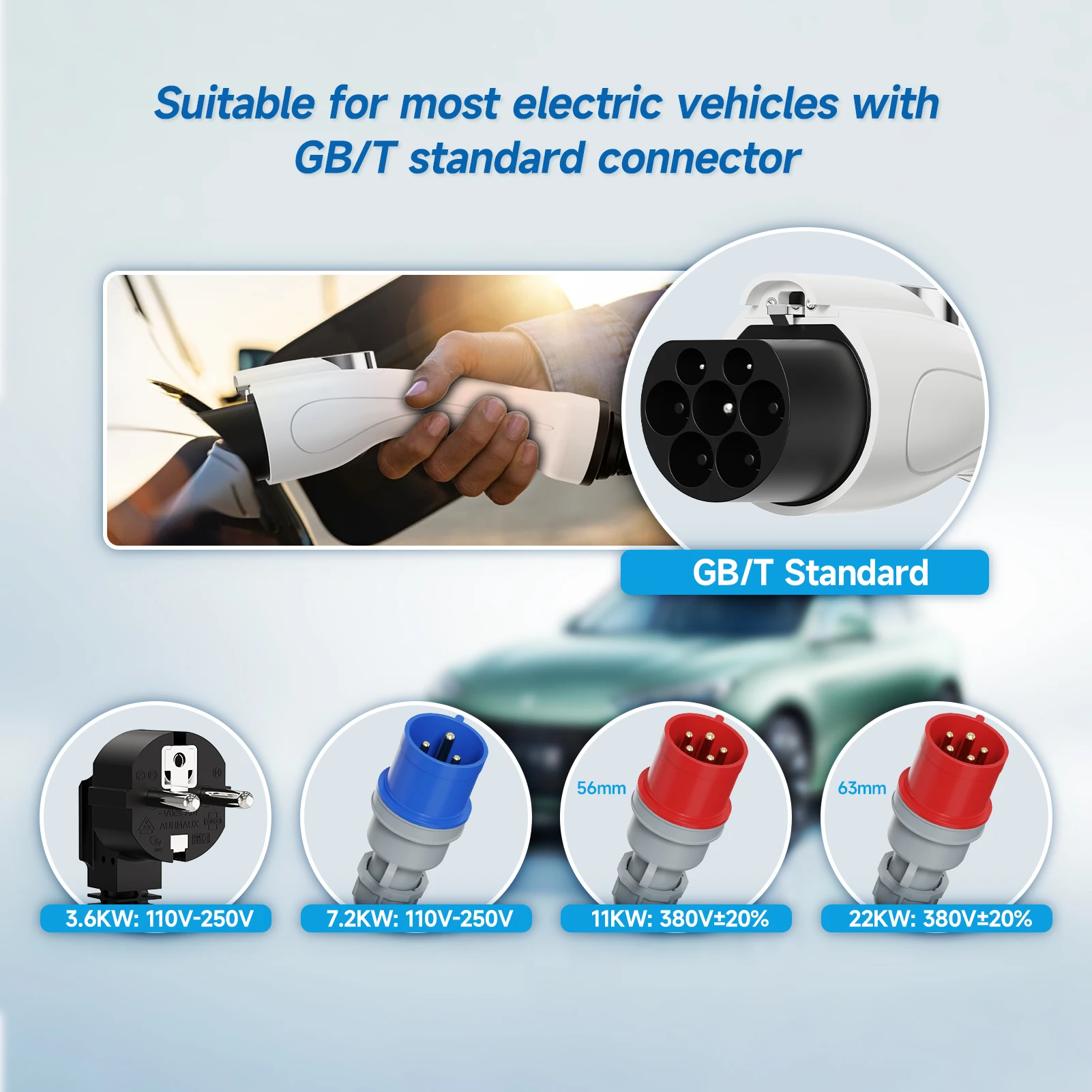

This portable EV charger uses the GB/T connector standard, which is the national standard for electric vehicle charging in China. It is compatible with all electric vehicles equipped with a GB/T charging inlet, including models from BYD, NIO, XPeng, Li Auto, Geely, SAIC, GAC, and other manufacturers using the GB/T standard.

Ideal Use Scenarios:

🏠 Home Garage Charging: Install as a permanent home charging solution with scheduled off-peak charging via the Smart Life app to minimize electricity costs.
🏢 Workplace Charging: Portable design allows easy transport between home and office for convenient workplace charging.
🚗 Travel & Emergency Charging: The included carrying handbag makes this charger ideal for road trips and emergency charging situations where dedicated charging infrastructure may not be available.

🛡️ Certifications & Safety Standards

This EV charger has been tested and certified to meet the following international standards:

✅ CE Certified — Compliant with European health, safety, and environmental protection standards
✅ UKCA Certified — Meets United Kingdom product safety requirements
✅ RoHS Compliant — Free from hazardous substances including lead, mercury, and cadmium

🛡️ IP65 Rating Explained: The IP65 waterproof rating means the charger enclosure is completely sealed against dust particles (rated "6" — total dust protection) and protected against low-pressure water jets from any direction (rated "5"). This makes it suitable for outdoor installation and use in all weather conditions including rain, snow, and humid environments. The charging connector itself carries an enhanced IP66 rating for additional protection during active charging sessions.

❓ Frequently Asked Questions

❓ 1. What is the difference between the 3.6KW, 7.2KW, 11KW, and 22KW models?
The 3.6KW and 7.2KW models are designed for single-phase electrical systems, commonly found in standard residential installations. The 11KW and 22KW models require a three-phase electrical supply, typically available in commercial properties or homes with upgraded electrical panels. Higher power ratings deliver faster charging speeds, but the actual charging rate is also limited by your vehicle's onboard charger capacity. For example, if your vehicle's onboard charger supports a maximum of 7.2KW, using a 22KW charger will still charge at 7.2KW.

❓ 2. How does a portable EV charger compare to a wall-mounted charging station?
A portable EV charger offers the same Level 2 charging capability as a wall-mounted station but with the added advantage of portability. You can carry it in the included handbag for travel, use it at different locations, and store it easily when not in use. Wall-mounted stations are permanently installed and may offer slightly higher power output in some configurations, but portable chargers provide unmatched flexibility for EV owners who need charging capability at multiple locations or during travel.

❓ 3. Can I use this charger outdoors in rain or snow?
Yes. The charger is rated IP65 for the main enclosure and IP66 for the charging connector, meaning it is fully protected against dust and water jets from any direction. It is designed to operate safely in rain, snow, and humid environments within the operating temperature range of -30°C to +65°C (-22°F to +149°F).

❓ 4. How do I set up the Smart Life / Tuya app for scheduled charging?
Download the Smart Life or Tuya app from the Apple App Store or Google Play Store. Enable WiFi and Bluetooth on your smartphone, then follow the in-app pairing instructions to add your charger. Once connected, you can set charging schedules to take advantage of off-peak electricity rates, adjust the charging current, and monitor real-time charging status from anywhere with an internet connection.

❓ 5. Is this charger compatible with my electric vehicle?
This charger uses the GB/T connector standard. It is compatible with all electric vehicles equipped with a GB/T charging inlet. Before purchasing, verify that your vehicle uses the GB/T charging standard. Vehicles manufactured for the Chinese market typically use GB/T, while European vehicles commonly use Type 2 and North American vehicles commonly use J1772 or NACS connectors.

❓ 6. Can I request a quote or estimate?
No need to request quotes or estimates. You can purchase all products online directly on our website.

❓ 7. What safety protections does this charger include?
This charger includes 10 independent safety protection systems: Type B residual current leakage protection (AC 30mA + DC 6mA), lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, over-temperature protection, short-circuit protection, ground wire protection, ungrounded wire detection, and flame-retardant housing materials. These protections operate automatically and continuously during all charging sessions.

❓ 8. What electrical installation is required?
For the single-phase models (3.6KW / 7.2KW), a standard single-phase electrical outlet with appropriate amperage is required. For the three-phase models (11KW / 22KW), a three-phase electrical supply must be available. In all cases, we recommend having the installation inspected by a qualified electrician to ensure your electrical panel and wiring can safely support the charger's power requirements. A dedicated circuit with appropriate breaker protection is strongly recommended.
