Acrel ACR10R-D16 Bidirectional Single Phase Energy Meter with 120A Split Core Ct RS485 Modbus-RTU for Solar Solis Inverter

£155.00 GBP

~~£0.00 GBP~~ £155.00 GBP

Sale Sold out

Taxes included.

Color Input 300A Input 200A Input 120A Input 80A

⚡ Acrel ACR10R-D16 Bidirectional Single Phase Energy Meter with 120A Split Core Ct RS485 Modbus-RTU for Solar Solis Inverter

Discover the Acrel ACR10R-D16 Bidirectional Single Phase Energy Meter with 120A Split Core Ct RS485 Modbus-RTU for Solar Solis Inverter — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

📄 Technical Specifications

Accuracy Class: 1

Battery Included: Yes

Certification: CE

Communication: RS485 interface

DIY Supplies: Electrical

Dimensions: 85*64*54mm

Display: LCD

Display Type: LCD

Hign-concerned Chemical: None

Input: Single-phase

Installation: 35MM Din Rail

Measurement: U,I,P,Q,S,PF,F

Measuring Energy Range: 0-99999.9kwh

Model Number: ACR10R

Operating Temperature: -10℃~55℃

Origin: Mainland China

Output Voltage: 220V~264V

Phase: single phase

Power Supply: AC

Power consumption: less then 0.2VA

Rated Voltage: 230V,AC 100V, 400V

Standard&Certificate: CE

frequency: 45~60Hz

protocol: MODBUS-RTU

🛡️ Why Trust Us

Every product listing is technically reviewed for accuracy by our specialized renewable energy team. We offer a curated catalog of high-quality products across solar, wind, battery storage, and EV charging categories. All purchases are processed securely, backed by our 30-day return policy.

✅ Verified technical specifications on every product
✅ Secure checkout with encrypted payment processing
✅ 30-day return policy for peace of mind
✅ Worldwide shipping with order tracking

❓ Frequently Asked Questions

❓ 1 - Do you provide installation services?
No. We do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions. We recommend consulting a certified local professional.

🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers in North America, Europe, and Asia, with delivery times between 7 to 21 business days.

⏳ 3 - What is the estimated delivery time?
Standard delivery takes 7 to 21 business days. Tracking is provided once your order ships.

💳 4 - What payment methods do you accept?
We accept all major credit and debit cards processed securely. Apple Pay and Google Pay are also available at checkout.

📄 5 - Where can I find detailed technical specifications?
All technical specs, dimensions, and compatibility info are on this product page above.

❓ 6 - Can I request a quote or estimate?
No quote is necessary. All products are available for direct purchase with transparent, upfront pricing.

🖼️ Product Images

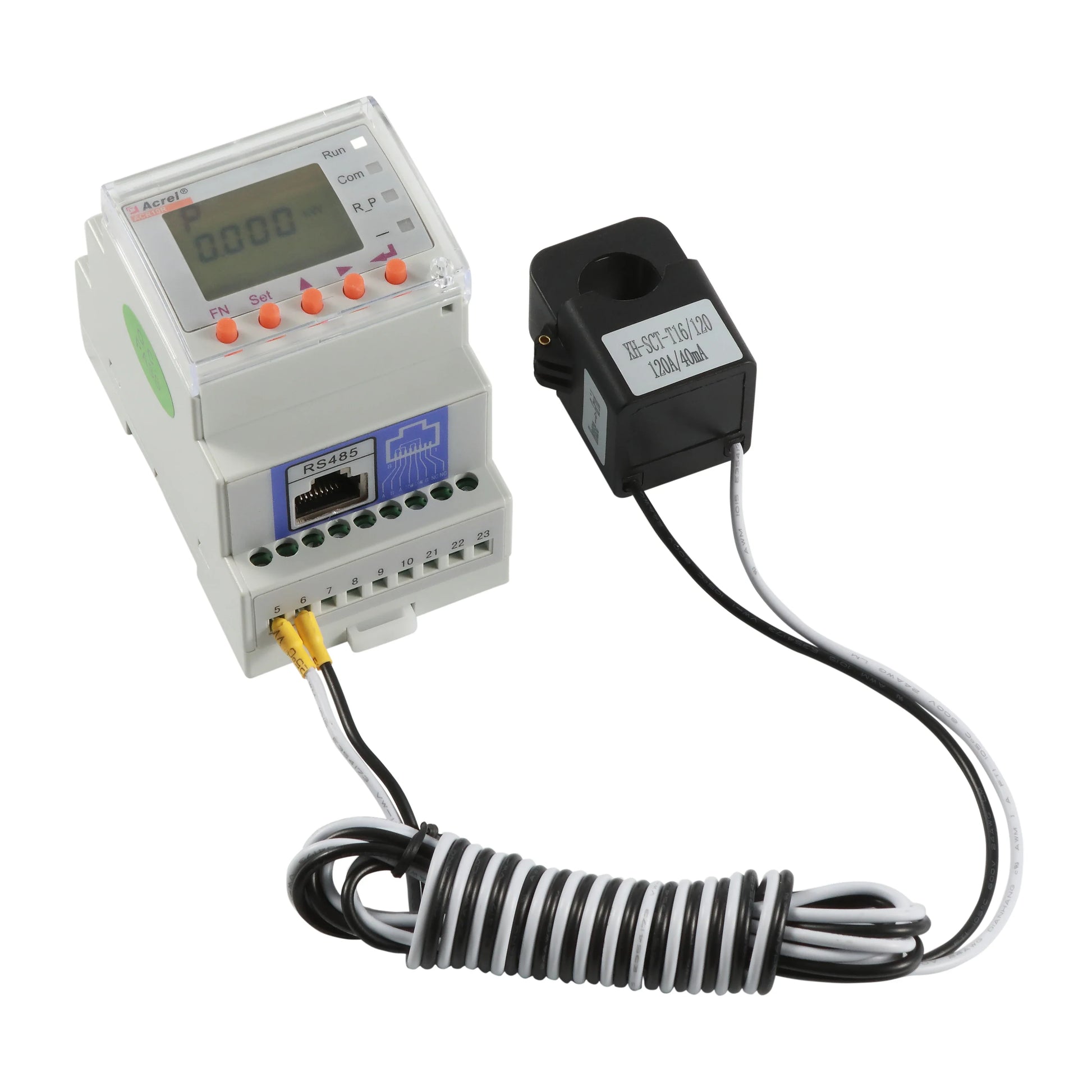

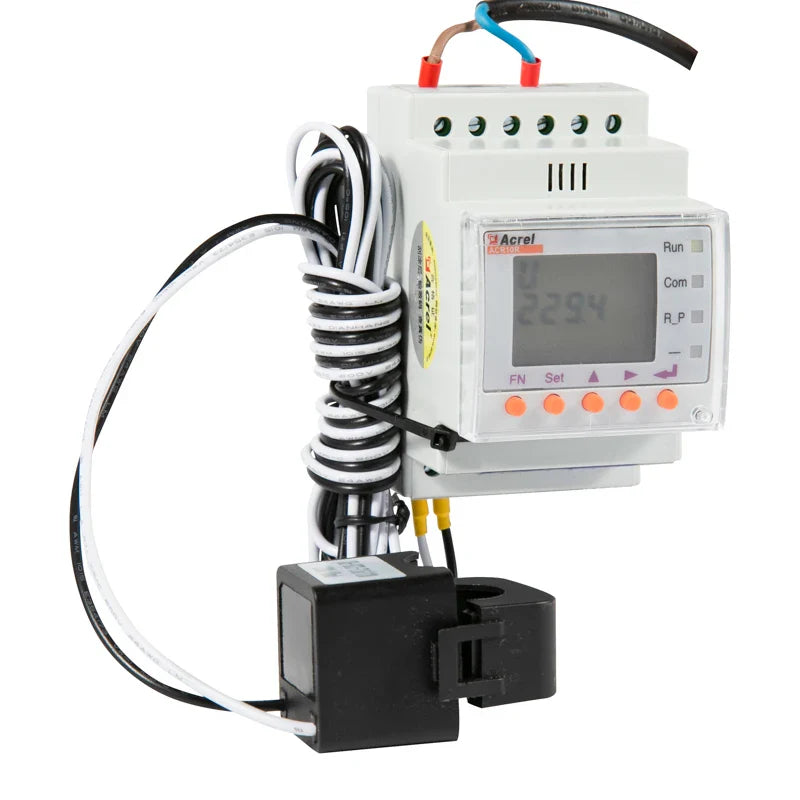

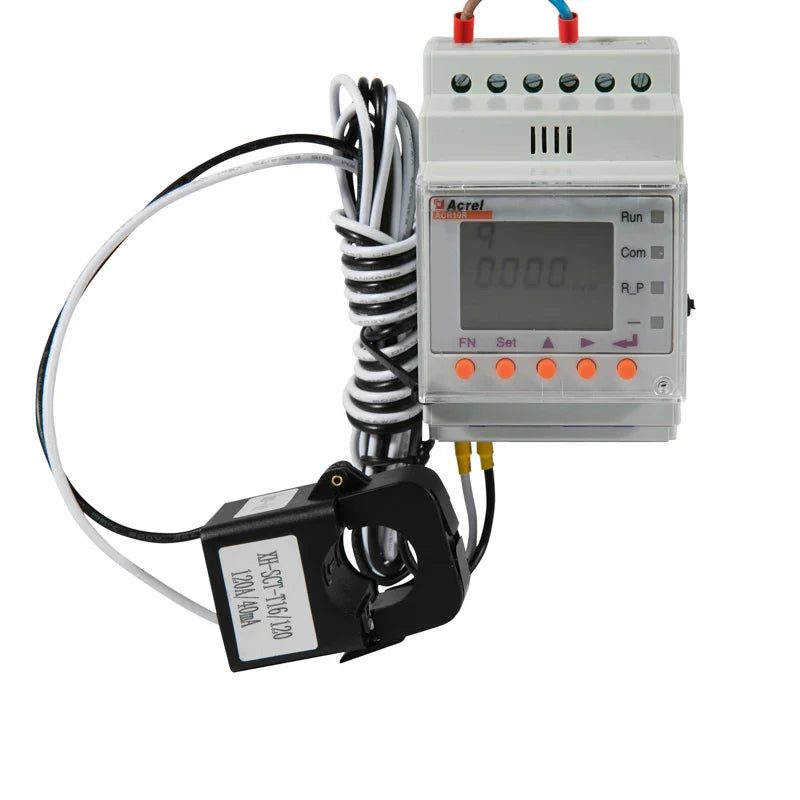

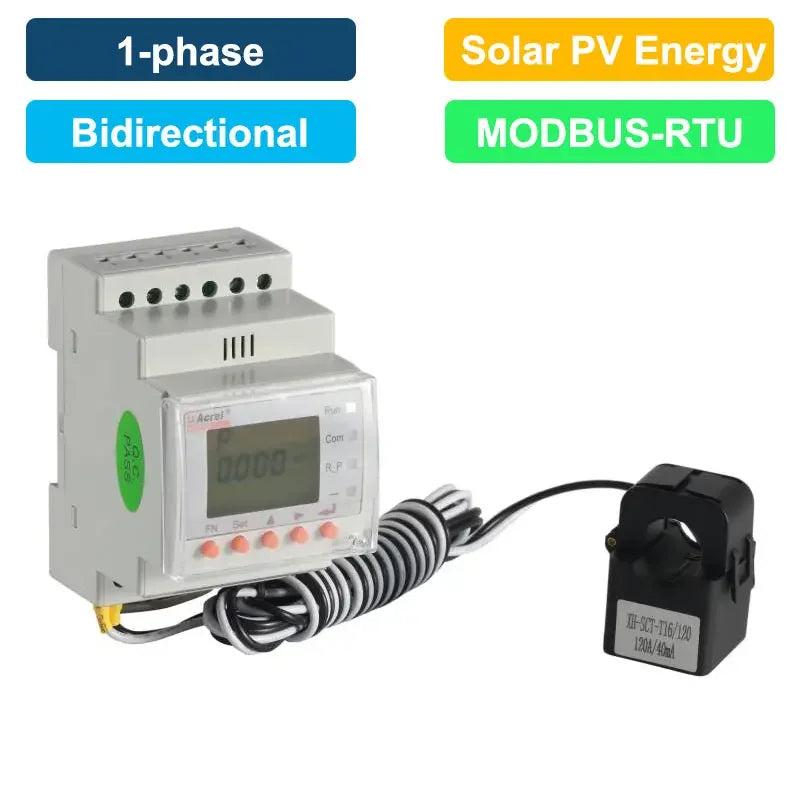

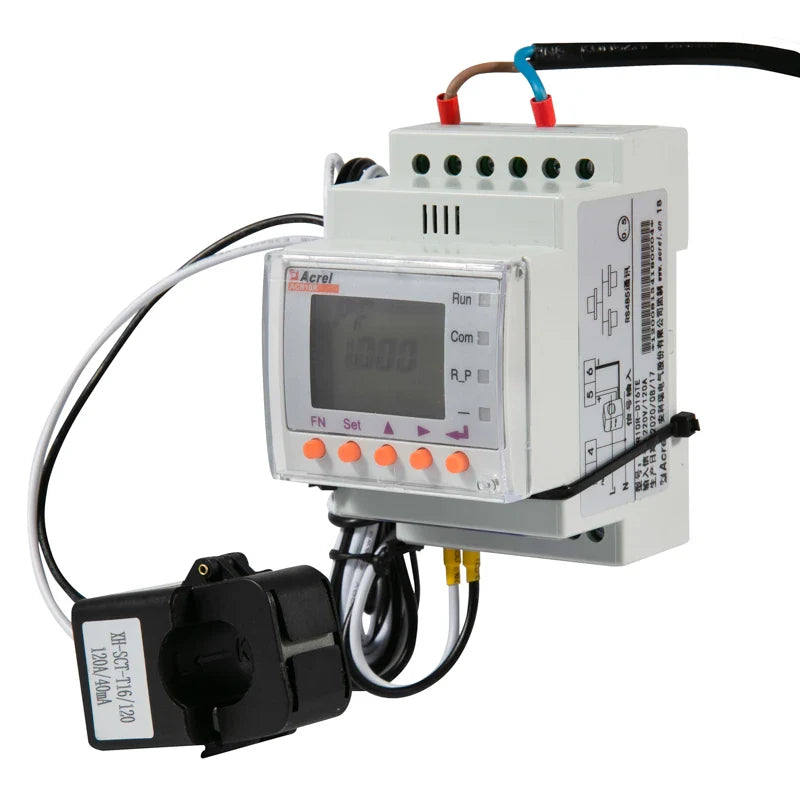

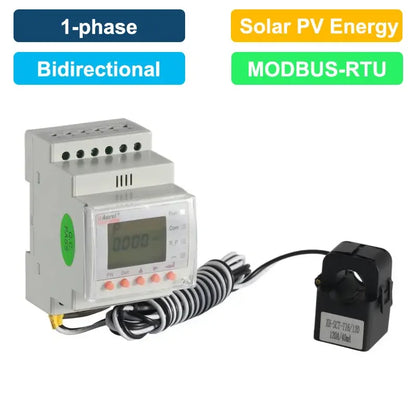

ACR10R Bidirectional Single-phase Solar Pv Energy Meter with External CT

(Note: The meter can match to Solis Inverter to solar power zero export, if it is used for the Solis Inverter, please remark your Solis inverter model, otherwise we will produce as normal RS485 type, and can't ensure zero export.)

●Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc

●15 Kwp available

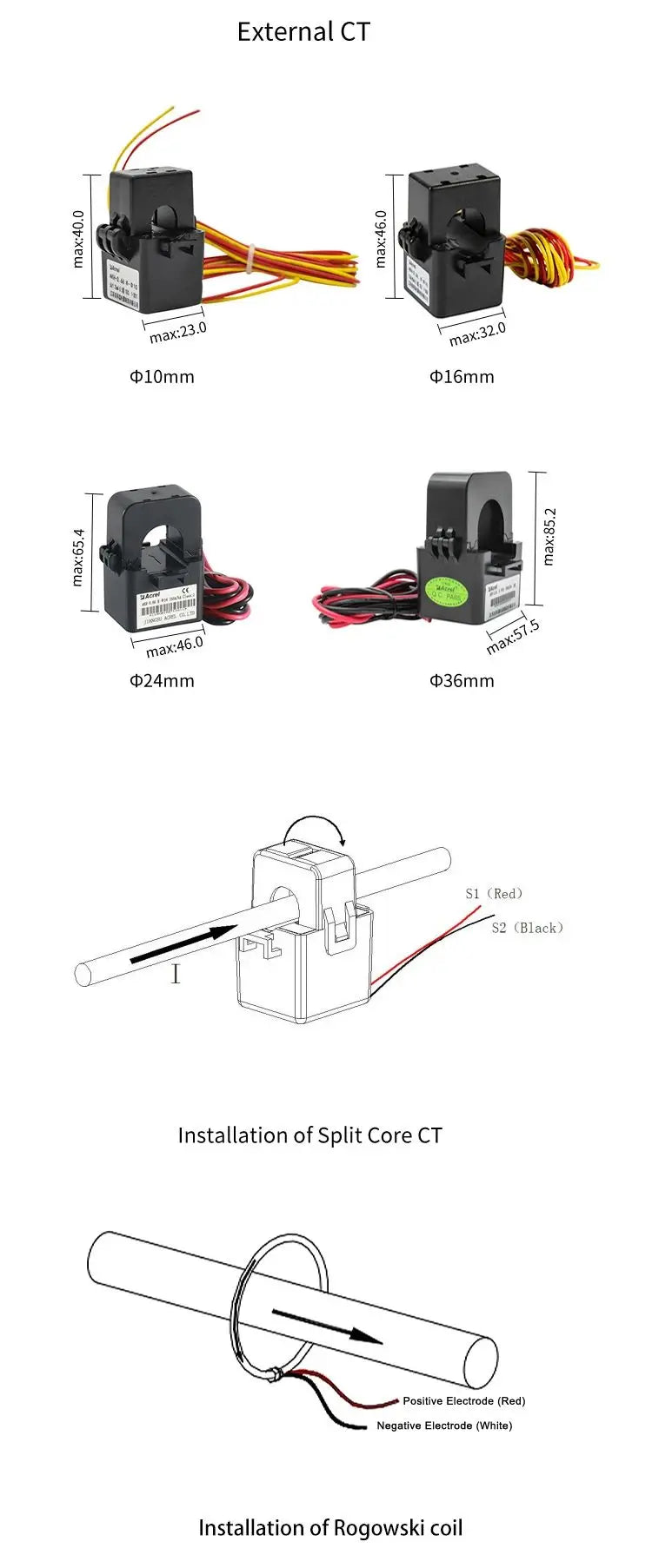

●Current Rating:

Diameter 10mm,80A (paired with external CTs)

Diameter 16mm,120A (paired with external CTs)

Diameter 24mm,200A (paired with external CTs)

Diameter 36mm,300A (paired with external CTs)

● Communication: RS485 (MODBUS-RTU)

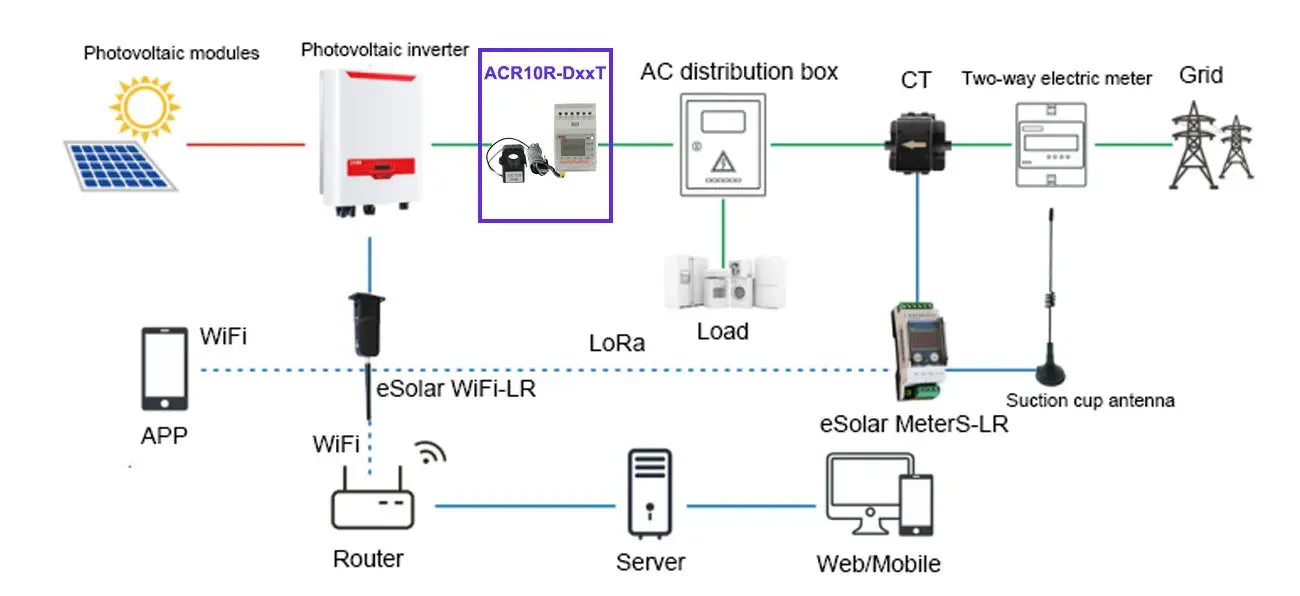

● Application: Using distributed Solar PV and Anti-reflux Inverter

● Display: LCD Display

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC or 100~350V DC

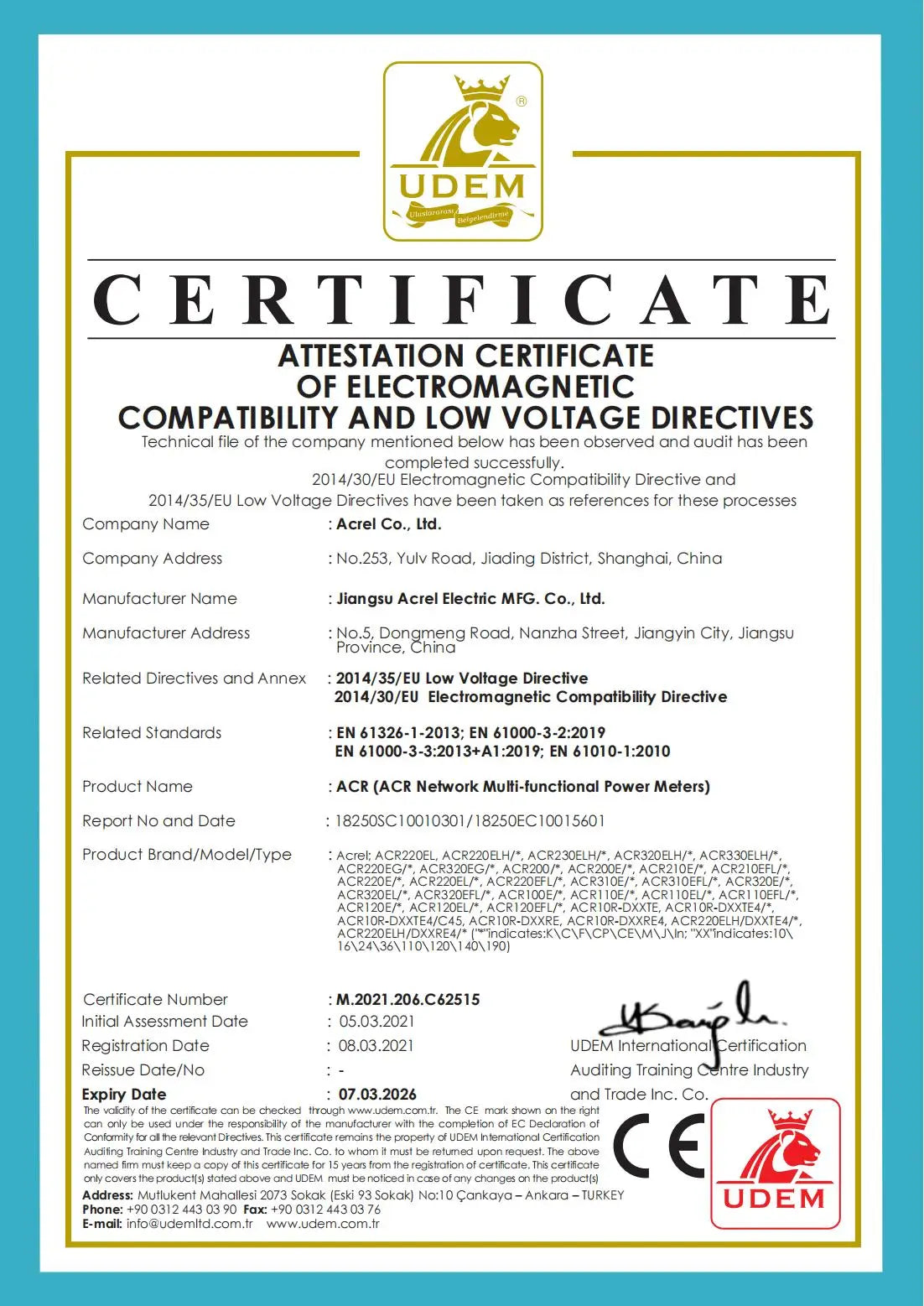

● Standard&Certificate: CE

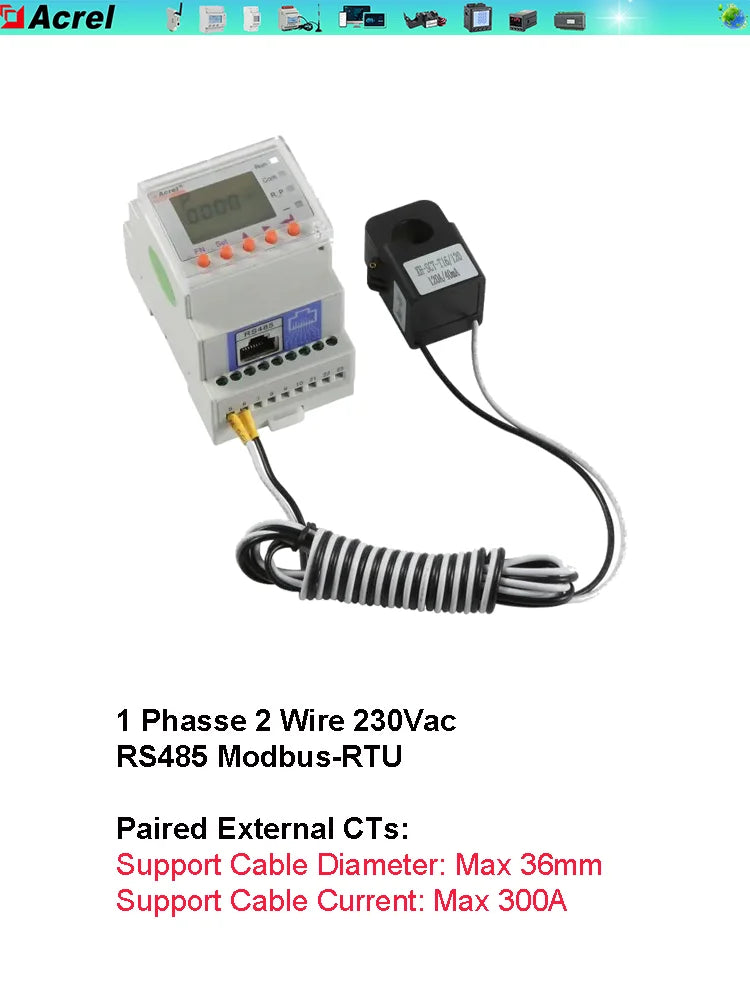

Single phase LCD din rail energy meter with 36mm split CT enabled cable 300A input. It is suitable for power monitoring of grid-connected PV power stations, power management, and so on. It is easy to install without removing the primary bus bar and is cost-effective. It can measure current, voltage, active power, reactive power, frequency, power factor, and so on. It supports multi-tariff energy metering, 4-quadrant energy metering, and so on.

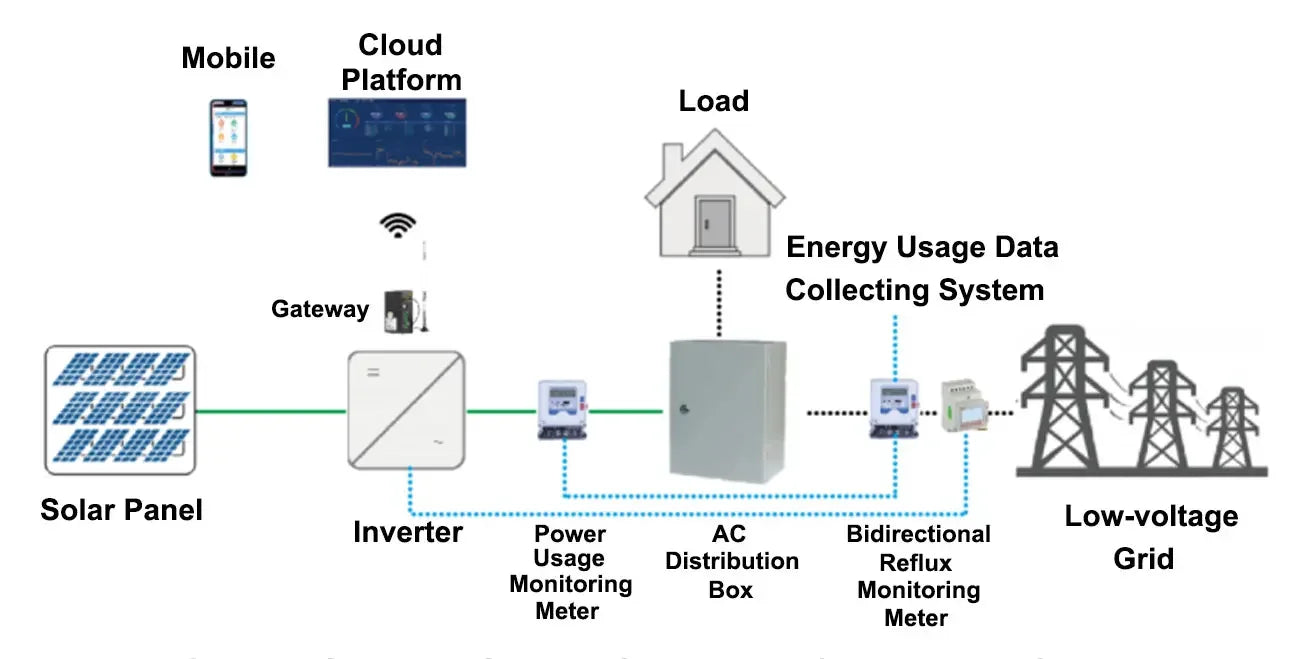

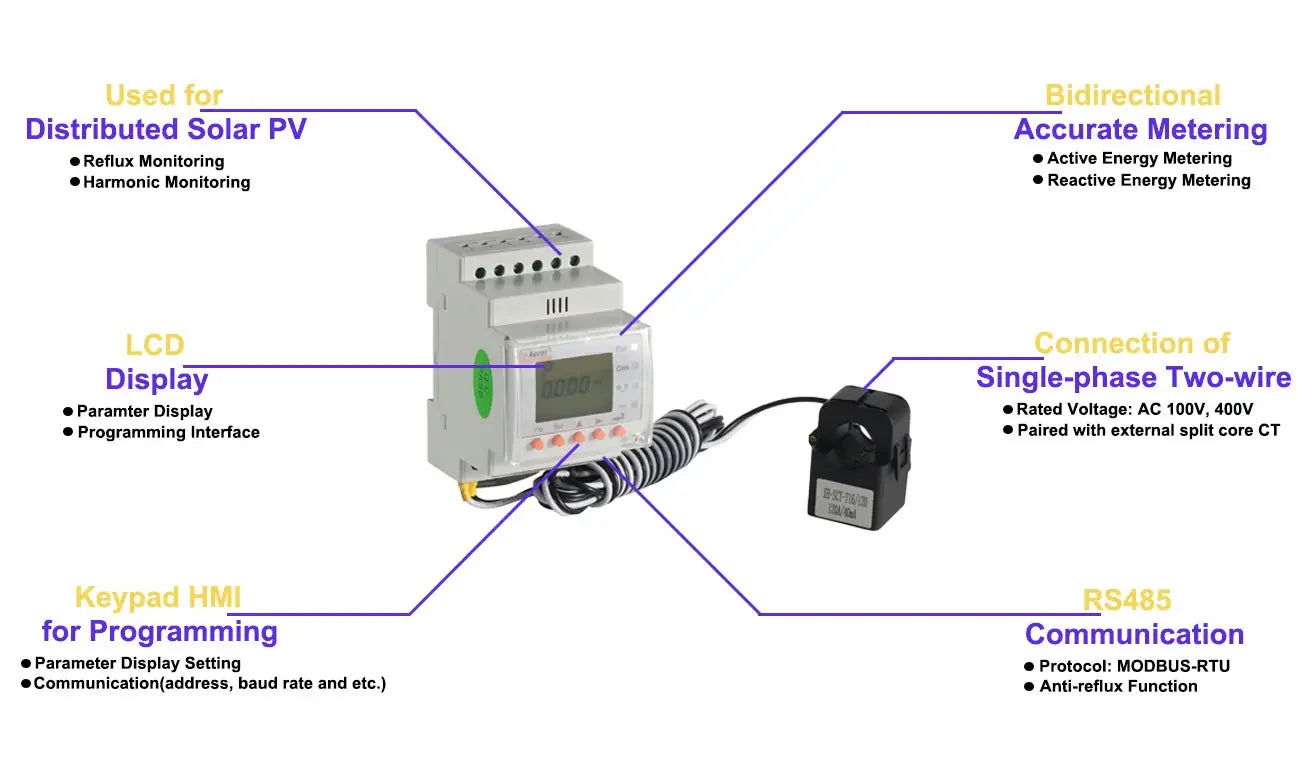

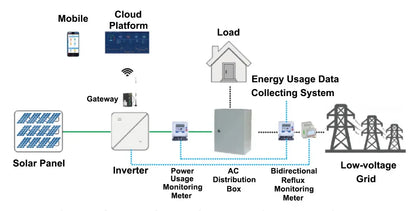

Used for distributed Solar PV

●Reflux Monitoring

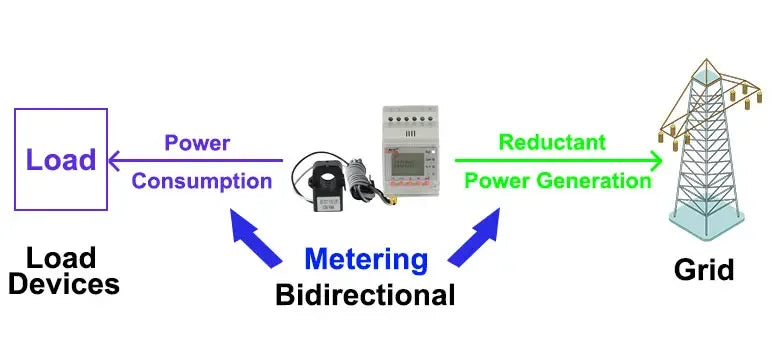

Bidirectional Metering

● Active Energy Metering

● Reactive Energy Metering

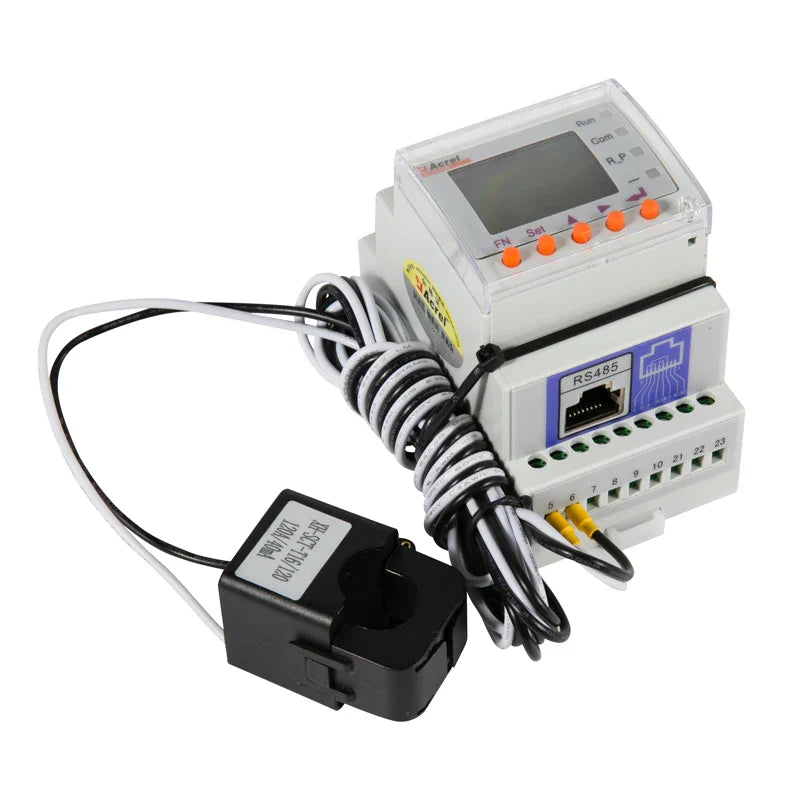

RS485 Communication

● MODBUS-RTU Protocol

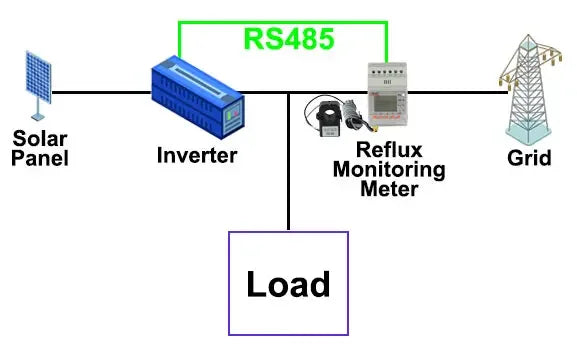

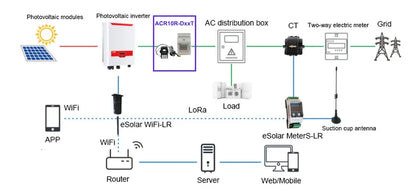

● Communicate with Inverter to realize anti-reflux Function

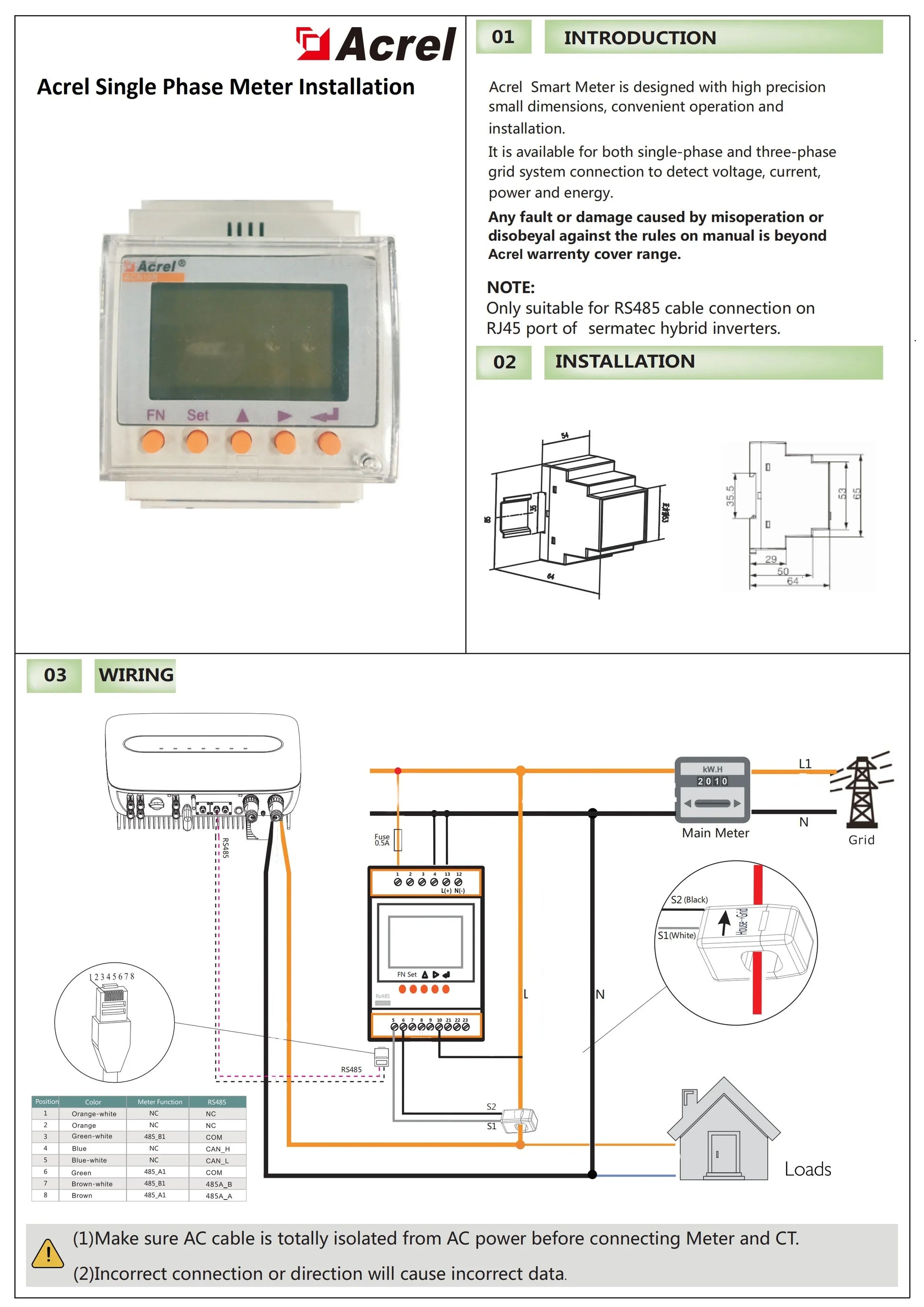

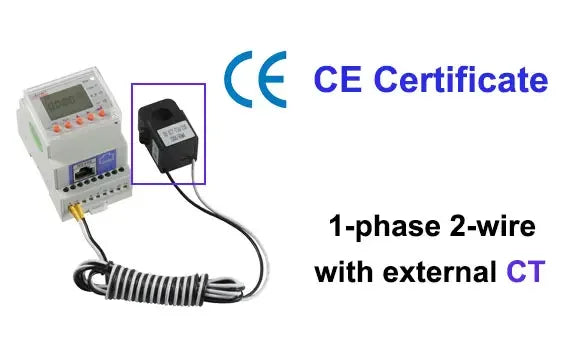

Single-phase Two-Wire Connection

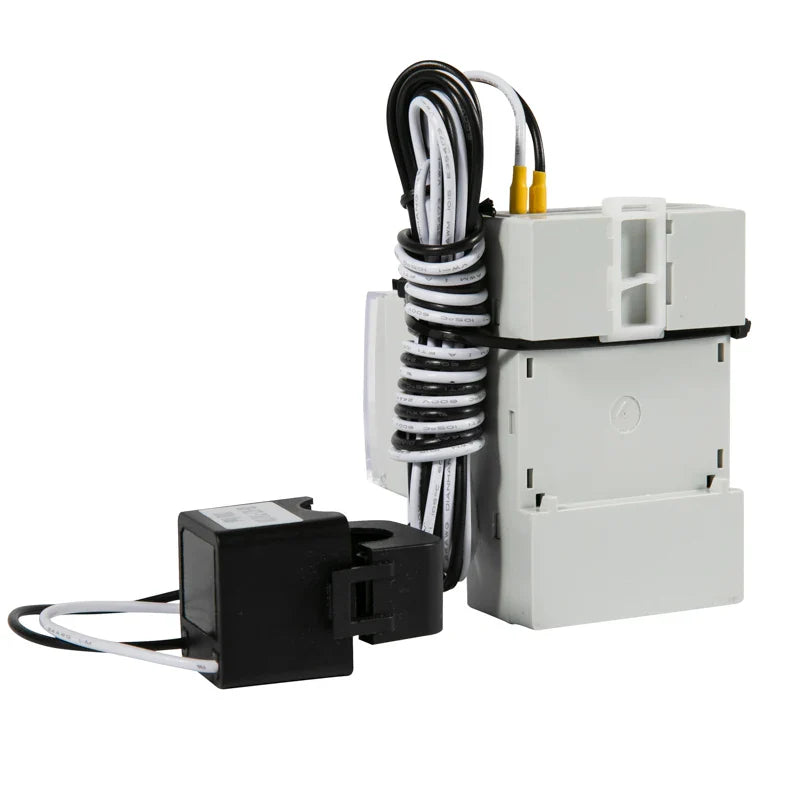

● Paired with external split core CT

● Rated Voltage: AC 100V, 400V

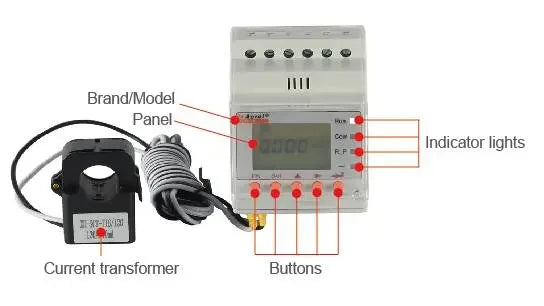

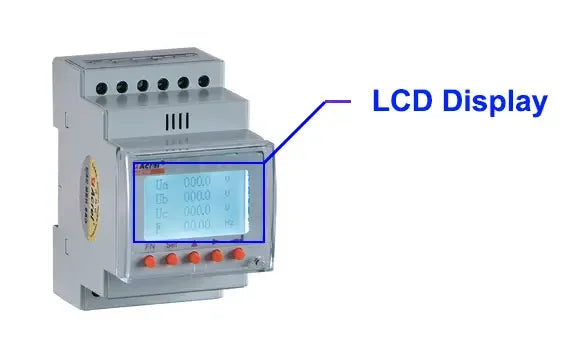

LCD Display

● Parameter Display

● Programming Interface

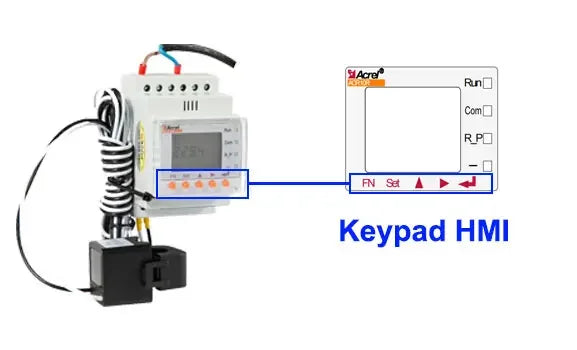

Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

Technical parameters		Indicators
Input	Grid	Single-phase
	Frequency	45~65Hz
	Voltage	Rated voltage: AC 100V, 400V
		Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
		Power consumption: less than 0.2VA
	Current	Rated current: 10A,20A,40A,80A,120A,200A etc. (for details see product specifications)
		Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
		Power consumption: less than 0.2VA
Output	Communication	RS485 interface, Modbus-RTU
	Display	LCD
Measurement precision		Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply		AC85~265V or DC100~350V; power consumption ≤10VA
Safety	Power frequency withstands voltage	AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations among power supply, current input, and voltage input.
	Insulating resistor	Input, output terminal to housing >100MΩ
Environment		Working temperature: -10℃~+55℃;storage temperature: -20℃~+70℃ Relative humidity:5%~95%,non-condensing; altitude:≤2500m
