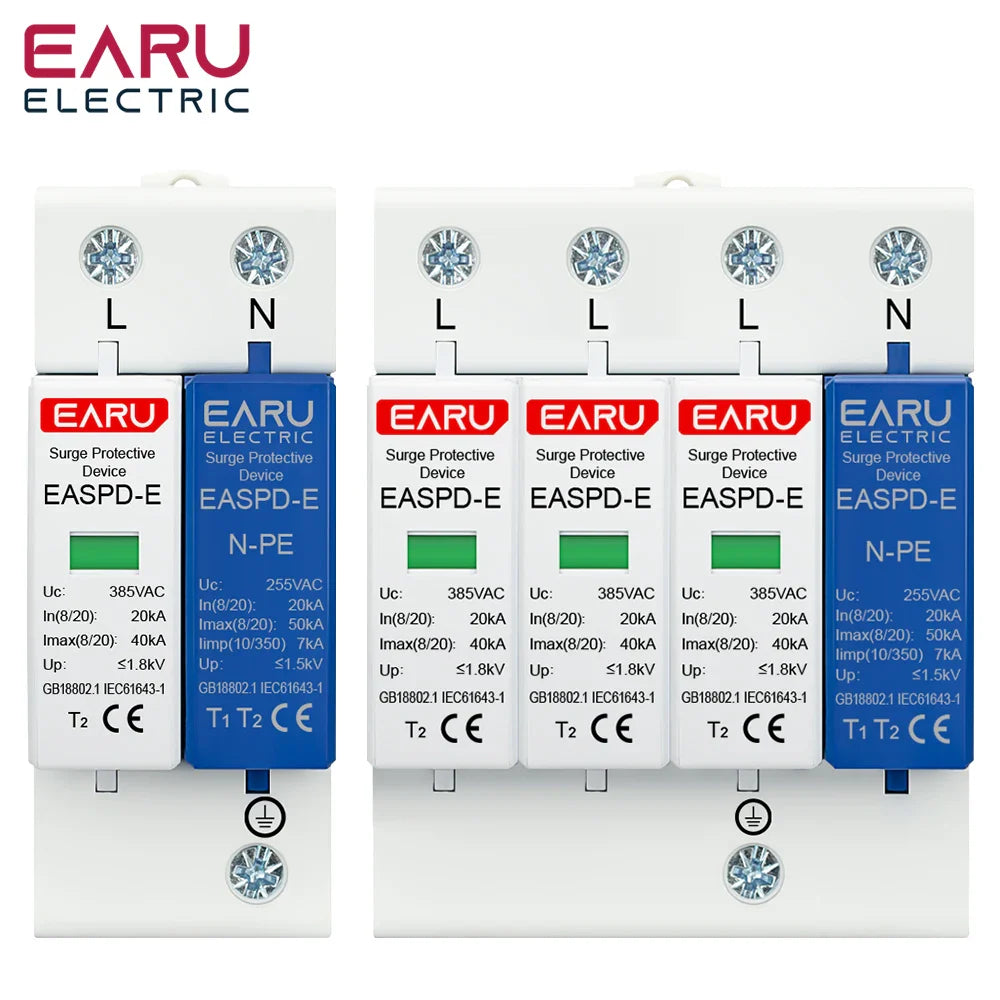

AC SPD 1P+NPE 3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail

AC SPD 1P+NPE 3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail

£15.00 GBP
£0.00 GBP £15.00 GBP
Sale Sold out
Taxes included.
Rated Current
Poles Number

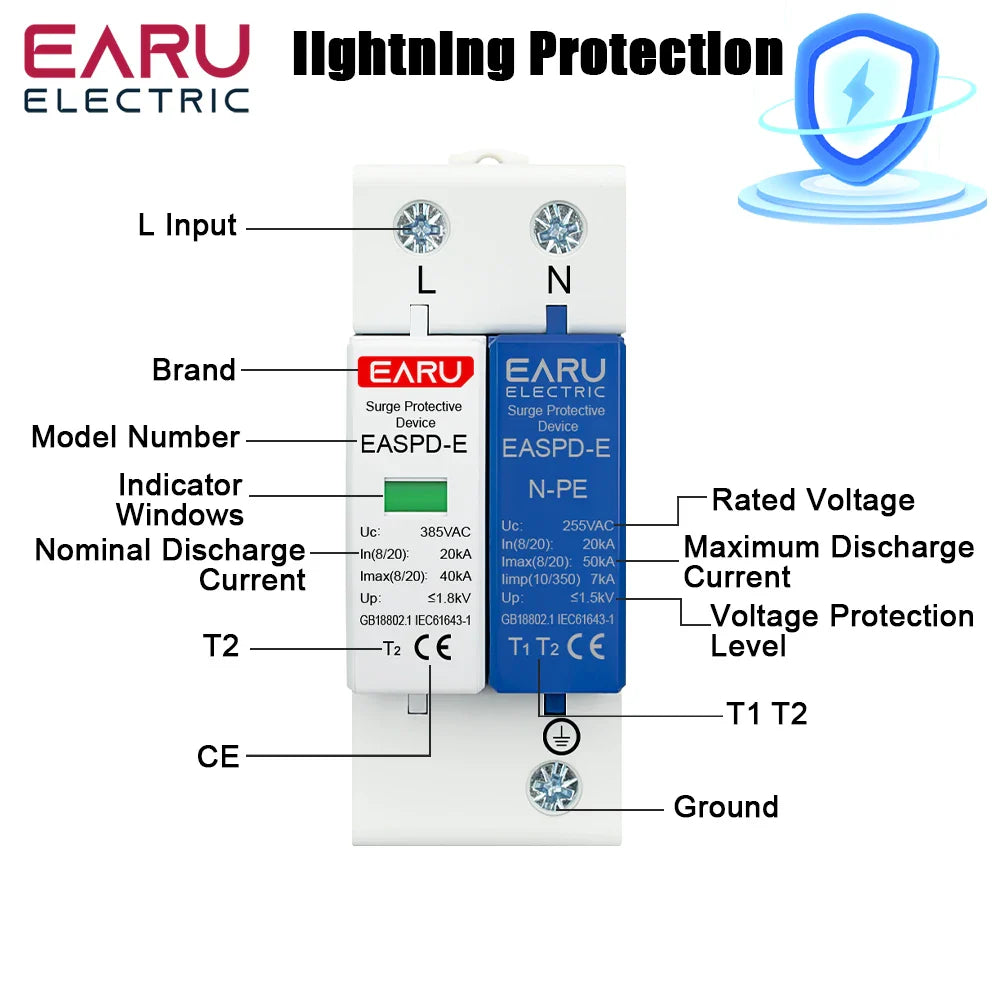

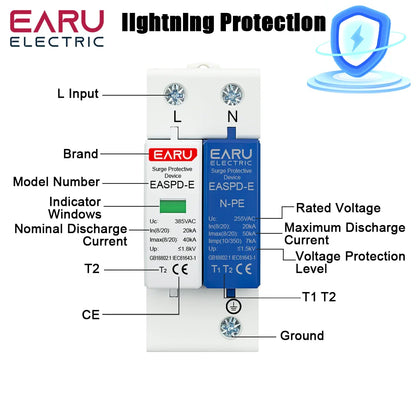

⚡ AC SPD 1P+NPE 3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail

Discover the AC SPD 1P+NPE 3P+NPE 50KA T1 T2 385V 275V House Lightning Surge Protector Protective Solar Low-Voltage Arrester Device Din Rail — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

  • ✅ Professional-grade design for long-term reliability
  • ✅ Optimized for renewable energy system integration
  • ✅ Durable construction for various applications
  • ✅ Comprehensive technical specifications

📄 Technical Specifications

Certification: CE

Choice: yes

High-concerned chemical: None

Input Voltage: 275V/385V

Is Smart Device: No

Max. Discharge Current: 40KA

Model Number: EASPD-E

Nominal Discharge Current: 20KA

Origin: Mainland China

Rated Voltage: 220/380V

Type: Surge Protector,Circuit breaker

is_customized: Yes

semi_Choice: yes

Electric ratings: 275V/385V, AC50/60Hz,
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1
Number of poles: 2P 4P
Electric ratings: Single phase power distribution and control system of AC50/60Hz, 230V;
Short circuit current: up to 10kA (8/20μs);
Application: Protect electric system and on-loading electrical apparatus from lightening and instantaneous over-voltage;

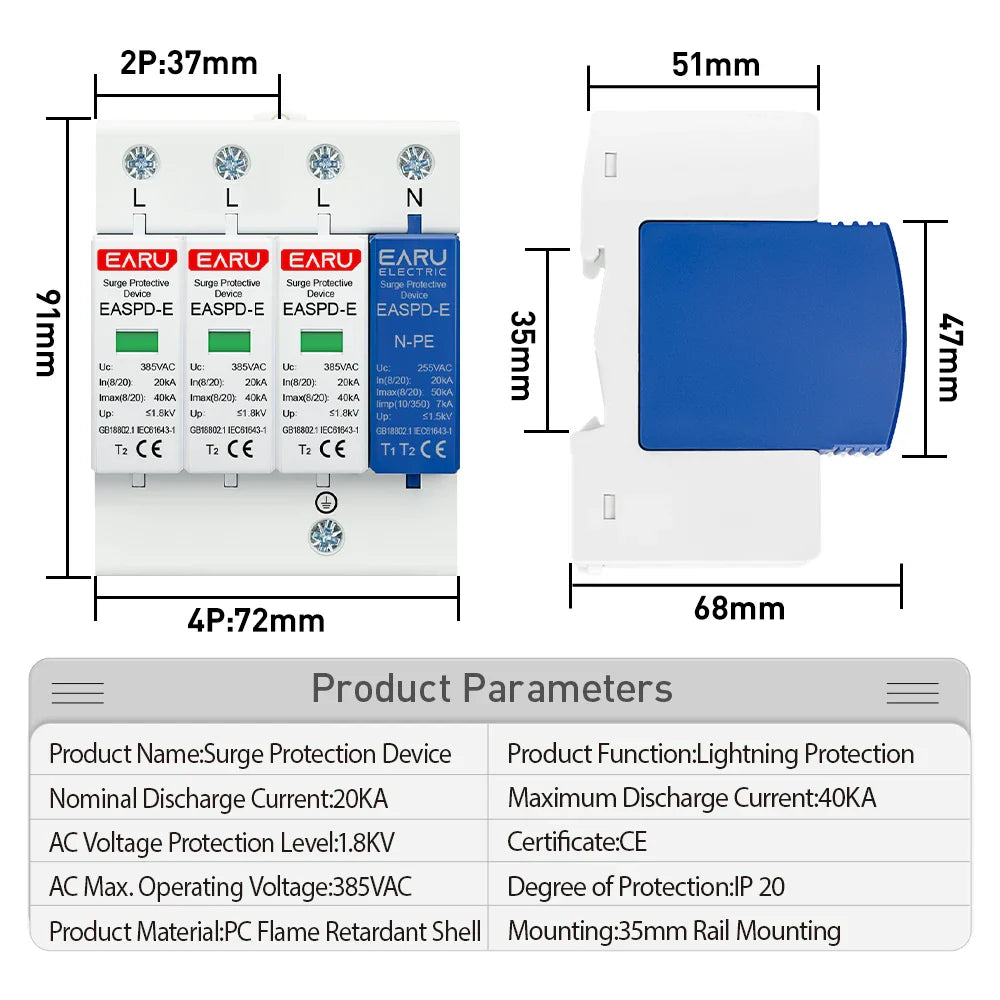

Technical parameters:

Max.Continuous Operating Voltage (Uc):

~275VAC

~385VAC

Nominal Discharge Current (8/20μs) (In):

20KA

20KA

Max. Discharge Current (8/20μs) (Imax.):

40KA

40KA

Voltage Protection Level( Up):

≤1.8KV

≤1.8KV

Response Time:

< 25ns

Leakage current:

≤20μA

Working Environment:

Temperature -40°C +80°C;

Relative humidity<95%;

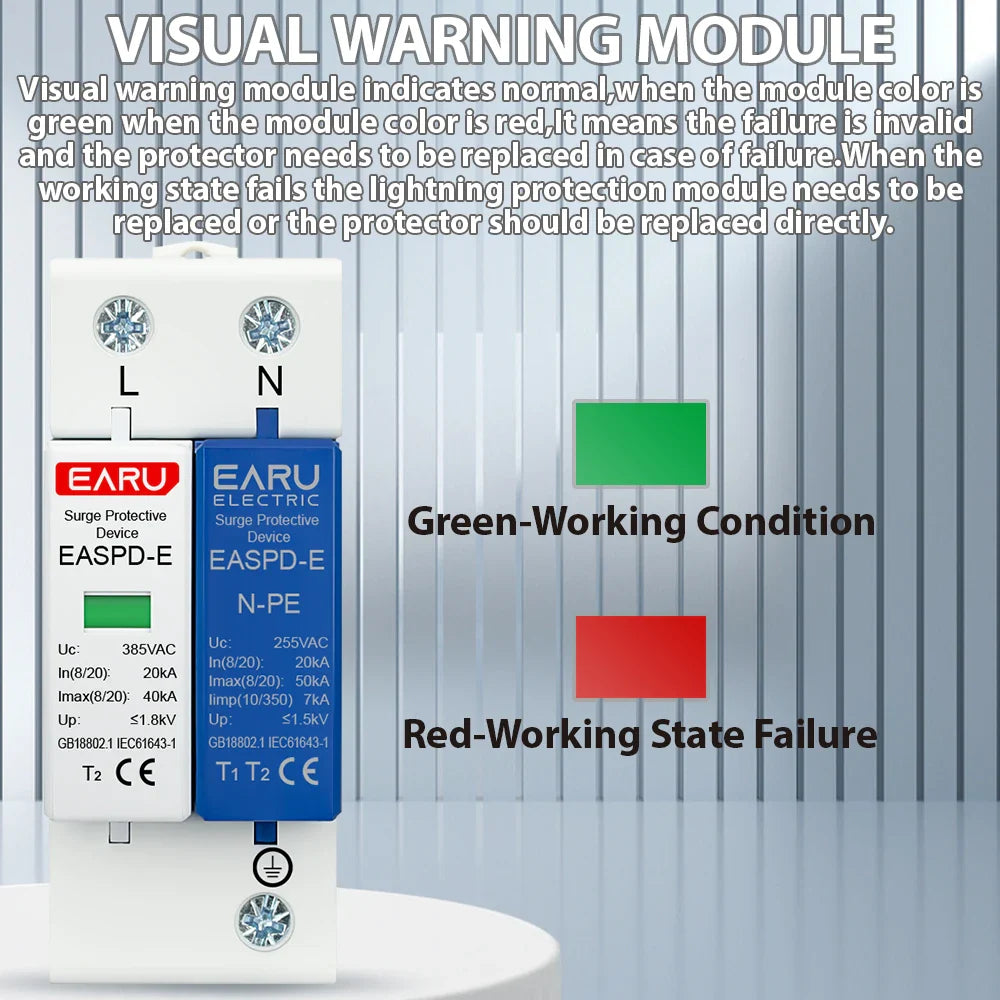

indicate deterioration:

green(normal),red(malfunction)

Protection Mode:

L+N-PE

Material of Outer Shell:

Flame retardant materials
