AC 230V 110V 50/60Hz Digital Single Phase Reset Zero Energy Meter kWh Voltage Current Power Consumption Meter Wattmeter Din Rail
AC 230V 110V 50/60Hz Digital Single Phase Reset Zero Energy Meter kWh Voltage Current Power Consumption Meter Wattmeter Din Rail
Couldn't load pickup availability
⚡ AC 230V 110V 50/60Hz Digital Single Phase Reset Zero Energy Meter kWh Voltage Current Power Consumption Meter Wattmeter Din Rail
Discover the AC 230V 110V 50/60Hz Digital Single Phase Reset Zero Energy Meter kWh Voltage Current Power Consumption Meter Wattmeter Din Rail — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.
📌 Key Features
- ✅ Professional-grade design for long-term reliability
- ✅ Optimized for renewable energy system integration
- ✅ Durable construction for various applications
- ✅ Comprehensive technical specifications
📄 Technical Specifications
Accuracy Class: ±1%
Battery Included: No
Certification: CE
Choice: yes
DIY Supplies: Electrical

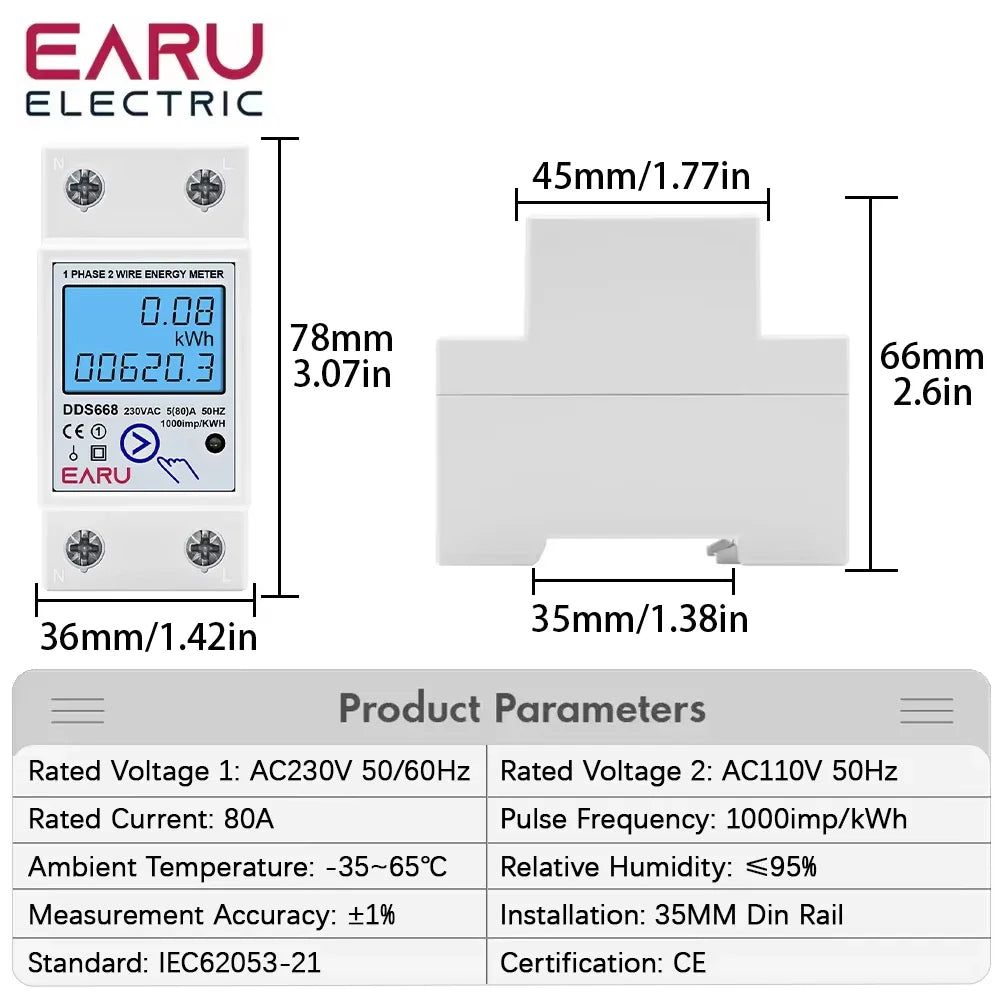

Dimensions: 78*65*35mm
Display 1: Total Energy kWh
Display 2: Temporary kWh
Display 3: Voltage
Display 4: Current
Display Type: LCD
Frequency: 50Hz/60Hz
High-concerned chemical: None
Max Operating Current: 50A - 79A
Measuring Energy Range: 99999.9
Model Number: DDS668
Operating Temperature: -10 to 50C
Operating Voltage 1: AC220V/230V
Operating Voltage 2: AC110V
Origin: Mainland China
Output Voltage: 220V
Phase: single phase
Power Supply: AC
Rated Voltage: 220V
semi_Choice: yes
Features:
DDS668 AC230V/50Hz AC230V/60Hz AC110V/60Hz
Maximum Current:80A
Pulse Frequency:1000imp/kWh
Pulse LED indicates working of meter.
35MM Din Rail Installation

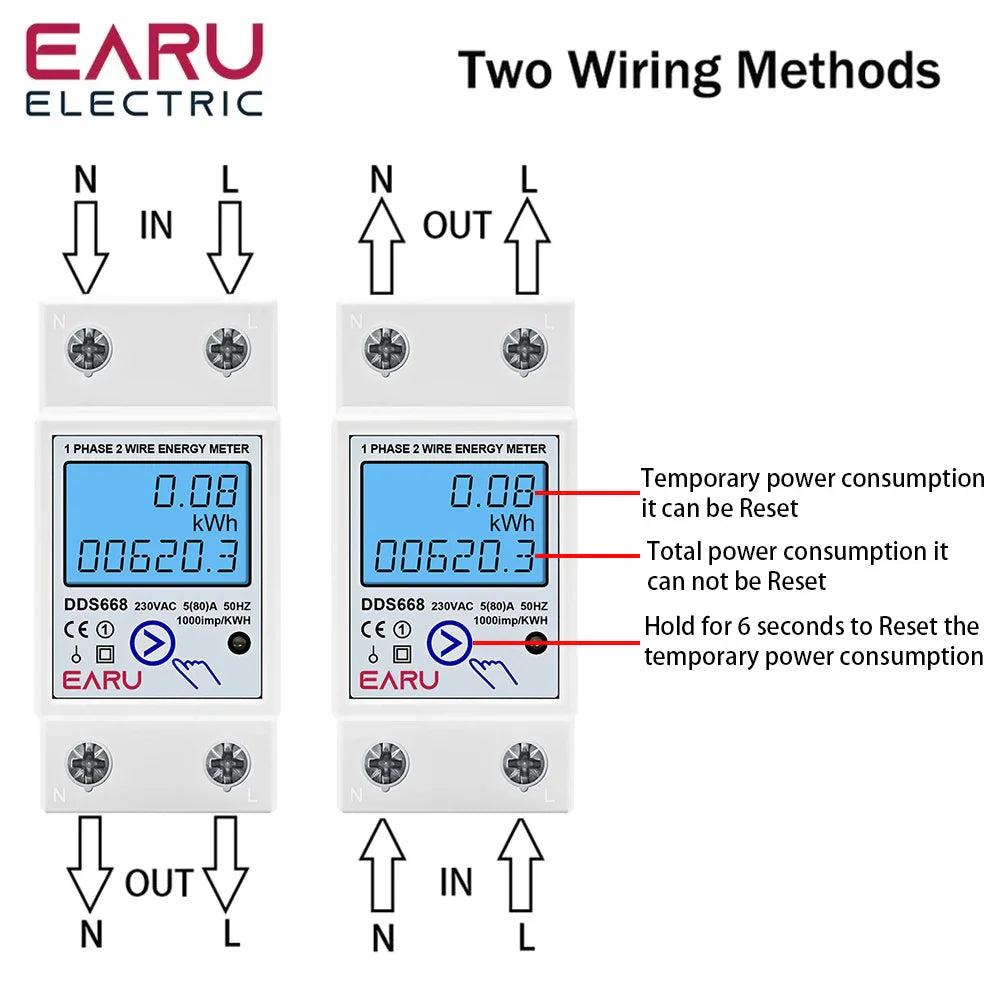

Wiring method: top input and bottom output or top output bottom input

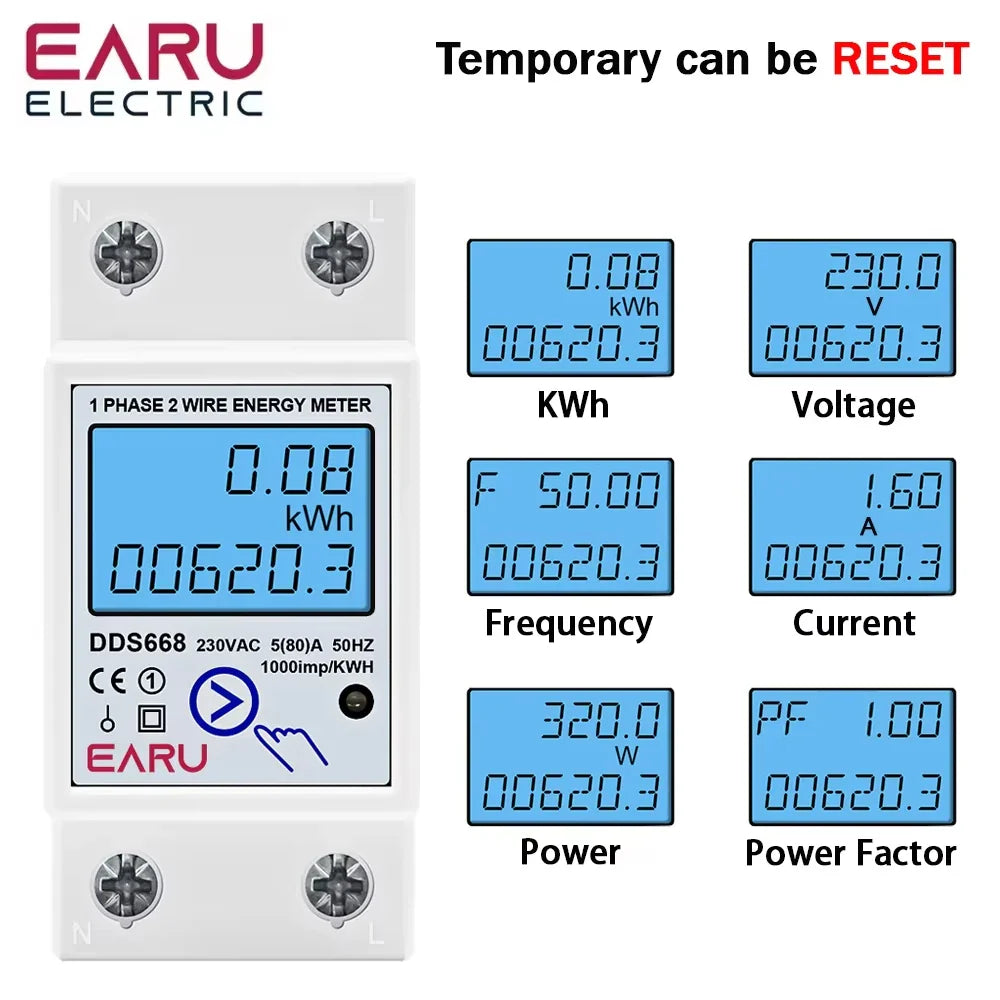

The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing.
Features:
1、With button and With reset function
2、Hold the button for 6 seconds to Reset the temporary kWh
3、With total and temporary electricity consumption
4、Always Display two values simultaneously, one of which inevitably displays power.
NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.
