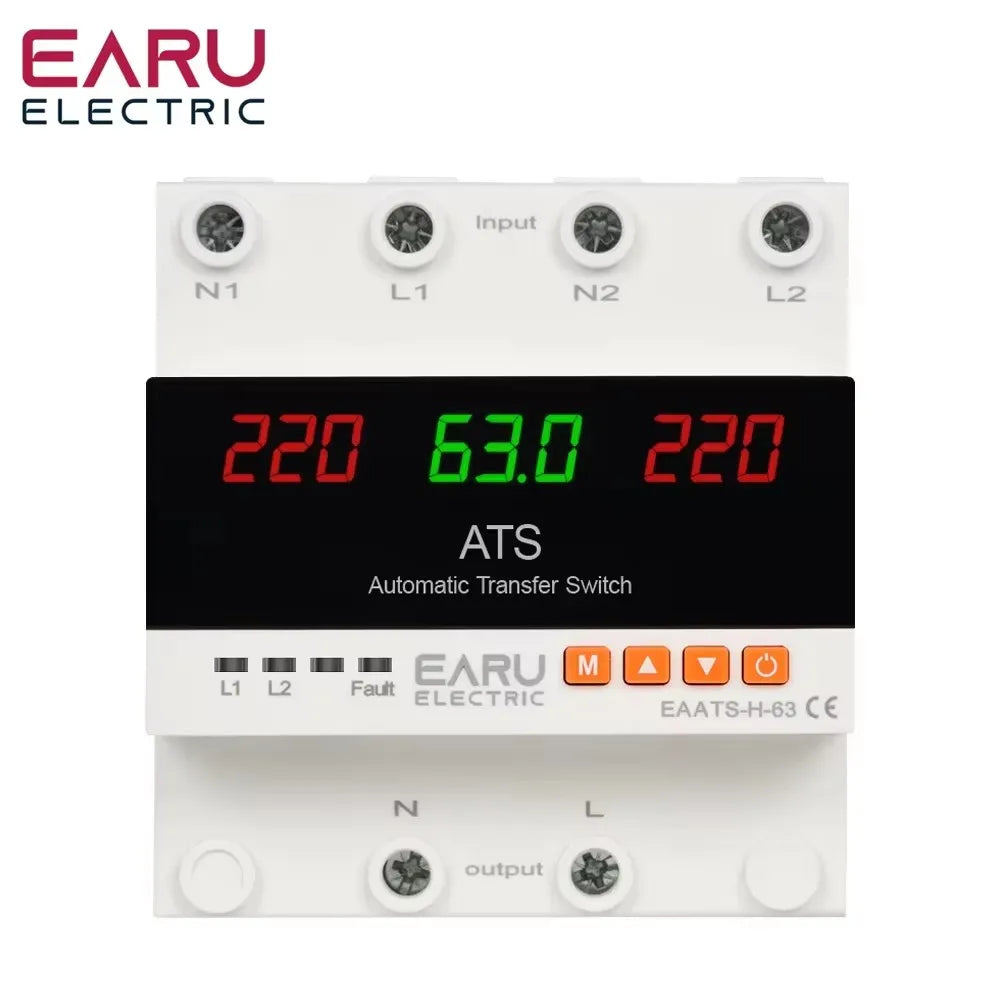

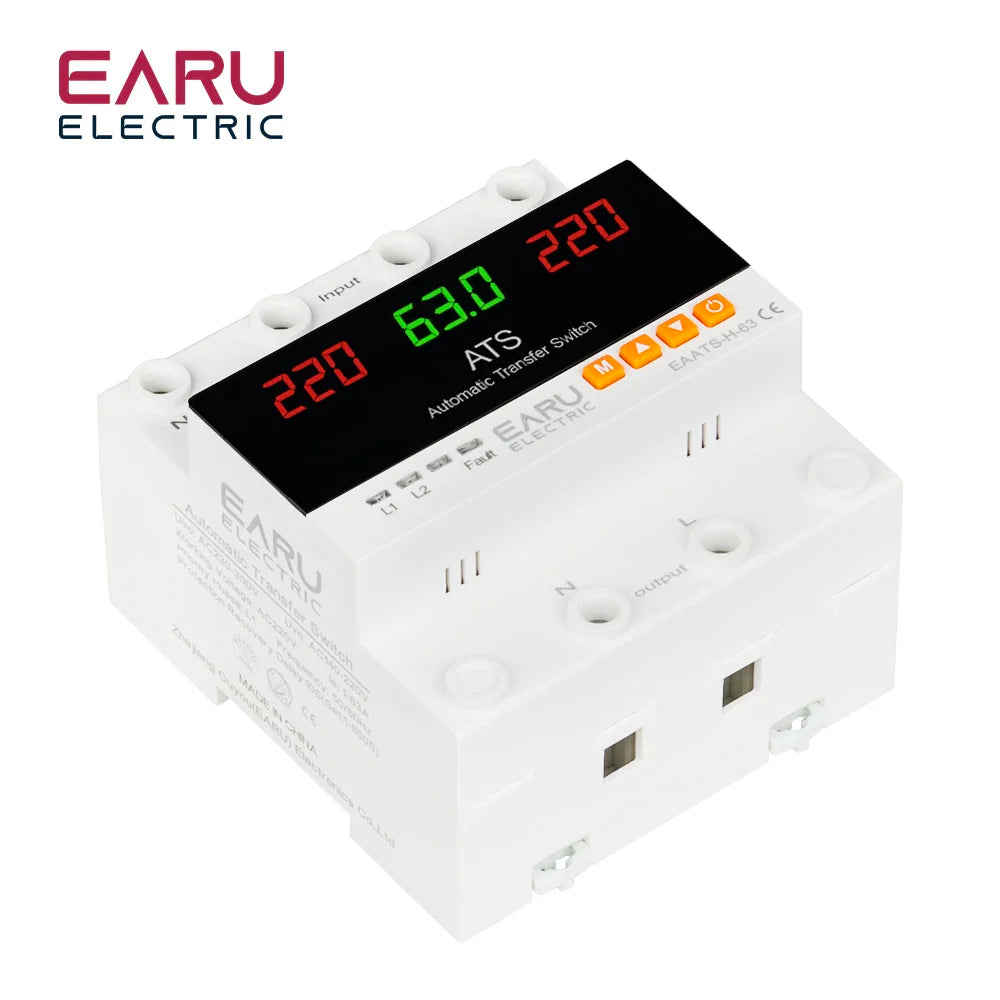

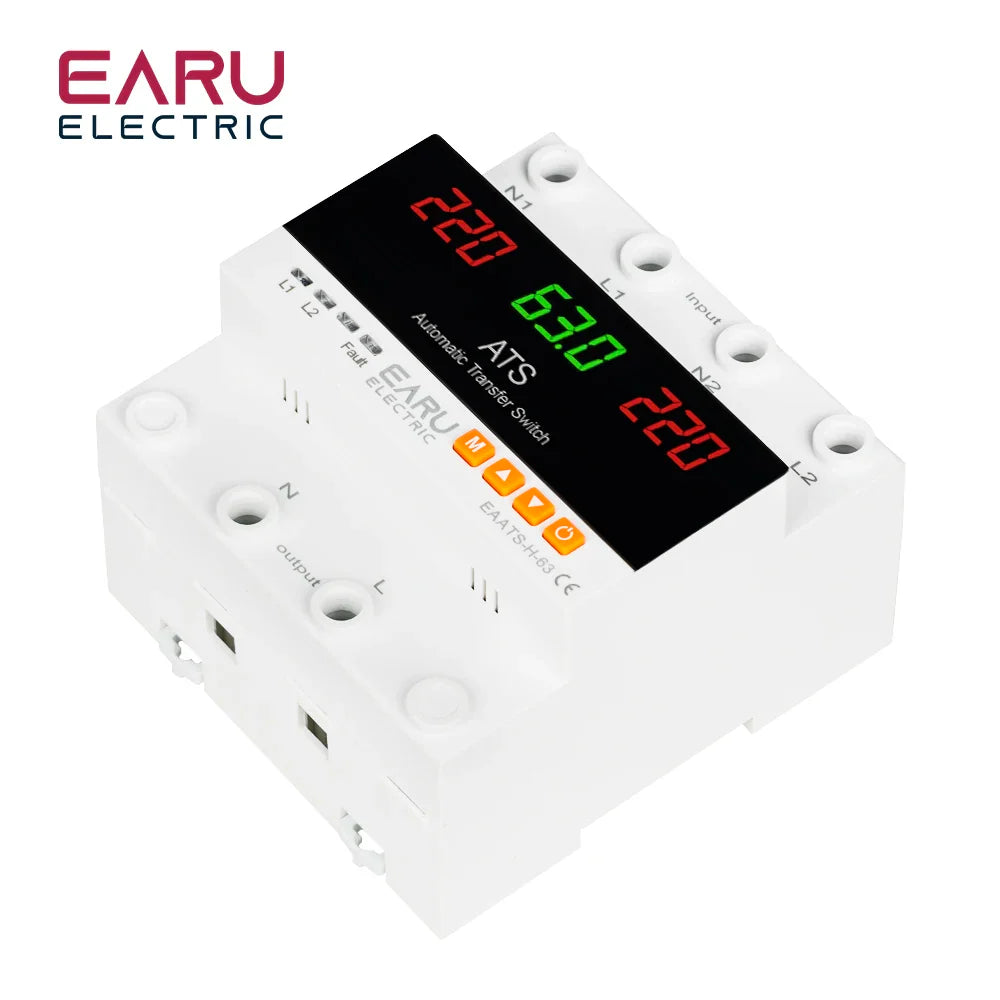

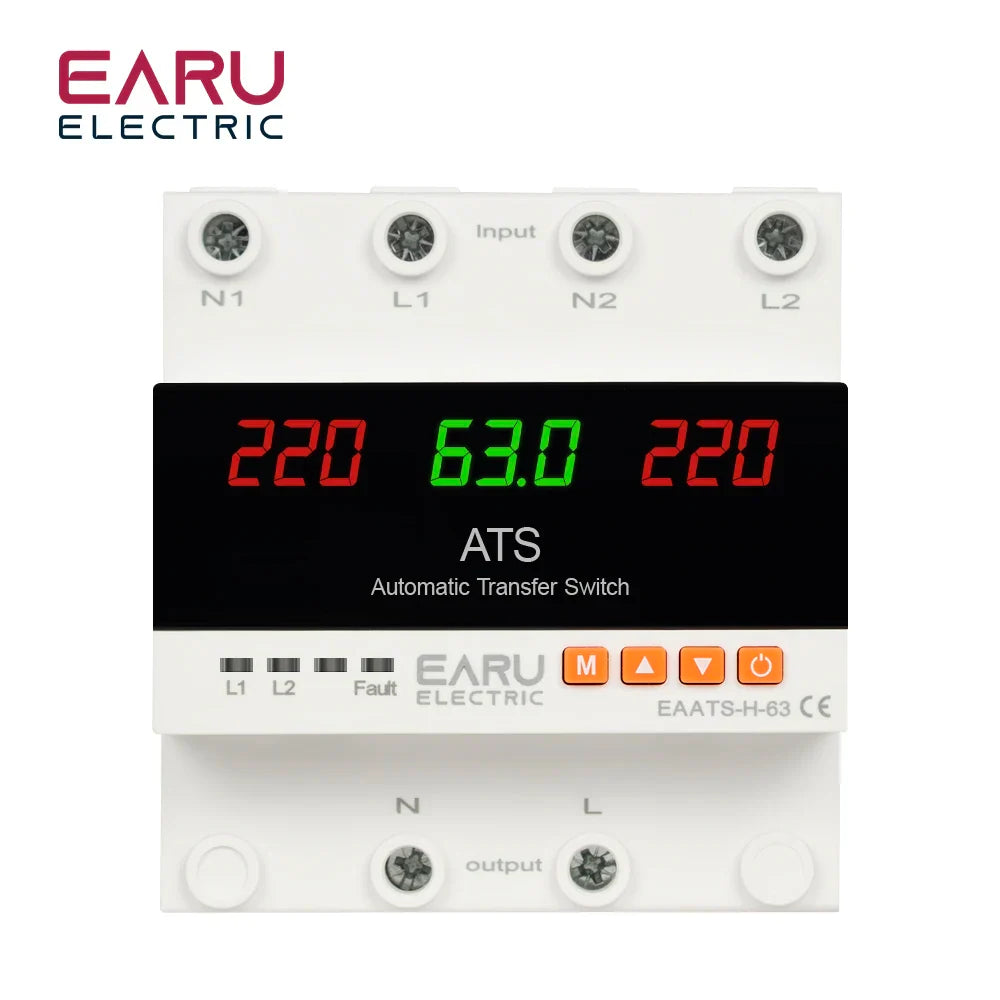

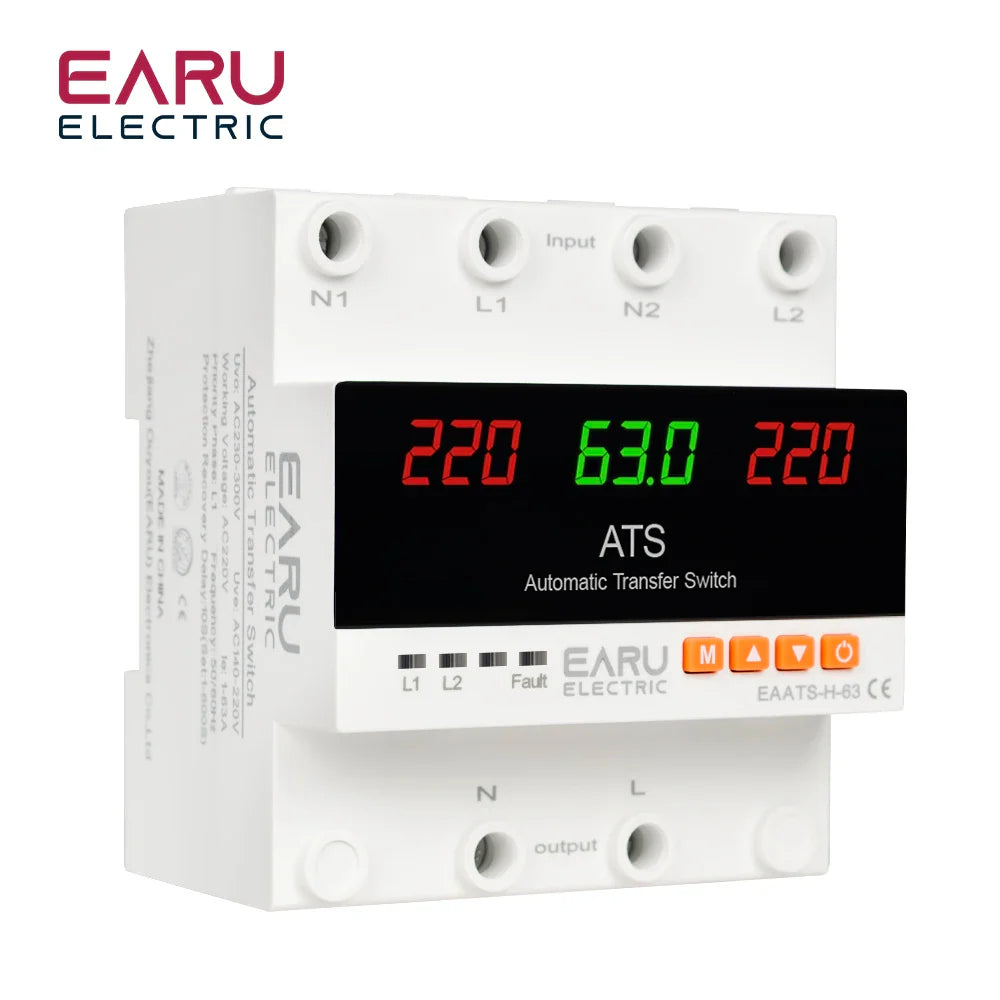

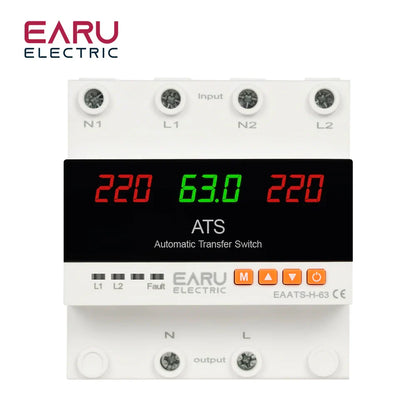

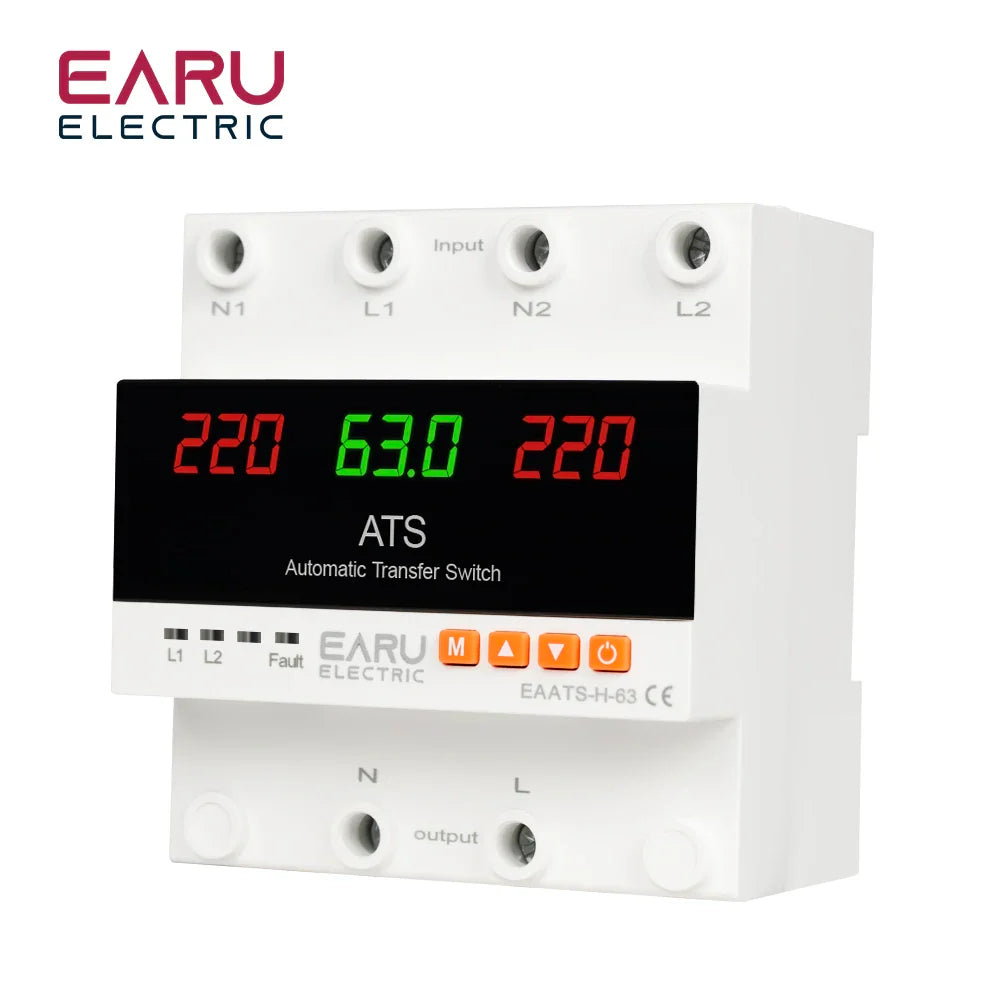

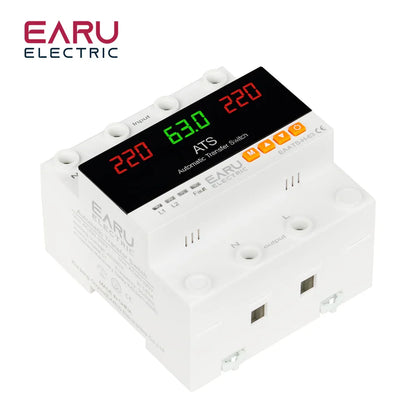

63A 100A 220V ATS Adjustable Over Under Voltage Current Protector Dual Power Conversion Automatic Transfer Switch Monitor Relay

£57.00 GBP

~~£0.00 GBP~~ £57.00 GBP

Sale Sold out

Taxes included.

Rated Current 63A 220V 63A 110V 100A 220V 100A 110V

Poles Number EAATS-H

⚡ 63A 100A 220V ATS Adjustable Over Under Voltage Current Protector Dual Power Conversion Automatic Transfer Switch Monitor Relay

Discover the 63A 100A 220V ATS Adjustable Over Under Voltage Current Protector Dual Power Conversion Automatic Transfer Switch Monitor Relay — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

📄 Technical Specifications

Ambient temperature: -25℃~+50℃

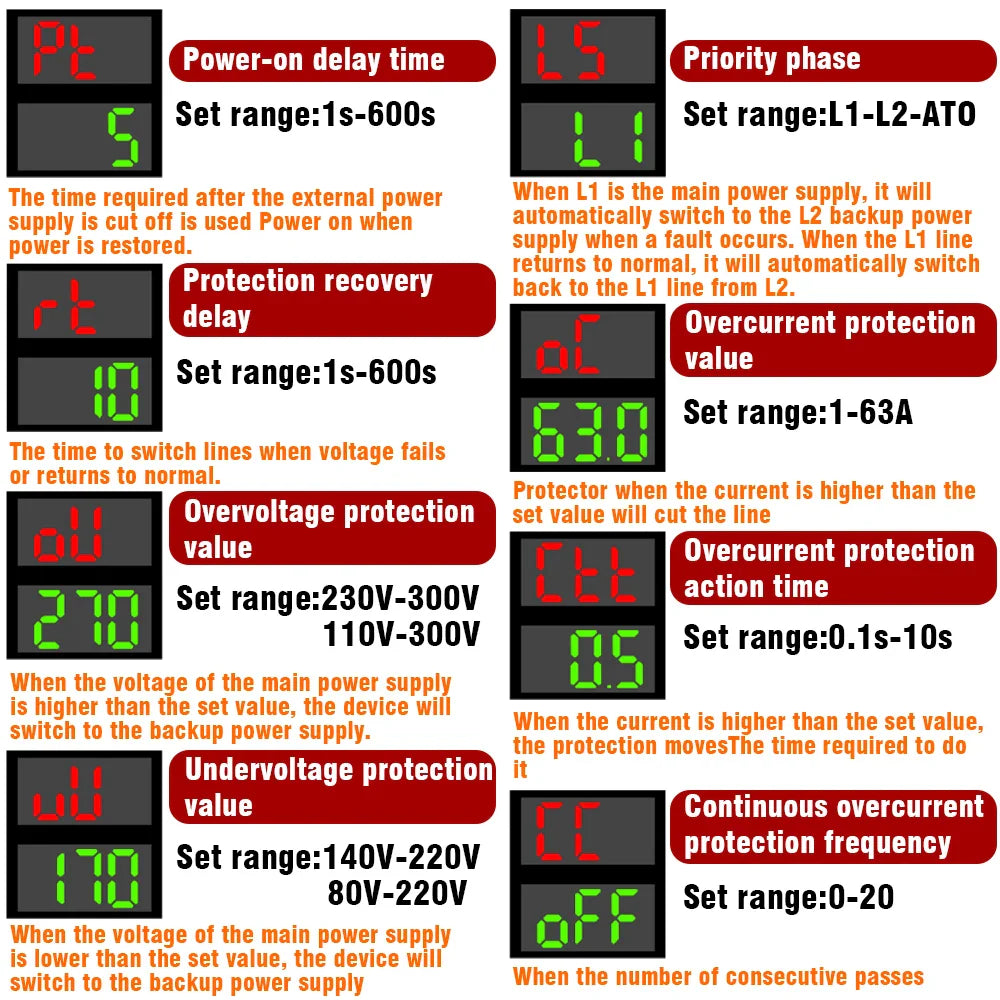

Auto-reclosing delay(Ton): 1-600s

Certification: CE

Choice: yes

High-concerned chemical: None

Is Smart Device: No

Max. operating current: 63A/80A/100A

Max. operating phase voltage: 350V

Model Number: EAATS-H

Origin: Mainland China

Overvoltage trip delay: 0.1s;≥350V: 0.02s

Permissable relative humidity: ≤50% at 40℃(without condensation)

Pollution degree: 3

Rated Voltage: 220V

Rated frequency: 50/60Hz

Rated operating current: 63A/80A/100A

Rated supply voltage: AC2*220V/110V(N1-L1/N2-L2)

Return delay to priority phase: 1-600s

Storage temperature: -25℃~+55℃

Supply terminals: N1,L1,N2,L2

Switch delay to reserve phases: <0.2s

Type: Mini,Voltage relay

Umax setting range: 230-300V 110-300V

Umin setting range: 140-220V 80-220V

Undervoltage trip delay: 0.1s;≥350V: 0.02s

Voltage accuracy: <1%

Voltage hysteresis: 5V

is_customized: Yes

semi_Choice: yes

Product Description

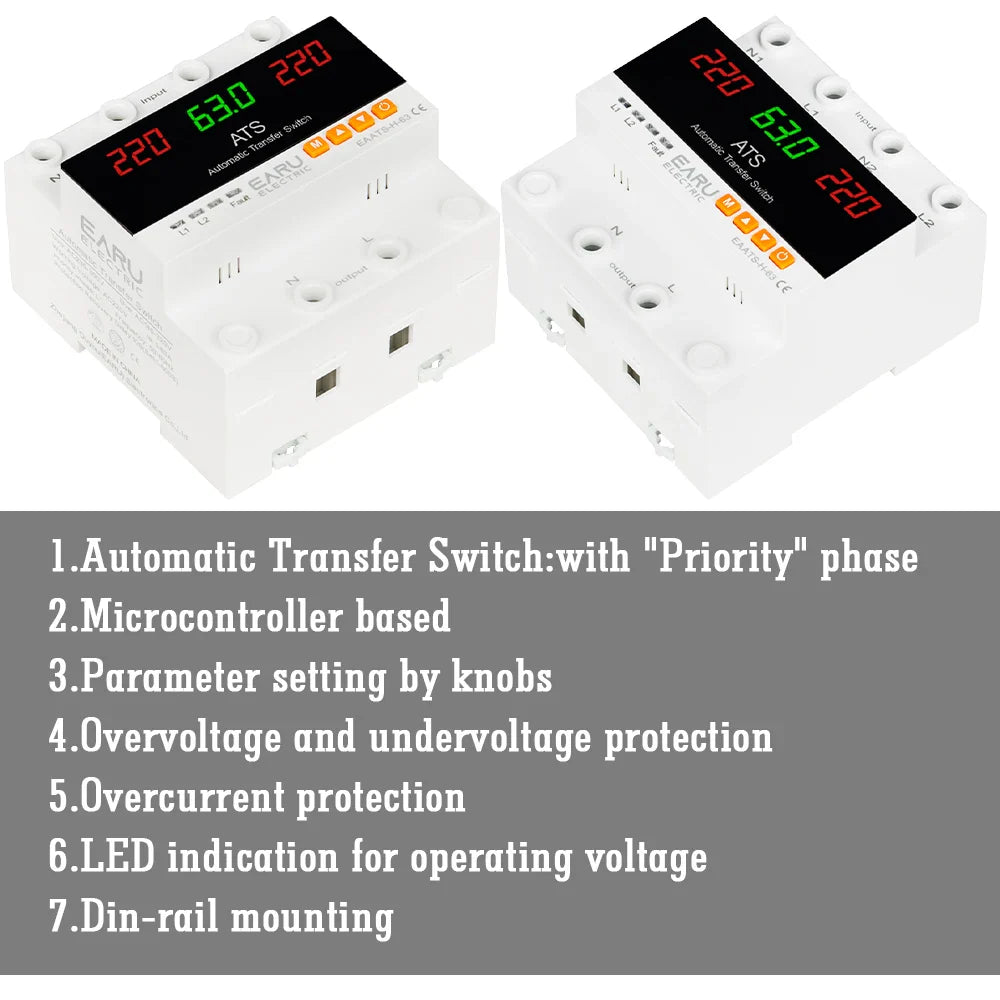

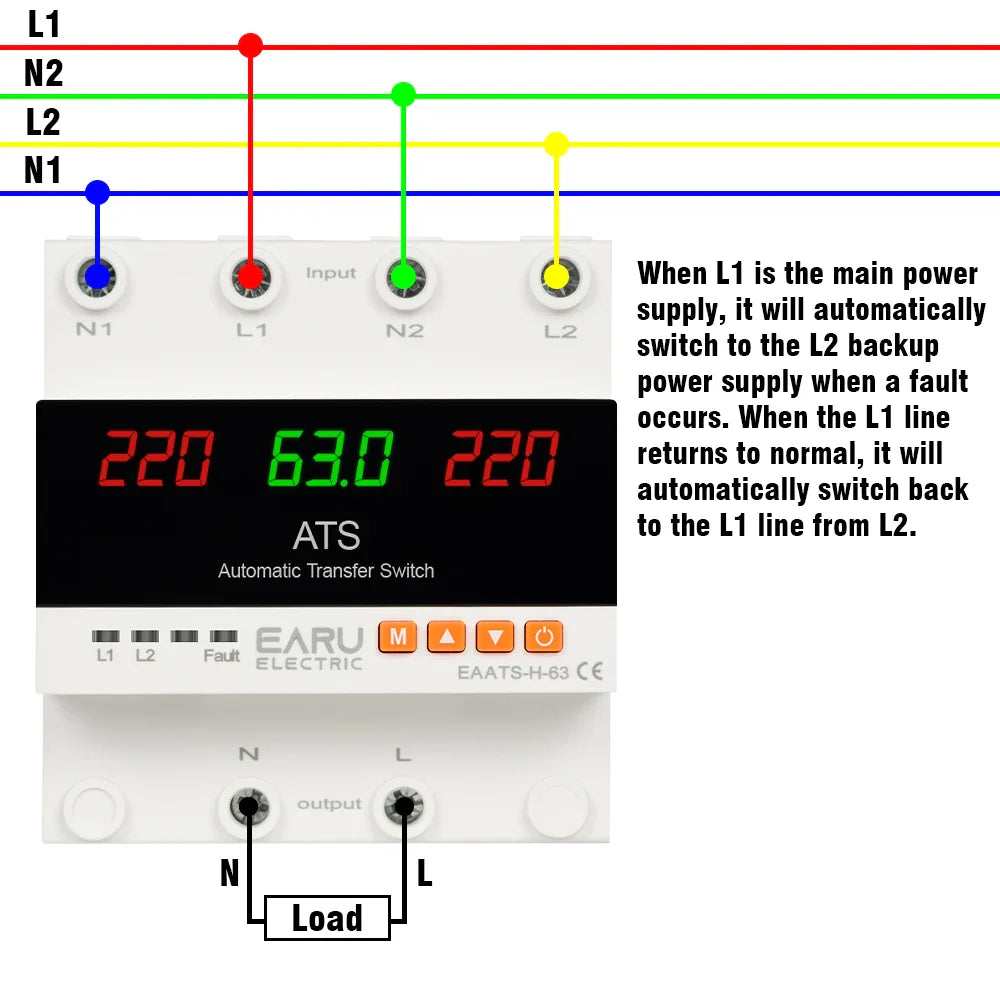

1.Automatic Transfer Switch:with "Priority" phase

2.Microcontroller based

3.Parameter setting by knobs

4.Overvoltage and undervoltage protection

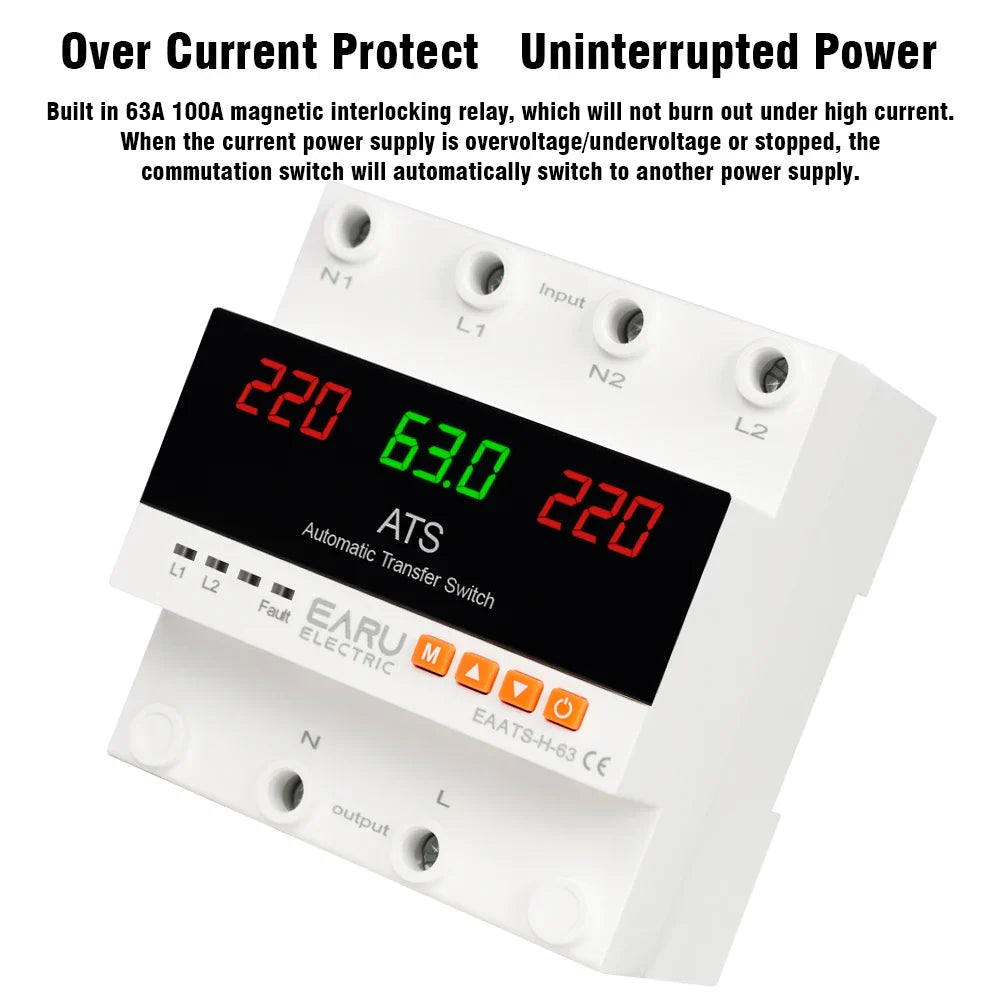

5.Overcurrent protection

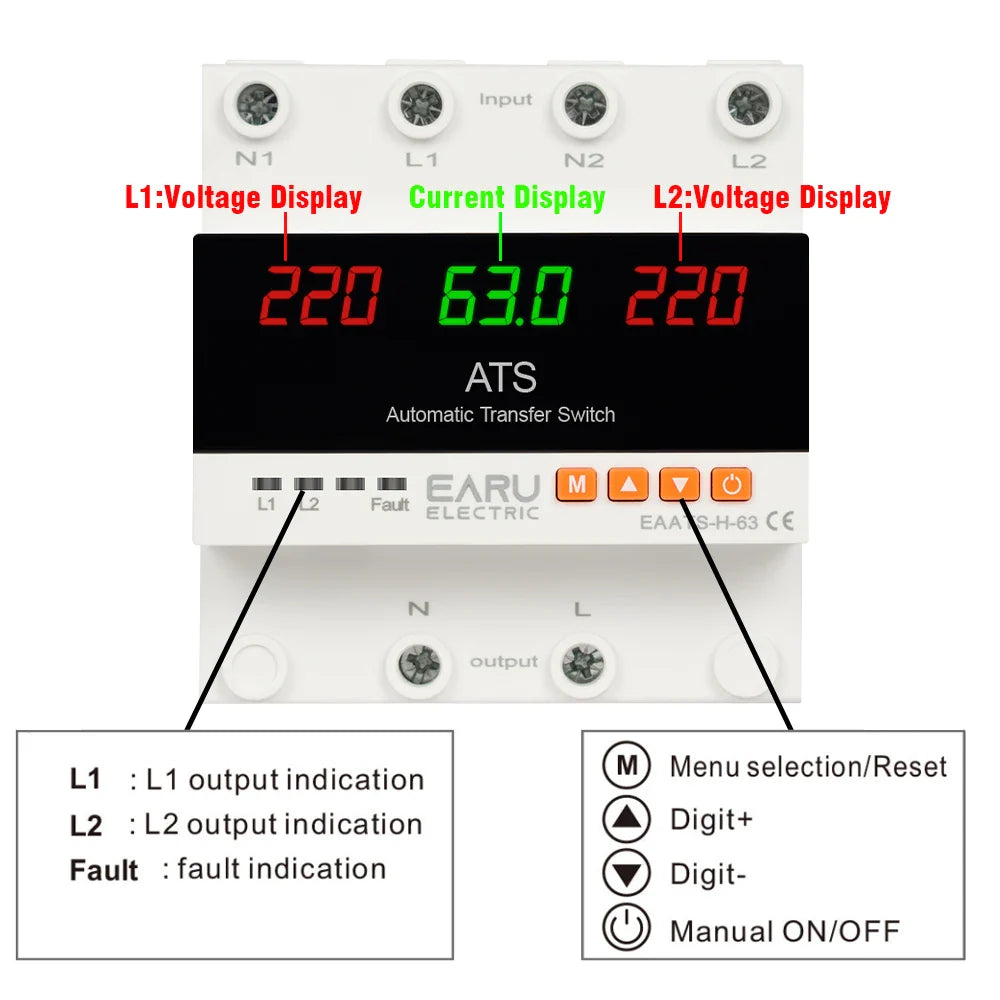

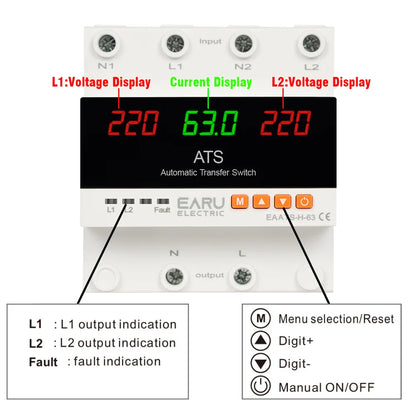

6.LED indication for operating voltage

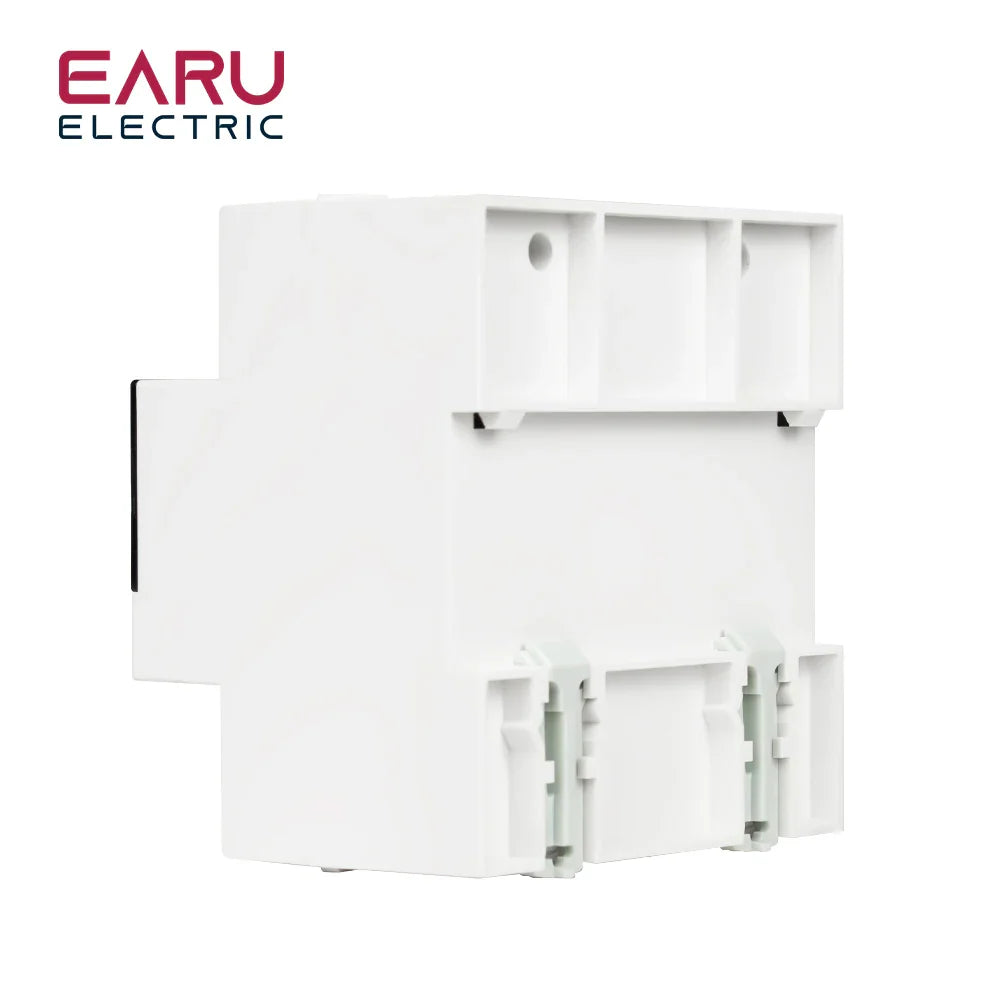

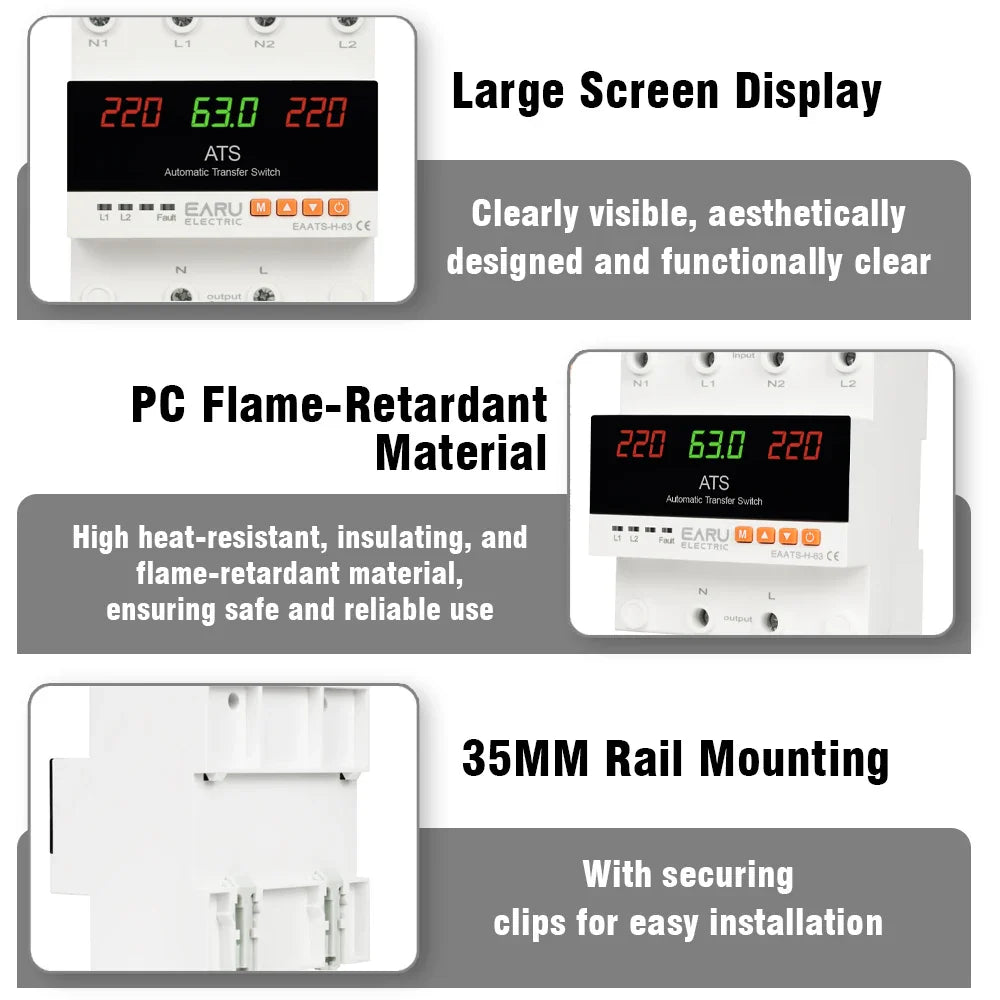

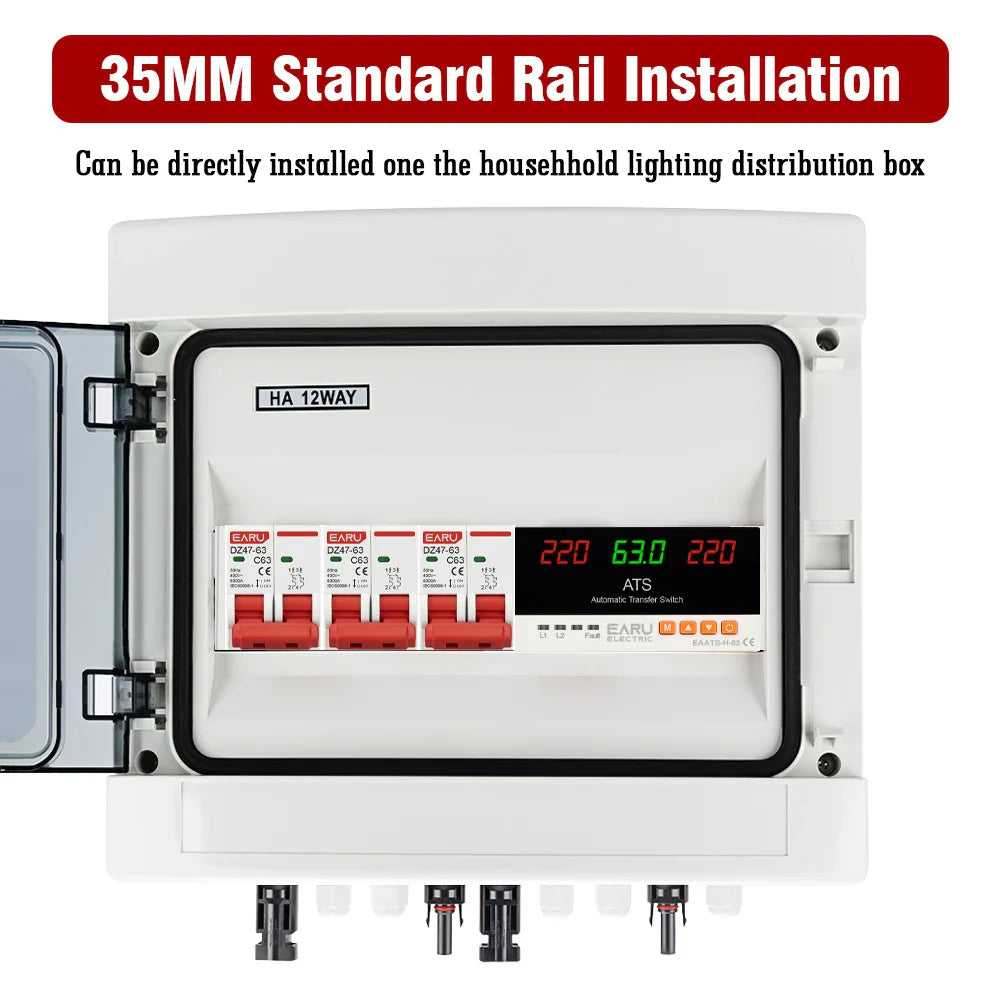

7.Din-rail mounting

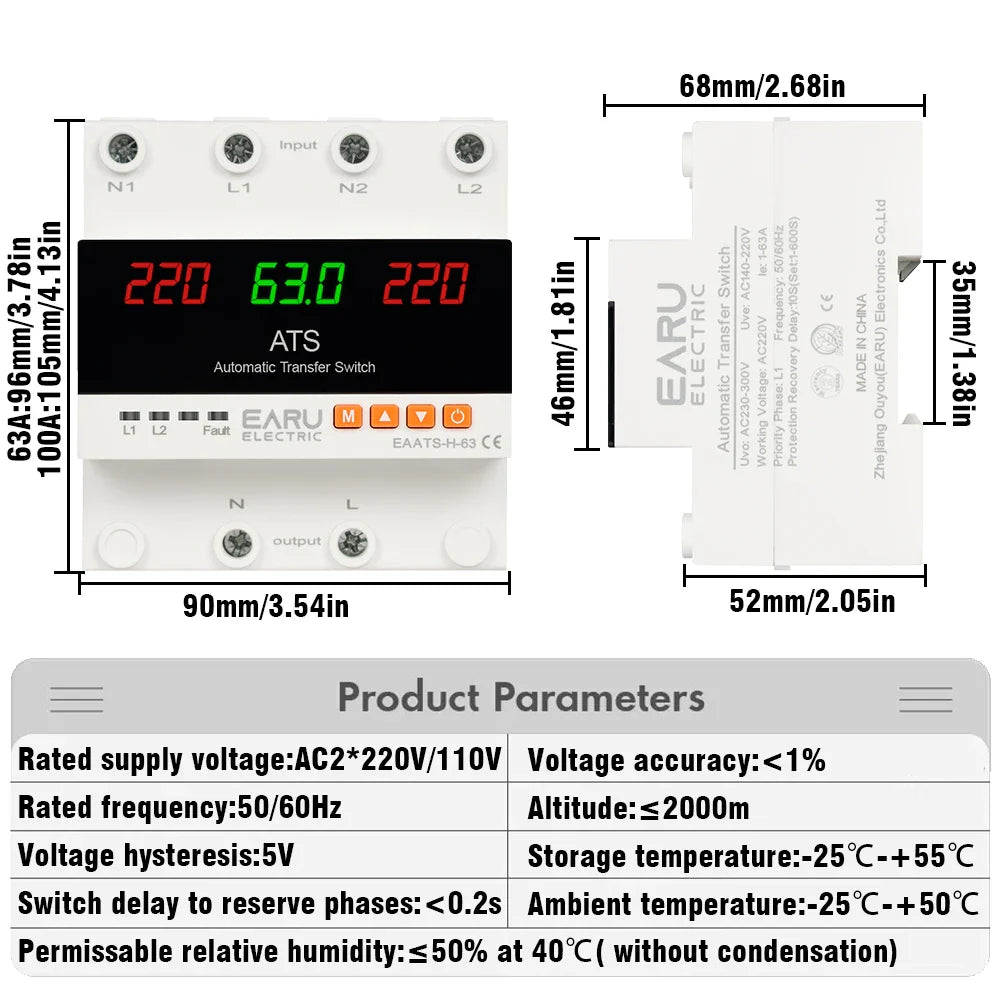

Technical Data

Supply terminals:N1,L1,N2,L2

Rated supply voltage:AC2*220V/110V( N1-L1/N2-L2)

Rated frequency:50/60Hz

Umax setting range:230-300V,110-300V

Umin setting range:140-220V,80-220V

Auto-reclosing delay(Ton):1-600s

Return delay to priority phase:1-600s

Switch delay to reserve phases:<0.2s

Voltage hysteresis:5V

Overvoltage trip delay:0.1s;≥350V: 0.02s

Undervoltage trip delay:0.1s;≥350V: 0.02s

Voltage accuracy:<1%

Max. operating phase voltage:350V

Rated operating current:63A/80A/100A

Max. operating current:63A/80A/100A

Pollution degree:3

Altitude:≤2000m

Ambient temperature:-25℃~+50℃

Permissable relative humidity:≤50% at 40℃ ( without condensation)

Storage temperature:-25℃~+55℃
