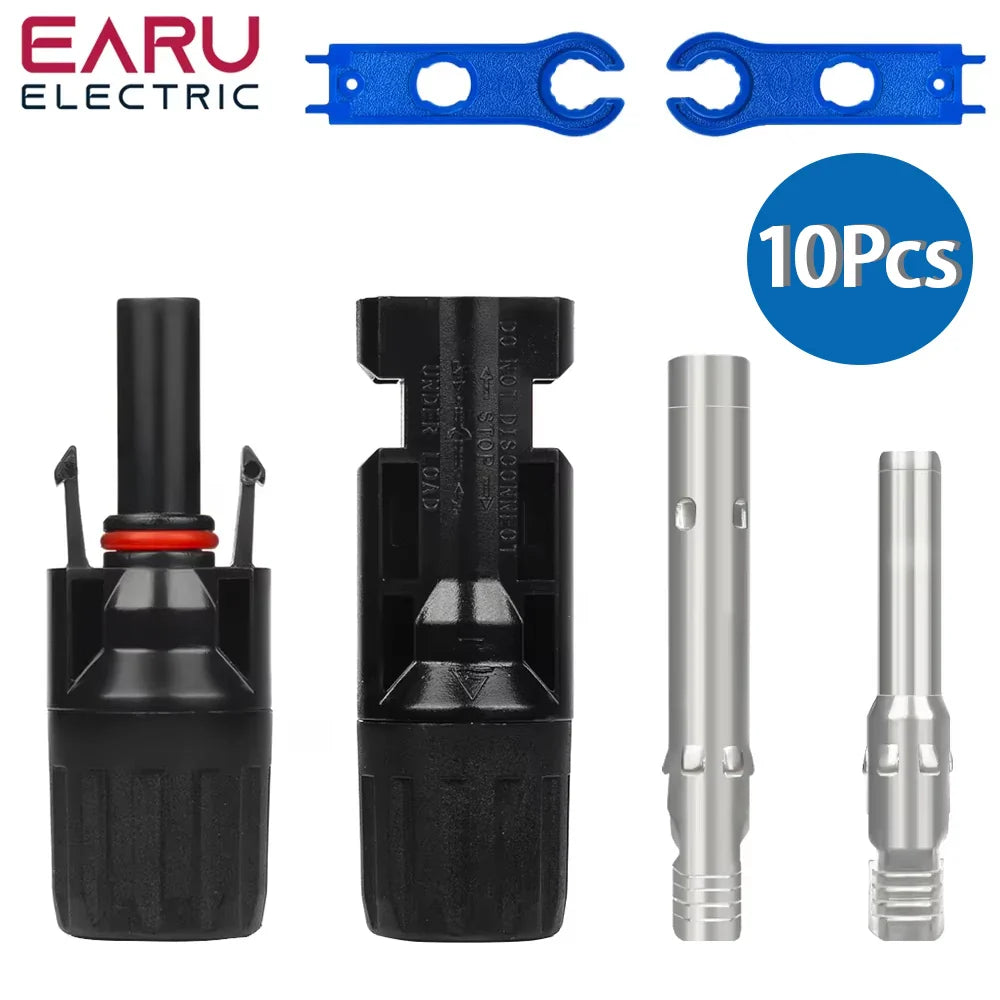

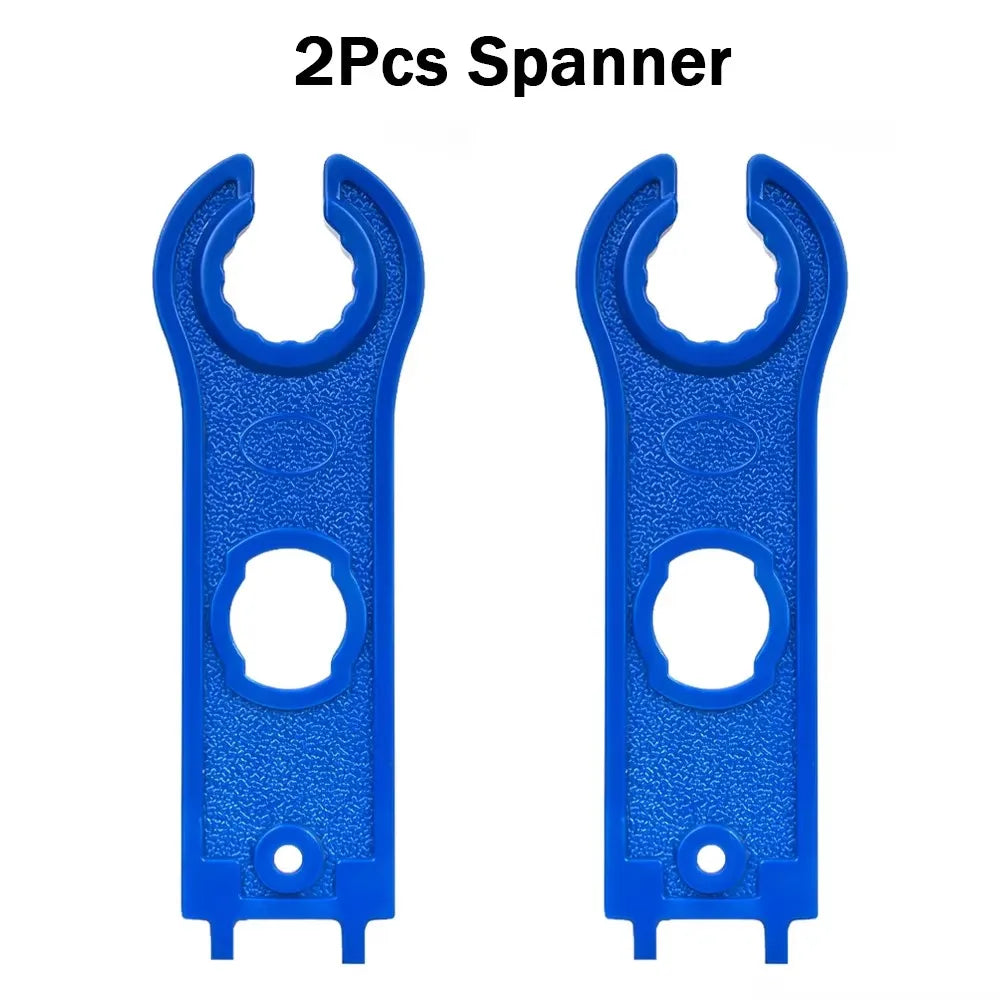

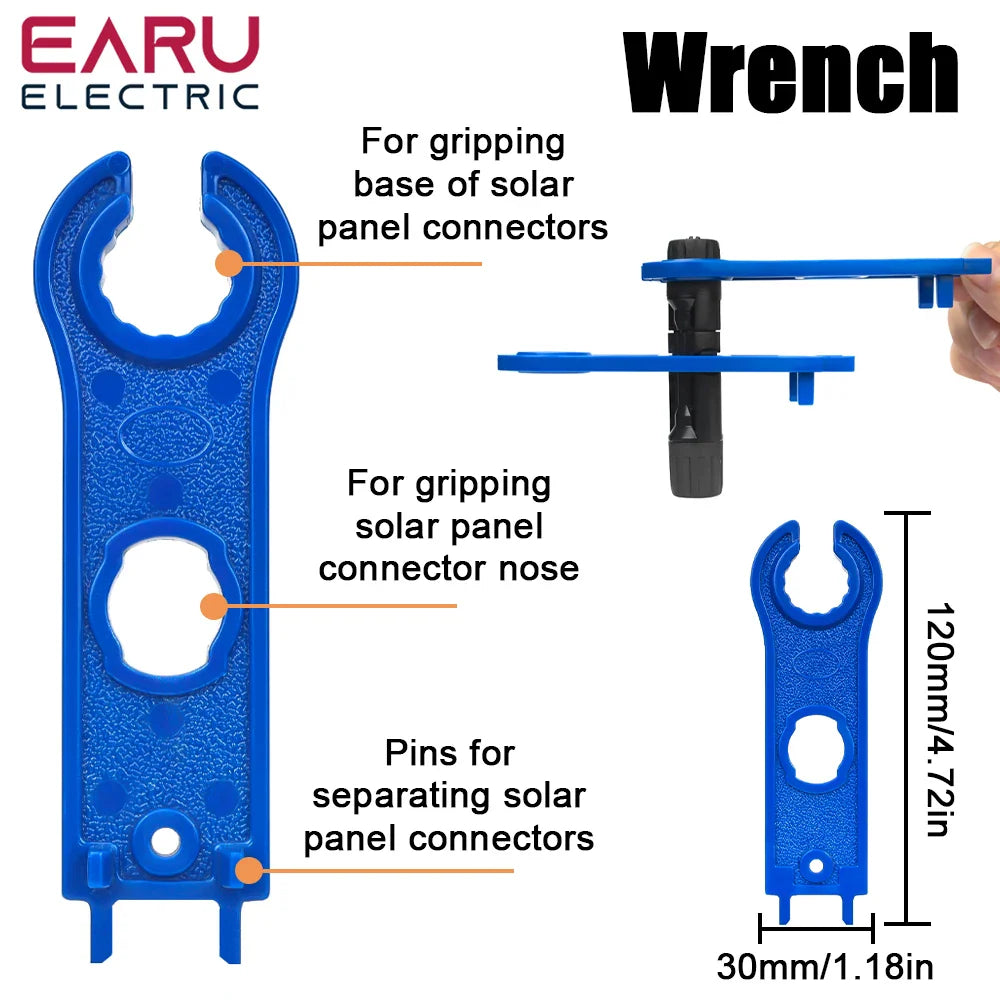

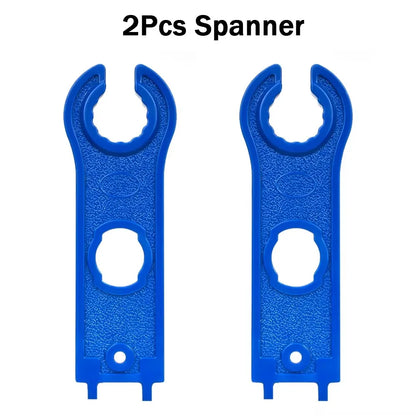

⚡ 5 Pairs Connectors DC 1000V 30A Panel Branch PV Photovoltaic Wire/Board Terminal Box Inverter IP67 Waterproof and Spanner

Discover the 5 Pairs Connectors DC 1000V 30A Panel Branch PV Photovoltaic Wire/Board Terminal Box Inverter IP67 Waterproof and Spanner — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

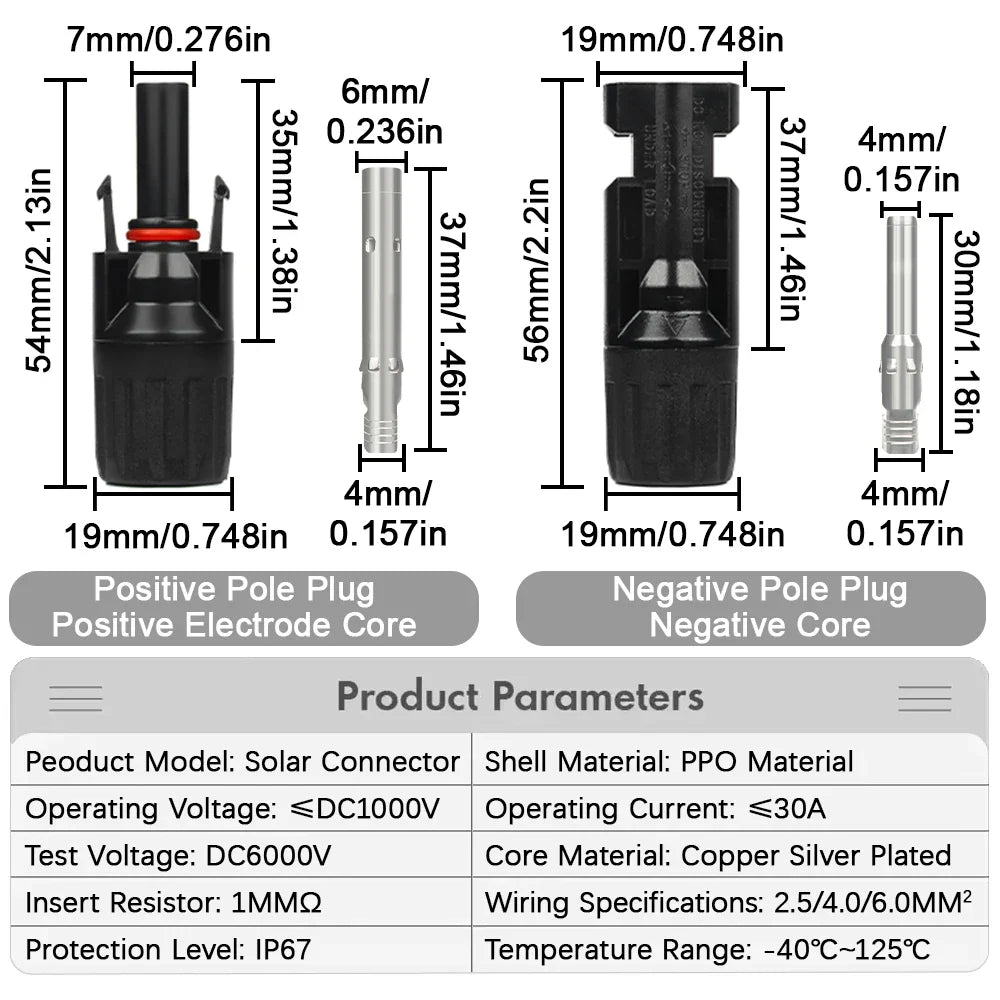

Ambient Temperature Range: -40℃ ~+ 125°C(EC)

Cable Size: 2.5mm²/4.0mm²/6.0mm²

Certification: CE

Choice: yes

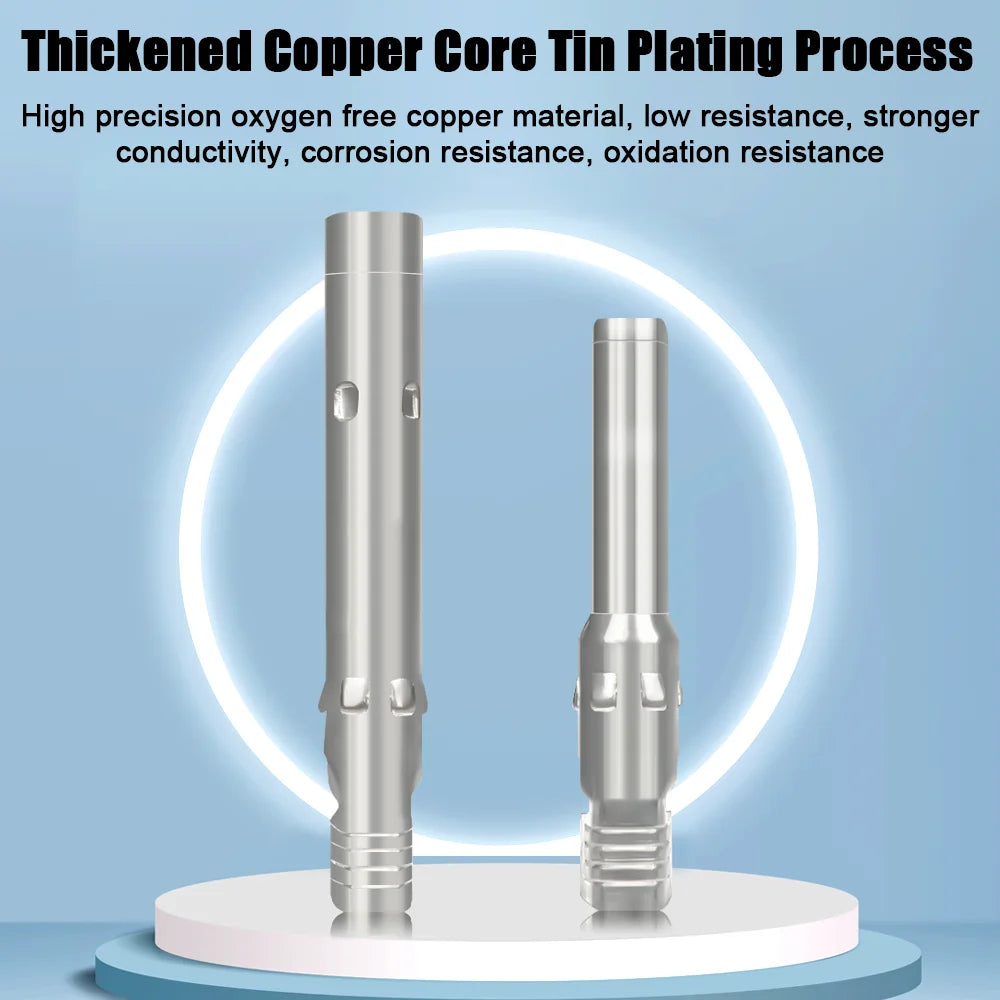

Core Material: Copper Silver Plated

High-concerned chemical: None

Insert Resistor: 1MMΩ

Model Number: PV Connector

Operating Voltage: DC 1000V

Origin: Mainland China

Protection Level: IP67

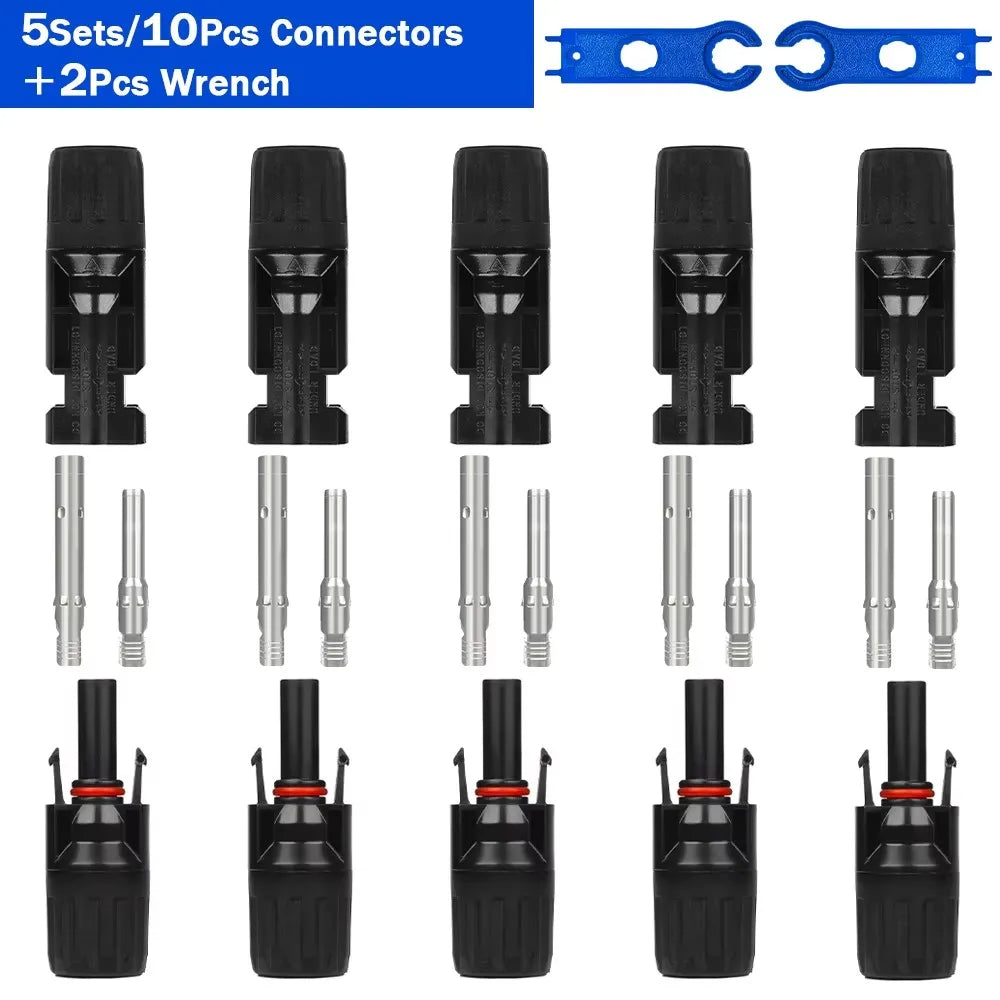

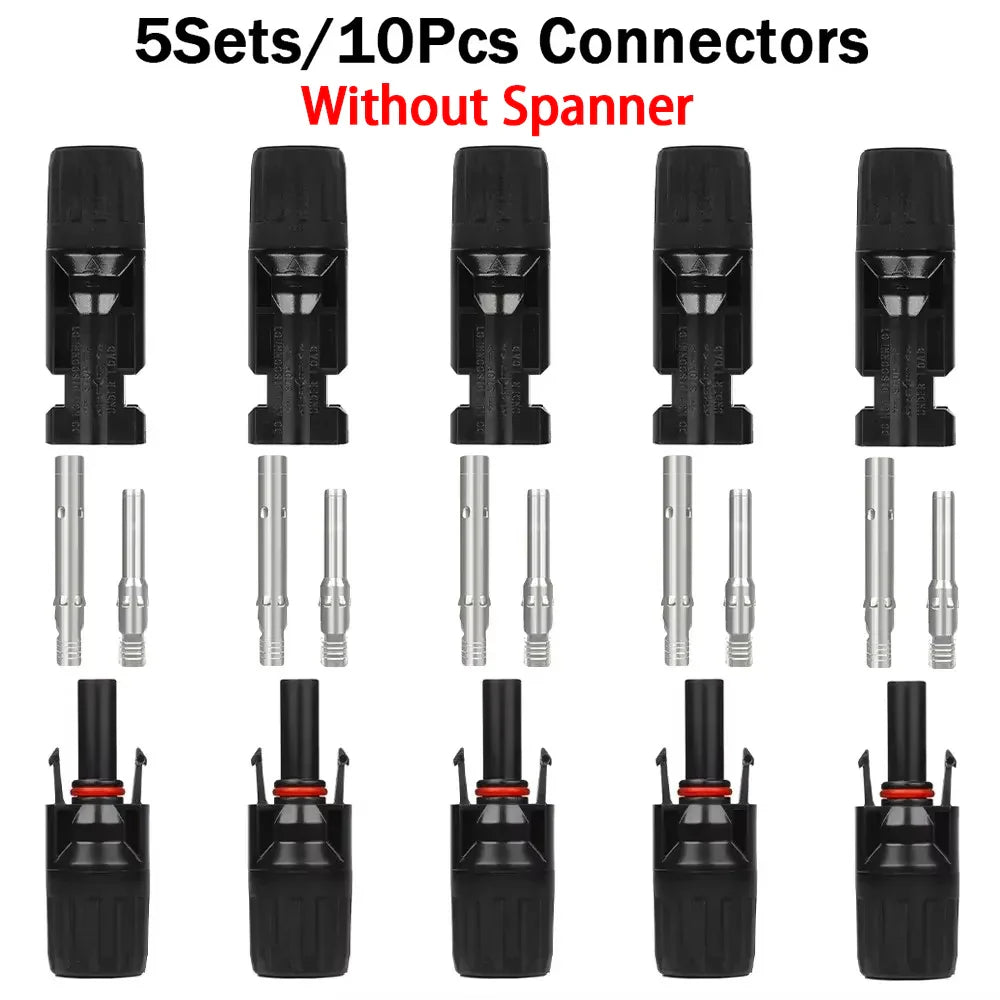

Quantity: 10Pcs

Rated Current: 30A

Shell Material: PPO Material

Test Voltage: DC6000V

Voltage: 1000 V

semi_Choice: yes

Feature:

1.Compatible with PV cables with different insulation diameters

2.It can be used in harsh environment

3.With excellent aging resistance and UV endurance

4.With Seal rings for better waterproof effect

5.Created seal, design of dust proof

6.Load capability with big current and high voltage

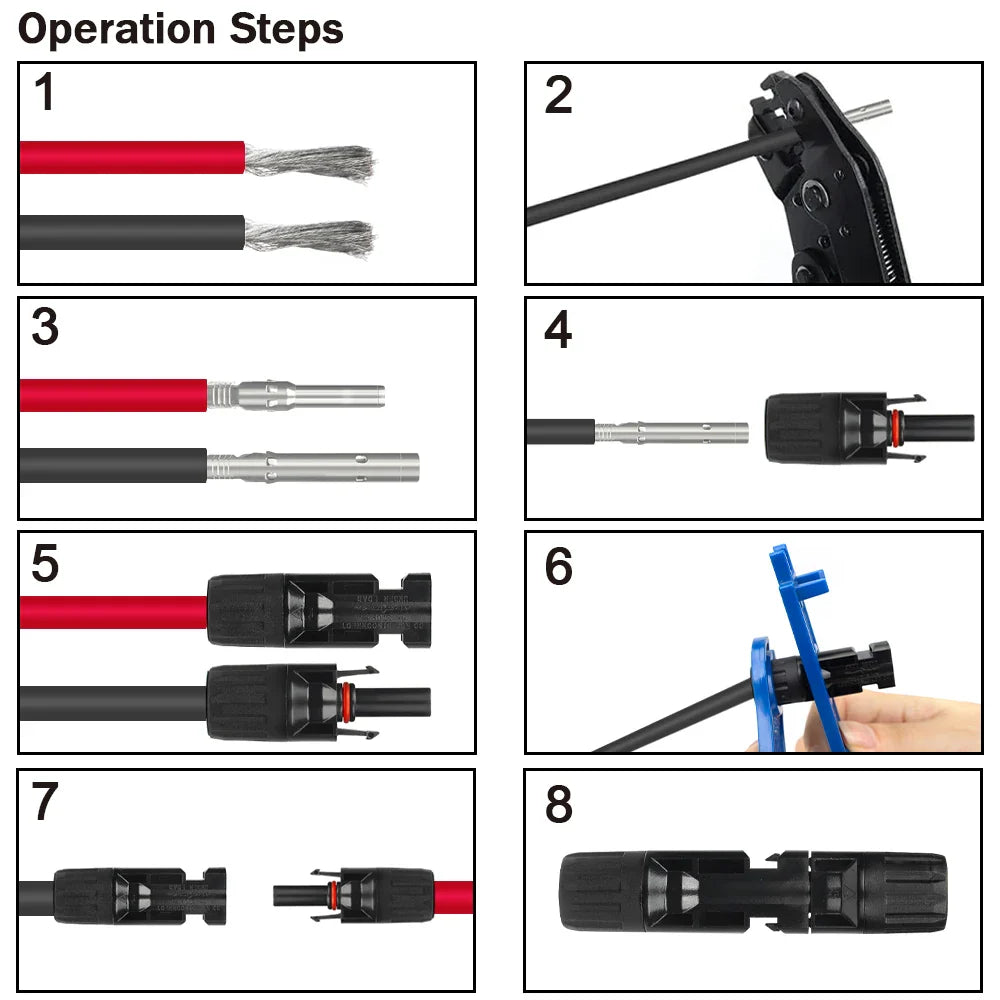

7.Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

8.Strong pulling force capability

9.Resistance of extra high & low temperature and fireproof，lower contact resistance
