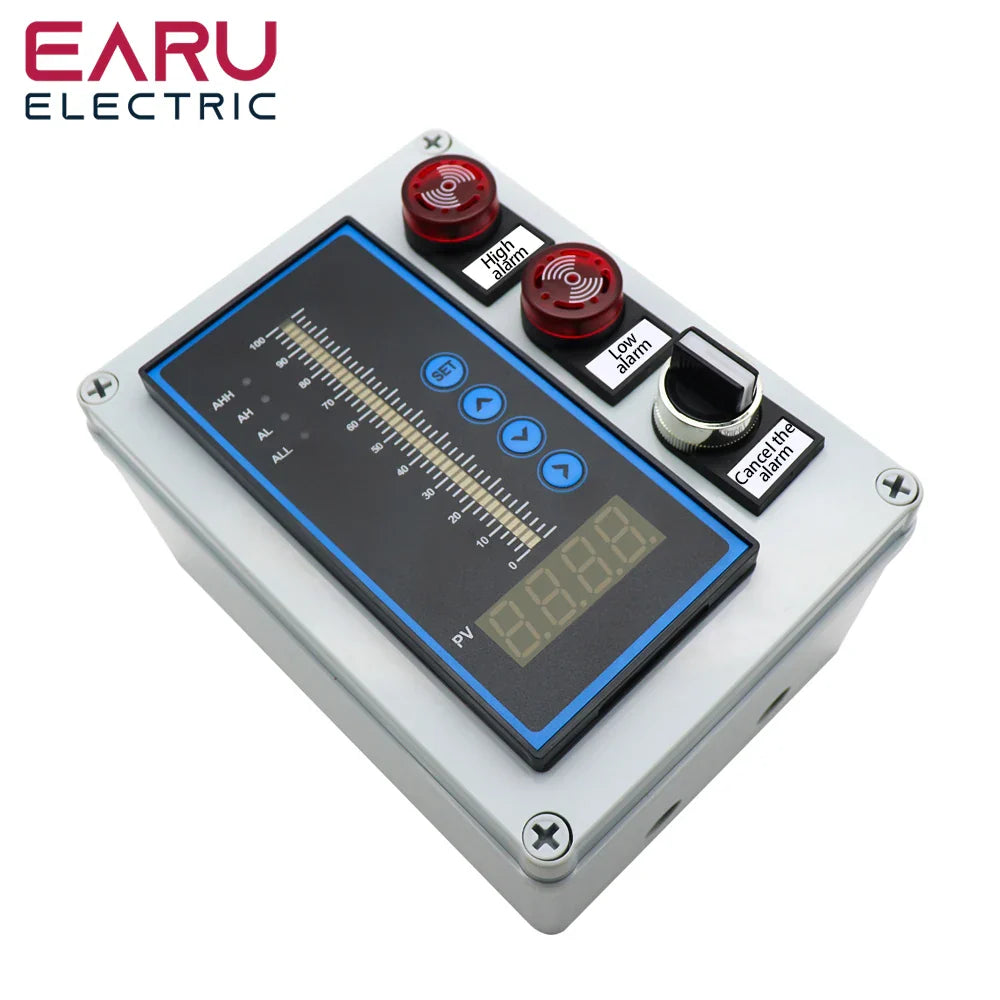

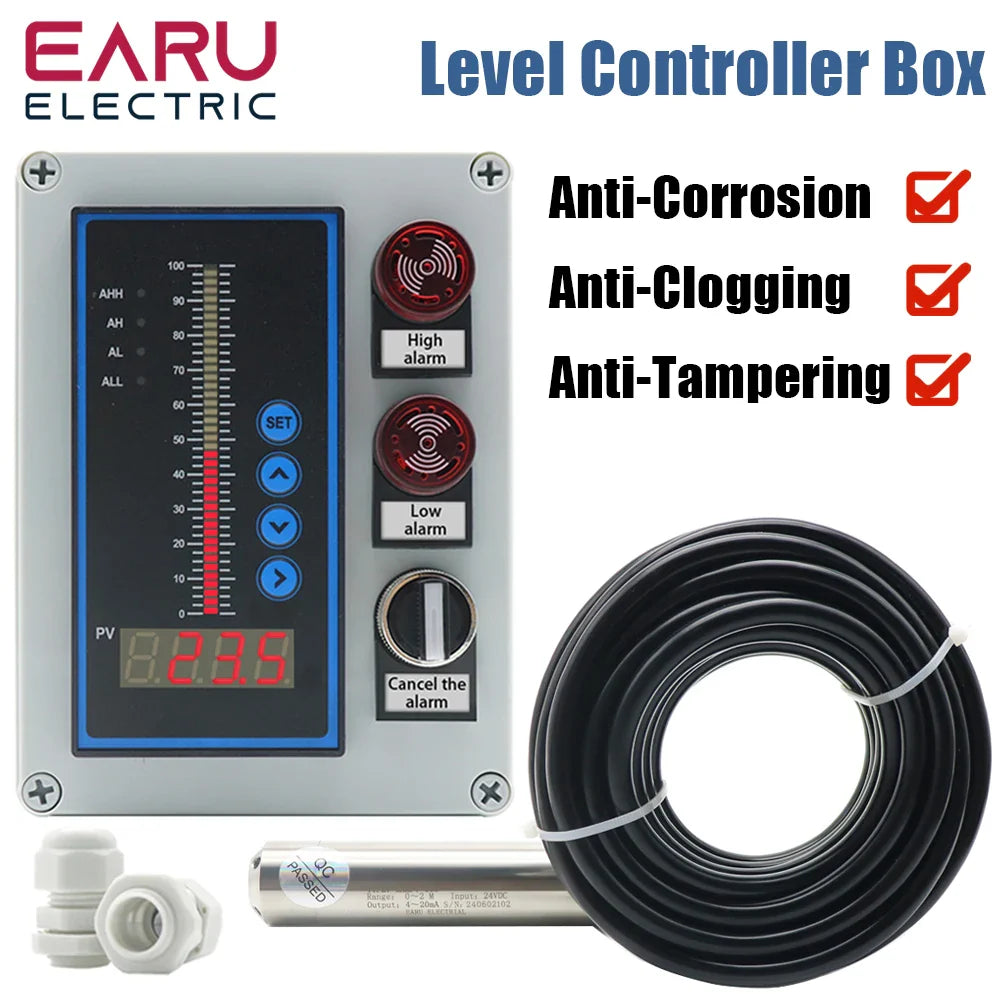

4-20mA Waterproof Integral Level Transmitter Controller Input Liquid Oil Water Level Sensor Controller Float Switch Mount Box

£138.00 GBP

~~£0.00 GBP~~ £138.00 GBP

Sale Sold out

Taxes included.

Color 1m Range 5m Cable 10m Range 10m Cable 6m Range 6m Cable 5m Range 5m Cable 4m Range 5m Cable 3m Range 5m Cable 2m Range 5m Cable

⚡ 4-20mA Waterproof Integral Level Transmitter Controller Input Liquid Oil Water Level Sensor Controller Float Switch Mount Box

Discover the 4-20mA Waterproof Integral Level Transmitter Controller Input Liquid Oil Water Level Sensor Controller Float Switch Mount Box — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

✅ Professional-grade design for long-term reliability
✅ Optimized for renewable energy system integration
✅ Durable construction for various applications
✅ Comprehensive technical specifications

📄 Technical Specifications

Battery Included: No

Certification: CE

Choice: yes

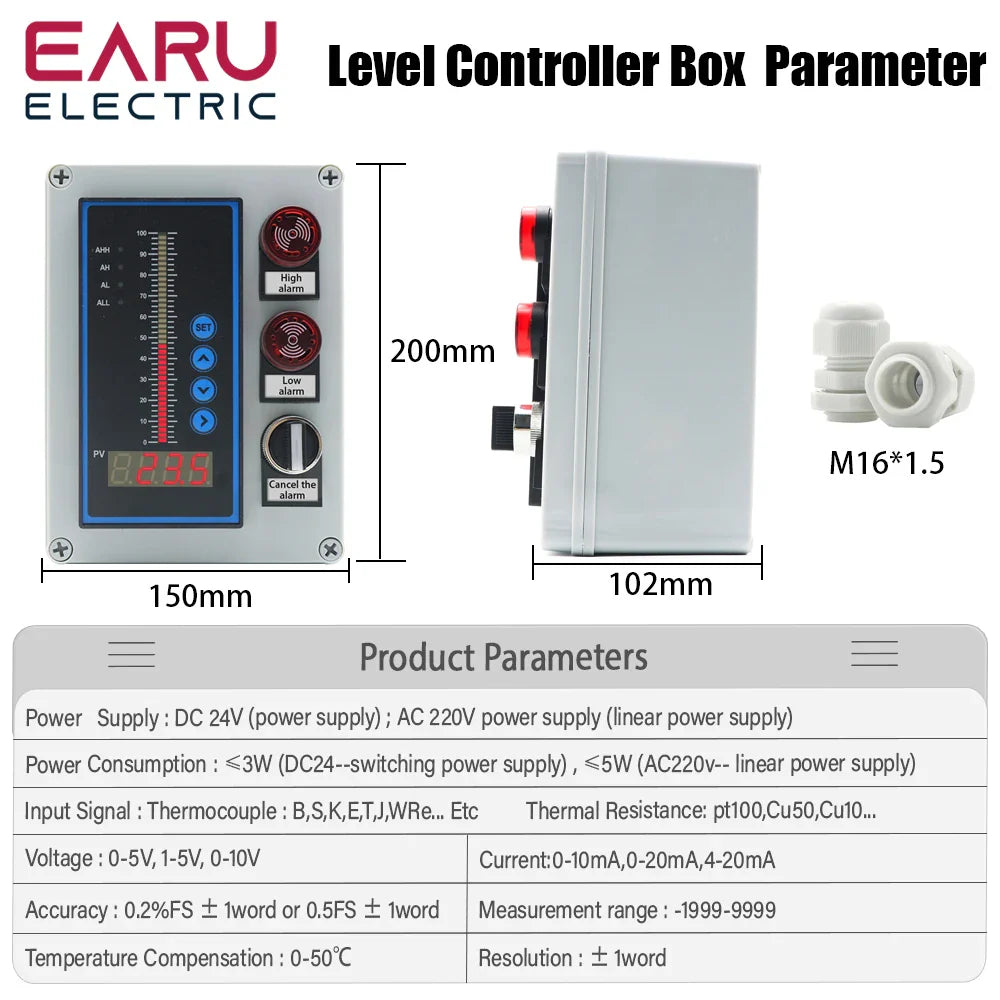

Controller Power Supply: AC85-260V

DIY Supplies: Electrical

High-concerned chemical: None

Model Number: Level Transmitter

Origin: Mainland China

Power Dissipation: ≤5W

Sensor Power Supply: DC10-30V

semi_Choice: yes

1. Product Overview

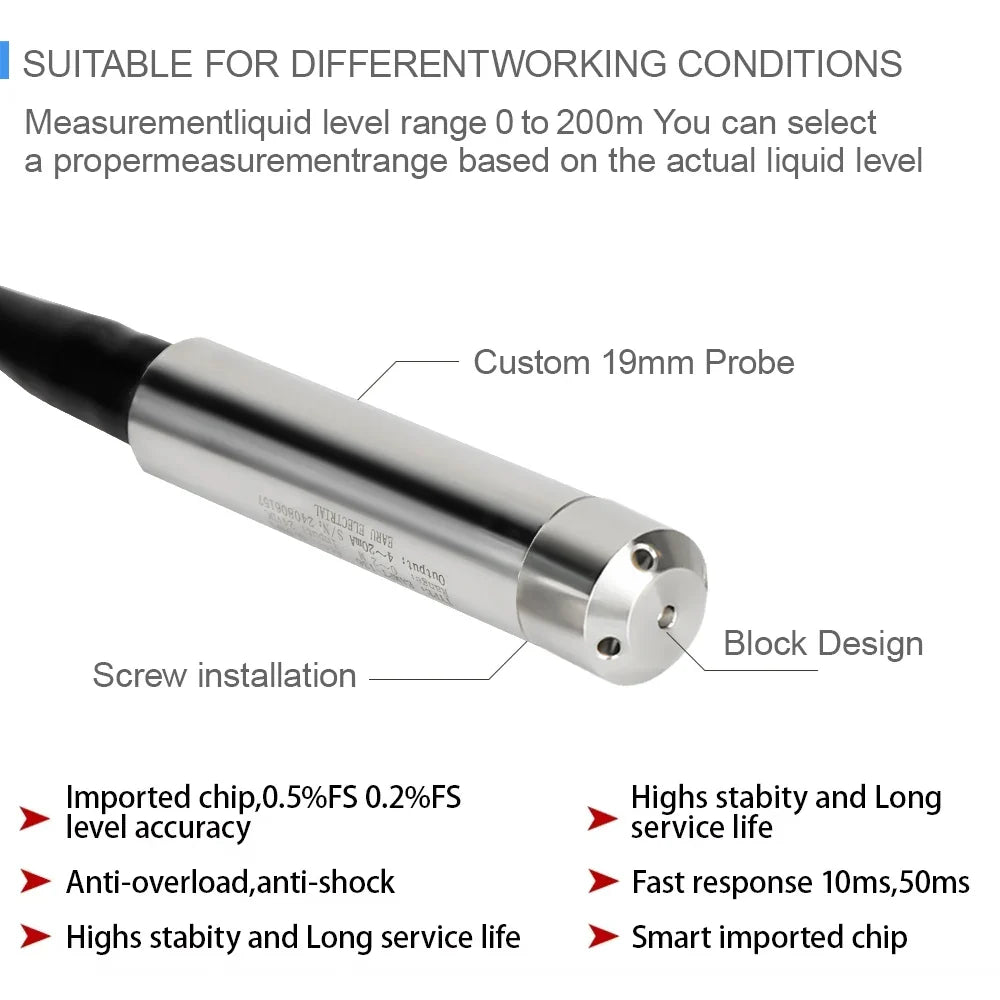

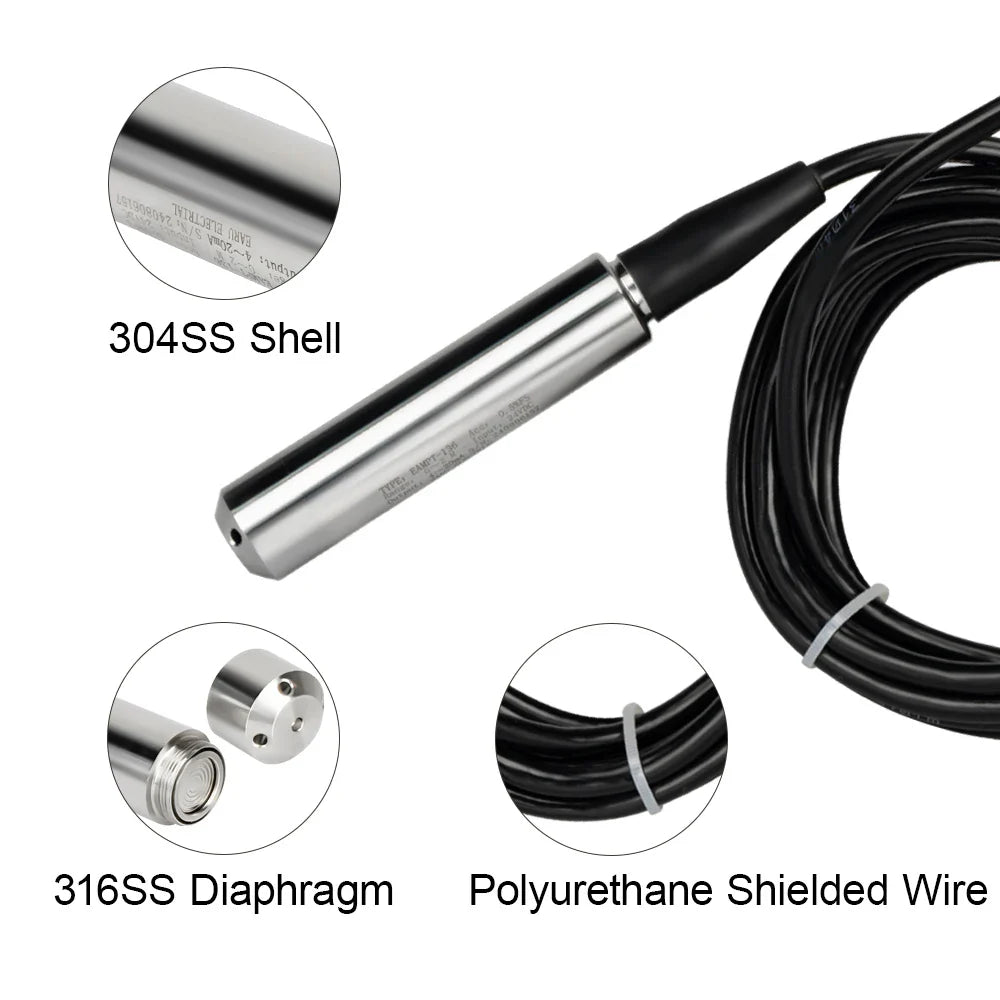

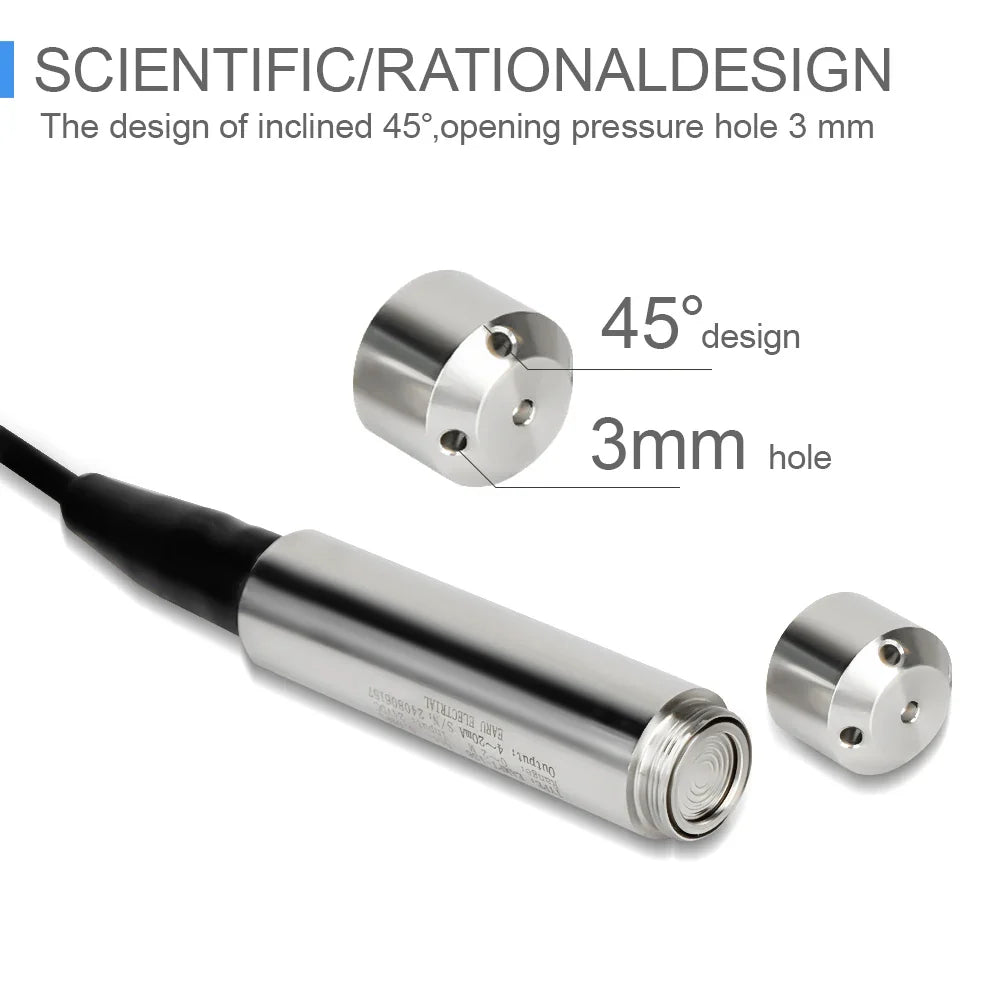

The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

2. Application range

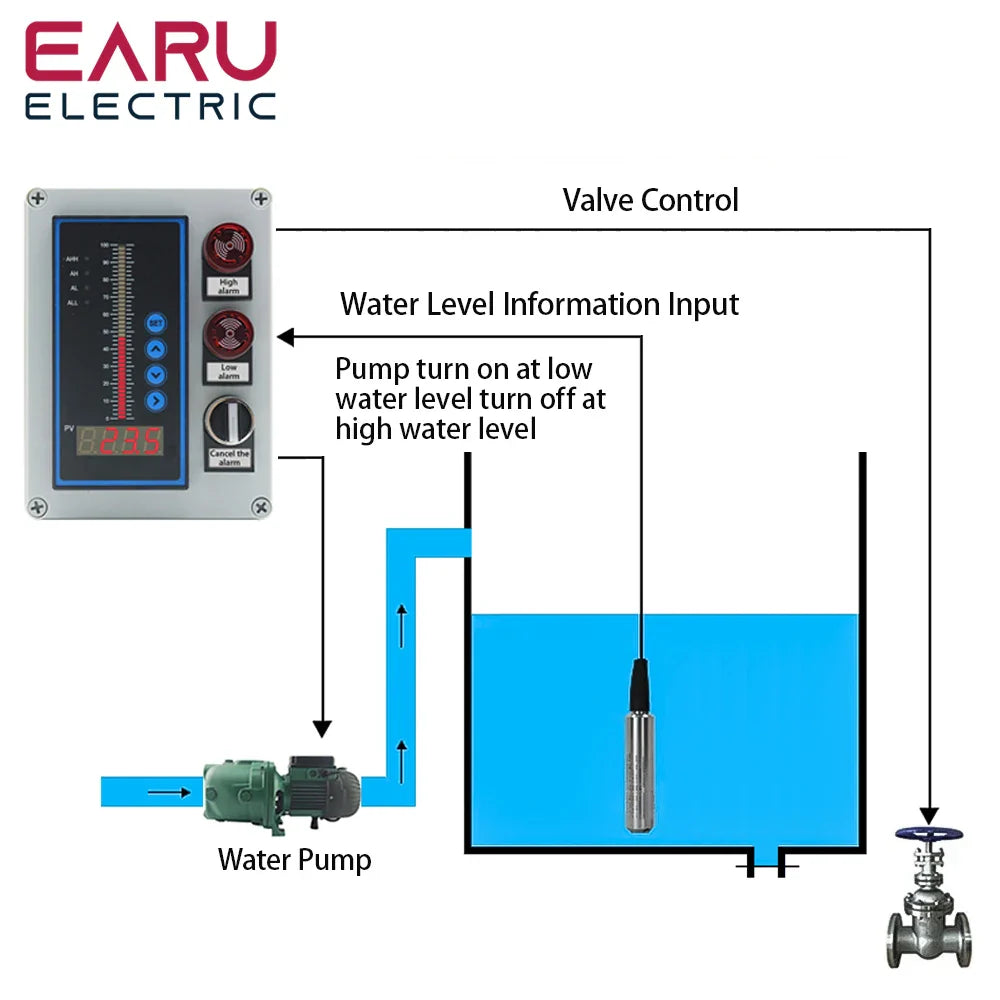

Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places

3. Technical parameters

◆ fully enclosed circuit, with moisture, condensation, anti-leakage function

◆ Range: 0～200 meters

◆ One-piece

◆ Accuracy: 0.5%FS

◆ Appearance size is about 145mm, diameter 28mm

4. Technical parameters:

Measurement form and range 0～1～200mH2O

Allow overload 2 times full scale pressure

Working temperature -20～60°C

Temperature compensation -10～60°C

Storage temperature -40～80°C

Power supply:

Sensor: 10~30 VDC (standard voltage 24VDC) / Controller：85~260 VAC

Shell Material 304 Stainless Steel(except we mark for 316 matrial ,others is 304)

Cable waterproof breathable cable

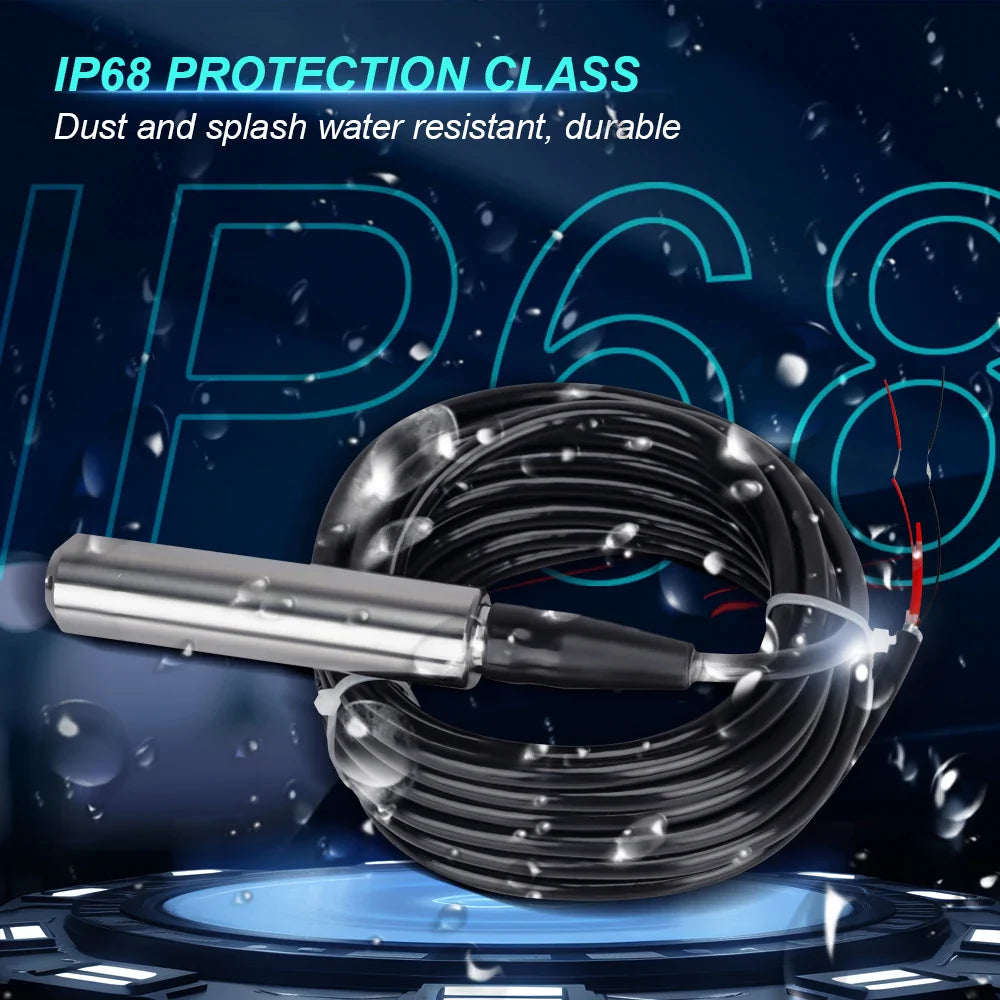

Protection class IP68

1m cable=1m range with 1m cable

2m cable =2m range with 2m cable

3m cable=3m range with 3m cable

4m cable=4m range with 4m cable

5m cable=1m or 2m or 3m or 4m or 5m range with 5m cable ,

please choose which range you need .or we default 5m range with 5m cable
