2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector for Solar Photovoltaic PV Battery Isolator
2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector for Solar Photovoltaic PV Battery Isolator
Couldn't load pickup availability
⚡ 2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector for Solar Photovoltaic PV Battery Isolator
Discover the 2P DC Solar Molded Case Circuit Breaker MCCB Overload Protection Switch Protector for Solar Photovoltaic PV Battery Isolator — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.
📌 Key Features
- ✅ Professional-grade design for long-term reliability
- ✅ Optimized for renewable energy system integration
- ✅ Durable construction for various applications
- ✅ Comprehensive technical specifications
📄 Technical Specifications
Breaking Capacity: 50kA
Certification: CE
Choice: yes
Frequency: 50/60Hz
High-concerned chemical: None
Is Smart Device: No
Model Number: EAM1-125PV/EAM1-250PV
Origin: Mainland China
Pole: 2P
Rated Current: 100A 125A 160A 200A 250A
Rated Voltage: DC 600V
Type: Moulded Case,Circuit breaker
Type Moulded Case: Moulded Case
is_customized: Yes
semi_Choice: yes

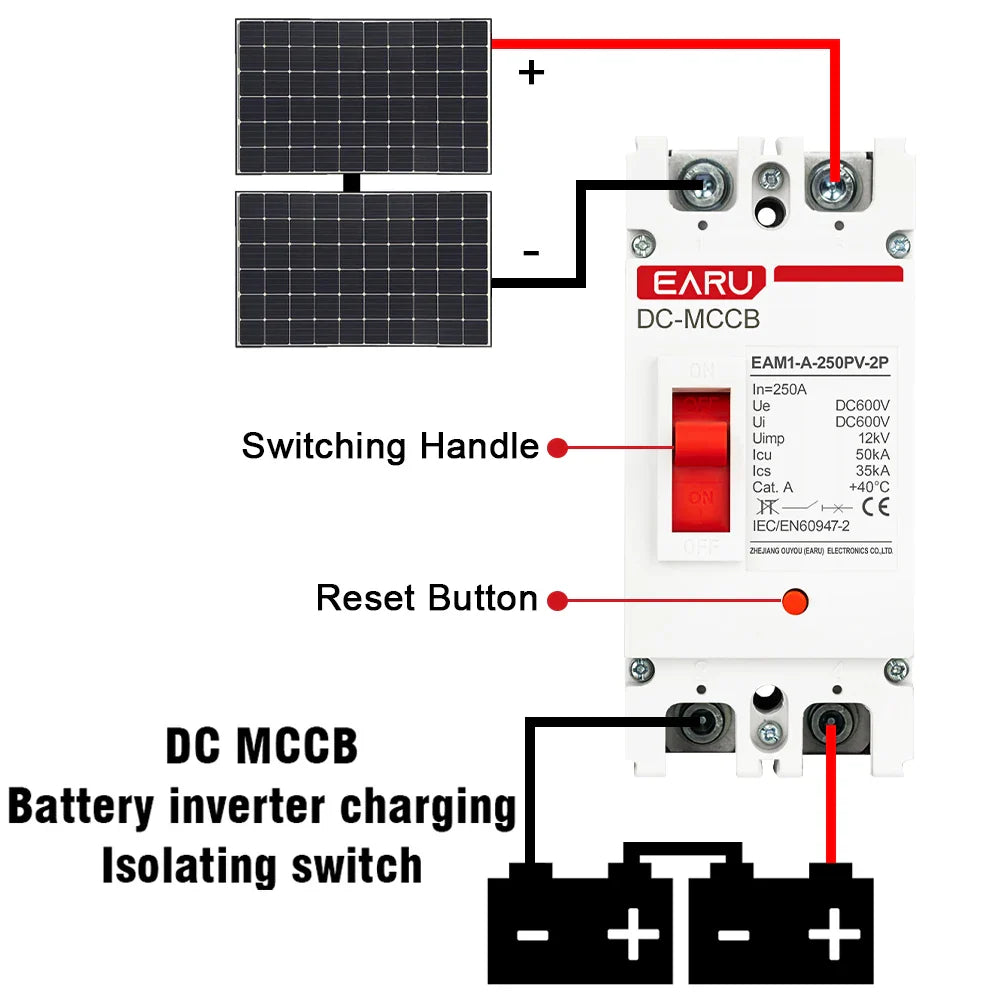

The products are widely used in photovoltaic power generation systems, wind power generation systems, roof building power generation systems, rail transit power distribution systems and infrastructure construction and other low-voltage dc generation transmission and distribution application occasions
Technical Data
Pole: 2P
Rated Short Circuit Capacity: 50kA
Rated Current(A): 100A 125A 160A 200A 250A
Rated Voltage: DC600V
Frequency: 50/60Hz

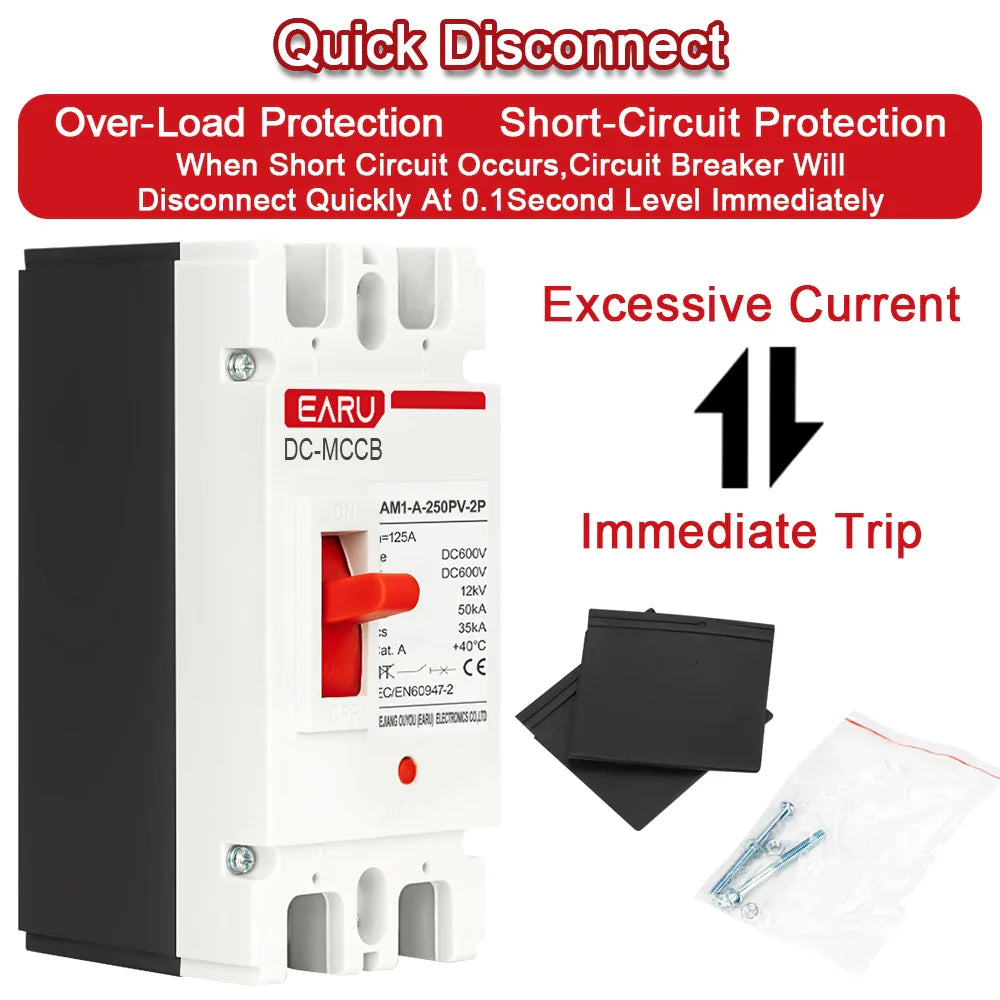

Protect: Over-Load Protection/Short-Circuit Protect
Standard: IEC/EN 60947-2
Certificate: CE
