⚡ 2P 80A AC 230V 50/60Hz ATS Mini Automatic Transfer Switch Dual Power Electrical Selector Switches Uninterrupted Power Din Rail

Discover the 2P 80A AC 230V 50/60Hz ATS Mini Automatic Transfer Switch Dual Power Electrical Selector Switches Uninterrupted Power Din Rail — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Certification: CE

Choice: yes

Enclosure Protection Class: IP30

Frequency: 50/60Hz

High-concerned chemical: None

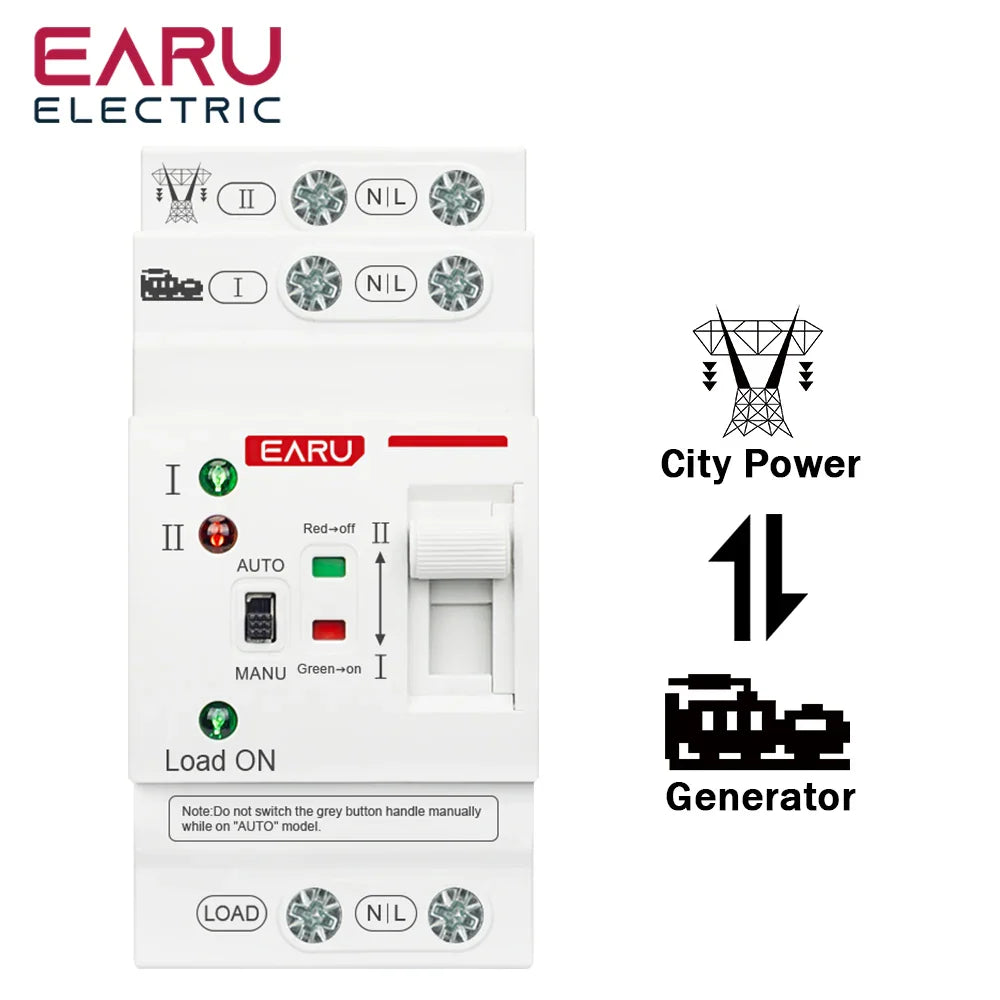

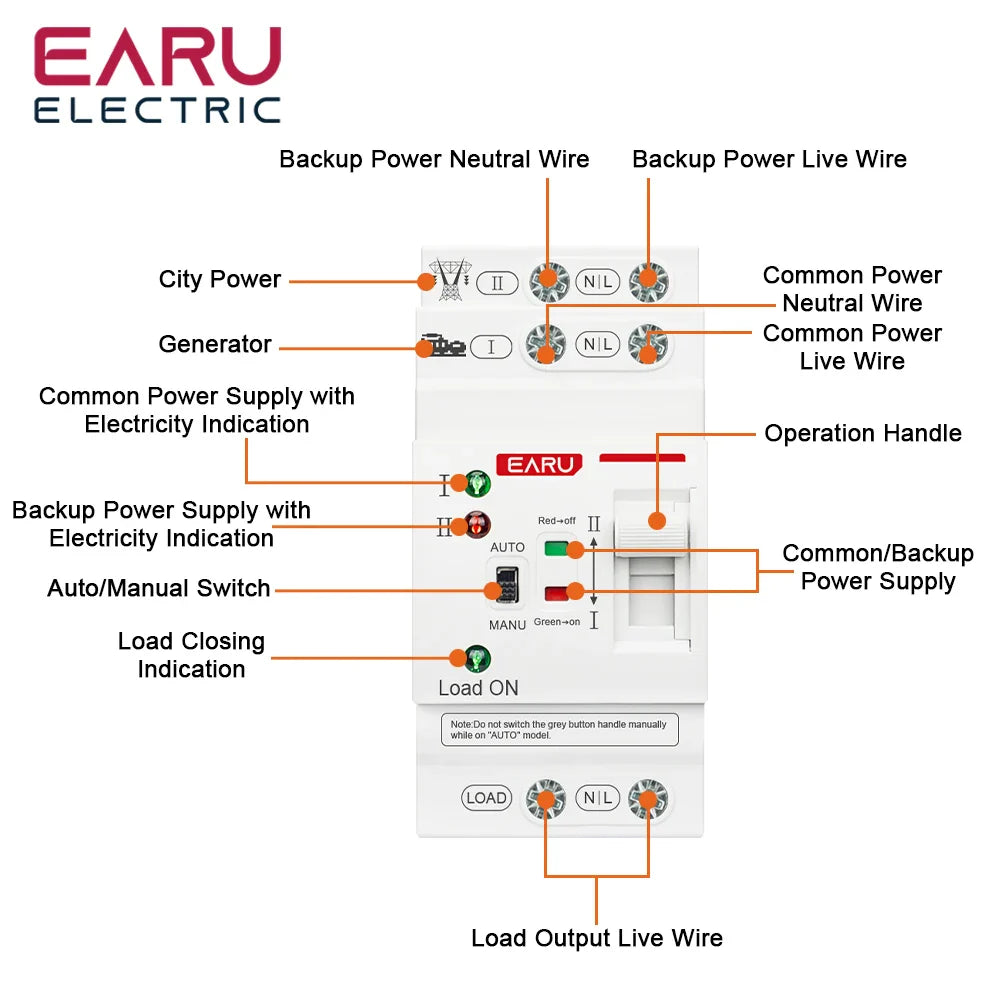

Input Power 1: City Power

Input Power 2: Generator

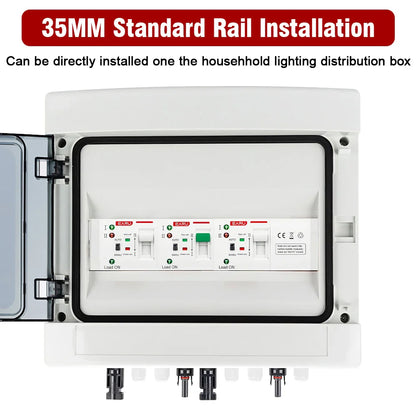

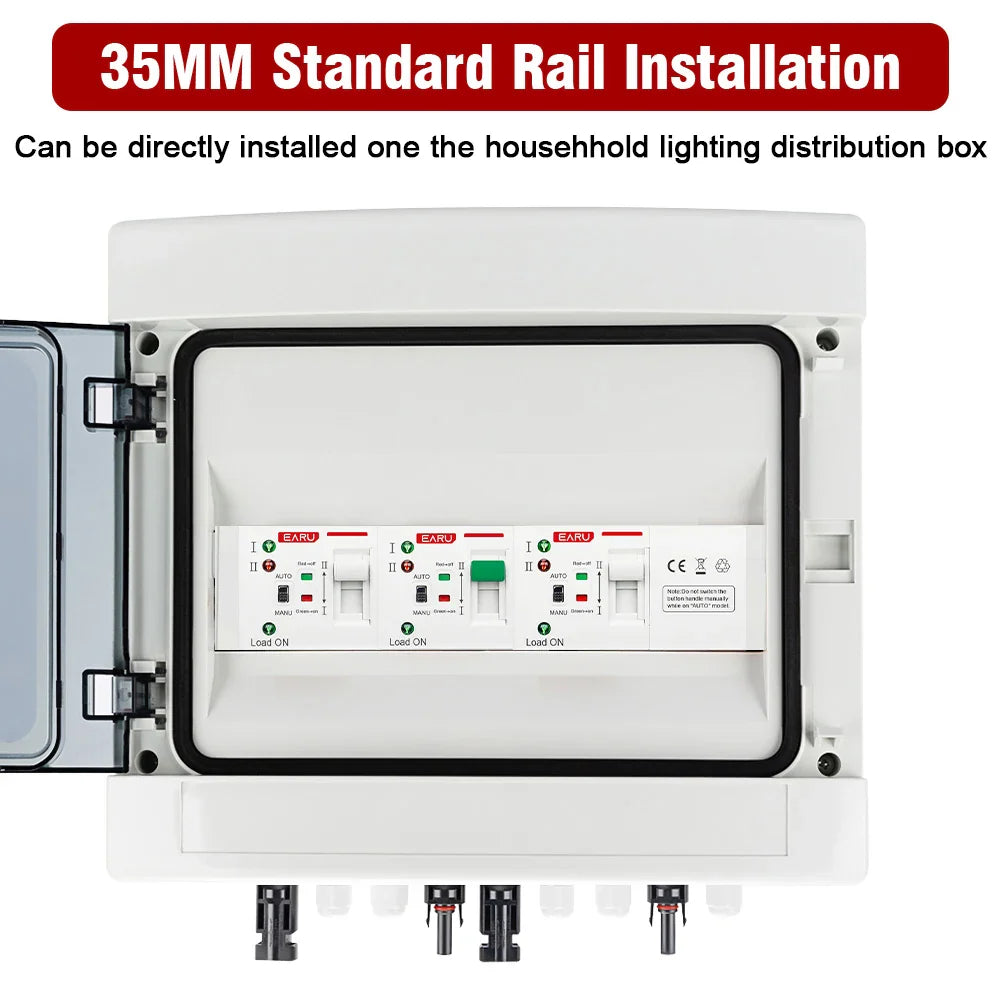

Installation: 35MM Din Rail

Is Smart Device: No

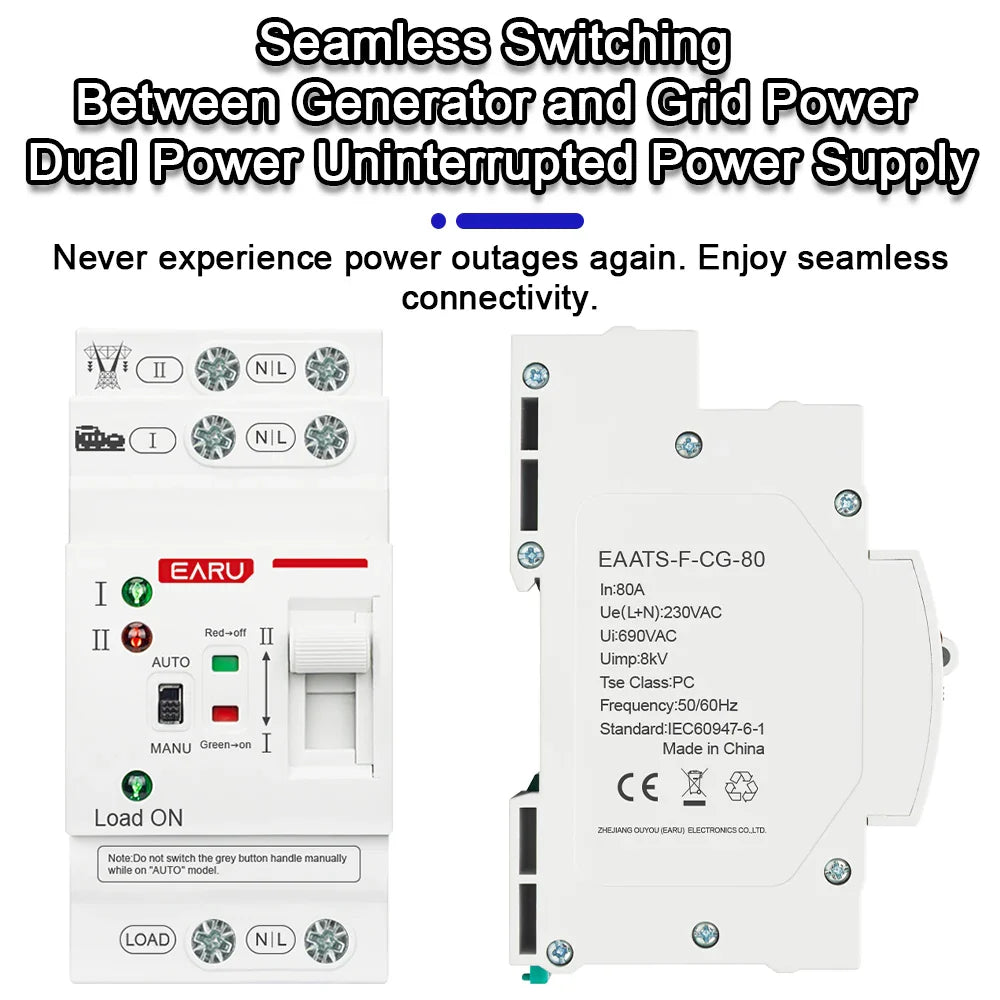

Model Number: EAATS-F-CG-80

Origin: Mainland China

Pole: 2P

Rated Current: 80A

Rated Insulation Voltage: 690V

Rated Short-Circuit Current: 50KA

Rated Voltage: 220V

Rderd Impulse Withstand Voltage: 8kV

Type: Mini,Circuit breaker

Working Voltage (L+N): AC230V/220V

is_customized: Yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

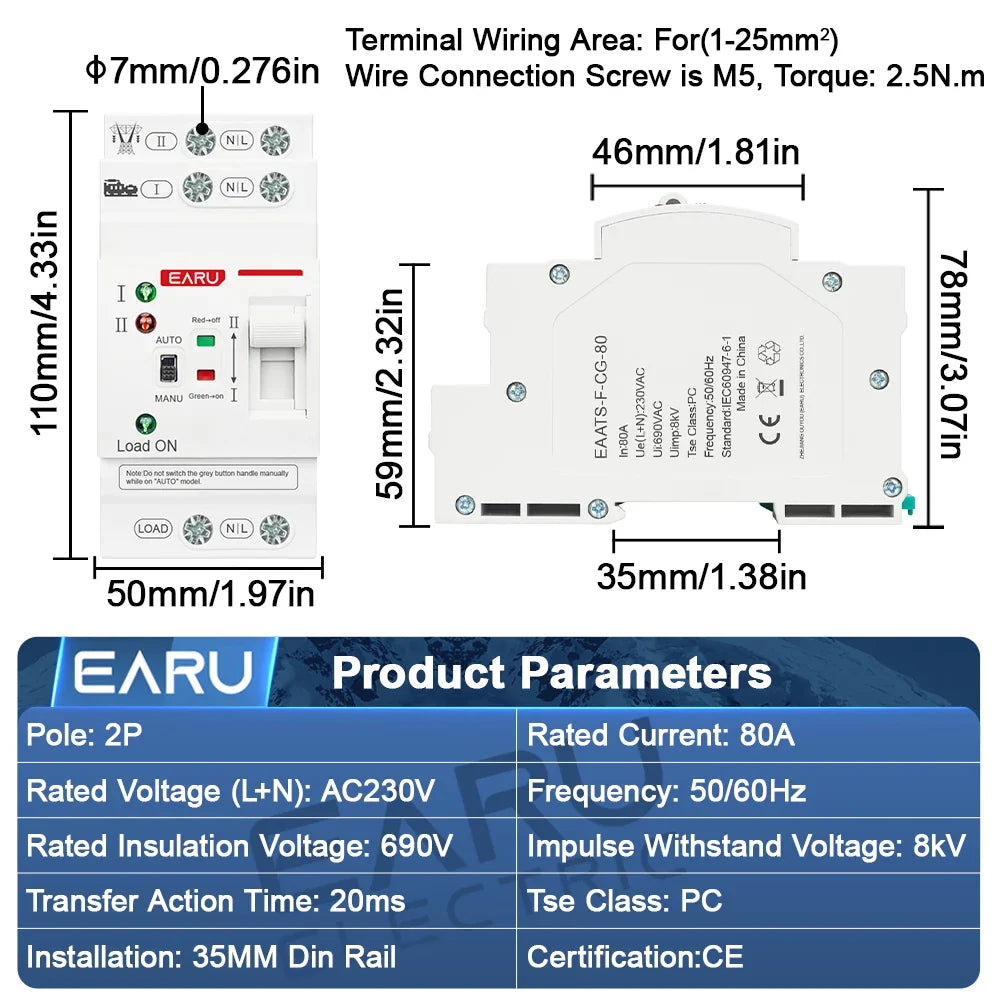

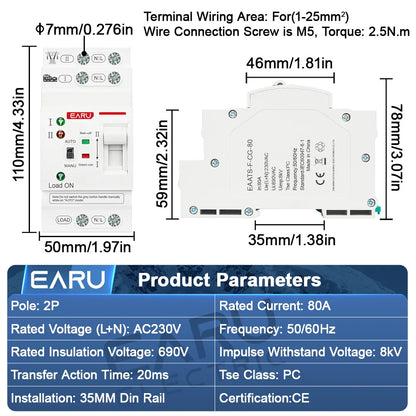

Specificaions

Pole: 2P

Work Voltage: AC230V

Frequency: 50/60Hz

Working Current: 80A

Insulation Voltage: 690V

Impulse Withstand Voltage: 8kV

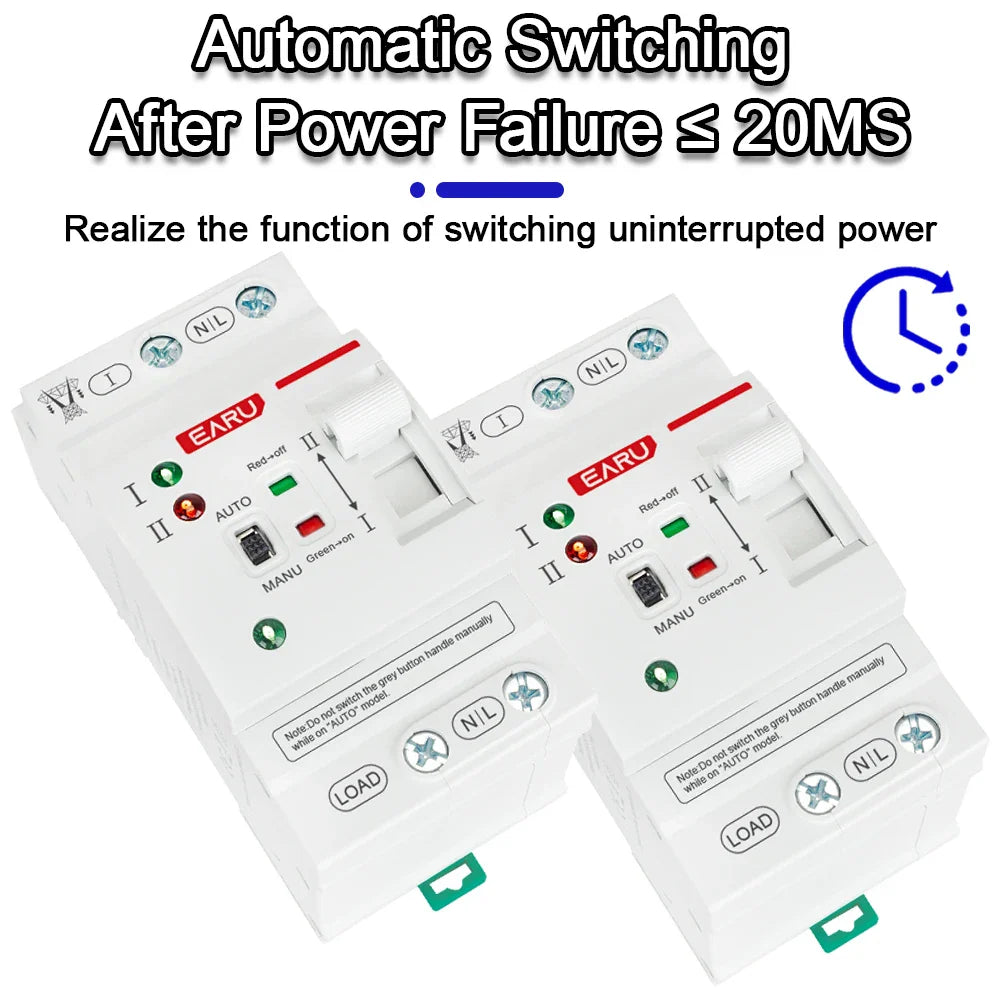

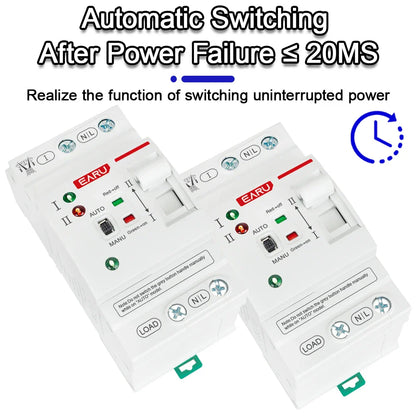

Transfer Action Time: 20ms

Mechanical Durability: ≥6000 Times

Electrical Endurance: ≥1500 Times

Case Grade: 80

Utilization Category: AC-31B

Tse Class: PC

Certification: CE

Installation: 35MM Din Rail

Note:

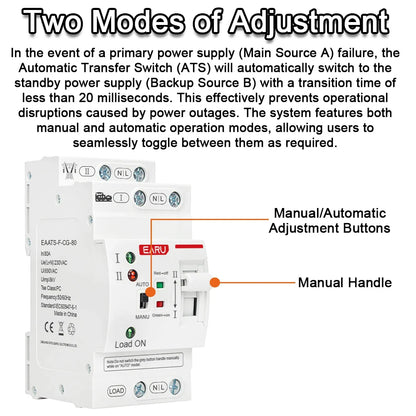

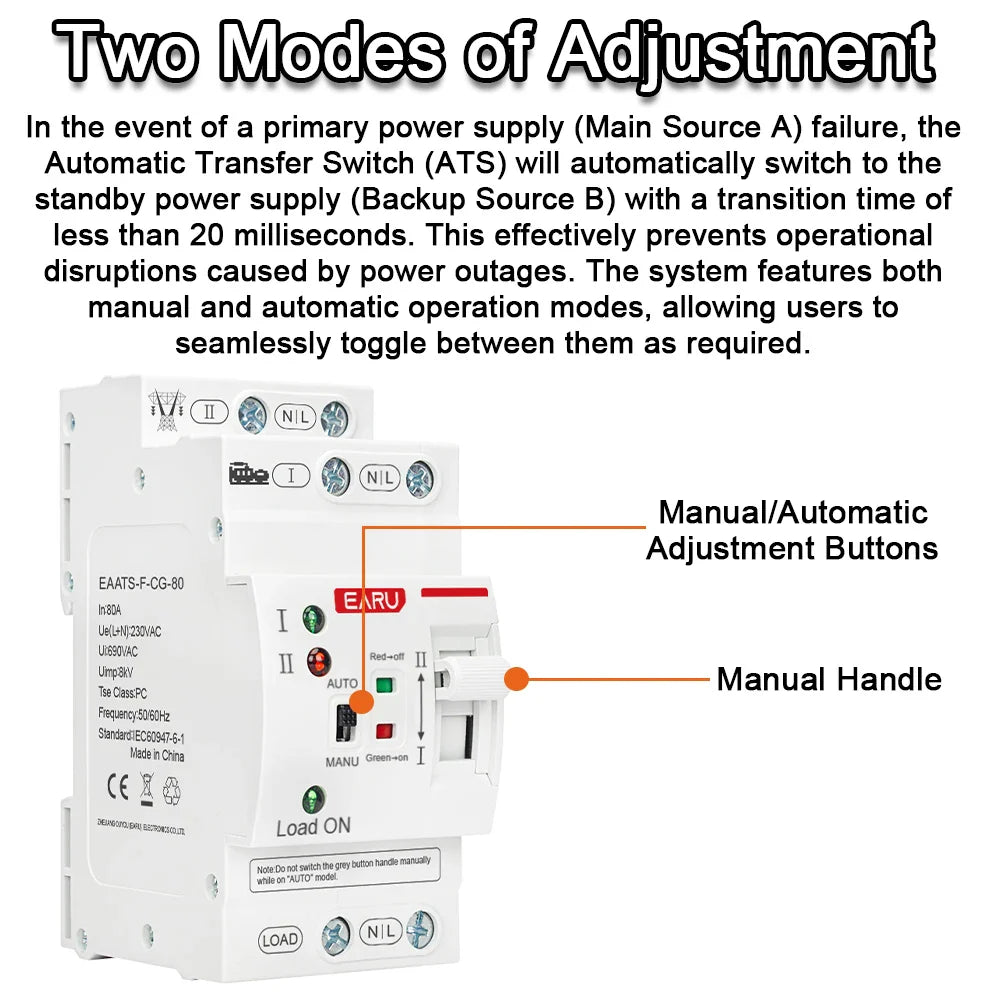

1.When manual operation the mode selection switch must be in 'Manual' position.

2.The switch cannotbe manually switched when in automatic mode, otherwise the coil may burn out.
