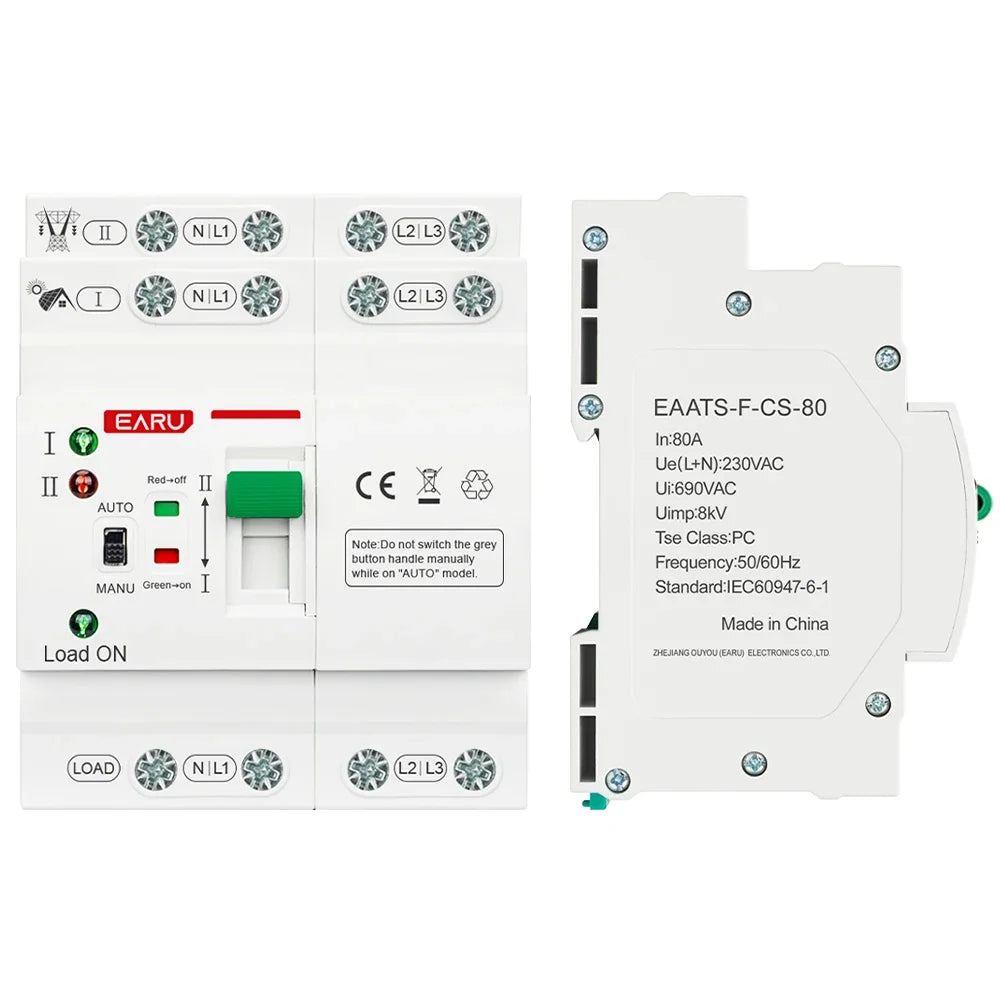

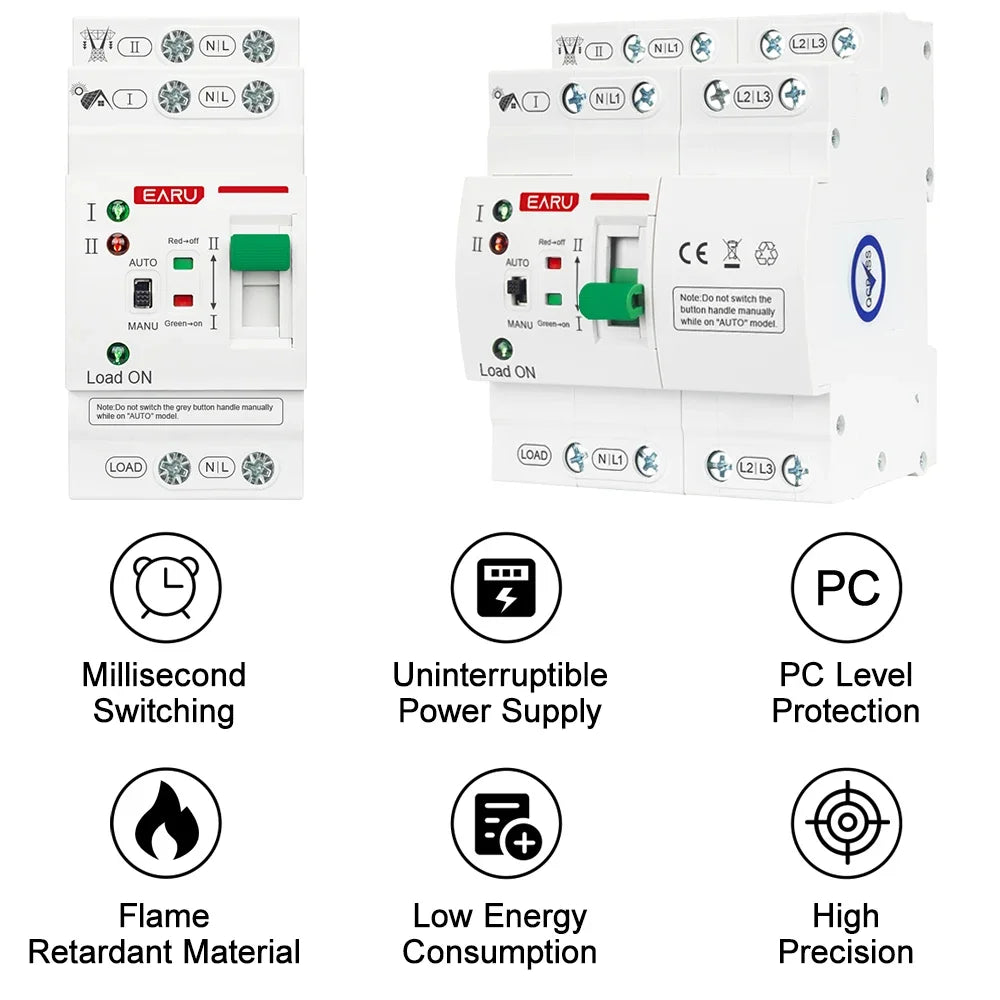

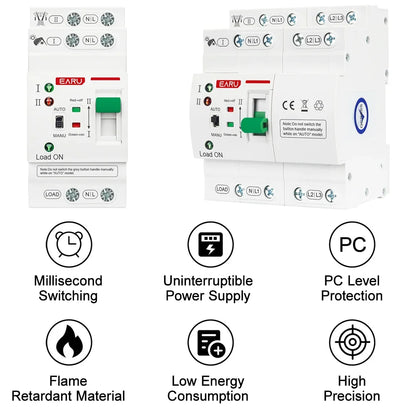

⚡ 2P 4P 80A AC 230V 110V Mini ATS Solar PV Dual Power Automatic Transfer Switches Electrical Selector Switch Uninterrupted Power

Discover the 2P 4P 80A AC 230V 110V Mini ATS Solar PV Dual Power Automatic Transfer Switches Electrical Selector Switch Uninterrupted Power — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

• ✅ Professional-grade design for long-term reliability
• ✅ Optimized for renewable energy system integration
• ✅ Durable construction for various applications
• ✅ Comprehensive technical specifications

📄 Technical Specifications

Certification: CE

Choice: yes

Frequency: 50/60hz

High-concerned chemical: None

Impact-Resistant Voltage: 8kV

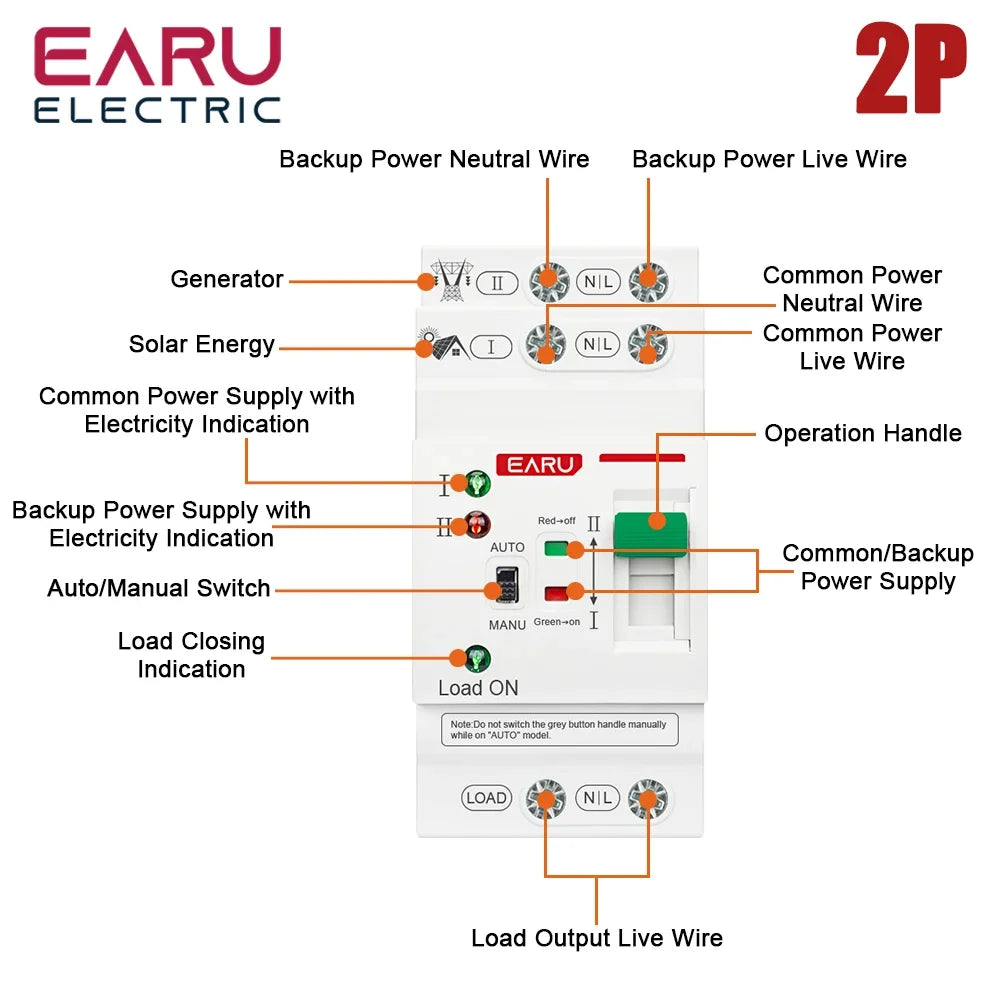

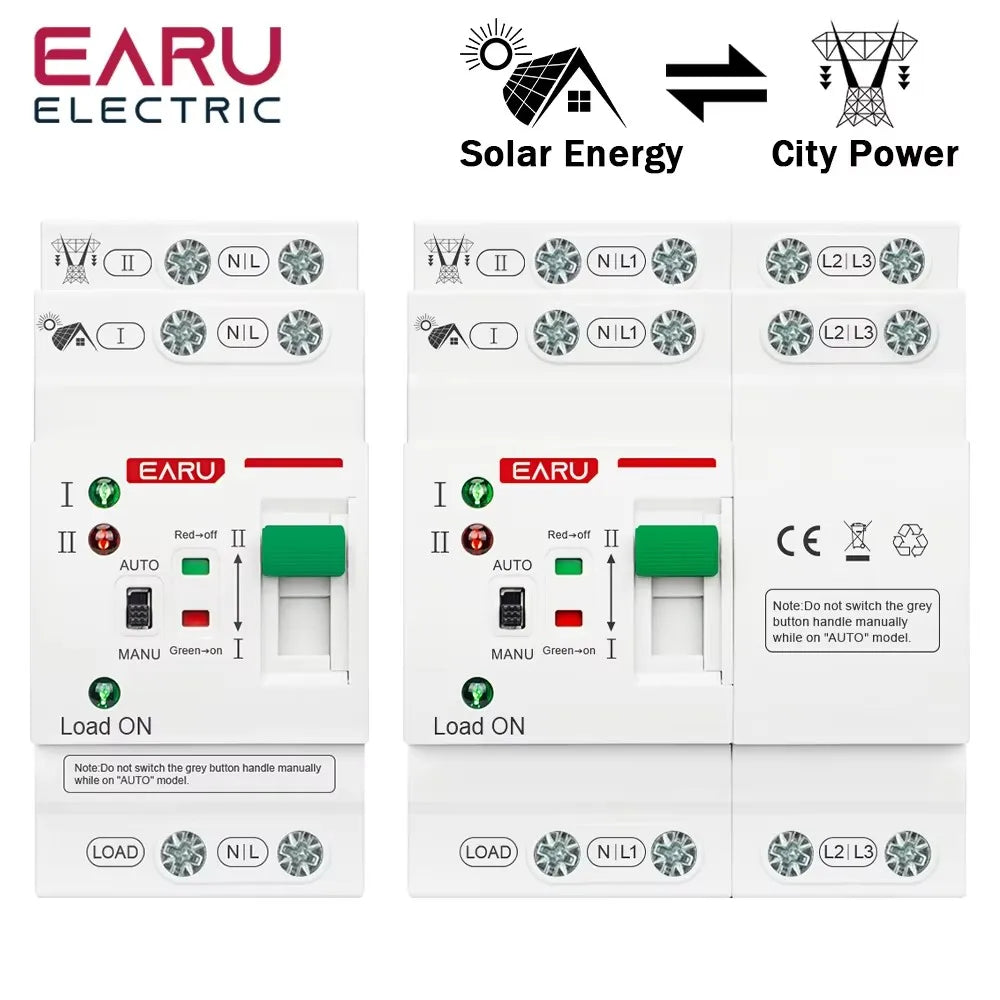

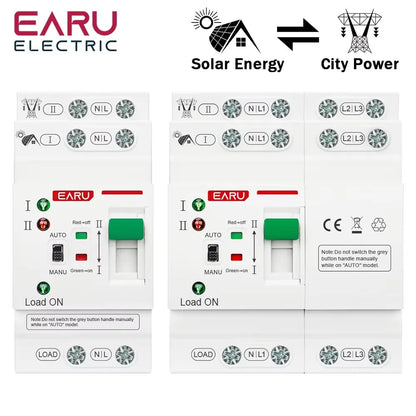

Input Power 1: City Power

Input Power 2: Solar Energy

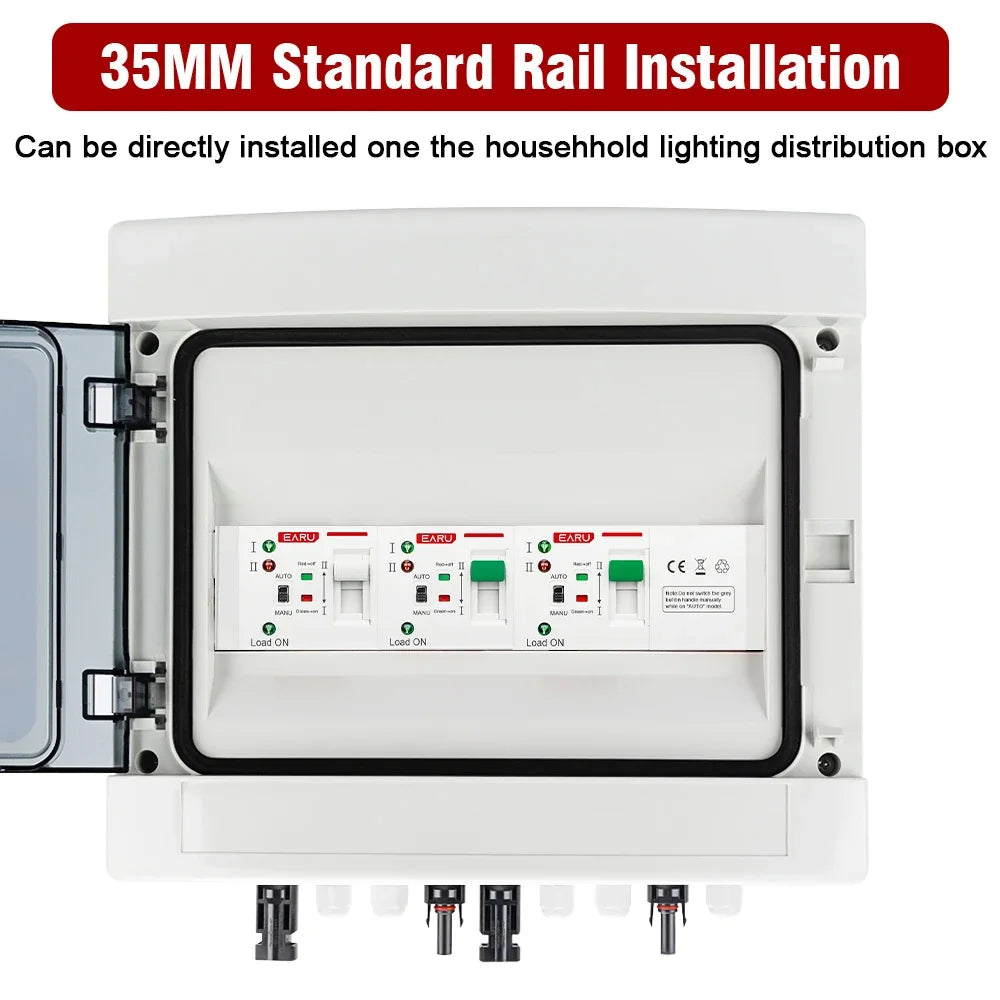

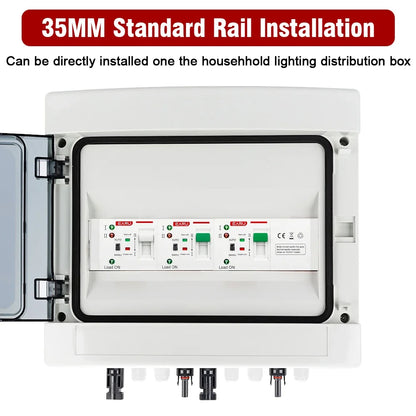

Installation: 35MM Din Rail

Insulation Voltage: 690V

Is Smart Device: No

Model Number: ATS

Origin: Mainland China

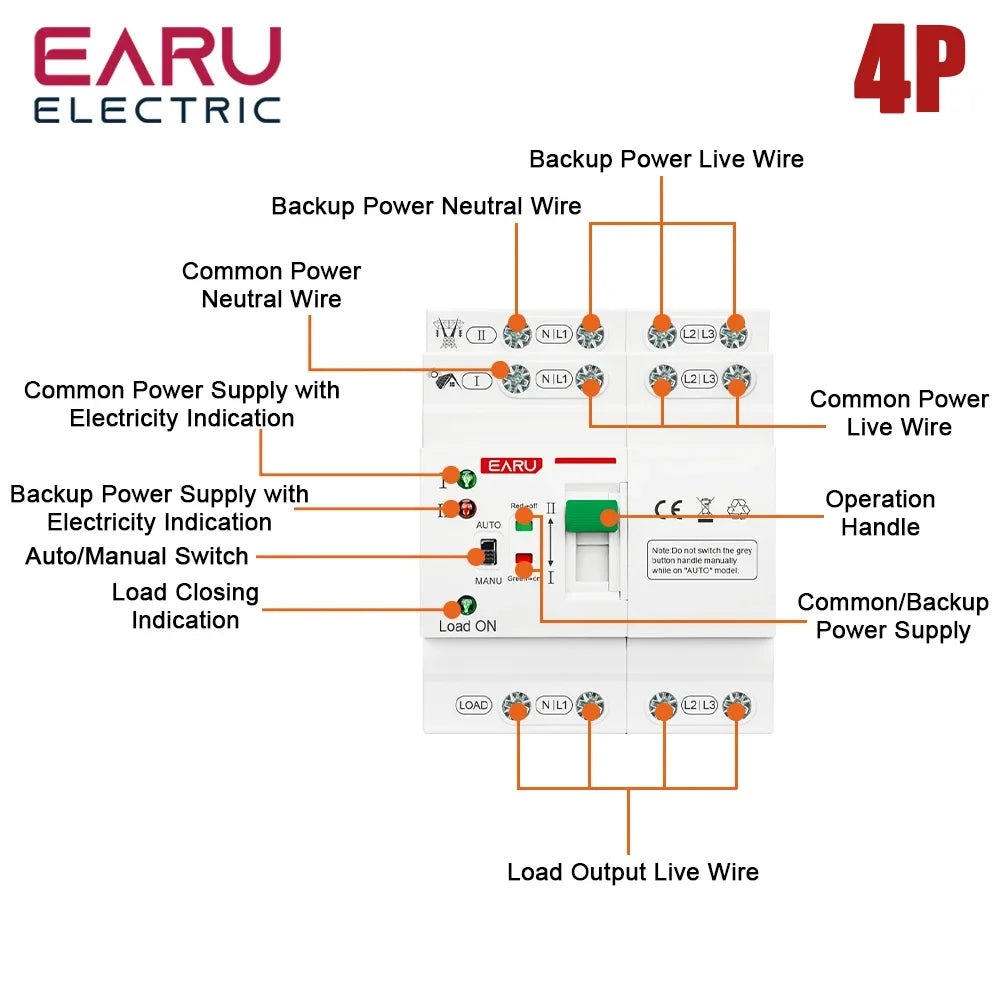

Poles: 2P/4P

Rated Voltage: 220V

Rated Working Current: 80A

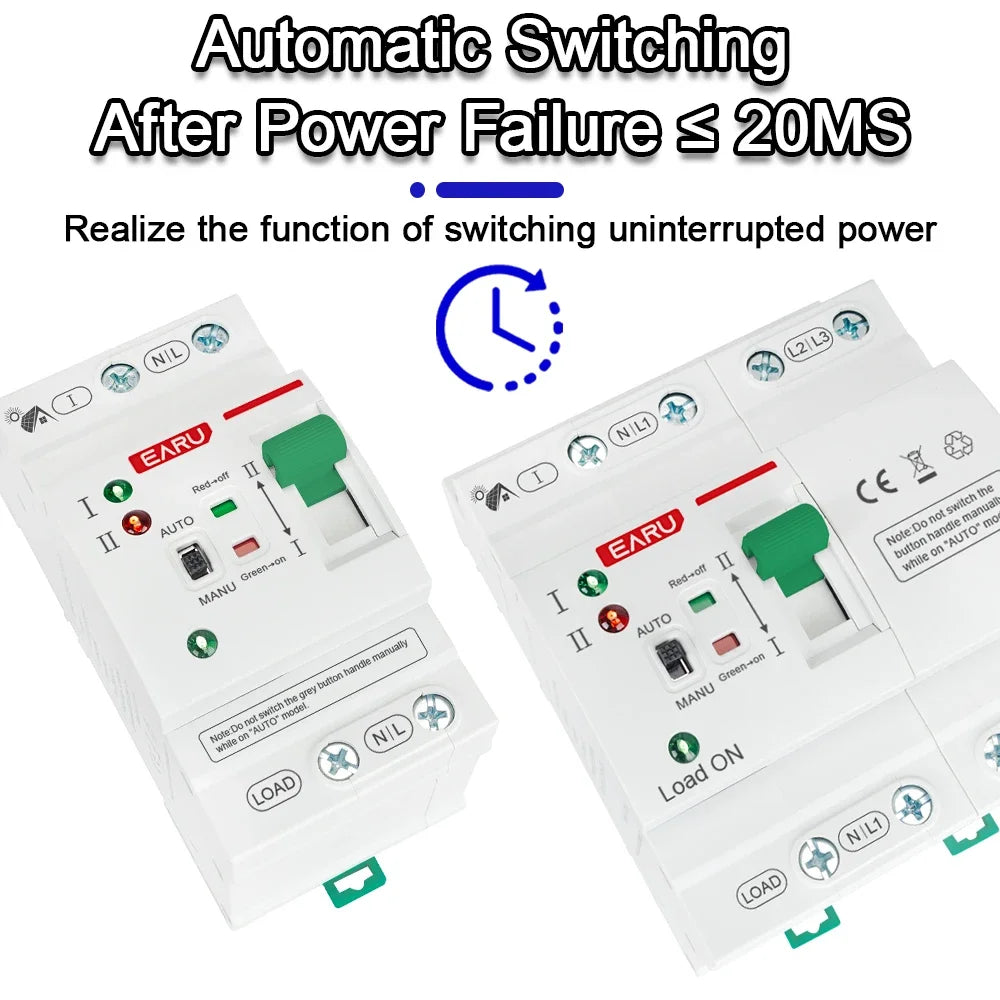

Transfer Action Time: 20ms

Tse Class: PC

Type: Mini,Circuit breaker

Working Voltage (L+N) 1: AC220V/230V

Working Voltage (L+N) 2: AC110V

is_customized: Yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

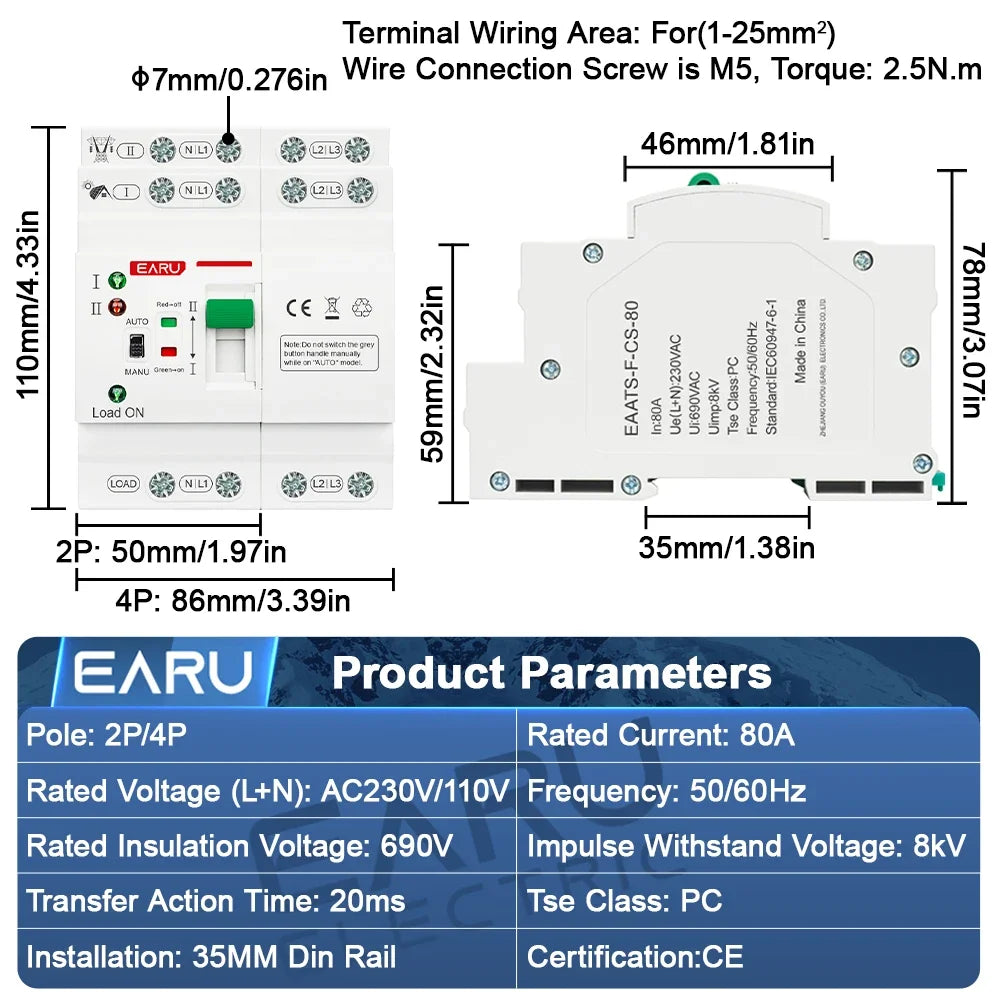

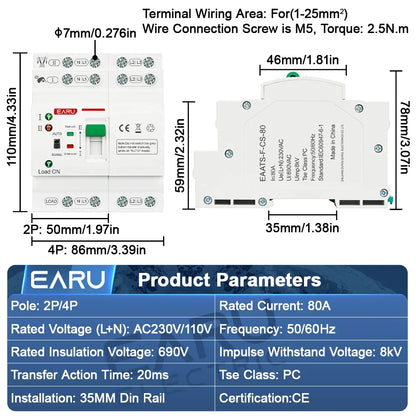

Specificaions

Pole: 2P/4P

Work Voltage(L+N): AC230V/110V

Frequency: 50/60Hz

Working Current: 80A

Insulation Voltage: 690V

Impulse Withstand Voltage: 8kV

Transfer Action Time: 20ms

Mechanical Durability: ≥6000 Times

Electrical Endurance: ≥1500 Times

Case Grade: 80

Utilization Category: AC-31B

Tse Class: PC

Certification: CE

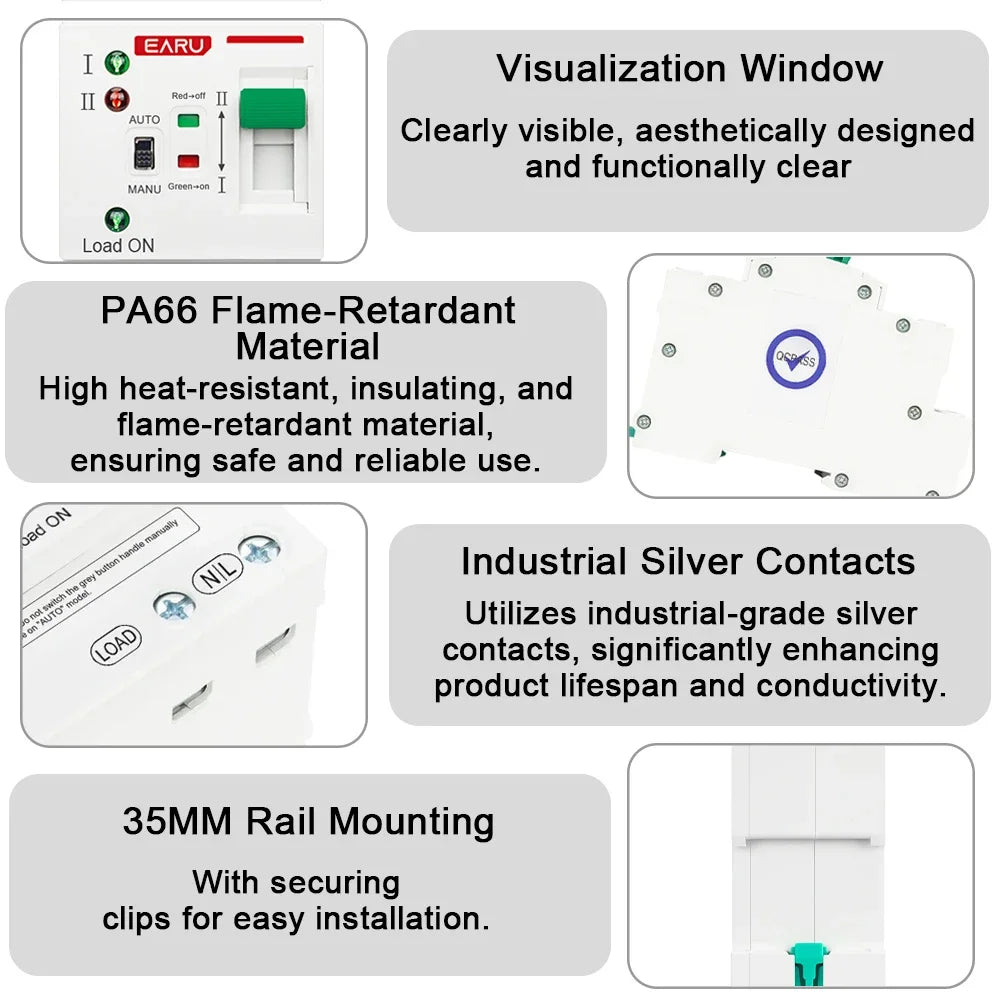

Installation: 35MM Din Rail

Note:

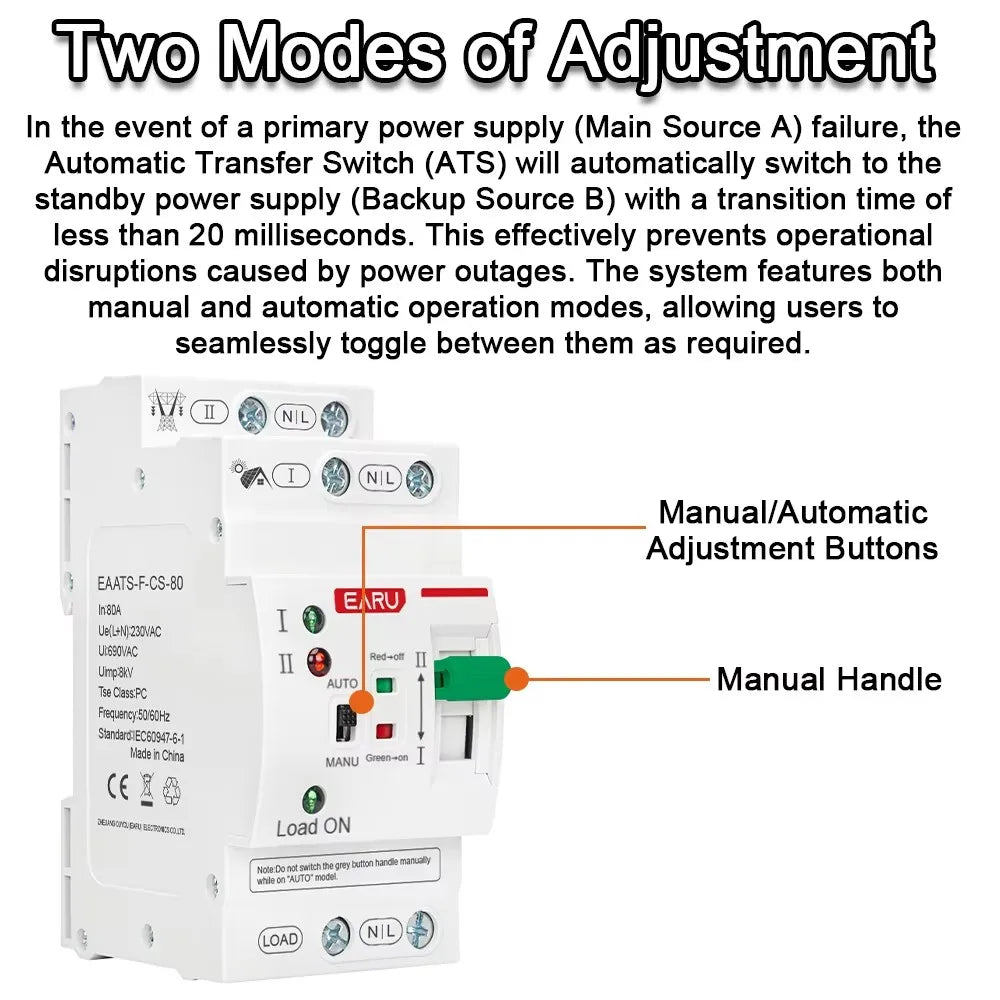

1.When manual operation the mode selection switch must be in 'Manual' position.

2.The switch cannotbe manually switched when in automatic mode, otherwise the coil may burn out.
