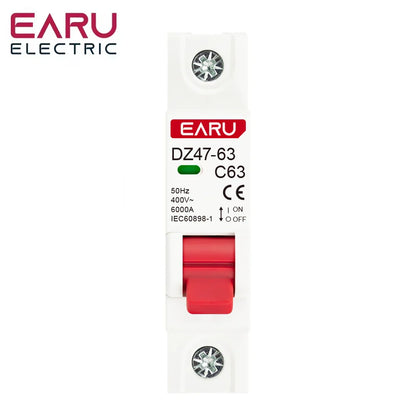

1P AC 230/400V MCB DZ47 Type C Circuit Breaker Overload Protection Short Circuit Protection Small Household Main Switch Din Rail

1P AC 230/400V MCB DZ47 Type C Circuit Breaker Overload Protection Short Circuit Protection Small Household Main Switch Din Rail

£4.00 GBP
£0.00 GBP £4.00 GBP
Sale Sold out
Taxes included.
Rated Current
Ships From

⚡ 1P AC 230/400V MCB DZ47 Type C Circuit Breaker Overload Protection Short Circuit Protection Small Household Main Switch Din Rail

Discover the 1P AC 230/400V MCB DZ47 Type C Circuit Breaker Overload Protection Short Circuit Protection Small Household Main Switch Din Rail — a high-performance solution designed for reliability and efficiency in renewable energy applications. Engineered for seamless integration with modern energy systems.

📌 Key Features

  • ✅ Professional-grade design for long-term reliability
  • ✅ Optimized for renewable energy system integration
  • ✅ Durable construction for various applications
  • ✅ Comprehensive technical specifications

📄 Technical Specifications

Breaking Current: 6000A

Certification: CE

Choice: yes

Electric Current: 3A 6A 10A 16A 20A 25A 32A 40A 50A 63A

High-concerned chemical: None

Is Smart Device: No

Model Number: DZ47-63

Origin: Mainland China

Pole Number: 1P

Rated Voltage: 220V

Type: Mini,Circuit breaker

is_customized: Yes

semi_Choice: yes

We can offer OEM service to manfacture the circuit breaker with your logo,

if you need,feel free to contact the seller


Application

C45N series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and it's installation uses with guide, it's case and items are adopted with high fire-retartant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz, single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.IEC60898-1

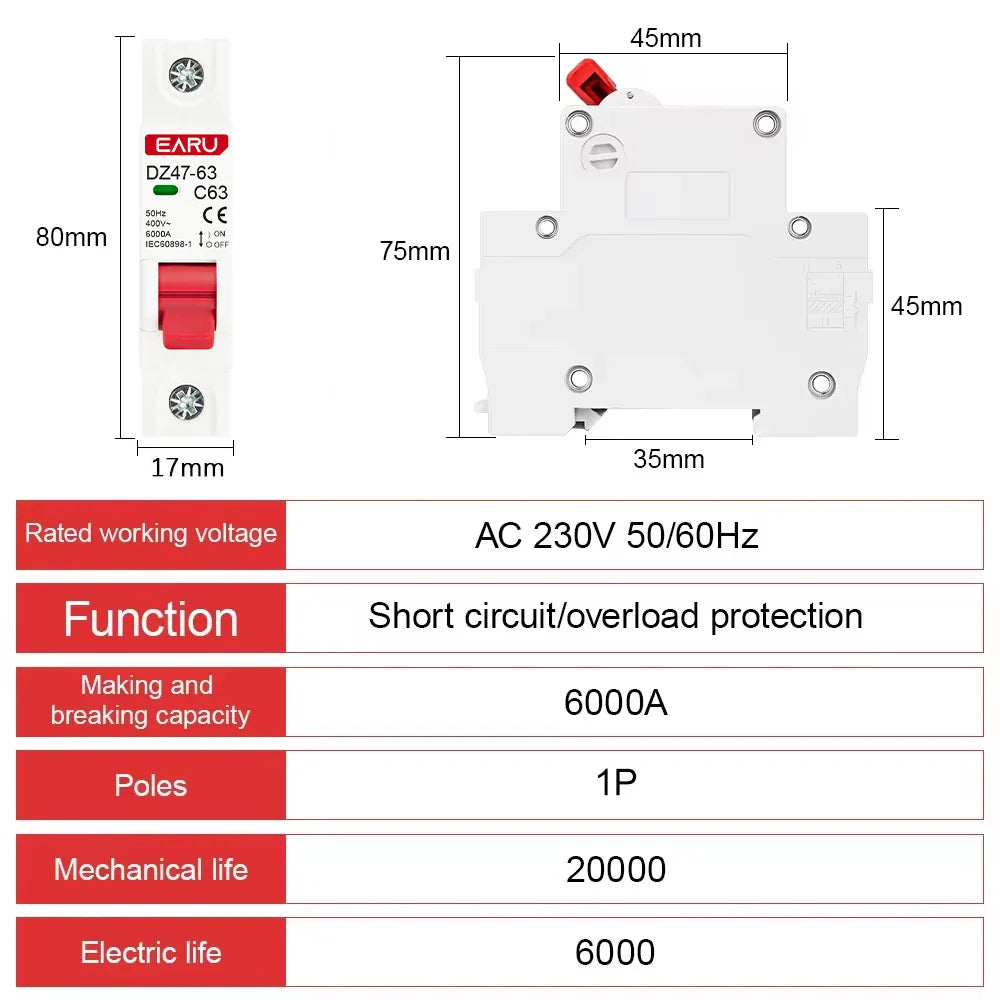

Specificaatios

Poles:1P
Rated Current (In) : 3A-63A
Rated Voltage (Ue):1P:230/400V~;2P-4P:400V of 1P:240/415V~;2P-4P:415V
Working Frequency:50/60Hz
Tripping Curves:C
Breaking Capacity:6kA
Mechanical Life:20000 time
Electrical Life:6000 time
As Per Instantaneous Release Type:C type (5ln~10ln)
